SECO-LARM ENFORCER EV-Y2251-A2WQ User manual

4-in-1 HD TVI, CVI, AHD, Analog
Turret Cameras
Manual
EV-Y2501-
A
2WQ shown
ICR Module
D-WDR (Digital Wide Dynamic Range)
Joystick OSD control
Heavy-duty vandal-resistant design
Rugged, weatherproof (IP66) construction
Split-glass design eliminates IR reflection
Cables concealed in bracket to
prevent tampering
Features:
Model # Lens Resolution Voltage Style Color
EV-Y2251-A2WQ 2.8mm 2MP 12VDC Turret White
EV-Y2251-AMWQ 2.8~12mm 2MP 12VDC Turret White
EV-Y2501-A2WQ 2.8mm 5MP 12VDC Turret White
EV-Y2501-A2GQ 2.8mm 5MP 12VDC Turret Gray
EV-Y2501-AMWQ 2.8~12mm 5MP 12VDC Turret White
EV-Y2501-AMGQ 2.8~12mm 5MP 12VDC Turret Gray

ENFORCER 4-in-1 HD Turret Cameras (TVI, CVI, AHD, Analog)
2SECO-LARM U.S.A., Inc.
1x Turret camera 3x Screws 3x Screw anchors
1x Power Balun 1x OSD Manual 1x Mounting template
1x Manual
F
N
F
o
C
U
S

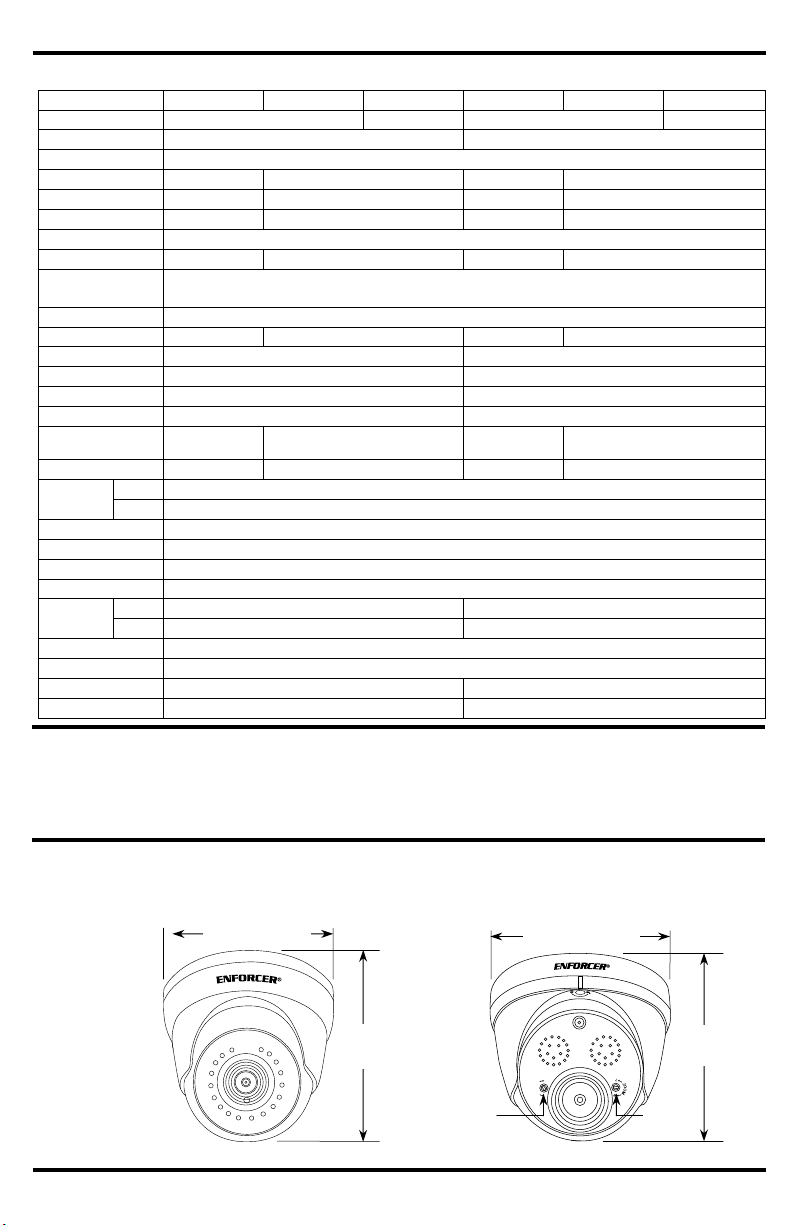

Specifications:
Parts List:
Model EV-Y2251-A2WQ EV-Y2501-A2WQ
EV-Y2501-A2GQ EV-Y2251-AMWQ EV-Y2501-AMWQ EV-Y2501-AMGQ
Housing color White Gray White Gray
Type Fixed Turret Camera Varifocal Turret Camera
Formats TVI (Default) / CVI / AHD / Analog (CVBS)
CMOS 1/2.7" 2MP CMOS 1/2.7" 5MP CMOS 1/2.7" 2MP CMOS 1/2.7" 5MP CMOS
Resolution (HD) 1920x1080 2592x1944 1920x1080 2592x1944
3DNR Yes No Yes No
2DNR Yes
D-WDR No Yes No Yes
OSD (On-Screen
Display) Yes
Cable OSD control Yes
Megapixels 2MP 5MP 2MP 5MP
Lens 2.8mm ICR 2.8~12mm ICR
Viewing Angle 121° 38°~138°
# of IR LEDs 18 (SMT) 40 (SMT)
IR Range Up to 65ft (20m) Up to 148ft (45m)
FPS PAL:25FPS
NTSC:30FPS 20FPS PAL:25FPS NTSC:30FPS 20FPS
F Stop F1.6 F2.0 F1.6 F2.0
Minimum
illumination
IR On 0Lux
IR Off 0.05Lux
S/N Ratio 35dB
Shutter control Auto
Gain control Auto
Operating voltage 12VDC
Current
Draw
IR On 320mA 440mA
IR Off 80mA 80mA
IP Rating IP66
Operating temperature -22°~131° F (-30°~55° C)
Dimensions ø315/16"x39/16" (ø100x90 mm) ø415/16"x45/16" (ø125x110mm)
Weight 16.72-oz (474g) 1-lb, 9.3-oz (720g)
Overview:
EV-
Y
2251-A2WQ / EV-
Y
2501-A2WQ
/ EV-Y2501-A2GQ:
EV-
Y
2251-AMWQ
/
EV-
Y
2501-AMWQ
/ EV-Y2501-AMGQ:
ZoomFocus
ø315/16" (ø100mm)
39/16"
(90mm)
ø415/16" (ø125mm)
45/16"
(110mm)

ENFORCER 4-in-1 HD Turret Cameras (TVI, CVI, AHD, Analog)
SECO-LARM U.S.A., Inc. 3
1. Use the camera within the given temperature
and voltage limits.
2. Do not point the camera at the sun. Heat could
damage the camera, even when not in use.
3. Do not subject the camera to strong vibrations.
4. Do not mount the camera in areas exposed to
radiation, strong magnetic fields, or strong
electrical signals.
Before Starting:
1. Run a 12VDC power supply wire and a video
cable with a male BNC connector through the
wall to where the camera is to be mounted.
2. Loosen the outer case ring and remove the
case from the base.
NOTE: The camera ball is NOT attached to the case
or the base. It sits loose inside the case. Therefore,
be very careful when removing the case from the
base. Do not drop the camera ball.
3. Mount the base to the wall using the three
included mounting screws. If the wall is made
of dry wall, brick, or similar material, it may be
necessary to use the included screw anchors.
4. Run the camera’s BNC and power connectors
through the camera base, and connect to the
video and power wires that were run through
the wall.
Installation:
6. Put the case over the camera ball and onto the base.
7. Holding the case loosely on the base, turn the camera
ball to the desired direction. Use a small screwdriver to
adjust the zoom and focus of the camera ball if needed,
via the holes marked "ZOOM" and "FOCUS" on the top
of the camera ball (EV-Y2501-AMWQ,
EV-Y2251-AMWQ, and EV-Y2501-AMGQ only).
NOTE: Before securing installation, make sure to check both the day
and night images. Adjust the camera ball in a way so that there
are no objects blocking the camera’s view.
8. Use the OSD controller joystick to adjust camera
settings (see the separate OSD manual).
9. Once the ball is pointing in the desired direction, tighten
the outer case ring to secure the camera in its position.
10.Do a final test of the video camera and monitor.
Overview:
Camera ball
Case
Base
Female BNC connector
DC Jac
k
OSD Controller
EV-Y2501-
A
2WQ, EV-Y2501-
A
2GQ, and EV-Y2251-
A
2WQ shown above.
Screws
Important: Do not cut any wires as the warranty will be voided.
OSD Controller Settings:
To set format via the OSD controller, move the
controller in the direction of the desired setting, hold
for 5 seconds, and release when the camera restarts.
See chart below.
Direction Format Setting
Up
A
HD
Down CVBS/Analog
Left TVI
Right CVI
UP
NOTE: Do not press joystick in when setting different modes.
BNC
Connector
Camera

ENFORCER 4-in-1 HD Turret Cameras (TVI, CVI, AHD, Analog)
4SECO-LARM U.S.A., Inc.
MI_EV-Y2xx1-
A
xxQ_191206.docx
PICRN3
Troubleshooting:
The screen is black
Check that the camera is powered up
Check that the power supply’s polarity is correct
Check that the monitor is powered up
Check that the video cable connecting the camera to the monitor is
connected properly
The image is foggy or washed out at night Check that there are no objects very close to the camera
Check that there are no highly reflective objects in the scene
The screen image is dim
Clean the lens using a soft, clean cloth
Check that the light source is adequate
The screen image has poor contrast Adjust the monitor’s contrast knob
Change the position of the camera
The screen image flickers Change the position of the camera, check cables and format setting
The screen image is distorted Change the position of the camera, check cables and format setting
The camera case is hot Check that the correct power supply is in use
IR LEDs do not turn on Check that the correct power supply is in use
WARNING: Stop using the camera if you see a malfunction such as smoke or unusual heat, as it could cause fire or electric
shock. Do not open the case of this device, as there are no user-serviceable components inside.
Do not cut any wires as the warranty will be voided.
IMPORTANT: Users and installers of this product are responsible for ensuring this product complies with all national, state,
and local laws and statutes related to monitoring and recording audio and video signals. SECO-LARM will not be held
responsible for the use of this product in violation of any current laws or statutes.
FCC COMPLIANCE STATEMENT
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT
ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
Notice: The changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the
device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure
re
q
uirements and void user’s authorit
y
to o
p
erate the device.
NOTICE: The SECO-LARM policy is one of continual development and improvement. For that reason, SECO-LARM
reserves the right to change specifications without notice. SECO-LARM is also not responsible for misprints. All trademarks
are the property of SECO-LARM U.S.A., Inc. or their respective owners. Copyright © 2020 SECO-LARM U.S.A., Inc. All
rights reserved.
WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal
service for three (3) years from the date of sale to the original customer. SECO-LARM’s obligation is limited to the repair or
replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if
damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration,
improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is
not operating properly as a result of causes other than defects in material and workmanship. The sole obligation of
SECO-LARM and the purchaser’s exclusive remedy, shall be limited to the replacement or repair only, at SECO-LARM’s
option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential personal or property
damage of any kind to the purchaser or anyone else.
SECO-LARM®U.S.A., Inc.
16842 Millikan Avenue, Irvine, CA 92606 Website: www.seco-larm.com
Phone: [phone] | [phone] Email: [email protected]
