Security Brands SECURE PASS CR1 User manual

1 of 2
Model 40-100
QUICK START GUIDE
1
A2 A3
A7A5 A6
A4
IMPORTANT
rr
Unpack box and make sure you have all items shown here.
(Hex nuts to mount to controller faceplate should be with faceplate)
Drill 5/8-inch pass-through hole in
surface in center of desired reader
mounting location.
Feed Reader Base wiring through
pass-through hole, and wire reader to
Wiegand controller (not included).
Snap Reader Cover onto Base, lining up
LED lens on Base with slot in Cover.
Parts will snap together securely.
Hold Reader Base against mounting
surface, and use nail to tap two marks.
Reader Cover Self-Tapping Screw
( 2x )
Mount Reader Base to surface using
Self-Tapping Screws. Use drywall
anchors (not included) if desired.
Power up Wiegand controller, and
make sure Reader is working correctly
by scanning a valid card (not included).
Faceplate Screw
( 2x )
Reader Base
Refer to Wiegand controller instructions for wiring
details. If controller only has one LED terminal, connect
gray wire (green LED) for standard operation.
Nail not included.
If mounting the proximity card reader to a
surface like a wall or door frame, proceed to
Step A2 on this page.
If mounting the proximity card reader to a
controller faceplate, remove the cover plate or
current card reader, keep the hex nuts handy,
and proceed to Step B2 on the next page.
Pre-drill
appropriately
sized holes
if using anchors
or if mounting
to metal.

© 2022 Security Brands, Inc. All rights reserved.
2 of 2
QSG-40100-EN Rev. A (6/2022)
Model 40-100
QUICK START GUIDE
Call [phone]
Email [email protected]
We are available Mon–Fri / 8am–5pm Central
CB2
B3
B4 WARNING

Feed Reader Base wiring through
pass-through in controller faceplate,
and wire to Wiegand inputs (Section C).
Power up Wiegand controller, and
make sure Reader is working correctly
by scanning a valid card (not included).
Attach Reader to faceplate using
Faceplate Screws and existing hex nuts;
then snap Reader Cover onto Base.
Typical Wiring
(For many Wiegand controllers including Security Brands controllers)
IMPORTANT! Refer to your Wiegand controller manual/instructions for wiring details.
Reader Wire Harness Guide
Wiegand Controller

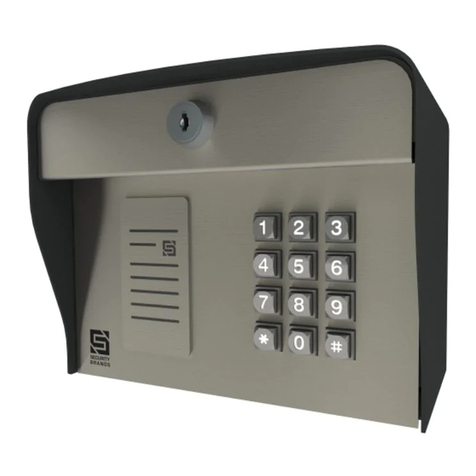

Edge (27-210) “Wiegand 1” Terminals Shown
If controller only has one LED terminal,
connect gray wire (green LED) for
standard operation.
Red DC Power (+)
Black Ground (GND)
Green Data 0
White Data 1
Gray Green LED
Brown White LED
Yellow Beep Control
Blue Hold
CAUTION! Do NOT exceed 16 VDC! Overpowering reader may permanently damage it!
To Proximity Card Reader
+12V
GND
LED 1 LED 2
DATA 0 DATA 1
Reader is designed to fit and connect to Edge E1, E2,
E3, and Ascent K2 units (not included).
AUTOMATIC GATES CAN CAUSE SERIOUS
INJURY OR DEATH!
ALWAYS CHECK THAT THE GATE PATH IS
CLEAR BEFORE OPERATING!
REVERSING OR OTHER SAFETY DEVICES
SHOULD ALWAYS BE USED!
