Delkin Devices 4 User manual

© Copyright Delkin Devices, Inc., All rights reserved. No part of this publication
may be reproduced in any form, or by any means without prior written permission
of Delkin Devices, Inc.
Printed in USA MNCA0008 • Rev 2.1
Delkin Part No. DDREADER-04
To prevent damage to the module or user, follow these basic handling guidelines
•Do not drop, bend or dismantle the module.
•Keep cool and dry. Avoid exposure to heat or liquids.
•Avoid dust, excessive vibrations and volatile substances.
•Keep away from electromagnetic sources, such as magnets,
monitors, speakers and transformers.
Delkin Devices, and eFilm are registered trademarks of Delkin Devices, Inc. All other brand names, trademarks
and part numbers are the property of their respective owners. They are used for identification purposes only, andin no
way imply ownership by Delkin Devices.
eFilm RFilm R
Film RFilm R
Film Ree
ee
eaa
aa
ader-4der-4
der-4der-4
der-4
USB PUSB P
USB PUSB P
USB Poror
oror
ortt
tt
t
SmarSmar
SmarSmar
SmartMedia CartMedia Car
tMedia CartMedia Car
tMedia Card Rd R
d Rd R
d Readereader
eadereader
eader
User’User’
User’User’
User’s Mans Man
s Mans Man
s Manualual
ualual
ual
For use with Windows 2000/ME/98,
Windows 95 OSR2.1 (4.00.95b) and Apple Mac OS 8.5+
NOTE: Please install drivers BEFORE connecting USB plug

Table of Contents
Introduction 1
Included Components 1
Driver Software Installation for Windows 2000/ME/98/98 SE 1
Driver Software Installation for Apple Macintosh 2
Hardware Installation 2
Inserting a SmartMedia Card 2
Basic Operation 3
Removing a SmartMedia Card 3
Formatting a SmartMedia Card 4
Operational Notes 4
Network - Windows Drive Letter Assignment 5
Windows Troublshooting 6
Macintosh Troublshooting 7
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○ ○ ○ ○ ○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○ ○ ○○○○○○○○○○○○○○○○○
○ ○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
The eFilm Reader-4 will accept
SmartMedia Cards up to 128MB.
It’s ‘hot swappable’ - You can
insert and remove SmartMedia
Cards without the need to shut
down the computer.
Connect to USB
socket of computer
Note the shape of the
connectors. Be sure to
properly align these shapes
when atteching cables.
NEVER force a connection,
as this may damage either of
the connecting devices.
SmartMedia Card socket
(insert gold-side down)

Delkin Devices User’s Manual Page 1
Introduction
Thank you and congratulations on your purchase of the eFilm Reader-4 SmartMedia
Card to USB reader/writer. Before you begin use of this product, please take some time
to read all instructions and warranty information.
The Reader-4 is designed to read and write to SmartMedia Cards. It is a convenient
bridge between your computer and SmartMedia Card compliant devices. The media is
accessed the same as a removable drive; in Windows, it will appear as a Removable
Disk icon in My Computer, and on a Macintosh it will appear as an icon on the desktop.
Please look to our web site at http://www.delkin.com for FAQs and current information on
compatibility issues as well as the latest software drivers.
Included Components
❏eFilm Reader-4 ❏Driver CD ❏Registration Card ❏ Manual
System Requirements
IBM compatible desktop or laptop PC
•Windows 2000/ ME/98 and Windows 95 OSR 2.1 version 4.03.1214 (4.00.95b)
•USB port
Apple Macintosh desktop or laptop
•MAC OS 8.5+
•USB port
Driver Software Installation Procedure for Windows® 2000/ME/98 &
95 OSR2.1 (4.00.95b)
Before connecting the eFilm Reader-4, you must install the device drivers located on the
accompanying CD-ROM. Early versions of Windows 95 do not support USB devices,
and need to be upgraded. If you are running Win95, you will want to check your system
before proceeding.
How to Determine Version of Windows 95 in Use
Windows 95 with OEM Service Release (OSR) 2.1 and 2.5 will recognize eFilm
Reader-4. In some cases the USB utility will need to be installed from the Win 95 CD.
To determine the version of Windows 95 you are running, follow these steps:
1. Start Windows, then right-click on My Computer and select Properties.
2. On the General Tab, locate the version number under the System heading.
•For OSR 2.1, the system will list version 4.03.1214 (4.00.950B).
•For OSR 2.5, the system will list version 4.03.1214 (4.00.950C).
You can also display the version number in the MS-DOS window by typing “ver” and hit
Enter.
USB SmartMedia Card Reader DDREADER-04

Page 2 Delkin Devices User’s Manual
Note: OSR 2.0 is also called version B (4.00.950B), but it does not support the eFilm
Reader-4. The 1214 version number must be present for your system to use the
Reader-4. If your version is lower (older) than these, you will need to upgrade to
Windows 98 for your computer to recognize the eFilm Reader-4.
USB SmartMedia Card Reader DDREADER-04

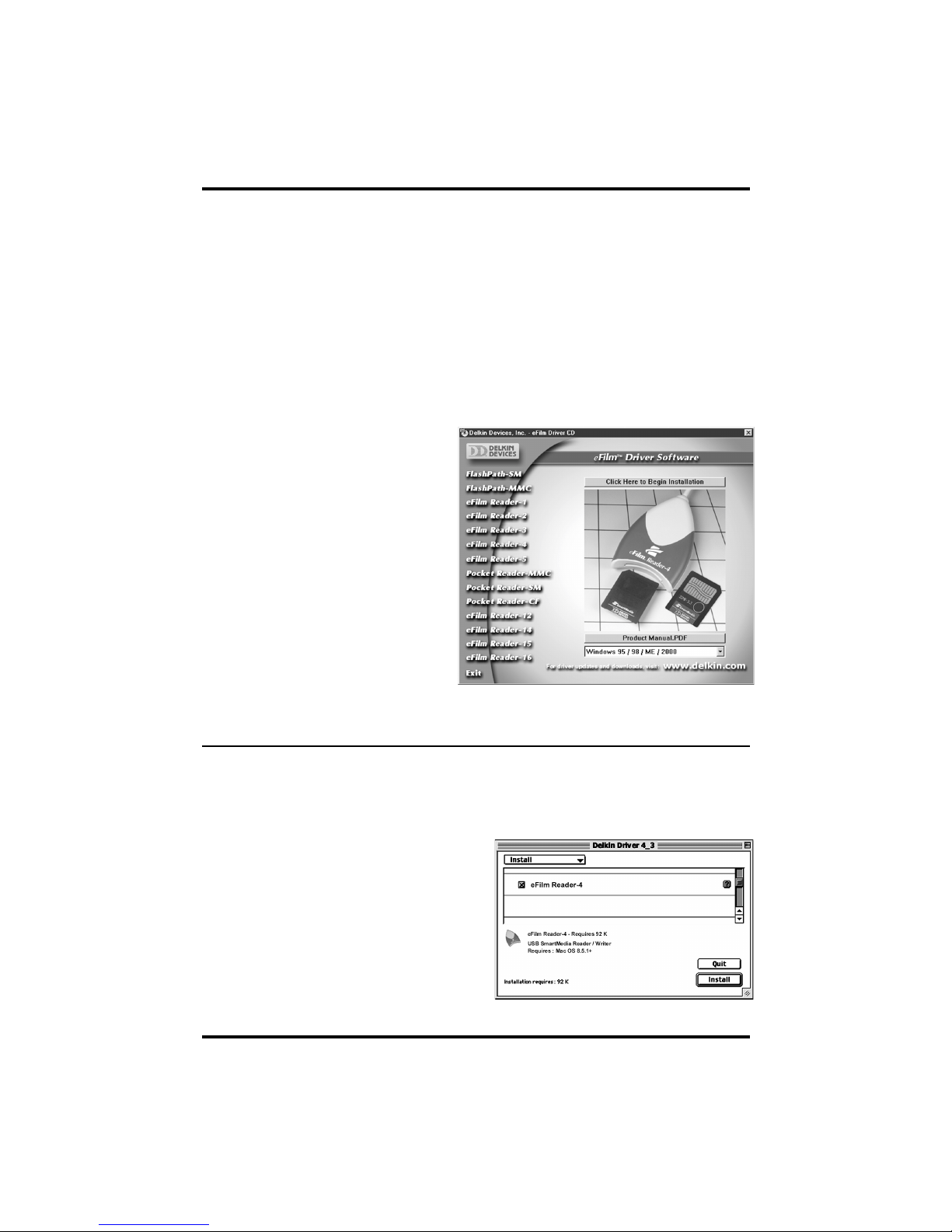

Figure 1: Windows Installation Program
Driver Software Installation Procedure for Apple Macintosh
Before connecting the eFilm Reader-4, you must install the device drivers located on the
accompanying CD-ROM. To avoid compatibility issues, install only the Reader-4 driver.
Slot or front loading CD-ROMs may not function correctly with a 3” CD disk. For these
systems it is recommended that you download the driver from www.delkin.com
Figure 2: Macintosh Installation Program
Driver Installation Procedure
1. Start Windows and close any other applications during installation.
2. Insert the Delkin Devices driver CD-ROM. If the CD does not start automatically,
double click on the CD-ROM drive in My Computer. The CD will open in a driver
insallation application. (See Figure 1)
3. Click Reader-4 from the list of products on the left. There is a single installer for all
Windows operating systems.
4. Verify that your product matches
the one pictured on the screen.
5. Click the button labeled Click Here
to Begin Installation and follow the
on-screen instructions. For best
results,allow the drivers to be
installed into the default locations.
6. When the Setup Complete screen
appears, click the Finish button.
7. Connect the Reader-4 to the USB
port or hub.
8. You may now insert a SmartMedia
Card and access it like other drives
by clicking the Removable Disk
drive icon inMy Computer.
Prior to any software installation always ensure
you have backed up your hard driveand
prepared a recovery disk.
1. Insert the Driver CD-ROM, then double-
click on the CD icon when it appears.
2. Select eFilm Reader-4 from the product
list. (See Figure 2)
3. Click the button labeled Install and follow
the on-screen instructions. Select Restart
Computer after installation is complete.

Delkin Devices User’s Manual Page 3
Hardware Installation
After you have installed the drivers, insert the USB plug of the Reader-4 directly into the
USB port of your computer. See inside front cover for illustration.
DDREADER-04 USB SmartMedia Card Reader
Basic Operation
Windows
The SmartMedia Card will appear as a drive icon
in My Computer. It can be accessed the same as
a removable hard disk. On some systems, the
drive icon will not appear unless a card is installed.
To copy files from your card to your hard disk or
vice versa, perform the following steps:
1. Double-click on My Computer.
2. Double-click on the Removable Disk icon.
Figure 3:
Inserting a SmartMedia Card
3. Simply “drag and drop” folders or individual files to a desired location.
Macintosh
The SmartMedia Card will appear as a drive icon on the desktop. It can be accessed
the same as a removable hard disk.
To copy files from your card to your hard disk or vice versa, perform the following steps:
1. Double-click on the icon that appears on the desktop.
2. Hold the Option key down and simply “drag and drop” folders or individual files to a
desired location.
Windows and Macintosh users please note the following:
•In order to access file formats such as JPEG, TIFF or MP3, you will need a software
program that can open these files. Most digital devices that use specific formats will
include software to access the files. Refer to your device manual for more informa-
tion.
•When transferring files to a common location on your computer, it is recommended
that you re-name the files to avoid overwriting previous files. Most cameras simply
number the picture files and begin at 001 when a blank card is inserted. This can
result in two or more files on your computer having the same name, prompting you
to overwrite.
Inserting a SmartMediaCard
Position the card with the arrow-side up and toward the
reader and the gold contact side down. Insert it gently
but firmly into the slot. Be careful to insert the card in
the proper direction. Inserting a card up-side down or
forcing it may result in damage to the card and/or
reader. (See Figure 3)

Page 4 Delkin Devices User’s Manual
Formatting a SmartMedia Card
Although most cards are factory formatted, some cameras and SmartMedia Card
devices may require the card to be formatted in the camera or device before initial use.
Some devices, such as MP3 players, use a proprietary format that will make the card
unrecognizable to the computer or camera. Refer to the device manual for more
information. Macintosh users: It is strongly recommended that you DO NOT format
cards with the computer, as the Mac file system is not recognized by most devices and
could make the card unreaable by your device. Format cards using the camera or
device.
•Formatting a SmartMedia Card will erase all pictures or files on the card.
•Formatting should be performed in the camera or SmartMedia Card device to insure
compatibility.
•Formatting should not be used to clear unwanted files from the card.
If you do wish to format a card with a computer, perform the following steps:.
1. In My Computer, right-click on the appropriate Removable Disk.
2. Select Format and follow on-screen instructions.
Note: a corrupt or malfuntioning SmartMedia Card can be reformatted using the
SMPREP program located in the Start/Programs/Reader-4 menu.
Operational Notes
•A corrupt file on your SmartMedia Card can cause a device failure or system crash
when transferring files to your computer. Recovery programs such as Scandisk can
be used to detect and repair most disk errors. It may also be necessary to re-format
the card, which will erase all files stored on the card. Some of the causes of file
corruption are:
> Unsteady power supply while transferring files, such as a low camera battery or
improperly connected reader.
> Card removed from reader or camera, or any other type of interruption while
transfering or accessing files.
> Improperly formatted card.
•A SmartMedia Card that cannot be accessed by the Reader can be placed back in
the camera, where the cameras picture viewing option can be used to determine if
the card is functioooning normally. If the card no longer functions in the camera,
this may indicate a file corruption or other problem with the card.
Removing a SmartMedia Card
First close any files residing on the card that are open. This will prevent errors from a
program trying to access data on a card no longer in the Reader. On a Macintosh, drag
the card icon to Trash before removing the card.
••
••
•DO NOT remove the SmartMedia Card while files are being accessed or trans-
ferred. This could result in loss of data and/or damage to the card.
To remove a SmartMedia Card, simply pull it from the Reader.
USB SmartMedia Card Reader DDREADER-04

Delkin Devices User’s Manual Page 5
•Minor malfunctions while using the Reader-4, such as system hangs, can usually be
resolved by simply re-booting the computer. Serious or recurring malfunctions may
require a re-installation of the Reader-4 drivers.
Your new Reader is part of a system of components that must function correctly and
compatibly in order to complete the simple process of moving files from your device to
your computer. The components involved are the Reader, SmartMedia Device, Camera,
Storage Card, Computer (and its numerous components), USB Interface, Software
Drivers, and Operating System.
Network Conflicts - Windows®2000, ME, 98 Drive Letter Assignment
The following procedure may be necessary when installing the e-Film Reader-4 onto a
computer connected to a network. In some cases, the computer may assign the
Reader-4 a drive letter that has already been assigned to another drive, such as a
network drive. This usually occurs after re-booting the computer with the Reader-4
connected. To avoid this conflict, the Reader-4 can be assigned an available drive letter
after you connect it to the computer but before re-booting. For more information, contact
your network administrator. If your computer is not connected to a network, and there
are no drive letter conflicts, these steps will not be necessary.
Windows ME and 98
1. With the power ON, connect the Reader-4 to the computers USB port. The Reader-4
will show up as a removable disk icon in My Computer. Also, note the drive letters
assigned to any network drives.
2. Right click the My Computer icon on the desktop.
3. Select Properties from the menu.
4. Click the Device Manager tab.
5. Click the plus sign (+) next to Disk Drives.
6. From the list of drives, double click eUSB SmartMedia to bring up a properties
window.
7. Click the Settings tab.
8. In the section labeled Reserved drive letters; use the arrow to select and assign a
Start drive letter (the End drive letter will change as well). Select a letter that does not
conflict with any other drives. This is best accomplished by selecting a letter that is
farther down the alphabet than any of your network drives. You will need to re-boot for
the changes to take effect.
Windows 2000
The drive letter assigned to the Reader-4 can be manually assigned through Disk
Management, located under Administrative Tools. You must be logged on as System
Administrator and a SmartMedia Card must be inserted in the reader before you can
make these changes.
DDREADER-04 USB SmartMedia Card Reader

Page 6 Delkin Devices User’s Manual
Troubleshooting
This is a very basic troubleshooting list. If your problem isn’t solved by those listed,
Please visit our web site http://www.delkin.com for FAQs and current information on
compatibility issues as well as the latest software drivers. Or see the back page for
contacting Tech Support.
SYMPTOM CAUSE SOLUTION
The “Removable Disk” icon
does not appear in the “My
Computer” window.
The driver software may not
have been properly installed .
The reader is not connected
properly.
The SmartMedia Card is not
inserted fully.
This OS version does not
support USB.
Reinstall from CD or update
driver software in Device
Manager - specifying the
Reader-4 folder on drive C:\
Unplug the reader and plug it
back in.
Remove and reinsert the card.
Upgrade to a newer OS
version.
The reader doesn’t appear to
be powered.
I’ve just received the dreaded
Windows “Blue Screen”.
Loose or improper cable
connections.
Insufficient power from the
computer.
Check all cable connections
and power cords.
Connect the reader directly
into the computer’s USB
socket.
The card has been removed
while a file is still open on the
card.
The card was removed during
a read/write operation.
Recover if possible. But more
than likely you’ll need to restart
Windows.
Wait 5 to 10 seconds after any
activity before removing the
card. To avoid problems, you
can copy the data to the hard
drive before accessing it.
Windows
USB SmartMedia Card Reader DDREADER-04

Delkin Devices User’s Manual Page 7
Apple Macintosh
SYMPTOM CAUSE SOLUTION
The “Removable Disk” icon
does not appearon my destop. The driver software may not
have been properly installed .
The reader is not connected
properly.
The SmartiMedia Card is not
inserted fully.
Reinstall from CD or download
driver from www.delkin.com
Unplug the reader and plug it
back in.
A SmartMedia Card must be
inserted in order for an icon to
appear on the desktop.
An error message appears
during driver installation. Possibly a conflict with another driver or program. Try installing the drivers with extensions off (hold the shift
key down during boot-up).
After downloading files, the file
icons dissapear when the card
is removed.
The files where not copied to
the hard drive. The Option key must be held
down while copying files to the
computer. Otherwise, only the
icons are placed on the hard
drive.
DDREADER-04 USB SmartMedia Card Reader
Test Drive Your Equipment
We advise that you put all of your equipment through a dry run before transferring
important or irreplacable files. This will not only insure that your equipment is function-
ing, but will also familliarize you with the transfer process.
Copy a few files to the SmartMedia Card using your SmartMedia Device. Then insert
the card into the Reader and use the transfer method you are most comfortalble with –
drag and drop, copy and paste, etc. Some devices, such as MP3 players, require third
party software to access files. Refer to the device manual for information. Once the files
are stored on your hard drive, access them one at a time and check that they are to your
satisfaction. Experiment until you are happy with the results and comfortable with the
process. Then you can simply delete the test files from the card to return it to its
original state.

Specifications
Specifications
DD MFG Part Number: DDREADER-04
Compatible Cards: SmartMedia cards
Compatible OS: Windows 2000/ME/98/98 SE and
Apple Mac OS 8.5.1+
Host Interface: USB (Universal Serial Bus) port
Transfer Rate: Up to 900 KB/s sustained Read, 470 KB/s
sustained Write
Power Consumption: 90mA typical (30mA w/o media)
EMI/RFI Rad Limits: Class B
Dimensions: 67mm (W) x 73mm (L) x 26mm (H)
Weight: ~113g
Operational Environment: Temp: 0-60°C
Shock: 2000 Gs maximum
Humidity: 5% to 96% (non-condensing)
○○○○○○
○○○○○○○○
○ ○ ○ ○○○○○○○
○ ○○○○○○○○○
○ ○ ○○○○○○○○
○ ○ ○ ○○○○
○ ○○○○○○○
○○○○○○○○○○○
○○○○○○○○○○○○○○
○ ○ ○○○

FIVE YEAR PRODUCT WARRANTY
Delkin Devices, Inc. (DDI) warrants that this product has been thoroughly tested and is
free from defects in material and workmanship. This warranty is expressly limited to
product repair, modification, or replacement, at the sole discretion of DDI. The maximum
liability for any aspect of this warranty will be limited to an amount not exceeding the
original product purchase price.
This warranty is contingent upon proper use of the product in the application for which it
is intended and does not cover any product that has been modified, mis-used, neglected
or subjected to unusual physical stress. DDI will not repair or replace products that fail
solely because their estimated ‘life’ has expired.
The defective product must be returned to DDI. All shipping costs/ shall be the responsi-
bility of the purchaser. State and local laws may apply.
You will need a Return Merchandise Authorization (RMA) number before you return the
product. Please contact DDI for assistance in getting an RMA number.
Disclaimer
Except as provided herein, there are no express or implied warranties of merchantability
or fitness for a particular purpose. Under no circumstances will DDI be liable in any way
for any damages, including but not limited to lost revenue, lost wages, or any other
incidental or consequential damages arising from the use of or inability to use this
product.
The warranty set forth above is exclusive and no other warranty, whether written or oral,
is expressed or implied.
Delkin reserves the right to change specifications of hardware, software and instructions
without notice.
Delkin Devices does not extend warranty to batteries. If batteries are supplied with the
product, it is as a convenience only, and as such, are covered by the battery
manufacturer’s warranty.
100% COMPATIBLE GUARANTEE
All Delkin Devices products are 100% guaranteed compatible with OEM machines for
which they are designed.
TECHNICAL SUPPORT
Delkin Devices can provide technical assistance with installation of a Delkin Devices
product. Any phone/e-mail charges are the responsibility of the purchaser.
CONTACTING DELKIN DEVICES
For Technical Support or Warranty information you can contact Delkin Devices by:
• phone at 858-391-1234 (9:00AM to 5:00PM PST Mon-Fri)
• e-mail at [email protected].
• on the web at http://www.delkin.com
