Securitytronix HD-Coaxinator ST-HD-TD2812-720-W Instruction Manual

ST-HD-TD2812-720-W
Varifocal IR Color HD-CVI Camera
V1.0 04/24/14 1

PACKAGE CONTENTS
This package contains:
One (1) ST-HD-TD2812-720-W varifocal infrared turret-dome color HD camera
One (1) installation manual
Note: The ST-HD-TD2812-720-W requires a 12VDC 1A power supply such as the
ST-PS12VDC1A.
PRODUCT DESCRIPTION
The ST-HD-TD2812-720-W is a high-definition varifocal camera designed around a 1/3” Color 1.3
megapixel Aptina CMOS, 36 IR LEDs providing infrared capability up to 100 feet, and a 2.8mm –
12mm manual zoom lens. The ability to send HD video over coaxial cable make the ST-HD-
TD2812-720-W a cost effective high-definition surveillance solution for any budget.
SPECIFICATIONS
ST-HD-TD2812-720-W
Specifications (Typical)
1.
Image Sensor
1/3” Aptina 1.3mp CMOS
2.
Maximum Resolution
1280(H) x 960(V)
3.
Scanning System
NTSC
4.
Synchronization
Internal, negative sync
5.
Minimum Illumination
0.01Lux, 0Lux with IR on
6.
Scanning System
Progressive
7.
Auto Electronic Shutter
4/25s~1/45,000s
8. Lens
2.8mm –12mm manual zoom
9.
Auto Gain Control
Auto
10. IR LED
φ5x36PCS
11.
IR Viewing Distance
Up to 100 feet
12.
Video Output
HD-CVI
13.
Operation Temperature
14- 113F
14.
Relative Humidity
95% maximum
15.
Dimensions
6.0”x4.2”
16.
Weight
1.9 lbs.
17. Power Draw
900mA maximum
V1.0 04/24/14
2

INSTALLATION AND OPERATION
1. UNPACKING and HANDLING
Each unit is shipped assembled and factory tested.
Ensure that all accessories are removed from the container before discarding packing material
2. MECHANICAL INSPECTION
Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is
clean, and no connectors are broken, damaged, or loose. If equipment appears to be
damaged or defective please contact your distributor or SecurityTronix at 1-800-688-9282
(option 3, then option 2) for assistance.
3. SPECIAL ATTENTION
a. The installer must comply with electrical safety standards. There must be sufficient
space between the camera’s power supply and video line and any high voltage
equipment and/or cables.
b. To help ensure the camera’s life and proper operation do not point the camera
towards the sun or strong light.
c. Do not install the camera in an environment where the temperature is above 113F.
The camera should be installed in a cool and spacious environment.
d. Do not install the camera near a magnetic field or a high-power motor.
e. Only use a dry cloth to clean the camera. If there is dirt that is difficult to remove wipe
gently with a mild detergent. Never use strong or abrasive detergents.
f. A 12VDC 1A power supply must be used. AC power cannot be applied. AC power
will damage the camera and void warranty.
g. Only qualified installers are allowed to install, test and disassemble the camera.
h. The IR LED angle and lens viewing range are adjusted at the factory. Any change to
the camera’s lens will affect image quality.
i. The camera is a low voltage product. If installed outdoors proper safety and
lightening grounding are required.

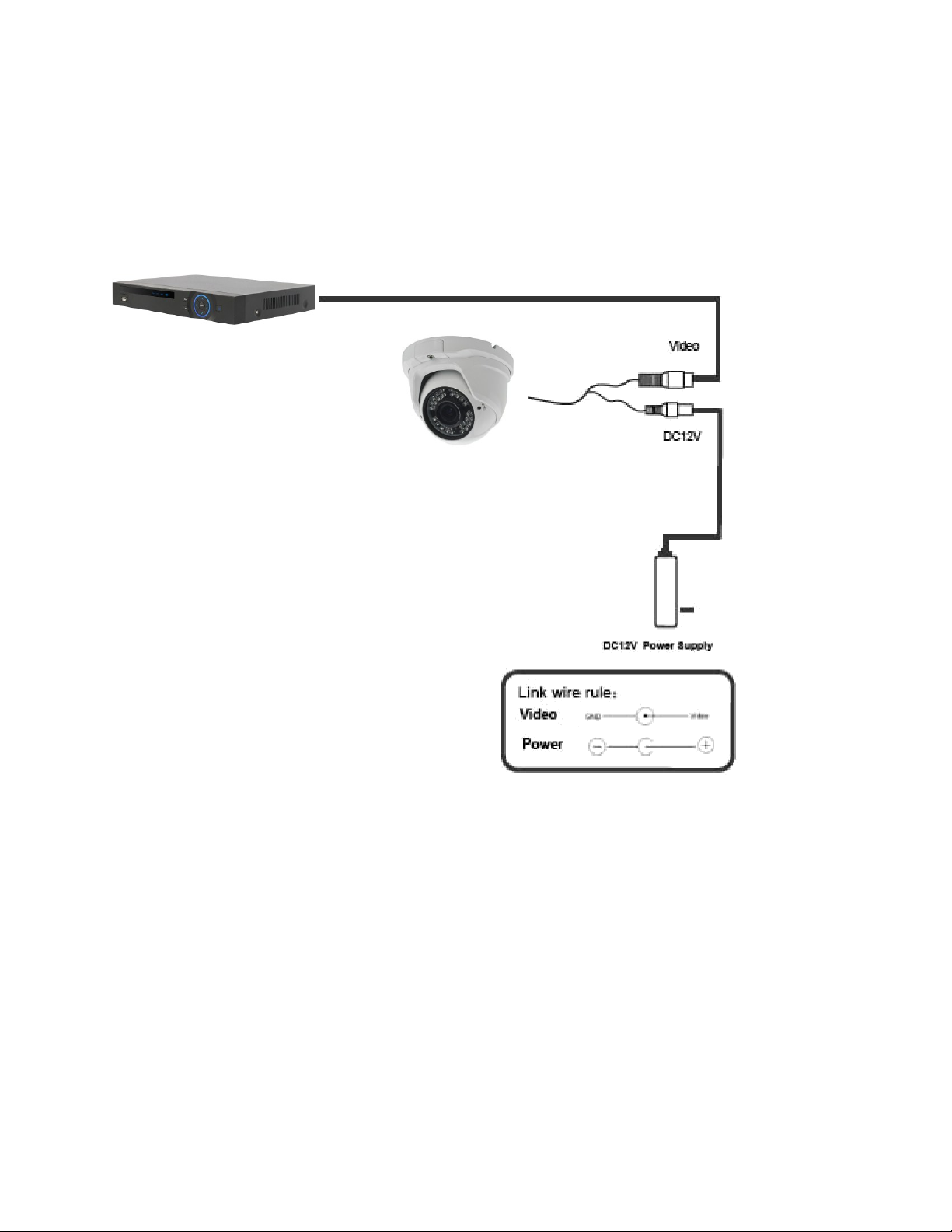

4. WIRING CONNECTIONS
a. Connect the power supply’s DC plug to the camera’s power outlet.
b. Connect the camera to the CVR with a 75Ωcoaxial video cable.
c. Connect power supply’s AC plug to a suitable AC power outlet.
d. Adjust the lens direction according to the required surveillance area and environment.
V1.0 04/24/14 3

5. OSD SETTINGS
Accessing the camera’s OSD menu and making menu selections is
accomplished using RS-485 commands sent via the coaxial video cable
from the CVR. No additional RS-485/UTP is required.
V1.0 04/24/14 4
CVR

EXPOSURE
AE MODE
DISTINGUISH
GLOBAL
BLC
FRONT LIGHT
WB MODE
AWB - PRO
AWB - TEMPORAL
AWB - AI
AWB - GW
DAY & NIGHT
B & W
COLOR
AUTO
TRIGGER
HIGH
LOW
DELAY
1 TO 7 SEC
FUNCTION
3D NR
ON
OFF
ADVANCED
MIRROR
HORIZONTAL
VERTICAL
H & V
OFF
LANGUAGE
ENGLISH
CHINESE
RS-485
ADDRESS
BAUDRATE
2400
9600
38400
115200
PROTOCOL
DH-SD
PELCOP
PELCOD
VIDEO
720 @ 25
720 @ 30
720 @ 50
720 @ 60
VERSION
XXXXXXXXX
SHARPNESS
DETAIL
AUTO
MANUAL
VALUE
EDGE
AUTO
MANUAL
VALUE
CONTRAST
VALUE
SATURATION
VALUE
BRIGHTNESS
VALUE
EXIT
SAVE
CANCEL
RESET
V1.0 04/24/14 5

6. TROUBLESHOOTING
a. No picture after applying power –(i) check all plugs and cables are securely
connected to the proper connectors; (ii) ensure your power supply is providing the
correct voltage and current.
b. The picture has ripples –(i) check to see if the power supply is experiencing AC
ripple, if so a filter may be required; (ii) determine if the monitor is faulty; (iii)
determine if other peripheral equipment is causing ripple and if so make the
necessary adjustments.
c. The picture background continuously changes color –a fluorescent lamp’s magnetic
field may cause color roll, therefore, reduce the number of fluorescent lamps or
increase the distance between the camera and the lamps.
d. The picture appears smeared –(i) the power supply voltage level may be unstable,
therefore, try another power supply; (ii) ensure the cables are correctly connected
and/or the cables are of the correct impedance.
e. Other interference may require a SecurityTronix ground loop isolation filter.
f. Additional troubleshooting assistance can be found on-line at www.securitytronix.com
in addition to support from SecurityTronix sales engineers at 1-800-688-9282, option
3, then option 2.
V1.0 04/24/14 6
