Seepoint VantagePoint Plus User manual
Quick Start Guide
VantagePoint Plus®
1
Overview:
LCD TOUCH SCREEN
VantagePoint Plus
KEYBOARD & MOUSE
KPM216HIII ETH PRINTER
LOCK TO OPEN THE FRONT COVER
ETHERNET PORT, POWER SWITCH &
POWER INPUT 110 VOLT
2
Pivoting/Angling the Head:
The angle of the screen may be changed by loosening/tightening the secure bolts with the
provided allen wrench. Do NOT over loosen or remove bolts.
Power Switch
3

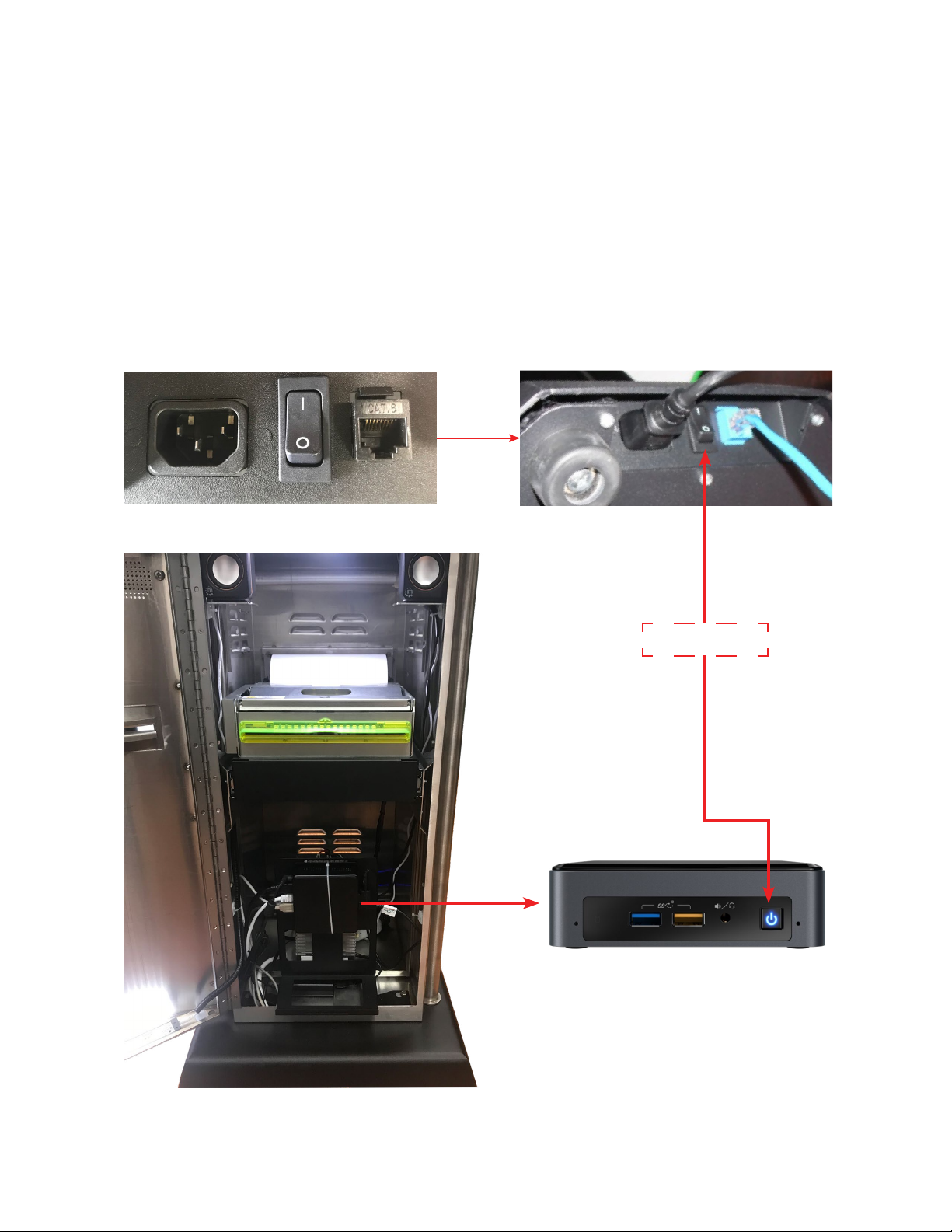

Power and Network Cables:
1. Connect the female end of the power cord into socket located at the rear bottom of the base.
Plug the male end of the power cord into a standard grounded electrical outlet. A standard RJ-45
network connection is also located on the base of the kiosk.
2. There is a complete system power switch located on the rear bottom of the base. If PC fails to turn
on, an additional power button is located inside the key lock door.
3. PC is located inside a secure bracket. USB and other ports are readily available for keyboard and
other peripheral hookups.
5
Loading the paper roll:
To Load a paper roll:
1. Open the front cover by using the key provided.
2. Slide the printer tray outwards as shown below.
6
Loading the paper roll:
3. To change the paper proceed as follows. At every change of paper, check inside the device to
locate and remove and sraps of paper.
4. Adjust the paper width. Paper width may be adjusted from 194 mm to 216 mm by moving the
adjustable cursors as shown in the follwing figure.
5. Place the paper roll, so that it unrolls in the direction shown in figure.
7
Loading the paper roll:
6. Insert the paper into the paper input opening and wait until the paper is automatically loaded and
cut.
Once the paper is loaded, slide back the printer tray to its position and close the front cover of the
kiosk. If you require futhure assist with the printer please see the manual for KPM216HIII.
8
Cleaning the Touch Screens:
Never spray the cleaner directly onto the screen as seepage and cloudiness may result. Spray the
cleaner onto a soft, lint free cloth. Wipe the screen with the cloth. Household cleaners such as
Isopropyl Alcohol, Windex, or any ammonia based product may be used.
9
Removing Bezel:
Steps:
1. This procedure is for a more extensive cleaning and should only be performed when touch
screen is not functioning. First angle the screen flat and tighten the side pivots. Then, from
below the monitor head remove the 6 button head screws that retain the bezel onto the back
mount.
2. After the bezel has been removed, the monitor / touch screen will look like the below picture ---
NOTE – Do NOT remove the 4 Philips head screws on the side mount bracket. Now gently wipe
all sides and corners of screen with cloth to remove dirt and/or liquids.
10
KioWare guide:
If your unit comes with KioWare, it will boot up straight to KioWare. If you need to connect to WiFi or
Exit KioWare touch 4 Corners of the screen clockwise (under 5 secounds) starting from the top left
corner. This will prompt you for a password window. Please repeat if the window does not appear.
Password:
1234 for Network window. Go ahead and connect to your WiFi network.
2619 to exit KioWare. This will take you to the Windows login Screen.
From Windows login screen you can select User: Admin/SeePoint to login to windows desktop or
back to KioskUser. Password: seepoint
1 2
34
Touch Corners
1234
2619
IF YOU HAVE ANY QUESTION PLEASE REACH US AT:
(310) 725 - 9660
SeePoint, LLC.
www.SeePoint.com
2619 Manhattan Beach Blvd.
Redondo Beach, CA 90278
Contact us:
