Segger Flasher ate User manual

Flasher ATE

User Guide

Document: UM08035

Manual Version: 1.04

Revision: d

Date: November 12, 2018

A product of SEGGER Microcontroller GmbH

www.segger.com

Disclaimer

Specifications written in this document are believed to be accurate, but are not guaranteed to

be entirely free of error. The information in this manual is subject to change for functional or

performance improvements without notice. Please make sure your manual is the latest edition.

While the information herein is assumed to be accurate, SEGGER Microcontroller GmbH (SEG-

GER) assumes no responsibility for any errors or omissions. SEGGER makes and you receive no

warranties or conditions, express, implied, statutory or in any communication with you. SEGGER

specifically disclaims any implied warranty of merchantability or fitness for a particular purpose.

You may not extract portions of this manual or modify the PDF file in any way without the prior

written permission of SEGGER. The software described in this document is furnished under a

license and may only be used or copied in accordance with the terms of such a license.

Trademarks

Names mentioned in this manual may be trademarks of their respective companies.

Brand and product names are trademarks or registered trademarks of their respective holders.

Contact address

SEGGER Microcontroller GmbH

Ecolab-Allee 5

D-40789 Monheim am Rhein

Germany

Tel. +49-2173-99312-0

Fax. +49-2173-99312-28

E-mail: [email protected]

Internet: www.segger.com

Manual versions

This manual describes the Flasher ATE device.

For further information on topics or routines not yet specified, please contact us.

Print date: November 12, 2018

Manual

version Revision Date By Description

1.04 d 1801112 MF

updated power supply chapter, corrected #auto patch

command, added commands #auto nopatch, #fwversion,

#fwversionmod

1.04 b 1801031 MF added firmware version command

1.04 a 1801025 MF added serial number command

1.03 a 1800926 MF updated command samples and Universal Flash Loader

chapter

1.00 f 1800724 MF Corrected selmodule command parameters, relayouted

some commands sections

1.00 e 1800627 MF Corrected poweron command parameters

1.00 4 1800427 MF Corrections after review

1.00 3 180403 MF Corrections after review

1.00 2 180326 MF Corrections after review

1.00 1 180323 MF Extracted from Flasher Manual

Extraction from Flasher manual, adding section setting up a project

About this document

Assumptions

This document assumes that you already have a solid knowledge of the following:

• The software tools used for building your application (assembler, linker, C compiler).

• The C programming language.

• The target processor.

• DOS command line.

If you feel that your knowledge of C is not sufficient, we recommend The C Programming Lan-

guage by Kernighan and Richie (ISBN 0–13–1103628), which describes the standard in C pro-

gramming and, in newer editions, also covers the ANSI C standard.

How to use this manual

This manual explains all the functions and macros that the product offers. It assumes you have

a working knowledge of the C language. Knowledge of assembly programming is not required.

Typographic conventions for syntax

This manual uses the following typographic conventions:

Style Used for

Body Body text.

Keyword Text that you enter at the command prompt or that appears on

the display (that is system functions, file- or pathnames).

Parameter Parameters in API functions.

Sample Sample code in program examples.

Sample comment Comments in program examples.

Reference Reference to chapters, sections, tables and figures or other doc-

uments.

GUIElement Buttons, dialog boxes, menu names, menu commands.

Emphasis Very important sections.

Table of contents

1 Introduction ..................................................................................................................10

1.1 Flasher ATE overview ....................................................................................11

1.1.1 Features of the Flasher ATE ................................................................11

1.1.2 Working environment .........................................................................11

1.2 Specifications ...............................................................................................13

1.2.1 Specifications for Flasher ATE ............................................................. 13

1.2.1.1 Supported CPU cores .............................................................. 14

1.2.1.2 Supported Target interfaces .....................................................14

2 Working with the Flasher ATE ....................................................................................15

2.1 The Flasher ATE ...........................................................................................16

2.1.1 Power supply .................................................................................... 17

2.1.1.1 Mainboard and module power supply ........................................ 17

2.1.1.2 Target power supply ............................................................... 18

2.2 Setting up the IP interface ............................................................................ 19

2.2.1 Connecting for the first time .............................................................. 19

2.3 Operating modes ......................................................................................... 21

2.3.1 Remote-controlled mode .................................................................... 21

2.3.2 Handshake mode .............................................................................. 23

2.4 LED status indicators ....................................................................................24

2.4.1 Mainboard LED indicators ................................................................... 24

2.4.2 Module LED indicators ....................................................................... 24

2.5 Flasher ATE storage ......................................................................................25

2.6 UART to TCP transceiver ............................................................................... 26

2.7 Log files ......................................................................................................27

2.8 Newline encoding ......................................................................................... 28

3 Setting up a project for the Flasher ATE ....................................................................29

3.1 Setting up Flasher ATE for remote-controlled mode .......................................... 30

3.2 Setting up Flasher ATE for handshake mode .................................................... 32

3.3 Universal Flash Loader mode .........................................................................33

3.3.1 Preparing manually ........................................................................... 33

3.3.1.1 Configuration ......................................................................... 33

3.3.1.2 Configuration Data for Renesas RL78/G10 ................................. 36

3.3.1.3 Configuration Data for Renesas RL78 (except RL78/G10) ............. 36

3.3.1.4 Configuration Data for ST STM8 ............................................... 37

3.3.1.5 Configuration Data for TI MSP430: 1xx, 2xx and 4xx series ..........38

3.3.1.6 Configuration Data for TI MSP430: 5xx and 6xx series ................ 38

3.3.2 Preparing using the PC utility ............................................................. 40

3.3.3 Connection for Device with no special Adapter ...................................... 41

3.3.3.1 Connecting a I2C Device ......................................................... 41

4 Serial number handling ...............................................................................................42

4.1 Serial number programming .......................................................................... 43

4.1.1 Serial number settings .......................................................................43

4.1.2 Continuous Serial numbers .................................................................44

4.1.3 Serial number list file ........................................................................ 44

4.1.4 Programming process ........................................................................ 45

4.1.5 Sample setup ................................................................................... 46

4.2 Limiting the number of programming cycles .................................................... 48

4.2.1 Changed fail/error LED indicator behavior ............................................ 48

5 Patch data file .............................................................................................................49

5.1 Patch file support .........................................................................................50

6 FTP Server ..................................................................................................................51

6.1 FTP server connection .................................................................................. 52

6.1.1 Access data ...................................................................................... 52

7 Web server ..................................................................................................................53

7.1 Web server features ..................................................................................... 54

8 Remote control ............................................................................................................55

8.1 Overview .....................................................................................................56

8.2 Handshake control ....................................................................................... 57

8.3 ASCII command interface ............................................................................. 59

8.3.1 Introduction ......................................................................................59

8.3.2 General command and reply message format ....................................... 59

8.3.3 General usage .................................................................................. 59

8.3.4 Settings for ASCII interface via RS232 .................................................59

8.3.5 Settings for ASCII interface via Telnet ................................................. 59

8.3.6 Commands and replies ...................................................................... 61

8.3.6.1 Commands to the Flasher ....................................................... 62

8.3.6.1.1 Command #AUTO ....................................................... 62

8.3.6.1.2 Command #AUTO NOPATCH ......................................... 63

8.3.6.1.3 Command #AUTO PATCH ............................................. 64

8.3.6.1.4 Command "#BAUDRATE" ..............................................65

8.3.6.1.5 Command #CANCEL .................................................... 66

8.3.6.2 Replies from Flasher ATE .........................................................84

9 Hardware .....................................................................................................................86

9.1 Flasher ARM 20-pin JTAG/SWD Connector ....................................................... 87

9.1.1 Pinout JTAG ......................................................................................87

9.1.2 Pinout SWD ......................................................................................88

9.1.3 Target power supply .......................................................................... 89

9.2 Target board design ..................................................................................... 90

9.2.1 Pull-up/pull-down resistors ................................................................. 90

9.2.2 RESET, nTRST ...................................................................................90

9.3 Adapters ..................................................................................................... 91

9.3.1 JTAG Isolator ....................................................................................91

9.3.1.1 Pinout ................................................................................... 91

9.3.2 J-Link Needle Adapter ........................................................................92

9.3.3 Flasher RX 14-pin Adapter ................................................................. 92

9.3.3.1 Target power supply ............................................................... 93

9.3.4 Flasher PPC 14-pin adapter ................................................................ 94

10 Support and FAQs ....................................................................................................95

10.1 Contacting support ..................................................................................... 96

10.2 Frequently Asked Questions .........................................................................97

11 Mechanics .................................................................................................................98

12 Glossary ....................................................................................................................99

13 Literature and references ........................................................................................103

Chapter 1

Introduction

This chapter provides a short overview about the the Flasher ATE its features.

11 CHAPTER 1 Flasher ATE overview

1.1 Flasher ATE overview

Flasher ATE is a programming tool for micro controllers with on-chip or external flash mem-

ory. Flasher ATE is designed for programming flash targets in stand-alone mode or remote

controlled via a PC.

Flasher ATE connects to a PC using the USB / Ethernet / RS232 interface, running Windows

7, Windows 8 or Windows 10. In stand-alone mode, Flasher ATE can be driven by telnet

interface, or via the RS232 interface (handshake control or ASCII interface). Flasher ATE has

a 20-pin connector, which supports the following target interfaces: JTAG or SWD. Various

interface adapters, sold separately, are available.

1.1.1 Features of the Flasher ATE

• Supports up to 10 individual channels.

• Stand-alone JTAG/SWD programmer (Once set up, Flasher can be controlled without

the use of a PC program).

• Flexible power supply (USB, DC).

• 128 MB memory for storage of target program on each module.

• Data files can be updated via the integrated FTP server.

• Target interface: JTAG, SWD or SWIM.

Supported cores Supported

target interfaces Flash programming speed

(depending on target hardware)

ARM7/ARM9/Cortex-M, Renesas

RX610, RX621, RX62N, RX62T,

Power PC e200z0, STM8, PIC16,

AVR XMEGA

ICSP, I2C,

JTAG, PDI,

SWD, SWIM

between 30-300 Kbytes/ second

1.1.2 Working environment

General

The Flasher ATE can be operated from a PC with an appropriate software like J-Flash or

in stand-alone mode.

Host System

IBM PC/AT or compatible CPU: 486 (or better) with at least 128MB of RAM, running Mi-

crosoft Windows 7, Windows 8, or Windows 10. It needs to have a USB, Ethernet, or RS232

interface available for communication with the Flasher ATE.

Power supply

The system is powered via the mainboard. The supply voltage needs to be in the range

from 4.8V to 5.25V. If the supply voltage exceeds these limits, the mainboard immediately

shuts down the power supply for the connected modules for safety reasons.

Current consumption (typical)

Mainboard

5V DC connector (VMAIN) 100 mA (no flasher module connected, no

USB, no Ethernet)

5V DC connector (VMAIN) 180 mA (no flasher module connected,

USB and Ethernet connected)

USB (not applicable for hardware V1.1) 100 mA (no flasher module connected, no

USB, no Ethernet)

USB (not applicable for hardware V1.1) 180 mA (no flasher module connected,

USB and Ethernet connected)

12 CHAPTER 1 Flasher ATE overview

Module

5V via Flasher ATE Bus (VCC5V) 100 mA (no target power supply)

5V via Flasher ATE Bus (VCC5V) 220 mA (target power supply with 100mA)

Note

Many USB power supplies have a high drop on the supply voltage if they operate at

their power limit. We recommend the DC connector and a DC power supply when

operating the Flasher ATE.

Flasher PC-software (J-Flash)

The latest version of the J-Flash software, which is part of the J-Link software and docu-

mentation package, can be downloaded from our website:

https://www.segger.com/jlink-software.html For more information about using J-Flash,

please refer to UM08003_JFlash.pdf (J-Flash user guide) which is also available for down-

load on our website.

Universal Flash Loader Configurator software

The latest version of the Universal Flash Loader Configurator software can always be down-

loaded from our website:

https://www.segger.com/downloads/flasher

This software is only needed if your CPU requires the usage of the Universal Flash Loader.

13 CHAPTER 1 Specifications

1.2 Specifications

1.2.1 Specifications for Flasher ATE

General

Supported OS

Microsoft Windows 7

Microsoft Windows 7 x64

Microsoft Windows 8

Microsoft Windows 8 x64

Microsoft Windows 10

Microsoft Windows 10 x64

Operating Temperature +5 °C … +60 °C

Storage Temperature -20 °C … +65 °C

Relative Humidity (non-condensing) <90% rH

Safety notes For indoor use only.

Mechanical mainboard

Size (without cables) 108mm x 56mm x 20mm

Weight (without cables) 47g

Mechanical module

Size (without cables) 108mm x 35mm x 20mm

Weight (without cables) 24g

Available interfaces

USB Host interface USB 2.0, high speed

Ethernet Host interface 10/100 MBit

RS232 Host interface RS232 9-pin

Target connector (module) JTAG 20-pin 0.1 pitch (interface adapters

available)

JTAG Interface, Electrical

Power Supply USB powered or via external power supply

(5V), max. 3A using 10 modules

Target interface voltage (VIF) 1.2 … 5V

Target supply voltage 3 - 15V (5V with no additional supply.)

Target supply current 100 mA (VCC5V - 5V)

400 mA (VTGT - 3 … 15V)

Reset Type Open drain. Can be pulled low or tristated

Reset low level output voltage (VOL) VOL ≤ 10% of VIF

For the whole target voltage range (1.2V ≤VIF ≤5V)

LOW level input voltage (VIL) VIL ≤ 40% of VIF

HIGH level input voltage (VIH) VIH ≥ 60% of VIF

For 1.2V ≤VIF ≤3.6V

LOW level output voltage (VOL) with a load

of 10 kOhm VOL ≤ 10% of VIF

HIGH level output voltage (VOH) with a

load of 10 kOhm VOH ≥ 90% of VIF

For 3.6 ≤VIF ≤5V

LOW level output voltage (VOL) with a load

of 10 kOhm VOL ≤ 20% of VIF

14 CHAPTER 1 Specifications

HIGH level output voltage (VOH) with a

load of 10 kOhm VOH ≥ 80% of VIF

JTAG Interface, Timing

Max. JTAG speed up to 15MHz

Data input rise time (Trdi) Trdi ≤ 20ns

Data input fall time (Tfdi) Tfdi ≤ 20ns

Data output rise time (Trdo) Trdo ≤ 10ns

Data output fall time (Tfdo) Tfdo ≤ 10ns

Clock rise time (Trc) Trc ≤ 10ns

Clock fall time (Tfc) Tfc ≤ 10ns

1.2.1.1 Supported CPU cores

The Flasher ATE supports the following CPU cores:

ARM Cortex

• Cortex-M0

• Cortex-M0+

• Cortex-M1

• Cortex-M23

• Cortex-M3

• Cortex-M33

• Cortex-M4

• Cortex-M7

ARM (legacy cores)

• ARM7

• ARM9

• ARM11

Renesas RX

• RX610

• RX621

• RX62G

• RX62N

• RX62T

Freescale Power PC

• e200z0

• STM8

• MSP430

1.2.1.2 Supported Target interfaces

The Flasher ATE supports the following target interfaces:

• JTAG

• SWD

• SWIM

Chapter 2

Working with the Flasher ATE

This chapter describes functionality and how to use the Flasher ATE.

16 CHAPTER 2 The Flasher ATE

2.1 The Flasher ATE

The Flasher ATE has been designed to be used in conjunction with automated test equip-

ment (ATE). It is modular and scalable from 1 to 10 individual programming modules.

17 CHAPTER 2 The Flasher ATE

2.1.1 Power supply

2.1.1.1 Mainboard and module power supply

The Flasher ATE mainboard and the modules are powered either by a dedicated power

connector (VMAIN) or by USB. The power source may not be switched while the Flasher

ATE is running.

18 CHAPTER 2 The Flasher ATE

2.1.1.2 Target power supply

For target power supply, the Flasher ATE offers two options. Additionally, a power discharge

option is available. The target is electrically isolated from the mainboard’s power supply.

The first option is to use the VTGT connector. It is possible to provide any voltage between

3 and 15V, however the target interface is limited to 1.2V - 5V signal voltage. The VTGT

connector is directly coupled to the target, so any electrical isolation has to be done in the

external power supply.

The second option is to use the module’s internal power source VCC5V, which is able to

deliver up to 100mA to the target.

The power discharge option applies, when the operation has finished. A 220 ohms resistor

is used to discharge any remaining charge on the target’s capacitors. As the thermal load

of the resistor is limited, the target’s capacity may not exceed 27mF at 15V or 250mF at

5V supply voltage.

Note

There is no protection against overload when using the internal power source.

19 CHAPTER 2 Setting up the IP interface

2.2 Setting up the IP interface

The Flasher ATE comes with an additional Ethernet interface to communicate with the host

system. The Flasher ATE has a built-in webserver which allows some basic setup of the

emulator, e.g. configuring a default gateway which allows using it even in large intranets.

2.2.1 Connecting for the first time

When connecting Flasher ATE for the first time, it attempts to acquire an IP address via

DHCP. The recommended way for finding out which IP address has been assigned to Flasher

ATE is to use the J-Link Configurator. The J-Link Configurator is a small GUI-based utility

which shows a list of all emulators that are connected to the host PC via USB and Ethernet.

For more information about the J-Link Configurator, please refer to UM08001_JLink.pdf (J-

Link / J-Trace user guide), chapter Setup, section J-Link Configurator.

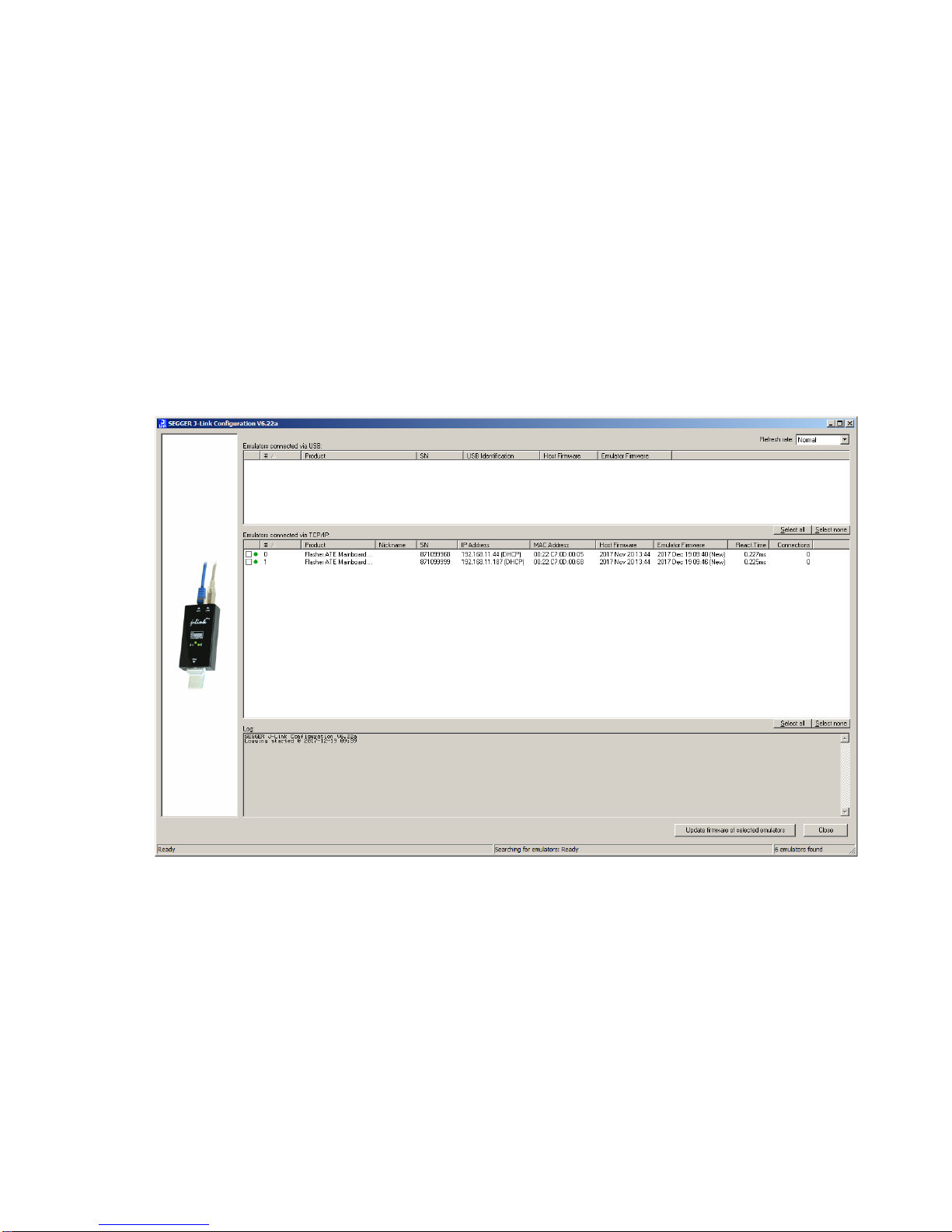

The picture shows the J-Link Configurator with the detected Flasher ATEs. Select the one

you want to configure.

You may configure your Flasher ATE to use your preferred IP setting. This is done by se-

lecting the Flasher ATE in the list, opening the context menu with a right click on the list

entry, and choosing Configure from the context menu. Enter your required IP settings in

the dialog box that opens up, e.g. as shown in the next picture. Confirm the IP settings

by pressing OK.

20 CHAPTER 2 Setting up the IP interface
