Welcome
Thank you for choosing Navimow
(referred to as 'the mower' in the manual).
With Exact Fusion Locating System (EFLS) and superb
traversing capabilities, the mower can handle lawns of all
types. No perimeter wires are needed and it's super easy to
use, thanks to smart app connectivity and the intuitive
control panel.
Collection of grass is not necessary because the fine grass
clippings serve as a natural fertilizer. Enjoy the fun of
carefree mowing and a perfectly maintained lawn.

4
1 Safety Warnings
IMPORTANT
READ CAREFULLY BEFORE USE
KEEP FOR FUTURE REFERENCE
1)Be sure to install and operate the Navimow (referred to as the mower in the manual) and the charging station according to the
instructions. Go to navimow.segway.com for the complete User Manual and the latest user materials.
2)The product can be used both by consumers and for professional purposes. Using the mower for purposes other than mowing
can bring serious injury. To avoid risks of injuries, please read and understand all the warnings and cautions. Please understand
that you can reduce the risk by following the instructions and warnings in this manual, but you cannot eliminate all the risks.
The operator or user is responsible for accidents or hazards occurring to other people on their property.
3)Navimow has many built-in safety sensors, however, safety risks still exist. Set a mowing time when there are no people or pets
on the lawn. Inform the neighbors about the risks for accidents or hazards. When using the mower on a public lawn, or when
your lawn is open to your neighbor or street, protect or fence the lawn, or put up a warning sign around the working area that
says: WARNING! Automatic lawnmower! Keep away from the machine! Supervise children!
4)DO NOT modify the mower by yourself. Modifications could interfere with mower operations, result in serious injury and/or
damage, or void the Limited Warranty. Use only Segway approved parts and accessories.
5)The manufacturer recommends the user to be 18–70 years old. Be sure to get the necessary training before operating the machine.
WARNING
Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people
unfamiliar with these instructions to use the machine. Local regulations may restrict the age of the operator.
Before Mowing:
Before each mowing session, check that all parts of the mower can function normally.
For the best mowing results, it is recommended to mow in dry weather. Mowing in the rain can make the grass stick on the
product and the mower may slip. DO NOT mow in bad weather, such as heavy rain, thunderstorm or snow.
Periodically inspect the area where the machine is to be used and remove all stones, sticks, wires, bones, and other foreign
objects. The Limited Warranty does not cover damages caused by objects left on the lawn.
To avoid possible damage, keep the operating mower at least 1 m (3 feet) away from sprinkler heads. The mower and the
sprinkler should NOT work simultaneously. Time the mower so that it works at a different time from the sprinkler.
NEVER allow children to touch the power supply unit, charging station, blades, the battery compartment, or any parts with gaps such as
the wheels.
WARNING
Never operate the machine and/or its peripherals with defective guards or shields, or without safety devices, or if the cord is
damaged or worn.
When Mowing:
Keep away from the rotating blades! DO NOT put hands or feet under or near the rotating blades.
Watch out for throwing objects! Keep a safe distance from the mower when operating.
DO NOT leave the machine to operate unattended if you know that there are pets, children or people in the vicinity.
DO NOT overreach. Keep your balance at all times and always be sure of the footing on slopes. Walk, never run while operating
the machine or its peripherals.
WARNING
DO NOT allow children to be in the vicinity or play with the machine when it is operating.
DO NOT lift the mower in operation. DO NOT ride on the mower.
DO NOT mow on areas with slopes steeper than the maximum incline inside the working area (45%), as well as the boundary (10%).
If the mower makes an abnormal sound or signals an alarm, press the STOP button immediately.
If there are abnormal vibrations, turn o the mower, place it on level ground for about 30 seconds and then restart. If the issue
persists, contact authorized after-sales service.
DO NOT touch moving hazardous parts before they have come to a complete stop.
Safe Usage:
DO NOT operate the mower outside the temperature limits: -10–50℃ (14–122°F), because low/high temperatures can decrease
mower performance and even lead to accidents.
DO NOT place anything on the mower or the charging station.
It is recommended to conduct regular maintenance of the mower (see Maintenance) by an adult.
Regularly check the warning devices to ensure they are effective. These devices include the buzzer, the LED light on the
charging station, and the ambient light on the mower.
Before charging, please read How to Charge. Improper use may cause electric shock, overheating, or leakage of corrosive liquid.
If the cord on the power supply or the extension cable becomes damaged or entangled during use, disconnect the power supply
from the power socket and then untangle. To avoid a hazard, pull the body of the plug rather than the cord when separating the
power supply from the power socket. Contact after-sales service and have a professional technician to repair or replace the
cord.

5
1 Safety Warnings
IMPORTANT
READ CAREFULLY BEFORE USE
KEEP FOR FUTURE REFERENCE
1)Be sure to install and operate the Navimow (referred to as the mower in the manual) and the charging station according to the
instructions. Go to navimow.segway.com for the complete User Manual and the latest user materials.
2)The product can be used both by consumers and for professional purposes. Using the mower for purposes other than mowing
can bring serious injury. To avoid risks of injuries, please read and understand all the warnings and cautions. Please understand
that you can reduce the risk by following the instructions and warnings in this manual, but you cannot eliminate all the risks.
The operator or user is responsible for accidents or hazards occurring to other people on their property.
3)Navimow has many built-in safety sensors, however, safety risks still exist. Set a mowing time when there are no people or pets
on the lawn. Inform the neighbors about the risks for accidents or hazards. When using the mower on a public lawn, or when
your lawn is open to your neighbor or street, protect or fence the lawn, or put up a warning sign around the working area that
says: WARNING! Automatic lawnmower! Keep away from the machine! Supervise children!
4)DO NOT modify the mower by yourself. Modifications could interfere with mower operations, result in serious injury and/or
damage, or void the Limited Warranty. Use only Segway approved parts and accessories.
5)The manufacturer recommends the user to be 18–70 years old. Be sure to get the necessary training before operating the machine.
WARNING
Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people
unfamiliar with these instructions to use the machine. Local regulations may restrict the age of the operator.
Before Mowing:
Before each mowing session, check that all parts of the mower can function normally.
For the best mowing results, it is recommended to mow in dry weather. Mowing in the rain can make the grass stick on the
product and the mower may slip. DO NOT mow in bad weather, such as heavy rain, thunderstorm or snow.
Periodically inspect the area where the machine is to be used and remove all stones, sticks, wires, bones, and other foreign
objects. The Limited Warranty does not cover damages caused by objects left on the lawn.
To avoid possible damage, keep the operating mower at least 1 m (3 feet) away from sprinkler heads. The mower and the
sprinkler should NOT work simultaneously. Time the mower so that it works at a different time from the sprinkler.
NEVER allow children to touch the power supply unit, charging station, blades, the battery compartment, or any parts with gaps such as
the wheels.
WARNING
Never operate the machine and/or its peripherals with defective guards or shields, or without safety devices, or if the cord is
damaged or worn.
When Mowing:
Keep away from the rotating blades! DO NOT put hands or feet under or near the rotating blades.
Watch out for throwing objects! Keep a safe distance from the mower when operating.
DO NOT leave the machine to operate unattended if you know that there are pets, children or people in the vicinity.
DO NOT overreach. Keep your balance at all times and always be sure of the footing on slopes. Walk, never run while operating
the machine or its peripherals.
WARNING
DO NOT allow children to be in the vicinity or play with the machine when it is operating.
DO NOT lift the mower in operation. DO NOT ride on the mower.
DO NOT mow on areas with slopes steeper than the maximum incline inside the working area (45%), as well as the boundary (10%).
If the mower makes an abnormal sound or signals an alarm, press the STOP button immediately.
If there are abnormal vibrations, turn o the mower, place it on level ground for about 30 seconds and then restart. If the issue
persists, contact authorized after-sales service.
DO NOT touch moving hazardous parts before they have come to a complete stop.
Safe Usage:
DO NOT operate the mower outside the temperature limits: -10–50℃ (14–122°F), because low/high temperatures can decrease
mower performance and even lead to accidents.
DO NOT place anything on the mower or the charging station.
It is recommended to conduct regular maintenance of the mower (see Maintenance) by an adult.
Regularly check the warning devices to ensure they are effective. These devices include the buzzer, the LED light on the
charging station, and the ambient light on the mower.
Before charging, please read How to Charge. Improper use may cause electric shock, overheating, or leakage of corrosive liquid.
If the cord on the power supply or the extension cable becomes damaged or entangled during use, disconnect the power supply
from the power socket and then untangle. To avoid a hazard, pull the body of the plug rather than the cord when separating the
power supply from the power socket. Contact after-sales service and have a professional technician to repair or replace the
cord.

6
This product conforms to the applicable
EC Directives.

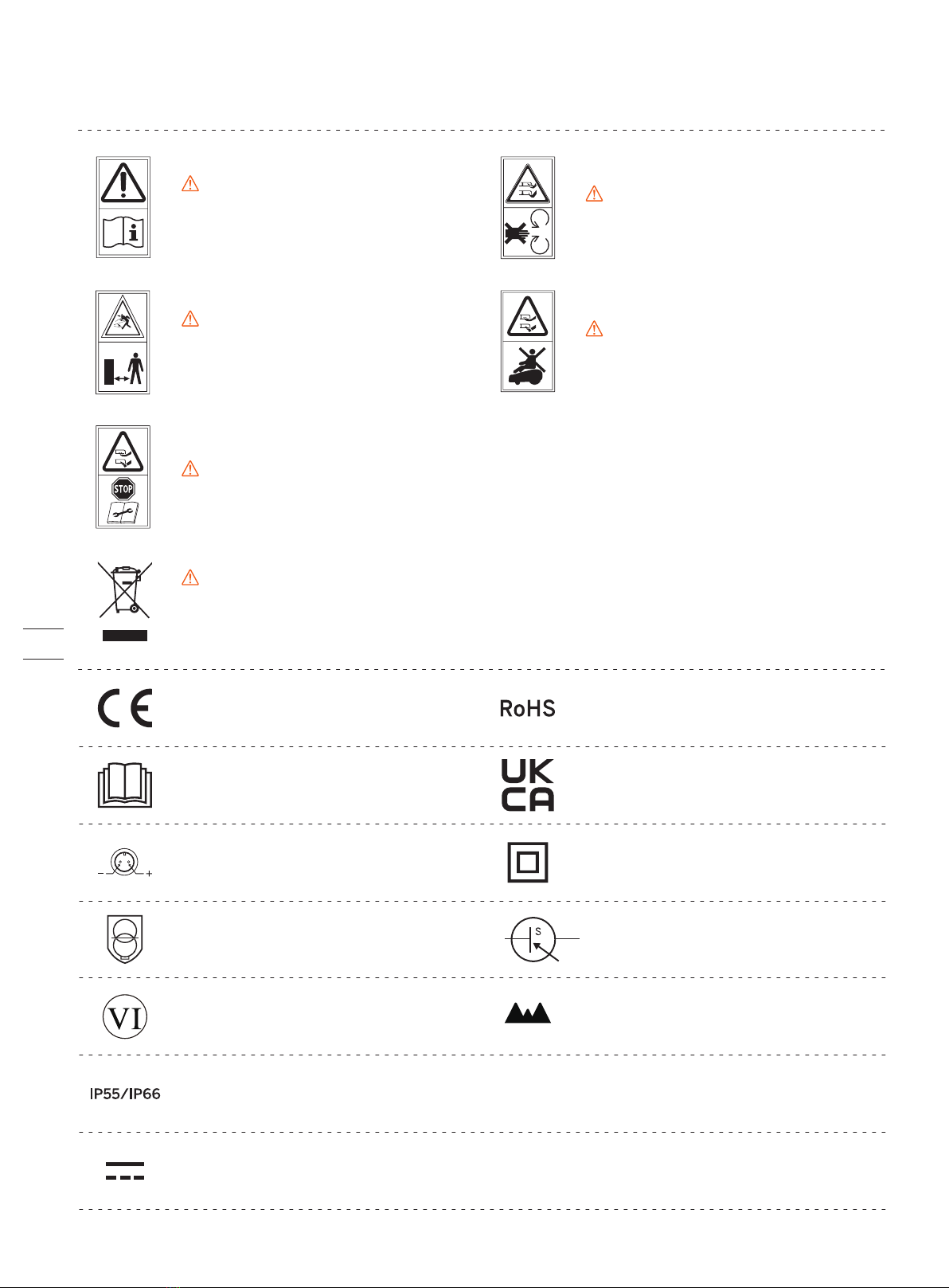

Symbols and Decals
Please study the symbols on the product and labels carefully and understand their meaning:
WARNING-Read instruction
manual before operating the
machine.
WARNING-Do not touch
rotating blade.
WARNING-Keep a safe
distance from the machine
when operating.
Remove (or operate) the disabling device before working on or lifting the machine*.
WARNING-It is not permitted to dispose of this product as normal household
waste. Ensure that the product is recycled in accordance with local legal
requirements.
WARNING-Do not ride on the
machine.
*Make sure the mower is locked by the PIN code before lifting or operating.
Polarity of the charging port
Class II appliance
IP55/IP66
SMPS incorporating a short-circuit-proof
safety isolating transformer (inherently
or non-inherently)
SMPS (Switch mode power supply unit)
DoE Level VI eciency
The maximum altitude of use is 5000m
The maximum temperature of use is 40
℃
Direct current Alternating current
Before charging, read the instructions.
This product conforms to the applicable
UK legislation.
This product conforms to the regulations
of Restriction of Hazardous Substances.
ta: 40℃
≤ 5000m
~

7

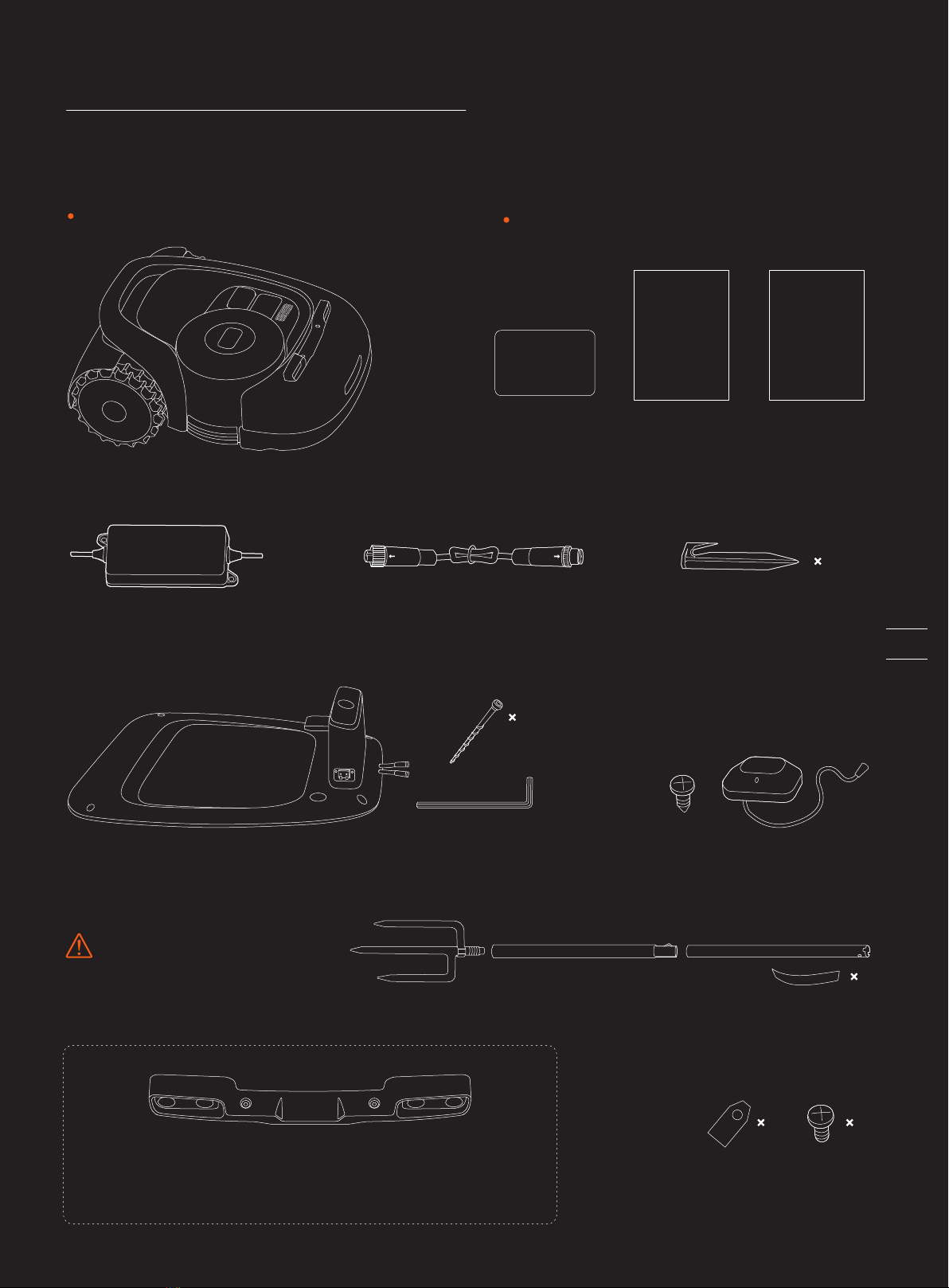

2 What’s in the Box?
If there are missing or defective parts, please contact
after-sales service. We recommend retaining the
package for future transportation and shipping.
Quick Start Guide
Welcome Card Important Information
Navimow User materials
Quick Start Guide
Important information
welcome card
Power supply The extension cable Pegs to secure the extension cable
Charging station and the installation kit
Antenna installation kit
GNSS antenna kit
10
Spare blades and bolts
9
9
5
Ultrasonic sensor
*For H3000E and above
WARNING
Sharp edges. Do not point at people.
4

8

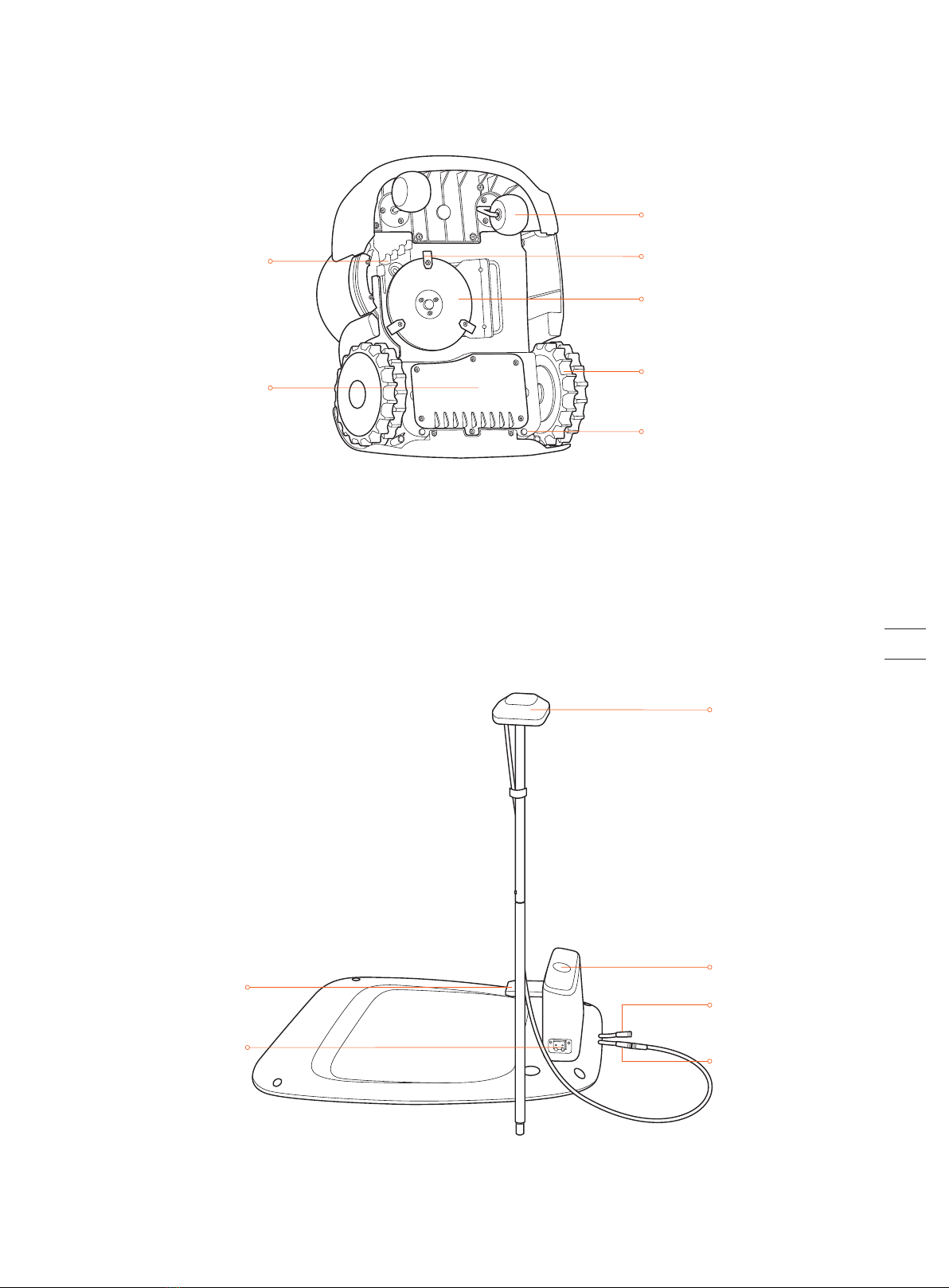

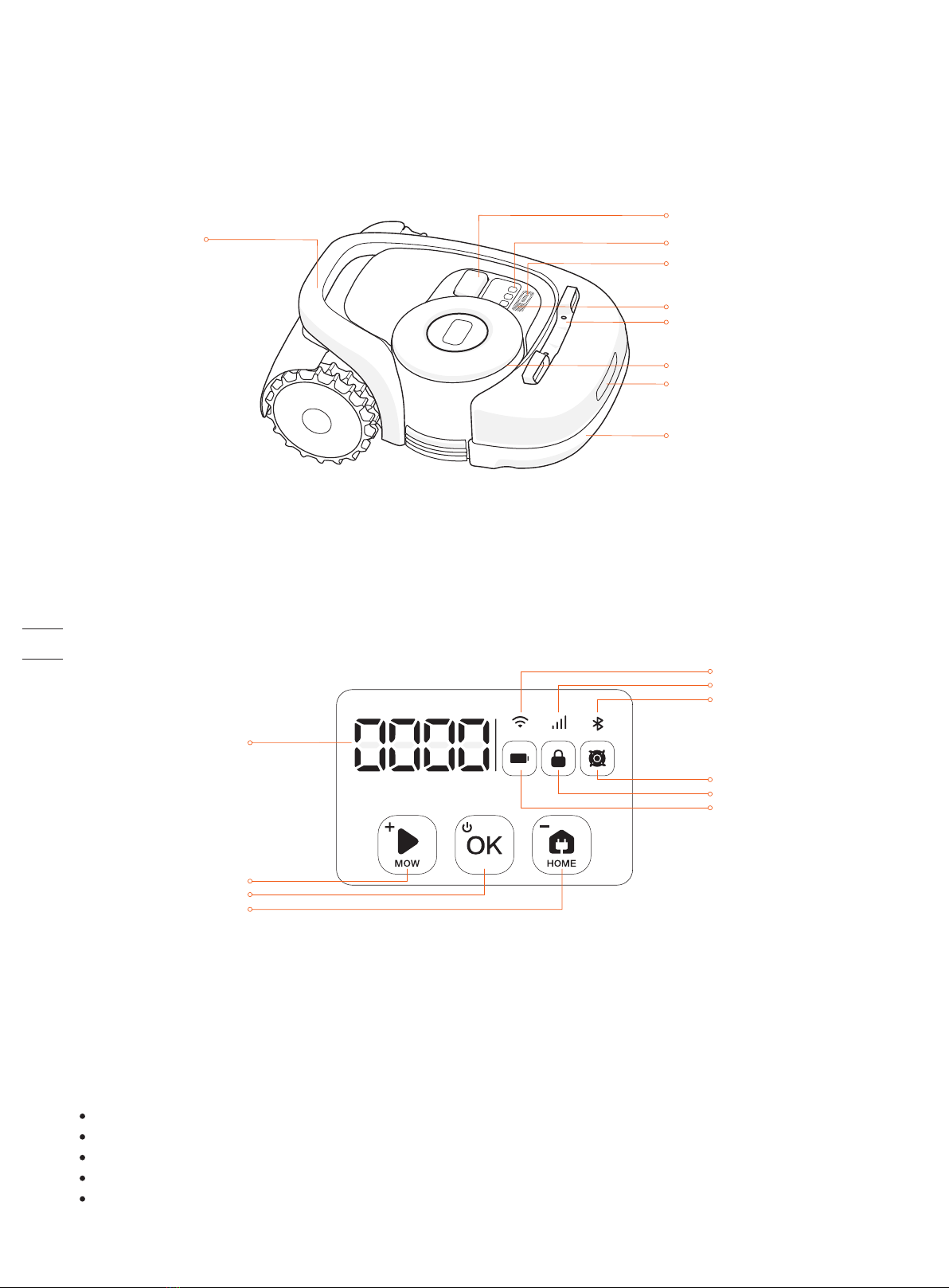

3 Parts and Functions
Top view
Ambient light: When an abnormality occurs, the LED ring flashes red along with a ringing buzzer.
Ultrasonic sensor: Certain models are equipped with an Ultrasonic sensor. The sensor is also sold separately and can be installed
on all Navimow models. Consult your dealer for details.
Control panel
STOP button
Control panel
Rain sensor
Buzzer
Ultrasonic sensor
Charging strip
Bumper
Lifting handle
Ambient light
Battery level: The color indicates the battery level: ≥65% solid green, 40%–65% solid yellow, 20%–40% solid red, ≤20% red
flashing. When the battery icon is red, the mower needs recharging.
PIN code: Before manually operating the mower, you must enter the PIN code. The default code is 0000, and can be changed via
the Navimow app (referred to as the app in this manual). Press MOW/HOME to increase/decrease the number and press OK to
confirm the code.
Basic operations
Power on: Press OK.
Power off: Press and hold OK for 10s, or turn off via the app.
Start mowing: Press MOW and then OK.
Stop mower operation: Press STOP.
Mower returns to the charging station: Press HOME and then OK.
PIN code/
Mowing percentage display
OK
HOME
MOW
Wi-Fi
Cellular data
Bluetooth
Battery level
PIN code lock status
Blade indicator

9

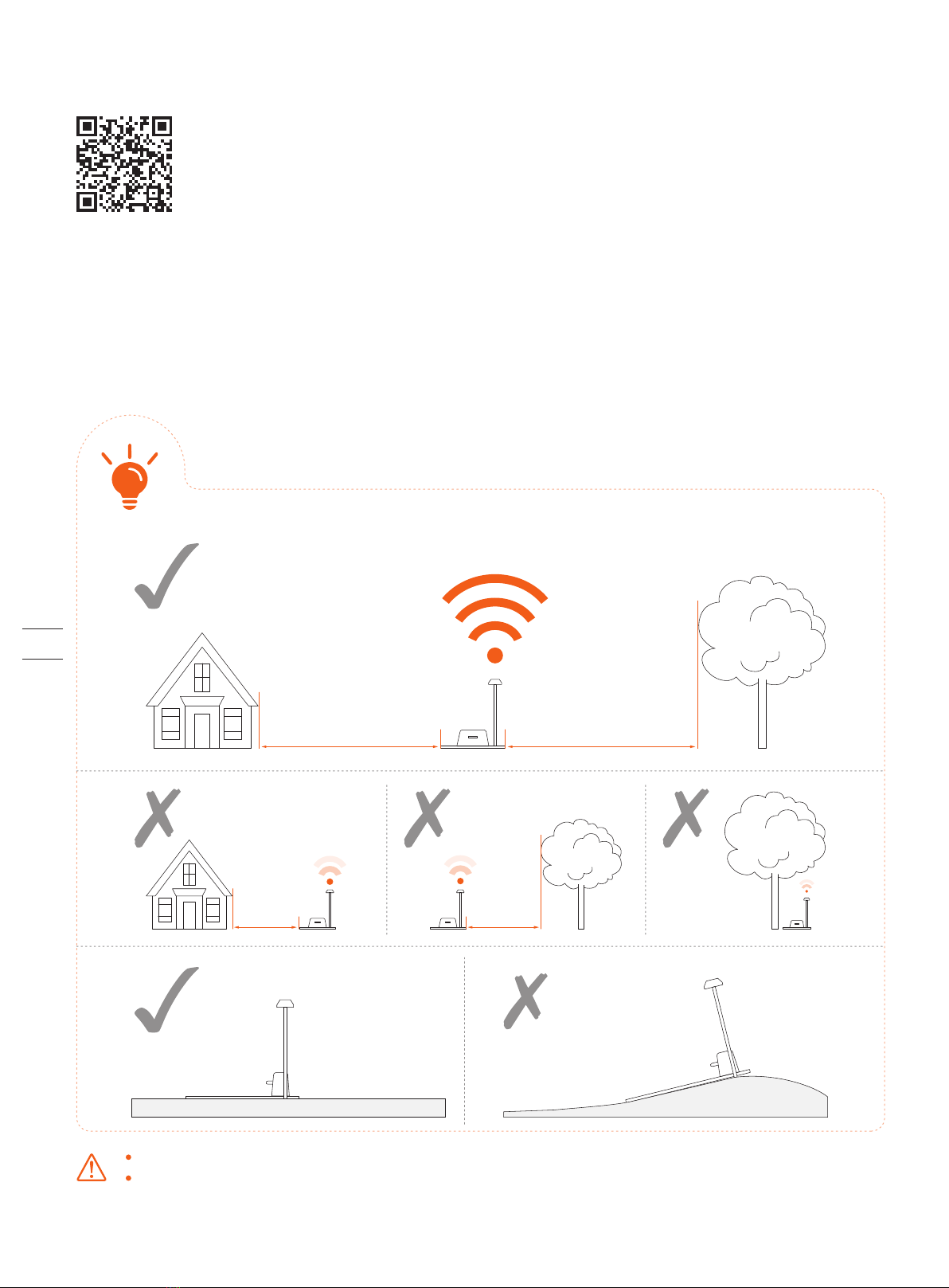

NOTE: If the GNSS antenna is blocked, which results in poor signal and inaccurate positioning, please purchase the antenna
extension kit and install as instructed.
Bottom view
Drainage outlet: If the mower falls into water, take it out immediately and put the mower right side up to drain it. Never submerge
the mower in water, otherwise, the components may be damaged and the Limited Warranty will be voided.
Charging station and the GNSS antenna
Blade disc
Blade
Rear wheel/Hub motor
Blade fender
Battery compartment
Front wheel
Drainage outlet
Power interface
Perimeter wire interface
GNSS antenna
LED indicator
Contact strip
Antenna interface

10
4 App Installation
To ensure a successful setup, please scan the QR
code to download the Navimow app. Alternatively,
go to the Google Play Store (Android) or the
Apple App Store (iOS) and search "Navimow".
After installing the app, please register and log in.
5 Install the Charging Station and the Antenna
STEP 1: Find a Good Spot
Install the charging station on a soft and flat surface inside or outside the lawn.
When placed outside, the charging station and the lawn should be kept at the same level.
To get strong signal from GNSS, please install in an open space with no obstacles blocking the
GNSS antenna.
≥2m ≥2m
<2m <2m
Make sure to keep away from the sprinkler heads.
To ensure smooth docking, leave a minimum of 10 cm at the back of the charging station and 2 m at the front.

11
NOTE: The distance is for reference only as the signal can be affected by many factors.
Height of the building
or obstacle
1 m
2 m
3 m
4 m
1 m
2 m
3 m
4 m
Distance between the charging
station and the building or obstacle
45°
45°
1: 1
For the best positioning accuracy and mowing performance, it is strongly recommended to keep the antenna at a
distance that equals or above the height of a building or tall trees.
Our Exact Fusion Locating System (EFLS) uses multiple satellite-based system, such as GPS, BeiDou, GLONASS, Galileo, which
improves the positioning accuracy to approximately 2 cm. However, the accuracy crucially relies on the GNSS signal, which can be
weakened by the following:
Blocking
If there is anything on or surrounding the GNSS antenna, charging station and/or the mower, the signal will be weakened or
blocked.
Solution: DO NOT install the changing station and GNSS antenna under a roof, tree or anywhere that may block the signal. You
can also choose to buy the antenna extension kit and install the antenna on the roof.
Signal Interference
Signals from the satellite are transmitted to the antenna after being reflected by the wall, instead of directly from the air. This is
called Multipath Eect.
Solution: install the antenna far from the house to get rid of the multi-path eect. If your house has glass walls (or other walls
with smooth surface), please leave more distance.
Long Distance or Large Lawn
The communication module's transmission power gets weakened with long distance.
1
2
3
communication
module
lonosphere & troposphere lonosphere & troposphere
≥2m
communication
module
Factors that Aect the Signal and Positioning Accuracy:

12
STEP 2: Install the GNSS Antenna
Connect the GNSS antenna to the charging
station.
5Secure the cable on the pole with the supplied hook and
loop tape.
6
Align the notch on the extension cable (A)
with the groove on the power supply connector (B).
A B
Rotate the other extension tube onto the base fork.
3
2
Slide in the tube with the antenna.
4
To ensure GPS signal, DO NOT
put anything on the antenna.
Fixate the GNSS antenna on the tube.
1
Turn the nut until they are locked into each other.
STEP 3: Check the GPS Signal
Connect the extension cable with the power supply.
1
2
90°
Unfold the base fork and insert it into the ground.

13
Check the signal.
4
Plug the power supply into a power socket.
3
Connect the extension cable and the power interface.
2
If the signal is poor, relocate the GNSS antenna to an open space. The extension kit is sold separately if you need to install it on the
wall or roof.
Pulsating yellow for more than 3min:
poor signal, relocate the charging
station to an open space (see STEP 1).
Flashing red: malfunction. Please
contact after-sales service.
Flashing yellow: the GNSS antenna
is not connected to the charging
station (see ⑤in STEP 2).
>3min

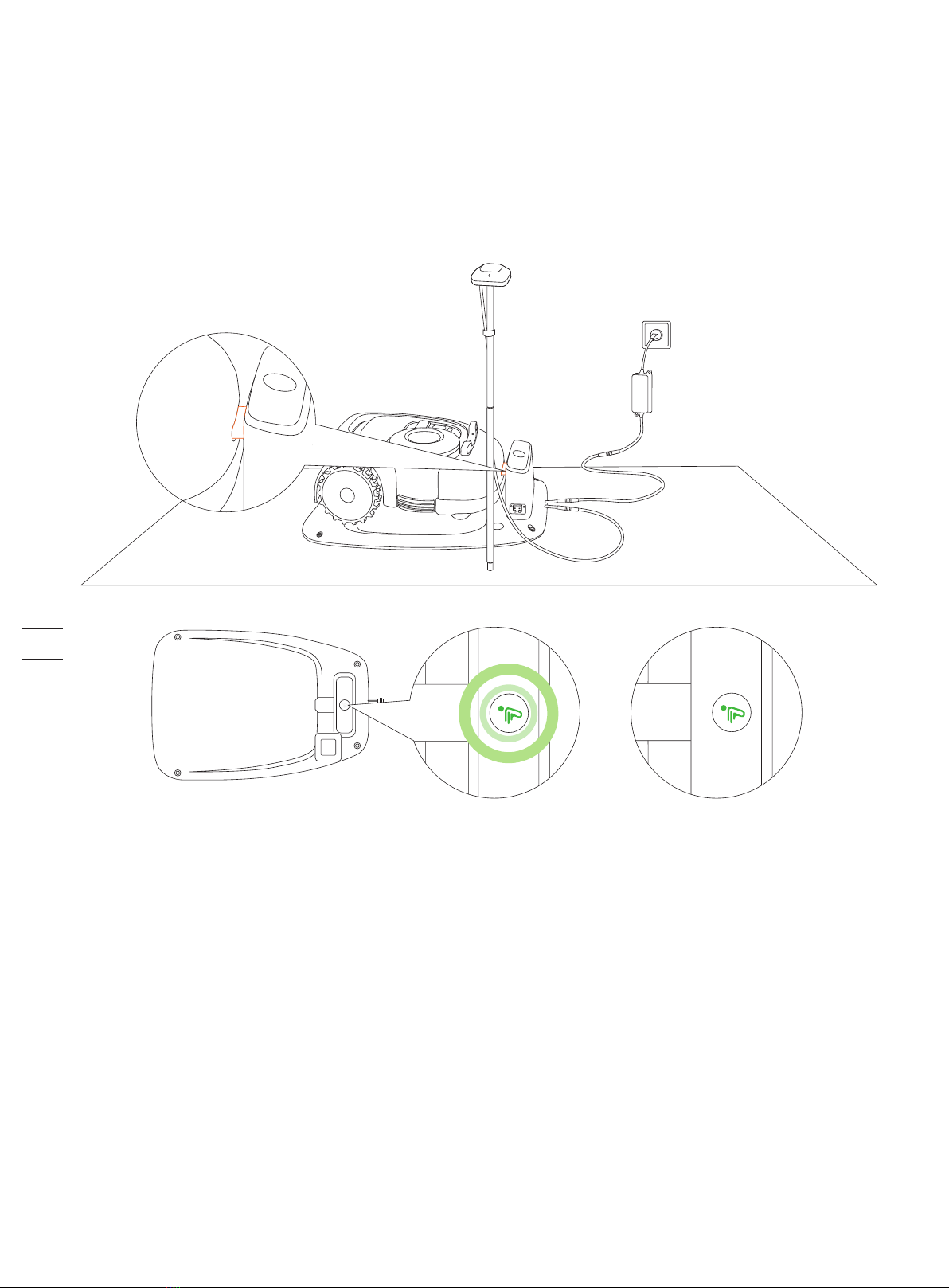

When the light on the charging station becomes blue (or green), it means the GPS signal is strong.
or

14
Charging: pulsating green Full: solid green
6 How to Charge
A new mower may have low battery after long storage. After setting up the boundary, the mower will return to the charging station
when the mowing task has completed, or when the battery is low. You can also enter the PIN code, press the HOME and then OK
button to make the mower go back to the charging station.
How to charge for the rst time:
Place the mower in the charging station. Make sure the charging strip on the mower and the contact strip on the charging station
are in good contact.

15
Where to Place the Power Supply:
Protection from direct sunlight and rain
Indoors with good ventilation
Keep it at least 30 cm (12 in) above the floor to avoid possible damages caused by sunshine or water.
30 cm (12 in)
WARNING
DO NOT charge if the mower, the power supply, the charging station, or the power socket is wet or damaged.
DO NOT charge the mower when the temperature is above 40℃ (104°F), or below 5℃ (41°F).
When there is an abnormal smell, sound, or light display, stop charging immediately and contact after-sales service.
Keep away from inflammable and explosive materials when charging.

16
7 Activate the Mower
Enable Bluetooth on your phone, log in to the app and
follow the instructions to pair with the mower.
2
Wait patiently for 30s to 3min until the ambient light turns green (or blue).
3
Connect the charging station to the power supply. Place
the mower on the charging station.
1
XXXXXXXXX
If the light flashes orange for more than
3min, it means the GPS signal is weak.
Please return to STEP 1 in chapter 5.
4
Install the charging station with the nails supplied and secure the extension cable.
4
Calibrate the mower to ensure accurate positioning.
5
Calibrate

Use the Navimow ruler to measure the distance. The
outer side of the ruler should not exceed the edge of
the lawn.
17
Find a proper starting point.
4
Select Boundary to start mapping.
3
Make sure the mower is powered on. With Bluetooth
connection, your phone will connect to the mower
automatically.
2
Angle: Make sure to follow a straight line with a smooth
turning angle of no smaller than 90°.
Distance from the edge: 15 cm
Walk along the edge.
5
Remove debris, piles of leaves, toys, wires, stones and
other obstacles. Make sure children and pets are o the
lawn.
1

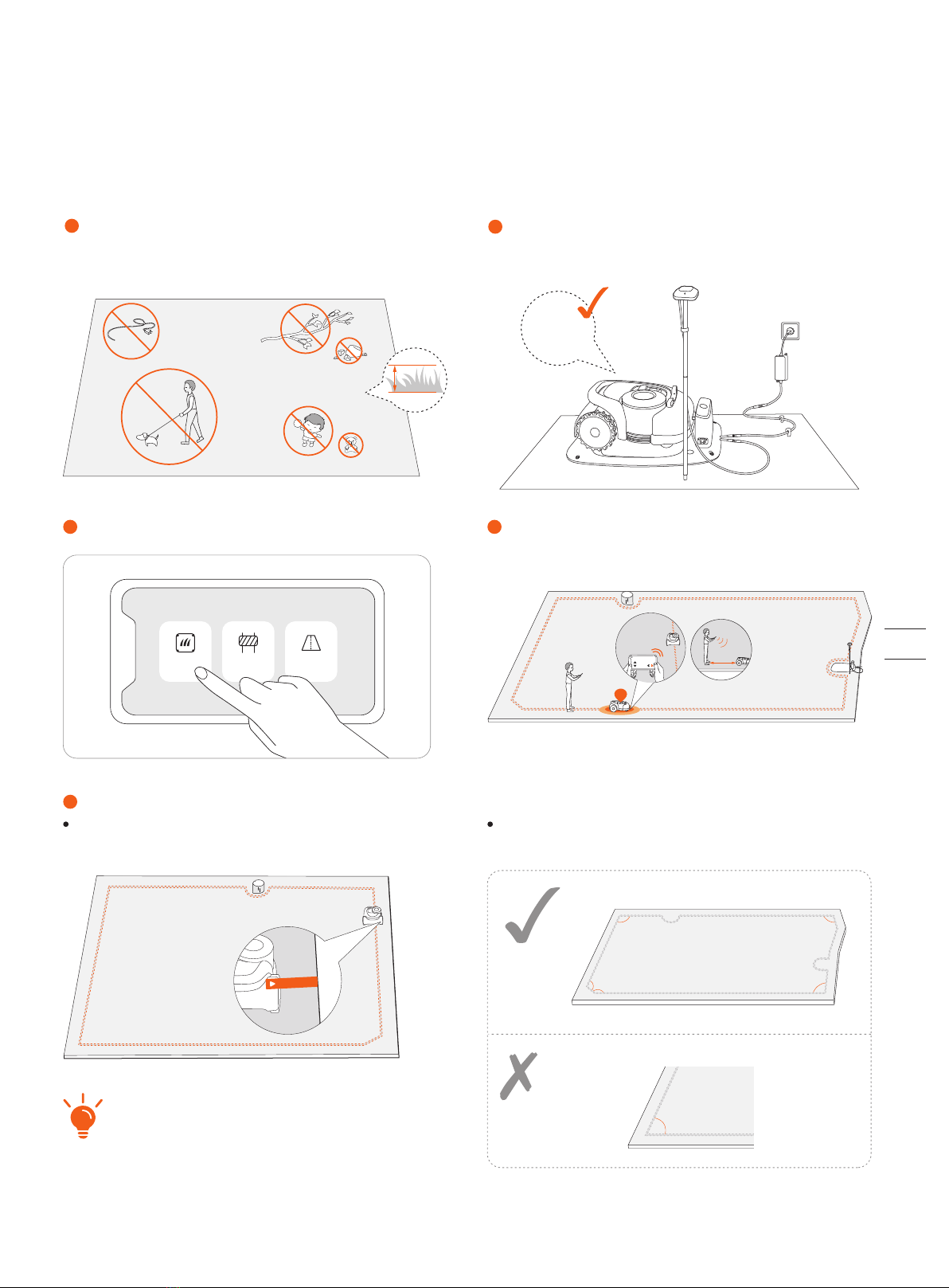

8 Set up the Virtual Boundary
Follow the instructions in the app and remote control the mower to lay the boundary. The mower will smartly decide its moving
pattern within the boundary.
STEP 1: Map out the Boundary
＜90°
＞90° ＞90°
＞90°
＞90°
＞90°
≤6m
START
<
6 cm
ON
Boundary
O-limit island Channel
15cm

18
STEP 2: Set up O-limit Island
When the mower hits a hard obstacle taller than 10 cm (such as big rocks, or a tree trunk), it will reverse and change the
direction automatically. However, you need to lay borders for objects that need protection, like a owerbed, small trees, lawn
decorations, pond, sprinkler heads, emerged roots, etc. If you recently installed a trampoline or grill on the lawn, you can set an
o-limit island to protect it.
How: Follow the instructions in the app. When you need to cancel the area (like when you remove the trampoline from the lawn),
just delete via the app.
NOTE: Make smooth turning angles of no smaller than 90° when drawing the islands.
Go back to the starting point to nish the boundary lining.
6
Direction: Make sure the blades are facing the outer side of the boundary, so that the mower can cut as close to the boundary as
possible. The same goes for setting up the off-limit islands. The blades should face the objects to be protected.
Slope: Even though the mower can traverse slopes up to 45% within the lawn, make sure the slope along the edge does not exceed 10%.
＜10%
If there is a sudden interruption and failure, follow the instructions in the app to continue or restart.
If you have more than one separate lawns, please repeat this step.

19
STEP 3: Create a Passage to Link Separate Zones
Following the instructions in the app, create a channel between the main lawn and the subzone.
Lay the Perimeter Wire When Necessary
The GPS signal is aected by many factors. If you nd the mower exceeds the boundary or o-limit islands, or there is a risk
that the mower may fall o onto the road or into bodies of water, a perimeter wire needs to be installed.
NOTE: The perimeter wire kit is sold separately. Mow the grass to lower than 6 cm before laying the perimeter wire.
>1m
Boundary
O-limit island Channel

20
If the mower goes beyond the boundary, make sure the GPS signal is strong (see Chapter 5 STEP ③), then test one more time. Get
help from professional technicians when necessary (see Contact Us).
9 Test Drive
After laying the boundary, tap 'TEST' in the app to see if it works normally and only runs within the border. The mower should
be able to drive into the charging station and exit on its own.
TEST
