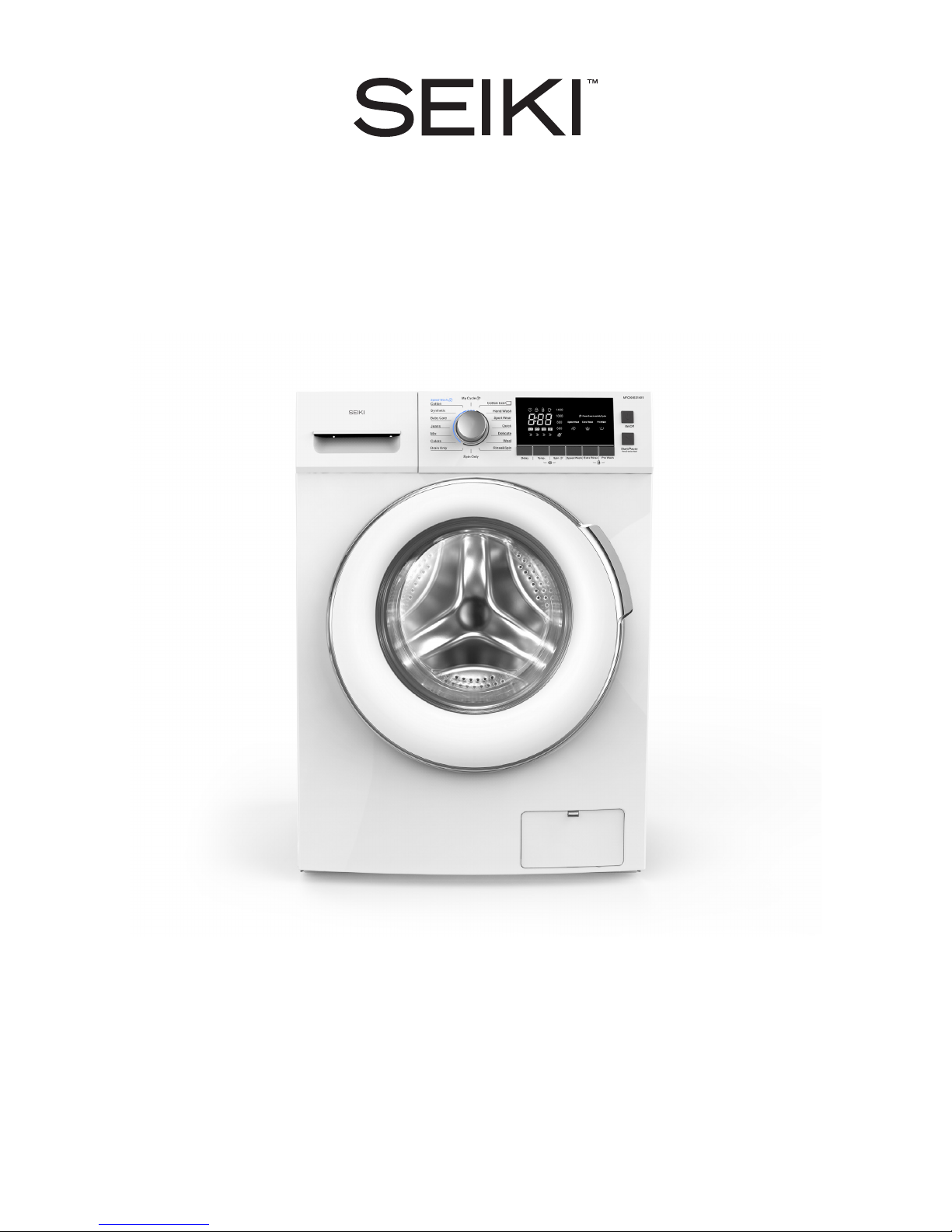

Seiki SC-1000AU9FLIN User manual

10KG FRONT LOAD
WASHING MACHINE
INSTRUCTION
MANUAL
MODEL: SC-1000AU9FLIN
Please read this manual carefully before using, and keep it for future reference.

General Safety 4
Product Overview 8
Operations 10
Getting Started 14
Instructions 18
Cleaning and Maintenance 20
FAQs 22
Specifications 23
CONTENTS

4
Read this manual thoroughly before you start using the Washing Machine.
The safety precautions instructions reduces the risk of fire, electric shock and injury when
correctly complied to.
Please follow all instructions and take notice of all warnings.
Pay close attention to messages that follow this safety alert symbol or the words
DANGER, WARNING or CAUTION. These words will be used to alert you of
potential hazards that and injure you and others. Following these instruction will
tell you how to reduce the chance of injury and the possible dangers if
instructions aren’t followed.
This symbol indicates when there is a serious risk of
injury if you do not pay attention to the warnings.
WARNING
CAUTION This symbol indicates when to be careful to
avoid a serious risk of injury to oneself or
damage to property.
IMPORTANT INFORMATION
GENERAL SAFETY

5
ELECTRICAL SAFETY
• Voltage: Plug the appliance to a 220-240V, 50Hz, properly earthed power
outlet, it must be in good working order.
• Power connection: Do not use an adaptor or an extension cord.
Plug the power plug directly into a separate power point that cannot be
accidentally turned o, and that is easily accessible so you can switch it o
if needed.
• Power cord: Do not kink or damage the power supply cord. Make sure it is
behind the appliance so no one can step on or place anything on the power
supply cord or against it. A damaged power plug may overheat and cause a fire.
• Damaged cord: Do not use a cord that shows cracks or damage. Any damage
to the cord may cause a short circuit, fire and/or electric shock.
Contact our support centre on 1300 296 699 for advice
•Disconnection: Never pull the power cord to unplug appliance. Grip the plug and
pull straight out from the power point.
• Electrical work: If the installation of this appliance requires any electrical work,
make sure it is carried out by an electrician.
To reduce risk of fire, electric shock or injury, always follow these basic precautions
and accident prevention measures when using this appliance, including the below:
NOTE: This appliance should be installed by an authorised technician else warranty
will be void.
INSTALLATION
• The product is heavy, be careful when moving it. To avoid back or other
injury, have 2 people lift or mechanical aid when installing.
• When unboxing, thoroughly inspect the appliance carefully for any
damage. If there is any damage, do not install the appliance. Contact our
support centre on 1300 296 699 for advice.
• While installing the appliance make sure that the power cord is not bent
or flattened.
• Make sure to remove all packaging materials such as foams and tapes
before installing the appliance.
• Make sure if the machine is to be placed on carpet that the ventilation openings
in the base are not obstructed
• Install the washing machine on a flat level and stable ground.
GENERAL SAFETY INSTRUCTIONS (Cont.)

6
GENERAL SAFETY INSTRUCTIONS (Cont.)
USAGE CONDITIONS AND RESTRICTIONS
• Supervision over children is to ensure that they do not play with the
appliance. Never allow them to use, play with or crawl inside the appliance.
Cleaning and maintenance must not be done by children.
• This appliance is not to be used by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they are being supervised or been given instructions on how to use of the
appliance in a safe way and understand the hazards with using this
appliance incorrectly.
• Only for indoor domestic use only. It is not to be used for industrial or
commercial use.
• Do not use this product for anything other than its intended purpose, and only
use it as described in this manual. Do not attempt to alter or modify
this appliance.
• In the process of a hot wash, the door window can become hot. Make sure not to
touch it or that no children or pets come into contact with the door window.
• Ensure that emptying all pockets of every item to make sure that there is no
hard, sharp objects such as coins, safety pins, bra wires, nails or screws can cause
damage to the appliance and has a chance to block the pump.
• Damage or malfunction caused from foreign objects is not covered by your
warranty to the appliance.
• Do not operate this appliance outdoors.
• Incorrect use can result in property damage, injury or death. We assume no
liability for misuse of the appliance or noncompliance with these instructions.

7
GENERAL SAFETY INSTRUCTIONS (Cont.)
CLEANING AND MAINTENANCE
• Before cleaning or maintenance, always unplug the appliance from the power
socket. Make sure you pull by the plug, not the cord as this can damage the
power cord and cause a hazard.
• Only the filter requires regular cleaning, everything else is non user-serviceable
parts. Do not try to repair, disassemble or modify the appliance.
• Check and clean the lint filter on a regular basis
• Service: Never try to repair, modify or replace any part of the appliance, unless
this manual says you can do so. All other servicing is to be done by a qualified
technician, or contact our support centre on 1300 296 699 for advice.

8

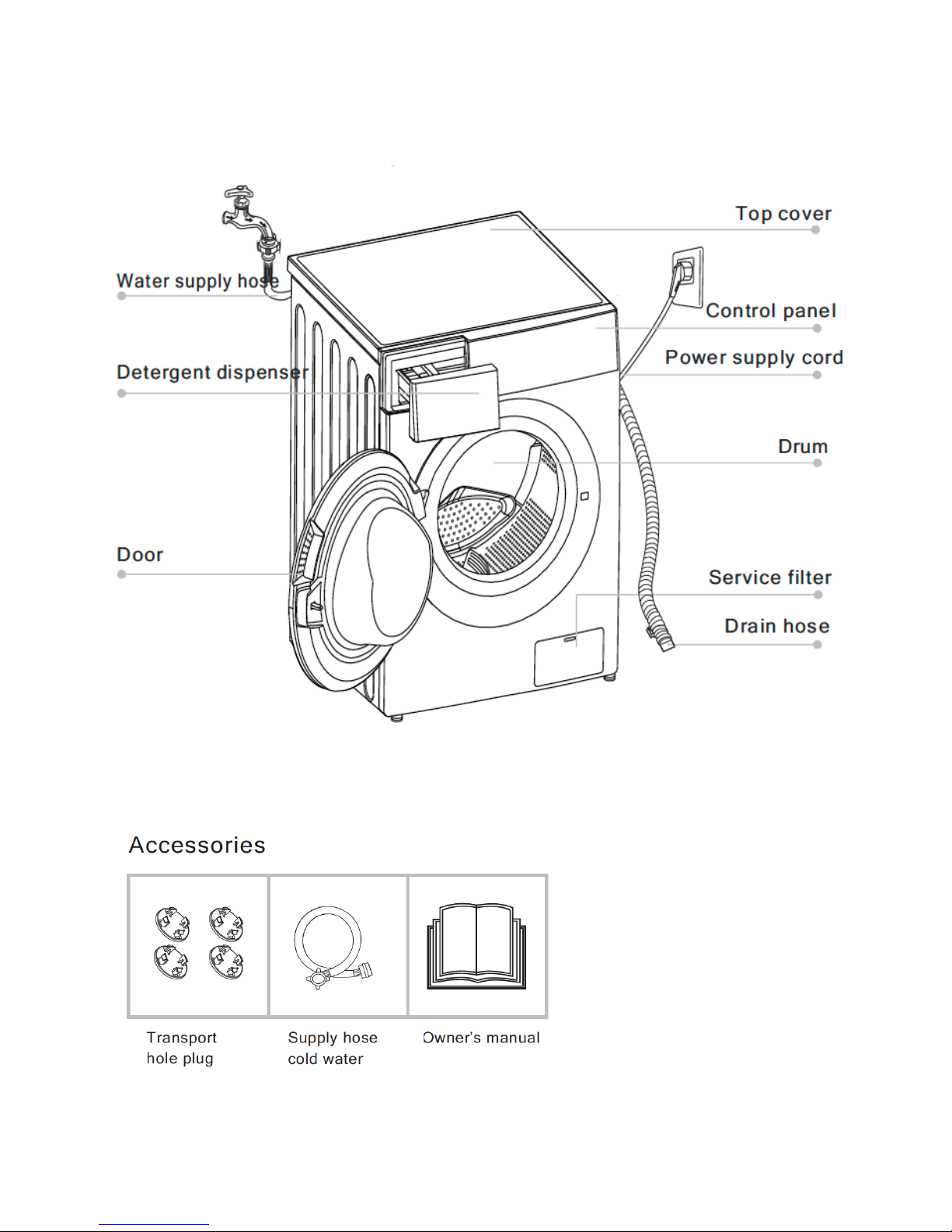

PRODUCT OVERVIEW

9
PRODUCT OVERVIEW (Cont.)

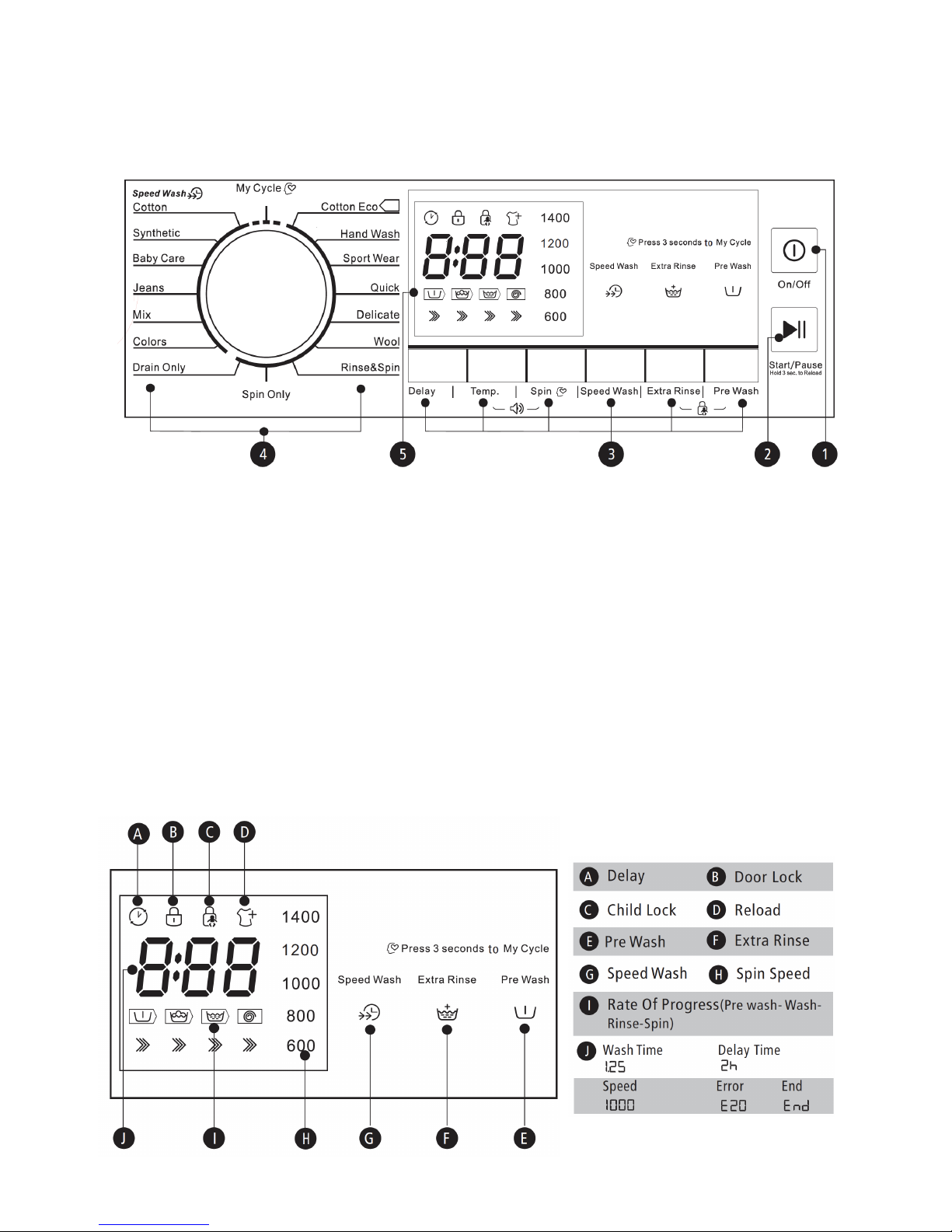

CONTROL PANEL
1. ON/OFF: ON/OFF button allows you to turn the appliance off or on.
2. START/PAUSE: Press this button to start or pause the washing cycle.
3. OPTION: This will allow you to select an additional function and will light
when selected.
CHILD SAFETY LOCK: Press and hold “Extra Rinse” & “Pre Wash” for
3 seconds to activate child safety lock. Press and hold both buttons
again to de-activate.
4. PROGRAM: Use this to select what type of wash program you would like
to select.
5. DISPLAY: This display shows the settings, time remaining, options and status
messages for your washer. The display will remain on through the cycle.

10
OPERATION
PRE-WASH
The Prewash function can get an extra wash before the main wash, it is
suitable for washing the dust rises to surface off the clothes. You need to
put detergent into the case when you select “Prewash”.
EXTRA RINSE
The laundry will undergo an extra rinse once you select it.
SPEED WASH
This function can decrease the washing time.
MY CYCLE
Save your most frequently used washing cycle as a favourite.
To do this:
1. Press and hold Spin/Speed Wash/Temp for 3 seconds while your
desired cycle is in progress.
2. When starting a load of washing, press “My Wash” then
“Start/Pause” to begin.
NOTE: The default “My Cycle” progam is “Cotton”
DELAY
Set the delay funciton:
1. Select a program
2. Press the Delay button to choose the time (up to 24hours)
3. Press (Start/Pause) to commence the delay operation.
Cancel the delay function:
Press the “Delay” button until the display is “0H” (0 hours). This must be
done before the program has commenced. If program has start then you
must turn the washing machine on/off to reset the program.
CHILD SAFETY LOCK: Press and hold “Extra Rinse” & “Pre Wash” for
3 seconds to activate child safety lock. Press and hold both buttons
again to de-activate.

11
OPERATION (Cont.)
TEMP
Press this button to regulate the temperature (Cold, 20°, 30°, 40°, 60°, 90°)
SPIN
Press the button to change the spin speed.
1400: 0-600-800-1000-1200-1400
Spin.

12
OPERATION (Cont.)
PROGRAMS

13
OPERATION (Cont.)

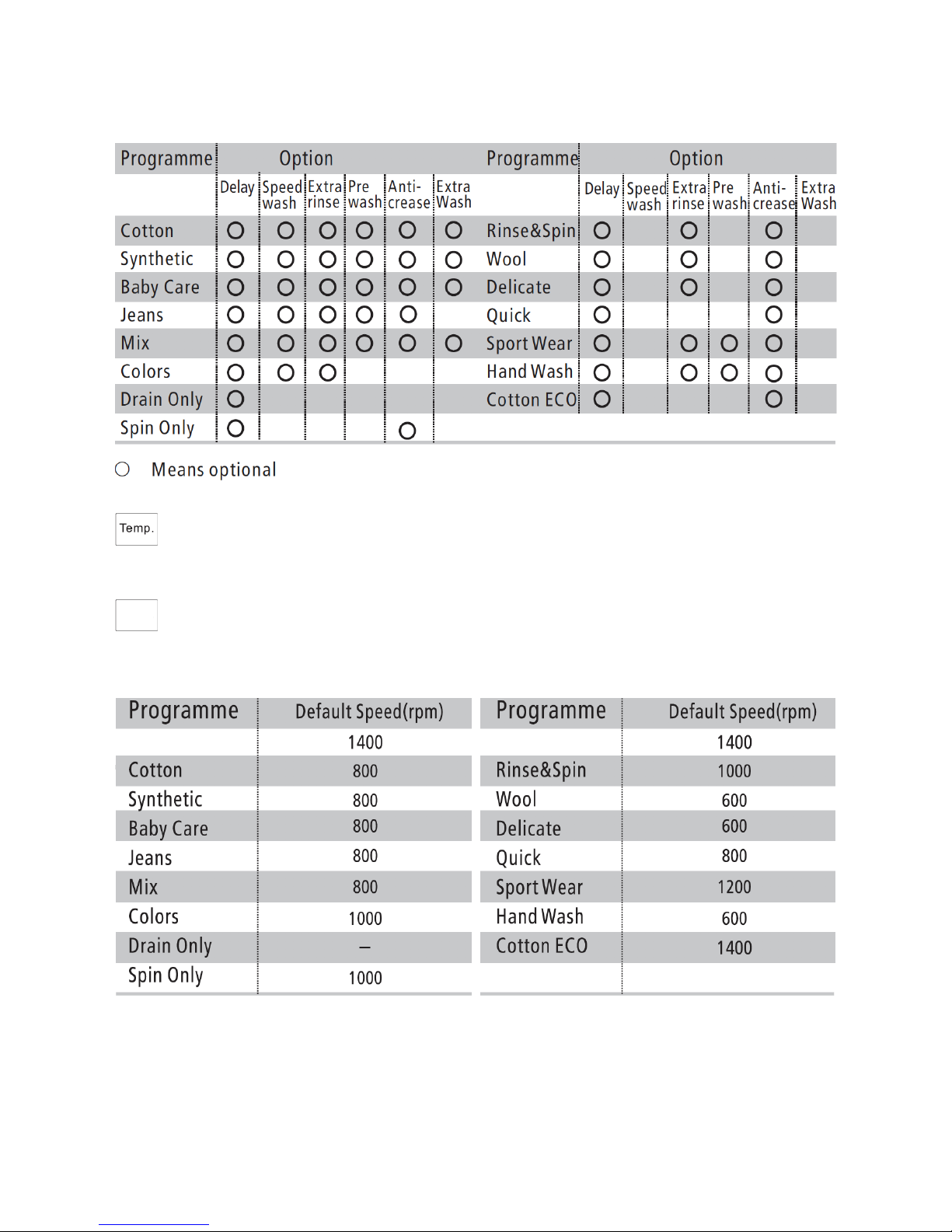

WASHING PROGRAM TABLE
*“Cotton ECO” is the washing program to which the information
in the efficiency label relates, and is suitable to clean normally soiled cotton
laundry and that it is the most efficient programme in terms of combined
energy and water consumptions for washing that type of cotton laundry,
The actual water temperature may differ from the declared cycle temperature.
*

14
Before installing your appliance, read all safety instructions in this manual,
especially the sections on electrical safety and installation.
GETTING STARTED
UNPACKING
• When unpacking the appliance, be sure to keep all the packaging materials until
you have made sure your new appliance is undamaged and in good working
order. Plastic can be a suffocation hazard for babies and young children,
make sure the materials are out of their reach.
TRANSPORTATION
• CAUTION: VERY HEAVY! Be sure to team lift the appliance with someone or
mechanical aid is required when moving the appliance. Keep the appliance
upright as possible when moving the appliance.

15
GETTING STARTED (Cont.)
LEVELLING THE APPLIANCE
IMPORTANT! Make sure to level the appliance carefully with a spirit level to ensure
the most accurate levelling of the appliance. This is a must if your floor in
unbalanced to level the washing machine.
• Make sure to position the appliance on a level and stable ground. If the
floor is uneven you can adjust the feet by twisting the feet. Make sure to
slightly incline the appliance first then adjust the leveling feet by
twisting it clockwise or counter clockwise depending if you are raising or
lowering the feet.
Note: Make sure to avoid direct sunlight onto the appliance.
• By placing a spirit level ontop of the appliance you can check correctly to
aid you in adjusting the feet levelling nuts to adjust the appliance to be
completely level.

16

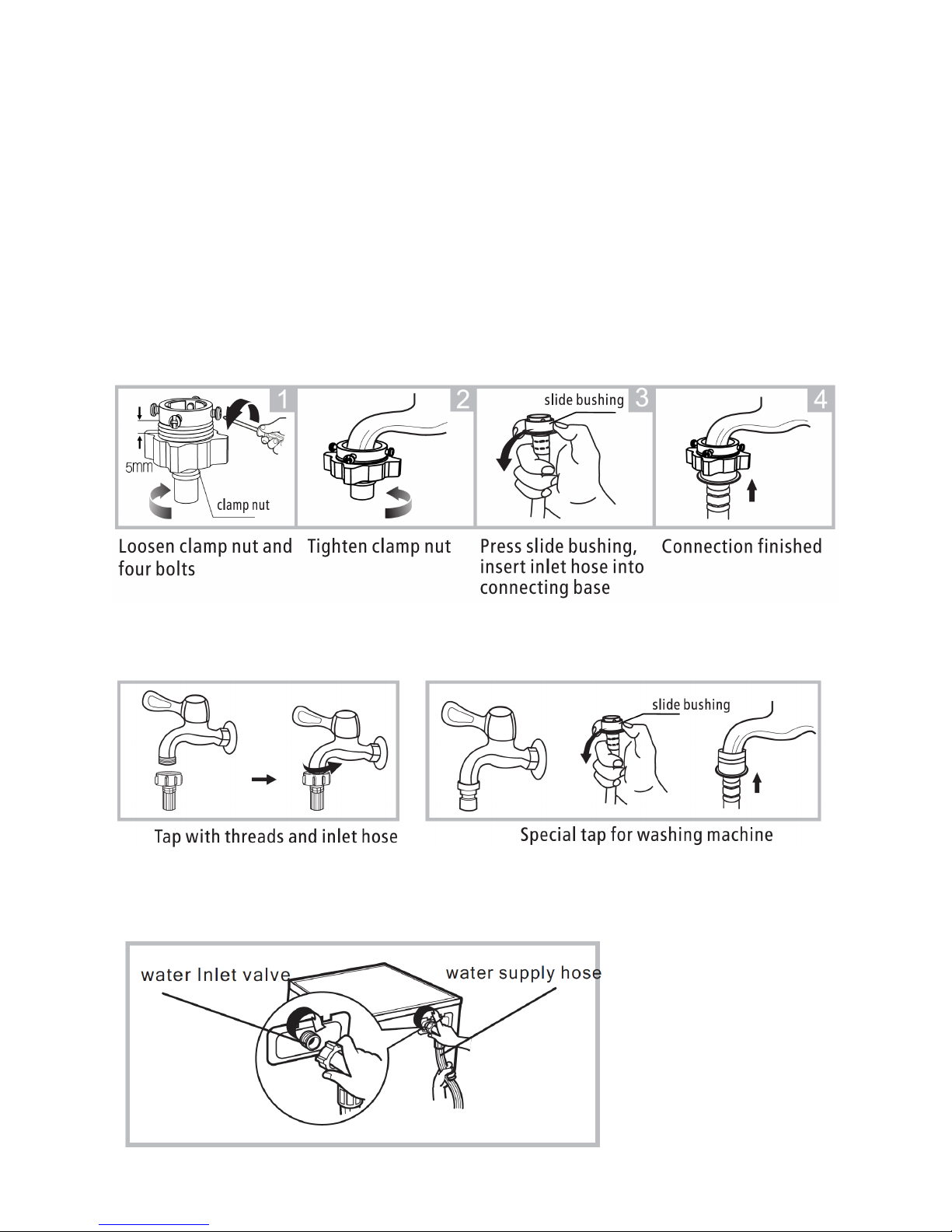

CONNECTING THE WATER INLET HOSE
IMPORTANT! To prevent leakage or water damage please follow the below
instructions. Do not kink, crush, modify or sever the water inlet hose.
• Connect the inlet pipe as indicated, there are two ways of connecting
the inlet pipe.
• Minimum Inlet Water Pressure: 0.05MPa
Maximum Inlet Water Pressure: 1MPa
1. Connection between the Tap and inlet hose.
2. Connection between the screw tap and inlet hose.

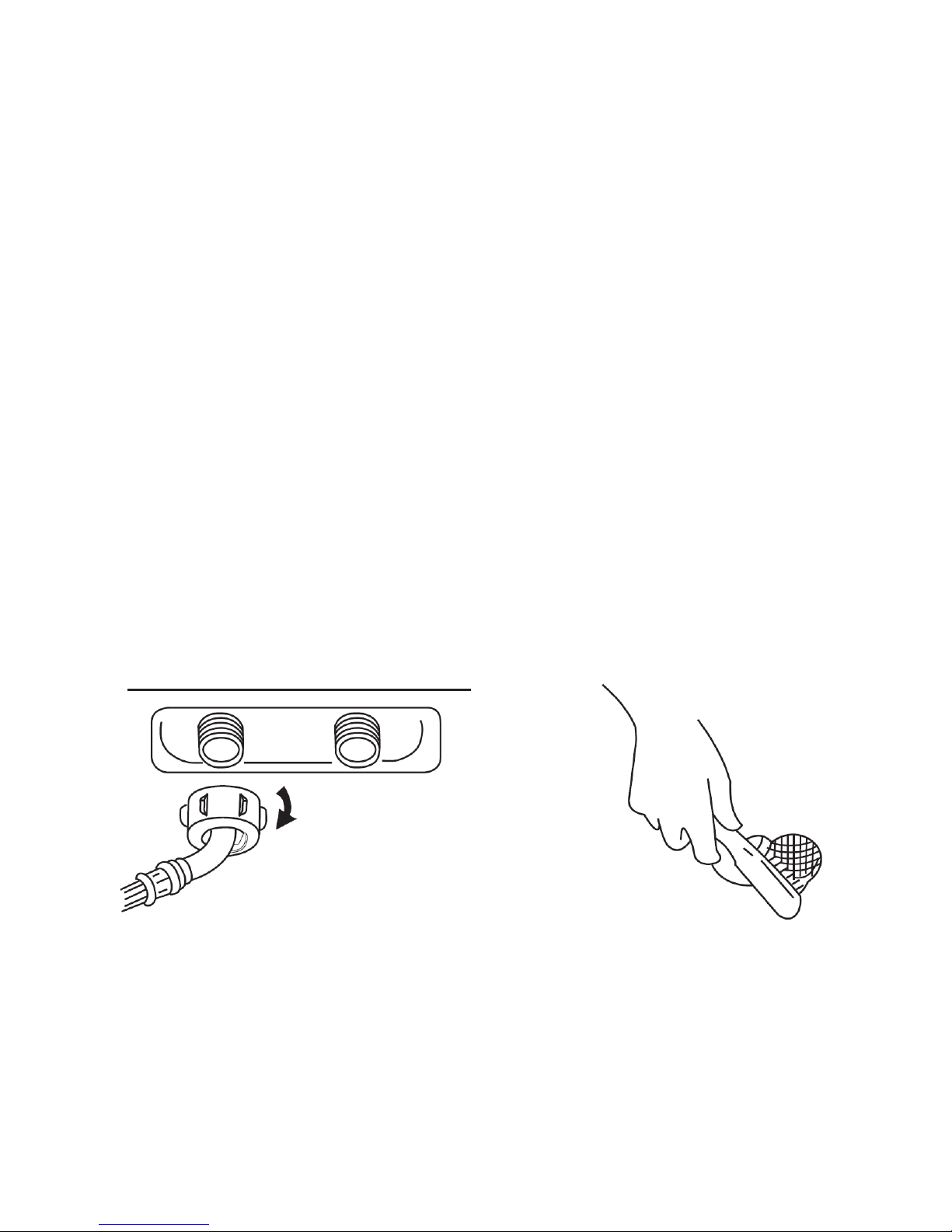

Connect the other end of the inlet pipe to the inlet valve on the back of the
appliance and fasten the pipe tightly clockwise.
GETTING STARTED (Cont.)

17
GETTING STARTED (Cont.)

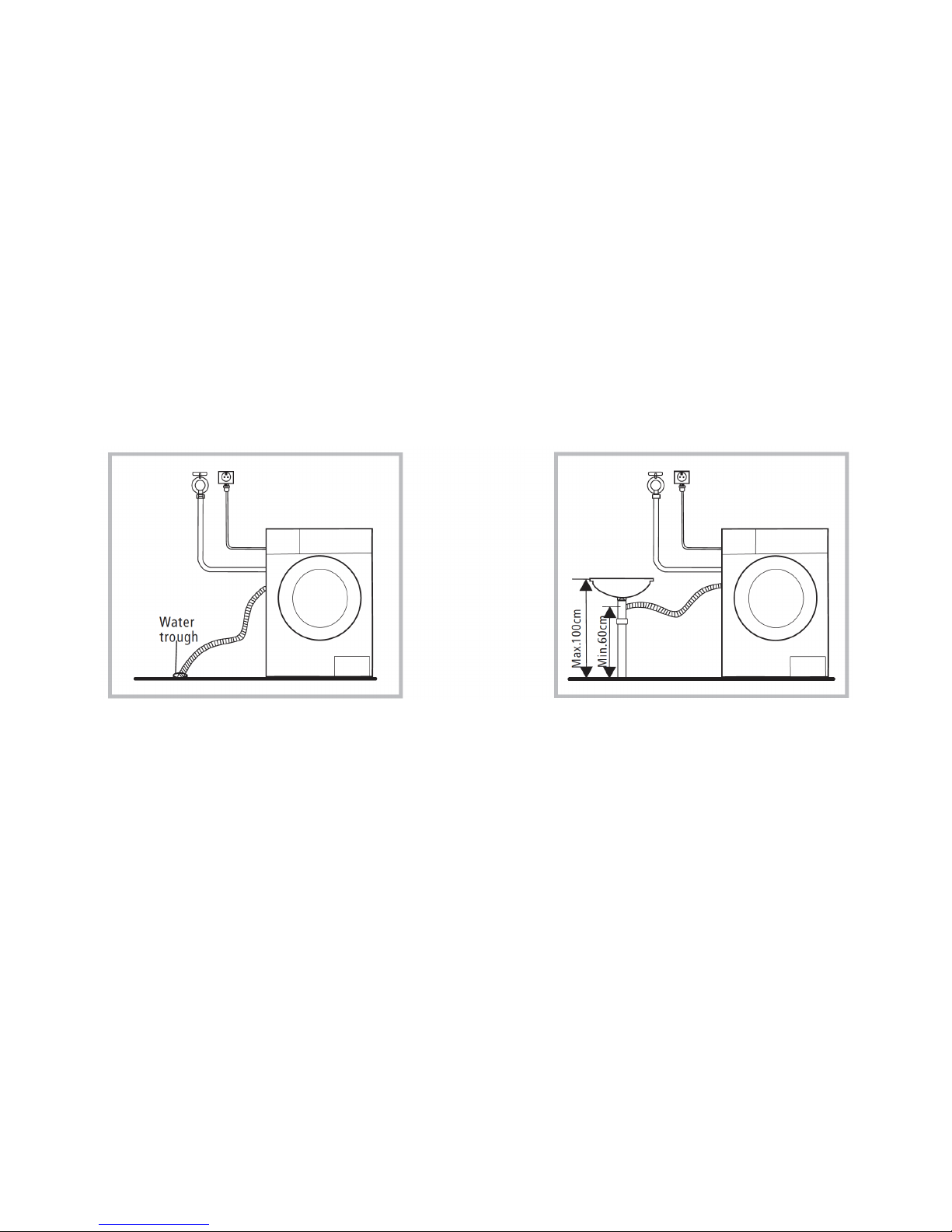

CONNECTING THE DRAIN HOSE
• Do not kink or protract the drain hose. Position the drain hose correctly other
wise damage will result in water leakage.
• The height of the water drain hose can be from 60 to 100cm.
• Do not bend the drain hose or place it under the washing machine.
• Be sure to only use new hose sets when connecting the Washing Machine.
Do not re-use old hoses.
There are two ways to place the end of the drain hose:
1. Put it into the water trough. 2. Connect it to the branch
drain pipe of the trough.

18
BEFORE FIRST USE
• Make sure the washing machine is completely level as to previous instructions
on how to level your washing machine.
• Make sure the water inlet hose is installed correctly.
• Make sure that the washing machine is plugged into the power socket.
• When the water inlet hose is installed, turn on the water supply on the tap.
After the above steps have been completed, In a few simple steps you can select
the type of wash you want and get started.
INSTRUCTIONS
• Make sure that the appliance is in a correct working temperature (0-40˚C).
If the appliance is used under 0˚C the inlet valve and draining system may
be damaged.
• Make sure that all labels are checked on items if they can be washed.
• Use non-foaming or less-foaming detergents which are more suitable for
washing machines to wash correctly.
WARNING
• Never use the washing machine to wash a single item at any given time, if you
need to urgently wash an item, we suggest placing a few clothing items in there.
• Make sure that all labels are checked on items if they can be washed.
• Use non-foaming or less-foaming detergents which are more suitable for
washing machines to wash correctly.
• Maximum mass of dry clothes is 10kg

19
WASH CARE SYMBOLS
When choosing a wash program, check for any labels on your clothes and follow
the instructions. below are some commonly used symbols.
INSTRUCTIONS (Cont.)

20
CLEANING AND MAINTENANCE
WARNING:
• Before starting maintenance, ensure that the appliance is unplugged and
close the tap.
CLEANING THE CABINET
Proper maintenance on the washing machine can extend its working life.
The surface can be cleaned with diluted non-abrasive neutral detergents when
necessary. If there is any water overflow, use a wet cloth to wipe it off immediately.
Make sure no sharp items are used to clean the appliance.
• Use a gentle cloth to wipe off the water and dirt on the surface of the
washing machine after every use. Detergent, properllant and other chmicals
are not allowed to be used to clean the washing machine surface as it can
damage the plastic accessories.
CLEANING THE WATER INLET
1 Switch on the power, followed by shutting off the tap
2 Let the washer work for 5 seconds so that the water flows into the tub
through the hose, then turn off the power.
3 Unload the water inlet hose and clean the mesh bag, then re-install everything.
