HELLER HWM8TL User manual

Model:HWM8TL
TOP LOAD WASHING MACHINE

65
65 C
0.03Mpa
than 0.85MPa.

1. Water supply selector/Air dry:Press this button to select water temperature or the time of air dry
2. Water level button:Press this button to select water level.
3. Process button:Press this buttons to select the process you need.
4. Delay start Preset button Hold the water level of key, then press water supply can be set up into the(
reservation statustime of delay start.
5. Program button Press this buttons to select the program you need.
6. Start/Pause button Press this button to start/pause the washing machine.
7. Power button: Press this button to turn on/off the washing machine. Do not turn on the washing machine
again until 3minutes later after it is turned off. The washing machine will turn off at once automatically
when the program finish, and it will turn off automatically if you do not press the start button to start the
machine within 10 minutes after press the power button.
SPECIFICATIONS
50HzRated frequency220-240V~Rated voltage
420WRated input power 34 KG
Net weight
8.0KG
Rated wash capacity
0.03MPa-0.85MPa
Water pressure
570mmX580mmX985mmDimension
985 mm
570 mm
580mm
Rated spin capacity 8.0KG

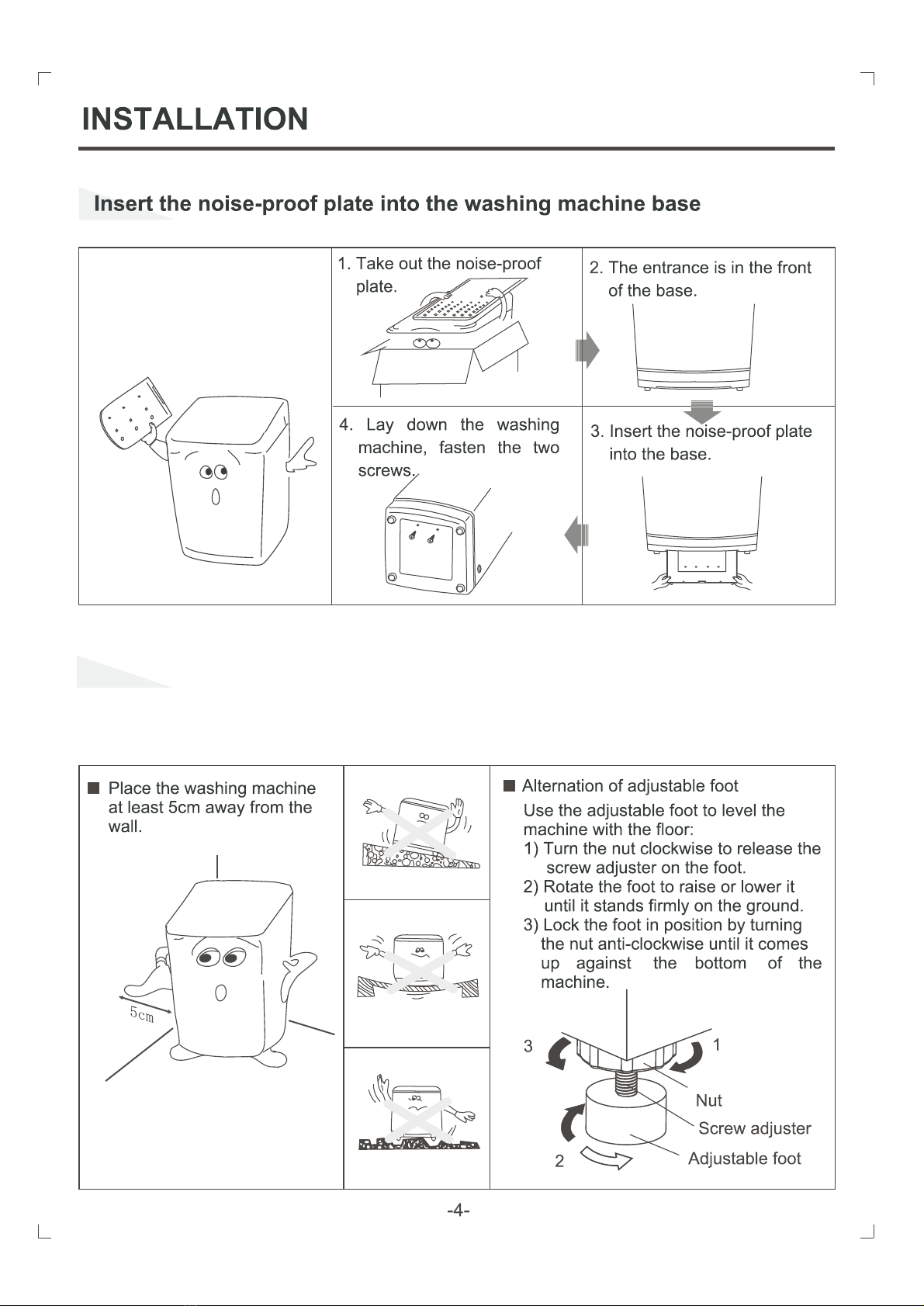

Install the washing machine
Install the washing machine on a firm and level surface,use the level adjustment knob to regulate
the adjustable foot until the washing machine is stable.

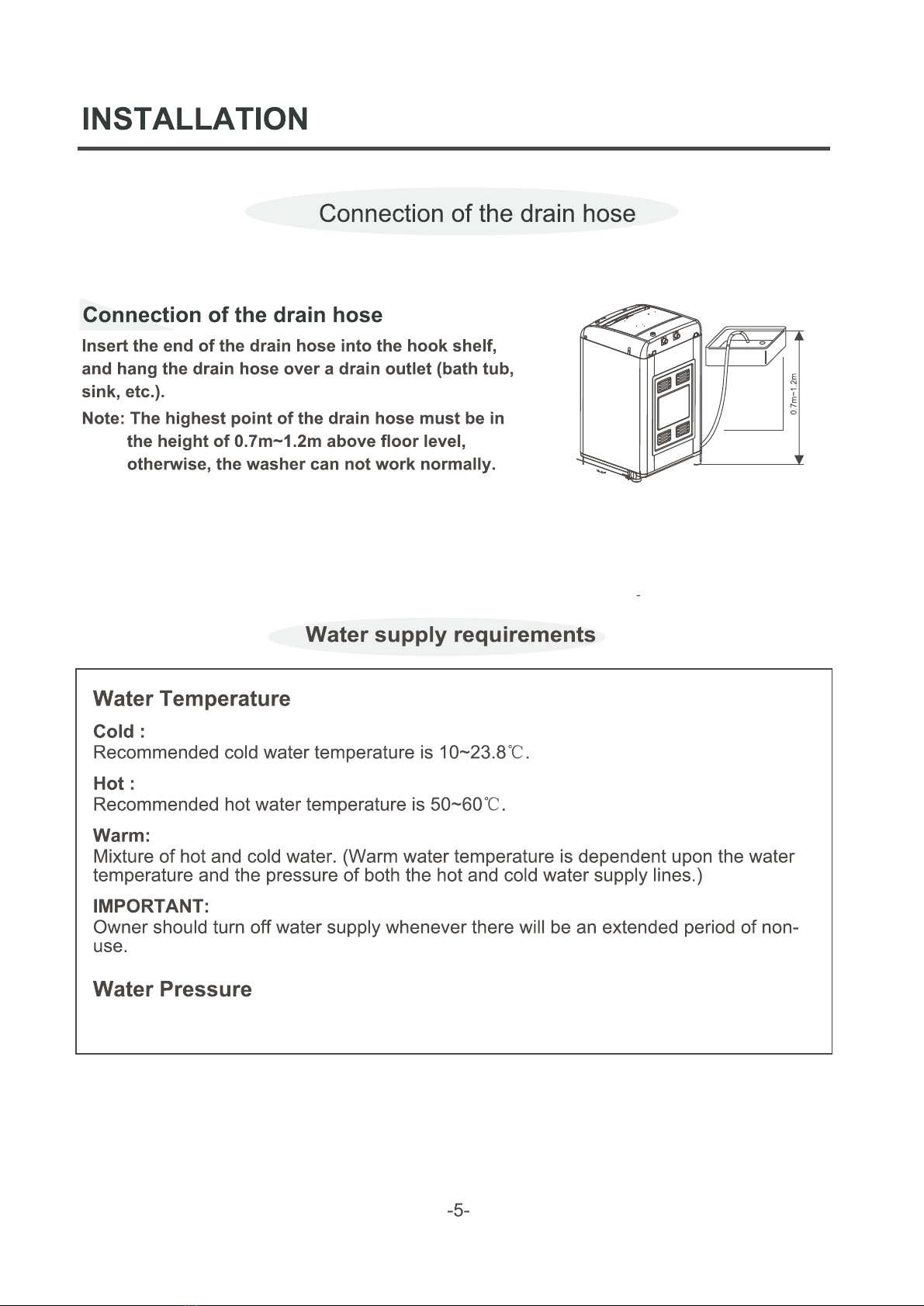

Do not operate the washer when the water pressure is lower than 0.03MPa or higher
than 0.85MPa to avoid damage of the inlet system.

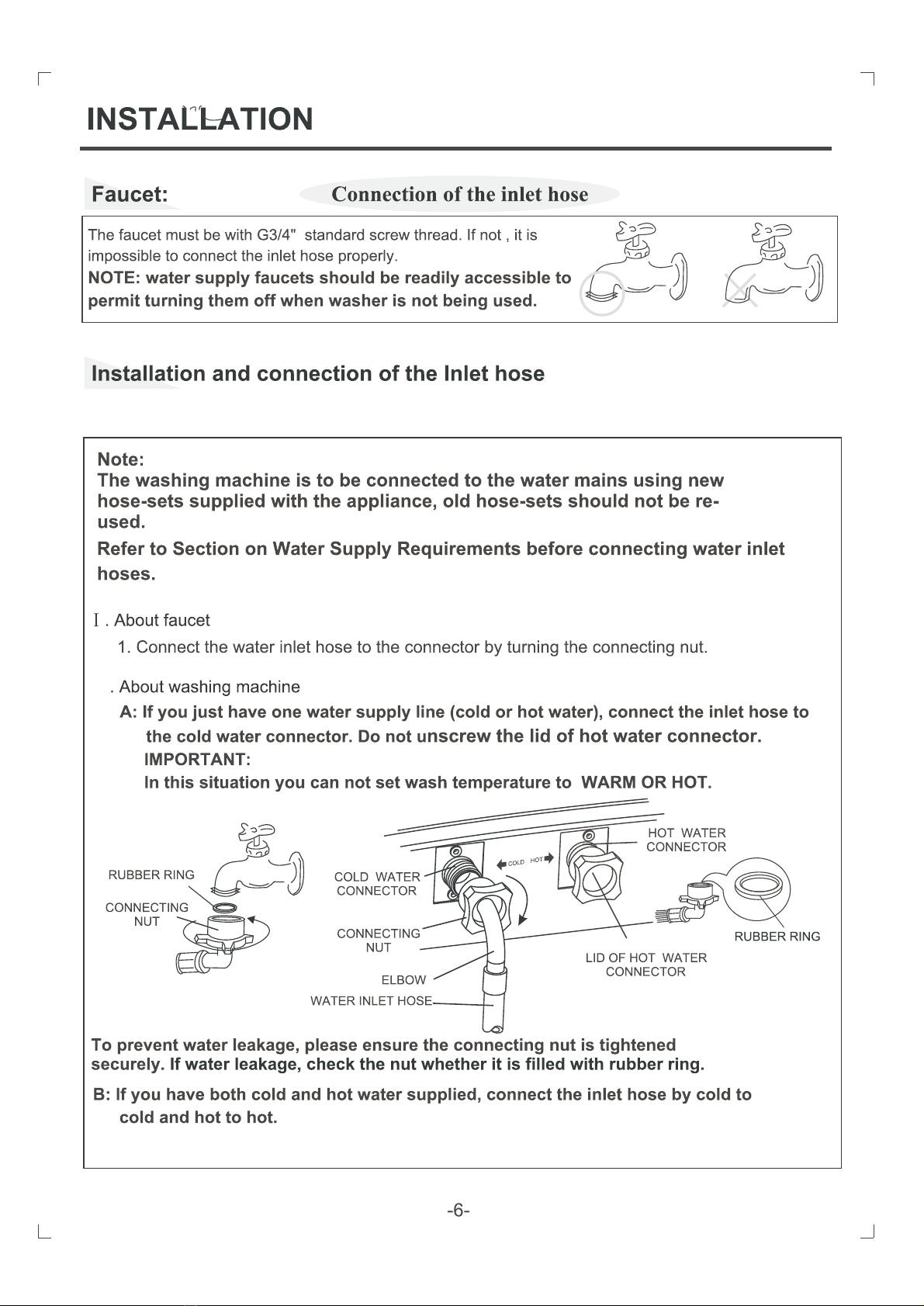

Ｎｏｔｅ： Ｕｓｅ Ｔｅｆｌｏｎ ｔａｐｅ ｗｈｅｎ ｃｏｎｎｅｃｔｉｎｇ ｔｈｅ ｉｎｌｅｔ ｈｏｓｅｓ ｔｏ ｔｈｅ ｔａｐ ｃｏｎｎｅｃｔｉｏｎｓ．

Always close the tap when unit is not in use.
The socket should have assembled the 5A fuse.
Use three pins socket,where the earth is connected.
Note:
The earth wire of the washing machine is set in the plug, don't try to
modify it.
The socket should have reliable earth wire. If no earth wire in
socket, please call the technician to assemble.
Never try to connect the earth wire of the washing machine
together with that of gas pipe or water pipe, telephone cord or
lightening rod.
Do not use the damaged cord because it could cause electrical leakage
In case cord is damaged, call the local Service Company to change it.

1.Draw out the detergent box.
2.Add the suitable quantity detergent into the
detergent dispenser.
3.Add the suitable quantity softener into the
softener dispenser before wash.
4.Push detergent box into completely.
Detergent dosage
Water level (g)
80 ~ 1007 ~ 8
70 ~ 805 ~ 6
50 ~ 703 ~ 4
45 ~ 501 ~ 2
Note:
*Dilute concentrated detergent with triplicate water.
*If detergent needed, do not open the wash lid when spin, or else the softener will be premature
used and the effect will be worse.
SOFTENER FOR LAUNDRY
Note:
*Inject softener into the softener dispenser before
washing, At the last time for rinse, the softener
will be infused into the rinsing automatically.
*Dilute concentrated softener with triplicate water.
*If softener needed, do not open the wash lid
when spinning, or else the softener will be
prematurely used and the effect will be awful.
Softener dosageWater
level ConcentratedNormal
5141-2
7203-4
10255-6
1330
7-8
