16x16 3G/HD/SD-SDI Matrix
User Manual
rev: 120704
Made in Taiwan
M
MA A- -3 31 11 16 6

The MA-3116 16x16 3G/HD/SD-SDI Matrix has been tested for conformance to safety regulations and
requirements, and has been certified for international use. However, like all electronic equipments, the
MA-3116 should be used with care. Please read and follow the safety instructions to protect yourself from
possible injury and to minimize the risk of damage to the unit.
●Follow all instructions and warnings marked on this unit.
●Do not attempt to service this unit yourself, except where explained in this manual.
●Provide proper ventilation and air circulation and do not use near water.
●Keep objects that might damage the device and assure that the placement of this unit is on a stable
surface.
●Use only the power adapter and power cords and connection cables designed for this unit.
●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before
cleaning.
TABLE OF CONTENTS
INTRODUCTION................................................................................................................ 1
FEATURES ........................................................................................................................ 1
PACKAGE CONTENTS...................................................................................................... 1
SPECIFICATIONS.............................................................................................................. 2
PANEL DESCRIPTIONS.................................................................................................... 3
CONNECTION DIAGRAM.................................................................................................. 4
DIP Switch.......................................................................................................................... 4
HARDWARE INSTALLATION ............................................................................................ 5
CHANNEL CONTROL........................................................................................................ 5
LIMITED WARRANTY........................................................................................................ 9

1
INTRODUCTION
The MA-3116 16x16 3G/HD/SD-SDI Matrix provides the most flexible and cost effective solution in
the market to route 3Gbps high definition video sources from any of the sixteen SDI sources to the any
eight SDI receivers at the same time. This solution is well suited for use in home theater, conference room
presentation systems, or other similar setting or application.
FEATURES
●Inputs meet SMPTE 259M, 292M, 424M,425M
●Synchronizes input/output (switch after vertical sync)
●Allows any SDI display to view any SDI source at any time
●Auto-Reclocking
●The matrix master can switch every output channels to any SDI inputs by push-in button, IR remote
controller or RS-232 control
●Easy installation with rack-mounting and wall-mounting designs for master and receiver respectively
PACKAGE CONTENTS
●1x MA-3116 ●1x UL AC C13 power cord
●1x BNC Terminator Plug ●1x IR receiver
●1x Rack-mounting ear set ●1x IR Remote control
●1x Installation software CD ●1x User Manual
USB or RS-232 control must be connected either one at a time. Connecting both types of cables may
cause command confusion.

2
SPECIFICATIONS
Model Name
MA-3116
Technical
Role of usage
True 16x16 matrix
Video bandwidth
2.97 & 2.97/1.001Gbps
Video support
[3G] 1080p@50/59.94/60 (4:2:2)
[HD] 720p50/59.94/60, 1080p24/30, 1035i50/59.94/60, 1080i50/59.94/60
[SD] NTSC@59.94Hz, PAL@50Hz
Audio support
Yes
Cable equalization
[3G] up to 100m(300ft) / [HD-SDI] up to 150m (500ft) / [SD-SDI] up to 300m
(1000ft)
Reclocking function
Yes
PCB stack-up
4-layer board [impedance control —differential 100; single 50]
Input
16x SDI BNC + 1x Synchronized BNC + 1x RS-232
Output
16x SDI BNC + 1x Synchronized BNC loop-out
SDI Input selection
Push button / IR remote / RS-232
IR remote control
Electro-optical characteristics: = 25/ Carrier frequency: 38kHz
RS-232 connector
DE-9 [9-pin D-sub female]
Mechanical
Housing
Metal case
Dimensions
[L x W x H]
Model
440 x 310 x 44mm [1’5” x 1’ x 1.7”]
Package
528 x 398 x 130mm [1’9” x 1’4” x 5.1”]
Carton
548 x 422 x 282mm [1’10” x 1’5” x 11.1”]
Weight
Model
4051g [8.9 lbs]
Package
4900g [10.8 lbs]
Fixedness
Interlocking power supply
Power supply
AC Power 100-240V
Power consumption
35 Watts [max]
Operation temperature
0~40C [32~104F]
Storage temperature
-20~60C [-4~140F]
Relative humidity
20~90% RH [no condensation]

3

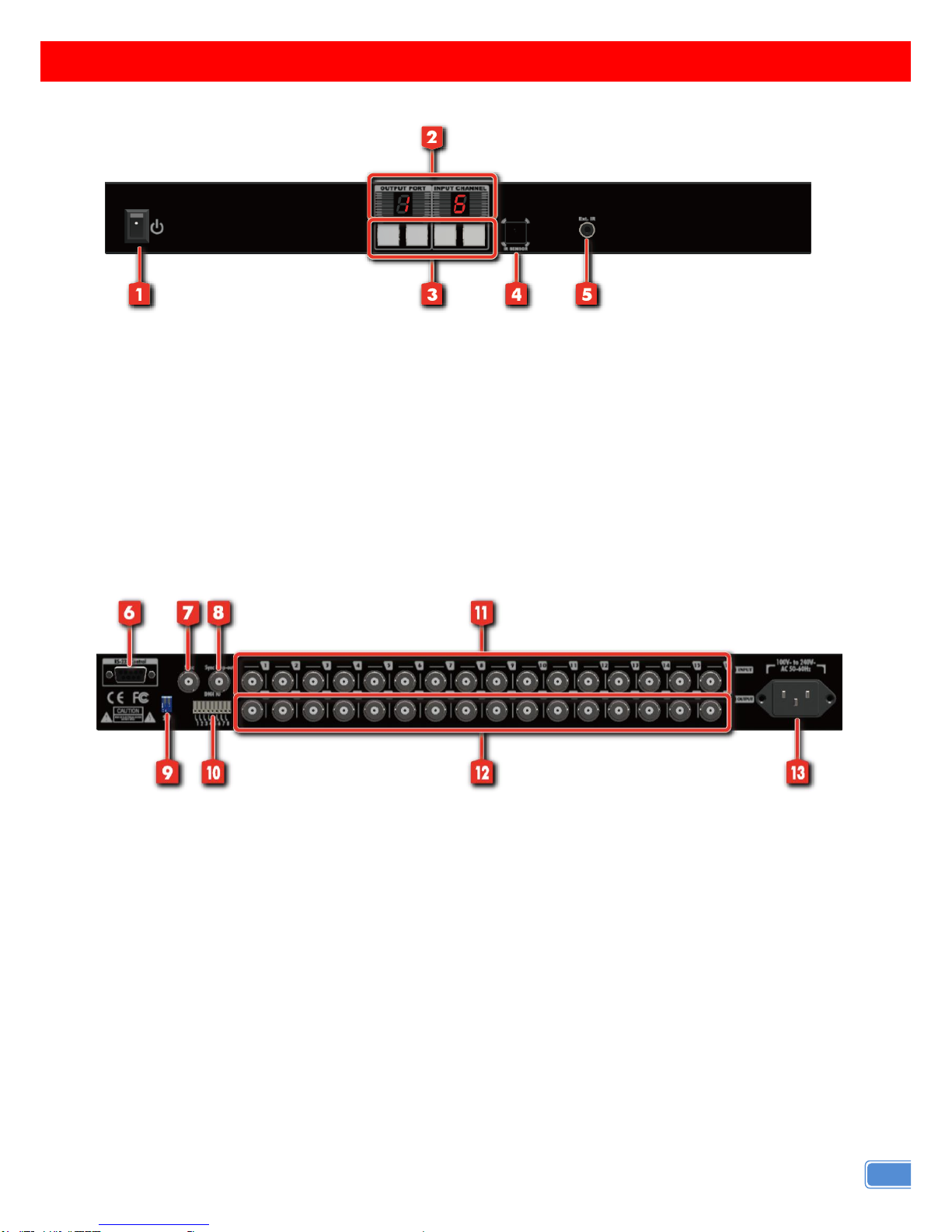

PANEL DESCRIPTIONS
Front Panel
1. Power: Power control
2. Fifteen Segment LED Indicators: Output/Input display
3. Front panel push buttons: To select input and output source
4. IR sensor
5. IR: IR receiver
Rear Panel
6. RS-232: RS-232 control port
7. Sync In: External sync input
8. Sync Output: External sync loop out
9. SW: firmware update
10. Digital I/O: Control signal
11. INPUT PORT 1 –16: SDI inputs
12. OUPUT PORT 1–16: SDI outputs
13. AC Power: 100-240V

4

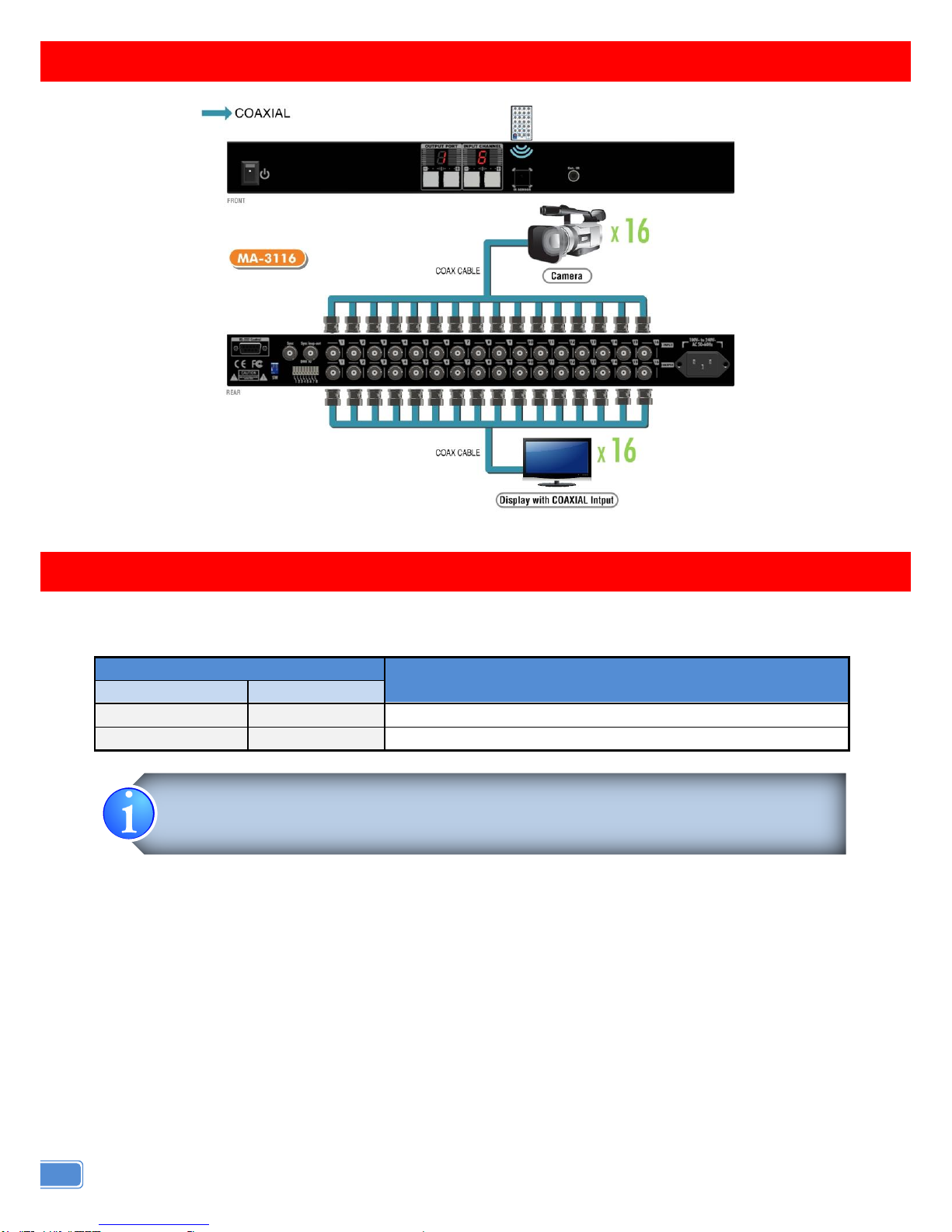

CONNECTION DIAGRAM
DIP SWITCH
Main Firmware Update
WARNING!
[ Firmware update only can be done via RS-232 port and connection to PC set at COM1 ]
1. Power off the MA-3116. Execute the firmware update program on your PC via COM1 port
connection to the RS-232 port of the MA-3116.
2. Set the pin#1 and pin#2 of [SW] at ON[] for firmware update mode.
3. Power on the MA-3116. The firmware update program should begin this update sequence
automatically. If not, please check the RS-232 connection status between PC and MA-3116.
4. After the OK message shows up to indicate the firmware update sequence for designated
Block is complete, please turn off the MA-3116.
5. Set the [SW] switch position to Normal Operation Mode.
6. Power on the MA-3116.
DIP Switch Position
Description
Pin#1
Pin#2
OFF []
OFF []
Normal Operation
ON []
ON []
For Firmware Update
1. Factory default for SW is pin#1-OFF[], pin#2-OFF[].
PLEASE MAINTAIN THIS SETTING AT ANYTIME FOR REGULAR USE VIA RS-232 CONTROL!
2. Sequence for firmware update

5
HARDWARE INSTALLATION
MA-3116
1. Connect all sources to SDI Inputs on the 16x16 SDI matrix
2. Connect all outputs to SDI Receiver
3. Connect the AC power supply to the 16x16 SDI matrix
4. Power on the 16x16 SDI matrix MA-3116
CHANNEL CONTROL
Source Side
Method A: Push-in Button
1.Use the switch button on output port to select which port to be changed.
(+) increase (–) decrease
2.Push the switch button on Input channel. The source will be sequentially changed.
After few seconds, the setting will be active.
3. Numbers from 10-16 on the LED are shown asA, B, C, D, E, F, G.
Method B: IR Remote Control
Note
Route input to output
Input port number + To + output port number + Take
Select I/O 10, choose
Select I/O 11-16, choose (1-6) +
Input port number + To + All output port + Take
Display status
Output port number + Status + Take
Factory Reset
Status + Status + Status + Take
Save Mapping
Number + Save + Take
[Memory 6 sets of configuration]
Preset Mapping
Number + Preset + Take
F1, F2, F3, F4,CLEAR
Reserved Buttons

6
Display Side
Method A: Software Control through RS-232
Software Control Menu
1. GUI Control:
a. Select COM and click “connect” button to connect to the device. If the connection is successful, then
the button will turn green.
b. Click the input button can easily map all the outputs to corresponding input ports.
c. Each button switches the output ports to the input ports.
d. Power control button can power on and power off the device.
RS-232 COM select
Power control
Port switch button

7
Popup menu
Popup menu
Popup menu

8
2. Popup menu:
Right click the mouse will show up a popup menu. It supports “one by one mapping”, “saving mapping”
and “preset mapping” functions.
3. Terminal control:
Baud rate: 9600
Data length: 8bit
Parity check: No
Stop bit: 1
Command Set:
COMMAND
ACTION
COMMAND
ACTION
COMMAND
ACTION
ST
System Status*
C5
Output C select
Input5
F3
Output F select
Input3
VR
Firmware Version
C6
Output C select
Input6
F4
Output F select
Input4
A1
Output A select
Input1
C7
Output C select
Input7
F5
Output F select
Input5
A2
Output A select
Input2
C8
Output C select
Input8
F6
Output F select
Input6
A3
Output A select
Input3
D1
Output D select
Input1
F7
Output F select
Input7
A4
Output A select
Input4
D2
Output D select
Input2
F8
Output F select
Input8
A5
Output A select
Input5
D3
Output D select
Input3
G1
Output G select
Input1
A6
Output A select
Input6
D4
Output D select
Input4
G2
Output G select
Input2
A7
Output A select
Input7
D5
Output D select
Input5
G3
Output G select
Input3
A8
Output A select
Input8
D6
Output D select
Input6
G4
Output G select
Input4
B1
Output B select
Input1
D7
Output D select
Input7
G5
Output G select
Input5
B2
Output B select
Input2
D8
Output D select
Input8
G6
Output G select
Input6
B3
Output B select
Input3
E1
Output E select
Input1
G7
Output G select
Input7
B4
Output B select
Input4
E2
Output E select
Input2
G8
Output G select
Input8
B5
Output B select
Input5
E3
Output E select
Input3
H1
Output H select
Input1
B6
Output B select
Input6
E4
Output E select
Input4
H2
Output H select
Input2
B7
Output B select
Input7
E5
Output E select
Input5
H3
Output H select
Input3
B8
Output B select
Input8
E6
Output E select
Input6
H4
Output H select
Input4
C1
Output C select
Input1
E7
Output E select
Input7
H5
Output H select
Input5
C2
Output C select
Input2
E8
Output E select
Input8
H6
Output H select
Input6
C3
Output C select
Input3
F1
Output F select
Input1
H7
Output H select
Input7
C4
Output C select
Input4
F2
Output F select
Input2
H8
Output H select
Input8

9
LIMITED WARRANTY
The SELLER warrants the MA-3116 16x16 3G/HD/SD-SDI Matrix to be free from defects in the
material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer.
Should this product fail to be in good working order within 1 year warranty period, the SELLER, at its
option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster,
abuse or any unauthorized modifications including static discharge and power surge. This warranty is
offered by the SELLER for its BUYER with direct transaction only. This warranty is void if the warranty
seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of parts
and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment
to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss
or damage in transit. Under no circumstances will a unit be accepted without a return authorization
number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any
other implied warranty or fitness or merchantability for any particular purpose, all of which are expressly
disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible
for shipping charges to and from the SELLER. Cables and power adapters are limited to a 30 day
warranty and must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However, The
SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting
from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the
technical information contained herein regarding the MA-3116 v1.2/v1.3 features and specifications is
subject to change without further notice.
