QUICK GUIDE
SWITCH
LYNX 1008

THANK YOU FOR CHOOSING
JENSEN OF SCANDINAVIA

At Jensen of Scandinavia satisfied customers
mean everything to us. We are always focused
on meeting the requirements and wishes of
our customers. Our goal is to be the obvious
first choice, the best provider of customer
service and offer products that are easy to use.
We would like to take this opportunity to once
again thank you for choosing our product!
Best Regards
Jensen of Scandinavia

Contents
Getting started
Connecting devices
Confirm connection
Komme i gang
Uppsättning
Kom i gang
Aloitus
A bit of info
Looking after your switch
Safety
6
7
8
9 - 11
12 - 14
15 - 17
18 - 20
21
22
23
Before you start to install the switch, check that the
following items are included in this package
1 x LYNX 1008
1 x Power adapter
1 x Quick guide
In the package

6
Connect the power adapter to a nearby outlet and plug
the DC connector into the LYNX 1008 as shown ( 1 ).
Using an Ethernet cable (not included) connect a port
on the LYNX 1008 to one of your routers LAN ports ( 2 ).
Getting started
12
7
Connect up to 7 more devices ( 2 ) using an
Ethernet cable in any of the free ports ( 1 ).
Connecting devices
1
2
POWERROUTER
LYNX 1008
87654321
LYNX 1008
87654321

8
Confirm a connection with the LYNX 1008 front
LED for the connected port ( 1 ).
Confirm connection
PWR
12345678
1
O - No connection
On green - Gigabit connection
On orange - Fast connection
Flashing - Transmitting/receiving data
9

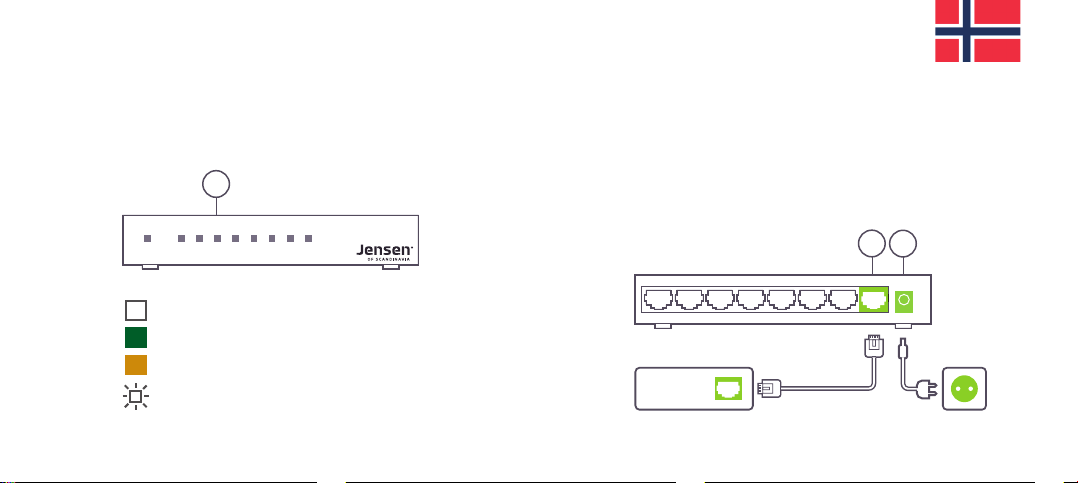

Koble strømadapteren til en stikkontakt og plugg DC
pluggen inn i Lynx 1008 som vist ( 1 ).
Koble en Ethernet-kabel (ikke inkludert) i en av portene
i LYNX 1008 til en av LAN-portene på ruteren ( 2 ).
Komme i gang
12
STIKKONTAKTRUTER
LYNX 1008
87654321

Koble til opptil syv enheter ( 2 ) med en Ethernet-
kabel i en av de ledige portene ( 1 ).
Koble til enhetene
11
Du kan bekrefte tilkoblingen til Lynx 1008 ved å
sjekke tilsvarende LAN-port LED på forsiden av
enheten ( 1 ).
Bekreft tilkoblingen
Ingen lys - Ingen tilkobling
Grønn - Gigabit-tilkobling
Orange - Rask tilkobling
Blinkende - sender / mottar data
10
1
2
LYNX 1008
87654321
PWR
12345678
1

12

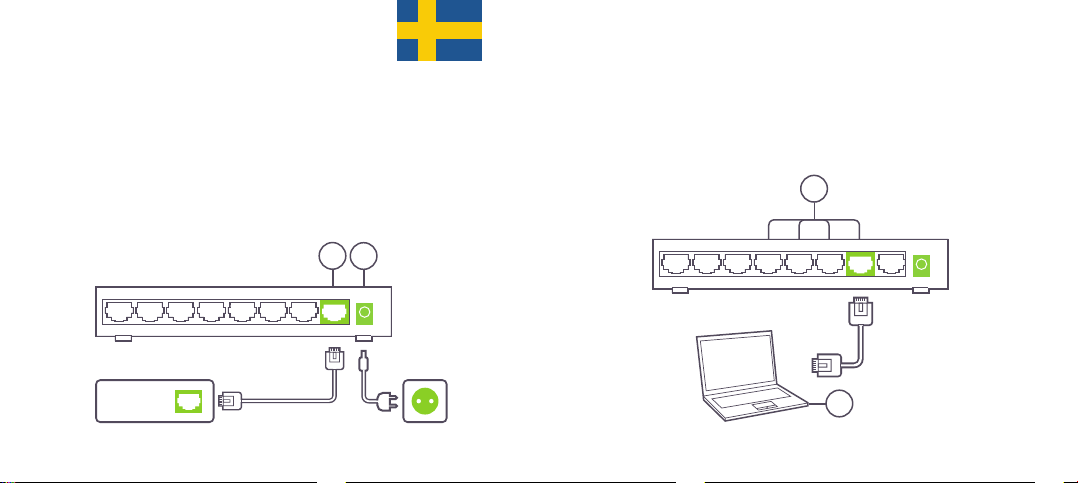

Börja med att koppla ström-adaptern till närmsta
eluttag och sätt sedan in din DC Kabel i din LYNX 1008
som visas ( 1 ). Använd en Ethernet kabel (Ingår ej) och
anslut kabeln till en ledig LAN port på din LYNX 1008
och andra änden i din router (LAN port) ( 2 ).
Uppsättning
13
Du kan ansluta upp till sju enheter ( 2 ) genom att
använda en Ethernet kabel i någon av dem lediga
LAN portarna ( 1 ).
Anslut enheter
12
UTTAGRUTTER
LYNX 1008
87654321
1
2
LYNX 1008
87654321

14
Bekräfta att enheten är ansluten genom att kolla
om lamporna på framsidan lyser (LAN ports
lamporna som indikeras av numer 1-8).
Bekräfta anslutningen
Av - Ingen anslutning
Grön färg - Gigabit anslutning
Orange färg - Snabb anslutning
Blinkade - Skickar/tar emot data
15
Sæt strømforsyningen i en stikkontakt og sæt DC
stikket i Lynx 1008 som vist ( 1 ).
Sæt et Ethernet-kabel ( medfølger ikke ) i en af
porterne i LYNX 1008 til en af din routers LAN-
porte ( 2 ).
Kom i gang
12
OUTLETRUTER
LYNX 1008
87654321
PWR
12345678
1

17
Du kan bekræfte din forbindelse til Lynx 1008 ved
at kontrollere den tilsvarende LAN port LED på
forsiden af enheden ( 1 ).
Bekræft forbindelse
Intet lys - Ingen forbindelse
Grøn - Gigabit forbindelse
Orange - Hurtig forbindelse
Blinkende – sender/modtager data
16
Tilslut op til syv enheder ( 2 ) med et
Ethernet-kabel i en af de ledige porte ( 1 ).
Tilslutning af enheder
1
2
LYNX 1008
87654321
PWR
12345678
1

18
Kytke virtajohto lähimpään pistokkeeseen ja yhdistä
muuntaja LYNX 1008 laitteeseen kuten 1 kohdassa.
Yhdistä LYNX 1008 laitteen yhdestä portista Ethernet-
kaapeli (ei sisälly pakkaukseen) yhteen porttiin
reitittimessäsi ( 2 ).
Aloitus
19
Yhdistä jopa seitsemän laitetta ( 2 ) Ethernet-
kaapelilla vapaisiin portteihin ( 1 ).
Laitteiden yhdistäminen
12
OUTLETREITIT
LYNX 1008
87654321
1
2
LYNX 1008
87654321

20
Varmista yhteyden toimivuus LYNX 1008 kanssa
etupaneelissa olevista LED-valoista ( 1 ).
Varmista yhteyden toimivuus
Ei valoa - Ei yhteyttä
Vihreä valo - Gigabit yhteys
Oranssi valo - Nopea yhteys
Vilkkuva valo - Portissa liikkuu dataa
(lähetys/vastaanotto)
21
LYNX1008 is a powerful, high-performance Gigabit
Ethernet switch, with 8 ports all capable of auto-
detection of speed, duplex (NWay) or crossover
(MDI-X). Put simply, the LYNX1008 will connect any
device fully automatically without any configuration
from you the user.
It is ideal for adding more wired devices to your
current networks, simplifying your wired network
into smaller segmented subnets. Gigabit Ethernet
allows for improved performance enabling the
bandwidth for demanding multimedia and imaging
applications in use today.
A bit of info
PWR
12345678
1

22
Do not use power supplies or power cables other
than those provided with this product.
The use of non-specified power supplies or power
cables may create a safety hazard and/or impair
equipment performance.
Do not wrap cords around Power Supply for
storage. Do not drive, drag or place objects over
cord.
Keep children and pets away from the unit and
power cables. If you suspect damage always
unplug the device from the mains.
Looking after your switch
23
This unit has no user serviceable parts, do not
open. Use only genuine replacement parts from an
approved dealer. Opening of this product by a non
qualified engineer can risk electric shock.
Product usage restrictions:
This product is intended for indoor use only.
Power supply:
External Power Adapter
5V 1A
Safety

This product may be sold in all EU
and EFTA countires:
AT, BE, BG, CY, CZ, DK, EE, FI, FR, DE,
GR, HU, IS, IE, IT, LV, LI, LT, LU, MT,
NL, NO, PL, PT, RO, SK, SI, ES, SE,
CH, TR and GB
