Senrigan GP-35 User manual

Senrigan GP-35 Brushless Gimbal
Instruction Manual
Page 1 of 19

Contents
1. Introduction:........................................................................................................................................................3
2. Check List............................................................................................................................................................4
3. Equipment equired For Assembly....................................................................................................................5
4. Assembly Steps – Mechanism Parts....................................................................................................................6
5. Assembly Steps – IMU Mounting.....................................................................................................................12
6. Assembly Steps – Power Connection and Manually Tilting.............................................................................14
7. Assembly Steps – Setup Manual Tilting on NAZA..........................................................................................16
8. Power On Steps.................................................................................................................................................18
10. Troubleshooting...............................................................................................................................................19
End Of Manual......................................................................................................................................................19
Page 2 of 19

1. Introduction:
Brushless Gimbal is the next generation technology for high quality aerial photography. Senrigan GP-35
Brushless Gimbal is driven directly with two Brushless Motors for two axis movement roll and tilt without
gears or belts. The main advantages of this design compared to traditional actuators (servos) are the Brushless
Gimbals have no backlash in the gear or belt, and it provides the instantaneous response to the disturbance. Due
to lack of gears/ belts, this new Brushless Gimbal is extrenely easy to install and with low weight which is
perfect for aerial activities. The lower the weight, the longer the flying time you can achieve.
Differ than others, the motors and Gimbal Controller of Senrigan GP-35 Brushless Gimbal have been well test
and tuned of the PID parameter for GoPro 3 Cameras in the factory before selling. So no worries about the
setting or PID tuning of the Brushless Gimbal. Furthermore, GP-35 is designed to full fit DJI Phantom
Quadcopter with only two screws easily. There is no modification needed at all when using with GP-35. So this
is suitable for both beginners as well as professionals.
Last but not the least, GP-35 Gimbal comes with an AV Output cable which allows GoPro 3 camera to transmit
the video signal down to the ground by using an FPV system(not included). So that you will see what you are
exactly recording. At the same time, GP-35 has the newer Brushless Gimbal firmware installed which enable 90
degree tilting. This is very useful for professional aerial filming and FPV flying activities.
Features:
-Direct drive of Brushless Motors for both oll and Tilt axis.
-Full fit to DJI Phantom Quadcopter without any modification.
-Simple and strong Mechanism Design.
-Made of CNC Metal Parts and Fiber Frames which is super light and strong.
-Super Steady Performance with high quality ubber Tension Damper Balls.
-High Quality Brushless Gimbal Controller(Pre-programmed) with the most steady performance.
-Well tested and PID parameter tuned by the factory for GoPro 3 camera.
-Included an high quality AV signal output cable for Gopro 3 Camera.
-Controllable oll and Tilt(Max. 90 degree) Axis Movement.
-Easy to install and use.
-Compact, light and valuable.
Specification:
-Movement: 2-axis, oll and Tilt
-Controllable axis: Tilt 90 Degree, oll 60 Degree
-Working Voltage: 3S 11.1V Lipo
-Brushless Gimbal Controller Weight: 16g
-IMU Weight: 1.4g
-Brushless Gimbal Motor Weight: 47.7g /Pcs
-Total Weight with Gopro 3 Camera: 270g
Page 3 of 19

2. Check List
Please Check the Follow parts.
BL Gimbal Controller with Top
Mounting Frame
1pcs
IMU Unit with Soft IMU Cable
1pcs
New BL Gimbal Motor 2208
2pcs
CNC Metal Parts:
A: Side Camera Cover
B: Upper Camera cover
C: Motor Mount
D: Front arm
E: ear arm
Lower Damper Plate – 1pcs ubber Tension Damper Balls
6pcs
AV Cable for Gopro-3
1pcs
Tilt and oll Controlling Connector
1pcs
JST Male Connector
1pcs
Page 4 of 19

Silver Hex Cap Screw M2.5x6mm
4 pcs
Silver Philip Screw – 2pcs
Nylon M3 Nut – 4pcs
Screw Pack:
M2.5x6mm Hex Cap Screw – 8pcs
Black Philip Screw – 2pcs
M3 Set Screw – 3pcs
3. Equipment Required For Assem ly
1pcs Gopro3 Camera 1 complete set of DJI Phantom
(Important: Before install GP-35 Gimbal on your Phantom make sure it
is flying properly with minimum vibration. Otherwise the Gimbal may not
work properly and stably!)
Page 5 of 19

4. Assem ly Steps – Mechanism Parts
Step 1.
ecognize the oriantation for the BL Gimbal Motor.
Step 2.
Install a Motor Mount onto the Front Side of BL
Gimbal Motor using M2.5x6mm Hex Cap Screws
which is included with the motor. This is the Tilt Axis.
(Apply little amount of Thread Locker when securing
screw to metal parts.)
Step 3.
Install the Upper Camera cover onto the Motor Mount
using Silver Hex Cap Screw M2.5x6mm.
(Apply little amount of Thread Locker when securing
screw to metal parts.)
Sep 4.
Complete assembly.
Page 6 of 19

Step 5.
Install the Front Arm onto the Back Side of BL
Gimbal Motor using M2.5x6mm Hex Cap Screws
which is included with the motor.
(Apply little amount of Thread Locker when securing
screw to metal parts.)
Step 6.
Complete assembly.
Step 7.
Install the Front Arm onto the Front Side of BL
Gimbal Motor using M2.5x6mm Hex Cap Screws
which is included with the motor.
(Apply little amount of Thread Locker when securing
screw to metal parts.)
Step 8.
Complete assemblly.
Page 7 of 19

Step 9.
Install the Lower Damper Plate onto the ear Arm
using Black Philip Screws. Pay attention to the
installation direction of the Lower Damper Plate.
(Apply little amount of Thread Locker when securing
screw to metal parts.)
Step 10.
Complete assembly.
Step 11.
Insert the cable of the Tilt Motor into the hole of the
oll motor.
Step 12.
Close view for the wiring of the Tilt motor.
Page 8 of 19

Step 13.
Insert 6pcs ubber Tension Damper Balls into the
holes of Top Mounting Frame.
Step 14.
Complete assembly.
Step 15.
Install the Top Mounting Frame onto the bottom side
of Phantom using 2pcs Silver Philip Screws.
(Apply little amount of Thread Locker when securing
screw to metal parts.)
Step 16.
emove the cover layer of the foam tap on the BL
Gimbal Controller.
Page 9 of 19

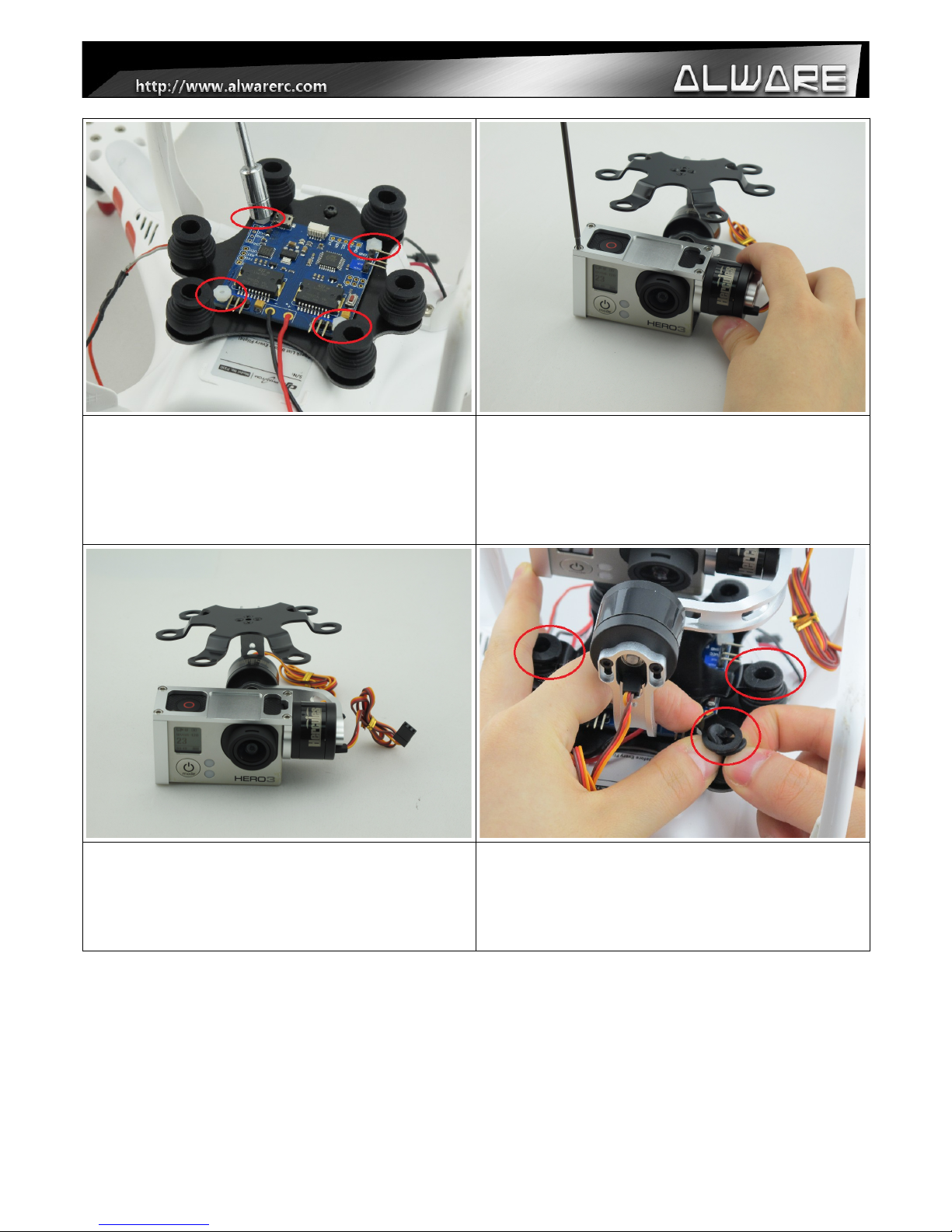

Step 17.
Stick the BL Gimbal Controller board on the Top
Mounting Frame and secure it with 4pcs Nylon M3
Nuts. (Tighten the Nylon Nuts completely.)
Step 18.
Install the Gopro 3 camera onto the Upper Camera
cover using the Side Camera Cover and secure it with
2pcs Silver Hex Cap Screw M2.5x6mm.
(Apply little amount of Thread Locker when securing
screw to metal parts.)
Step 19.
Complete assembly.
Step 20.
Connect the gimbal mount with 6pcs ubber Tension
Damper Balls.
Page 10 of 19

Step 21.
Insert the Motor Cables of Tilt and oll Motors into
the Connector Cases included. Pay attention to the
position of each color of wires.
Step 22.
Connect the Titl and oll Motors onto the Gimbal
Controller Board. Follow the connect direction as
shown above.
Page 11 of 19

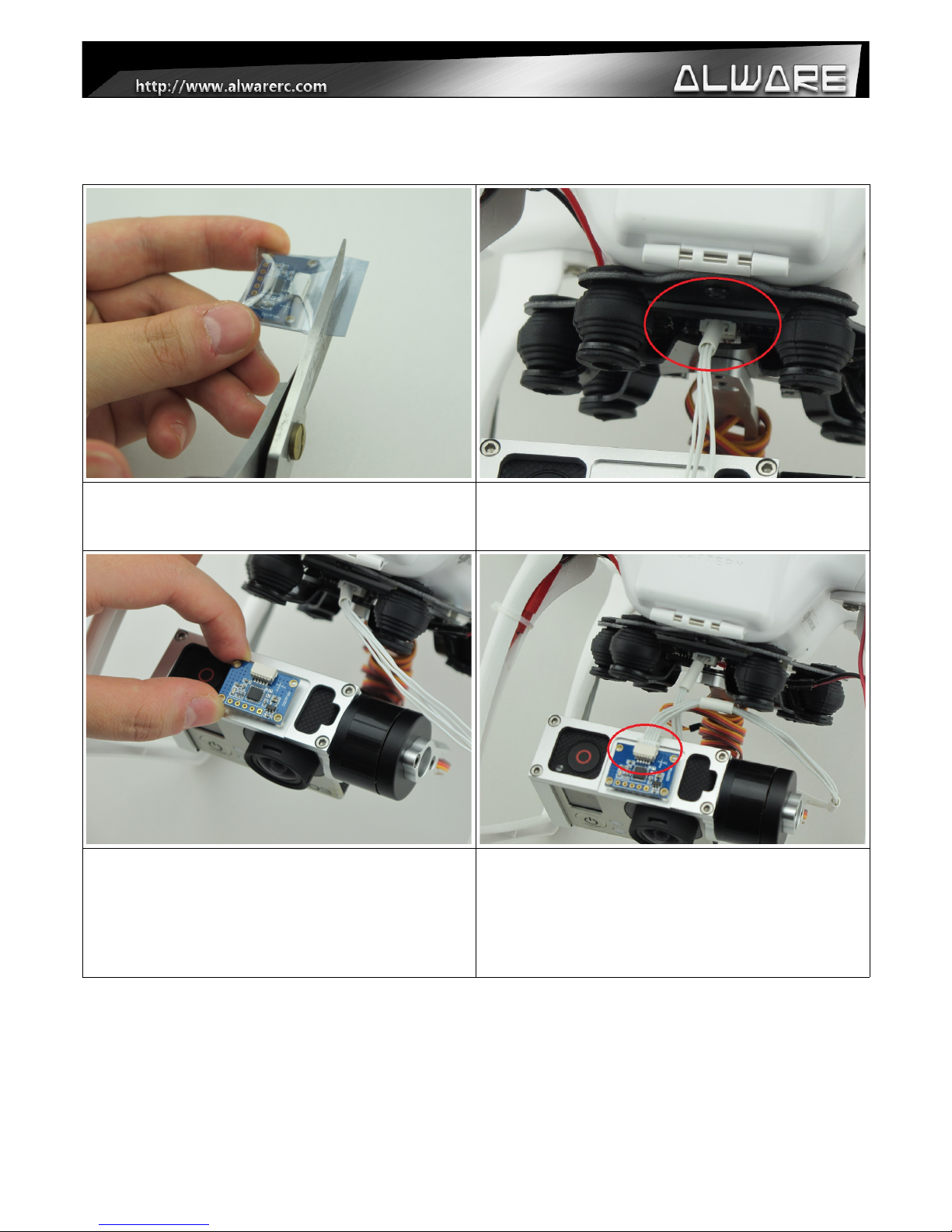

5. Assem ly Steps – IMU Mounting
Step 1.
Prepare the IMU Unit.
Step 2.
Connect one end of the IMU Cable onto the IMU port
of the Gimbal Controller Board.
Step 3.
Stick the IMU Unit onto the Upper Camera cover
using double-sided foam tape. Check the double faced
adhesive tape regularly to ensure that the IMU is
securely positioned. (Ensure the orientation of the
IMU is installed correctly.)
Step 4.
Connect the other end of the IMU Cable into the IMU
unit.
Page 12 of 19

Step 5.

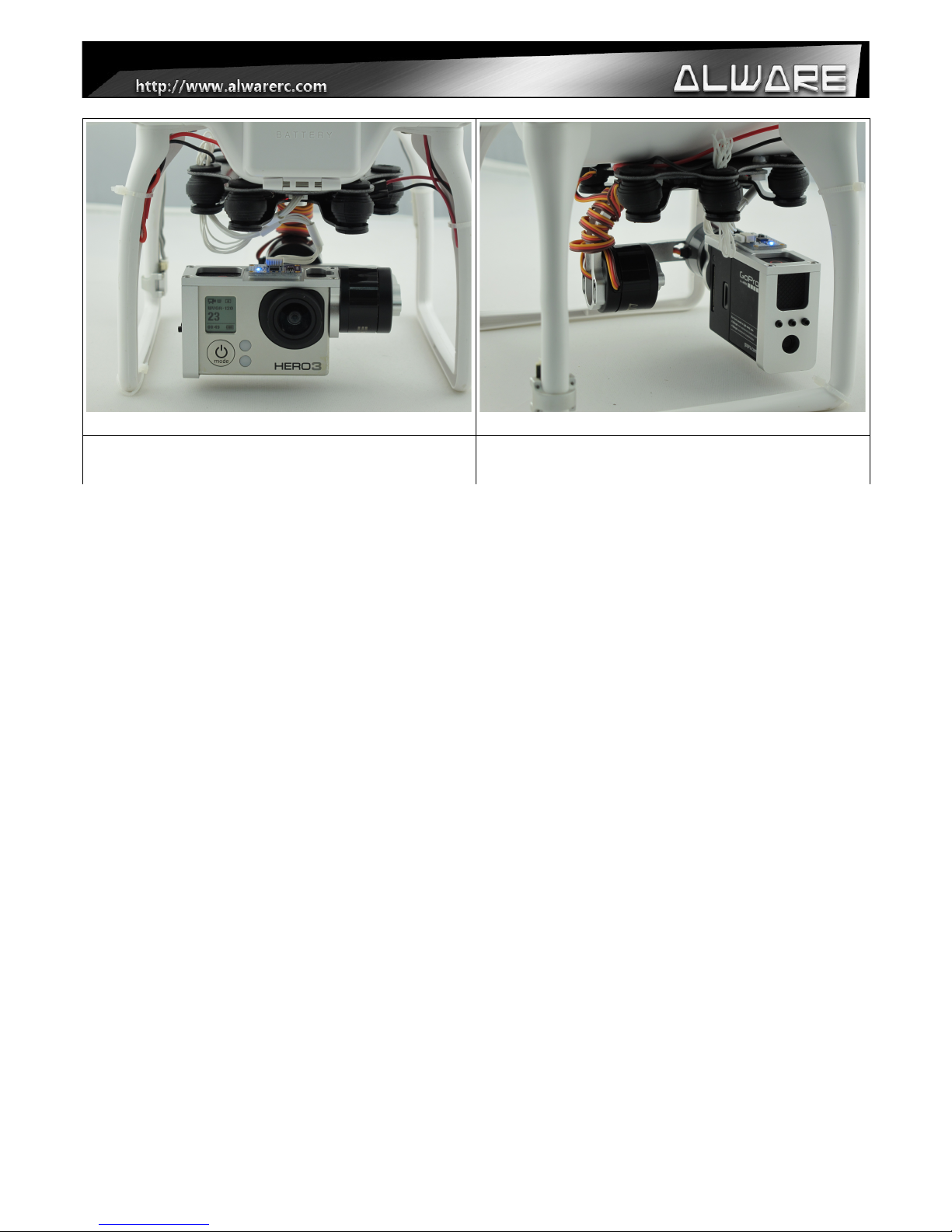

Front view of GP-35 assembly.
Step 5.
Side view of GP-35 assembly.
Page 13 of 19

6. Assem ly Steps – Power Connection and
Manually Tilting
Step 1.
Take off the Top cover of your Phantom. Please refer
to the manual of DJI Phantom.
Make sure the Power cable in the Phantom is passing
through the casing.
Step 2.
Solder the Male JST Connector to the Power cable of
the Phantom. (Important: Solder ed to red wire, and
black to brown wire!)
Step 3.
Connect the JST connectors to the Gimbal Controller
Board.
Step 4.
Name for each end of the Tilt and oll Controlling
Connector.
Page 14 of 19

Step 5.
Insert 1-wire End connector of the into the casing of
the Phantom.
Step 6.
Insert the 1-wire End connector into F2 port of NAZA
controller in the Phantom. (Pay attention to the
position (use the Lowest Pin) of the connector.)
Step 7.
Please be noted that the 3-wire End connector is
useless when using the original Transmitter of
Phantom. You can just fix this connector on the
landing gear of Phantom for better appearance.
Step 8.
Connect the 4-wire End connector to the Gimbal
Controller Board. (Pay attention to the direction.)
Cover the Top Casing back to Phantom and now is
ready to setup the Gimbal Tilt control with the
Assistance Software of Phantom (NAZA).
Page 15 of 19

7. Assem ly Steps – Setup Manual Tilting on NAZA
Step 1.
Turn on the Transmitter and then power on the
Phantom. Then connect Phantom to the computer with
DJI Assistance Software. (For more details, please
refer to the manual of your Phantom.)
Step 2.
You can take this Gain values as reference if needed.
(You may need to adjust these values according to
your own situation.) The value of Pitch and oll gain
must be lower than 110 so that the gimbal will work
with minimum vibration.
Step 3.
Setup the Gimbal function of your Phantom as shown
above as to control the Tilt axis of GP-35 Gimbal with
original Phantom Transmitter.
Step 4.
This is for reference only. (You can adjust these values
according to your own situation.)
Page 16 of 19

Step 5.
You will use the additional Channel on the back of
Phantom's transmitter to control the Tilt Axis of GP-35
Gimbal. You can use or DIY a flat rod to control this
channel, or you can order the DJI Phantom Upgrade
Kit in the near future.
Step 6.
Or you can add the DJI Phantom Upgrade Kit in the
near future. (This is optional.)
Page 17 of 19

8. Power On Steps
Before Power On the Gim al:
1. Please check the polarity of the JST connectors.
2. Make sure the IMU is installed on top of the Upper Camera Cover correctly.
efer to IMU Mounting section.
3. Use only 3S 11.1V Lipo Battery for your Phantom.
4. The Brushless Gimbal Controller has been tuned perfectly to plug-n-play with GoPro 3 camera on
Phantom.There is no additional tuning needed.
Follow the following sequencies to power on your Senrigan-GP-35 Brushless Gim al correctly.
Step 1.
Turn on your Phantom's Trnsmitter.
Step 2.
Power on the Phantom with 3S 11.1V Lipo Battery. Keep the whole machine steady when power on and wait
for around 5 seconds for the Phantom and the Gimbal to performance the initialization.
Step 3.
If the initialization step is successful, GP-35 Gimabl will level the Gopro 3 Camera slowly for both Tilt and
oll axis. Otherwise power cycle the system and try again.
Step 4.
eady to go.
Page 18 of 19

10. Trou leshooting
Q1: Why does the gimbal not stabilize the camera?
A: Please refer to installation and make sure the IMU Unit is installed at right orientation and the motors
are connected to the right pins.
Q2: Why is the gimbal shaking?
A: Usually it is caused be wrong IMU facing, please make sure it is facing down. efer to IMU Mounting
section.
Q3. Why is the captured video shaking?
A: Please ensure your Aircraft is well turned with minimum vibration before mounting the Gimbal. Sometimes
you may need to balance the props for your Aircraft too.
Q4: Do I need to upgrade to latest version of firmware or adjust any parameters?
A: It is not necessary to upgrade the firmware or adjust any parameters unless further instruction is given. The
Brushless Gimbal Controller is well tuned to plug-n-play with GoPro 3 Camera on Phantom to give the best
performance.
Q5: Where can I get more help for this product?
A: Please contact our distributors/ dealers for warranty and customer service.
elated Videos could be found on:
http://www.youtube.com/user/alwarerc
End Of Manual
