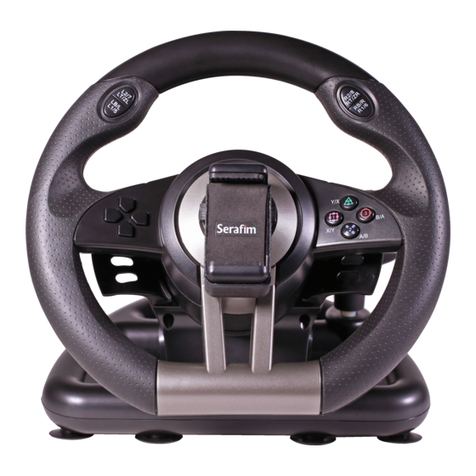

Serafim R1 User manual

R1+: How to Play on Consoles
1. For PS4
(1) Connect racing wheel to PS4 console;
plug foot pedals into the racing
wheel. Turn on the power of PS4.
(2) Plug PS4 controller to the back of
racing wheel.
(3) Red LED would be lit if the wheel is
connected. Press HOME button. Done!

2. For PS3
(1) Connect racing wheel to PS3 console;
plug foot pedals into the racing
wheel. Turn on the power of PS3.
(2) The channel light at the back of wheel
would be lit if the wheel is connected.
(3) Press HOME button. Done!

3. For Xbox One
(1) Connect racing wheel to Xbox One
console; plug foot pedals into the
racing wheel. Turn on the power of
Xbox One.
(2) Plug Xbox One controller to the back
of racing wheel.
(3) Red LED would be lit if the wheel is
connected. Press HOME button. Done!

4. For Switch
(1) Connect racing wheel to Switch
console; plug foot pedals into the
racing wheel. Turn on the power of
Switch.
(2) System Controllers and Sensors
Select “Pro Controller Wired
Communication”
(3) Red LED would be lit if the wheel is
connected. The channel light at the
back of wheel would be lit.

R1/R1+: How to Play on PC
1. X-input Mode
(1) Connect racing wheel to a PC. The
default mode is X-input. When the
wheel is connected, the red LED
would be lit, and the channel light at
the back of wheel would be lit.
(2) Hold HOME button for 3 seconds, you
could sequentially switch between X-
input and D-input mode. The red LED
would flick 6 times while switching
modes. The channel light at the back
of the wheel would dim after a switch.

2. D-input Mode
(1) Connect racing wheel to a PC.
(2) For D-input mode, it is needed to install
drivers to make it work. Drivers are
compatible with Windows Vista, 7, 8,
and 10 for now.
(3) Insert a driver installation disc or
download it on our official website
and follow instructions of installation
wizard.
http://www.serafim-tech.com/serafim-
r1/serafim-r1-d-input-driver-en.html

3. Benchmark and Calibration
(1) Connect racing wheel to a PC.
(2) Start button Control Panel Devices
and Printers Right-click the wheel
icon Controller Properties
(3) In “Function Test” tab, you could test
functionality of buttons, and axes
here.
(4) In “Calibration Function” tab, you
could calibrate wheel steering (Left
Axis) and foot pedals (Right Axis).
(5) In “Vibration Test” tab, you could
adjust or test vibration of the wheel.
