Serene HB110 User manual

ser Manual MAN6819 Rev. 4.0 Feb. 2009 edition
HB80/110

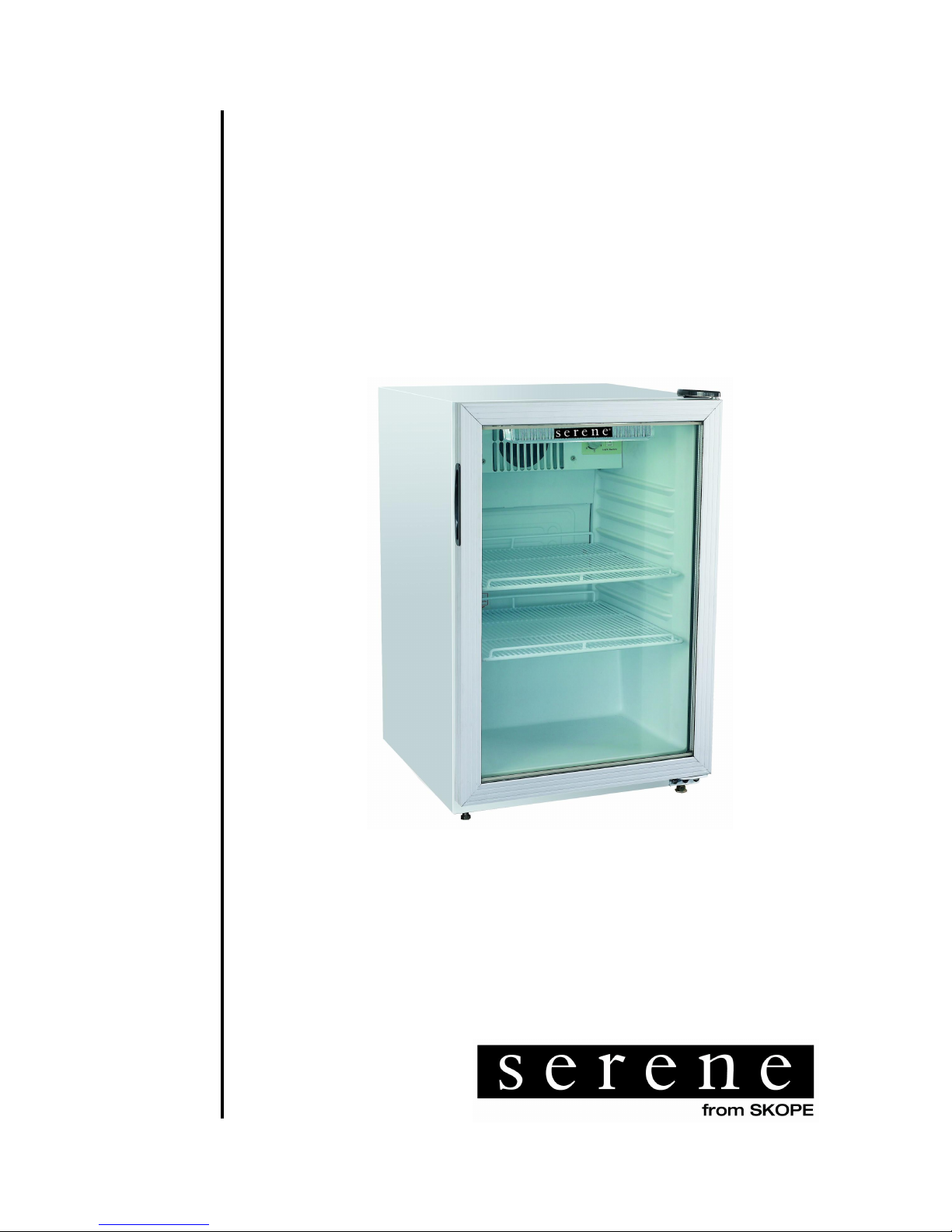

Serene Glass Door Cooler

HB80/110 Serene Glass Door Cooler
User Manual
HB80/110
Serene Glass Door Cooler
User Manual
MAN6819
Rev. 4.0 Feb.2009 edition.
Copyright © 2006
SKOPE Industries Limited.
All rights reserved.
SKOPE Industries Limited reserve the right to alter specifications without
notice.
is a registered trade markofSKOPE Industries Limited.
i
TRADE MARK INFRINGEMENT
The Serene trade mark on this product is infringed if the owner,for the time
being,doesany of the following:
•Applies the trade mark to the product after their state,condition, get-up
or packaging has been altered in anymanner
•Alters, removes (including part removal) or obliterates (including part
obliteration) the trade mark on the product
•Applies any other trade mark to the product
•Adds to the product any written material thatis likely to damage the
reputation of the trade mark
Notice of the above contractual obligations passesto:
•Successors or assignsofthe buyer
•Future owners of the product

HB80/110 Serene Glass Door Cooler
User Manual
1INSTALLATION
1.1Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
1.2Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
1.3Positioning the Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2OPERATION
2.1Cabinet Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2.2Temperature Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3MAINTENANCE
3.1Interior Light. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
3.2Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
3.3Advanced Servicing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
3.4Contact Addresses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
TABLE OF CONTENTS
ii

4HB80/110 Serene Glass Door Cooler
User Manual
1.1Safety Information
When using any electrical appliance, safety precautions should
always be observed. Readtheseinstructions carefully and retain for
future reference.
•This appliance is not intended foruse by young or infirm persons
unless they have been adequately supervised by a responsible
person to ensure that they can use the appliance safely. Young
children should be supervised to ensure that they do not play
with the appliance.
•Disconnect the cabinet from the mains power supply before
attempting any cleaning or maintenance.
•Do NOT use this appliance for other than its intended use.
•Do NOT cover the grilles or block the entry or exhaust of airflow
by placing objects up against the refrigeration unit.
•Do NOT probe any opening.
•Only use this appliance with voltage specified on the rating label.
•Ensure adequate ventilation of the refrigeration unit.
•Be careful not to touch moving parts and hot surfaces.
•Regulations require that all electrical work be carried out by
authorised persons. For yourown safety, and that of others,
ensure this is done.
•If the supply cord becomes damaged, it must be replaced by a
SKOPEauthorised service agent, or similarly qualified person,
in orderto avoid a hazard.
Disposal
Caremustbetakenwhen disposingof thisproducttoavoidhazards.
Please contact SKOPE Customer Services for advice regarding
disposal of this product.
INSTALLATION
1

5
HB80/110 Serene Glass Door Cooler
User Manual
1.2npacking
Remove all packing material from the inside and outside of the
cabinet, including the foam base and all adhesive tape holding the
cabinet accessories.
Shelves
Model HB80 is supplied with two shelves. Model HB110 is supplied
with three shelves. Remove the packing material and then position
the shelves into the cabinet at the desired heights (see Figure 1
below). The bottom shelf on model HB80 has hooks on the back
which lock the shelf in position. The two top shelves on model
HB110 have hooks on the back which lock the shelves in position.

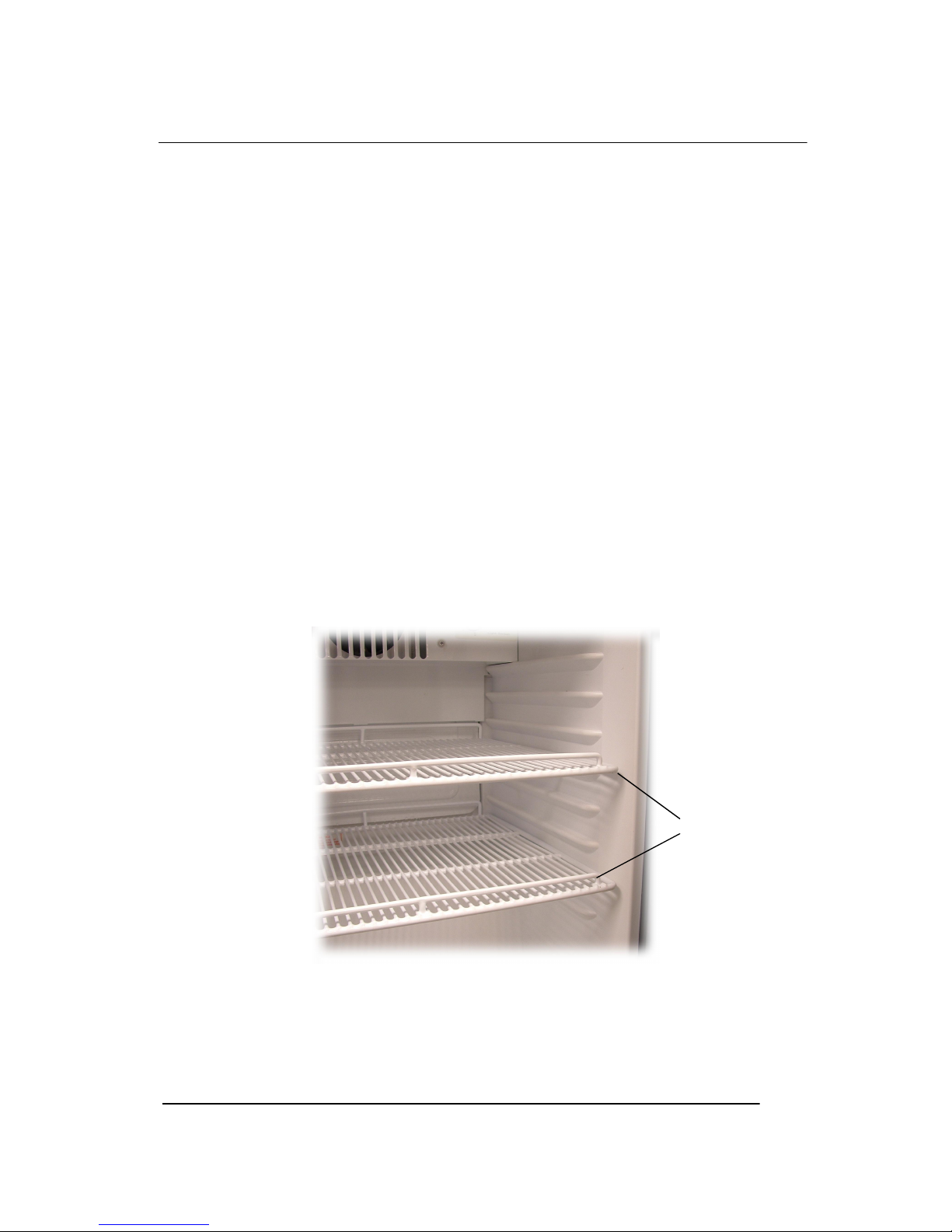

Figure 1: CabinetShelves
Shelves
INSTALLATION
1

6HB80/110 Serene Glass Door Cooler
User Manual
1.3Positioning the Cabinet
Power Supply
The cooler is supplied with a 1.8m flexible powercord fitted with a
3-pin plug, which exits out the rearof the refrigeration unit.
Ventilation
Ensure adequate ventilation is provided around the cooler. The
cooler should not be recessed or enclosed in a cabinet. It is
designed for free-standing installation only. The recommended
clearanceonbothsidesand attheback ofthe cabinet is50mm.The
maximum normal operating conditions are:
Location
When positioning the cabinet:
•Avoid direct sunlight and warm draughts etc.
•Allow adequate space for the door to open fully.
•Ensure the cabinet is positioned on a level surface so the door
shuts and seals correctly, and to prevent the condensate tray
from overflowing.
Levelling
This coolerhas astabiliser foot located underneath the door hinge.
After final positioning, the stabiliser foot should be screwed firmly
down to floor level to stabilise the cabinet. Turn the stabiliserfoot
clockwise to raise the cabinet or anti-clockwise to lower the cabinet.
Model Operating Conditions Climatic Class
HB80 40°C at 40% RH 5
HB110 30°C at 55% RH 4
INSTALLATION
1

7
HB80/110 Serene Glass Door Cooler
User Manual
2.1Cabinet Operation
If the coolerhas been disconnected from the power supply for any
reason, allow about 10 minutes before switching it back on. This
allows the refrigeration system pressure to equalise before the
system is restarted.
Before operating the cooler, ensure:
•the cooler is positioned on a level surface.
•the maximum operating conditions are 40°C at 75% RH.
•there is adequate ventilation around the refrigeration unit.
•there is a gap of at least 35mm behind the cabinet.
•the plastic drain pin (included in the bag with the operating
instructions) is placed into the drain hole in the cabinet liner
bottom (see Figure 2 below). This prevents objects from
covering the drain hole.
•the cabinet stabiliser foot is screwed firmly down to floor level
(see Figure 3 below).
•the cooler is allowed to stand for at least 30 minutes before
connecting to the powersupply.

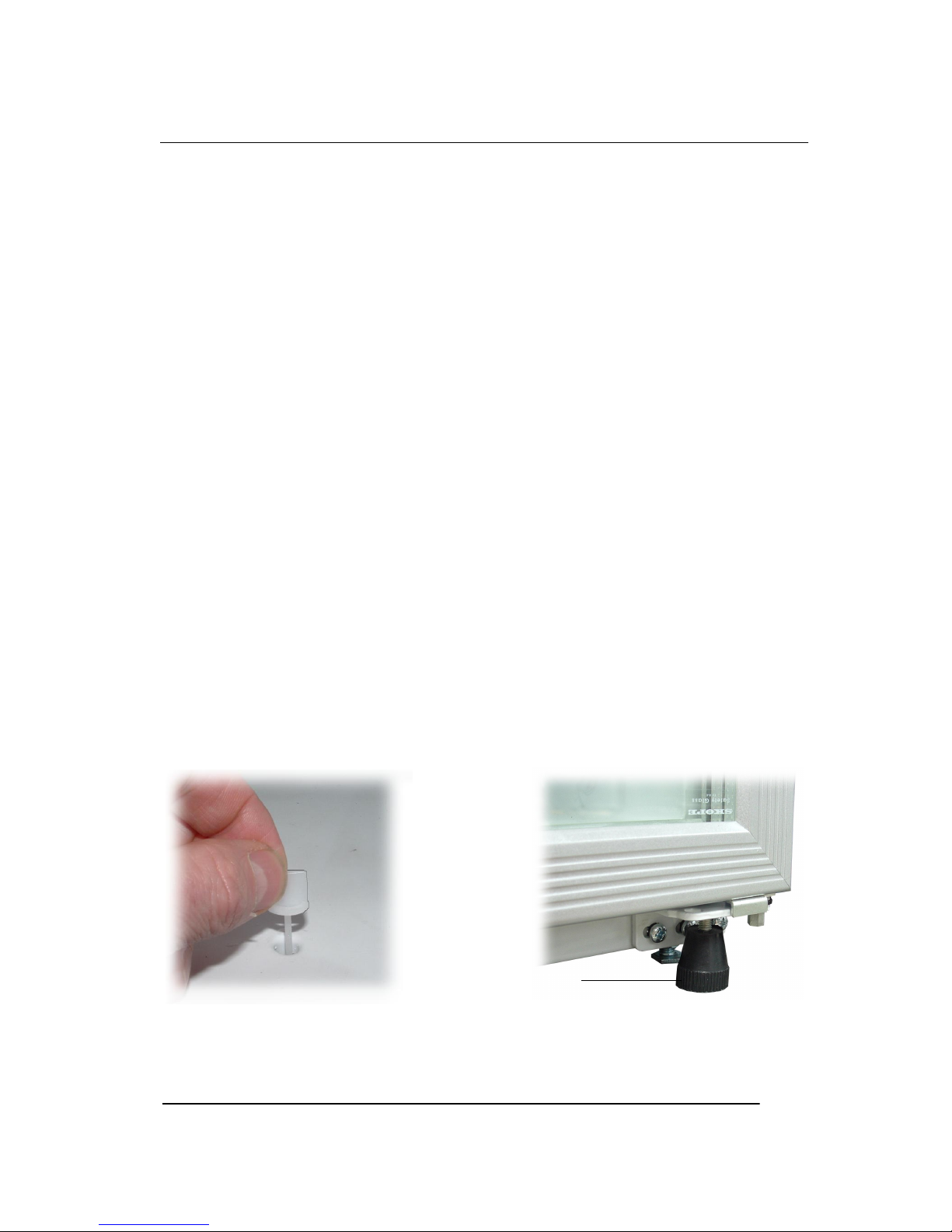

Figure 3:Cabinet Stabiliser Foot
Stabiliser Foot
Figure 2: Drain Hole Pin
OPERATION
2

8HB80/110 Serene Glass Door Cooler
User Manual
Refrigeration System
The evaporator fan (located inside the cabinet) should operate
continuously from the time the cabinet is plugged in. This may be
verified by checking for air movement inside the cabinet. The
thermostat will click when the unit cycles on and off.
Cabinet Light
The cabinet interior light is controlled by the light switch next to the
thermostat knob inside the cabinet (see Figure 4 on page 9). The
fluorescent light will require a period of time to stabilise following
initial start up. See page 10 forinstructions on replacing the
fluorescent lamp.
Loading
The cooler should be left running for 30 minutes to allow the cabinet
to cool downbeforeloading with product. When loading the cabinet
shelves with product:
•Allow airspace around all the product, foreven cooling and
efficient operation of the cooler.
•Do not exceed a maximum of 30 kg per shelf.
•Do not allowproducts to overhang the front or rear of the
shelves, as this will effect air flow.
•Do not obstruct air flowfrom the evaporatorfan (inside the
cabinet).
•Do not cover the drain hole in the cabinet liner bottom. Ensure
the plastic drain pin (included in the bag with the operating
instructions) is placed into the drain hole in the cabinet liner
bottom (see Figure 2 on page 7). This prevents objects from
covering the drain hole.
OPERATION
2

9
HB80/110 Serene Glass Door Cooler
User Manual
2.2Temperature Adjustment
The storage temperature of the coolercan be regulated to suit
different ambient temperature by turning the thermostat knob,
located inside the cabinet (see Figure 4 below).
The thermostat knob is graduated from 0through to 6, with 1being
the warmest and 6 being the coldest. The normal temperature
controller setting is between 3 and 5.
•To make colder -turn the thermostat knob clockwise.
•To make warmer - turn the thermostat knob anti-clockwise.
Note: Turning the knob to ‘0’ will switch the refrigeration unit OFF.

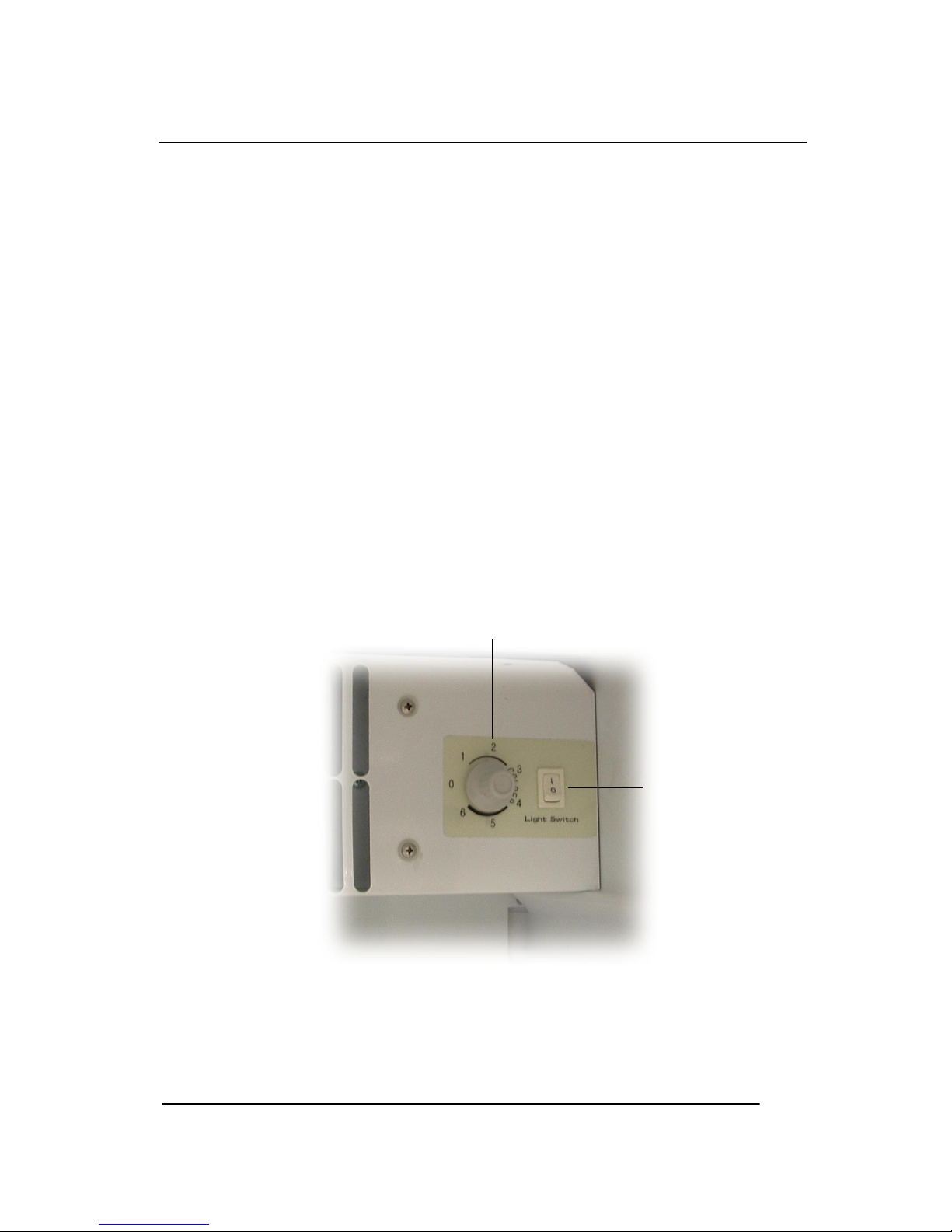

Figure 4:ThermostatKnob and Light Switch
ThermostatKnob
Light Switch
OPERATION
2

10 HB80/110 Serene Glass Door Cooler
User Manual
3.1Interior Light
The cabinet interior light is fitted with a 5 Watt fluorescent lamp. To
replace the fluorescent lamp:
1.Disconnect the cabinet from the mains power supply.
2.Remove the light cover by carefully bending out the side clips.
3.Pull the fluorescent lamp out of the lamp holder(see Figure 6).
4.Replace with a maximum 5 Watt fluorescent lamp.
5.Carefully align the side clips on the light cover and fit back into
place (see Figure 5 below).
6.Reconnect the cabinet to the mains power supply.
Figure 6: Replacing the Fluorescent Lamp
Fluorescent
Lamp Lamp Holder
Figure 5: Removing the Light Cover
Light Cover
MAINTENANCE
3
