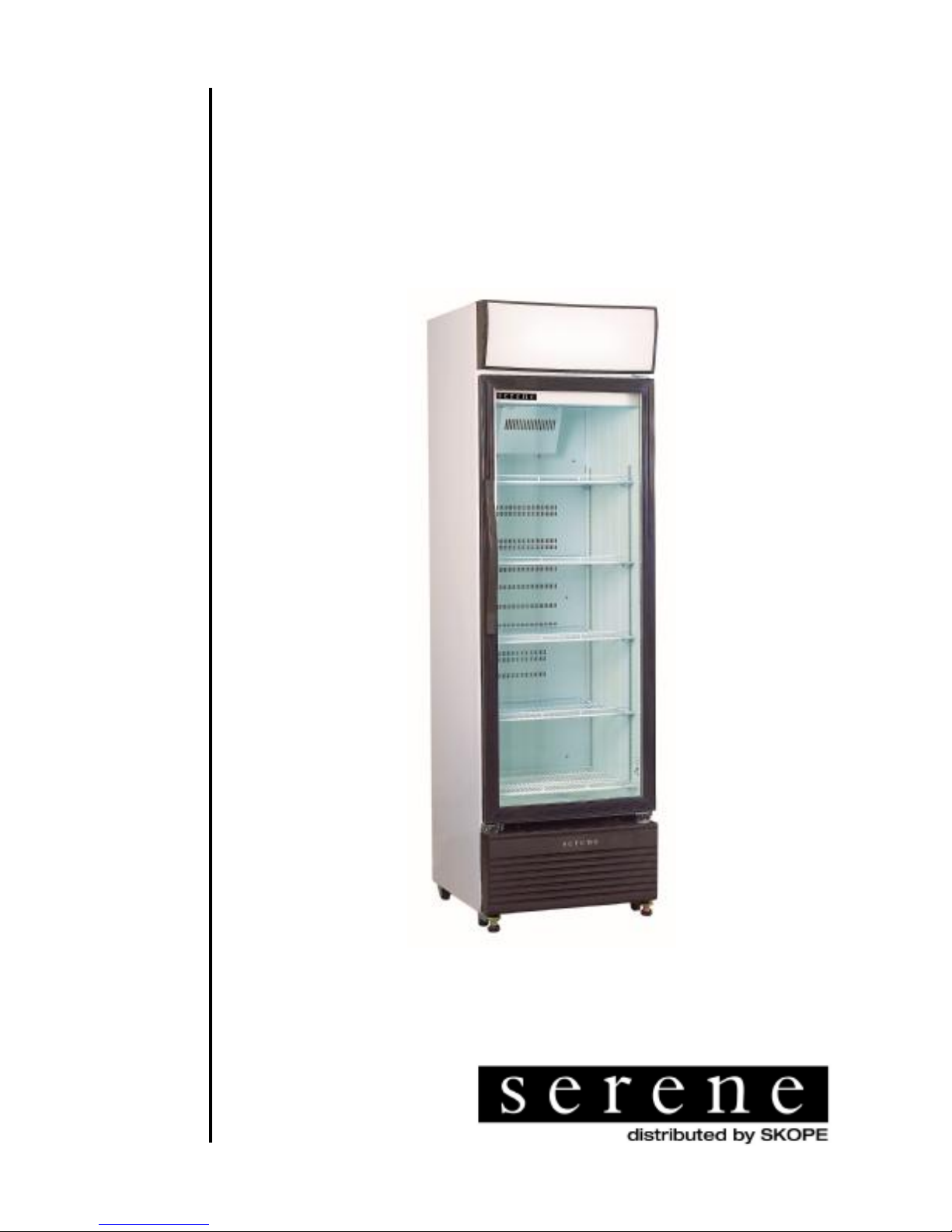

Serene HB300 Service manual

perating and Service Manual MAN5958 Rev. 3.0 Jan. 2007 edition
B300/400
Serene Single Door Vertical Cooler

B300/400
Serene Single Door Vertical Cooler
HB300/400
SereneSingle Door Vertical Cooler
Operating and Service Manual
MAN5958
Rev. 3.0 Jan. 2007 edition.
Copyright© 2006
SKOPE IndustriesLimited.
All rights reserved.
SKOPE IndustriesLimited reserve the
right toalter specifications without notice.
is a registeredtrade
mark of SKOPE Industries Limited.
i
TRADE MARK INFRINGEMENT
TheSerenetrade mark on this product is infringed iftheowner, forthetime
being, does any of the following:
•Applies thetrade mark to theproduct aftertheir state, condition,get-up
or packaging has been altered in anymanner
•Alters, removes (includingpart removal) or obliterates (includingpart
obliteration) thetrademark ontheproduct
•Applies any other trade mark to the product
•Addsto the product any writtenmaterial that is likely to damage the
reputation ofthetrademark
Noticeof the above contractual obligations passes to:
•Successors or assigns of the buyer
•Future owners ofthe product

B300/400
Serene Single Door Vertical Cooler
1SPECIFICATIONS
1.1Cabinet and Refrigeration Unit. . . . . . . . . . . . . . . . . . . . . . .4
2OPERATION
2.1Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2.2Cabinet Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2.3Loading. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
2.4Temperature Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3SERVICE INSTRUCTIONS
3.1Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
3.2Refrigeration Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
3.3Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3.4Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
4WIRING DIAGRAM
4.1Model HB300/400. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

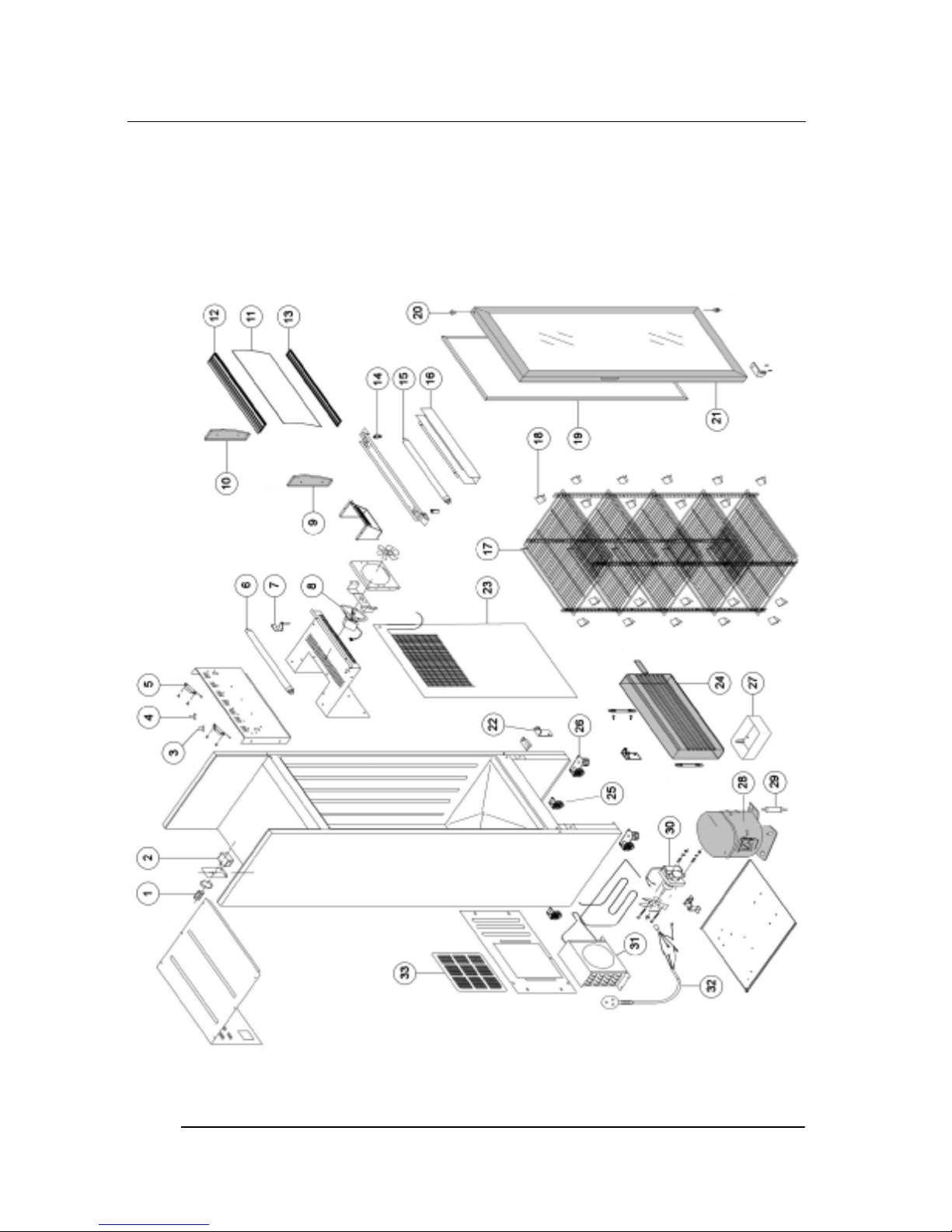

5SPARES
5.1Model HB300. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
5.2Model HB400. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
5.3Contact Addresses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
TABLE OF CONTENTS
ii

4B300/400
Serene Single Door Vertical Cooler
1.1Cabinet and Refrigeration Unit
Table1: Specifications
Cabinet Dimensions
Model: HB300 HB400
Height: 1820mm 2100mm
Width: 620mm 620mm
Depth: 655mm 655mm
Depth withopen
door: 1195mm 1195mm
Floor area: 0.40m20.40m2
Internal volume: 280 litres 350 litres
Weight: 88 kg 99 kg
Refrigeration System
Location: Bottom mountedsplit refrigeration system
Nominal capacity: 280 Watt 450 Watt
Compressor: NL7.3MF NL10MF
Refrigerant: R134a / 300 grams R134a/ 350 grams
Cab. temp. range: 0°C to 10°C
Controls: Adjustable thermostat
Electrical
230-240Volts a.c. 50 Hz, single phase power supply
Power Input: 280 W 450 W
Run Amps: 3.6 Amp 3.6 Amp
Power cord: 2m 3-core flexiblesupply cord and 3-pin 10A plug
Interior Light
1x 15 Watt T8fluorescent tube(Ø26mmx 435mm)
Sign
1x 15 Watt T8fluorescent tube(Ø26mmx 435mm)
Shelves
Quantity: 4 5
Dimensions: 530mm widex 415mm deep
SPECIFICATIONS
1

5
B300/400
Serene Single Door Vertical Cooler

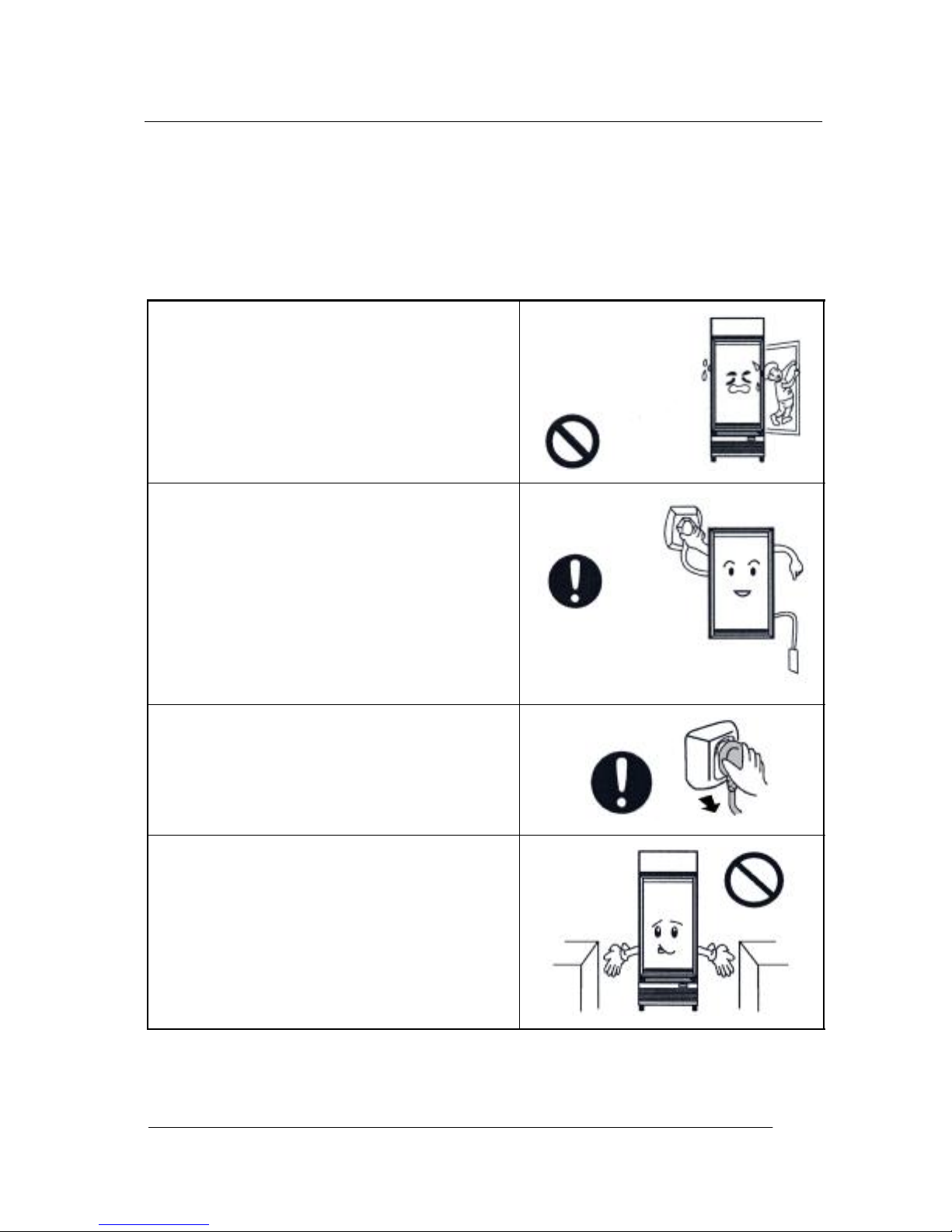

2.1Safety Information
When using any electrical appliance, safety precautions should
always be observed. Read these instructions carefully and retain for
future reference.
When used by, or near, young
children or infirmpersons, close
supervision is necessary. Young
children should be supervised to
ensure that they do not play with the
appliance.
Only use this appliance with voltage
specified on the rating label.
Regulations require that all
electrical work be carried out by
authorised persons. For your own
safety and that of others, ensure
this is done.
Disconnect the cabinet fromthe
power supply before cleaning the
cabinet.
Ensure adequate ventilation of the
refrigeration system.
Do NOT cover the grilles or block
the entry or exhaust of airflow by
placing objects up against the
refrigeration unit.
OPERATION
2

6B300/400
Serene Single Door Vertical Cooler
Be careful not to touch moving parts
or hot surfaces.
Do NOT probe any opening.
If the supply cord becomes
damaged, it must be replaced by a
SKOPE authorised service agent,
or similarly qualified person.
The meaning of the safety symbols used in this manual:
The content with this ‘Warning’ symbol is in association
with product safety and user’s personal safety.
Operation should be strictly in accordance with the
warning material.
The content with this ‘Forbid’ symbol is operation that is
absolutely forbidden, otherwise it may cause damage
to equipment or to user’s personal safety.
OPERATION
2

7
B300/400
Serene Single Door Vertical Cooler
2.2Cabinet Operation
Before Operating
Before operating the cooler, ensure:
•the cooler is positioned on a level surface.
•that the maximumoperating conditions are 40°C at 75%RH.
•there is adequate ventilation around the refrigeration unit.
•there is a gap of at least 35mm behind the cabinet.
•the rubber door stop is removed from the bottom lock bracket.
•both front stabiliser feet are screwed firmly down to floor level.
•both stand-off stops are fitted to the rear of the cabinet.
•the plastic drain pin is fitted in the drain hole in the cabinet liner
bottom.
•the cooler is allowed to stand for at least 30 minutes before
connecting to the power supply.
Connect the cabinet to the mains power supply and check operation
of the refrigeration unit and cabinet lighting.
Refrigeration Unit
The refrigeration unit evaporator and condenser fans should all
operate continuously from the time the cabinet is plugged in. This
may be verified by checking air movement inside the cabinet and out
of the top of the front kick panel.
Cabinet Lighting
The sign light and cabinet interior light will both go on when the
cabinet is plugged in, and will stay on permanently. The fluorescent
lights will require aperiod of time to stabilise following initial start up.
See pages 10-11 for instructions on replacing the fluorescent tubes.
OPERATION
2

8B300/400
Serene Single Door Vertical Cooler

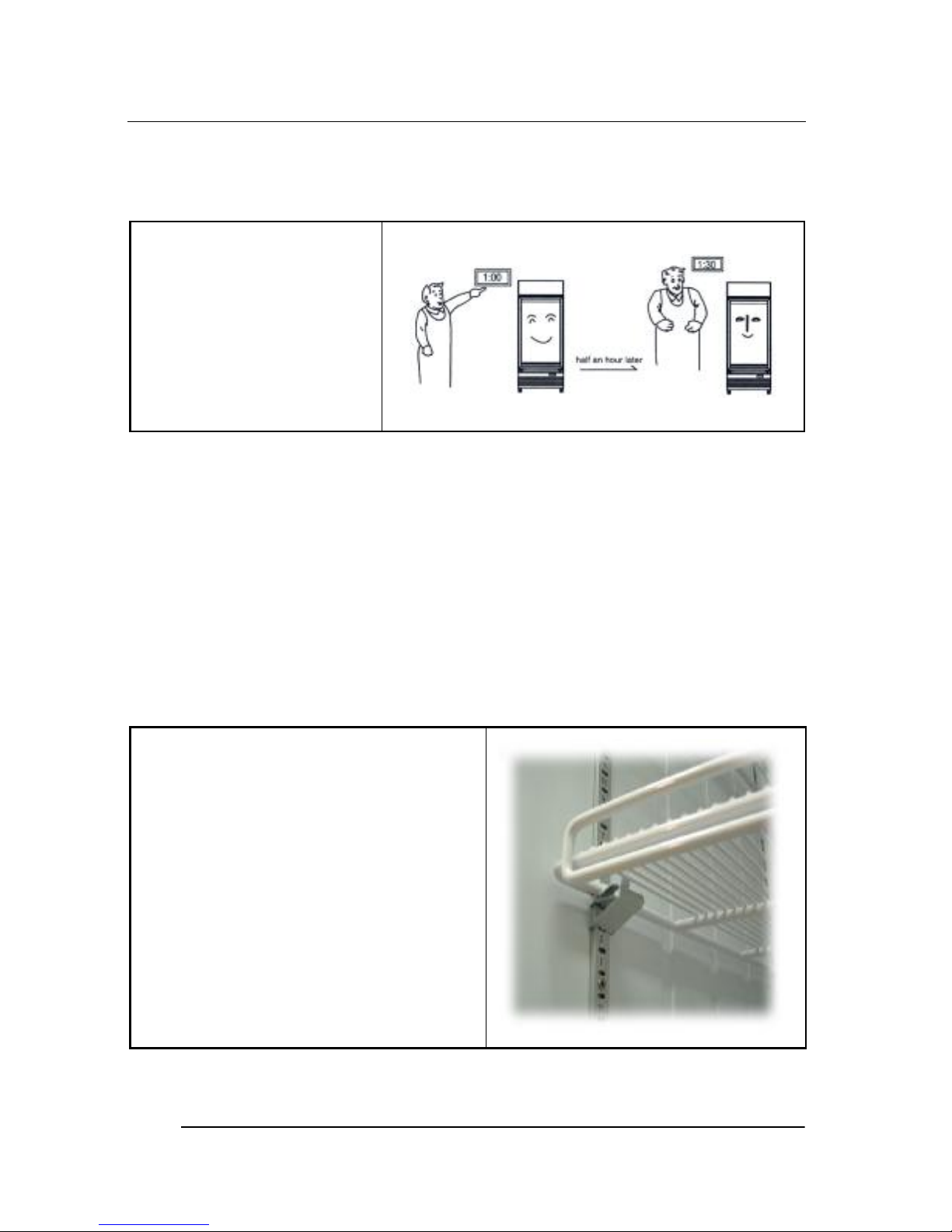

2.3Loading
When loading the cabinet shelves with product:
•Allow air space around all the product, for even cooling and
efficient operation of the cooler.
•Do not exceed a maximum of 195 kg/m2
•Leave an air space of at least 50mm above product on the top
shelf.
•Do not allow products to overhang the front or rear of the
shelves, as this will effect air flow.
The cooler should be
left running for 30
minutes before loading
with product.
Ensure the shelves are securely
fitted, using all four of the supplied
shelf clips on each shelf.
OPERATION
2

9
B300/400
Serene Single Door Vertical Cooler

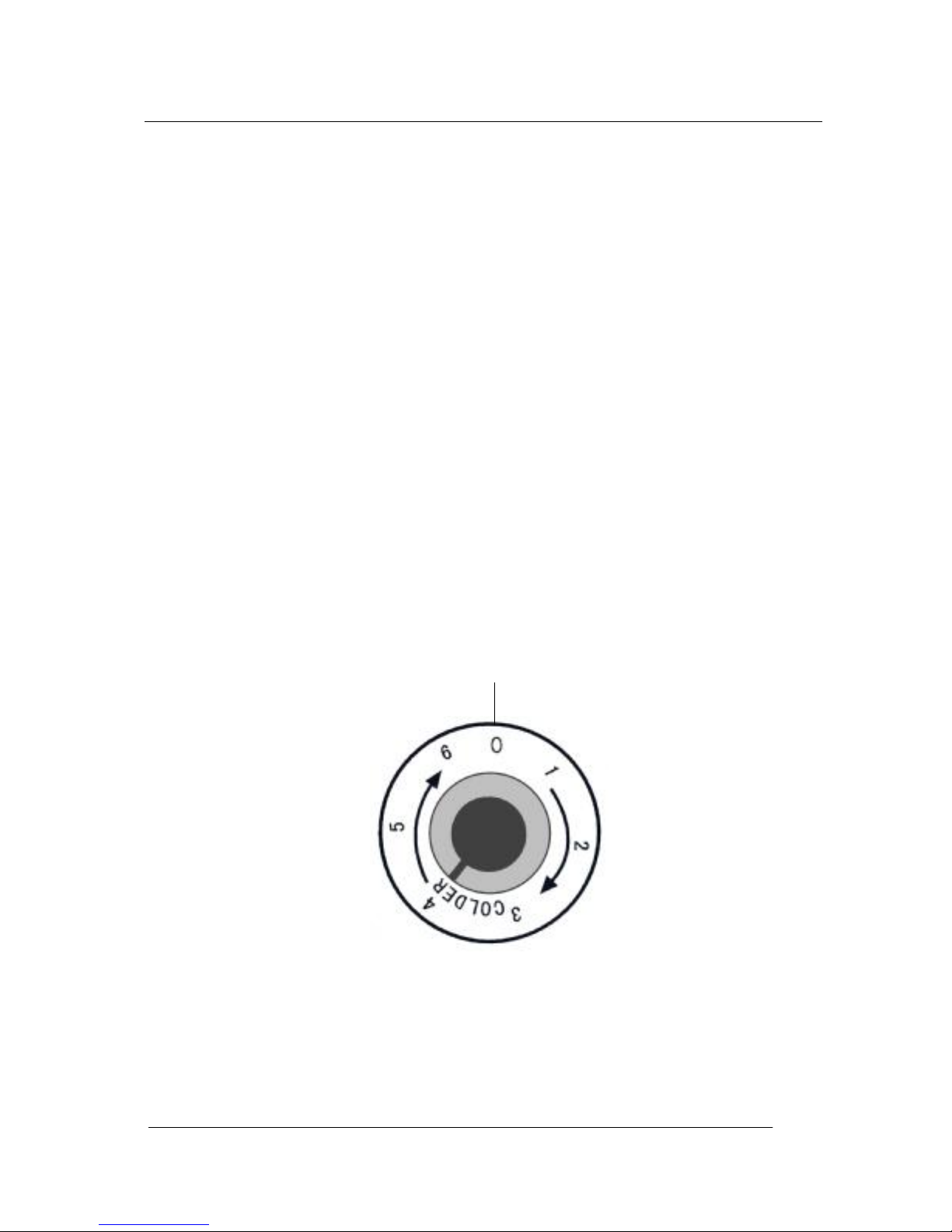

2.4Temperature Adjustment
The storage temperature of the cooler can be regulated to suit
different ambient temperature by turning the temperature controller
knob, located on the back of the cabinet.
The knob is graduated from 0through to 6, with 1being the warmest
and 6 being the coldest. The normal temperature controller setting
is between 3 and 5.
•To make colder - turn the controller knob clockwise.
•To make warmer - turn the controller knob anti-clockwise.
NOTE: Turning the knob to 0 will switch the refrigeration unit OFF.
Refrigeration unit OFF
Normal temperature settings
Colder settings Warmer settings
OPERATION
2

10 B300/400
Serene Single Door Vertical Cooler

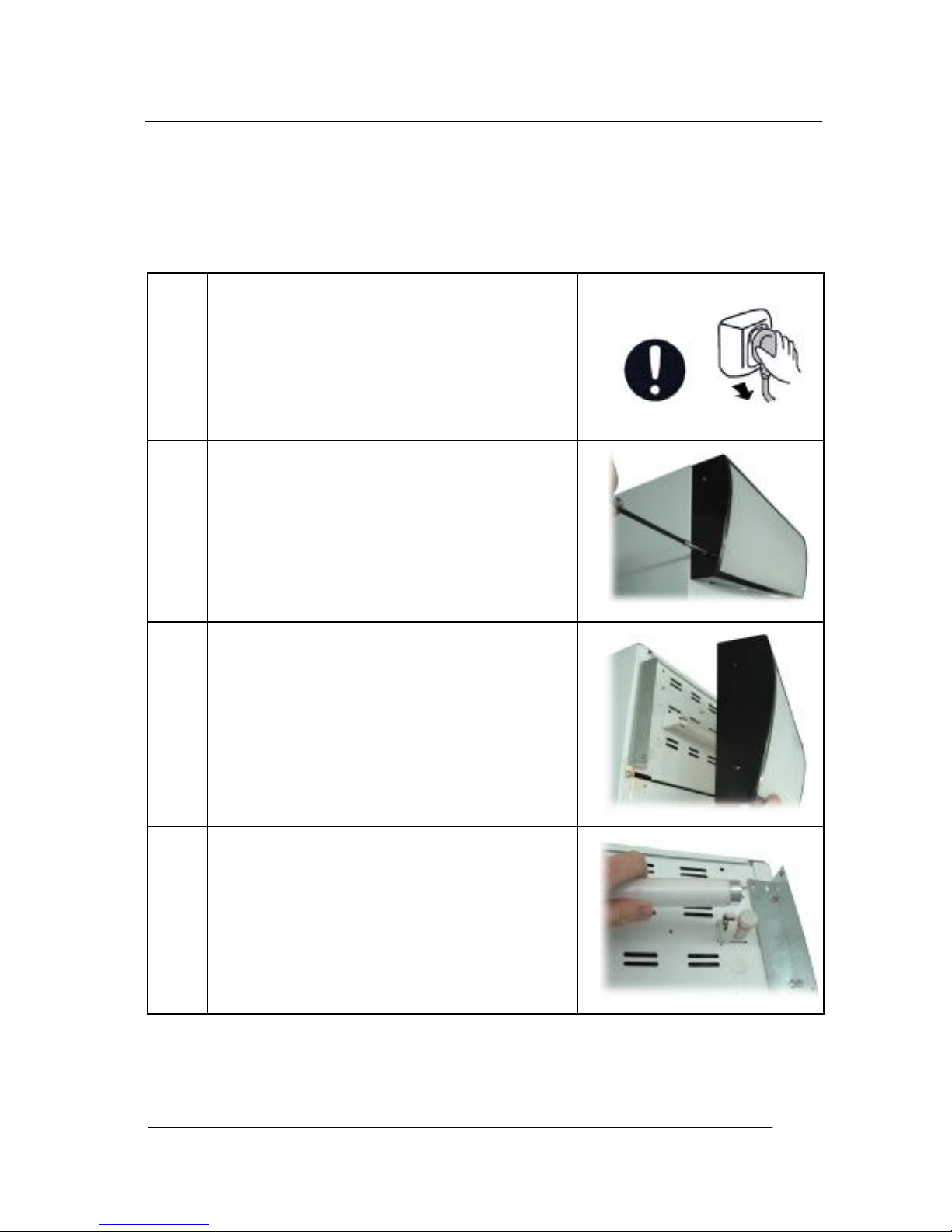

3.1Lighting
Cabinet Light
The cabinet interior light is fitted with a 15 Watt T8 fluorescent tube
(Ø26mm x 435mm). To replace the fluorescent tube:
1.Disconnect the cabinet from the
mains power supply.
2.Reach inside the cabinet and
undo the two screws frombehind
the light cover.
3.Remove the light cover by pulling
the cover forward and down.
4.Revolve the fluorescent tube until
the pin position allows withdrawal.
Replace the fluorescent tube with
SKOPE part no. ELL9386.
SERVICE INSTRUCTIONS
3

11
B300/400
Serene Single Door Vertical Cooler

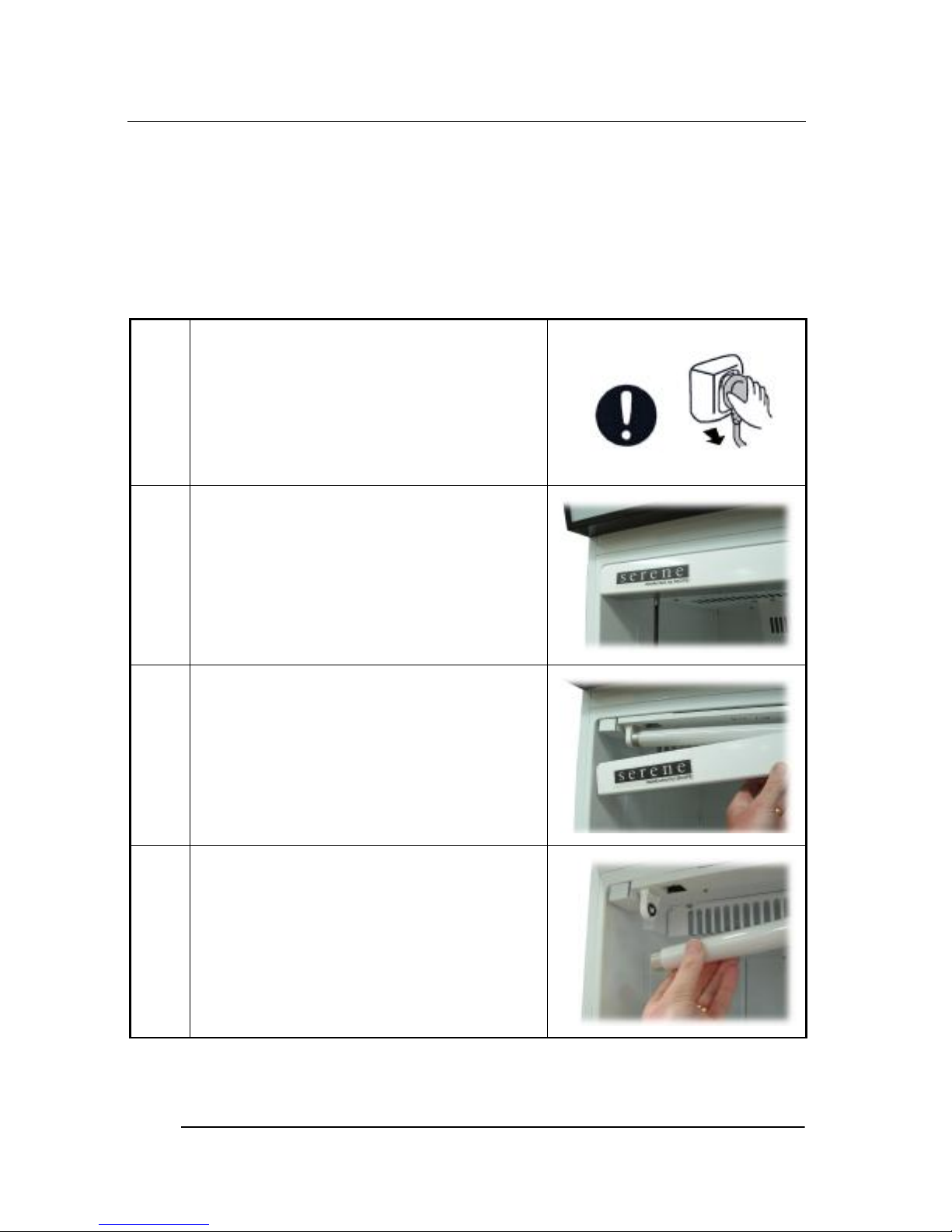

Sign Light
The illuminated top sign is fitted with a 15 Watt T8 fluorescent tube
(Ø26mm x 435mm). To replace the fluorescent tube:
1.Disconnect the cabinet from the
mains power supply.
2.Undo the two screws fromeach
side of the sign light cover.
3.Carefully remove the sign light
cover from the cabinet.
4.Revolve the fluorescent tube until
the pin position allows withdrawal.
Replace the fluorescent tube with
SKOPE part no. ELL9386.
SERVICE INSTRUCTIONS
3

12 B300/400
Serene Single Door Vertical Cooler

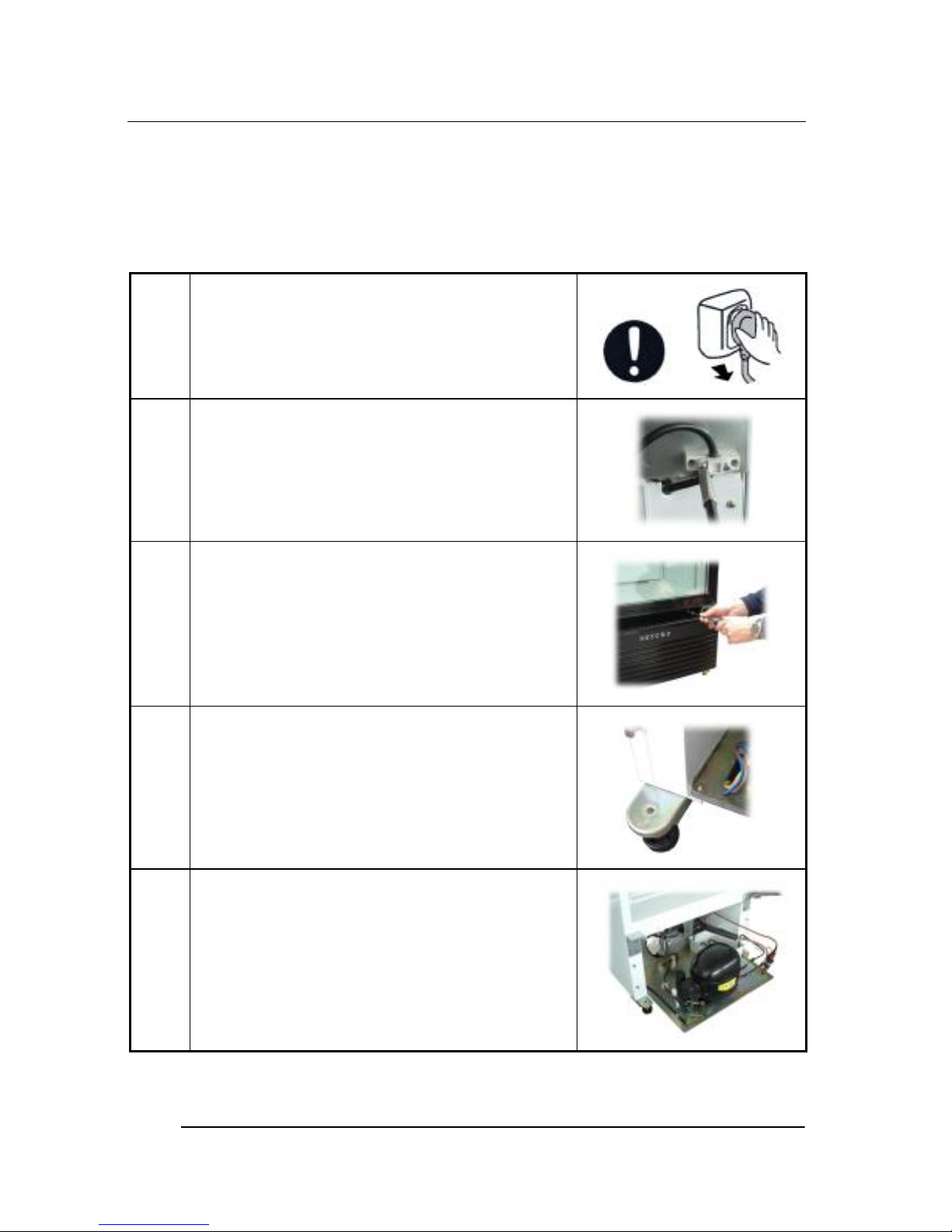

3.2Refrigeration Unit
For ease of servicing, the refrigeration condensing unit pulls out
from the refrigeration unit bottom compartment.
1.Disconnect the cabinet from the
mains power supply.
2.Undo the two fixing screws clamping
the power cord to the rear of the
cabinet.
3.Undo the two fixing screws holding
the front grille.
Lift the grille up and pull forward to
remove from the cabinet.
4.Remove the fixing screws from the
front and rear left hand corners of the
unit base. Remove the panel fromthe
rear of the cabinet to access the rear
fixing screw.
5.The condensing unit base can now
be partially pulled out from the
cabinet.
SERVICE INSTRUCTIONS
3

13
B300/400
Serene Single Door Vertical Cooler
3.3Troubleshooting
Table2: TroubleshootingChart
Complaint Possible Cause Repair
1. Cabinet not
operating
•Loss of powersupply •Check power supply
•Blown fuse •Check power supply
2. Cabinet lightsnot
operating
•Blown fuse •Check power supply
•Failed fluorescent tube •Check fluorescent tubes
3. Compressor will
not start
•Blown fuse •Check power supply
•Overload protectortripped •Replace overload
•Thetemperature controller
knob is in the off (‘0’) position.
•Adjust temperature controller
(see p9)
4. Compressor
startstoo
frequent, with
operation time
too long
•Short of refrigerant •Fix leak and add charge
•Over-charge of refrigerant •Removerefrigerant to correct
charge
•Temperature controllernot
reading temperature correctly
•Check air temperature with
thermometer. Adjust offset if
required
•Faulty temperature controller •Replace controller
•Dirtycondenser coil •Clean condener coil (see p14)
•Cabinet overloadedwith
product
•Reduce product loading
•Ambient temperature too high •Ensuremaximumoperating
conditions are 40°Cat 75%RH
•Drying filteris blocked •Replace filter
5. Compressor runs
without stopping
and temperature
inside cabinet is
too low
•Thetemperature controller is
set too cold
•Adjust temperature controller to
a warmer setting
•Faulty temperature controller •Replace temperature controller
•Thetemperature sensing
probe of the controller is
incorrectly positioned
•Reposition temperature
controller probe, tight against
the evaporator cover
6. Compressor
startsand runs,
but short cycles
on overload
protector
•Supply voltage too high •Check voltage
•Compressortoo hot •Check refrigerant charge and
unit ventilation
•Faulty overload protector •Replace overload
•Faulty starting relay •Replace starting relay
•Short circuit in compressor •Replace compressor
SERVICE INSTRUCTIONS
3

14 B300/400
Serene Single Door Vertical Cooler
3.4Cleaning
Disconnect the cabinet from the
mains power supply before
cleaning.
When necessary, wipe both the
interior and exterior of the cabinet
with a damp cloth.
Do NOT use abrasive or corrosive
cleaning agents or boiling water to
clean the cabinet.
Do NOT flush the cabinet with
water.
The condenser coil MUST be kept
clean for efficient and reliable
operation.
To clean the condenser, remove the
intake filter from the rear of the
cabinet and use a soft brush to
clean the filter and the fins of the
condenser coil.
SERVICE INSTRUCTIONS
3

15
B300/400
Serene Single Door Vertical Cooler
4.1Model B300/400
Item Description
1RefrigerationCabinet
2Mains Supply Flexand Plug
3Magnetic Ballast (2)
4Fluorescent Tube Starter (2)
515Watt Fluorescent Tube (2) (Ø26 x 435mm)
6EvaporatorFan
7CondenserFan
8TemperatureController (Thermostat)
9CompressorOverloadSwitch
10 Compressor
11 Motor RunCapacitor
12 Motor Starter
WIRING DIAGRAM
4

16 B300/400
Serene Single Door Vertical Cooler
5.1Model B300
SPARES
5

17
B300/400
Serene Single Door Vertical Cooler
5.1Model B300
Item Part Description SKOPE Part No.
1Thermostat Knob HB0072040122
2Thermostat HB0074090515
3Lamp Starter (2) HB0074000066
4Starter Holder(2) HB0074000075
5Ballast (2) HB0074090127
615 Watt Fluorescent Tube (Sign Light) HB0075120021
7Top Hinge HB0070103851
8Evaporator Fan HB0074090700
9Sign LH Side HB0070200281
10 Sign RH Side HB0070200313
11 Sign Panel HB0070200869
12 Sign Top Panel HB0070200871
13 Sign BottomPanel HB0070202682A
14 Lamp Holder (4) HB0074090728
15 15 Watt Fluorescent Tube (InteriorLight) HB0075120021
16 Interior Light Cover HB0070202865
17 Shelves (4) HB0070103631
18 Shelf Clips (16) HB0070103887
19 Door Gasket HB0070202669
20 Door Bush (2) HB0072130010
21 Door Assembly HB0070809432
22 BottomHinge HB0070103875
23 Evaporator Coil HB0070701374
24 BottomKick Panel HB0070202617
25 Rear Castor (2) HB0070101463
26 Front Wheel / Stabiliser Foot Assembly (2) HB0070808630
27 Condensate Tray HB0072040090
28 Compressor HB0070701306
29 Drier HB0074180002
30 Condenser Fan HB0074090724
31 Condenser Coil HB0070701293
32 MainsFlex HB0070401643B
33 Filter Panel HB0070805118
SPARES
5

18 B300/400
Serene Single Door Vertical Cooler
5.2Model B400
SPARES
5

19
B300/400
Serene Single Door Vertical Cooler
5.2Model B400
Item Part Description SKOPE Part No.
1Thermostat Knob HB0072040122
2Thermostat HB0074090515
3Lamp Starter (2) HB0074000066
4Starter Holder(2) HB0074000075
5Ballast (2) HB0074090127
615 Watt Fluorescent Tube (Sign Light) HB0075120021
7Top Hinge HB0070103851
8Evaporator Fan HB0074090700
9Sign LH Side HB0070200281
10 Sign RH Side HB0070200313
11 Sign Panel HB0070200869
12 Sign Top Panel HB0070200871
13 Sign BottomPanel HB0070202682A
14 Lamp Holder (4) HB0074090728
15 15 Watt Fluorescent Tube (InteriorLight) HB0075120021
16 Interior Light Cover HB0070202865
17 Shelves (5) HB0070103631
18 Shelf Clips (20) HB0070103887
19 Door Gasket HB0070202824
20 Door Bush (2) HB0072130010
21 Door Assembly HB0070809433
22 BottomHinge HB0070103875
23 Evaporator Coil HB0070701374
24 BottomKick Panel HB0070200315
25 Rear Castor (2) HB0070101463
26 Front Wheel / Stabiliser Foot Assembly (2) HB0070808630
27 Condensate Tray HB0072040090
28 Compressor HB0070701307
29 Drier HB0074180002
30 Condenser Fan HB0074090724
31 Condenser Coil HB0070701378
32 MainsFlex HB0070401643B
33 Filter Panel HB0070805118
SPARES
5

20 B300/400
Serene Single Door Vertical Cooler
5.3Contact Addresses
New Zealand ( ead Office)
SKOPE INDUSTRIES LIMITED
PO Box 1091, Christchurch
New Zealand
Freephone: 0800 9475673
Fax: [phone]
E-mail: [e-mail]
Website: www.skope.co.nz
Australia
SKOPE AUSTRALIA PTY LTD
A.C.N. 000 384270
PO Box 7543, Baulkham Hills B.C.
NSW 2153, Australia
Freephone: 1800 121535
Fax: [phone]
E-mail: [e-mail]
Website: www.skope.com.au
SPARES
5
