SERVIS DC4749LEDW User manual

User Manual
DISHWASHER
Model Number:
DC4749LEDW

Contents
01 Welcome
02 Safety Instructions
07 Technical Specification
08 Installation
15 Your Dishwasher
19 Setting Up Your Dishwasher
23 Using Your Dishwasher
35 Maintenance
41 Troubleshooting
48 Product Fiche
49 Guarantee
51 Index
PARTS WARRANTY
2 YEAR
REGISTER TO
ACTIVATE YOUR
Your appliance comes with a free one year parts and labour warranty.
Register within 30 days of purchase to receive a free second year
parts warranty.
SERVIS.CO.UK 0333 577 7232
0333 577 7232 0333 577 7232

01 02
T: 0333 577 7232 T: 0333 577 7232
WELCOME SAFETY INSTRUCTIONS
To ensure your safety and the safety of others, please read
the following safety precautions before you operate your
Dishwasher.
Your Dishwasher conforms to current safety requirements.
Inappropriate use can, however, lead to personal injury
and damage to property. To avoid the risk of accidents
and damage to your Dishwasher, read this user guide
carefully before using it for the first time. It contains
important information on the installation, safety, use and
maintenance of your Dishwasher. Retain this user guide for
future use and pass it on to any new owners.
Read this user guide before using or installing your
Dishwasher.
Your Dishwasher is for domestic use only and is only
intended to wash and dry items which are specified by
the manufacturer to be dishwasher-safe. Do not use your
Dishwasher for any purpose not expressly specified in this
user guide.
Before setting up your Dishwasher, check for any external
visible damage. Do not install or use your Dishwasher if it
is damaged. Prolonged intensive use of your Dishwasher
may call for additional ventilation.
This Dishwasher is designed to be used in houses and
similar places. (IEC 60335-2-5/A2)
WELCOME
Thank you for choosing this Servis Dishwasher, which has been designed and manufactured to
give you many years of trouble-free service.
You may already be familiar with using a similar product but please take time to read these
instructions, which have been written to ensure you get the very best from your purchase.
Servis provides you with a guarantee which will protect you should your Dishwasher develop an
electrical or mechanical fault during the guarantee period. To ensure that you get a prompt and
efficient service, please register your Dishwasher immediately.
You will find a warranty card included within the packaging. To register, complete the form, or:
Visit us at www.servis.co.uk
Call us on 0333 577 7232
WARRANTY

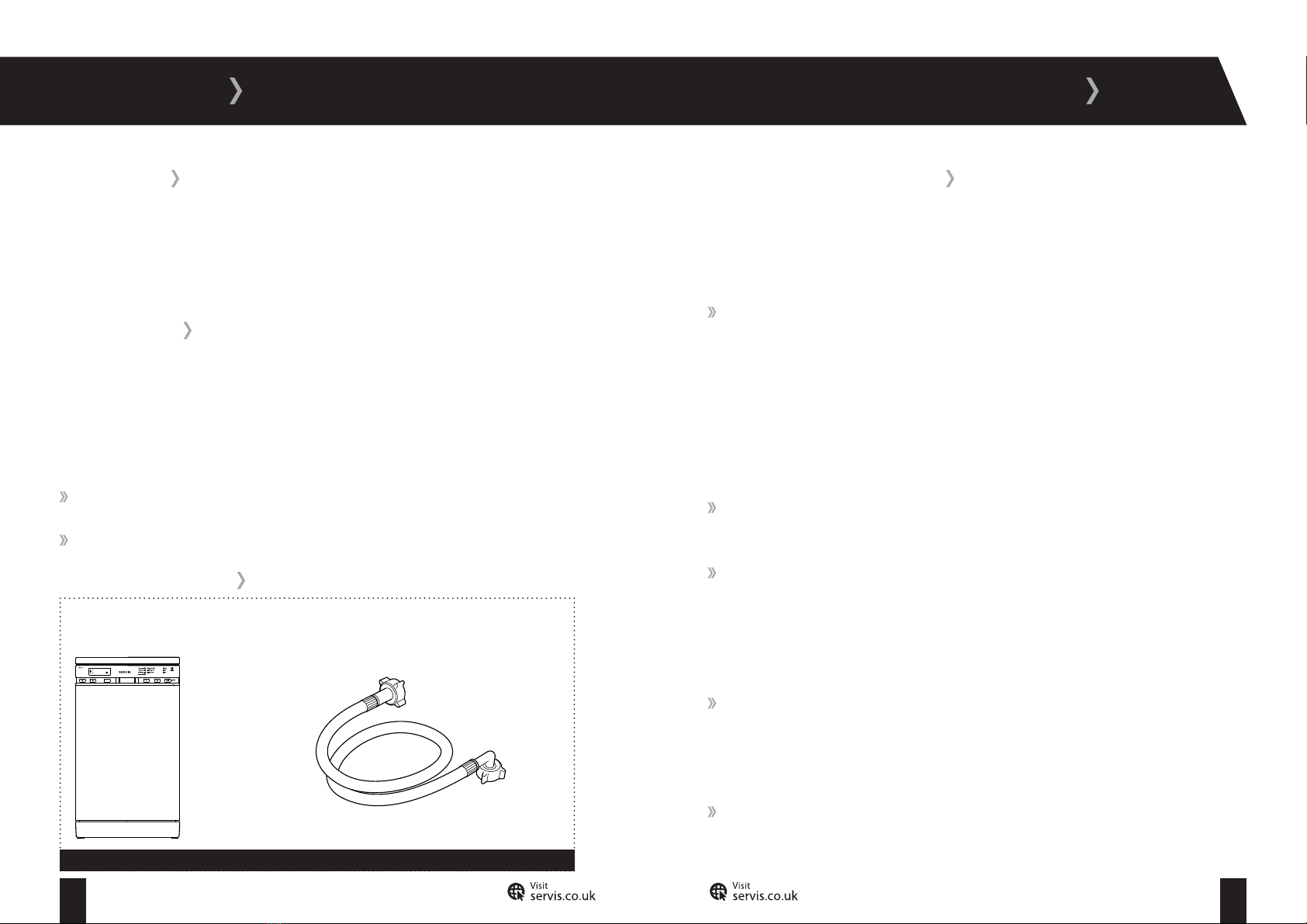

ITEMS INCLUDED
Fill hose
Dishwasher
Figure 1
SAFETY INSTRUCTIONS

03 04
T: 0333 577 7232 T: 0333 577 7232
SAFETY INSTRUCTIONS
Before connecting your Dishwasher, ensure that the voltage
and connected load information in this guide matches that of
the mains electricity supply. If in doubt, consult a qualified
electrician.
Before connecting your Dishwasher, ensure that all
electrical connections match the values on the rating plate.
Servis cannot be held responsible for any damage that may
occur due to improper connections. If in doubt, consult a
qualified electrician.
Do not connect your Dishwasher to the mains electricity
supply using an extension lead or multi socket. These
types of connection can cause overheating.
Make sure that the power supply cable is positioned where
you can reach it if required.
A damaged power cord/plug can cause fire or give you an
electric shock. When damaged it must be replaced. This
should only be done by qualified personnel.
Never remove the plug from the socket by pulling the cord.
Always hold the plug.
Never touch the power cord/plug with wet hands as this
could cause a short circuit or electric shock.
Do not touch your Dishwasher if your hands or feet are
wet.
Your Dishwasher can reach high temperatures in use. Do
not place it next to a refrigerator or freezer.
Do not put your Dishwasher in any location where the room
temperature is likely to fall below 0 0C.
Do not mount heat sources such as ovens near or on the
Dishwasher. Heat from these devices may damage your
Dishwasher.
Faulty components must only be replaced by a suitably
qualified Service Agent using genuine spare parts.
Unauthorised repairs could result in unforeseen dangers
for the user. Repairs should only be undertaken by an
approved service agent.
In the event of a fault or for cleaning purposes, your
Dishwasher is only completely isolated from the electricity
supply when it is unplugged from the mains.
Your Dishwasher must only be connected to your water
supply using the supplied new fill hose. Old hoses must not
be reused.
Make sure that the drain hose is not kinked or compressed
or the water may not drain away from the Dishwasher
properly.
Do not make any alterations to your Dishwasher, unless
authorised to do so by Servis.

05 06
T: 0333 577 7232 T: 0333 577 7232
SAFETY INSTRUCTIONS
The packaging of the Dishwasher could be hazardous to
children. Please refer to the disposal instructions on the
rear cover.
Please ensure that you have removed all of the packaging
materials and protective tape from inside and outside your
Dishwasher before using.
Keep the document bag that contained this user manual
out of reach of children and babies to prevent the risk of
suffocation.
Keep the small items found in the document bag out of reach
of small children and babies.
Only use detergents and rinse aids which are designed
specifically for use with dishwashers.
Use soft grain or powder softener salt. Do not use table salt
or sea salt in your Dishwasher.
Never use your Dishwasher without a filter.
Do not overload the drawers or place items where they can
block the rotary spray arms.
Never force the door open when your Dishwasher is
running.
For energy and water saving, remove coarse residues and
food waste from your dishes before placing your dishes in
the Dishwasher.
Place hollow items, such as bowls, glasses and pots into the
Dishwasher face-down wherever possible. However, do not
place tall glasses so that their stems can block the rotary
spray arm.
Place cutlery point down in the cutlery basket, or flat in the
top basket.
Check whether plastic items are heat-resistant before
washing them in the Dishwasher.
Do not touch the drain hose or any discharged water while
your Dishwasher is running. The high temperatures involved
pose a burn risk.
Clean the rotary spray arms and the filter at least once a
week.
Check the rinse aid indicator regularly and top up with rinse
aid when required.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Do not sit or stand on the open door of your Dishwasher as it
may fall over.

07 08
T: 0333 577 7232 T: 0333 577 7232
INSTALLATION
INSTALLATION REQUIREMENTS
To avoid risk of injury, please take care when moving your Dishwasher. It is heavy and we
recommend that a minimum of two people move your Dishwasher.
To unpack your Dishwasher and manoeuvre it to the installation area, one person should hold it
by the front feet and the other person at the edge of the lid at the rear.
Your Dishwasher measures 84.5 x 45.0 x 59.8cm and will require an installation area with the
space to allow the door to fully open and provide easy access to the plumbing and electrical
connections.
The most suitable installation surface for your Dishwasher is a concrete floor as it is less prone
to vibration. Soft floor surfaces such as carpets and rugs are not suitable.
If possible, install your Dishwasher in the corner of the room as it is often the most stable part of
the floor.
Do not install your Dishwasher in rooms where temperatures below freezing may occur as frozen
hoses may burst or split.
TECHNICAL SPECIFICATION
Capacity 10 place settings
Height 845 mm
Height (without worktop) 815 mm
Width 450 mm
Depth 598 mm
Net Weight 40 kg
Electricity Input 220-240 V, 50 Hz
Total Power 1900 W
Heating Power 1800 W
Pump Power 100 W
Drain Pump Power 30 W
Water Supply Pressure 0.03 MPa (0.3 bar) - 1 MPa (10 bar)
Current 10 A
TECHNICAL SPECIFICATION

09 10
T: 0333 577 7232 T: 0333 577 7232
WATER SUPPLY CONNECTION
Your Dishwasher uses an energy efficient cold fill system, which means that the Dishwasher is
filled with cold water which is then heated to wash the dishes. As a result, no heat is lost in the
pipeline from the hot water supply.
Connect your Dishwasher to your cold water supply only. If your previous
Dishwasher had a hot
and cold fill, check that the hot tap on your water supply is closed to avoid leakage. Only use the
fill hose supplied and not one from your old Dishwasher. Only one hose is required to install your
Dishwasher to the cold water supply. The inlet hose provided with your Dishwasher connects the
rear of your
Dishwasher and the cold water supply. To connect your Dishwasher to the cold water
supply:
1Connect the angled end of the fill hose to the cold water inlet on the rear of your
Dishwasher by screwing the threaded connector clockwise (fig 7). Take care not to
overtighten the connection. Hand tight is sufficient.
INSTALLATION
Figure 7
For safe operation, it is important that your Dishwasher is level and securely positioned on all
four feet. Incorrect installation may cause the Dishwasher to vibrate and increase your water and
electricity consumption. Never place cardboard, wood or similar materials under your Dishwasher
to increase stability.

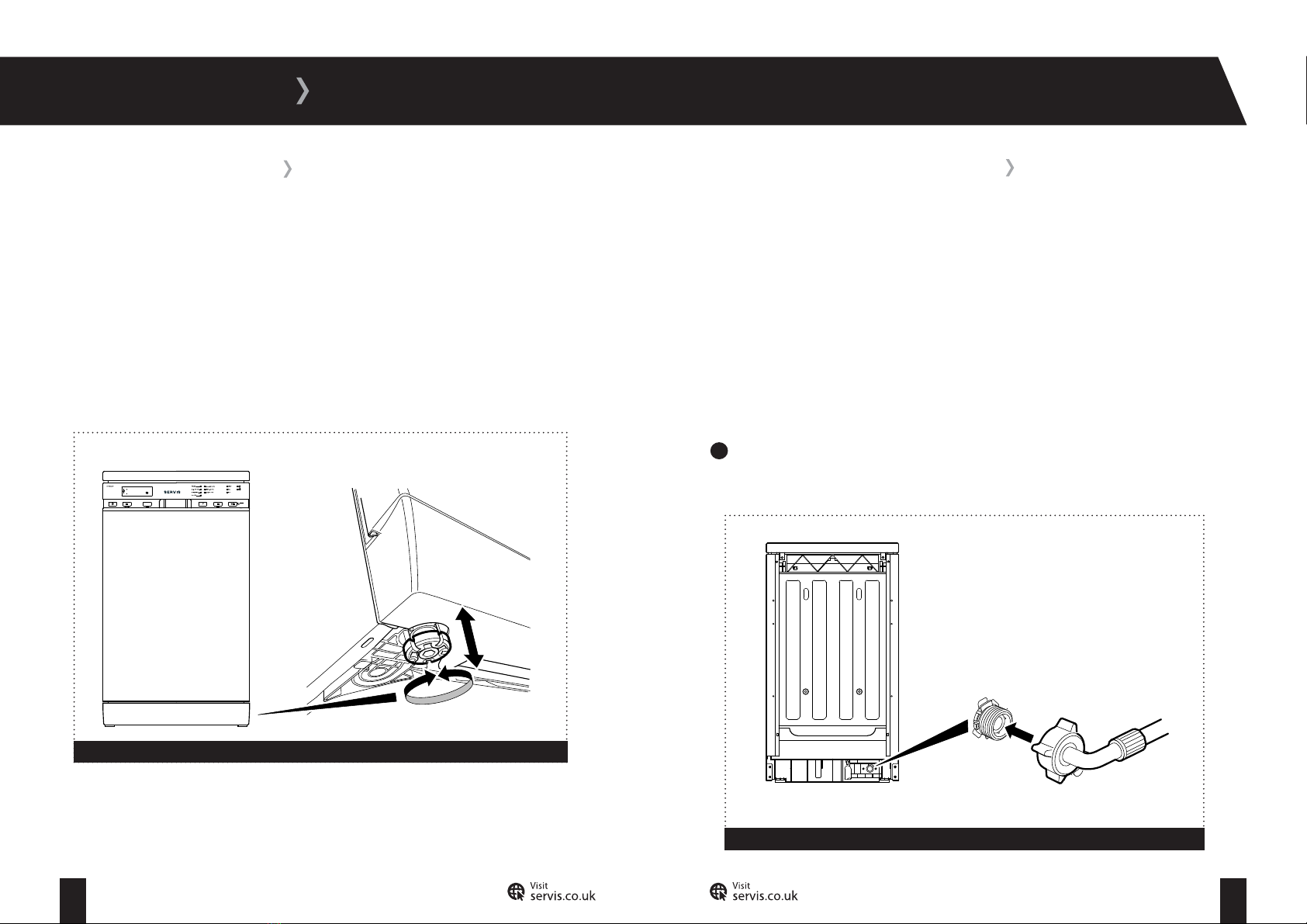

The four adjustable feet are used to level the Dishwasher. To adjust the feet (fig 6):
To increase the height of the Dishwasher, turn the feet anti-clockwise.
To decrease the height of the Dishwasher, turn the feet clockwise.
After making adjustments, use a spirit level to check that the Dishwasher is level.
Figure 6
ADJUSTING THE FEET

11 12
T: 0333 577 7232 T: 0333 577 7232
INSTALLATION
Figure 9
The drain hose
can be connected
to a standpipe, as
shown. The hose
must be between
50cm to 110cm
from the ground.
WATER SUPPLY CONNECTION
2Screw the straight end of the hose clockwise to a 19mm (3/4’’) cold water tap until hand
tight (fig 8). Take care not to trap or kink the hose.
Figure 8
Do not connect your Dishwasher to a surface water drain.
Connect your Dishwasher to your household drainage system (fig 9).
For your Dishwasher to function properly the outlet end of the drain hose must be at a minimum
of 50cm and a maximum of 110cm from the ground.
CAUTION: Check to ensure that the hose is not trapped, kinked, twisted, folded or crushed.
Do not attempt to extend the drain hose by adding extra sections.
DRAIN HOSE CONNECTION
The cold water pressure for a normal household system ranges from between 0.1 to 1 Mpa. Your
Dishwasher will run at optimum efficiency in this range.
Once you have made all of the connections, carefully turn your cold water supply on and check
for leaks.

13 14
T: 0333 577 7232 T: 0333 577 7232
INSTALLATION
Remove all packaging from the Dishwasher .
Set the water softener level (see page 20).
Add 1 kg of salt to the salt compartment and fill with water until it is almost overflowing
(see page 21).
Fill the rinse aid compartment (see page 22).
Run the Dishwasher unloaded (see page 29).
PREPARING YOUR DISHWASHER FOR FIRST USE
Your Dishwasher requires a 220-240V, 50Hz mains supply. Do not use any other supply.
Your Dishwasher may be fitted with a moulded plug, which cannot be rewired.
If the fuse cover becomes damaged, you must not use the plug.
If your plug requires changing because it is not suitable for your socket, or it is damaged,
you should consult a qualified electrician.
Fuse:
Replacement fuses should be ASTA-approved to BS1362 and have the correct 13 Amp
rating.
Replacement fuses can be purchased from an electrical supplier.
ELECTRICAL CONNECTION

15 16
T: 0333 577 7232 T: 0333 577 7232
YOUR DISHWASHER
1
3
FRONT VIEW REAR VIEW
On/off switch
2Door Handle Control Panel
4Feet
Drain hose
1
2
Cold water
inlet
Figure 2 Figure 3
1On/off switch.
2Door handle.
3Control panel.
4Feet.
1Power cable.
2Drain hose; provides an outlet for the dirty water from your Dishwasher.
3Cold water inlet; connects your Dishwasher to your cold water supply.
4Feet.
3
Power Cable
4Feet 4Feet 4Feet

17 18
T: 0333 577 7232 T: 0333 577 7232
1Drying nozzle (one each side).
2Detergent compartment/Rinse aid compertment.
3Salt compartment.
4Filters.
Light (Not shown)
1Upper basket.
2Cutlery box.
3Lower basket.
4Door.
YOUR DISHWASHER

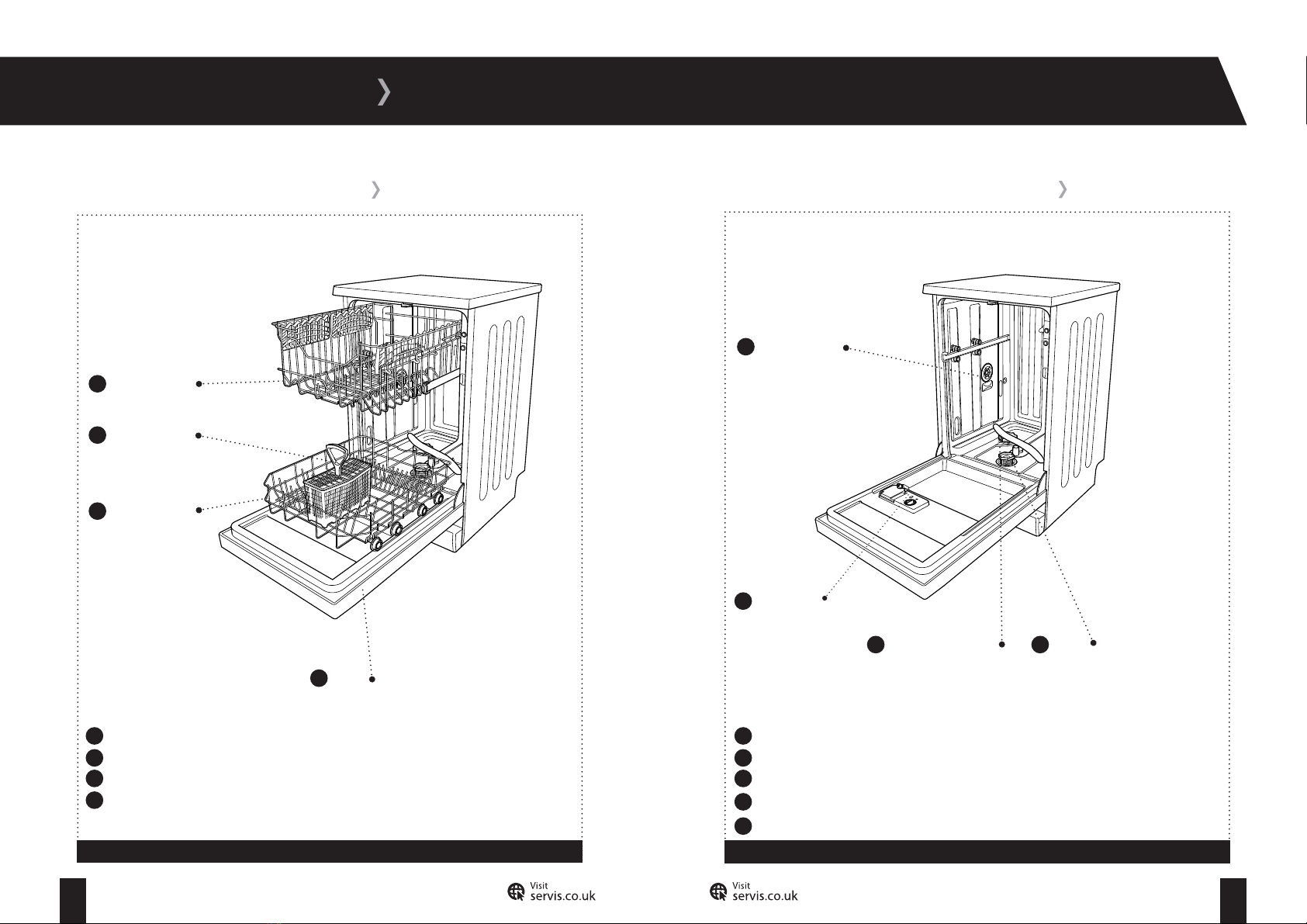

INSIDE VIEW (WITH DRAWERS)
1Upper Drawer
4Door
Figure 4
INSIDE VIEW (WITHOUT DRAWERS)
1Drying nozzle
2Detergent
compartment/
Rinse aid
compartment
3Salt Compartment 4Filters
3
Cutlery Box
Figure 5
5
2
Lower Drawer

19 20
T: 0333 577 7232 T: 0333 577 7232
SETTING UP YOUR DISHWASHER

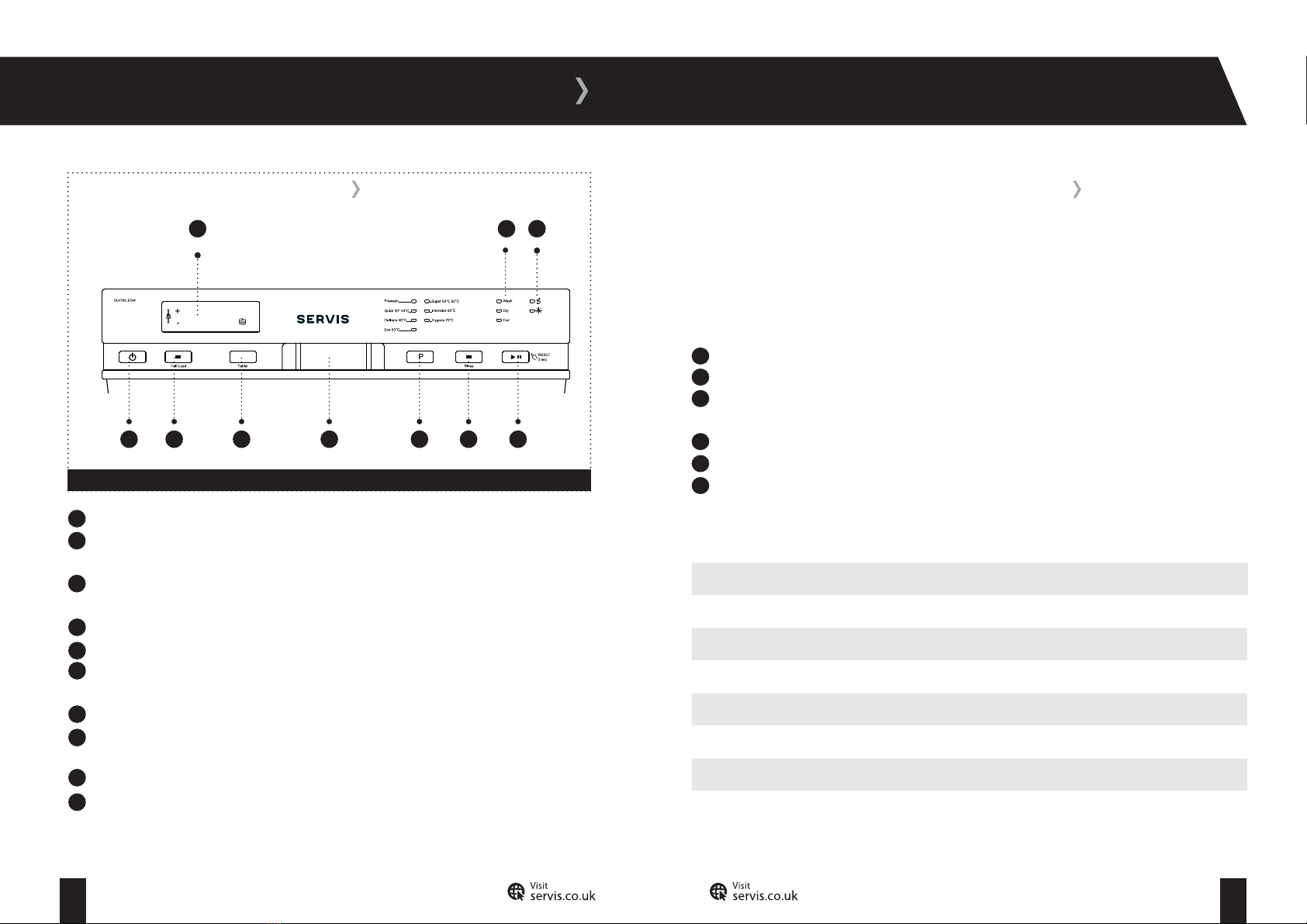

CONTROL PANEL OVERVIEW
The effectiveness of your Dishwasher depends on the softness of the water supply. For this
reason, your Dishwasher is equipped with a system to reduce the hardness in the mains water.
To find out the water hardness level in your area, contact your water company.
To set your Dishwasher to compensate for the water hardness level:
1On the control panel hold down the Programme Selection Button.
2Switch on your Dishwasher using the
On/Off Button.
3Continue holding down the Programme Selection Button until the letters SL stop being
displayed.
Release the Programme Selection Button. The current water hardness setting is displayed.
Use the + or - buttons to select the required hardness level.
Press the
On/Off Button to save the setting.
Hardness Levels
Hardness British Hardness (dE) French Hardness (dF) German Hardness (dH)
L1 0-6 0-9 0-5
L2 7-14 10-20 6-11
L3 15-21 21-30 12-17
L4 22-28 31-40 18-22
L5 29-42 41-60 23-34
L6 43-63 61-90 35-50
Figure 10
1 2 6 7
8
SETTING THE WATER SOFTENER LEVEL
4
5
6
3 4 5
9
10
1On/Off Button.
2Half Load Button. Select if you have a half load to reduce the duration of the programme
and decrease your power and water consumption.
3Tablet Detergent Button. Select if you are using combined detergent which contains salt,
rinse aid and extra functions.
Door Handle.
Programme Selection Button.
Extra Rinse Button. Select to add an extra rinse to the selected programme to make your
dishes cleaner and glossier.
Start/Pause Button: Start or pause the selected programme.
Salt Level Warning. If shown, refill the salt compartment (see page 21).
Rinse Aid Warning. If shown, refill the rinse aid compartment (see page 22).
Washing Cycle Progress Indicators. Shows the progress of the washing cycle.
Remaining Time Indicator. The amount of time the programme has left to run.
Delay Time. The amount of time the programme is delayed.
4
5
6
7
8
9
10

21 22
T: 0333 577 7232 T: 0333 577 7232
Figure 11

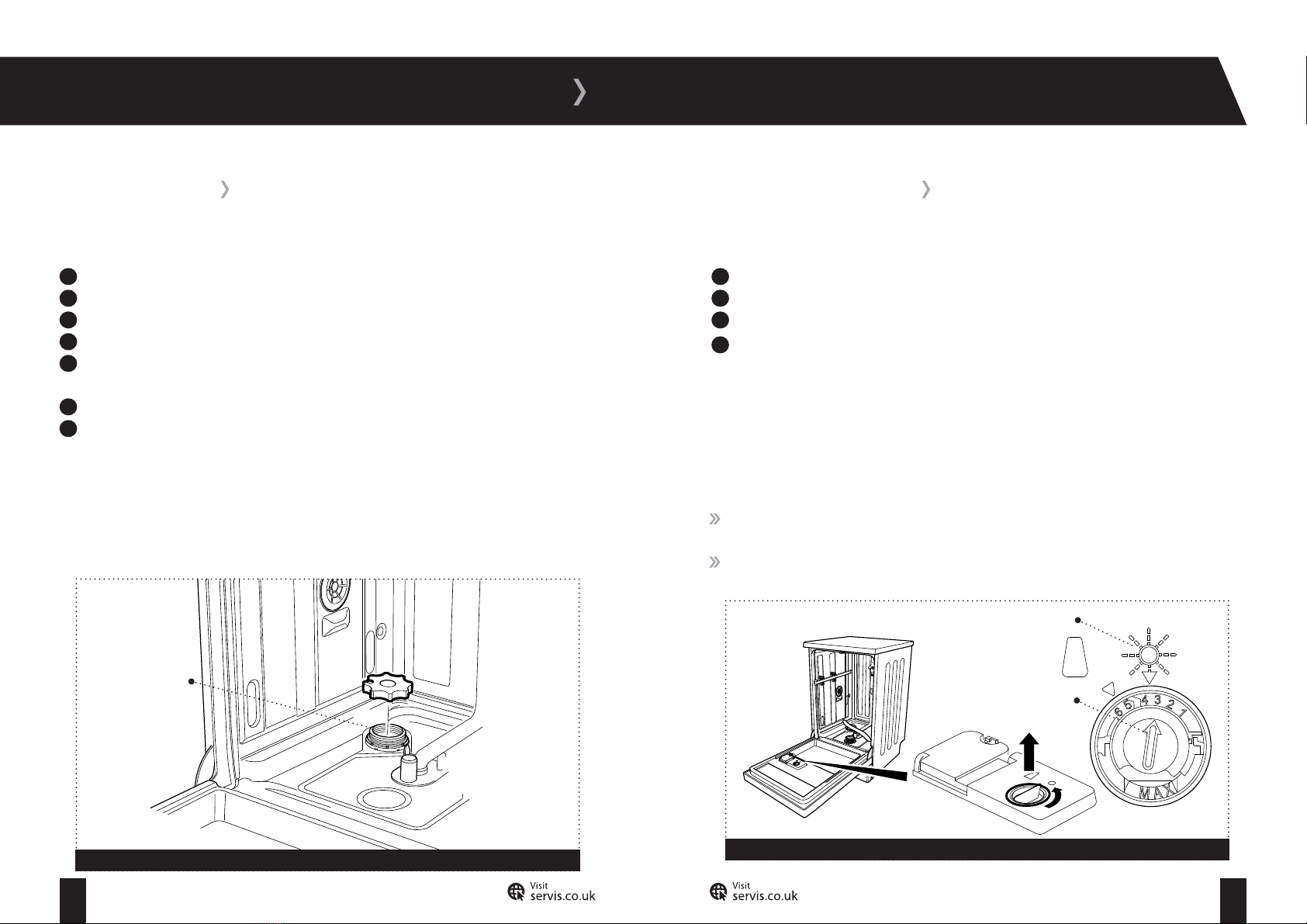

To fill the salt compartment (fig 11):
Open the Dishwasher.
Remove the lower basket.
Open the salt compartment cap by turning it counter clockwise.
Fill the compartment with 1 kg of dishwasher salt.
Top up the salt compartment with water until it is almost overflowing (the first time
you fill the salt compartment only).
Replace the cap, turning it clockwise.
Replace the lower basket.
When the
Salt Level Warning indicator is displayed on the control panel, repeat the above steps
to refill the salt compartment.
CAUTION: Use soft grain or powder softener salt. Do not use table salt or sea salt in your
Dishwasher.
SETTING UP YOUR DISHWASHER
To fill the rinse aid compartment (fig 12):
Open the Dishwasher.
Remove the rinse aid compartment cap by turning it counter clockwise.
Fill the compartment with rinse aid until the rinse aid level indicator goes dark.
Replace the cap, turning it clockwise.
When the
Rinse Aid Warning is displayed on the control panel, repeat the above steps to refill
the rinse aid compartment.
The rinse aid compartment includes a level adjuster, numbered 1 to 6, which controls how much
rinse aid is used in each wash. It can be adjusted using a screwdriver. If:
water stains form on your dishes, increase the adjustor setting towards 6.
blue stains form on your dishes, decrease the adjustor setting towards 1.
Figure 12
Filling With Salt Filling With Rinse Aid
1
2
3
4
5
6
7
1
2
3
4
Salt compartment
Level indicator
Level adjuster

23 24
T: 0333 577 7232 T: 0333 577 7232
USING YOUR DISHWASHER
Your Dishwasher has two main baskets for your dishes and a cutlery box for cutlery and other
small items.
The upper basket is designed for tea plates, dessert plates, salad bowls, cups and glasses.
The lower basket is designed for larger or deeper items, such as pots with long handles, pot lids
and large plates.
Tips:
If placing long-stemmed glasses or goblets, place them against the basket edge, rack or
glass support wire. Do not place them against each other or other dishes as they may move
about and be damaged.
Place long-handled and sharp-pointed items (e.g. bread knife, carving knife) point
downwards or flat on the baskets to avoid any potential injury.
Do not block the free movement of the spinning arms. Place tall items flat or close to the
edges of the baskets.
Leave space between dishes for the water to spray freely. For example, do not stack plates
against each other.
Place hollow items, such as bowls, glasses and pots into the Dishwasher face-down wherever
possible.
Place spoons amongst other cutlery to prevent them sticking together and not being
washed properly.
Figure 13
Loading Your Dishwasher
Cutlery Box
Upper Drawer
Lower Drawer

25 26
T: 0333 577 7232 T: 0333 577 7232
USING YOUR DISHWASHER
Adjusting The Upper Basket:
The upper basket can be raised to create a larger space in the lower basket (fig 15). This is
especially useful if you have tall items and need to keep the upper spray arm free.
The upper basket has two sets of wheels. To raise or lower the upper basket, pull the clip at the
end of the retaining arms to the side, slide out the drawer and re-insert it using the other set of
wheels.
CAUTION: Make sure the basket is level (i.e. both sides in the same position) before you
load it.
Figure 15
Do Not Block The Upper Spray Arm
Do not overload the drawers or place items where they can block the rotary spray arms (fig 14). If
necessary, t
he upper basket can be raised to create a larger space in the lower basket.
Figure 14
Maximum
loading height
for lower basket

27 28
T: 0333 577 7232 T: 0333 577 7232
Once you have loaded the Dishwasher, you must put in detergent. To fill the detergent
compartment (fig 16):
Push the latch to open the detergent compartment.
Use the fill markings in the compartment to put the correct amount of detergent into
the compartment:
25 cm³ if your dishes are heavily soiled
15 cm³ if your dishes are lightly soiled
(Optional) If there is dried food waste on your dishes, put 5 cm³ of detergent into the
prewash part of the compartment.
Close the detergent compartment.
If your detergent comes in tablet form, put the tablet in the detergent compartment. Do not put
the tablet in any other part of the Dishwasher.
USING YOUR DISHWASHER
Combined Detergents
Some manufacturers produced combined detergents. These contain a mixture of detergent,
salt and/or rinse aid. Check the labelling on the detergent product you are using and adjust the
amount of salt or rinse aid you use separately in your Dishwasher.
If You Stop Using Combined Detergents
If you stop using combined detergents after a long period of using them, do the following before
you next use your Dishwasher:
Fill the salt and rinse aid compartments.
Adjust the water hardness setting to the highest position and run an empty wash.
Set the water hardness setting to match your water hardness level.
Set the rinse aid setting if required.
Figure 16
Filling With Detergent
1
2
3
4

29 30
T: 0333 577 7232 T: 0333 577 7232
Once you have loaded your Dishwasher:
1Close the Dishwasher door.
2Switch on your Dishwasher. The last programme used is automatically selected.
3(Optional) Use the Preogramme Select Button to select a different wash programme.
(Optional) Press one of the option buttons (Half Load, Extra Rinse or Tablet Detergent) to
select an additional option.
(Optional) Press the Delay button and use the + and - buttons to set a delay
before the programme will start.
Press the Start/Pause button. The programme will start immediately, unless you have set a
delay when it will start after the delay.
If you have set a delay, you can cancel it at any time before it runs out by holding the Start/
Pause button for 3 seconds.
When the selected programme starts you can monitor the progress of the wash cycle using the
wash cycle indicators on the control panel. When the wash programme has stopped, switch off
the
Dishwasher before opening the door and emptying it.
Do not open the door while the Dishwasher is running.
After you have started a programme (or a delay) you can lock the control panel to prevent the
settings being changed while the Dishwasher is running.
To lock the control panel, hold down the + and - buttons for 3 seconds. The display will read ‘CL’.
To unlock the control panel, hold down the + and - buttons for 3 seconds.
USING YOUR DISHWASHER
Running Your Dishwasher
4
5
6
Child Lock
Changing The Programme While It Is Running
To change programmes while the Dishwasher is running:
1Press the Start/Pause button to pause the programme.
2Use the Programme Select Button to select a different wash programme.
3Press the Start/Pause button to restart the wash using the new programme.
Cancelling The Programme While It Is Running
To cancel the running Dishwasher programme:
1Press and hold the Start/Pause button for 3 seconds until the finish light blinks.
2Wait 30 seconds while the Dishwasher discharges any water inside the machine. The finish
light will blink while this takes place.
3Press the On/Off button before opening the door.
CAUTION: The interior of the Dishwasher may be hot, depending on the programme
selected and the stage it had reached when you cancelled it. Be careful of escaping steam
when you open the Dishwasher door.

31 32
T: 0333 577 7232 T: 0333 577 7232
Programmes Wash
Temp.
(°C)
Types of food fragments Contamination
Level
Amount of
Detergent
Required*
Full Load Half Load
Prog.
Duration
(minutes)
Power
Used
(Kw/hour)
Water
Used
(Litres)
Prog.
Duration
(minutes)
Power
Used
(Kw/hour)
Water
Used
(Litres)
Prewash - Pre-wash to rinse and loosen residue
prior to a full wash programme
Small - 15 0.02 3.6 15 0.02 3.6
Quick Wash 40 Coffee, tea, milk,
cold meat, vegetables, not kept for
long
Small A 30 0.72 10.2 30 0.72 10.2
Delicate 40 Coffee, tea, milk,
cold meat, vegetables, not kept for
long
Medium A+B 74 0.80 14.1 64 0.78 10.3
Eco 50 Cold meat, vegetables, not kept for
long
Medium A+B 170 0.93 13.0 148 0.89 9.7
Super Wash
50 minutes
65 Soups, sauces, pasta, eggs, pilaf,
potatoes, oven dishes, fried food
Medium High A+B 50 1.14 10.5 47 1.01 10.5
Intensive 65 Soups, sauces, pasta, eggs, pilaf,
potatoes, oven dishes, fried food
High A+B 114 1.49 17.8 100 1.14 14.0
Hygiene 70 Dishes with dense dirt waiting for
a long time or requiring hygienic
washing
High A+B 124 1.42 14.8 101 1.26 11.0
* Amount of detergent required: A - 5cm³. B - 25 cm³/15 cm³.
Note: Values above have been tested according to related standards in lab conditions. These values may vary due to environment conditions (mains voltage, water pressure, water inlet temperature
and the ambient temperature).
DISHWASHER PROGRAMMES
USING YOUR DISHWASHER

33 34
T: 0333 577 7232 T: 0333 577 7232
Programmes Steps
Prewash Prewash End
Quick Wash 40°C wash Cold rinse Hot rinse End
Delicate Prewash 40°C wash Cold rinse Hot rinse Dry End
Eco Prewash 50°C wash Cold rinse Hot rinse Dry End
Super Wash
50 minutes
65°C wash Intermediate
rinse
Hot rinse End
Intensive 45°C wash 65°C wash Cold rinse Intermediate
rinse
Hot
rinse
Dry End
Hygiene Prewash 70°C wash Cold rinse Hot rinse Dry End
Note: The Prewash , Quick Wash and Super Wash 50 minute programmes have no drying step .
DISHWASHER PROGRAMMES - WASH STEPS
USING YOUR DISHWASHER
Important Note for Test Laboratories
For detailed information on performance tests, please email: [e-mail].
Please provide the model name and 20-digit serial number in your email. The serial number can be
found on the appliance door.

35 36
T: 0333 577 7232 T: 0333 577 7232
MAINTENANCE
From time to time it may be necessary to carry out some routine maintenance of your
Dishwasher to ensure that it operates as intended. Before cleaning your Dishwasher:
1Turn your mains power supply off and remove the plug from the socket.
2Turn off the cold water supply.
CAUTION: Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaning
agents to clean your Dishwasher. They may damage the plastic surfaces and other components
with the chemicals they contain.
External Casing:
Use a mild, non-abrasive cleaning agent, or soap and water, to clean the external casing.
Wipe dry with a soft cloth.
Inside:
Use a suitable stainless steel cleaning agent to clean inside the Dishwasher. Follow the
manufacturer’s advice on the cleaning agent’s packaging.
Wipe the door seals regularly with a damp cloth to remove any accumulated residue.
Clean the filters and spray arms at least once a week.
Extra Cleaning:
Oil and lime may build up in your Dishwasher over time. If this occurs, fill the detergent
compartment with a cleaning agent designed for use with dishwashers, select a
programme which runs at high temperature and run the
Dishwasher empty.
Filters:
If any food waste remains on the coarse and fine filters, remove them and clean them
thoroughly. To clean the filters:
1Turn the filter assembly counter clockwise and lift it out (fig 17).
2Lift the metal/plastic filter out.
Separate the coarse and micro filters by pulling them apart.
Rinse the filters under the tap until free of residue.
Replace the metal/plastic filter.
Line up the arrows on the coarse and micro filters and clip them together, then replace the
filter assembly in the
Dishwasher , turning it clockwise until it locks in position.
GENERAL MAINTENANCE
Figure 17
3
4
6
Metal/Plastic Filter
Filter Assembly
Micro Filter
Coarse Filter
5
