SetPower PT35 User manual

PT35/45/55
User Manual
V1.0

CONTENT
1.SAFETY INSTRUCTIONS
2.DATA SHEET
3.OVERVIEW
4.USE REMINDERS
5.OPERATING INSTRUCTIONS
6.TROUBLE SHOOTING
7.WARRANTY
01
04
05
05
07
07
13

01
1.SAFETY INSTRUCTIONS
Please read the user manual and safety instructions
carefully before using the appliance.
The manufacturer cannot be held responsible for the damage
resulting from improper usage or incorrect operation.
The use of accessories that are not recommended by manufacturer
can cause injuries and will invalidate any warranty that you may
have.
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge. Unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
1.1 Disclaimer
Place the unit on a dry, secure surface, with adequate ventilation.
Please make sure the lid is closed and secure, and only open the
fridge when you need to.
Please cool down hot/warm food before put it into the unit.
Please defrost the unit when ice forms on the internal walls or lid.
Select proper target temperature according to corresponding need.
1.2 Energy Saving Tips
Please power o and unplug the unit before cleaning or Maintenance.f f
1.3 Cleaning & Maintenance

02
Please use non-abrasive detergent to cleaning the interior/exterior of
the fridge.
Please don't scrap the interior of the fridge to defrost/de-ice the
fridge.
Please don't pressure-wash/spray the fridge with a running water
hose.
Do not expose the unit to moderate/heavy rain.
Do not use this appliance near direct heat sources, such as flame or
radiator.
Do not place open containers of liquid inside the fridge.
Place/arrange the content of your fridge securely before using the
refrigerator inside a moving vehicle.
Do not use electrical devices inside the food storage compartments
of the appliance, unless approved/recommended by the
manufacturer.
Do not store explosive items, such as aerosol cans with a flammable
propellant in this appliance.
Do not touch the compressor or the condenser when the fridge is
operating.
Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
Please ensure the supply cord is not trapped or damaged before
setting up the appliance.
1.4 Dos and Don’ts

Failure to obey the following warnings could result in
death or serious injury:
Do not immerse the product in water, or use it in an excessively
muddy area.
Do not use the cooler for any purpose other than as a portable
cooling device.
DANGER
FALL HAZARD
Do not stand on the cooler, which may damage the unit or injure
yourself.
RISK OF CHILD ENTRAPMENT
Before you throw the unit away:
ELECTRICAL SHOCK HAZARD.
Take of f the doors.
Leave the shelves in place so that children can not easily climb into it.
This appliance is intended to be used in household and similar
applications such as:
1.5 INTENDED TO USE
Staf f kitchen areas in shops, of fices and other working environments;
Farm houses and hotels, motels and other residential type
environments;
Bed and meal environments;
Catering and similar non-retail applications.
03

2.SPECIFICATIONS
24.4×15.8×17.1 inches
(620×400×435mm)
37 Qt / 35 L
DC 12V / 24V
R134a-CFC Free
Compressor speed: MAX: 3500r/min, ECO: 2500r/min
0°F to 50°F (-18°C to +10°C)
38 lbs (17.3 kg)
34.6×18.9×18.2 inches
(620×400×505mm)
47.6 Qt / 45L
42 lbs (19.1kg)
34.6×18.9×18.2 inches
(620×400×575mm)
58.1 Qt / 55L
44 lbs (20.1kg)
PP、Metal、PU leather
PT35 PT45 PT55
Model
3.OVERVIEW
1. Lid Latches 2. Control Panel
3. Carry Handle 4. Power Input Panel
5. 12V/24V DC Power Cable 6. AC/DC Power Adaptor
6
External
Dimensions
(L*W*H)
Net Weight
Shell
Material
Nominal
Voltage
Refrigerant
Gas
Systems
Control
Temperature
Range
Capacity
04

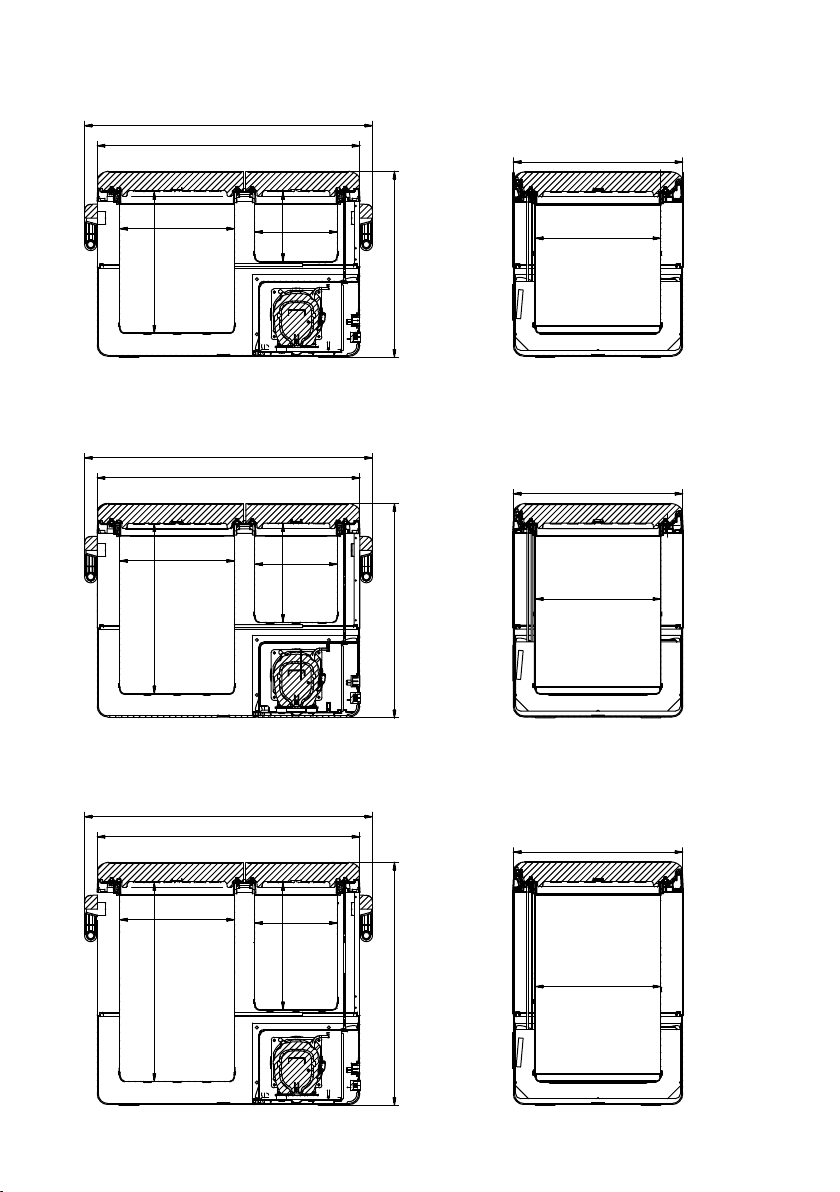

37Qt (35L) FRIDGE
271
334
680
620
195
165
435
400
296
680
620
400
296
401
232
195
271
506
47.6Qt (45L) FRIDGE
271
471
680
620
195
302
575
400
296
58.1Qt (55L) FRIDGE
05

4. USE REMINDERS
Some Reminders
1. If the device was not placed in the upright position
after transit and delivery, please keep it upright for 24
hours to make sure that the compressor can work
properly.
2. If the device can’t turn on or you encounter other
problems for first time use, please contact us for help.
3. Pre-cool the empty unit before using it to enhance
system ef ficiency.

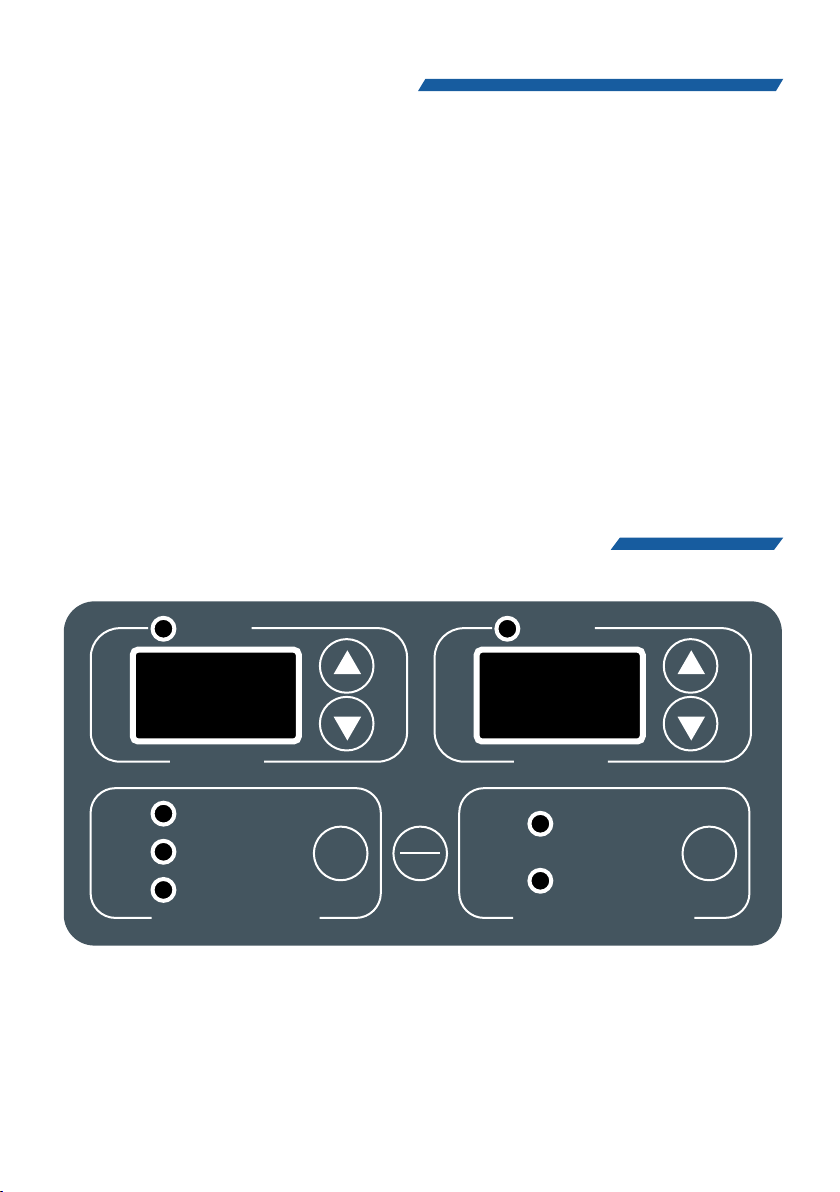

5. OPERATING INSTRUCTIONS
06
Cooling
Left Bin
Cooling
Left Bin
Battery Protection
High
Middle
Low
SET
Compressor Speed
Max
Min
SET
ON
OFF
8 8 8 8 8 8

07
5.1 HOW TO USE THE REFRIGERATOR
5.1.1 Connecting with 12V or 24V
Connect the feeding cable to a direct current 24V DC
power source.
● Make sure the polarity is right.
● If connected to an existing cigarette plug, please
carefully check up that power supply is sufficient.
● If the supplied power cable is not used, please see the
table containing the information related to the cable
section:
The Fridge/Freezer is designed to operate on DC
voltage inputs.
DC input
DC cable
12V or 24V
2.5m,16AWG
5.1.2 Connecting with 110-240V
The Fridge/Freezer is designed to operate on DC
voltage inputs only. Use the supplied AC/DC adaptor to
operate fridge on 240V AC.

5.2 Operation
TURN ON OR TURN OFF THE FRIDGE: when the
fridge turn on, press and hold the " " button for
2 seconds to enter the standby state. In the standby
state, press and hold the " " button for 2 seconds to
turn on.
TEMPERATURE SETTING: under the startup state,
press the " " button to increase one degree
temperature; press the " " button to reduce the
temperature by one degree. Press and hold for 3
seconds " " or " " button to adjust upward
or downward the temperature at 3 degree per second.
ADJUST LEFT OR RIGHT ZONE TEMPERATURE:
operate the " " or " " button on the LEFT BIN area,
to set LEFT ZONE temperature. Operate the " " or
" " button on the RIGHT BIN area, to set RIGHT
ZONE temperature. The left zone is adjusted at 0 by °C
default. The right zone is adjusted at 3 by default.°C
TEMPERATURE SWITCH BETWEEN FAHRENHEIT &
CELSIUS: under the fridge turn on condition, press and
hold at the same time " " and " " button AT
THE RIGHT BIN, to switch between Fahrenheit and
Celsius. F refers to Fahrenheit; C refers to Celsius.
Celsius is defaulted.
ON
OFF
ON
OFF
SET
08
●
●
●
●

09
SWITCH MAX OR ECO MODE: under the fridge turn
on condition, press and hold the " " button in the
COMPRESSOR SPEED area, to switch MAX or ECO
mode. ECO mode is defaulted.
SWITCH SINGLE OR DUAL ZONE: when the dual
zone at work, press and hold " " and " " button for
2 seconds to stop one zone refrigeration, the
corresponding screen will turn rest. When the single
zone is working, press and hold the " " and " "
button at the same time for 2 seconds of the turn-off
zone, the cooling function and the corresponding
display screen will restore. When the single zone is
working, it's unable to turn off the fridge by press and
hold " " and " " button.
SET
●
●

5.3 BATTERY PROTECTION FUNCTION
What is Battery Protection Settings?
This function is designed to prevent over-discharge and
battery depletion. When the measured DC voltage is
below the Cut-of f value, the compressor will shut of f to
prevent battery depletion. After the voltage is higher than
Start-up value, the compressor will go back to work again.
Improper protection setting or low-power battery may
cause E1 error, please lower the battery protection or
recharge the battery in time.
10
Under the startup state, press " " button at BATTERY
PROTECTION zone to enter the battery protection
function, then choose HIGH/MID/LOW, the corresponding
indicator shows the battery protection settings. H is
defaulted by factory.
L
12V
protection
value(V)
recovery
value(V)
24V
9.6 10.9 21.3 22.7
10.4 11.7 22.8 24.2
11.1 12.4 24.3 25.7
M
H
Input voltage
Protection mode
recovery
value(V)
protection
value(V)
SET

6.TROUBLESHOOTING
● Your fridge has built in battery protection and needs a
minimum 10.9V to start and 9.6V to continue operating.
● During operation a load is placed on the circuit and
power supply and the voltage can drop by as much as
2V, many things can affect voltage drop, such as:
increased resistance from long cables, or cables that
are undersized or oversized for the application. Poor or
loose connections can also increase resistance.
● For example: The fridge turns on runs for 1 minute then
turns off. The likely problem is that the battery and wiring
circuit have sufficient voltage to start but when a load is
applied (thecompressor starting) the voltage will drop
below 9.6 and the fridge turns off. This cycle will repeat
as the load is removed from the battery the voltage will
begin to show 10.6 which is enough to start the cycle
again. Try to test fridge with 2 separate batteries before
raising a warranty claim.
● NOTE: If the fridge is able to run on the AC/DC
transformer the problem is likely a faulty battery, wiring
or connection.
6.1 POWER CUTTING IN/OUT
11

Wiring
The standard wiring from the car battery to the 12V outlet
may not be rated to power the fridge.
Ensure the wire gauge is of sufficient size to supply the
fridge’s current draw over the length required.
If unsure, check with the vehicles instruction manual or,
contact a local automotive electrician for advice.
NOTE: Always fuse wiring with an in-line 15A fuse as close
as reasonable possible to the power source (i.e. the battery).
6.2 COMMON 12V POWER SUPPLY ISSUES
Battery
The car battery could be old, undersized or have a dead cell
causing too much voltage drop. If the battery contains a dead
cell it may still show that it has voltage with no load applied.
When a load is applied the cell will drop and subsequently so
will the voltage.
Connections
The 12V plug, car 12V socket or any of the connections
between the fridge and the battery could be faulty or have
come loose since installation.
12

13
Check battery voltage
and adjust Low Voltage
Cut-Of f as required.
Fan fault (electric current ) / >0.65A
Frequent start-stop. Contact seller.
The compressor starts incorrectly
(The motor is blocked or the
pressure dif ference of the cooling
system is too large).
Ambient temperature
may be too high,
please clear the air
vents, if the problem
hasn't been solved,
please contact seller.
The compressor speed is too low
(the refrigeration system is
overloaded and the motor cannot
be maintained 1850r/min as
minimum speed) the requirements.
Protects the compressor control
module from over-temperature or
under-temperature (When the
ambient temperature is too high or
too low, or the system is
overloaded making the module/，
ECU internal temperature＞100°C
or ＜-10°C).
NTC short circuit fault.
Battery voltage low protection
(Module input voltage is lower than
the set value).
CADE Error Type Action
6.3 ERROR CODES & SOLUTIONS
When the refrigerator fails, the digital screen displays the
failure mode, as shown in the following table:
NTC open-circuit fault.
Contact seller.
E1
E2
E3
E4
E5
HH
LL

If a single zone reports NTC failure, which means this zone
stops working, and the other zone can still be normally
refrigerated; When both zones report NTC failure, which
means the compressor stops working.
7.WARRANTY & RETURN
7.1 Warranty
3-year Warranty for The Compressor
1-year General Warranty
For Warranty Registration, please contact us for more
information.
7.2 Customer Service
If the product is received damaged or defective, you can
contact us via these ways:
Customer Support Email: [email protected]
Amazon Message Service
Order ID
Unit Model
Phone number
Description of the Defect
Delivery Address
Videos or Photos Related to The Defect
If you email us, these information needs to be included:
14

Note:
If calling the customer service number out of working time, you can
leave a voice/text message. We will respond to you after getting back
to work.
Videos or photos is preferred, because they can help us find out the
reason causing the issue and improve the efficiency of solving
problems.
7.3 Return Policy
Amazon-Fulfilled Order
The postage is af forded by Amazon in Amazon return window.
If the return window is expired but still in warranty, the return policy will be same
as seller-fulfilled order.
Seller-Fulfilled Order
If the warranty is not expired, the postage is afforded when the return is
confirmed to be caused by QUALITY ISSUE of our products.
15
7.4 Refund & Replacement
For returns or exchanges, all accessories must be
returned in the original condition and packaging.
After the unit is shipped, please provide us with the
tracking number and carrier, so we can track it and
process the refund in time.

16
After the package is delivered back to our warehouse,
a full refund will be initiated.
If you file a return request on Amazon, we will process
it in 48 hours and contact you via Amazon Message
Service, please pay attention to your Amazon
Message Box or Email in order to avoid missing
important notifications.

OUR GUARANTEE
SetPower product comes with a 3-year warranty on the compressor
and 1 year warranty on all other parts for your peace of mind. In the
unlikely event this product fails when used according to our user
guide, we will either repair or replace it. For full warranty terms and
conditions on this product, please see the user guide.
We'd welcome you contact us [email protected] if you
have any question about the product.
This product is warranted for 3 years on the compressor and 1 year
for all other parts from the date of purchase. Our goods come with
guarantees that cannot be excluded under the Local Consumer
Law. You are entitled to a replacement or refund for a major failure
and compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure. Warranty does not cover
products that have not been used in accordance with user guide
or are outside the warranty terms and conditions.
Quality Service Guarantee
3-YEAR WARRANTY
of fi[email protected]
[email protected]
