SEZER PLS-1 User manual

PLS- 1 PLS - 2/1 PLS - 2
IMPLS - 1 IMPLS - 2/1 IMPLS - 2
SSPLS - 1 SSPLS - 2/1 SSPLS - 2
ELMAS
+ +
X2
+
One bucket, one cluster, one
pulsator, tank type is vacuum
reservoir, trolley
One bucket, two clusters,
Two pulsators, Tank Type is
Vacuum reservoir, trolley
Two buckets, two clusters ,
pulsators, Tank Type is Vacuum
reservoir, trolley
two
One bucket, one cluster, one
pulsator, tank type is chassis
reservoir, trolley
One bucket, two clusters, two
pulsators, vacuum type is
chassis reservoir, trolley
Two buckets, two clusters, two
pulsators, vacuum type is
chassis reservoir, trolley
One cluster, one pulsator, one
inox bucket, vacuum type is
vacuum reservoir, semi-trolley
Two clusters, two pulsators,
one inox bucket, vacuum type
cuum reservoir, semi-trolley
is
va
Two clusters, two pulsators,
two inox buckets, cuum type is
vacuum reservoir,semi-trolley
va
One bucket, one cluster, one
pulsator, tank type is chasis
reservoir, trolley
MILKING MACHINE
USER’S GUİDE
Milking Technologies
“Please do not use your machines before reading this user’s guide’’
Manufacturer Company
SEZER TARIM VE SAĞIM TEKNOLOJİLERİ SAN. LTD. ŞTİ.
Sırabademler Mah. Karacabey-Bursa Karayolu Kümeevler No:14 Karacabey/Bursa/Türkiye
Tel : [phone] Fax : [phone]
Web : www.sezermac.com E-mail : [email protected]

Sezer Milking Machine
Thank you very much for purchasing a SEZER milking machine,
which was produced in response to bring solution with experience
gained during many years, very careful work for your trust placed in
our company.
Above all, please do not use your machine before reading this
user’s guide and maintenance.
CONTENT
1
* Description of The Manual ..............................................................................................................
* Preparation for Delivery ....................................................................................................................
* Transportation and Standards ........................................................................................................
* Technical Characteristics and Standards .....................................................................................
* Parts of Milking Machine ..................................................................................................................
* Cleaning Before Milking With Milking Machine .......................................................................
* Milking With Machine ........................................................................................................................
* Usage of Cluster ...................................................................................................................................
* Cleaning of Milking Machine ..........................................................................................................
* Attentions and Fixing The Problems ............................................................................................

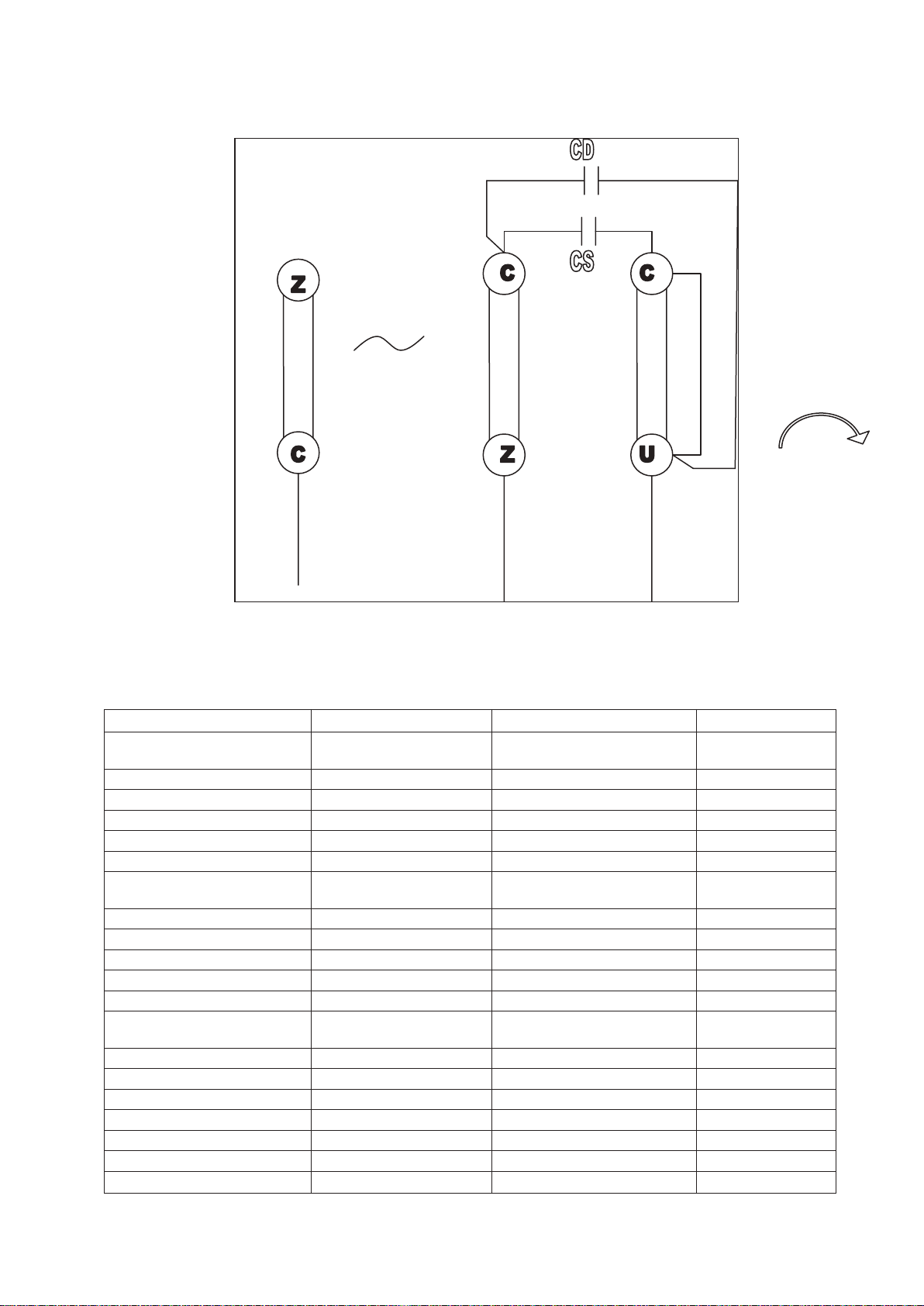

* Scheme of Electric ...............................................................................................................................

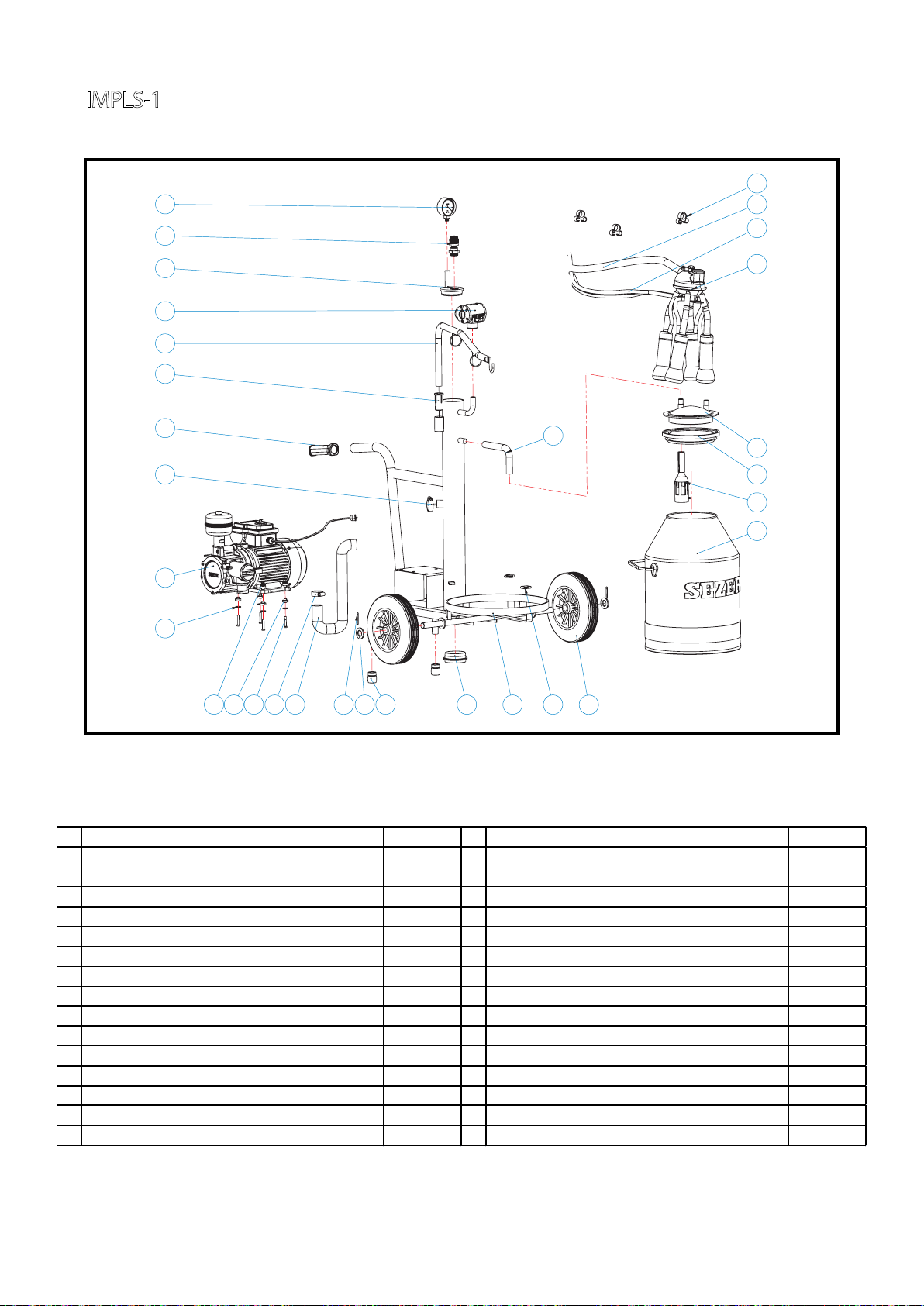

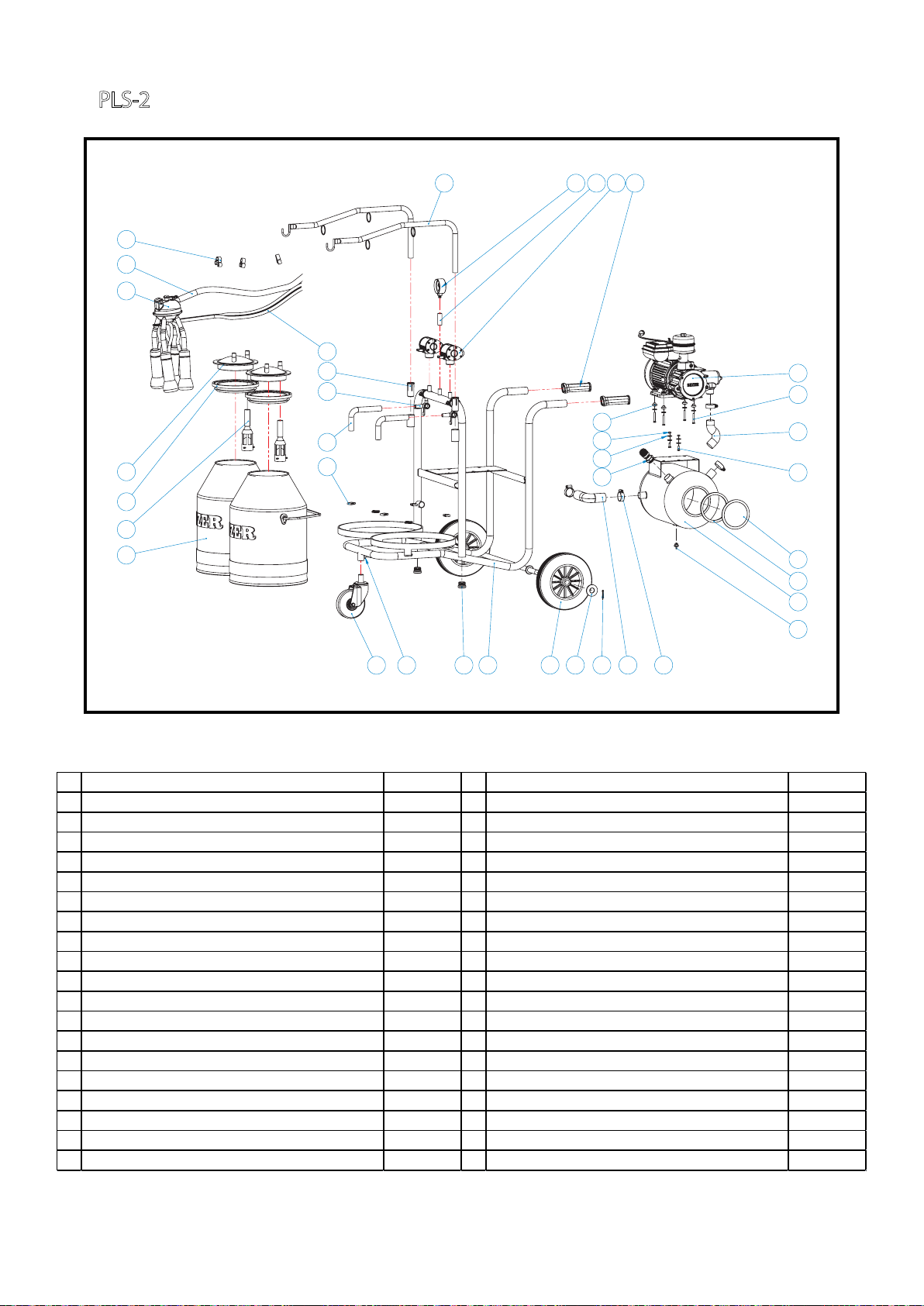

* Technical Drawings and List of Parts .............................................................................................
* Warranty Certicate ............................................................................................................................
2
2
3
4
5-9
9
9
9-10
11
12
13
14-25
26-27

DESCRIPTION OF THE MANUAL
The manual is a part of the machine and is prepared by SEZER Agri and Milking
TechnologiesSan.Tic.Ltd.Sti.Themain goal ttelotsi he user know the machine and let
run the machine according to rules that are described in the manual for safety.
Therefore, the manual must be protected permanently.
Above all, please do not use your machine before you read this user’s guide and
maintenance.
You can contact our company or our dealers and you can get information about your
milking machine.
Otherwise, our society is not guilty of failure that can occur.
PREPARATION FOR DELIVERY
TOPICS YOU NEED TO BE CAREFUL DURING SHIPPING AND TRANSPORT
- You should protect the machines against the friction and impact during loading.
- You should use the materials that are determined and set against the friction and
impact, for protecting the machines that are loaded into carrier
- You should use equipment that is necessary during loading and unloading.

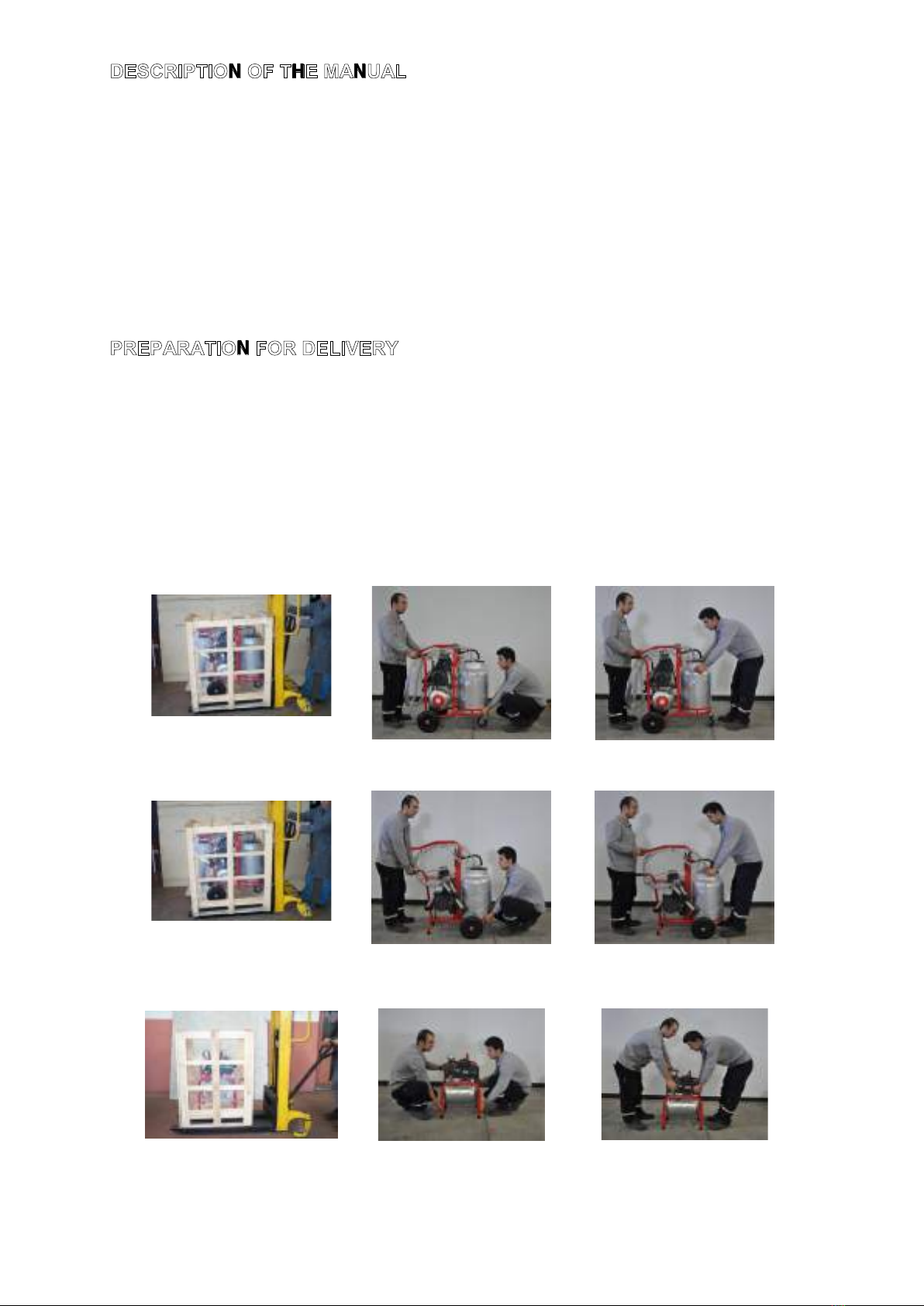

TRANSPORTATION WITH WOOD PROTECTION
GROUP PLS
TRUE
TRUE
FALSE
TRUE
TRUE
FALSE
GROUP IMPLS
2
GROUP SSPLS
TRUE
TRUE
FA LSE

Damage during transportation
Check them if there is any damage during transportation. If there is damage, notify
the transport company, our dealer of the region and our company SEZER Milking
Technologies as soon as possible.
WHEN YOU LIFT THE MACHINE BY HAND;
- Demand the help of your team when you lift the machine.
- Move it together with your assistant.
DO NOT LIFT THE MACHINE BY TAKING;
From pot, cover of pot, milk pipes, pulsator, pulse hose, vacuum gauge, electrical
cable.
TEMPORARY STORAGE
Protect the machine and its accessories against climate, keep the environment clean.
(For example, rain, snow, powder, sludge etc.).
THE TRANSPORTATION OF THE MACHINE
The machine is delivered as its assembly is complete and ready for use.
Caution: Operate the machine with grounding that is mounted by a qualified
electrician.
ATTENTION: OPERATE YOUR MACHINE WITH A PLUG THAT
IS MOUNTED BY A QUALIFIED TECHINICIAN
3
THE LIFE OF USAGE
Life of the machine is 10 years which is determined and announced by the Ministry of
Industry and Trade of Turkey.
THE VALUE OF MACHINE NOISE
The value of the noise is 70 dB.
STANDARDS
The machines are produced according to established standards of Turkey, and
milking machines
TS 4798 and TS EN 60355-2-70 SUT and according to the rules of the special
trolleys by ministry industry and commerce 98/37/AT 73/23/AT

SEZER MOBIL MILKING MACHINE TECHNICAL FEATURES
4
PLS-1 PLS-2/1 PLS-2 IMPLS-1 IMPLS-2/1 IMPLS-2 SSVP-200 SSSA ELMAS
LENGHT (cm) 95 95 96 100 100 94 36 90 97
WIDHT (cm) 58 58 75 99 58 65 44 56 58
HEIGHT (cm) 90 90 95 102 102 103 61/71 99 94 WEIGHT (kg) 54 60 68 46 53 60 34 50 41
COLOR RED RED RED RED RED RED RED RED GREEN
MOTOR POWER (kw) 0,55 0,55 0,55 0,55 0,55 0,55 0,55 - 0,55
VOLTAGE (V) 220V-50Hz 220V-50Hz 220V-50Hz 220V-50Hz 220V-50Hz 220V-50Hz 220V-50Hz - 220V-50Hz
FLOW RATE (litre) 200 200 200 200 200 200 200 - 180
TANK CAPACITY (litre) 17 17 17 4 4 4 17 - 4
BUCKET QUANTITY 1 1 2 1 1 2 1 - 1
VOLUME OF BUCKET (lt) 30 40 30 30 40 30 30 - 30
QUANTITY OF PULSATOR 1 2 2 1 2 2 1 - 1
CLAW WEIGHT (gr) 2300 2300 2300 2300 2300 2250 2400 - 2400
SEZER
CHASIS PAINTING
CHASIS
CYCLE/MINUTE
PALETTE TYPE and
DIMENSION (mm)
VACUUM PUMP
TYPE OF BUCKET
MILK HOSE
PULSE HOSE
MILKING GROUP
Stac Powder
Paint
1500
Graphite
4,9x41x85
INOX,
ALUMINIUM,
TRANSPARENT
BUCKET
Lenght:233 cm
Ø24x14 mm
Transparent
Lenght:235 cm
Ø13x7 mm
Transparent
Stac Powder
Paint
1500
Graphite
4,9x41x85
Stac Powder
Paint
Stac Powder
Paint
Graphite
4,9x41x85
1500
Lenght:233 cm
Ø24x14 mm
Transparent
Lenght:235 cm
Ø13x7 mm
Transparent
1500
Graphite
4,9x41x85
INOX,
ALUMINIUM,
TRANSPARENT
BUCKET
Lenght:233 cm
Ø24x14 mm
Transparent
Lenght:235 cm
Ø13x7 mm
Transparent
Lenght:235 cm
Ø24x14 mm
Transparent
Lenght:250 cm
Transparent
Lenght:235 cm
Ø13x7 mm
Transparent
Lenght:233 cm
Ø24x14 mm
Transparent
INOX,
ALUMINIUM,
BUCKET
Lenght:233 cm
Ø24x14 mm
Transparent
Lenght:235 cm
Ø13x7 mm
Transparent
INOX,
ALUMINIUM,
BUCKET
Lenght:235 cm
Ø13x7 mm
Transparent
Lenght:233 cm
Ø24x14 mm
Transparent
INOX,
ALUMINIUM,
BUCKET
Lenght:233 cm
Ø24x14 mm
Transparent
Lenght:235 cm
Ø13x7 mm
Transparent
Stac Powder
Paint
- - - - -
Stac Powder
Paint 1500
Graphite
4,9x40x70
INOX,
ALUMINIUM,
TRANSPARENT
BUCKET
1500
Graphite
4,9x40x70
INOX,
ALUMINIUM,
TRANSPARENT
BUCKET
Graphite
4,9x41x85
1500
Graphite
4,9x41x85
1500
INOX,
ALUMINIUM,
TRANSPARENT
BUCKET
Stac Powder
Paint
Stac Powder
Paint
Stac Powder
Paint

5
CHASSIS
TWIN(MILK-PULSE)
HOSE
TWIN(MILK-PULSE)
HOSE
PLS GROUP
IMPLS GROUP

GROUPSSPLS
Our machines are tested for
-Vacuum capacity
-Stability of vacuum
-Stability and performance of pulsation.
These values, prevent the deformation of udders, increase milk yield and make the usage life
longer.
6
CHASSIS

7

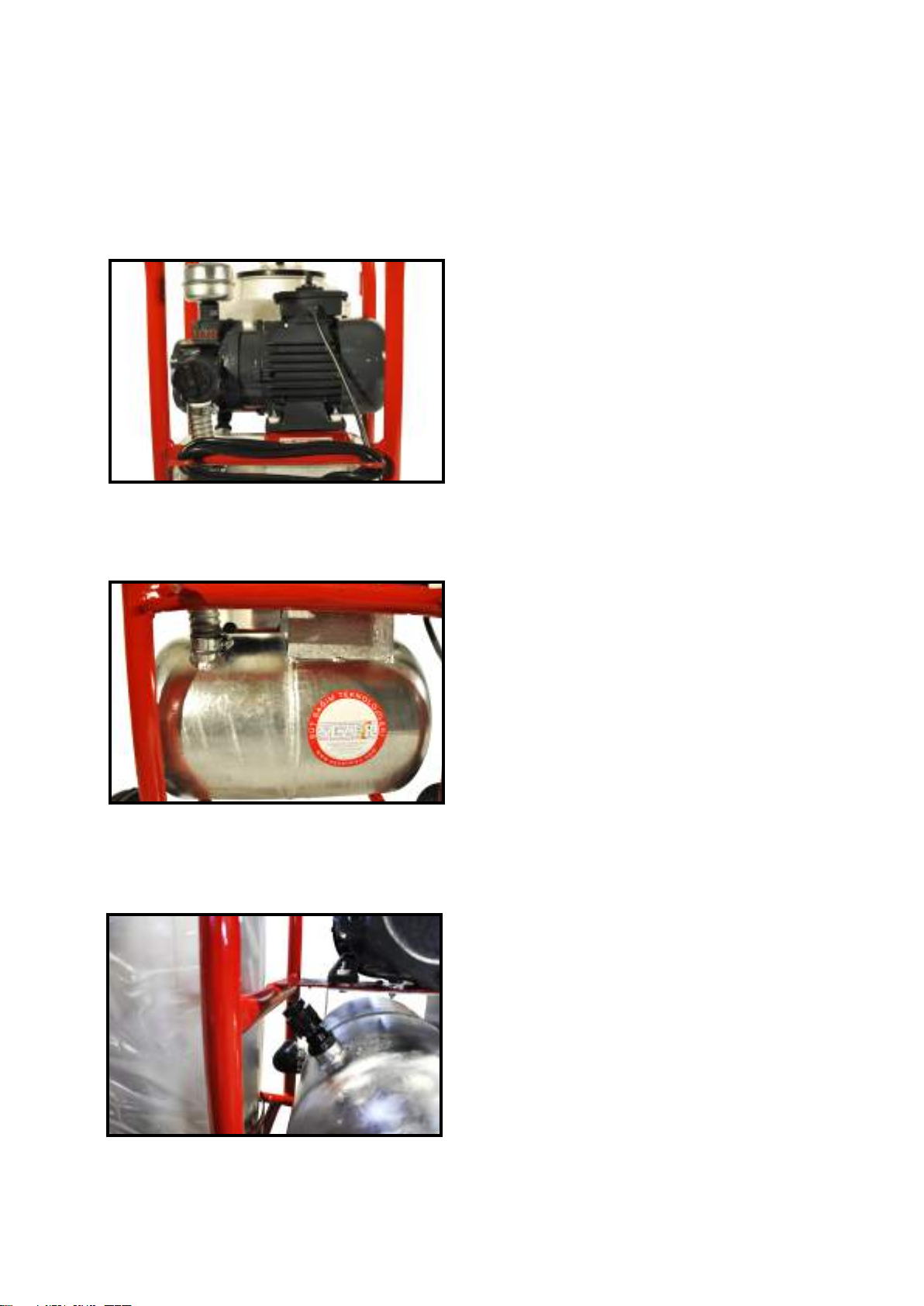

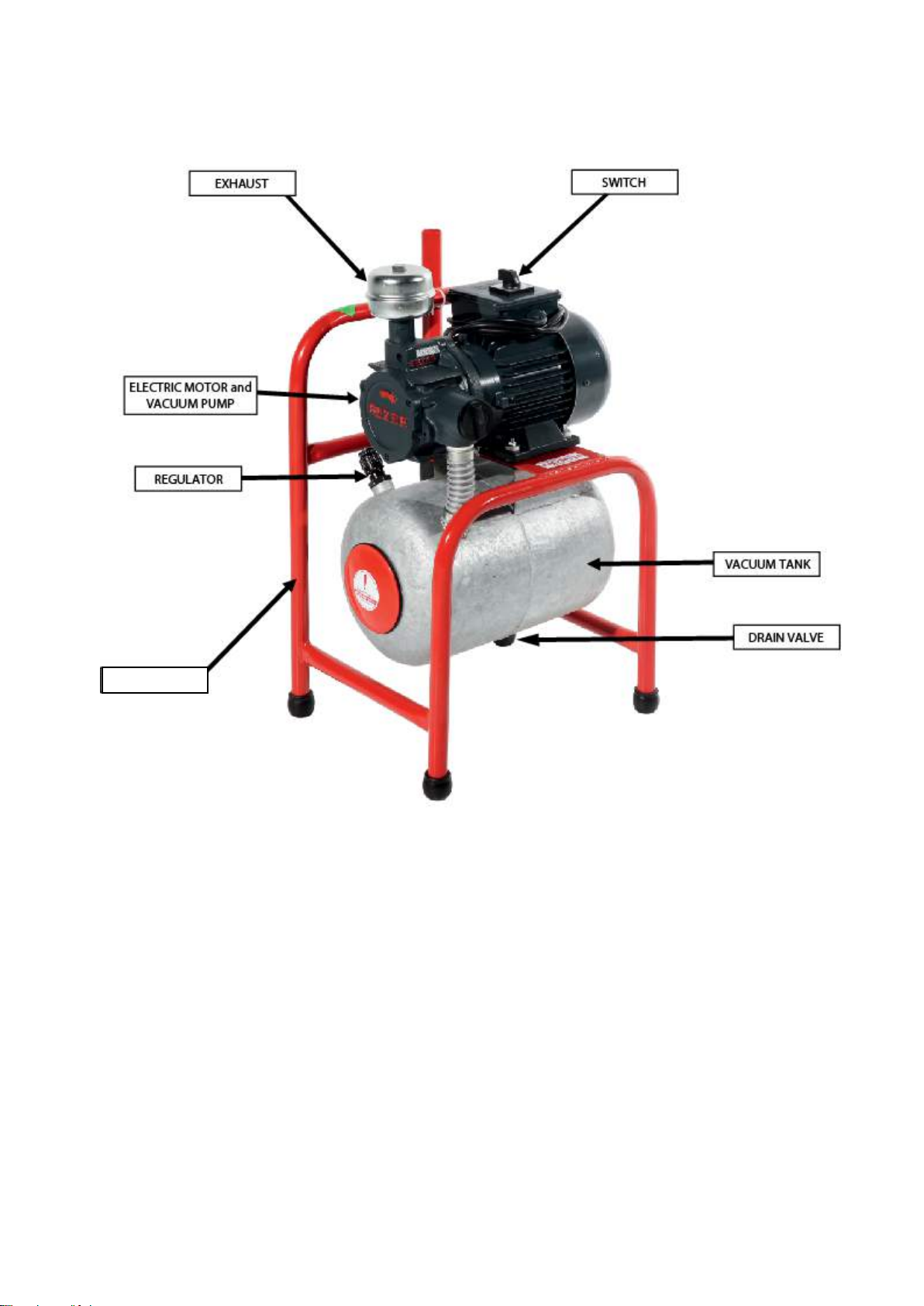

The basic parts of the machine
Vacuum pump (VP 200)
Vacuum pump is connected to electric motor directly,
it is mounted on chassis.
Dry vacuum pump runs with graphite pallets
Technical specications
Pump capacity (l/d): 200
Pump Cycle (d/d) : 1450
Electric motor (Kw) : 0,55
Type : IP 56, 220V 50 Hz
Connections in and out : 1”
Pallet material: Saturated Tack
Vacuum Tank :
It is produced by at DKP and its capacity is 17 lt.
It is covered hot galvanize.
Regulator :
Vacuum regulator regulate air for stability.
To increase the vacuum, turn the nut to clockwise, to
decrease the vacuum, turn the nut to counterclockwise.
When you arrange it, x the nut.

8
CLEANI NG PULSATOR
Do not lubricate any part of the pulsator-
Clean the pulsator filter once a month.
Open the lid on top of the pulsator, clean inside only with warm
water by a clean toothbrush (do not use detergents)
Place the pulsator after drying.
Don’t change the adjustment of thepulsator.If it’s necessary,
go tothe nearest service.
IMPORTANT: Never open the latter covers of the pulsator.
LINERS:
You must change the liners each 6 months.
Otherwise, the bacteria layer can exist inside it and the liners
can cause diseases.
And also the micro-cracks can let the milk pass into vacuum
line.
Do not let the liners be under the sunlight.
Milk Claw: 240 cc
The working position of the milk claw SEZER 240cc;
Closed Position
Sphere pin is drawn.
Milk way is CLOSED
Milking Position:
Sphere pin is pushed, locked, milk channel is OPENED.
Entrance of poor air helps the milk flow.
Cleaning Position. :
In the pushed position of sphere pin, it locks
to the chassis. By making the circulation of the
cleaning water, it makes the cleaning process.

CLEANING, BEFORE MILKING WITH MACHINE
Before milking with the machine, the main principle is the barn area must be clean, have a
good ventilation and be in conformance with hygienic conditions.
Before milking, cleaning of the teats is mandatory. The udder should be cleaned with a clean
white fabric or a soft sponge which is given with machine. You should do it with warm water.
Before each milking, you should milk a couple of drop of milk by hand into ground or another
little pot.
And also this pre-milking by hand lets us see potential udder diseases.
MILKING WITH MACHINE
Above all, be sure the bucket lids to be placed properly. Turn on the switch. After running the
electric motor (only for machine type PLS-2 open the taps, they should be parallel to the
ground). Get the vacuum increase by pulling up the butterfly pin, which is located on the
claw. When the needle reaches to the blue dot (44 kPa) the machine is ready for milking.
Meanwhile, the pulsator starts working.
USAGE OF CLUSTERS
Take the claw by your left hand as in Figure (1) The liners will be automatically positioned
breast down. Push the throttle valve located on the milk claw. Put the liners to udders as
shown in Figure (2). At the same time, be sure not to lost vacuum and then milking get
started.
9

10
Important: Be sure that the liners are placed on the udders well (Figure 3). When you are
placing them, be careful not to cause a rotation. If not, the udders lose their shape and they
can be shriveled up then milk yield can be decreased. (Figure 4).

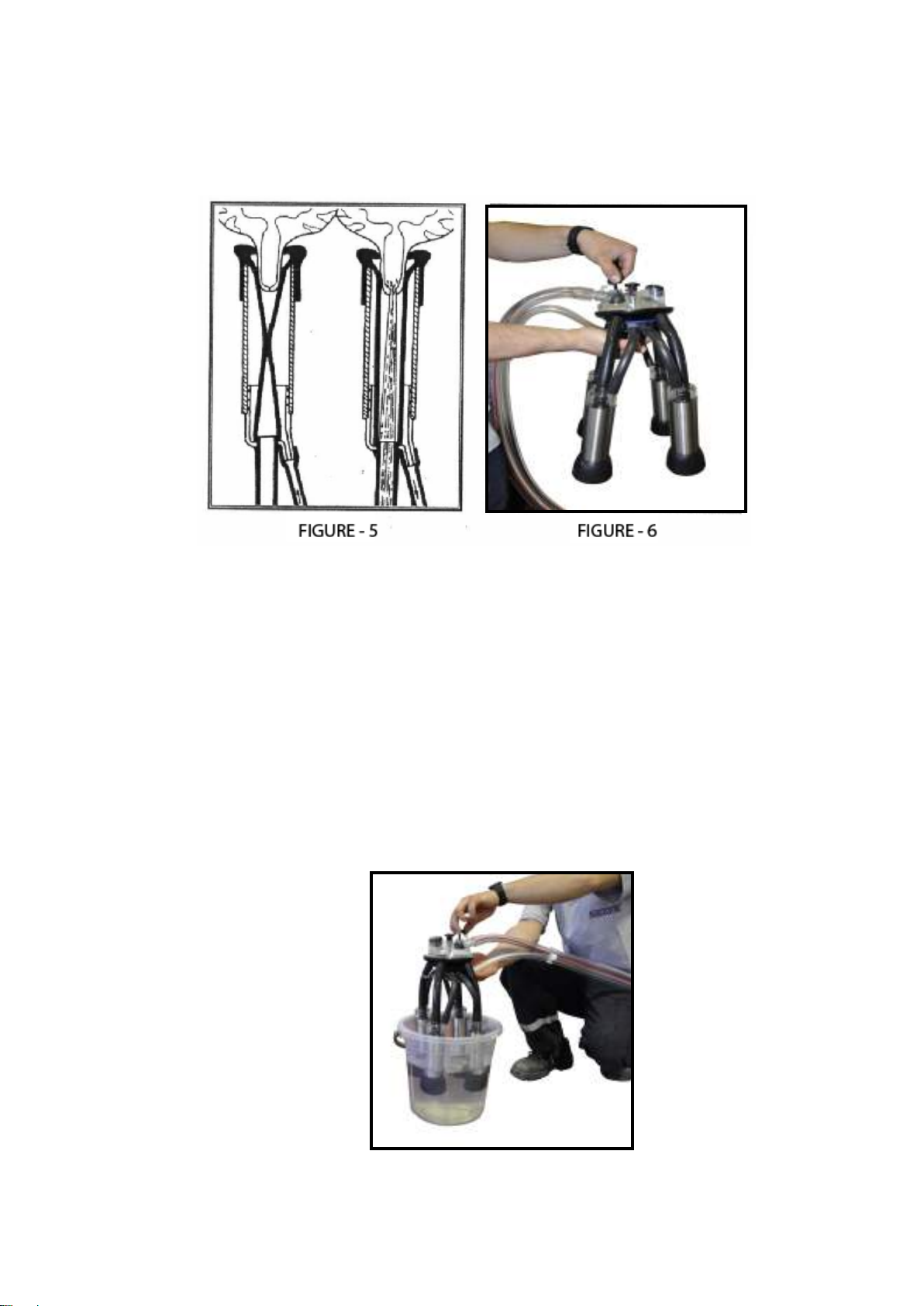

While the machine and the pulsator work, the action in liner is explained like in Figure (5)
The processing time usually depends on the cow. After a time period of 4 to 7 minutes,
milking finishes. When milk is finished, you can see it observing transparent claw and hose.
If there is no draining of milk in the pipe, the milking is completed.
When the milk is finished in the udder, pull down the throttle valve located on the milk claw.
(Closed Position) Slowly pull the cluster.
Hold claw by right hand. Put the cluster on your arm. (Figure 6). By taking a few times up
and down the butterfly valve on claw, it provides the milk which is still in the claw and milk in
the pipes flows into the bucket.
Be careful not to overflow the bucket.
After completing the milking of your other animals by the same procedures: begin cleaning
the machine.

11
CLEANING THE MACHINE
As explained in Figure (7), placing the cluster in water bucket (so that the transparent parts
have to be outside). Operate the machine like milking. Continue this process until the water
with medication in the bucket flows into the container until it gets full.
-The cleaning process has to be repeated after each milking.
-The cleaning of equipment has to be done by a brush for a few times a week.
-The milk hose has to be cleaned several times a week by a wire brush.
-The interior of the vacuum tank (by opening the side cover) has to be cleaned once a month.
NEVER LUBRICATE ANY PART OF THE MACHINE
TIPS
For a good performance and long life of your machine, you must do the following items;
* Clean your machine regularly.
* Use your machine with a grounding connection which must be installed by a licensed
electrician.
* Never lubricate any part of the machine.
* It is normal the vacuum to be heated during operation. Don’t touch it.
* Do not let the water touch into the electric motor, when there is a failure, call a licensed
electrician (there is no guarantee for the electric motor)
* If there is a failure in the vacuum hose, go to the nearest service or inform the seller of the
machine
* Don’t hit buckets to somewhere. Never clean inside of the bucket with powder or metal
sponge.
* Check frequently rubber parts of your machine.
* If there are holes or cracks in liners, it can occurs a problem in vacuum pump.
*When you change a part, replace it with original SEZER spare part.

-The pallets are frayed
-Inform the
service
Vacuum does
not increase
-Frame holders can be unplaced
-Air leak in air unit
-Shedding in the vacuum tank valve can
be dropped
-Air leaks in vacuum-tank connections,
connections
-Vacuum gauge can be out of order
-Vacuum pump filter is perforated
-Fix it in its place
or put the new
one.
-Fix the leaks.
-Put it on its
place.
-Fix the leaks.
-Replace it with a
new one
-Clean it.
Vacuum level is
continuously
rising
-Vacuum regulator is dirty and clogged
-Vacuum regulator is broken
-Clean it.
-Replace it with
new one
Vacuum is not
stable
-Vacuum regulator doesn’t work good
-Clean it if it’s
necessary.
Replace it with
new one
Pulsator
doesn’t work
-There is milk in pulsator
-Mounting parts are not fixed good
- Clean it.
-Put it on its
place
Milk Runs over
from bucket
-Milk stop doesn’t work. Float ball has
a hole.
- Replace it.
Vacuum gauge
doesn’t work
-There is milk in vacuum tank
-Milk stop doesn’t stop the vacuum
-Vacuum gauge is out of order
-Stop the pump,
empty the tank,
and clean it. If
there is milk in
tank, change the
liners.
- Control it.
Replace the
floating ball.
-Replace it.
12
Attentions and Fixing The Problems
Failure CAUSE Things to do
Pump capacity
is not enough

Scheme of Electric
Contro l Schema of Milking Machine
Par t
Cleaning
Contr ol
Replace
El ectr ic Mot or
Every month, c lean it
by air After ev er y mi lking -
El ectr ic Ca ble
-
After ev er y mi lking
-
Vac uum P ump
-
After ev er y mi lking
-
Pallets
-
-
5 yea rs
Pomp Filte r
6 Months
-
5 years
Exh aust
-
After ev er y mi lking
-
Pulsato r
Every month, c lean it
air 6 Mois -
Vac uu m G auge
-
After ev er y mi lking
-
Vac uum Ta nk
Every month
Every month
10 years
E usi on v alve
-
Every week
-
Regul ato r
-
Every week
-
Claw
After ever y mi lking
Every week
-
Li ner
After ev er y mi lking Every week
6 Months-3500
Milking
Milk Ho se
After ev er y mi lking
Every week
1 yea r
Pulsati on H ose
After ev er y mi lking
Every week
1 yea r
Te at c up shi eld
After ev er y mi lking
Every week
-
Bucket
After ever y mi lking
Every week
-
Bucket L id
After ev er y mi lking
Every week
-
Bucket L id gask et
After ev er y mi lking
Every week
2 yea rs
Cha ssis
Every week Every month 10 yea rs
220 V
230 V
–1500 d/d 220 V –50 Hz
–1500 d/d 220 V –50 Hz
13
Specications of Electric Motor 0,55 KW

14
BUCKET (30 lt)
BUCKET (40 lt)
1
4
3
2
6
5
5
2
3
4
1
6
NO
ITEMS CODE
1MILKING BUCKET-ALUMINIUM 40 lt. 159 050 005
2BUCKET LID 40 lt 159 050 121
3BUCKET LID GASKET 40 lt. 159 050 153
4
MILK STOPPER (FULL) 154 050 190
5VACUUM CONNECTION HOSE (1004) 159 050 277
6MILK HOSE 24x14 RED LINE (2.33 mt.) 154 050 201
NO
ITEMS CODE
1MILKING BUCKET-ALUMINIUM 30 lt. 159 050 003
2BUCKET LID 30 lt 159 050 101
3BUCKET LID GASKET 30 lt. 159 050 150
4
MILK STOPPER (FULL) 154 050 190
5VACUUM CONNECTION HOSE (1005) 159 050 278
6MILK HOSE 24x14 RED LINE (2.33 mt.) 154 050 201
Technical Drawings and List of Parts

15
VP - 200 VACUUM PUMP
22
1
23
11 9 12
13 14 16 17 15 618
20
10
8
5 4 3 2
7
21
19
24
NO
ITEMS CODE
NO
ITEMS CODE
1ELECTRIC MOTOR 0,55Kw-1500 rpm 220V 22x84 159 090 011 13
CHECK VALVE O-RİNG 159 026 003
2SEAL Ø22xØ47x7 159 111 022 14 VACUUM PUMP CHECK VALVE RUBBER BALL 159 026 004
3VP 200 VACUUM PUMP BIG LID 154 004 010 15 VACUUM PUMP FILTER BUNG PVC 159 025 001
4
M8x20 SOCKET BOLT 159 131 020 16 VACUUM PUMP FILTER BUNG O-RİNG 159 025 002
5
VP 200 VACUUM PUMP ROTOR Ø88x85 154 004 030 17 VACUUM PUMP FILTER 154 025 015
6
VP 200 GRAPHITE PALETTE 41 x 85 x 4.9 159 004 035 18 M8x90 SOCKET BOLT 159 131 090
7M10 x 20 SOCKET BOLT 159 134 020 19 VACUUM PUMP EXHAUST COVER TK 154 022 003
8VP 200 VACUUM PUMP BODY 154 004 040 20 M12 x 20 x 1,5 STEEL BOLT 159 123 021
9VP 200 SMALL LID 154 004 020 21 SWITCH O - I 159 091 175
10
VP 200 EXHAUST BODY 154 022 002 22 ELECTRIC MOTOR CAPACITOR 25 MF 159 095 225
11 M6x16 SOCKET BOLT 159 130 116 23 ELECTRIC CABLE 3 x 1,5 TTR-WITH PLUG 159 091 174
12 VACUUM PUMP CHECK VALVE BODY 159 026 001 24 M8x70 SOCKET BOLT 159 131 070

16
27
21
14
15
16
18
2098735 437
13 2121110
36
35
34
1 176
19
22
23
24
25
28
29
30
32
31
33
26
NO
ITEMS CODE
NO
ITEMS CODE
1PLS-1 CHASSIS 154 001 001 20 HOSE SHEET CLAMP 159 145 025
2 PLASTIC HOLDER 159 061 001 21 VACUUM TANK PUMP CONNECTION HOSE 154 060 301
3 CHASSIS VACUUM STOPPER Ø32 159 060 020 22 M6x16 STEEL SCREW 159 120 016
4 COVER Ø20x1 159 060 290 23 1/4" FLAT WASHER 159 136 101
5 FRONT WHEEL 159 059 001 24 M6 STEEL NUT 159 135 006
6 M8x16 STEEL SCREW 159 121 016 25 ELECTRIC ENGINE ISOLATION WASHER 159 091 200
7 REAR WHEEL 250 159 059 020 26 M6x40 STEEL SOCKET BOLT 159 120 040
8 M20 FLAT WASHER 159 136 020 27 VP 200 VACUUM PUMP (FULL) 154 004 001
9 Ø4x35 COTTER 159 147 435 28 VACUUM CONNECTION HOSE 1005 159 050 278
10 HANGER ARM SEZER 154 001 095 29 HANGER BUSHING ROD PVC 159 001 098
11 PULSATOR SEZER 154 040 200 30 HOSE HOLDER 159 050 245
12 VACUUM GAUGE SMALL COW 159 063 005 31
MILK HOSE 24x14 (2.33 Mt.) RED STRIPES 154 050 201
13
VACUUM GAUGE CONNECTION HOSE (RUBBER) 154 050 289 32 240 cc MILKING UNIT (102 RUBBER LINER) 154 030 001
14 GALVANISED VACUUM TANK 159 055 002 33 PULSE HOSE 13x7 (2.35 Mt.) 154 050 220
15 VACUUM TANK LID GASKET 159 055 070 34 BUCKET LID 30 Ltr. 159 050 101
16 VACUUM TANK LID 159 055 060 35 BUCKET GASKET 30 Ltr. 159 050 150
17 VACUUM TANK DRAIN VALVE 159 055 080 36 MILK STOPPER (FULL) 154 050 190
18 VACUUM TANK REGULATOR (FULL) 154 027 010 37 STAINLESS STEEL BUCKET 30 Lt 159 050 023
PLS-1
19
VACUUM TANK-CHASSIS CONNECTION HOSE-1003
159 050 276

17
PLS-2/1
11 2
32
31
30 10 12 13
37
5 6 31 7 8 9
16
15
14
171920
18
21
20
27
26
23
24
22
25
4
33
29
28
36
35
34
NO
ITEMS CODE
NO
ITEMS CODE
1PLS-2/1 CHASSIS 154 001 002 20
VACUUM TANK-CHASSIS CONNECTION HOSE-1003
159 050 276
2PLASTIC HOLDER 159 061 001 21 VACUUM TANK PUMP CONNECTION HOSE 154 060 301
3CHASSIS VACUUM STOPPER Ø32 159 060 020 22 M6x16 STEEL SCREW 159 120 016
4COVER Ø20x1 159 060 290 23 1/4" FLAT WASHER 159 136 101
5FRONT WHEEL 159 059 001 24 M6 STEEL NUT 159 135 006
6M8x16 STEEL SCREW 159 121 016 25 M6x40 STEEL SOCKET BOLT 159 120 040
7REAR WHEEL 250 159 059 020 26 ELECTRIC ENGINE ISOLATION WASHER 159 091 200
8M20 FLAT WASHER 159 136 020 27 VP 200 VACUUM PUMP (FULL) 154 004 001
9Ø4x35 COTTER 159 147 435 28 VACUUM CONNECTION HOSE 1004 159 050 277
10 HANGER ARM SEZER 154 001 095 29 HANGER BUSHING ROD PVC 159 001 098
11 PULSATOR SEZER 154 040 200 30 HOSE HOLDER 159 050 245
12 VACUUM GAUGE SMALL COW 159 063 005 31 MILK HOSE 24x14 (2.33 Mt.) RED STRIPES 154 050 201
13
VACUUM GAUGE CONNECTION HOSE (RUBBER) 154 050 289 32 240 cc MILKING UNIT (102 RUBBER LINER) 154 030 001
14 GALVANISED VACUUM TANK 159 055 002 33 PULSE HOSE 13x7 (2.35 Mt.) 154 050 220
15 VACUUM TANK LID GASKET 159 055 070 34 BUCKET LID 40 Lt. 159 050 111
16 VACUUM TANK LID 159 055 060 35 BUCKET LID GASKET 40 Lt. 159 050 153
17 VACUUM TANK DRAIN VALVE 159 055 080 36 MILK STOPPER (FULL) 154 050 190
18 VACUUM TANK REGULATOR (FULL) 154 027 010 37 STAINLESS STEEL BUCKET 40 Lt. 159 050 024
19 HOSE SHEET CLAMP 159 145 025

18
PLS-2
27
16
15
14
17
19207 8 9
12 13 11
3
5
210
32
31
1
38
4
28
29
30
35
36
37
6
18
21
22
26
23
24
25
33
34
NO
ITEMS CODE
NO
ITEMS CODE
1PLS-2 CHASSIS 154 001 002 20
VACUUM TANK-CHASSIS CONNECTION HOSE-1003
159 050 276
2PLASTIC HOLDER 159 061 001 21 VACUUM TANK PUMP CONNECTION HOSE 154 060 301
3CHASSIS VACUUM STOPPER 032 159 060 020 22 M6x16 STEEL SCREW 159 120 016
4COVER Ø20x1 159 060 290 23 1/4" FLAT WASHER 159 136 101
5FRONT WHEEL 159 059 001 24 M6 STEEL NUT 159 135 006
6M8x16 STEEL SCREW 159 121 016 25 M6x40 STEEL SOCKET BOLT 159 120 040
7REAR WHEEL 250 159 059 020 26 ELECTRIC ENGINE ISOLATION WASHER 159 091 200
8M20 FLAT WASHER 159 136 020 27 VP 200 VACUUM PUMP (FULL) 154 004 001
9Ø4x35 COTTER 159 147 435 28 VACUUM CONNECTION HOSE 1005 159 050 278
10 HANGER ARM SEZER 154 001 095 29
MACHINE TAPS 90
O
1"-3/4" BRASS 159 154 855
11 PULSATOR SEZER 154 040 200 30 HANGER BUSHING ROD PVC 159 001 098
12 VACUUM GAUGE SMALL COW 159 063 005 31 HOSE HOLDER 159 050 245
13
VACUUM GAUGE CONNECTION HOSE (RUBBER) 154 050 289 32 MILK HOSE 24x14 (2.33 Mt.) RED STRIPES 154 050 201
14 GALVANISED VACUUM TANK 159 055 002 33 240 cc MILKING UNIT (102 RUBBER LINER) 154 030 001
15 VACUUM TANK LID GASKET 159 055 070 34 PULSE HOSE 13x7 (2.35 Mt.) 154 050 220
16 VACUUM TANK LID 159 055 060 35 BUCKET LID 30 Lt. 159 050 101
17 VACUUM TANK DRAIN VALVE 159 055 080 36 BUCKET LID GASKET 30 Lt. 159 050 150
18 VACUUM TANK REGULATOR (FULL) 154 027 010 37 MILK STOPPER (FULL) 154 050 190
19 HOSE SHEET CLAMP 159 145 025 38 STAINLESS STEEL BUCKET 30 Lt. 159 050 023

19
IMPLS-1
12
13
14
11
9
10
8
21
16 74
5 3
25
29
24
23
15
22
28
27
26
12
15
617 18
19
20
30
NO
ITEMS CODE
NO
ITEMS CODE
1IMPLS-1 CHASSIS 154 001 020 16 IMPLS CHASSIS CONNECTION HOSE-1008 159 050 282
2IMPLS CHASSIS PLASTIC STOPPER 159 060 025 17 ELECTRIC ENGINE ISOLATION WASHER 159 091 200
3REAR WHEEL Ø250x60 159 059 020 18 M6x35 STEEL SOCKET BOLT 159 120 035
4M20 FLAT WASHER 159 136 020 19 1/4" FLAT WASHER 159 136 101
5Ø4x35 COTTER 159 147 435 20 M6 STEEL NUT 159 135 006
6COVER Ø20x1 159 060 290 21 VP 200 VACUUM PUMP (FULL) 154 004 001
7CHASSIS WEDGE 22 159 060 024 22 VACUUM CONNECTION HOSE 1005 159 050 278
8PLASTIC HOLDER 159 061 001 23
MILK HOSE 24x14 (2.33 Mt.) RED STRIPES 154 050 201
9HANGER ARM SEZER 154 001 095 24 PULSE HOSE 13x7 (2.35 Mt.) 154 050 220
10 HANGER BUSHING ROD PVC 159 001 098 25
240 cc MILKING UNIT (102 RUBBER LINER) 154 030 001
11 PULSATOR SEZER 154 040 200 26 BUCKET LID 30 Ltr. 159 050 101
12 VACUUM GAUGE SMALL (COW) 159 063 005 27 BUCKET LID GASKET 30 Ltr. 159 050 150
13
VACUUM REGULATOR 3/4" 154 027 010 28 MILK STOPPER (FULL) 154 050 190
14 IMPLS CHASSIS UPPER VACUUM STOPPER 159 060 026 29 STAINLESS STEEL BUCKET 30 Lt 159 050 023
15 STEEL HOSE CLAMP Ø25x42 159 145 025 30 HOSE HOLDER 159 050 245
