Sharp AR-FN8 User manual

This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
Parts marked with “ “ are important for maintaining the safety of the set.
Be sure to replace these parts with specified ones for maintaining the safety and performance of the set.
SHARP CORPORATION
SERVICE MANUAL
FINISHER
PUNCH UNIT
AR-FN8
AR-FN9
AR-PN2A
AR-PN2B
AR-PN2C
MODEL AR-PN2D
[1] GENERAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
[2] FINISHER UNIT BASIC OPERATION. . . . . . . . . . . . . . . . . . . . . 2-1
[3] SADDLE STICHER UNIT BASIC OPERATION . . . . . . . . . . . . . 3-1
[4] PUNCHER UNIT BASIC OPERATION . . . . . . . . . . . . . . . . . . . . 4-1
[5] MECHANICAL CONSTRUCTION. . . . . . . . . . . . . . . . . . . . . . . . 5-1
[6] MAINTENANCE AND INSPECTION. . . . . . . . . . . . . . . . . . . . . . 6-1
[7] TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
[8] UNPACKING AND INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . 8-1
CODE : 00ZARFN8//A1E
AR-FN8
AR-PN2
AR-FN9
CONTENTS

i
This Service Manual contains the basic data and figures for the Finisher AR-FN8/Saddle
Finisher AR-FN9 needed to service the machine in the field.
This manual comprises the following chapters:
Chapter 1 “General Description” introduces the finisher’s features, specifications, and
names of parts, and shows how to operate the finisher.
Chapter 2 “Finisher Unit Basic Operation” discusses the principles of operation used for
the finisher mechanical and electrical systems. It also explains the timing at
which these systems are operated.
Chapter 3 “Saddle Finisher Unit Basic Operation” discusses the principles of operation
used for the saddle stitcher unit’s mechanical and electrical systems. It also
explains the timing at which these systems are operated.
Chapter 4 “Puncher (option) Unit Basic Operation” discusses the principles of operation
used for the puncher unit’s mechanical and electrical systems. It also explains
the timing at which these systems are operated.
Chapter 5 “Mechanical System” discusses how the finisher is constructed mechanically,
and shows how it may be disassembled/assembled and adjusted.
Chapter 6 “Maintenance and Inspection” provides tables of periodically replaced parts
and consumables and durables, together with a scheduled servicing chart.
Chapter 7 “Troubleshooting” shows how to troubleshoot possible faults and gives electri-
cal parts arrangement diagrams, LED/check pin diagrams by PCB.
“Appendix” contains diagrams showing tables of signals, overall circuit dia-
grams and tables of solvents/oils.
Descriptions of installation are not mentioned in this Service Manual as the Finisher/
Saddle Finisher’s packing boxes contain Installation Procedures.
The descriptions in this Service Manual are subject to change without notice for prod-
uct improvement or other purposes, and major changes will be communicated in the form
of Service Information bulletins.
All service persons are expected to have a good understanding of the contents of this
Service Manual and all relevant Service Information bulletins, and be able to identify and
isolate faults in the machine.
INTRODUCTION

ii

iii
CHAPTER 1 GENERAL DESCRIPTION
CONTENTS
I. FEATURES ..................................1-1
II. SPECIFICATIONS .......................1-2
A. Finisher specification................1-2
B. Punch unit specification .........1-10
C. Cross Section .........................1-13
III. Using the Machine .....................1-16
A. Removing Paper Jams
from the Finisher Unit .............1-16
B. Supplying the Finisher Unit
with Staples ............................1-17
C. Removing Staple Jams from
the Finisher Unit .....................1-19
D. Removing Paper Jams from
the Saddle Stitcher Unit
(Saddle Finisher) ....................1-20
E. Supplying the Saddle Stitcher
Unit with Staples (Saddle
Finisher) .................................1-22
F. Removing Staple Jams
from the Saddle Stitcher Unit
(Saddle Finisher) ....................1-23
G. Removing Paper Jams from
the Puncher Unit (option) .......1-25
H. Removing Punched Scrap
from the Puncher Unit
(option) ...................................1-26
IV. MAINTENANCE BY THE
USER ........................................1-27
A. Maintenance by the User .......1-27
I. BASIC OPERATION ....................2-1
A. Outline ......................................2-1
B. Outline of Electrical
Circuitry ....................................2-2
C. Inputs to and Outputs from the
Finisher Controller PCB ...........2-4
II. FEED/DRIVE SYSTEM .............2-10
A. Outline ....................................2-10
B. Type of Delivery Paths ............2-15
C. Feeding and Delivering ..........2-18
D. Job Offset ...............................2-21
E. Stapling Operation .................2-24
F. Stapler Unit ............................2-32
G. Tray Operation ........................2-38
H. Detecting the Height of
Stack on the Tray ....................2-40
I. Shutter Operation ...................2-42
J. Buffer Path Operation .............2-46
K. Detecting Jams ......................2-51
III. POWER SUPPLY SYSTEM .......2-56
CHAPTER 2 FINISHER UNIT BASIC OPERATION

iv
I. BASIC OPERATION ....................3-1
A. Outline......................................3-1
B. Electrical Circuitry ....................3-2
C. Inputs to and Outputs from
the Saddle Stitcher Controller
PCB..........................................3-3
II. FEEDING/DRIVE SYSTEM .........3-8
A. Outline......................................3-8
III. PAPER OUTPUT
MECHANISM.............................3-14
A. Outline....................................3-14
B. Controlling the Inlet
Flappers .................................3-17
C. Controlling the Movement of
Sheets ....................................3-21
D. Aligning the Sheets ................3-23
E. Controlling the Phase of the
Crescent Roller ......................3-26
IV. STITCHING SYSTEM ...............3-29
V. FOLDING/DELIVERY
SYSTEM....................................3-32
VI. CHECKING FOR A JAM............3-40
VII. POWER SUPPLY ...................... 3-45
CHAPTER 3 SADDLE STITCHER UNIT
BASIC OPERATION
I. BASIC OPERATION ....................4-1
A. Outline......................................4-1
B. Inputs to and Outputs from Punch
Driver PCB ...............................4-2
II. PUNCH OPERATION ..................4-5
I. FINISHER UNIT ..........................5-1
A. Externals and Controls .............5-1
B. FEEDING SYSTEM .................5-8
C. PCBs ......................................5-16
II. SADDLE STITCHER UNIT ........5-17
A. Externals and Controls ...........5-17
B. SADDLE UNIT .......................5-22
C. PCBs ......................................5-32
III. PUNCHER UNIT (OPTION) ......5-33
A. Externals and Controls ...........5-33
B. Puncher Driver System ..........5-34
C. PCBs ......................................5-39
CHAPTER 5 MECHANICAL CONSTRUCTION
CHAPTER 4 PUNCHER UNIT (OPTION)
BASIC OPERATION
A. Outline ......................................4-5
B. PUNCH OPERATION ...............4-7
C. Horizontal Registration
Operation ...............................4-11
III. POWER SUPPLY SYSTEM .......4-14

v
I. ADJUSTMENTS ..........................7-1
A. Electrical System
(finisher unit) ............................7-1
B. Electrical System (saddle
stitcher unit)..............................7-3
C. Electrical System (puncher
unit (option)) .............................7-5
II. TEST MODE................................7-7
A. Finisher Unit .............................7-7
B. Saddle Stitcher Unit .................7-8
III. ARRANGEMENT OF ELECTRICAL
PARTS .......................................7-10
A. Finisher Unit ...........................7-10
B. Saddle Stitcher Unit ...............7-18
C. Puncher Unit (option) .............7-26
D. Light-Emitting Diodes (LED) and
Check Pins by PCB ................7-30
IV. TROUBLESHOOTING...............7-32
A. Finisher Unit ...........................7-32
B. Saddle Stitcher Unit ...............7-42
C. Puncher Unit (option) .............7-50
CHAPTER 7 TROUBLESHOOTING
I. PERIODICALLY REPLACED
PARTS .........................................6-1
A. Finisher Unit .............................6-1
B. Saddle Stitcher Unit .................6-1
C. Puncher Unit (option) ...............6-1
II. CONSUMABLES AND
DURABLES .................................6-2
A. Finisher Unit .............................6-2
B. Saddle Stitcher Unit .................6-2
C. Puncher Unit (option) ...............6-2
III. PERIODICAL SERVICING ..........6-2
CHAPTER 8 UNPACKING AND INSTALLATION
I. FINISHER ....................................8-1 II. PUNCH UNIT .............................. 8-6
CHAPTER 6 MAINTENANCE AND INSPECTION

vi
APPENDIX
A. SIGNAL AND
ABBREVIATIONS ....................... A-1
B. FINISHER UNIT CIRCUIT
DIAGRAM ................................... A-2
C. FINISHER CONTROLLER
PCB ............................................ A-5
D. SADDLE STITCHER UNIT
CIRCUIT DIAGRAM ................. A-15
E. SADDLE STITCHER UNIT
PCB .......................................... A-17
F. PUNCHER UNIT (OPTION)
CIRCUIT DIAGRAM ................. A-25
G. PUNCH DRIVER PCB .............. A-26
H. SOLVENT AND OIL .................. A-29

CHAPTER 1
GENERAL DESCRIPTION
I. FEATURES ................................1-1
II. SPECIFICATIONS .....................1-2
A. Finisher specification ...........1-2
B. Punch unit specification .....1-10
C. Cross Section.....................1-13
III. Using the Machine ...................1-16
A. Removing Paper Jams
from the Finisher Unit.........1-16
B. Supplying the Finisher Unit
with Staples........................1-17
C. Removing Staple Jams from
the Finisher Unit .................1-19
D. Removing Paper Jams from
the Saddle Stitcher Unit
(Saddle Finisher)................1-20
E. Supplying the Saddle Stitcher
Unit with Staples (Saddle
Finisher) .............................1-22
F. Removing Staple Jams
from the Saddle Stitcher Unit
(Saddle Finisher)................1-23
G. Removing Paper Jams from
the Puncher Unit (option) ...1-25
H. Removing Punched Scrap
from the Puncher Unit
(option)...............................1-26
IV. MAINTENANCE BY THE
USER .......................................1-27
A. Maintenance by the User ...1-27

1-1
CHAPTER 1 GENERAL DESCRIPTION
I. FEATURES
1. Accommodates large quantities of sheets.
• Normally, the finisher holds a stack of sheets 147 mm in height in its two bins (small-size
paper: equivalent to 1000 sheets)/74 mm in height (large-size paper: equivalent to 500 sheets)
2. Has high paper transportation performance.
• The finisher is capable of handling paper between 60 and 200 g/m2.
3. Offers a job offset function.
• The finisher has a job offset function for sorting non-stapled stacks of copies.
4. Offers four types of auto stapling.
• The finisher offers a choice of four stapling modes (1-point stapling at rear, diagonal stapling
at front, diagonal stapling at rear, 2-point stapling).
5. Uses a buffer roller.
• The use of a buffer roller enables the finisher to accept copies without interruption from the
host machine even during stapling or offset operation.
6. Has a saddle stitch function (Saddle Finisher).
• The finisher can staple along the center of paper and fold it in two (up to 15 sheets).
7. Offers a punch function (option).
• The use of the puncher unit enables the finisher to punch sheets for binders before they are
output. (The puncher unit is capable of handling papers between 64 and 200 g/m2. It cannot
handle special paper, postcards and transparencies.)
Finisher
Finisher
Punch unit
MODEL
AR-FN8
AR-FN9
AR-PN2A
AR-PN2B
AR-PN2C
AR-PN2D
NOTE
Finsher with Saddle Stitching
2 holes (80mm pitch) Europe
2 holes (70mm pitch) 3 holes (108mm pitch) USA/Canada
4 holes (80mm pitch) France
4 holes (70/21mm pitch) Sweden
ITEM
Stapler for Finisher
5000 sheets Staple Cartrige x1 5000×3 SF-SC11 20 Cartridge for AR-FN8 and AR-FN9
Common w ith S55,S55N
Stapler for Finisher
2000 sheets Staple Cartrige x1 5000×3 SF-SC3 40 AR-FN8 and AR-FN9
(For AR-FN9 Saddle Stitch)

1-2
CHAPTER 1 GENERAL DESCRIPTION
II. SPECIFICATIONS
A. Finisher specifications
1. Basic specifications
a. General
b. Tray section
(1) Functions (Mode)
Type
Installation type
Fixing method
Vertical adjustment feature
Distribution system
Paper entry port height
2-tray finisher * Stretching paper exit tray
Floor installation, field option
Latch method (Fixed with brackets in the upper side of the PPC exit
side)
Available
Tray shift system
683.5mm from the floor surface
(2) Applicable paper
Simple load (Non-sort)
Job offset load (Sort/Group)
Staple load
Paper sheets of a same size are loaded in the specified bin in
the non-sort mode.
Discharged paper bundles are shifted back and forth to sort.
Stapling is automatically performed.
Paper sheets of different sizes are loaded in the specified bin.
(In the sort/group mode, only sheets of a same width can be
loaded.)
Paper sheets of different sizes (of a same width) are stapled
and loaded in a same bundle in the staple mode.
Mixed load Size mixed load
Staple mixed load
*1: Paper sizes and load height are shown below.
Size and load height [mm]
Weight
Kinds
Curl level
Stacking size
*1
Normal paper: 60 - 200g/m2
Normal paper, recycled paper
Special paper: Conforming to the body specifications.
10mm or less
AB : A3, A4, A4-R, A5-R, B4, B5, B5-R
Inch : LD, LG, LT, LT-R, FOLIO, COMPUTER

1-3
CHAPTER 1 GENERAL DESCRIPTION
In the case of simple load, job offset load, and staple load
Mode
TrayNo.121212
A5 long, ST long 147mm 147mm X X X X
B5 long 74mm 74mm X X X X
A4 short,
B5 short,
LT short
147mm 147mm 147mm 147mm
110mm, 750
sheets, or 50
sets, whichever
is reached first.
110mm, 750
sheets, or 50
sets, whichever
is reached first.
A4 long, B4 long,
A3 long, LT long,
LG long, LD long,
FOLIO, COMP
74mm 74mm 74mm 74mm
74mm, 500
sheets, or 50
sets, whichever
is reached first.
74mm, 500
sheets, or 50
sets, whichever
is reached first.
Single load (Non-sort) Job offset load (Sort/Group) Staple load
Paper transport direction
Measuring sensor
Stack tray [Paper load height]
In the case of size/staple mixed load Mode
Mode
Setup Non-sort Sort Group Staple at one point Staple at 2 points
Mixed load of
different widths 74mm X X X X
Mixed load of A3
and A4 74mm 74mm 74mm
74mm, 500 sheets,
or 50 sets,
whichever is
reached first.
74mm, 500 sheets,
or 50 sets,
whichever is
reached first.
Mixed load of B4
and B5 74mm 74mm 74mm
74mm, 500 sheets,
or 50 sets,
whichever is
reached first.
74mm, 500 sheets,
or 50 sets,
whichever is
reached first.
Mixed load of LD
and LT 74mm 74mm 74mm
74mm, 500 sheets,
or 50 sets,
whichever is
reached first.
74mm, 500 sheets,
or 50 sets,
whichever is
reached first.
Mixed load of LG
and LT-R 74mm 74mm 74mm
74mm, 500 sheets,
or 50 sets,
whichever is
reached first.
74mm, 500 sheets,
or 50 sets,
whichever is
reached first.
Size mixed load Staple mixed load

1-4
CHAPTER 1 GENERAL DESCRIPTION
c. Staple section
Type
Staple load system
Installation
Fixing
Stapling capacity
Stapling direction
Unit assembly type
Staple cartridge (5,000 staples)
Inside of the front cover
Magnet catch
(A4 short, B5 short, LT short): 50 sheets
(A3 long, B4 long, A4 long, LD long, LT long, FOLIO,
COMPUTER): 30 sheets
Face-up stapling
Stapling is automatically performed for every number of
sheets specified in the staple sort mode.
Staple empty in the staple cartridge is automatically detected
by the photo sensor.
* One-point staple in the front
A3 long, B4 long, A4 (long/short), B5 short, LD long, LG
long, LT (long/short), FOLIO, COMPUTER
* One-point staple at that back
A4 long, LG long, LT long, COMPUTER
* One-point staple at the back (Slant staple)
A3 long, B4 long, A4 short, B5 short, LD long, LT short
* Two-point staple
A3 long, B4 long, A4 (long/short), ‚a5 short, LD long, LT
(long/short), COMPUTER, LG long, FOLIO
64 - 80g/m2
Normal paper, recycled paper
Basic functions Auto stapling
Stapleemptydetection
Size Applicablepaper
Weight
Kinds

1-5
CHAPTER 1 GENERAL DESCRIPTION
Stapling position One-point staple in the front
One-point staple at that back
One-point staple at the back
(Slant staple)
Two-point staple
* Stapling position range:
The specified value ± 4mm
Paper feeding
direction
Paper width
4.4
(30˚) 4.4
5.0
6.0
Paper width
A
Paper feeding
direction
Size A
A4-Long, FOLIO 204.0
LG-Long, LT-Long 210.0
(30˚)4.0
6.0
Paper width A
Paper feeding
direction
5.0
Paper feeding
direction
Paper width
B
A
Size A B
A3 long, L4 short 83.0 203.0
A4 long, FOLIO 62.5 138.5
B4 long, B5 short, COMP 63.0 183.0
LD long, LT short 74.0 194.0
LT long, LG LONG 62.5 144.5
Size A
A3 long, A4 short 291.0
B4 long, B5 short 251.0
LD long, LT short 273.5

1-6
CHAPTER 1 GENERAL DESCRIPTION
d. Saddle stitch section (AR-FN9 only)
Staple type
Staple load
Staple empty detection
Installing direction
Stapling capacity
Stapling system
Folding position
Applicable paper
Unit assembly type
Staple cartridge (2,000 staples)
Available
Inside of the front lower cover
15 sheets
Center stapling, two-fold,
* Fixed stapling pitch
Center folding
* Sheet center adjustment function provided
A3 long, B4 long, A4 long, LD long, LT long
64 - 80g/m2
* Cover only: 64 - 200g/m2
Normal paper, recycled paper
Bundle of 11 - 15 sheets: 10 sets
Bundle of 6 - 10 sheets: 20 sets
Bundle of 5 sheets or less: 25 sets
* No stapling for one-folding
Size Weight
Kind
Load capacity
Stapling position
±1.0mm or less
B
A
Size A B
A3 long 83.0 203.0
B4 long 63.0 183.0
A4 long 39.5 159.5
LD long 74.0 194.0
LT long 42.0 162.0

1-7
CHAPTER 1 GENERAL DESCRIPTION
2. Machine specifications
3. Electrical specifications
4. Environment conditions
W599 x D615 x H1014mm
* Excluding the connection rail and the
projection. With no punch, with latch unit
installed, with sub tray closed.
W1162 x D817 x H951m
* Including the cardboard pallet
About 32kg (AR-FN8) About 52kg (AR-FN9)
* Machine body (excluding the connection
rail)
About 86kg
* Shipping condition
Finisher unit (1)
Installing bracket (1)
Rail (1)
Latch hold plate (1)
Positioning bracket (1)
Tray (2)
Harness cover (Large) (1)
Harness cover (Small) (1)
Latch unit (1)
Latch unit lower cover (1)
IPC board (1)
Locking support (1)
Staple position label (1)
Entry port mylar (1)
TPPAN screw M4x6 (4)
BID screw with washer M4x6 (1)
BID screw with washer M4x20 (4)
DIS screw with washer M4x16 (2)
Step screw (4)
BID screw M4x14 (1)
BID screw M4x6 (2)
External dimensions Machine external
dimensions
Package external
dimensions
Packed items
Weight Machine weight
Package weight
Operating conditions 10 - 30°C (without dew)
20 - 85%RH (without dew)
-10 - 30°C (without dew)
20 - 85% RH (without dew)
Temperature
Humidity
Temperature
Humidity
Transit/storage
conditions
Input voltage DC24V±10% supplied from PPC

1-8
CHAPTER 1 GENERAL DESCRIPTION
5. Reliability
Non-sort, sort, group
L1: 30mm or less
Non-sort, sort, group
L2: 50mm or less
Stack alignment
[Stack section]
Side shift
Lead edge shift
A
L1=A - Paper width
B
Non-sort, sort, group
L2=B - Paper length
(1) Excluding ST-R, A5-R, B5-R
(2) Bundle identification must be valid in the job offset mode.
(3) Side shift quantity is the value at the back edge of paper.
(4) Excluding unexpected error of non-conformity of the standards
(5) Alignment of 750 sheets or more is out of the above specifications.(Loadable)
(6) Alignment of mixed sizes is out of the above specifications. (Loadable)
6. Conforming standards
Safety standards
Obstruction wave standards
(1) UL
(2) C-UL
(3) TUV
(4) CE (Applied by Sharp)
(19 VCCI (As a system)
(2) FCC (IC) (As a system)

1-9
CHAPTER 1 GENERAL DESCRIPTION
7. System comparison of AR-S650/650
Paper size and load height (cascade setup)
Mode
Tray no.121212
A5 long, ST long X X X X X X
B5 longXXXXXX
A4 short,
B5 short,
LT short
X X 125mm 125mm
93mm, 637
sheets, or 42
sets, hichever
is reached
first.
93mm, 637
sheets, or 42
sets, hichever
is reached
first.
A4 long, B4 long,
A3 long,
LT long,
LG long,
LD long, FOLIO,
COMP
X X 63mm 63mm
63mm, 425
sheets, or 42
sets, hichever
is reached
first.
63mm, 425
sheets, or 42
sets, hichever
is reached
first.
Simple load (Non-sort/group) Job offset load (Sort) Staple load
Paper size and load height (cascade setup) in mixed load
Mode
Setup Non-sort Sort Group One-point staple T o-point staple
Different idth
mixed XXXX X
A3 and A4 mixed X 63mm X
63mm, 425 sheets,
or 42 sets,
hichever is
reached first.
63mm, 425 sheets,
or 42 sets,
hichever is
reached first.
B4 and B5 mixed X 63mm X
63mm, 425 sheets,
or 42 sets,
hichever is
reached first.
63mm, 425 sheets,
or 42 sets,
hichever is
reached first.
LD and LT mixed X 63mm X
63mm, 425 sheets,
or 42 sets,
hichever is
reached first.
63mm, 425 sheets,
or 42 sets,
hichever is
reached first.
LG and LT-R
mixed X63mmX
63mm, 425 sheets,
or 42 sets,
hichever is
reached first.
63mm, 425 sheets,
or 42 sets,
hichever is
reached first.
Size mixed load Staple mixed load

1-10
CHAPTER 1 GENERAL DESCRIPTION

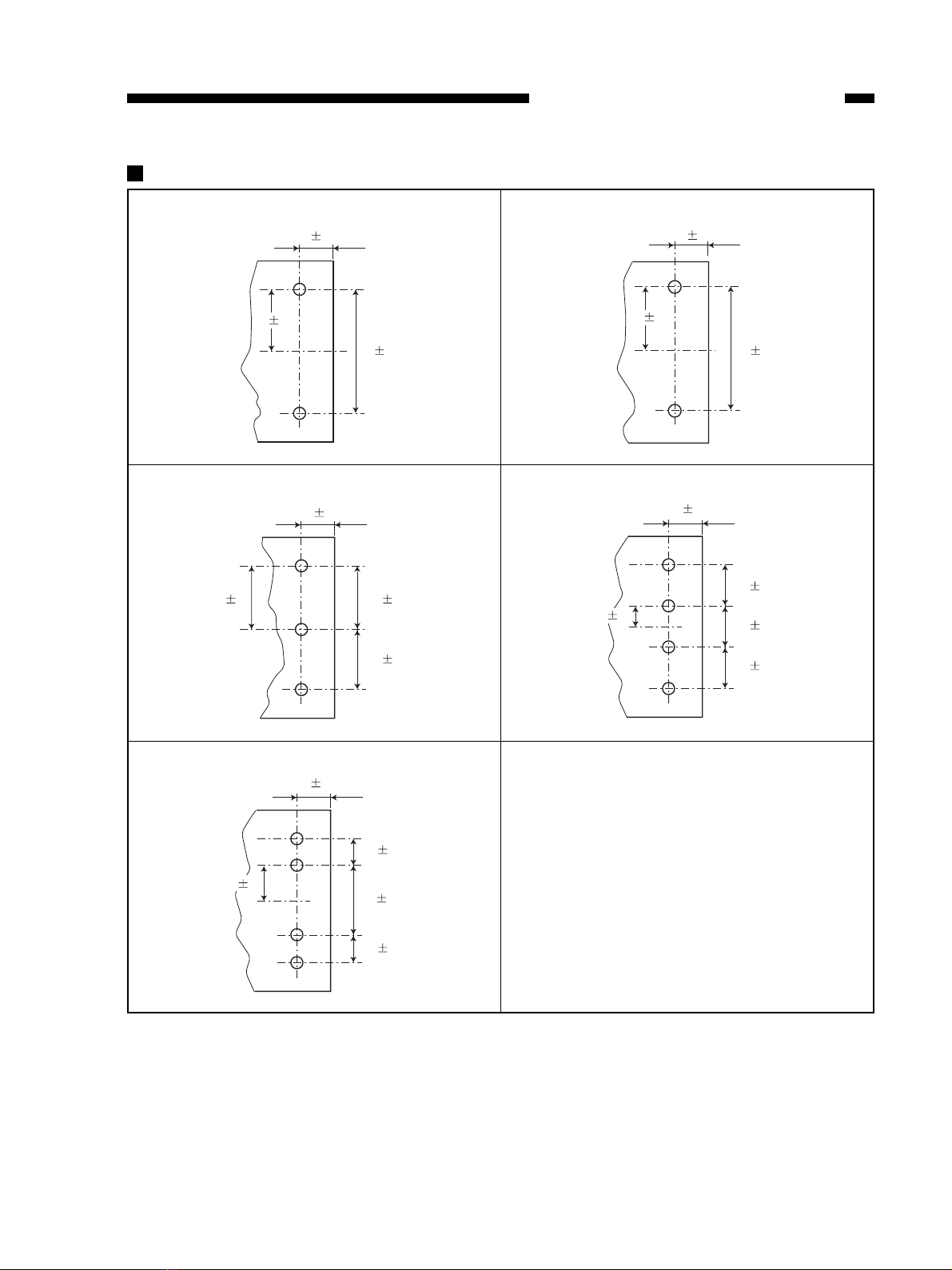

B. Punch unit specifications
1. Basic specifications
a. General
Installation type Field option
Japan, Europe
North America
France (80mm pitch)
Sweden (70, 21mm pitch)
Punch hole pitch is fixed.
Punch position adjustment in the back and forth direction is
provided.
A3 long, B4 long, A4 (long/short), B5 (long/short), FOLIO,
LD long, LG long, LT (long/short), COMPUTER
A3 long, A4 short, LD long, LT short (3-hole), LG long, LT
long, COMPUTER (2-hole)
A3 long, A4 short, LD long, LT short
A3 long, B4 long, A4 (long/short), B5 (long/short), FOLIO,
LD long, LG long, LT (long/short), COMPUTER
Available
* Punch dust full and jam are displayed on the copier display.
64 - 200g (OHP sheet or special paper cannot be used.)
1 million sheets (80g paper)
Not provided.
Not provided
* The punch mode can be set with the operation panel of the
copier.
Number of
punch holes and
hole dia.
* For details of
punch positions,
refer to the next
page.
2-hole (Ø6.5)
2-hole/3-hole
auto selection
(Ø8.0)
4-hole (Ø6.5)
4-hole (Ø6.5)
2-hole
2-hole/3-hole
auto selection
4-hole (F)
4-hole (S)
Punch position adjustment
Allowable
punch size
Allowable weight for punch
Punch life
Display section
Operation panel
Punch dust full detection

1-11
CHAPTER 1 GENERAL DESCRIPTION
Punch position (Unit : mm)
2-hole ( Ø 6.5) : Japan/Europe (80mm pitch)
3-hole ( Ø 8.0) : North America
4-hole ( Ø 6.5) Sweden
2-hle ( Ø 8.0) : North America (70mm pitch)
4-hole ( Ø 6.5) : France
80 1
12 3
40 3
108 3 108 1
108 1
12 3
70 1
12 3
35 3
12 3
(80 1)
(80 1)
(80 1)
40 3
35 3
12 3
(21 1)
(21 1)
(70 1)

1-12
CHAPTER 1 GENERAL DESCRIPTION
2. Machine specifications
4. Environment conditions
10 - 30 °C (without dew)
20 - 85%RH (without dew)
-10 - 30 °C (without dew)
20 - 85% RH (without dew)
Operating conditions
Transit/storage
conditions
Temperature
Humidity
Temperature
Humidity
W76 x D581x H373mm
* Punch dimension does not include the punch
lower cover.
W726 x D514 x H339mm
About 6kg
About 11kg
Punch unit body (1)
Punch lower cover (1)
Jam process label (1)
Saddle jam process label (1)
Connector cover (1)
Body cover stopper (1)
Step screw (long) (1)
Step screw (short) (2)
BID screw M4x16 (1)
BID screw M4x6 (3)
External dimensions
Weight
Package weight
Machine external
dimensions
Package external
dimensions
Machine weight
Package weight
3. Electrical specifications
Input voltage DC24±V10% supplied from PPC
