Sharp Aquos User manual

>>

>>
<< Contents
1. Part Names
1-1. TV (For PN-LE601/701/801 models)
1-2. TV (For PN-LE901 model)
1-3. Remote Control Unit
2. Introduction
2-1. Displaying an External Equipment Image
2-2. Initial Installation
3. Direct Button Operation
3-1. Changing Channels
3-2. Changing Volume
3-3. MUTE
3-4. APPS
3-5. AUDIO
3-6. Sleep Timer
4. On-Screen Display Menu
4-1. Introduction
4-3. On-Screen Display Menu Operation
4-4. Menu Operation Buttons
4-5. Initial Setup
4-13. Information
4-16. Picture Settings
4-20. Audio Settings
4-21. Network Settings
4-23. System Options
5. Enjoying Photo/Music/Video Playback
5-1. Preparation
5-2. Selecting the Folders to Play Back
5-4. Playing Back Files on a USB Memory Device/Home
Network Server
6. Using LINK Operation
6-1. Controlling HDMI Equipment Using LINK Operation
6-3. Link Operation Menu
6-5. Using a Smartphone with the TV
7. Using a PC
7-1. Adjusting the PC Image
7-2. Setting Audio Input
7-3. Control of the TV
7-9. PC Compatibility Chart
8. Using the Internet
8-1. Connecting to the Internet
8-2. Entering Text (Software Keyboard)
8-4. Using the Browser
8-8. Using Keyboard and Mouse
9. Using the Miracast devices
9-1. Miracast devices
10. Appendix
10-1. Removing the Stand
10-2. Setting the TV on the Wall
10-6. Troubleshooting
11. Specifications
11-1. TV (For PN-LE901 model)
11-2. TV (For PN-LE801/701/601 models)
11-3. Wireless LAN
12. Trademarks
13. Dimensional Drawings
14. Software License
ENG Contents

>>
<<
ENG Important1

>>
<<
ENG Important2

>>
<<
ENG Important3

>>
<<
ENG Important4

>>
<< Part Names

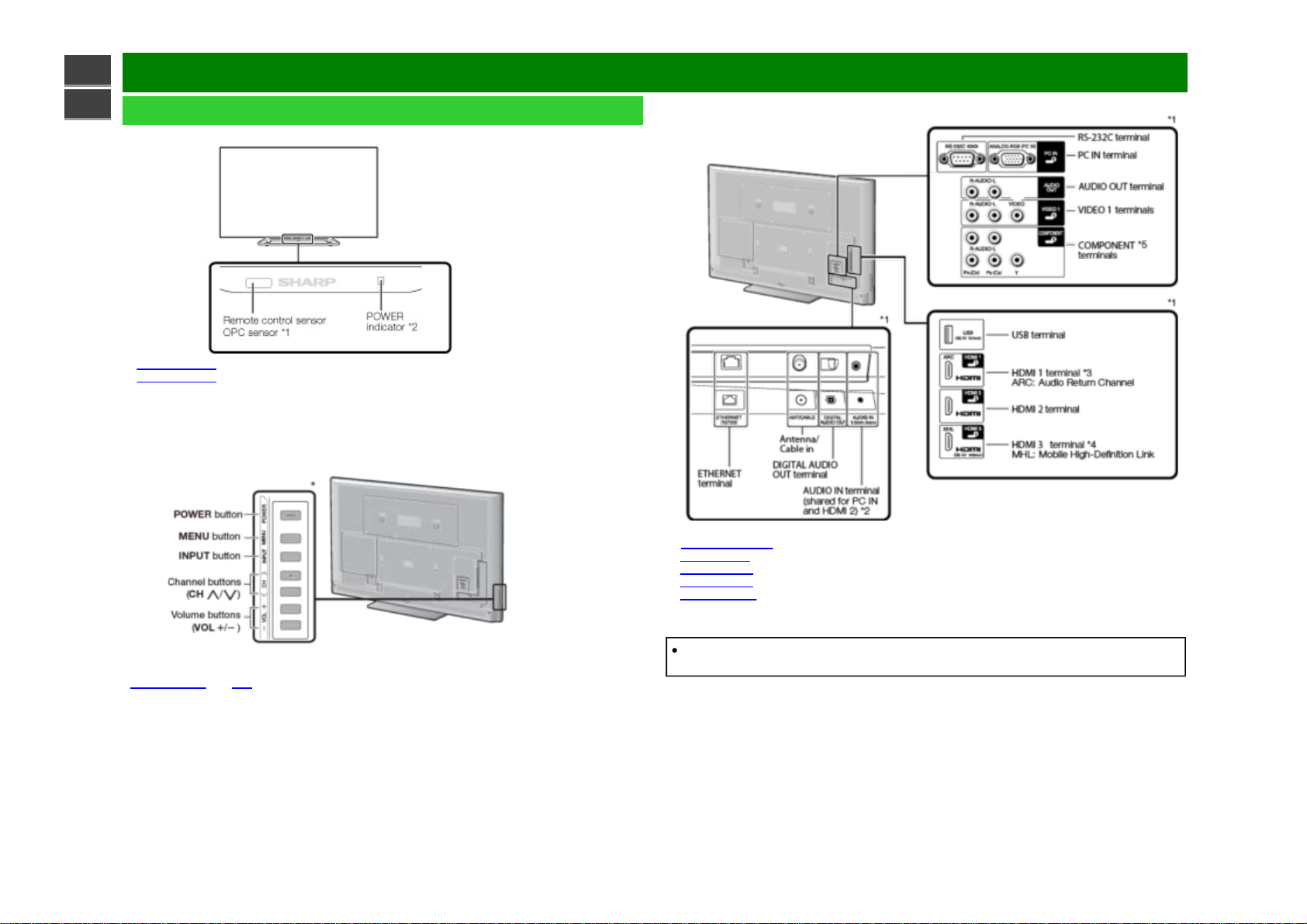

TV (For PN-LE601/701/801 models)
(Front)
*1
See page 4-17.
*2
See page 4-27.
(Side)
*
See pages 2-1 and 4-4 for button operations.
(Rear)
*1 See the Setup Guide.
And see page 6-1 for external equipment connection.
*2
See page 7-2. for details on the Audio Select function.
*3
See page 6-2. for details on the Audio Return Channel.
*4
See page 6-5. for details on the MHL function.
*5
See page 4-12. for details on the Input Select function.
The illustrations and on-screen displays in this operation manual are for explanation purposes
and may vary slightly from the actual operations.
The examples used throughout this manual are based on the PN-LE601 model.
ENG 1-1

>>
<< Part Names
TV (For PN-LE901 model)
(Front)
*1
See page 4-17.
*2
See page 4-27.
(Side)
*
See pages 2-1 and 4-4 for button operations.
(Rear)
*1 See the Setup Guide.
And see page 6-1 for external equipment connection.
*2
See page 7-2 for details on the Audio Select function.
*3
See page 6-2. for details on the Audio Return Channel.
*4
See page 6-5. for details on the MHL function.
*5
See page 4-12 for details on the Input Select function.
The illustrations and on-screen displays in this operation manual are for explanation purposes
and may vary slightly from the actual operations.
ENG 1-2

>>
<< Part Names
Remote Control Unit
1
POWER: Switch the TV power on or enter standby.
2
DISPLAY: Display the channel information.
3
SLEEP: Set the sleep timer
(See page 3-6.)
4 0
–9: Set the channel.
(See pages 3-1.)
5 •
(DOT): Set the channel.
(See pages 3-1.)
6 OPTION:
Display the Link Operation Menu screen. This button will function only when LINK
Operation is used.
(See page 6-1 to 6-15.)
7
VOL+/-: Set the volume.
(See page 3-2.)
8
AUDIO: Select the MTS/SAP or the audio mode during multichannel audio broadcast.
(See page 3-5.)
9
MUTE:Mute the sound.
(See page 3-3.)
10
/ / / , (ENTER): Select a desired item on the screen.
11
EXIT: Turn off the menu screen.
12
A/B/C/D: Select 4 preset favorite channels in 4 different categories.
(See page 4-6.)
13
MANUAL: Display the operation manual.
(See page 4-15.)
14
APPS: Display the application window.
(See page 8-4.)
15
INPUT: Select a TV input source.
(See page 2-1.)
16
CH: Select the channel.
(See page 3-1.)
17
MENU: Display the menu screen.
(See page 4-1.)
18
RETURN: Return to previous menu screen.
ENG 1-3
NOTE
When using the remote control unit,
point it at the TV.

>>
<< Introduction
Example 1Press INPUT.
The INPUT list screen displays.
2Press / to select the input source.
An image from the selected source
automatically displays.
Displaying an External Equipment Image
To view external source images, select the input source by pressing
INPUT on the remote control
unit or on the TV.
ENG 2-1
You can also select the input source by pressing INPUT.
Each time INPUT is pressed, the input source toggles.

>>
<< Introduction
Initial Installation
Perform the following steps before you press POWER on the
remote control unit.
1. Insert the batteries into the remote control unit.
2. Connect the antenna cable to the Monitor.
3. Plug in the AC cord to the AC outlet.
Language (Language setting)
Select from among 3 languages: English, French and
Spanish.
1Press / to select the desired language listed on the
screen, and then press ENTER.
ENG 2-2

>>
<< Introduction

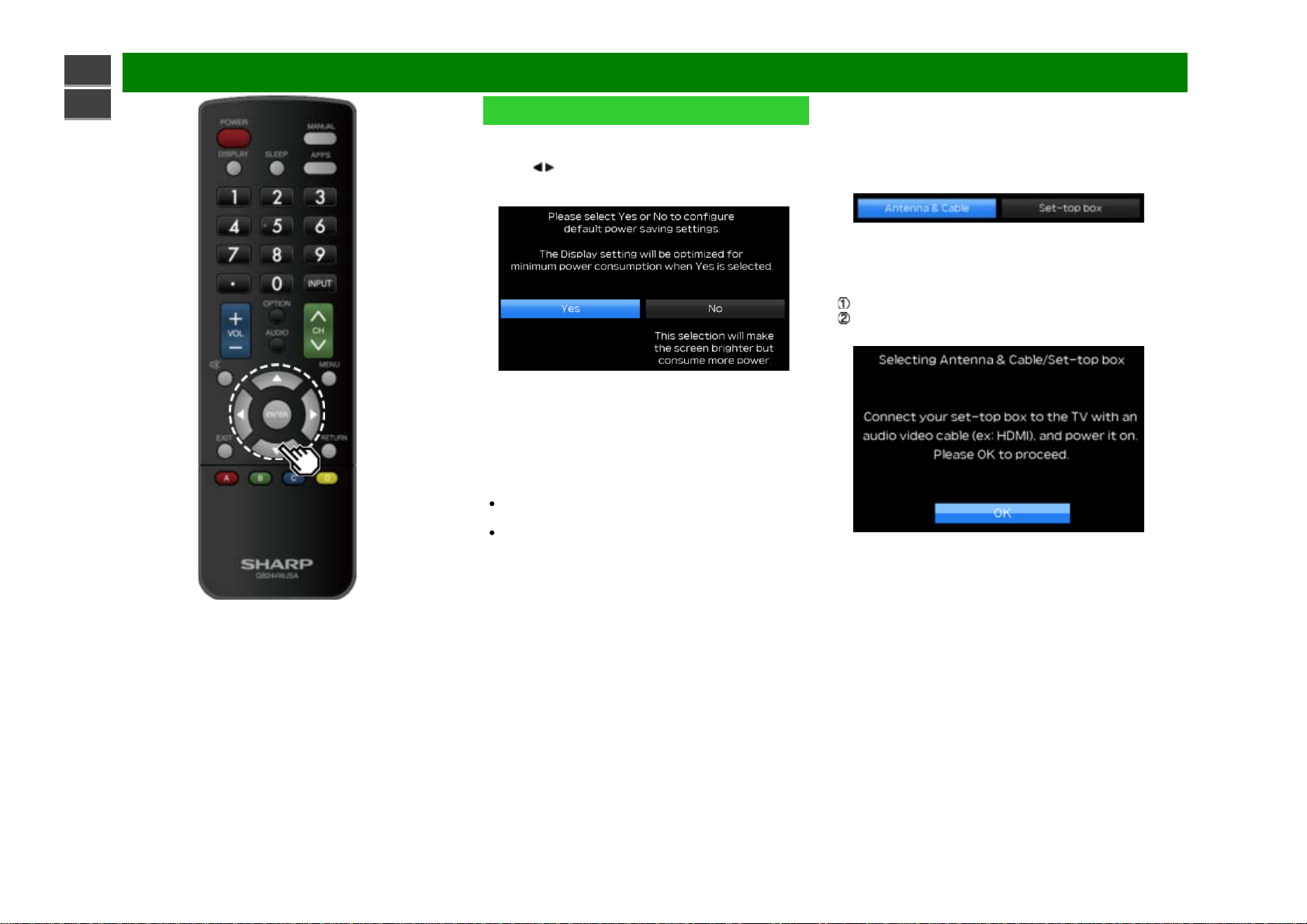

Initial Installation (Continue)
Power Saving
Select "Yes" or "No" to configure default Display settings.
2Press / to select "Yes" or "No".
Press ENTER to enter the setting.
Yes: AV MODE is set to "STANDARD" and Automatically
Light Sensor is set to "On".
No: AV MODE is set to "DYNAMIC (Fixed)" and
Automatically Light Sensor is set to "Off". Picture Reset
can be set.
Picture Reset: AV MODE will be set to "DYNAMIC (Fixed)"
regardless of whether Picture Reset is "On" or "Off".
If you select "On" and there is no operation for 30 minutes:
- AV MODE will be reset to "DYNAMIC (Fixed)".
When "Off" is selected:
- Even after 30 minutes elapses, AV MODE is not reset to
"DYNAMIC (Fixed)".
Antenna & Cable/STB
Select the type of connection you will use to watch TV.
3Press / to select "Antenna & Cable" or "Set-top box", and
then press ENTER.
To watch TV via an antenna or cable connection (without
using a set-top box):
Select "Antenna & Cable", and then go to step 4. To
watch TV via set-top box:
Select "Set-top box" and then press ENTER.
Check that the set-top box connected to the TV is on.
ENG 2-3

>>
<< Introduction
Initial Installation (Continue)
CH Search (Channel search)
Channel auto search makes the TV look for all channels
viewable in the set area.
4 When "Air" is selected in Antenna setting:
Press / to select "Start", and then press ENTER.
When "Cable" is selected in Antenna setting:
Press / to select "Analog & Digital Search Start" to search
both analog and digital broadcasts, or to select "Analog
Search Start" to search only analog broadcasts, and then
press ENTER.
The Channel search will start automatically.
To exit the Channel search screen, select "Cancel", and
then press ENTER.
ENG 2-4

>>
<< Introduction
Initial Installation (Continue)
Completed
5The settings confirmation screen is displayed. Confirm the
information displayed on the screen, and then press
ENTER.
Examples of the settings confirmation screen
When "Antenna & Cable" was selected in step 6.
ENG 2-5

>>
<< Introduction

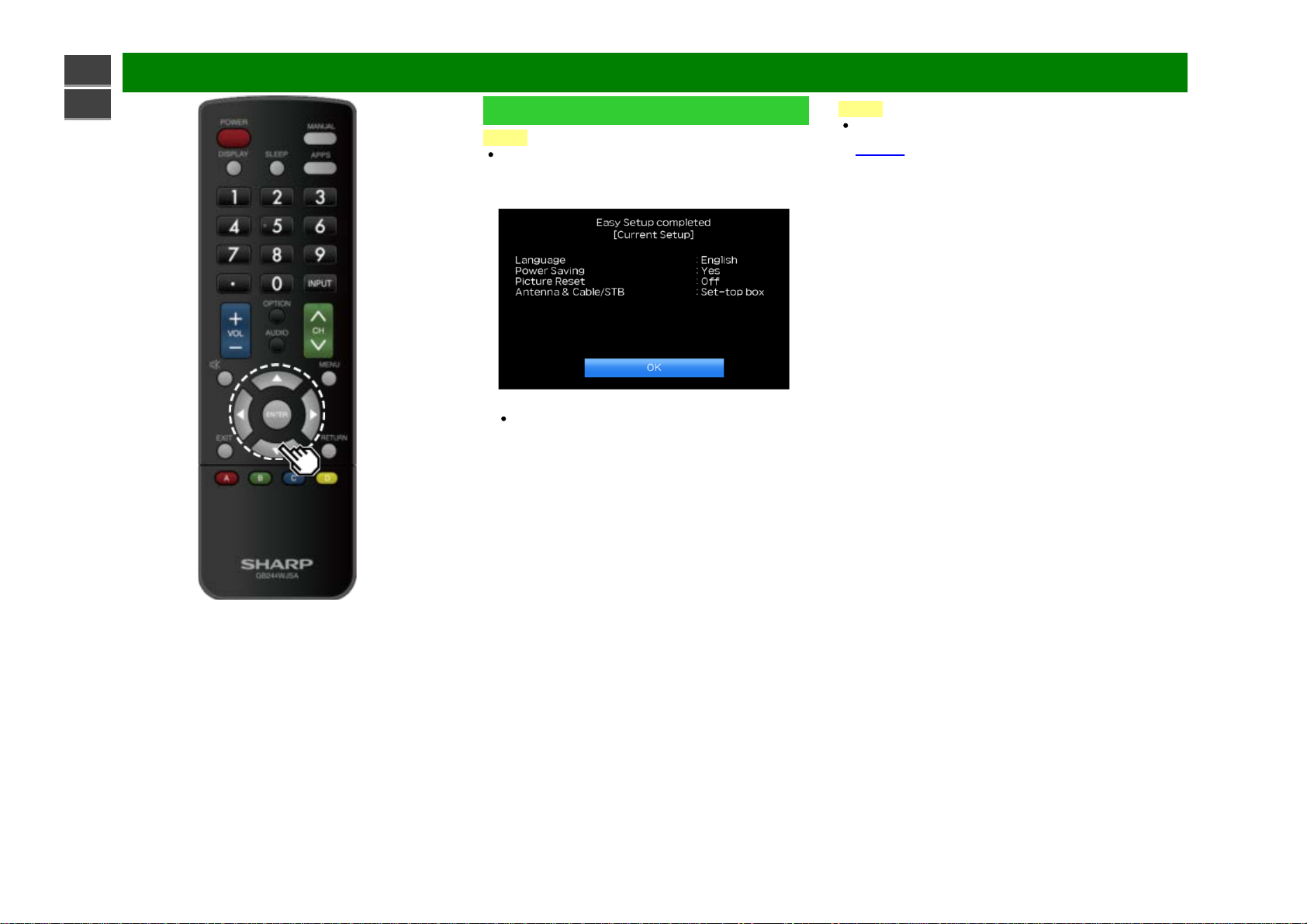

Initial Installation (Continue)
NOTE
If no channel is found, confirm the type of connection made
with your TV and try "Easy Setup" again.
When "Set-top box" was selected in step 6.
Click "OK" to display the confirmation screen for input
source switching.
Show the input list: You can check the current connection
status of external equipment. Confirm which input terminal
is connected to the set-top box.
OK: Clicking "OK" will complete the Easy Setup procedure.
NOTE
For changing the settings of the Initial Installation, perform
"Easy Setup" on the Initial Setup menu on
page 4-5.
ENG 2-6

>>
<< Direct Button Operation
Changing Channels
You can change channels in several ways.
Method 1
Using CH / on the remote control unit or on the TV.
Method 2
Using remote control buttons 0-9, • (DOT).
Examples:
To select a 1 or 2-digit channel number (e. g., Channel
5):
Press 5ENTER
To select a 3-digit channel number (e. g., Channel 115):
Press 115ENTER
To select a 4-digit channel number (e. g., Channel 22.1):
Press 22• (DOT) 1ENTER
NOTE
When selecting a 1-digit channel number, it is not
necessary to press 0before the number.
When you enter 0-9 only, channel selection will be made if
there is no operation within a few seconds.
if you push "0" by itself, nothing will happen.
Complete the above steps within a few seconds.
When you enter 0-9 and • (DOT), channel selection will be
made if there is no operation within a few seconds.
ENG 3-1

>>
<< Direct Button Operation

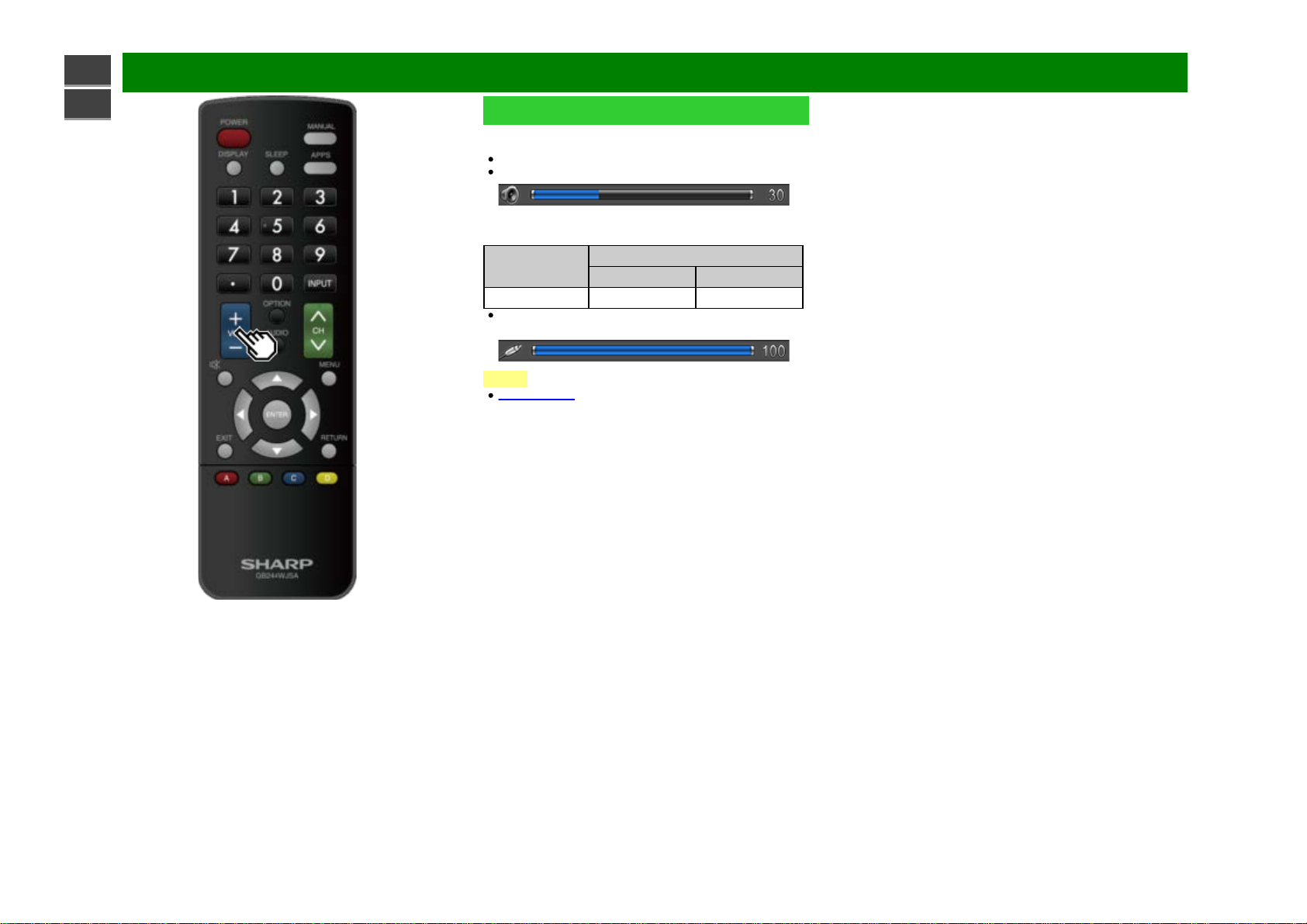

Changing Volume
You can change the volume by pressing VOL+/- on the TV or
on the remote control unit.
To increase the volume, press VOL +.
To decrease the volume, press VOL -.
Audio status
Output device Output Select
Fixed Variable
Speaker Variable sound Mute
When "Output Select" is set to "Variable", the indicator on
the screen changes as shown below.
NOTE
See page 4-12 for details on the Output Select function.
ENG 3-2

>>
<< Direct Button Operation
MUTE
Mutes the current sound output.
Press (MUTE).
" " will be displayed on the screen for 30 minutes, and
the sound is silenced.
NOTE
Mute can be cancelled by pressing VOL+/- or MUTE.
ENG 3-3

>>
<< Direct Button Operation
APPS
Allows you to directly activate various types of applications.
1Press APPS to display the application window.
Press APPS again to switch back to the currently select
input.
2Press / to select the desired application, and then
press ENTER.
If " " is displayed, check the USB connection.
If " " is displayed, check your Monitor’s network
settings and connection.
NOTE
See page 5-2, 8-5 to 8-9 for details of viewable
applications.
When this function is not available, "Can not operate this
function now" will display.
ENG 3-4

>>
<< Direct Button Operation
AUDIO
MTS/SAP stereo mode
The TV has a feature that allows reception of sound other
than the main audio for the program. This feature is called
Multi-channel Television Sound (MTS). The TV with MTS can
receive mono sound, stereo sound
and Secondary Audio Programs (SAP). The SAP feature
allows a TV station to broadcast other information, which
could be audio in another language or something completely
different like weather information.
You can enjoy Hi-Fi stereo sound or SAP broadcasts
where available.
Stereo broadcasts: View programs like live sporting
events, shows and concerts in dynamic stereo sound.
SAP broadcasts: Receive TV broadcasts in either MAIN
or SAP sound.
MAIN sound: The normal program soundtrack (either in
mono or stereo).
SAP sound: Listen to a second language, supplementary
commentary or other information. (SAP is mono sound.)
If stereo sound is difficult to hear.
Obtain a clearer sound by manually switching to fixed
mono-sound mode.
You can change MTS as shown below to match the television
broadcast signal.
Press AUDIO to toggle between audio modes.
Examples: when receiving MTS and SAP
STEREO mode:
STEREO + SAP mode:
MAIN + SAP mode:
MONO mode: MONO
Digital broadcasting audio mode
The types of audio transmitted in a digital broadcast include
SURROUND as well as MONO and STEREO. In addition, it is
possible for multiple audio tracks to accompany a single video
track.
Press AUDIO to toggle between audio modes.
Example: when receiving Digital broadcasting
NOTE
MTS only operates while in TV mode.
You can have the same settings by choosing "Change
Audio" on the menu items.
(See page 4-24.)
ENG 3-5
