Sherwood WD-1 User manual

WD-1
NETWORK AV ADAPTER
ADAPTATEUR AV RÉSEAU
ADAPTADOR AV CON CONEXIÓN DE RED
NETZWERK-AV-ADAPTER
СЕТЕВОЙ AV-АДАПТЕР
OPERATING INSTRUCTIONS
GUIDE D’UTILISATION
INSTRUCCIONES DE FUNCIONAMIENTO
BEDIENUNGSANLEITUNG
ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ

2
Safety Information
READ THIS BEFORE OPERATING YOUR UNIT
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE FRONT OR BACK COVER.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates the presence of uninsulated “dangerous voltage” within the product’s
enclosure that may be of sufcient magnitude to constitute a risk of electric shock.
This symbol indicates important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
CAUTION
•Leave space around the unit for sufcient
ventilation.
•Avoid installation in extremely hot or cold
locations, or in an area that is exposed to
direct sunlight or heating equipment.
•Keep the unit free from moisture, water, and
dust.
•Do not let foreign objects in the unit.
•Keep the ventilation openings clear of items,
such as newspapers, linens, or curtains.
•Keep open ame from candles or other
sources away from the unit.
•Observe the local regulations regarding
disposal of packaging materials, exhausted
batteries and old equipment.
•Do not expose the unit to dripping or
splashing, or place objects lled with liquids
such as vases.
•Do not let insecticides, benzene, or thinner
come in contact with the unit.
•Never disassemble or modify the unit in any
way.
Notes on the AC power cord and the wall
outlet
•The unit remains connected to AC power
as long as it is plugged into the wall outlet,
even if the unit has been turned off.
•To completely disconnect this product from
AC power, disconnect the plug from the wall
socket outlet.
•When setting up this product, make sure
that the AC outlet you are using is easily
accessible.
•Disconnect the plug from the wall outlet
when not using the unit for long periods of
time.
FCC Notice
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by
one or more of the following measures:

Safety Information
English
3
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and the receiver.
Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions :
(a) This device may not cause harmful
interference, and
(b) This device must accept any
interference received, including
interference that may cause undesired
operation.
(FCC Part 15.21) Caution: changes or
modications not expressly approved by the
party responsible for compliance could void the
user’s authority to operate the equipment.
For Canadian customers:
This Class B digital apparatus complies with
Canadian ICES-003.
Cet appareil numerique de la Classe B est
conforme a la norme NMB-003 du Canada.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be
installed and operated with a minimum distance
of 20 cm between the radiator and your body.
This transmitter must not be co-located or
operated in conjunction with any other antenna
or transmitter.
Important Safety Instructions
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
8 Do not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including ampliers) that
produce heat.
9 Do not defeat the safety purpose of
the polarized or grounding-type plug. A
polarized plug has two blades with one
wider than the other. A grounding type
plug has two blades and a third grounding
prong. The wide blade or the third prong
is provided for your safety. If the provided
plug does not t into your outlet, consult an
electrician for replacement of the obsolete
outlet.
10 Protect the power cord from being walked
on or pinched particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
11 Only use attachments/accessories
specied by the manufacturer.
12 Use only with the cart, stand,
tripod, bracket, or table
specied by the manufacturer,
or sold with the apparatus.
When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13 Unplug this apparatus during lightning
storms or when unused for long periods of
time.
14 Refer all servicing to qualied service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or has
been dropped.
Product Name: Network AV ADAPTER
Model Number: WD-1
Responsible Party Name:
ETRON CORPORATION
Address:
6120 Valley View Buena Park, Ca. 90620
Phone: [phone]
URL: http://www.sherwoodamerica.com

4
Table of Contents
2 SAFETY INFORMATION
5 GETTING STARTED
5 What's Included
6 Installing the Remote Control Battery
6 Operating the Range of the Remote Control
7 Parts Description
9 MAKING CONNECTIONS
9 Connecting HDMI Components
10 Connecting Digital Audio Components
10 Connecting to a Network
11 Connecting Power
12 OPERATING YOUR DEVICE
12 Turning on Your Unit
12 Setting the Network Standby Control
12 Setting the Network Setup
14 Listening to Internet Radio
15 Listening to Music from the Media Server
16 Using the Sherwood Remote Application
21 Updating the Firmware
23 TROUBLESHOOTING
24 ADDITIONAL INFORMATION
24 Specications
25 Trademarks and Licenses

5
English
Getting Started
What's Included
Main unit
Remote control (1 ea) Battery “AAA” size, 1.5V (2 ea)
WD-1
NETWORK AV ADAPTER
OPERATING INSTRUCTIONS
Power adapter (1 ea) User manual (1 ea)
•The items supplied with your unit are subject to change without prior notice.

WD-1 NETWORK AV ADAPTER
6
Installing the Remote
Control Battery
1Remove the battery cover.
2Insert two AAA size batteries with the
polarity matched properly.
•Always use alkaline batteries, and do not
use the rechargeable batteries (Ni-Cd
type).
•If the batteries run out, remove the old
batteries and replace them with new ones
within several minutes.
•If the batteries are removed or have been
exhausted for a longer period of time,
memorized contents will be cleared. In
this case, you should memorize them
again.
•If the battery is placed incorrectly, it can
cause explosion.
•Remove the battery if the remote control
is not used for a long period of time.
•Do not leave the product in a hot or
humid place.
•Do not handle and store the battery with
metallic tools.
Operating the Range
of the Remote Control
Use the remote control within a range of about
7 meters (23 feet) and angles of up to 30
degrees aiming at the remote control sensor.
30 30
7m

English
7
Parts Description
Front and Rear Panel
2
1
3
7
5
6
4
1
Status LED
2
Power Connector
3
OPTICAL OUT Connector
4
LAN/ETHERNET Connector
5
HDMI Connector
6
USB Connector (For Upgrade only)
7
IR Sensor

WD-1 NETWORK AV ADAPTER
8
Remote Control
1
3
2
11
10
9
8
7
6
5
4
1
POWER ON
Turns on the main unit.
2
MODE
Adjusts the screen resolution. (Original/Full)
3
DISPLAY
•When playing audio or video les, turns on
or off the progress bar.
•When viewing photos, turns on or off the
slideshow transition time display.
4

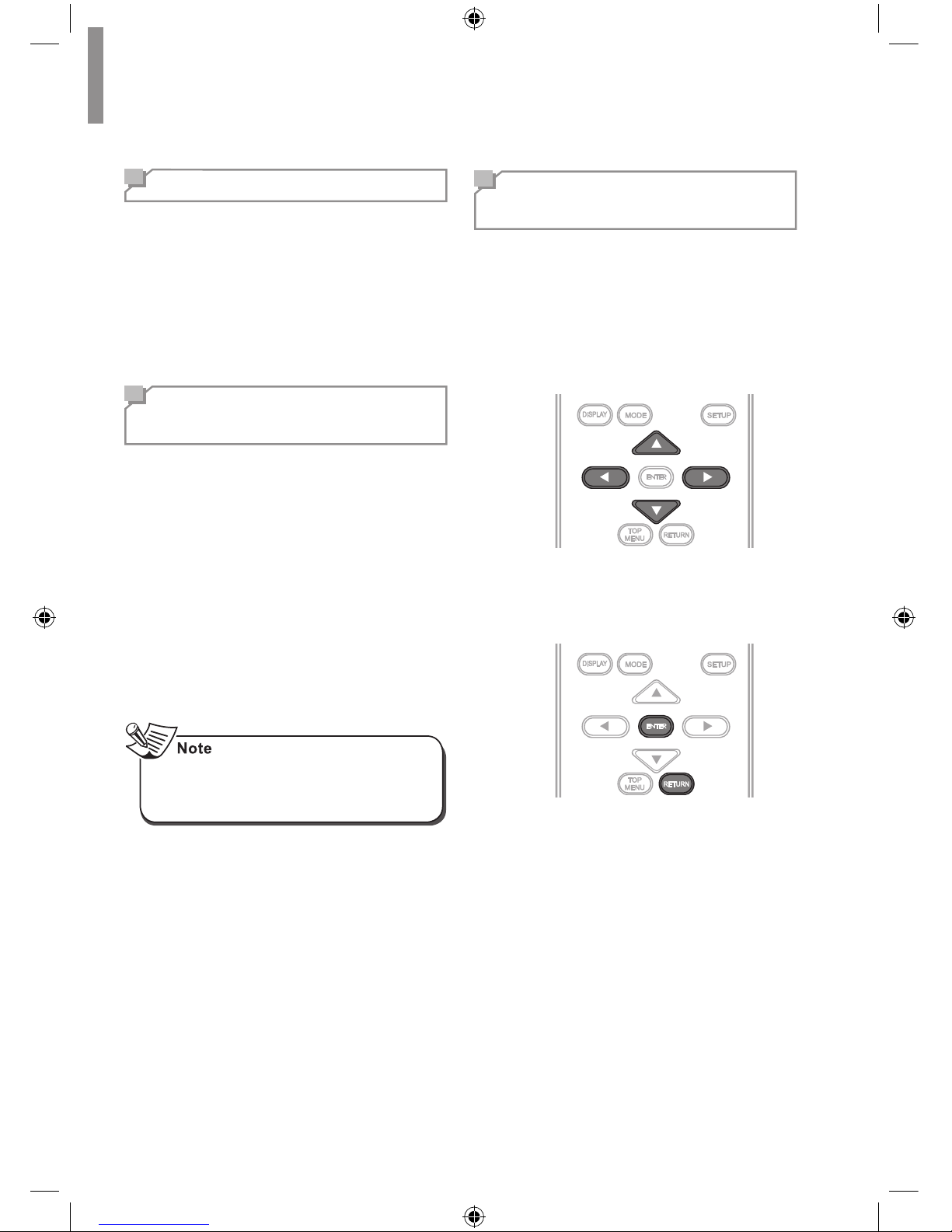

/ / / / ENTER
•Navigates through the menus.
•Conrms a setting option or menu.
5
TOP MENU
Moves to the top menu for each media or
service.
6
Fast-reverses the current le.
Fast-forwards the current le.
Plays or pauses playback.
Selects the previous le.
Selects the next le.
Stops playback.
7
SHUFFLE
Activates the random playback.
8
REPEAT
Activates the repeat function.
9
RETURN
Returns to the previous menu.
10
SETUP
Enters or exits the system setup menu.
11
STANDBY
Turns off the main unit to the normal standby
mode.

9
English
Making Connections

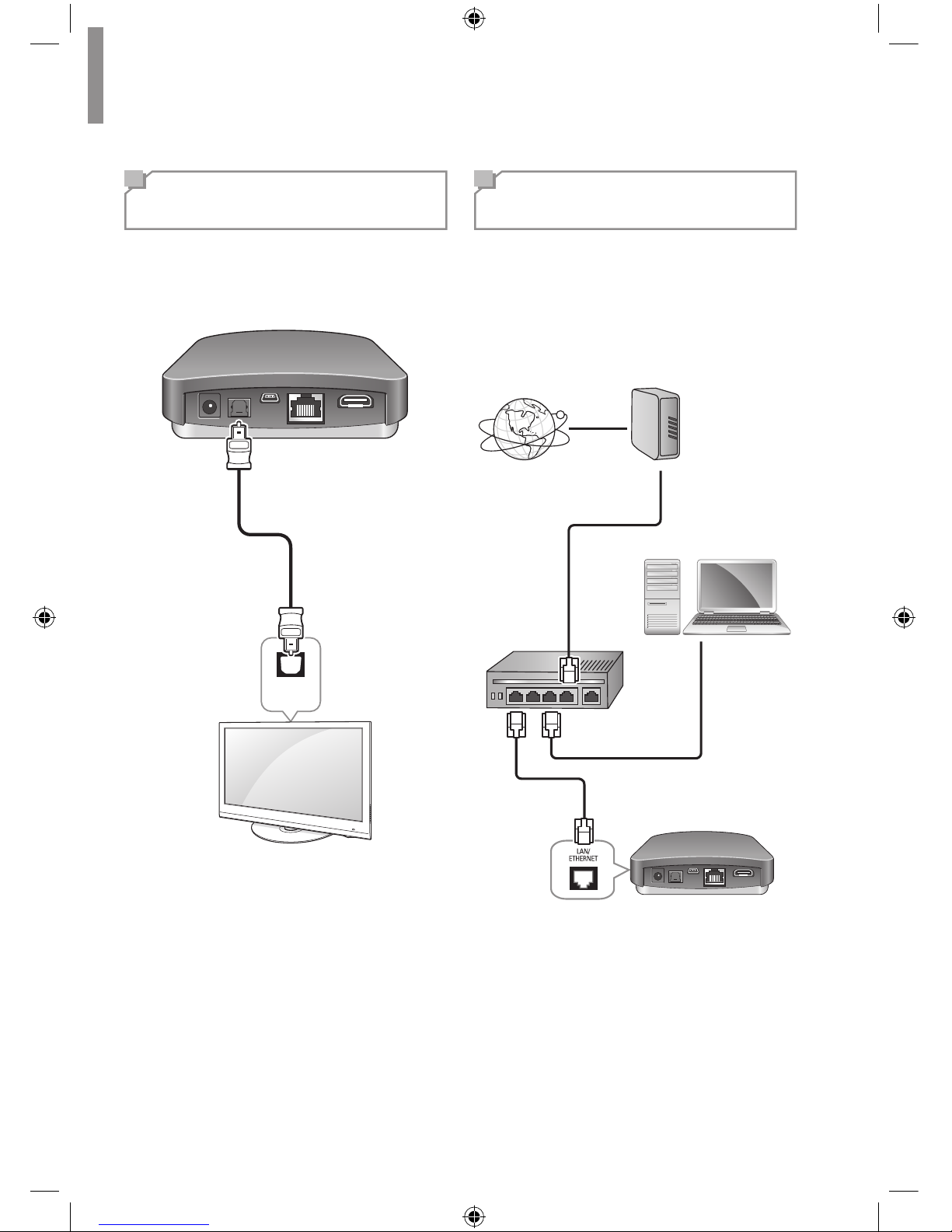

Connecting HDMI
Components
With HDMI, you can easily enjoy high quality
sounds and images. The main unit plays
audio from HDMI compatible products while
also passing on the video signal to a HDMI-
connected TV.
About HDMI
HDMI (High Denition Multimedia Interface)
supports both audio and video on a single
digital connection for use with DVD players,
DTV, set-top boxes, and other AV devices.
HDMI was developed to provide the
technologies of High Bandwidth Digital Content
Protection (HDCP) as well as Digital Visual
Interface (DVI) in one specication. HDCP is
used to protect the digital content transmitted
and received by DVI-compliant displays.
HDMI has the capability to support standard,
enhanced, or high-denition video plus
standard to multi-channel surround-sound
audio. HDMI features include uncompressed
digital video, a bandwidth of up to 2.2 gigabytes
per second (with HDTV signals), one connector
(instead of several cables and connectors), and
communication between the AV source and AV
devices such as DTVs.
This main unit is also compatible with the
DeepColor and x.v.Color feature (x.v.Color is
trademarks of Sony Corporation.).
•Check the setup of the connected
component if an image is poor or there is
no sound from a component connected
via the HDMI cable.
•Audio signals (sampling frequency,
bit length, etc.) transmitted from an
HDMI jack may be suppressed by the
connected component.
•When the connected component is not
compatible with copyright protection
technology (HDCP), the image and the
sound from the HDMI TV OUT jack may
be distorted or may be not output. In
this case, check the specication of the
connected component.

WD-1 NETWORK AV ADAPTER
10
Connecting Digital
Audio Components
You can connect components equipped with an
optical input jack. Then, the main unit transmits
the digital audio signal to the connected
external device.
OPTICAL
IN
Connecting to a
Network
If you have an internet connection, you can
connect the main unit to the internet as well as
using a wired LAN connection.
The following illustration is a conguration
example of a home network with the main unit
and a server. It is recommended to connect the
server to the router with a wired connection.
Internet
Modem
PC
Router
To WAN side
LAN port/Ethernet
connector
To LAN port
Main Unit
To LAN port

Making Connections
English
11
•After making a broadband internet
connection, you should set the
communication settings. For details, see
“Setting the Network Setup” on page 12.
•When using a broadband internet
connection, a contract with an internet
service provider is required. For more
information, contact local internet service
provider.
•Since the connected equipment and
connection method may differ depending
on your internet environment, refer to the
operating instructions of the equipment.
Connecting Power
Make sure to plug in after you have connected
all your components to the main unit. Plug the
supplied AC input cord into the AC inlet and
then into the wall AC outlet.
To the Wall Outlet
•The supplied AC adapter is designed
exclusively for use with this unit. Do not
attempt to use it with any device for which
was not expressly designed, since res
or shocks may occur.
•Handle the power cord by the plug part.
Do not pull out the plug by tugging the
cord, and never touch the power cord
when your hands are wet, as this could
cause a short circuit or electric shock.
•The main unit should be disconnected
by removing the main plug from the wall
outlet when not in regular use for a long
period of time.

12
Operating Your Device
Turning on Your Unit
1Turn on the main unit by pressing
POWER ON.
2Turn off the standby mode by pressing
STANDBY.
Setting the Network
Standby Control
1Press and hold SETUP for more than 3
seconds.
When the Network Standby Control is
turned on, the status LED on the front
panel ashes two times.
2To turn off the Network Standby Control,
press and hold SETUP for more than 3
seconds again.
When the Network Standby Control is
turned off, the status LED on the front
panel ashes three times.
•When the Network Standby Control is
turned on, the power consumption may
increase.
Setting the Network
Setup
To listen to Internet radio stations or music les
stored on your computer via a wired network,
you should congure network settings rst.
1Press SETUP.
2Press , , , to navigate the menu.
3Press ENTER to conrm the desired
menu. Press RETURN to move to the
previous menu.

Operating Your Device
English
13
Network Settings Overview
Main Menu Sub Menu Go to
Page
NETWORK
CONNECT
Direct
AV Set
Soft AP
hotspot 13
Wi-Fi Direct 13
Wired
Ethernet 13
Ethernet
Conguration 13
Wi-Fi *
Wi-Fi Direct *
OTHER
AP Name 14
Resolution 14
Display size 14
Factory Setting 14
Auto Power Control 14
INFORMATION
Network Information 14
Passcode Information 14
* You cannot adjust Wi-Fi and Wi-Fi Direct
settings.
Setting the Direct Wireless Network
Connection
You can connect the main unit with a mobile
device wirelessly through Soft AP hotspot or
Wi-Fi direct.
Soft AP hotspot
When you enable Soft AP hotspot, you can
use the main unit as a wireless access point. It
provides internet access to network devices.
Wi-Fi Direct
Wi-Fi Direct is a standard that allows Wi-Fi
devices to connect to the main unit without the
need for a wireless access point. When you
enable Wi-Fi Direct, you can directly transfer
data between Wi-Fi direct devices and the
main unit without the need for full setup.
Setting the Wired Network
Connection
Before you setup the connection, check
that the LAN cable is connected to the LAN/
ETHERNET connector properly and securely.
For details, see “Connecting to a Network” on
page 10.
Ethernet
You can enable and set the Ethernet
connection automatically on the main unit.
Ethernet Conguration
You can set the Ethernet connection settings
manually.
Menu item Description
Ethernet
Device Inputs an Ethernet device name.
Connection
Type
Sets the connection type as DHCP or
Static IP.
IP Address Inputs IP Address.
Netmask Inputs subnet mask when the DHCP
function is disabled.
DNS
address
Inputs DNS address when the DHCP
function is disabled.
Default
Router
Inputs Default Router when the
DHCP function is disabled.
•When you set DHCP as a connection
type, you do not need to set the IP
Address, Netmask, or DNS address etc.
•When you set Static IP as a connection
type, you should set the network
connection manually by entering the
IP Address, etc. In this case, some
knowledge of networks is required. If you
do not understand internet connections,
contact your internet service provider.

WD-1 NETWORK AV ADAPTER
14
Setting Other Network Options
Menu item Description
AP Name Views and changes the name of the
unit displayed on the network.
Resolution Sets the resolution of the video
output.
Display size Adjusts the screen display size
manually.
Factory
Setting
Resets all the settings to the factory
default.
Auto Power
Control
Sets the time for the main unit to be
automatically turned off when any
other operation is not inputted.
You can set the time to OFF, 2Hour,
4Hour, 6Hour, or 8Hour. The default
setting value is OFF.
Viewing the Network Information
Network Information
You can view the detailed information of a
connected network.
Passcode Information
You can view and change the passcode of the
main unit. When you use the main unit for the
rst time, you should input this passcode when
you enable Soft AP hotspot and try to connect
the mobile device to the main unit.
Listening to Internet
Radio
You can listen to Internet radio broadcasts
provided by vTuner. You can control the
internet radio with the menu displayed on the
TV screen.
1When the image is displayed as below,
select Internet Radio on the screen, and
then press ENTER on the remote control.

Operating Your Device
English
15
2Select the desired category by pressing
, , , , and then press ENTER on
the remote control.
•To use this function, the unit should
be connected to the internet. Refer to
"Setting the Network Setup" on page 12
for details.
•The service may be discontinued without
notice.
•You may not be able to receive some
internet radio stations.
Listening to Music from
the Media Server
You can play music les stored on a computer
(media server) connected to this unit via a
wired network. You can share the music les
easily by using Windows Media Player 12 or
later versions.
Conguring the Windows Media
Player
On Windows Media Player 12 Version
1Run Windows Media Player 12 on your
computer.
2Click "Stream" at the top of the player.
3Click "More streaming options" and
another dialog box will appear. Locate
WD-1 Media Renderer and click
"ALLOWED" in the list. Then click "OK" to
close the dialog box.
4In the Media Player "Library" (where all
your music is), right click on an Album or
Music le and click on "Play to". Then,
select WD-1 Media Renderer and press
PLAY.
•Windows Media Player 12 can be
downloaded for free from the Microsoft
web site.
•If the rewall restricts access, Windows
Media Player 12 cannot be congured.

WD-1 NETWORK AV ADAPTER
16
Listening to Music from the Media
Server
1Start your computer.
2Select Media Server on the screen, and
then press ENTER on the remote control.
3When "Waiting for request" is displayed
on your monitor at this time you must
select music from your PC in the MEDIA
PLAYER.
Right click on the Music Folder or File
and click on Play to. Then select WD-1
Media Renderer and click PLAY.
•You can install applications that support
DLNA or UPnP from iTunes or Playstore.
Using the Sherwood
Remote Application
Preparing for the Application
Setting the Network on the Main Unit
1Press SETUP on the remote control.
2Tap DirectAV set > Soft AP hotspot or
Wi-Fi direct.
•The WiFi-direct mode is available only on
smartphones that support WiFi-direct.
•Soft AP hotspot is enabled as a default
connection setting.

Operating Your Device
English
17
Installing the Application on Your
Phone
1Visit Play Store on your Android
Smartphone.
Or visit App Store on your iPhone.
2Search for Sherwood Remote.
3Download and install the application on
your phone.
Connecting Your Phone with the Main
Unit
•On an Android phone
1Go to Wireless & networks settings in
your Android smartphone.
2Go to Wi-Fi settings to select and tap
WD-1 and Connect.
•When you connect your phone
with the main unit using a Wi-
Fi hotspot, you should enter the
password(1234567890) for the main
unit connection.
•When a wired network is not connected
to the main unit, you cannot connect your
phone to Internet.
•On an iPhone
1Go to Settings in your iPhone.
2Follow the step 2 that are specied on an
Android phone.
Using the Application
The Sherwood Remote application helps you
to control the main unit remotely by allowing
you to use Wiink.
1Open the Sherwood Remote application.
2Select and tap WD-1 on the smartphone
Wi setting menu to connect. Then, you
can use your smartphone as a remote
control for the main unit.
•When a network error occurs, the
following screen will pop up.
•Select Product: Check your smartphone
network connection, and select the main
unit again.
•Demo Mode: Uses the application in
Demo Mode.
•Retry: Tries to open the application
again.

WD-1 NETWORK AV ADAPTER
18
Using Direct AV
On Direct AV, you can listen to songs, watch
videos, and view photos stored on your Android
phone or iPhone.
1Tap Direct AV.
•: Adjusts the settings.
•: Turns on or off the main unit.
(To activate the function, you should
turn on the Network Standby Control.
Then, the power consumption may
increase. Refer to "Setting the
Network Standby Control" on page
12 for details.)
2Tap AUDIO to listen to the songs stored
on your phone.
Tap VIDEO to watch video stored on your
phone.
Tap PHOTO to view photos stored on
your phone.
•iOS
•For iOS phones, you should synchronize
contents in iTunes to use this function.
•Android
•Background play is available only on
Android smartphones.

Operating Your Device
English
19
Listening to Songs on Your
Smartphone
You can select a song on the song list and play
it over the main unit.
1
4
2
3
8
5
6
7
No. Description
1
Moves to the previous menu
•This menu is not displayed on Android
smartphone.
2
Plays or pauses a song.
3
Plays a previous song.
4
Sets shufe function.
5
Volume control bar
6
Sets the repeat function.
(Repeat for all song or one song.)
7
Plays the next song.
8
Progress bar
Watching Videos on Your Smartphone
You can select a video on the video le list and
enjoy it on the main unit.
1
4
3
2
7
5
6
No. Description
1
Moves to the previous menu
•This menu is not displayed on the
Android smartphone.
2
Plays or pauses a video.
3
Moves to a previous video.
4
Volume control bar
5
Moves to the next video.
6
Controls display size.
7
Progress bar

WD-1 NETWORK AV ADAPTER
20
Viewing Photos on Your Smartphone
You can view photos as a slideshow and set
the slideshow transition time at 5s, 10s, 20s,
30s.
1
2 3
No. Description
1
Moves to the previous menu
•This menu is not displayed on the
Android smartphone.
2
Plays or pauses the photo slideshow.
3
Sets the slideshow transition time.
Using Internet Radio and Media Server
You can use your smartphone as a remote
controller for Internet Radio and Media Server.
1Tap Internet Radio or Media Server.
•This function may not be available
depending on types or functions of a
smartphone or network connection.
