Shop fox W1759 User manual
This heavy-duty welded steel parts washer has a 6 gallon
work-space volume, but is designed to hold a maximum of
3.5 gallons of liquid. Do not overfill.
Specifications
• Overall Size ..........................13"D x 17"W x 9.5"H
• Tub Depth ....................................... 8.5" Deep
• Maximum Liquid Level ....... 3.5 Gallons or 4.5" Deep
• Minimum Liquid Level ..........2 Gallons or 2.5" Deep
• Nozzle Diameter ....................................3.5mm
• Pump Motor ...................... 110V, 0.7 Amp, 60 Hz
• Pump Output ....................................... 30 GPM
• Net Weight ..........................................20 lbs.
COPYRIGHT © DECEMBER, 2007 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC. Printed in China
#10292CR
Model W1759
3.5 Gallon Parts Washer
Instructions
Phone #: (360) 734-3482 • Online Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz
Introduction
Choosing Your Cleaning Solution
Not every cleaning solution is safe to use in your parts
washer. NEVER USE GASOLINE, KEROSENE, FUELS,
STRIPPERS, OR ACIDS OF ANY KIND IN THIS PARTS
WASHER. We recommend non-flammable cleaning solu-
tions with a PH between 6-8, but due to the changing for-
mulas of cleaning solutions, and changing laws and regula-
tions we cannot name a specific solution for you. Some
solutions can be highly flammable and may damage pump
and motor seals, and others can react with what you may
be cleaning and produce harmful fumes.
If you are in doubt about any aspect of your selected
solution, contact the solution manufacturer or refer to
the Materials Safety Data Sheet (MSDS) information, which
can be found on the internet. It is your responsibility to
select a safe solution.
-2-
W1759 3.5-Gallon Parts Washer
• POWER SUPPLY. This machine requires a grounded
110V power supply circuit that is rated for 15A.
• PREVENTING ELECTRICAL SHOCK. Only connect this
parts washer to a properly grounded GFCI (Ground
Fault Circuit Interrupt) receptacle. Test the GFCI
receptacle operation according to switch manufac-
turer recommended intervals.
• GROUND PRONG. Never cut off the ground prong
from the power cord in order to plug the parts wash-
er power cord into an non-grounded wall receptacle
or extension cord.
• PREVENTING FIRE. Do not fill this parts washer with
gasoline, kerosene, fuel, or flammable solvents. Do
not disconnect or modify the automatic lid closure
device in any way. Keep an appropriate class fire
extinguisher close at hand.
• SAFE USAGE. Never smoke, use a drop light, or any
other hand-held ignition source or electrical device
near the parts washer. An ignition source or electri-
cal device that falls into the cleaning solution can
cause severe burns or electrocution.
• PERSONAL PROTECTION. To prevent personal con-
tamination, always wear gloves, goggles, an apron,
and a respirator when using or changing the parts
washer liquid. Wash your hands with soap and water
after every use.
• LOCATION. Make sure that the parts washer is locat-
ed in an area with adequate ventilation to prevent a
buildup of vapors, and always keep the parts washer
away from all sources of ignition.
• SAFE STORAGE. Keep away from children and ani-
mals. Close the lid when not using the parts washer.
• MAINTENANCE. Clean or replace tank filter before
it becomes clogged, and inspect for leaks. Follow
OSHA, EPA, and the manufacturer's solution replace-
ment schedules and disposal regulations.
USE this parts washer with caution and
respect. Always consider safety first,
as it applies to your individual working
conditions. No list of safety guidelines
can be complete—every shop environ-
ment is different. Failure to follow
safety guidelines could result in serious
personal injury or death.
This parts washer is designed to store
cleaning solutions. During storage some
liquids can grow dangerous microbes,
or due to the collection of toxic metal
and contaminants from the items being
washed, the fluid can become a very
poisonous solution to humans and
animals.
USE the correct personal protection
equipment when handling sharp
workpieces to prevent cuts, infections,
and poisoning.
FOLLOW OSHA, EPA, and the fluid
manufacturer's requirements to
properly dispose of cleaning liquids
when it becomes time to change the
liquid.
BIOLOGICAL and POISON
HAZARD!
Operating Voltage Amp Draw Min. Circuit Size Plug/Recommended Plug Extension Cord
110V Operation 0.7 Amps 15A, GFCI NEMA 5-15 16 Gauge
Electrical Specifications
Operation Safety
-3-
W1759 3.5-Gallon Parts Washer

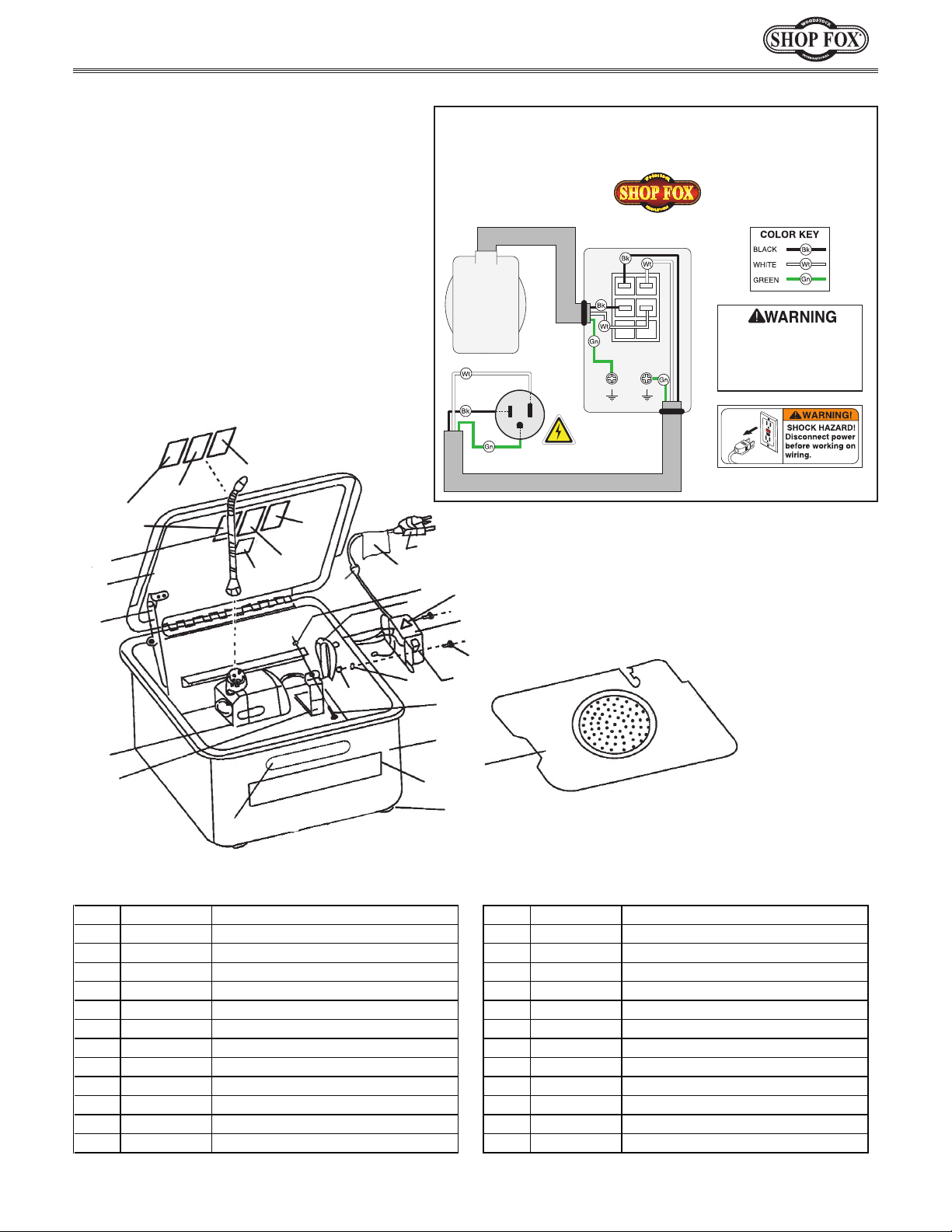

REF PART�# DESCRIPTION REF PART�# DESCRIPTION
1 X1759001 FOOT 14 X1759014 LID
2 X1759002 WORKTABLE 16 X1759016 COMPLETE�FIRE�FUSE�LINK�ASSY
3 X1759003 TUB 18 XPN06M HEX�NUT�M5-.8
4 XPS03 PHLP�HD�SCR�10-24�X�1 19 XPLW01M LOCK�WASHER�5MM
5 X1759005 WATERPROOF�SWITCH 20 X1759020 PUMP�W/PWR�CORD
6 XPS09M PHLP�HD�SCR�M5-.8�X�10 21 X1759021 PUMP�CLAMP
7 X1759007 COVER 22 X1759022 SHOP�FOX�LOGO�LABEL
8 XPN07 HEX�NUT�#10-24 23 X1759023 EYE�SKIN�HAZARD�LABEL
9 X1759009 SWITCH�BOX�W/SWITCH 24 X1759024 NO�SMOKING�LABEL
10 X1759010 STRAIN�RELIEF 25 X1759025 RUBBER�GLOVES�WARNING�LABEL
11 X1759011 GFCI�WARNING�LABEL 26 X1759026 FLAMMABLE�WARNING�LABEL
12 X1759012 POWER�CORD�110V 28 XPLABEL-14 ELECTRICITY�LABEL
13 X1759013 FLEX�HOSE�W/NOZZLE 29 X1759029 DATA�LABEL
Parts
and
Electrical
