SHOPMAX 964106R5 User manual

41" /46" /52"
Mobile Workstation
OPERATOR'S MANUAL
SERIAL NUMBER
PURCHASE DATE
Some instructions and drawings may not apply to your specific unit.
Both model number and
serial number may be found
on the carton.
You should
record both of them in a safe
place forfuture use.
WARNING&.
lltldtl: HS211S5
Carefully read and understand
this entire operator's manual
before installing
and using
this product. Pay attention to
all the cautions
and warnings.
Your Tools. Your Shop."'

,.., .. -· -- ~ - ~ - .... . \ .. , .
: .... --~" Of•& _, >. ' - - ' '
-,..~ '.. ' \ ...
. ,' \ '
• I '\ \
, • , I , .
\ / /'. , , I ,· -
Model
SPECIFICATIONS
DrawerSlide
Weight Rating Weight
Capacity ®
Keep the producton I....J surfaces.
1
964106R5 100 lbs 1000 lbs
964609G7 100 lbs 12001bs
96520955 100 lbs 12001bs
96521155 100 lbs 1200ibs
SYMBOLS
Read and follow all safety rules and operating
instructions.
Keep wheels locked when not moving this
product. This will prevent the product from
rolling.
Close and lock drawers before
movingthiscabinet.
Keep children and bystanders off
and away.
Do not fully open a drawer loaded to full
capacity unless the closed drawers contain a
total
of at least 270 pounds of content.
Distribute contents
of loaded drawers evenly.
Load drawersstarting inthe backfirstand load
forward
as needed.
DO NOT dragwhile moving -always push.
DO NOT step inthedrawers.
Do
not stand onthis product.
DO NOT open morethan onedrawer at a time.
Never exceed maximum weight capacity
for
each drawer or shelf.
DO NOT drop heavy objects into drawers or
push down on open drawers.
DO NOT exceed the maximum height capacity
for each drawer or shelf.
Be careful when closing drawers or doors.
Remove hands before drawers
or doors close
completely.
MfiW.shopmacom

. ' .
' . '
• I .. , I\ ~ '

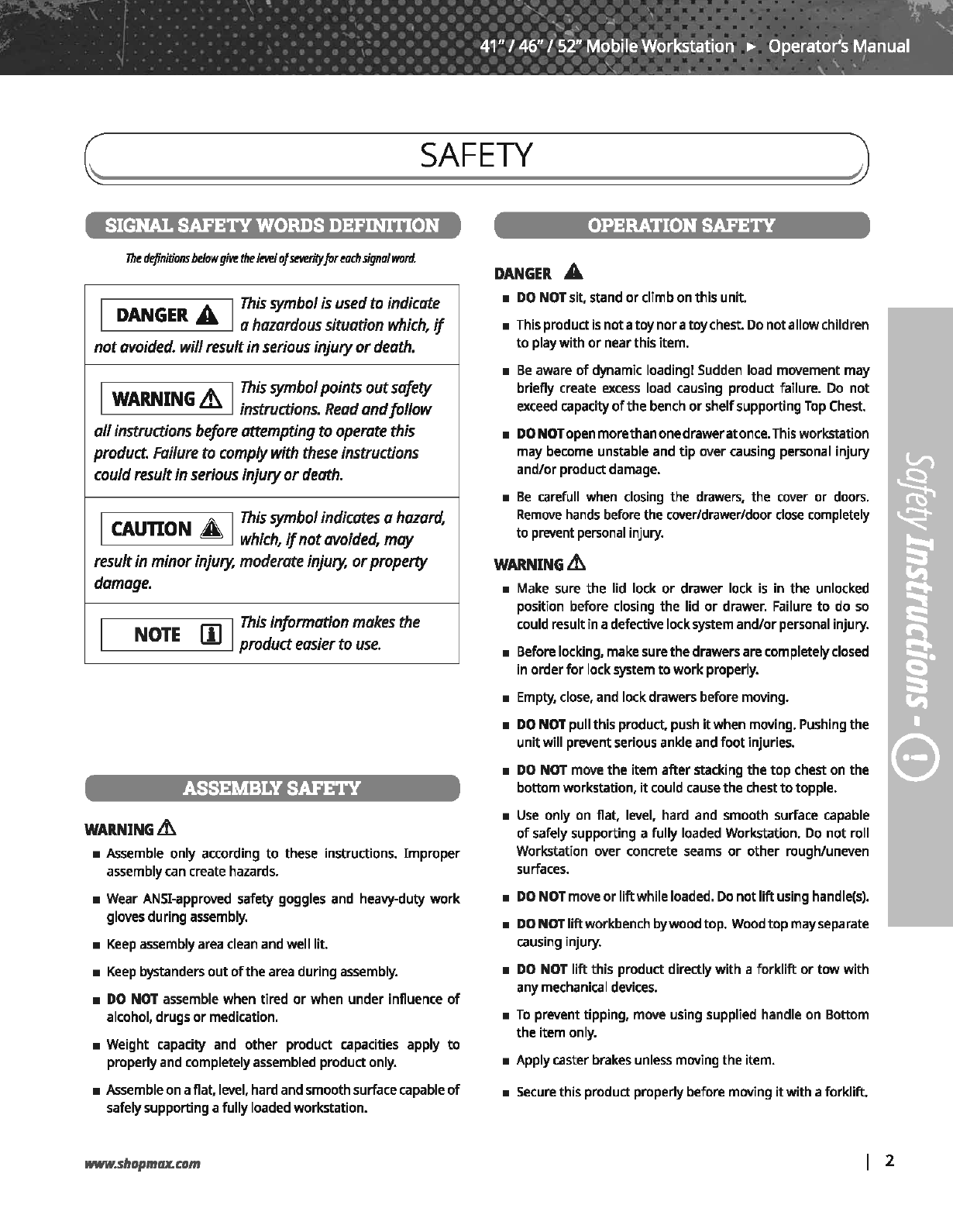

SIGNAL SAFETY WORDS DEFINITION
The definitions be!Dw give the level of severity for each signal word.
I
DANGER A I This symbol is .use~ to ind~cat~
a hazardous sJtuatton wh1ch, if
not avoided. will result in serious injury or death.
I WARNING ,&. I ~is sym_bol points outsafety
mstruct1ons. Read and follow
all instructions before attempting to operate this
product. Failure to comply with these instructions
could result in serious injury or death.
I CAUTION A I Thi~ sy"!bol indi~ates a hazard,
whtch, ifnot avoided, may
result in minor injury. moderate injury. or property
damage.
I
NOTE
[]] I This informa:ion makes the
product eas1er to use.
ASSEMBLY SAFETY
WARNING~
• Assemble only according to these instructions. lmproper
assembly can create hazards.
• Wear ANS£-approved safety goggles and heavy-duty work
gloves during assembly.
• Keep assembly area clean and well lit.
•
Keep bystandersout of the area during assembly.
• DO NOT assemble when tired or when under influence of
alcohol, drugs or medication.
• Weight
capacity and other product capacities apply to
properly and completely assembled product only.
• Assemble on aflat, level, hard and smoothsurface capable of
safelysupporting afully loaded workstation.
www.shopmax..com
. .. .
41" /46"/52" MobileWorkstation .,.. Operator's Manual
'- '\ " I
... ' \. .
OPERATION SAFETY
DANGER A
• DO NOT sit, stand orclimb on this unit.
•
This product Is notatoynoratoy chest. Do notallowchildren
toplaywith
or nearthisitem.
•
Be aware of dynamic loading! Sudden load movement may
briefly
create excess load causing product failure. Do not
exceed capacity of the bench orshelfsupporting Top Chest.
• DO NOT open morethanonedrawerat once. This workstation
may
become unstable and tip over causing personal injury
and/orproduct
damage.
• Be careful! when closing the drawers, the cover or doors.
Remove hands before the cover/drawer/door close completely
to prevent personal injury.
WARNING~
• Make sure the lid lock or drawer lock is in the unlocked
position before closing the lid or drawer. Failure to do so
could resultinadefective lock system and/or personal injury.
•
Before locking, make sure thedrawers are completely closed
in orderforlock system toworkproperly.
•
Empty, close, and lockdrawers before moving.
•
DO NOT pullthis product push it when moving. Pushing the
unitwill prevent
serious ankle and footinjuries.
•
DO NOT move the item after stacking the top chest on the
bottomworkstation,
it could cause the chest to topple.
•
Use only on flat, level, hard and smooth surface capable
of safely supporting a fully loaded Workstation. Do not roll
Workstation
over concrete seams or other rough/uneven
surfaces.
• DO NOT move orliftwhile loaded. Do notliftusing handle(s).
• DO NOT liftworkbench bywoodtop. Wood top may separate
causing injury.
•
DO NOT liftthis product directly with a forklift ortow with
any mechanical devices.
• To prevent tipping, move using supplied handle on Bottom
the item
only.
• Apply caster brakes unless moving the item.
•
Secure thisproduct properlybefore moving it with aforklift.
I 2

.............. . - ~ . ~ --
: ..., ___ ~_...--v..... .._, .. -.-.. - . , ..
- ,...__.._ " . . '
' ' . \ \ '
, I ' I "'
' ., ~ '
\ ' ' , I ,
I I ·, f , .
3
• DO NOT tow the product by mounting on truckbed or any
other moving object. This may cause personal injure
or
productdamage. Mountingthisproduct ot anyvehicle in any
mannerwillvoid warranty.
•
Use as intended only. Do not use for food preparation.
• DO NOT alterthis product in anymanner. For example, do
not weldexternal lockbars or attach electrical equipment.
• Inspect before every use;
do not use if parts are loose or
damaged.
• Maintain product labels and nameplates. These carry
importantsafety information.
If unreadable or missing, Call
us at U1-321-IJ5f6 or Uf.Y~ email us at info~.
com for a replacement.
www . shopmtnt.com

' ..
' ... ' ,
' ·, '' -\ , .......
'.. '
41" /46"/52" MobileWorkstation .,.. Operator's Manual
I
' \. '
' ' \. .
Use sdssols or a knife to cut all the straps. Uft off the carton and dispose of property. (SH Flgurt 1&2}
Ct11't:Dn
'
~
e
'"*""'" ..
""-
Bottom Com
~
I~
Ptlllet
ret:
~
em:
www.shopmax.com I 4

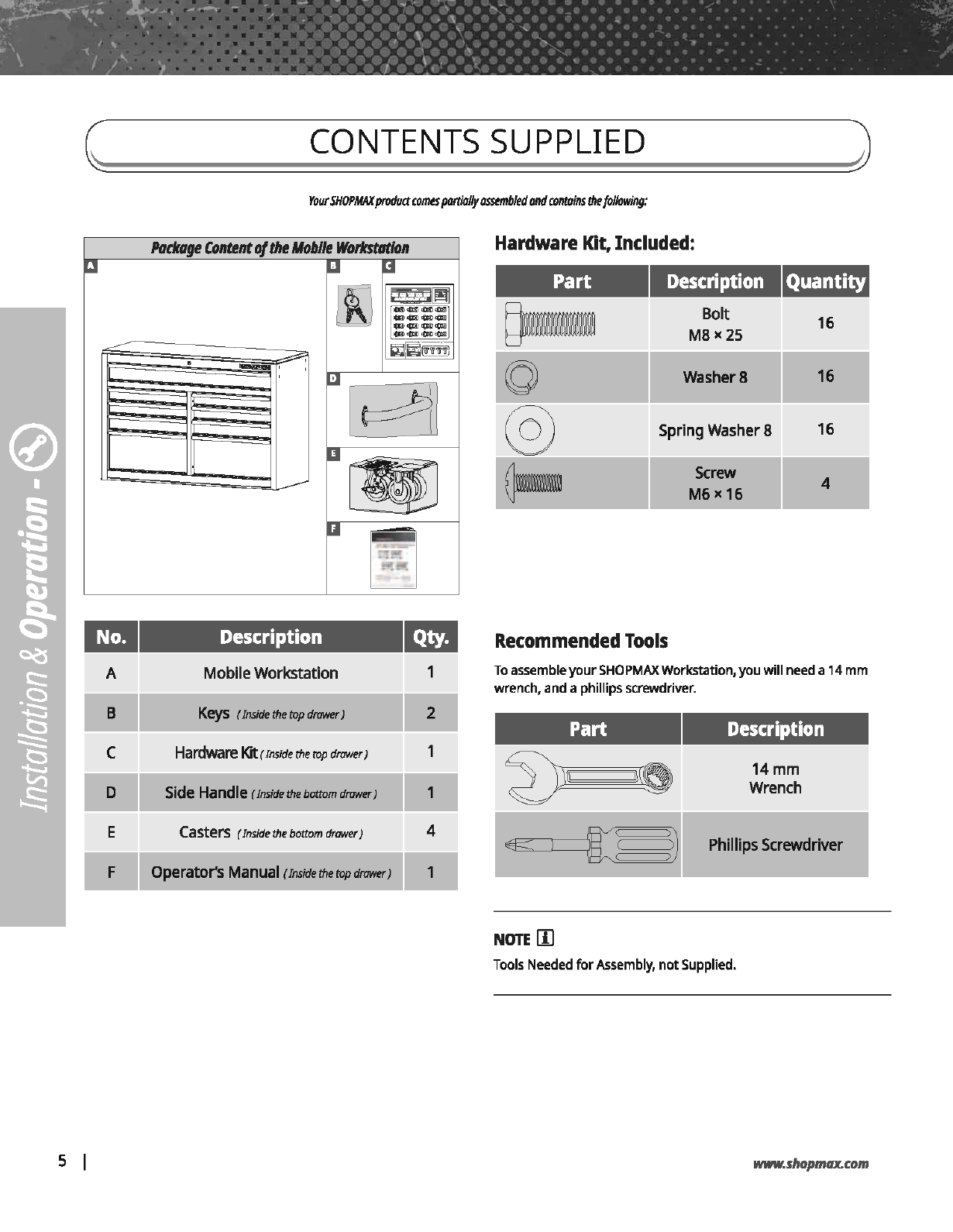

C ~======= C = O = N = T = E = NT = S = S = U = P = PL = IE = D ======~ )
tl
=--
IL
A
c
E
s I
Your SHOPMAX product comes partially assembled and contains the fallowing:
P«kage Content of the Mobile Workstation
ll lt
00
~R
~cm•1
l aooo•oo
~<(ODOD <(ODOD
ODODODOD
~
WiJ n~
• -·
'
l:.J
~
~ [JIJ
•
[1
Description
MobileWorkstation 1
Keys (Inside the top drawer J
Hardware Kit (Inside the top drawer J 1
Side Handle (Insidethebottomdrawer)
Casters (Inside the bottom drawer) 4
Operator's Ma nua I (Inside the top drawer)
Hardware Kit.Included:
Part Description
Bolt
MB x 25 16
0
WasherS
16
@
Spring Washer 8 16
(J-a
Screw
4
M6 x 16
Recommended Tools
To assemble your SHOPMAX Workstation,you will need a14 mm
wrench, and a phillipsscrewdriver.
NOTE [I)
Description
14mm
Wrench
Phillips Screwdriver
Tools Needed for Assembly, not Supplied.
MfiW.shopmacom

' ..
' ... ' ,
' ·, '' -\ , .......
CAUTION A
Two people are recommended for assembly.
SIDE HANDLE INSTALLATION
Position the sidehandleover the holeson the workstation.Attach
with the four screws and tighten with a phillips screwdriver(not
supplied}.
Figure3
CASTERS INSTALLATION
1. Be sure the drawersarelockedand lay the workstationonits
backside. Using packing material
to protect the unit.
2. Attach the two locking swivel casters to the bottom of the
workstation, on the same side as the side handle, tighten
with bolts, springwashers and flat washers.
NOTE (I]
Make sure to install both locking swivel casters on the handle
side
of workbench.
Figure4
www.shopmax.com
'.. '
41" /46"/52" MobileWorkstation .,.. Operator's Manual
I
' \. '
' ' \. .
3. Repeat to install the two static casters on the opposite side
of the workstation.
FigureS
I 6

,.., .. . - ~ - .... . .
: ...,.~-~:..-- ... ~.... ./J. - ~ - ' \ .. ,
-,..~ '.. ' . -. '
' ' \ ' '
, I " I ""'
• 'I , '
\ / /' , , I . '. ,
. I I I
WARNINGLh
For safety, evenly disribute the weight of tools between all
drawers. The even distribution will prevent
the unit from
becoming
top heavyand accidentallytipping when a drawer is
opened.
7 I

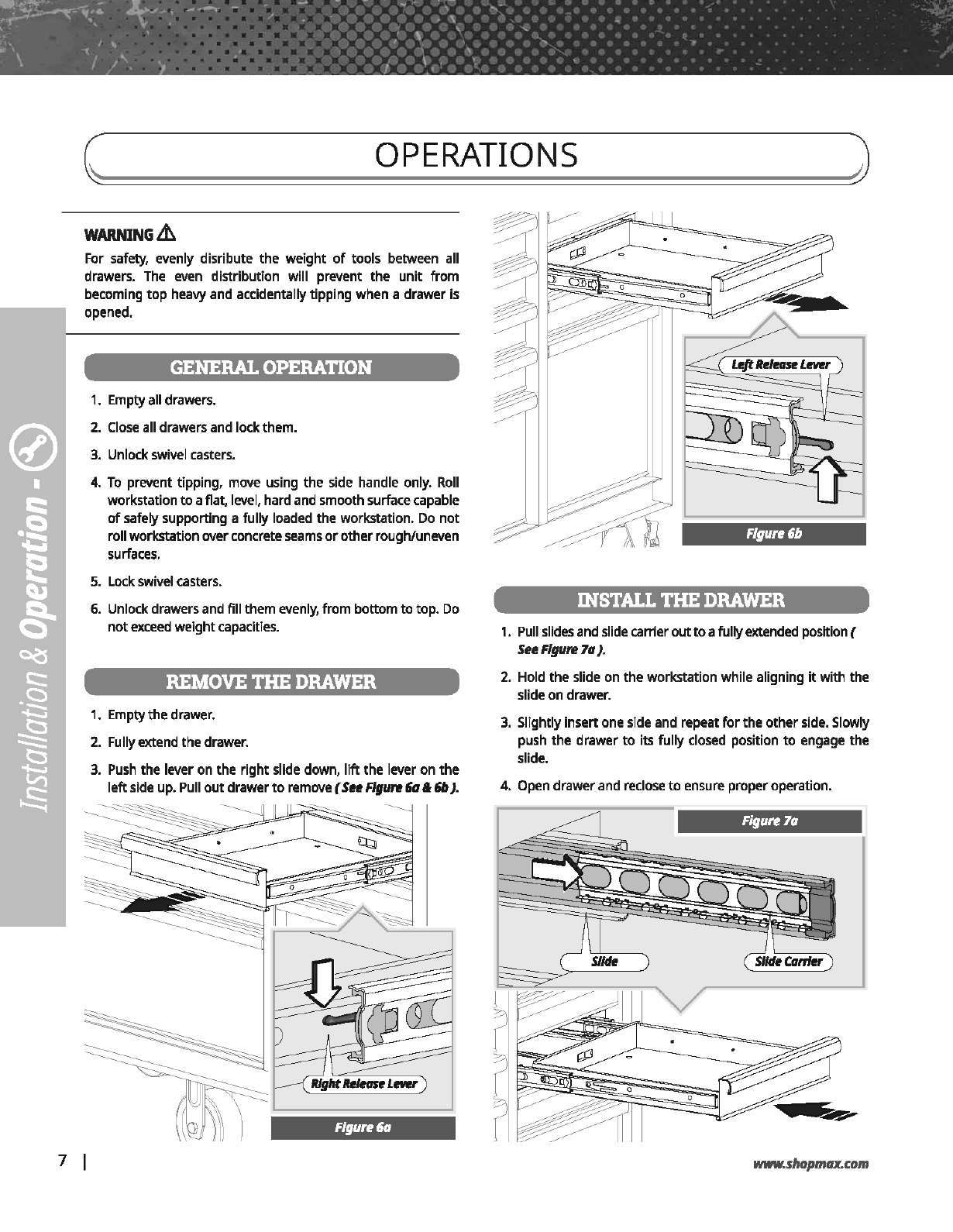

GENERAL OPERATION
1. Emptyall drawers.
2. Close all drawersand lockthem.
3. Unlockswivel casters.
4. To prevent tipping, move using the side handle only. Roll
workstation to aflat, level, hard and smoothsurfacecapable
of safely supporting a fully loaded the workstation. Do not
rollworkstationoverconcreteseams or otherrough/uneven
surfaces.
5. Lockswivel casters.
6. Unlockdrawersand fill them evenly, from bottom to top. Do
not exceed weightcapacities.
REMOVE THE DRAWER
1. Empty the drawer.
2. Fullyextend the drawer.
3. Push the lever on the right slide down, lift the lever on the
left side up. Pull out drawer to remove (See Figure 6a & 6b ).
Flgure6a
Flgure6b
INSTALL THE DRAWER
1. Pull slides and slide earner out to afullyextended position(
See Figure 7a ).
2. Hold the slide on the workstation while aligning it with the
slideon drawer.
3. Slightly insertone side and repeat for the other side. Slowly
push
the drawer to its fully closed position to engage the
slide.
4. Open drawerand reclose
to ensure properoperation.
Figure7a
MfiW.shopmacom

. .
... ~ .
• I
' ·, '' _, , '
\ ... \ ....,
Figure7b

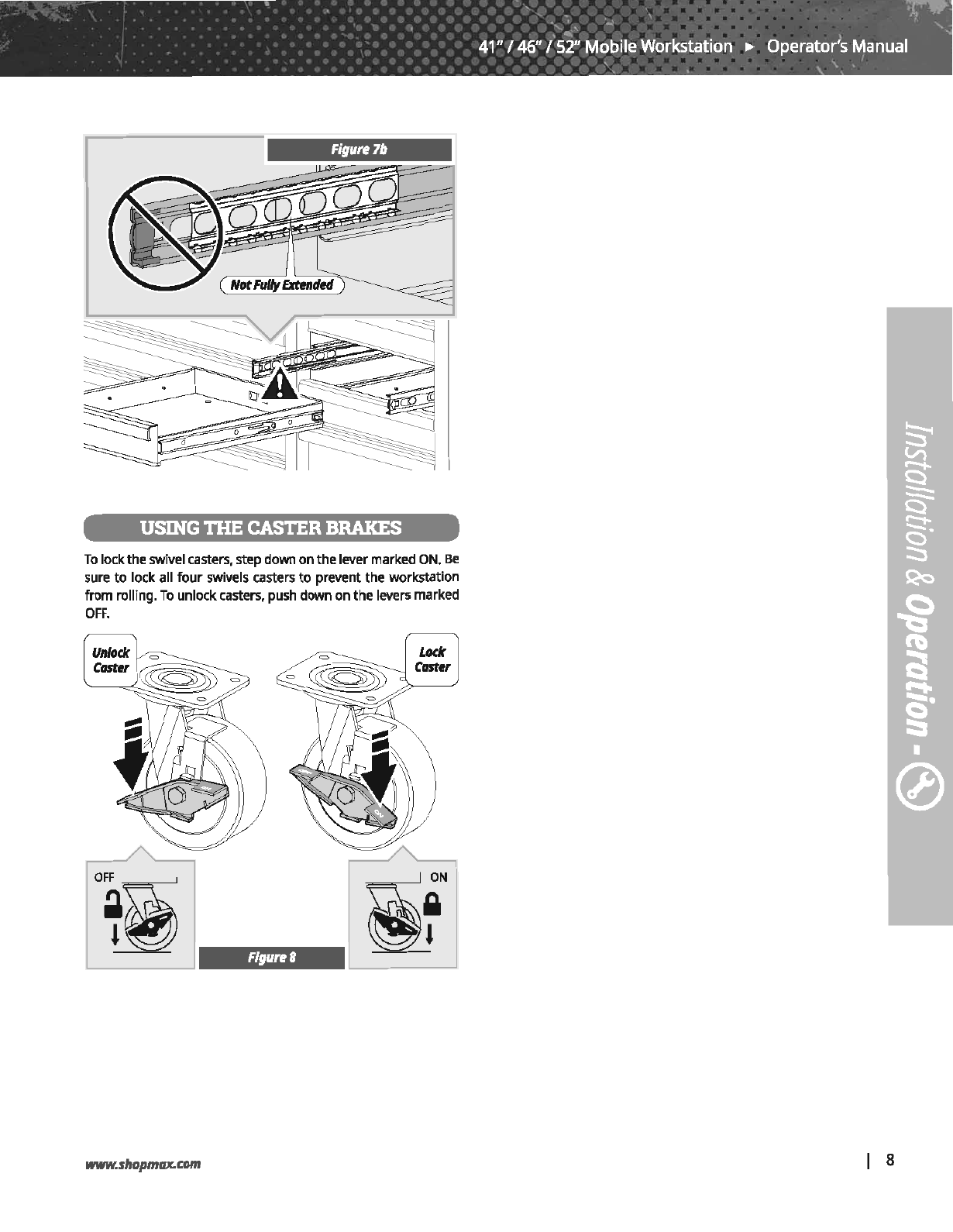

USING THE CASTER BRAKES
To lock the sw i vel casters, step down on the lever marked ON. Be
sure to lock all four swivels casters to prevent the workstation
from rolling.
To unlock casters, push down on the levers marked
OFF.
FigureS
lllfWW.shopmax.com
41" /46"/52" MobileWorkstation .,. Operator's Manual
I
' \. '
' ' \. '
I s

,.., .. . - ~ - .... . .
: ...,.~-~:..-- ... ~.... ./J. - ~ - ' \ .. ,
-,..~ '.. ' . -. '
' ' \ ' '
, I " I ""'
• 'I , '
\ / /' , , I . '. ,
. I I I
WARNING&
Procedures not specifically explained in this manual must be
performedonly by aqualified technician.
WARNING&
To prevent serious injuryfrom tool failure, do not use damaged
equipment. If any part becomes damaged, have the problem
corrected beforefurther use.
PERIODICAL INSPECTION
• Loose hardware.
Slides
Figure I
• Misalignmentorbinding of moving parts.
•
Brake operation.
Lubricate the slides semi-annuallywith high quality, petroleum-
based lubricant. This may be required more often if operating
thetool box
in colder climates.
9
• Caster swivel function and movement.
• Cracked or broken parts.
•
Any other condition that may affect its safe operation.
CLEAN
• Use milddetergent and waterto clean drawerfronts, drawer
trim
and the other steel surfaces. Avoid harsh, abrasive
cleaners, and other corrosive chemicals.
• Grease and oil can be removed with standard, non-abrasive,
nonflammable cleaning products.
•
Keep dry and avoid damp environments.
•
Wood top can be cleaned with damp cloth and wiped dry
immediatelywith dry cloth.
If needed, solvent-based wood
furniture cleaner can be used.
• Clean up any spills immediately to prevent stains from
forming
on the wood top.
LUBRICATION
Casters
Lubricate the casters once ayearwith high quality ball bearing
grease. This may be required more often if operating the tool
box in colder climates .
Secure Latch Retention Drawer
Slide for 9641 06R5 & 964609G7
'---Da.~mpe:----'---'
( lklll-baring
\{
Figure1QQ
MfiW.shopmacom

. .
... ~ .
• I
' ·, '' _, , '
\ ... \ ....,
41" /46"/52" MobileWorkstation .,. Operator's Manual
I
' \. '
' ' \. '
Soft Close IJtrJwl' Slide ftJr
1955• H52t1S5
9fiSZ
( lltiiJ.befriJg )
\I
- .,.
'11
t::::::::::r
~~J
€J mcoo o:
~
,...., ~ ,...., ~~ ~,....,
~
.... ~
Figure10b
lllfWW.shopmax.com
1 10

,.., .. . - ~ - .... . .
: ...,.~-~:..-- ... ~.... ./J. - ~ - ' \ .. ,
-,..~ '.. ' . -. '
' '
' ' \
, I " I ""'
• 'I , '
\ / /' , , I . '. ,
. I I I
964106R5EXPLODED VIEWS
964609G7EXPLODED VIEWS
11 1
No.
2
3
4
5
6
7
8
9
10
11
12
No.
2
3
4
5
6
7
8
9
10
11
12
964106R5 PART LIST
Description
Key (2 pieces)
Lock
Wooden Top
Cross Recessed Flat Round Head
Screw M6x16
Side Handle
Drawer Slide
Drawer Slide (Secure Latch
Retention)
Swivel Caster-5"x2"
WasherS
Spring Washer 8
Bolt
M8x25
Static Caster-S"x2"
964609G7 PART IJST
Description
Key (2 pieces)
Lock
Wooden Top
Cross Recessed Flat Round Head
Screw M6x16
Side Handle
Drawer
Slide
Drawer Slide (Secure Latch
Retention)
Swivel Caster-S"x2"
Washer 8
Spring Washer 8
Bolt
M8x25
Static Caster-S"x2"
Qty.
2
1
1
4
1
6
12
2
16
16
16
2
2
1
1
12
1
5
22
2
16
16
16
2
MfiW.shopmacom

. .
... ~ .
965209S5EXPLODED VIEWS
965211S5EXPLODED VIEWS
lllfWW.shopmax.com
• I
' ·, '' _, , '
\ ... \ ....,
41" /46"/52" MobileWorkstation .,. Operator's Manual
I
No.
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
' \. '
' ' \. '
965209S5PART LIST
Description
Key (2 pieces)
Lock
Wooden Top
--~'
Cross Recessed Flat Round Head
Screw M6x16
Side Handle
Drawer Slide
Drawer Slide (Soft Close)
Swivel Caster-5"x2"
Washers
Spring
Washer 8
Bolt M8x25
Static Caster-S"x2"
965211S5PART LIST
Description
Key (2 pieces)
Lock
Wooden Top
Cross Recessed Flat Round Head
Screw M6x16
Side Handle
Drawer Slide
Drawer Slide (Soft Close)
Swivel Caster-5"x2"
WasherS
Spring Washer 8
Bolt M8x25
Static Caster-5"x2"
Qty.
2
1
1
12
1
5
18
2
16
16
16
2
2
1
1
12
1
5
22
2
16
16
16
2
1 12

,.., .. . - ~ - .... . .
: ...,.~-~:..-- ... ~.... ./J. - ~ - ' \ .. ,
-,..~ '.. ' . -. '
' '
' ' \
, I " I ""'
• 'I , '
\ / /' , , I . '. ,
. I I I
13 1
WARRANTY INFO
The warranty set forth below is given by YARDMAX with respect to new merchandise purchased and used
in the United States and/or its territories and possessions. YARDMAX warrants its product, subject to
limitations and exclusions below, against defects in material and workmanship for a period of three (3)
years commencing on the date of original purchase, and will, atits discretion, repair or replace, free of
charge to the customer, any partfound to be defective in material or workmanship when the product is
solely used for residential purposes during the three (3) year period.
LIMITATIONS AND EXCLUSIONS
YARDMAX~ warranty does not cover normal wear and tear, neglect, accident, improper assembly,
improper maintenance, modification, alteration, improper repair, use of parts not approved by YARDMAX
or product damage due to misuse by the customer. Replacement of products or parts due to normal
wear and tear is the responsibility of the customer. Proof of original purchase is required. The warranty
is non-transferrable. This limited warranty shall only apply if the product has been assembled, operated,
and maintained in accordance with Owner~ Manual supplied with the product. No Implied Warranty,
including any implied warranty of merchantability or fitness for a particular purpose, applies after
the expiration of the applicable period of express written warranty provided above. No other express
warranty, whether written or oral, except mentioned herein, given by any person or entity, including a
dealer or retailer, with respect to any product, shall bind YARDMAx. The provisions as set forth herein in
this warranty provide the sole and exclusive remedy arising from the sale. YARDMAX shall notbe liable for
incidental or consequential damages to the extent allowable by law. The customer may have other rights
not disclosed herein; and they may vary from state to state.
Have questions aboutyour SHOPMAX equipment?
Call us at 847-327-o566 or 844-YARDAfA.Jt email us at [email protected].
MfiW.shopmacom

. .
... ~ .
• I
' ·, '' _, , '
\ ... \ ....,
41" /46"/52" MobileWorkstation .,. Operator's Manual
I
' \. '
' ' \. '
lllfWW.shopmax.com
1 14

847-327-0566 | [email protected]
shopmax.com
Your Tools. Your Shop.™
REV 1: 01/22
