Show Tec QubiQ F1500 User manual

QubiQ F1500
Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands
Product code: 61080
USER MANUAL
ENGLISH
V1

1
QubiQ F1500
Product code: 61080
Preface
Thank you for purchasing this Showtec product.
The purpose of this user manual is to provide instructions for the correct and safe use of this product.
Keep the user manual for future reference as it is an integral part of the product. The user manual shall be
stored at an easily accessible location.
This user manual contains information concerning:
●Safety instructions
●Installation and operation of the device
●Intended and non-intended use of the device
●Maintenance procedures
●Troubleshooting
●Transport, storage and disposal of the device
Non-observance of the instructions in this user manual may result in serious injuries and damage of
property.
©2022 Showtec. All rights reserved.
No part of this document may be copied, published or otherwise reproduced without the prior written
consent of Highlite International.
Design and product specifications are subject to change without prior notice.
For the latest version of this document or other language versions, please visit our website
www.highlite.com or contact us at [e-mail].
Highlite International and its authorized service providers are not liable for any injury, damage, direct or
indirect loss, consequential or economic loss or any other loss arising from the use of, or inability to use or
reliance on the information contained in this document.

2
QubiQ F1500
Product code: 61080
Table of contents
1. Introduction..........................................................................................................................................................4
Before Using the Product ..................................................................................................................................4
Intended Use .......................................................................................................................................................4
Product Lifespan.................................................................................................................................................4
Text Conventions ................................................................................................................................................4
Symbols and Signal Words................................................................................................................................5
Symbols on the Information Label ..................................................................................................................5
2. Safety ....................................................................................................................................................................6
Warnings and Safety Instructions ....................................................................................................................6
Requirements for the User.................................................................................................................................9
3. Description of the Device .................................................................................................................................10
Front View ..........................................................................................................................................................10

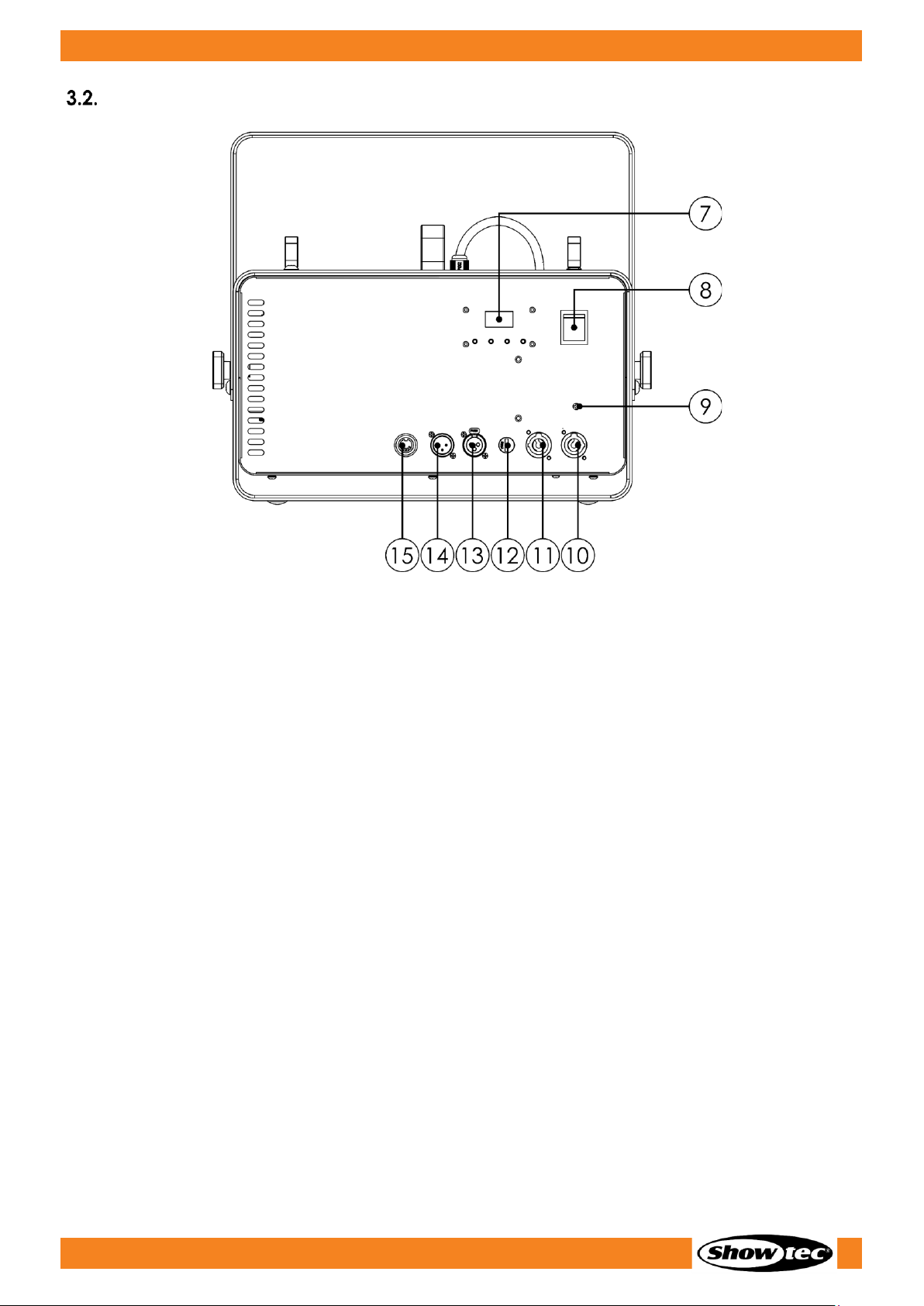

Back View ..........................................................................................................................................................11

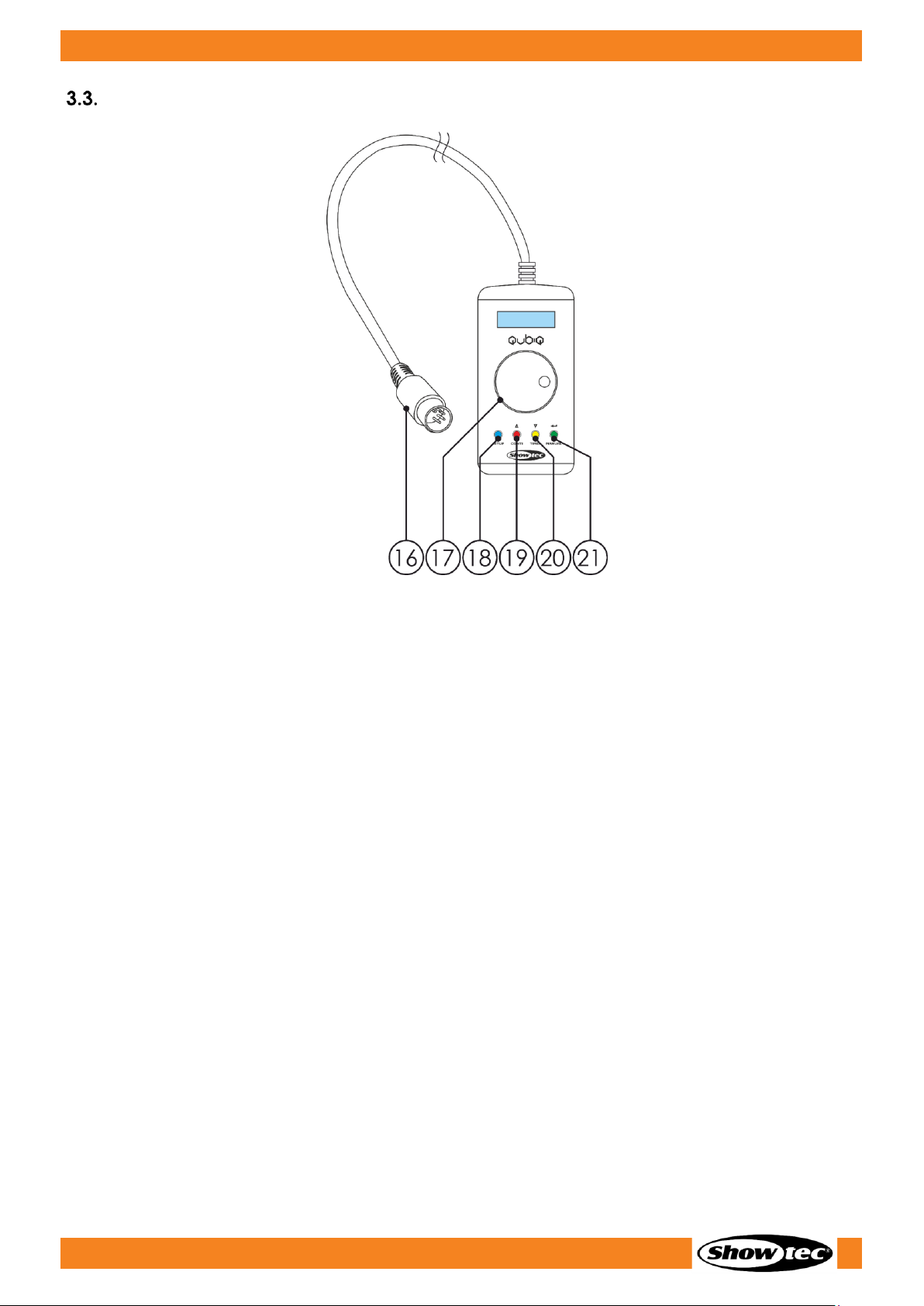

Remote Control ................................................................................................................................................12
Product Specifications ....................................................................................................................................13
Dimensions.........................................................................................................................................................14
4. Installation ..........................................................................................................................................................15
Safety Instructions for Installation ..................................................................................................................15
Personal Protective Equipment .....................................................................................................................15
Installation Site Requirements ........................................................................................................................15
Rigging ...............................................................................................................................................................15
Connecting to Power Supply.........................................................................................................................17
Power Linking of Multiple Devices.................................................................................................................17
5. Setup ...................................................................................................................................................................18
Warnings and Precautions .............................................................................................................................18
Stand-alone Setup ...........................................................................................................................................18
DMX Connection..............................................................................................................................................18
DMX-512 Protocol...................................................................................................................................18
DMX Cables.............................................................................................................................................19
DMX Linking .............................................................................................................................................19
DMX Addressing......................................................................................................................................20
6. Operation ...........................................................................................................................................................21
Safety Instructions for Operation...................................................................................................................21
Recommended Fog Fluid...............................................................................................................................21
Filling the Tank ...................................................................................................................................................22
Emptying the Tank after Operation ..............................................................................................................25
Restarting the Device after Running the Tank empty...............................................................................28
Control Modes ..................................................................................................................................................28
Manual Operation ...........................................................................................................................................29
Control Panel (Device)..........................................................................................................................29
Start-up .....................................................................................................................................................30
Menu Overview (Device) .....................................................................................................................31
Main Menu Options (Device) ..............................................................................................................32
DMX Address .......................................................................................................................................32
Output Volume...................................................................................................................................32
Fan Speed ...........................................................................................................................................32
Interval..................................................................................................................................................33
Duration................................................................................................................................................33
Fluid Sensor ..........................................................................................................................................33
Pump Mode ........................................................................................................................................33
Restore Default ...................................................................................................................................34
About....................................................................................................................................................34
Manual Operation with Remote Control.....................................................................................................35

3
QubiQ F1500
Product code: 61080
Remote Control ......................................................................................................................................36
Start up (Remote Control) ....................................................................................................................36
Main Menu (Remote Control)..............................................................................................................37
Menu Overview (Remote Control) .....................................................................................................37
Setup.....................................................................................................................................................38
Output Volume...................................................................................................................................39
Fan Speed ...........................................................................................................................................39
Duration................................................................................................................................................39
Interval..................................................................................................................................................39
Save ......................................................................................................................................................39
Continuous Output ............................................................................................................................40
Timer / Interval ....................................................................................................................................40
Version ..................................................................................................................................................40
DMX Operation.................................................................................................................................................41
DMX Channels ........................................................................................................................................41
7. Troubleshooting .................................................................................................................................................42
8. Maintenance .....................................................................................................................................................43
Safety Instructions for Maintenance.............................................................................................................43
Preventive Maintenance................................................................................................................................43
Basic Cleaning Instructions ...................................................................................................................44
Cleaning the Fluid Pipes........................................................................................................................44
Corrective Maintenance................................................................................................................................45
Replacing the Fuse ................................................................................................................................45
9. Deinstallation, Transportation and Storage ....................................................................................................46
Instructions for Deinstallation..........................................................................................................................46
Instructions for Transportation ........................................................................................................................46
Storage...............................................................................................................................................................46
10. Disposal ..............................................................................................................................................................46
11. Approval.............................................................................................................................................................46

4
QubiQ F1500
Product code: 61080
1. Introduction
Before Using the Product
Important
Read and follow the instructions in this user manual before installing, operating or
servicing this product.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual.
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your
Highlite International dealer.
Your shipment includes:
●Showtec QubiQ F1500
●Remote control
●2 x safety eye
●Schuko to pro power cable (1,5 m)
●User manual
Fig. 01
Intended Use
This device is designed to be used as a professional fog effect. Any incorrect use may lead to hazardous
situations and result in injuries and material damage. This device is not suitable for households.
Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use.
Product Lifespan
This device is not designed for permanent operation. Disconnect the device from the electrical power
supply when the device is not in operation. This will reduce the wear and will improve the device’s
lifespan.
Text Conventions
Throughout the user manual the following text conventions are used:
●Buttons: All buttons are in bold lettering, for example “Press the UP/DOWN buttons”
●References: References to chapters and parts of the device are in bold lettering, for example:
“Refer to 2. Safety”, “turn the adjustment screw (02)”
●0–255: Defines a range of values
●Notes: Note: (in bold lettering) is followed by useful information or tips

5
QubiQ F1500
Product code: 61080
Symbols and Signal Words
Safety notes and warnings are indicated throughout the user manual by safety signs.
Always follow the instructions provided in this user manual.
DANGER
Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
Attention
Indicates important information for the correct operation and use of the
product.
Important
Read and observe the instructions in this document.
Electrical hazard
Hot surface
Eye damage hazard
Provides important information about the disposal of this product.
Symbols on the Information Label
This product is provided with an information label. The information label is located on the backside of the
device.
The information label contains the following symbols:
This device is designed for indoor use.
This device shall not be treated as household waste.
This device falls under IEC protection class I.

6
QubiQ F1500
Product code: 61080
2. Safety
Important
Read and follow the instructions in this user manual before installing, operating or
servicing this product.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual.
Warnings and Safety Instructions
DANGER
Danger for children
For adult use only. The device must be installed beyond the reach of children.
●Do not leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within
children’s reach. Packaging material is a potential source of danger for children.
DANGER
Electric shock caused by dangerous voltage inside
There are areas within the device where dangerous touch voltage (> 120 V DC) may be present.
●Do not open the device or remove any covers.
●Do not operate the device if the covers or the housing are open. Before operation, check if the
housing is firmly closed and all screws are tightly fastened.
●Disconnect the device from electrical power supply before service and maintenance, and when the
device is not in use.
DANGER
Electric shock caused by short-circuit
This device falls under IEC protection class I.
●Make sure that the device is electrically connected to ground (earth). Connect the device only to a
socket-outlet with ground (earth) connection.
●Do not cover the ground (earth) connection.
●Do not bypass the thermostatic switch or fuses.
●For replacement use fuses of the same type and rating only.
●Do not let the power cable come into contact with other cables. Handle the power cable and all
connections with the mains with caution.
●Do not modify, bend, mechanically strain, put pressure on, pull or heat up the power cable.
●Make sure that the power cable is not crimped or damaged. Examine the power cable periodically
for any defects.
●Do not immerse the device in water or other liquids. Do not install the device in a location where
flooding may occur.
●Do not use the device during thunderstorms. Disconnect the device from the electrical power supply
immediately.

7
QubiQ F1500
Product code: 61080
WARNING
Risk of explosion caused by incorrect handling
●Do not add flammable liquids such as perfume and alcohol to the fog fluid.
●Operate the device only with the fluids recommended in this user manual.
CAUTION
Risk of health problems
●Operate the device only with the fluids recommended in this user manual. Other fluids may contain
substances, which are hazardous for human health and environment.
●Always refer to the Safety Data Sheet (SDS) of the fluid before to use.
●Do not swallow the fluid.
●Do not point the fog output at face height.
●Make sure that you use the device in spaces that have good airflow.
Persons, who suffer from respiratory disorders, should avoid prolonged exposure to artificially produced
atmospheric effects.
Attention
Risk of fire
●Do not point the fog output at flames.
●Do not cover the air vents.
●Make sure that there is sufficient airflow around the device.
Attention
Power supply
●Before connecting the device to the power supply, make sure that the current, voltage and
frequency match the input voltage, current and frequency specified on the information label on the
device.
●Make sure that the cross-sectional area of the extension cords and power cables is sufficient for the
required power consumption of the device.
Attention
General safety
●Do not operate the device without liquid.
●Do not point the fog output at smooth floors. The fog output can cause condensation, which can
make the floor slippery.
●Do not insert objects into the air vents.
●Do not switch the device on and off in short intervals. This decreases the device’s life.
●Do not shake the device. Avoid brute force when installing or operating the device.

8
QubiQ F1500
Product code: 61080
●If the device is dropped or struck, disconnect the device from the electrical power supply
immediately.
●If the device is exposed to extreme temperature variations (e.g. after transportation), do not switch it
on immediately. Let the device reach room temperature before switching it on, otherwise it may be
damaged by the formed condensation.
●If the device fails to work properly, discontinue the use immediately.
Attention
For professional use only
This device shall be used only for the purposes it is designed for.
This device is designed to be used as a professional fog effect. Any incorrect use may lead to hazardous
situations and result in injuries and material damage.
●This device is not suitable for households.
●This device is not designed for permanent operation.
●This device does not contain user-serviceable parts. Unauthorized modifications to the device will
render the warranty void. Such modifications may result in injuries and material damage.
Attention
Before each use, examine the device visually for any defects.
Make sure that:
●The fluid tank is closed.
●All screws used for installing the device or parts of the device are tightly fastened and are not
corroded.
●The safety devices are not damaged.
●There are no deformations on housings, fixations and installation points.
●The power cables are not damaged and do not show any material fatigue.

9
QubiQ F1500
Product code: 61080
Attention
Do not expose the device to conditions that exceed the rated IP class conditions.
This device is IP20 rated. IP (Ingress Protection) 20 class provides protection against solid objects greater
than 12 mm, such as fingers, and no protection against harmful ingress of water.
Requirements for the User
This product may be used by ordinary persons. Maintenance may be carried by ordinary persons.
Installation and service shall be carried out only by instructed or skilled persons. Contact your Highlite
dealer for more information.
Instructed persons have been instructed and trained by a skilled person, or are supervised by a skilled
person, for specific tasks and work activities associated with the installation, service and maintenance of
this product, so that they can identify risks and take precautions to avoid them.
Skilled persons have training or experience, which enables them to recognize risks and to avoid hazards
associated with the installation, service and maintenance of this product.
Ordinary persons are all persons other than instructed persons and skilled persons. Ordinary persons
include not only users of the product but also any other persons that may have access to the device or
who may be in the vicinity of the device.

10
QubiQ F1500
Product code: 61080
3. Description of the Device
The Showtec QubiQ F1500 is a professional 1500 W fazer with a high airflow radial fan. This fazer is reliable,
safe and feature-rich. In addition, it has a practical and nice looking design. It will be your best smoking
friend at small to large venues.
The smoke intensity is seamlessly adjustable from 0–100 % with a sophisticated microcontroller for precise
control. Not only can you control the fazer manually, but also via DMX or included timer remote control.
The QubiQ F1500 is reliable since it can provide a continuous output and it has a comprehensive security.
It has an accurate and reliable temperature control (double over temperature protection), as well as a
sensor to know when the liquid is almost empty.
Front View
Fig. 02
01) 2,3 L tank
02) Carrying handle
03) Bracket
04) Safety eye
05) Adjustment screw
06) Fog output nozzle

11
QubiQ F1500
Product code: 61080
Back View
Fig. 03
07) LED display with Menu buttons
08) ON / OFF
09) Ground/earth connection
10) Pro power connector (Gray) OUT
11) Pro power connector (Blue) IN
12) Fuse F8AL /250 V
13) 3-pin DMX signal connector OUT
14) 3-pin DMX signal connector IN
15) 5-pin Remote control connector IN

12
QubiQ F1500
Product code: 61080
Remote Control
Fig. 04
16) Special 5-pin connector with 3,5 m cable
17) Control Wheel
18) Blue SETUP Button
19) Red PLUS / CONTI
20) Yellow MINUS / TIMER Button
21) Green ENTER / MANUAL Button

13
QubiQ F1500
Product code: 61080
Product Specifications
Model:
QubiQ F1500
Electrical:
Input voltage:
240 V AC, 50/60 Hz
Power consumption:
1500 W
Fuse:
F8AL /250 V
Physical:
Dimensions:
385 x 412 x 335 mm (LxWxH)
Weight:
15,1 kg
Fogger capacity:
Heater:
1500 W
Warm-up / Heating time:
4 minutes
Tank capacity:
2,3 L
Adjustable output level:
0–100 %
Safety:
Reliable and safe due to temperature protection and liquid sensor
Continuous and steady output till tank runs out of liquid
Operation and control:
Control:
DMX-512, Manual, Remote, Timer
DMX channels:
2 channels
Control panel:
LED display and buttons
Connections:
Power connections:
Pro power connectors (Blue) IN/(Gray) OUT
Data connections:
3-pin DMX connectors IN/OUT
Signal pinouts:
3-pin: pin 1 (ground), pin 2 (-), pin 3 (+)
Remote control connection:
5-pin connectors IN
Construction:
Housing:
Aluminum
Color:
Black
IP rating:
IP20
Cooling:
Convection
Thermal:
Minimum Ambient Temperature ta:
0 °C
Maximum ambient temperature ta:
40 °C
Maximum housing temperature tc:
70 °C
Minimum distance:
Minimum distance from flammable surfaces:
0,8 m

14
QubiQ F1500
Product code: 61080
Dimensions
Fig. 05

15
QubiQ F1500
Product code: 61080
4. Installation
Safety Instructions for Installation
WARNING
Incorrect installation can cause serious injuries and damage of property.
If trussing systems are used, installation must be carried out only by instructed or skilled persons.
Follow all applicable European, national and local safety regulations concerning rigging and trussing.
Personal Protective Equipment
During installation and rigging wear personal protective equipment in compliance with the national and
site-specific regulations.
Installation Site Requirements
●The device can be used only indoors.
●The device can be mounted to a truss or other rigging structure in any orientation.
●The minimum distance to other objects must be bigger than 0,8 m.
●The minimum distance between the light output and the illuminated surface must be bigger than
0,8 m.
●The maximum ambient temperature ta = 40 °C must never be exceeded.
●The relative humidity must not exceed 50 % with an ambient temperature of 40 °C.
Rigging
The device can be positioned on a flat surface or mounted to a truss or other rigging structure in a
horizontal orientation. The maximum inclination angle of the device should not exceed 15º. Make sure
that all loads are within the pre-determined limits of the supporting structure.
CAUTION
Restrict the access under the work area during rigging and/or derigging.

16
QubiQ F1500
Product code: 61080
To mount the device, follow the steps below:
Use a clamp to attach the device to the supporting structure, as shown in Fig. 06. Make sure that the
device cannot move freely.
02) Secure the device with a secondary suspension, for example a safety cable. Make sure that the
secondary suspension can hold 10 times the weight of the device. If possible, the secondary
suspension should be attached to a supporting structure independent of the primary suspension. Put
the safety cable through the safety eye (04), as shown in Fig. 06.
Fig. 06

17
QubiQ F1500
Product code: 61080
Connecting to Power Supply
DANGER
Electric shock caused by short-circuit
The device accepts AC mains power at 240 V and 50/60 Hz. Do not supply power at any other voltage or
frequency to the device.
This device falls under IEC protection class I. Make sure that the device is always electrically connected
to the ground (earth).
Before connecting the device to the socket-outlet:
●Make sure that the power supply matches the input voltage specified on the information label on
the device.
●Make sure that the socket-outlet has ground (earth) connection.
Connect the device to the socket-outlet with a power plug. Do not connect the device to a dimmer
pack, as this may damage the device.
Power Linking of Multiple Devices
This device supports power linking. Power can be relayed to another device via the power OUT
connector. Note that the input and the output connectors have different designs: one type cannot be
connected to the other.
Power linking of multiple devices must be carried out only by instructed or skilled persons.
WARNING
Incorrect power linking may lead to overload of the electrical circuit and result in serious
injuries and damage of property.
To prevent overload of the electrical circuit, when power linking multiple devices:
●Use cables with sufficient current-carrying capacity. The power cable supplied with the device is not
suitable for power linking of multiple devices.
●Make sure that the total current draw of the device and all connected devices does not exceed the
rated capacity of the power cables and the circuit breaker.
●Do not link more devices on one power link than the maximum recommended number.
Maximum recommended number of devices:
●at 220–240 V: 2 devices

18
QubiQ F1500
Product code: 61080
5. Setup
Warnings and Precautions
Attention
Connect all data cables before supplying power.
Disconnect power supply before connecting or disconnecting data cables.
Stand-alone Setup
When the QubiQ F1500 is not connected to a controller or to other devices, it functions as a stand-alone
device. It can be operated manually.
For more information about the control mode, refer to 6.7.4.1. DMX Address on page 32.
DMX Connection
DMX-512 Protocol
You need a DMX serial data link to run fog shows of one or more devices using a DMX-512 controller or to
run synchronized shows of two or more devices set in a DMX mode.
The QubiQ F1500 has 3-pin DMX signal IN and OUT connectors.
The pin assignment is as follows:
●3-pin: pin 1 (ground), pin 2 (-), pin 3 (+)
Devices on a serial data link must be daisy-chained in a single line. The number of devices that you can
control on one data link is limited by the combined number of the DMX channels of the connected
devices and the 512 channels available in one DMX universe.
To comply with the TIA-485 standard, no more than 32 devices should be connected on one data link.
In order to connect more than 32 devices on one data link, you must use a DMX optically isolated
splitter/booster, otherwise this may result in deterioration of the DMX signal.
Note:
●Maximum recommended DMX data link distance: 300 m
●Maximum recommended number of devices on a DMX data link: 32 devices

19
QubiQ F1500
Product code: 61080
DMX Cables
Shielded twisted-pair cables with 3-pin XLR connectors must be used for reliable DMX connection.
You can purchase DMX cables directly from your Highlite International dealer or make your own cables.
If you use 3-pin XLR audio cables for DMX data transmission, this may lead to signal degradation and
unreliable operation of the DMX network.
When you make your own DMX cables, make sure that you connect the pins and wires correctly as
shown in Fig. 07.
Fig. 07
DMX Linking
To connect multiple devices on one DMX data link, follow the steps below:
Use a 3-pin DMX cable to connect the DMX OUT connector of the lighting controller to the DMX IN
connector of the first device.
02) Connect the first device’s DMX OUT connector to the second device’s DMX IN connector with a
3-pin DMX cable.
03) Repeat step 2 to connect all devices in a daisy-chain as shown in Fig. 08.
04) Connect a DMX terminator (120 Ω resistor) to the DMX OUT connector of the last device on the data
link.
