User's Manual
SP12LA/15LA
SP-LA SERIES
NF03798-1.1

Please read this manual carefully before
operating this unit for the first time.
IMPORTANT!
INDEX
INTRODUCTION
QUICK START
2
2
HOOKUP DIAGRAMS
RIGGING
3
4

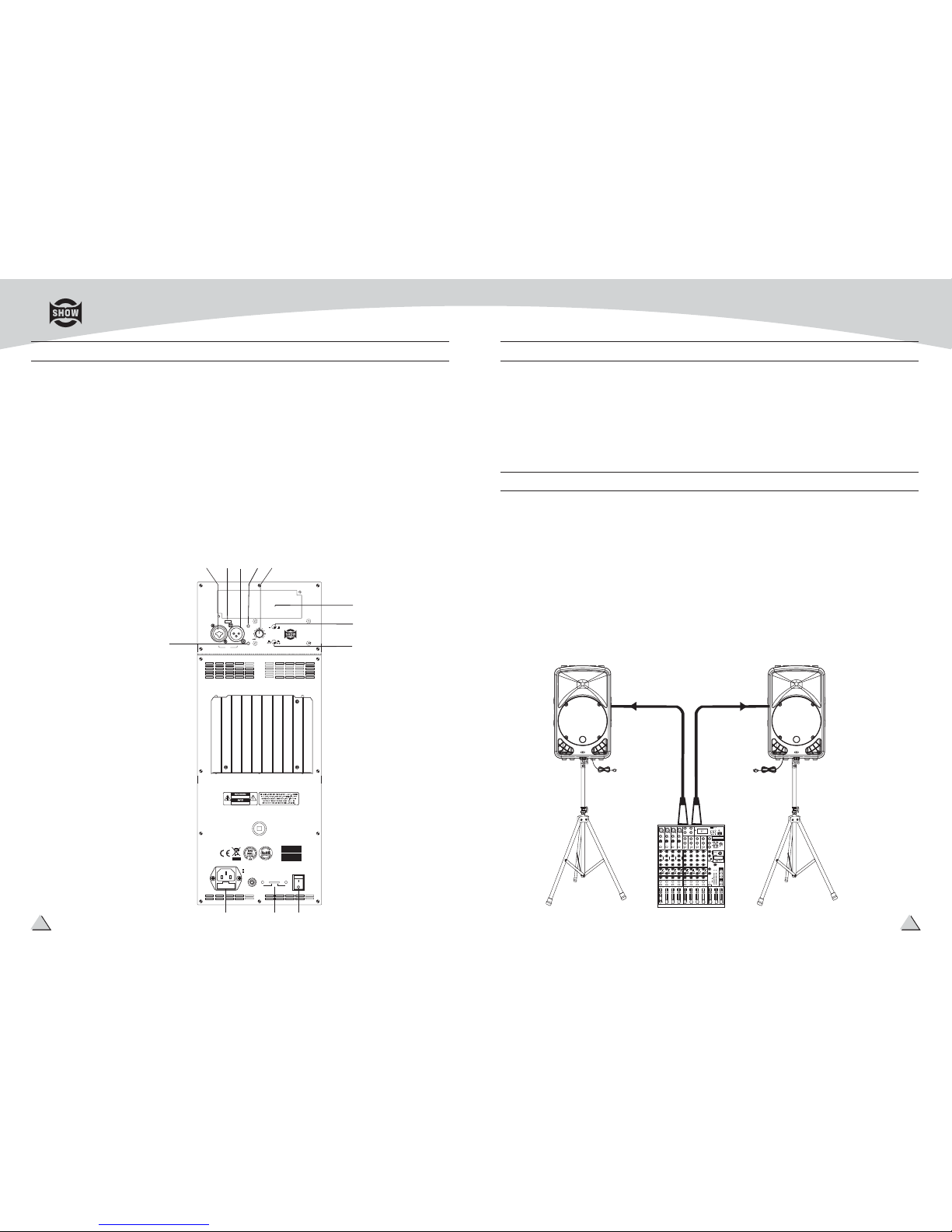

PANEL DESCRIPTION
5
WIRE CONNECTIONS 6
TECHNICAL SPECIFICATIONS
7
SPEAKER/ENCLOSURE

7
SPEAKER/ENCLOSURE
SAFETY RELATED SYMBOLS
The symbol is used to indicate that
some hazardous live terminals are
involved within this apparatus, even
under the normal operating conditions.
The symbol is used in the service
documentation to indicate that specific
component shall be only replaced by
the component specified in that
Documentation for safety reasons.
Protective grounding terminal.
Alternating current /voltage.
ON: Denotes the apparatus turns on.
OFF: Denotes the apparatus turns off, bec-
ause of using the single pole switch, be sure
to unplug the AC power to prevent any
electric shock before you proceed your
service.
WARNING: Describes precautions that
should be observed to prevent the danger
of injury or death to the user.
CAUTION: Describes precautions that
should be observed to prevent danger of the
apparatus.
WARNING
Power Supply
Ensure the source voltage matches the
voltage of the power supply before turning
Unplug this apparatus during lightning
storms or when unused for long periods
of time.
External Connection
The external wiring connected to the output
hazardous live terminals requires installation
by an instructed person, or the use of ready-
made leads or cords.
Do not Remove any Cover
There are maybe some areas with high
voltages inside, to reduce the risk of electric
shock, do not remove any cover if the power
supply is connected.
The cover should be removed by the qualified
personnel only.
No user serviceable parts inside.
Fuse
To prevent a fire, make sure to use fuses
with specified standard (current, voltage,
type). Do not use a different fuse or short
circuit the fuse holder.
Before replacing the fuse, turn OFF the
apparatus and disconnected the power
source.
Protective Grounding
Never cut off the internal or external pro-
tective grounding wire or disconnect the
wiring of protective grounding terminal.
Hazardous live terminal .
Disposing of this product should
not be placed in municipal waste
and should be separate collection.
Before turning the product ON, make sure that
it is connected to Ground. This is to prevent the
risk of electric shock. Never cut internal or
external Ground wires. Likewise, never remove
Ground wiring from the Protective Ground
The apparatus shall be connected to a mains
socket outlet with a protective earthing
connection.
Terminal.
TECHNICAL SPECIFICATIONS
2-Way Active Speaker
12" Woofer, 2" Voice Coil
1" Neodymium Driver, 1" Voice Coil
90Hx45V
oo
55Hz-20KHz (-6dB)
3000Hz-at 12dB/Oct
119dB Max.
Bi-Amp Analog Processor(Low: 200W High:50W), RMS 250W/EIAJ 300W
Line/Mic Input with Combo &Link with XLR
Volume Control/Line&Mic Switch/Contour on/Power on with Green
LED/ Clip Limiter with Red LED/Ground Lift.
Thermal/Overload/Analog Limiter/Compressor
110-220V~50/60Hz or 220-240V~50/60Hz Switchable
Plastic Cabinet, Trapezoidal & Monitor Shape, Metal Grille, Rubber
feet,2* Handles ( both sides)
36mm standard pole-mount, M10*6PCS Flying Points
664*396*362mm
20.5kg/45.19Ibs
Model Active
System Type
Transducer Low
Transducer High
Horn Coverage H XV
oo
Frequency Response
Crossover Frequency
Max SPL(1M)
Power system
Connector
External Controls
Electronic Protections
Power Supply
Enclosure Construction
Mounting
Dimensions (HxWxD)
Net Weight
SP12LA
2-Way Active Speaker
15" Woofer, 2" Voice Coil
1" Neodymium Driver, 1" Voice Coil
90Hx45V
oo
50Hz-20KHz(-6dB)
3400Hz-at 12dB/Oct
121dB Max.
Line/Mic Input With Combo &Link With XLR
Volume Control/Line&Mic Switch/Contour on/Power on with Green
LED/ Clip Limiter with Red LED/Ground Lift.
Thermal/Overload/Analog Limiter/Compressor
110-220V~50/60Hz or 220-240V~50/60Hz Switchable
Plastic Cabinet, Trapezoidal & Monitor Shape, Metal Grille, Rubber
feet,2* Handles ( both sides)
36mm standard pole-mount, M10*6PCS Flying Points
664*396*402mm
23kg/50.71Ibs
Model Active
System Type
Transducer Low
Transducer High
Horn Coverage H XV
oo
Frequency Response
Crossover Frequency
Max SPL(1M)
Connector
Enclosure Controls
Electronic Protections
Power Supply
Enclosure Construction
Mounting
Dimensions (HxWxD)
Net Weight
SP15LA
Bi-Amp Analog Processor(Low: 200W High:50W),RMS 250W/EIAJ 300W
Power system

6
Servicing
Refer all servicing to qualified personnel. To
reduce the risk of electric shock, do not
perform any servicing other than that
contained in the operating instructions unless
you are qualified to do so .
Servicing is required when the apparatus has
been damaged in any way , such as power
supply cord or plug is damaged , liquid has
been spilled or objects have fallen into the
apparatus, the apparatus has been exposed
to rain or moisture , does not operate
normally, or has been dropped.
To reduce the risk of fire or electric shock,
do not expose this apparatus to rain or
moisture.
Do not use this apparatus near water.
Install in accordance with the manufacturer's
instructions. Do not install near any heat
sources such as radiators, heat registers,
stoves, or other apparatus (including am-
plifiers) that produce heat. Do not block
any ventilation openings.
IMPORTANT SAFETY INSTRUCTIONS
Read these instructions.
Keep these instructions.
Heed all warnings.
Only use attachments/accessories spec-
ified by the manufacturer.
Power Cord and Plug
Do not defeat the safety purpose of the
polarized or grounding type plug.
A polarized plug has two blades with
one wider than the other. A grounding
type plug has two blades and a third
grounding prong. The wide blade or the
third prong are provided for your safety.
If the provided plug does not fit into your
outlet, consult an electrician for replace-
ment of the obsolete outlet.
Protect the power cord from being walk-
ed on or pinched particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
Follow all instructions.
No naked flame sources, such as lighted
candles, should be placed on the apparatus.
Cleaning
When the apparatus needs a cleaning, you
can blow off dust from the apparatus with
a blower or clean with rag etc.
Don't use solvents such as benzol, alcohol,
or other fluids with very strong volatility and
flammability for cleaning the apparatus body.
Clean only with dry cloth.
The mains plug is used as the disconnecting
device, the disconnecting device shall
remain readily operable.
Operating Conditions
This apparatus shall not be exposed to
dripping or splashing and that no objects
filled with liquids, such as vases, shall be
placed on this apparatus.
SPEAKER/ENCLOSURE
-. For Active Speaker Cabinets
Balanced
As to these circumstances, audio connections is mostly intended for the signal flow, so,
determine the wire configuration according to your real application system and its
connecting facility. Normally, you have the following choices:
Tip
Ring
Sleeve
Tip
Sleeve
1
2
3
TIP SLEEVE
TIP RING SLEEVE
12
3
21
3
Tip
Ring
Sleeve
Tip
Ring
Sleeve
1
2
3
Tip
Ring
Sleeve
Tip
Sleeve
TIP RING SLEEVE
TIP RING SLEEVE
TIP SLEEVE
SLEEVE RING TIP
Unbalanced
TIP RING SLEEVE
21
3
12
3
12
3
12
3
12
3
SLEEVE TIP
SLEEVE RING TIP
Tip
Ring
Sleeve
Tip
Sleeve
1
2
3
Tip
Ring
Sleeve
1
2
3
1
2
3
1
2
3
1
2
3
WIRE CONNECTIONS
* SP12LA,SP15LA are Active Speakers for
professional use, they can be used in
following electromagnetic environment:
residential, commercial and light industrial,
urban outdoors. They are the apparatus
Not intended for rack mounting.
* For SP12LA, SP15LA, the audio input line
length is less than 10m.
* For SP12LA, SP15LA, the peak inrush
current is 21A

2
PANEL DESCRIPTION
5
Make all initial connections with all the equipments powered off, and ensure that all the main
volume controls are turned completely down.
1). Connect one side of the signal cable at your audio mixer into output left / right (with Stereo-
Jack or XLR) and the other side of the cable into the line input Stereo-Jack) of your active speaker
cabinet.
2). Connect the power cord to mains.
3). Turn on your mixer first, then the active speaker cabinets.
4). Turn up the volume control of the active speaker cabinets.
5). Use PFL function to get the proper input level for the mixer, and adjust the
main mix level control to manipulate the output level.
6). After using, turn off your active speaker cabinets first, then the mixer.
Power Cord
Tripod
Mount
Left
Main Mix
Output
Signal Cable
Mixer
Power Cord
Tripod
Mount
Right
Output
Main Mix
Signal Cable
INTRODUCTION
Thank you for your purchasing of the SP12LA/15LA, active sound reinforcement speaker cabinets.
It is just one of the many SHOW products that a talented, multinational audio team and engineers
and musicians have developed with their great passion for music. Your are capable
of enormous sound pressure level and it has been created to give you a performance that is better
that any loudspeaker in this range. Thanks to the quality of its transducers, built-in amplifier.
Enjoy your and make sure to read this Manual carefully before
operation!
SP12LA/15LA
SP12LA/15LA
QUICK START
SPEAKER/ENCLOSURE
(1) BI-POLAR MAIN POWER SWITCH
(2) AC POWER SOCKET WITH MAIN FUSE
(3) POWER SWITCHABLE
(4) LINE/MIC INPUT ON COMBO CONNECTOR
(5) LINK OUT ON XLR CONNECTOR
(6) "INPUT SENSITIVITY" SWITCH FOR LINE & MIC
(7) MAIN VOLUME CONTROL
(8) CLIP INDICATOR RED LED
(9) POWER INDICATOR GREEN LED
(10)DIGITAL MUSIC PLAYER OR BLUETOOTH MODULE (OPTION)
(11) CONTOUR ON/OFF
CONTOUR ON preset is to equalize the mix for optimal music play back
(12) GROUND SWITCH
AMP INTERFACE
CLIP
SHIELD
POWER
BAL
MIX OUTINPUT
110-120V 220-240V
MODEL
SERIAL
POWER SYSTEM:
50
BI-AMP RMS 250W
LOW 200W Class AB
HIGH W Class AB
AC INPUT
RISKOF ELECTRIC SHOCK
DONOT OPEN
RISQUEDE CHOC ELECTRIQUE
NEPAS OUVRIR
"WARNING" TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
AC FUSE
110-120V T4AL AC250V
220-240V T2AL AC250V
AC INPUT
110-120V~50/60Hz
220-240V~50/60Hz
POWER CONSUMPTION: 480W
CONTOUR
POWER
LINE
MIC
OFF
ON
VOLUME
MAX
ON
OFF
Useonly with a 250V fuse
(1)(2) (3)
(7)
(8)
(5)
(4) (6)
(12)
(9)
MADE IN CHINA
(11)
BALOR
UNBAL
BALOR
UNBAL
BALOR
UNBAL
LINEIN1
BALOR
UNBAL
LINEIN3LINEIN2 LINEIN4
LEFT
LEFT(MONO)
RIGHT
STEREOAUXRETURNS
2
1
RIGHT
LINE
MIC
+15dB -25dB
0dB 40dB
LINE
MIC
+15dB -25dB
0dB 40dB
LINE
MIC
+15dB -25dB
0dB 40dB
LINE
MIC
+15dB -25dB
0dB 40dB
LOWCUT
75Hz18dB/Oct
LOWCUT
75Hz18dB/Oct
LOWCUT
75Hz18dB/Oct
LOWCUT
75Hz18dB/Oct
LINEIN5/6 LINEIN9/10 LINEIN11/12LINEIN7/8 AUXSENDS
1
+4dBu
-10dBV
+4dBu
-10dBV
+4dBu
-10dBV
+4dBu
-10dBV PHONE
LEFT(MONO) LEFT(MONO) LEFT(MONO)
RIGHT RIGHT RIGHT RIGHT
LEFT(MONO)
2
AUXRTN1
8
-
0
+15
2
AUXRTN2
MID
0
+15-15-15
8
-
0
+15
AUXSENDS
2
8
-
0
+15
SOLO
ACTIVE
SOLOMODE
LEVEL
SET
PFL
AFL
MUTE/
ALT3-4
SOLO
MUTE/
ALT3-4
SOLO
MUTE/
ALT3-4
SOLO
MUTE/
ALT3-4
SOLO
MUTE/
ALT3-4
SOLO
MUTE/
ALT3-4
SOLO
MUTE/
ALT3-4
SOLO
MUTE/
ALT3-4
SOLO
-2-2
0
-4
-7
-10
-10
-20-20
+2
-30
-30
OUTPUTLEVEL
LR
ALT3-4
2TK/USB
CLIP
+10
+7
+4
2TK/USB
ASSIGN
TOMIX
1
PWR
PHANTOM
MAINMIX
ALT3-4
CTRROOM
SOURCE
+15
PHONES
CONTROLROOM
12-CHANNELMIXING CONSOLE
WITH
DIGITALEFFECTS
12-CHANNELMIXING CONSOLE
WITH
DIGITALEFFECTS
XM-12D usb
MIC1 MIC2 MIC3 MIC4
HI
12kHz
EQ
+15
0
-15
HI
12kHz
EQ
+15
0
-15
HI
12kHz
EQ
+15
0
-15
HI
12kHz
EQ
+15
0
-15
HI
12kHz
EQ
+15
0
-15-15
HI
12kHz
EQ
+15
0
-15-15
HI
12kHz
EQ
+15
0
-15
HI
12kHz
EQ
+15
0
-15-15
FREQ
100Hz 8kHz
800
PAN
L R
PAN
L R
PAN
L R
PAN
L R L R L R L R
BAL
L R
LOW
80Hz
0
+15-15-15
LOW
80Hz
0
+15-15
LOW
80Hz
0
+15-15
LOW
80Hz
0
+15-15-15
LOW
80Hz
0
+15-15
LOW
80Hz
0
+15-15-15
LOW
80Hz
0
+15-15
LOW
80Hz
0
+15-15
10
+15
8
-
MID
0
+15-15
MID
0
+15-15-15
HI-MID
3kHz
0
+15-15-15
HI-MID
3kHz
0
+15-15-15
HI-MID
3kHz
0
+15-15
HI-MID
3kHz
0
+15-15-15
FREQ
100Hz 8kHz
800
FREQ
100Hz
100Hz 8kHz
800
MID-LO
500Hz
+15-15-15
00
MID-LO
500Hz
+15-15-15
00
MID-LO
500Hz
+15-15
00
MID-LO
500Hz
+15-15-15
00
AUX
1
PRE
POST
0
+15
8
-
AUX
1
PRE
POST
0
+15
8
-
AUX
1
PRE
POST
0
+15
8
-
AUX
1
PRE
POST
0
+15
8
-
AUX
1
PRE
POST
0
+15
8
-
AUX
1
PRE
POST
0
+15
8
-
AUX
1
PRE
POST
0
+15
8
-
AUX
1
PRE
POST
0
+15
8
-
2
POST
(PRE)
8
-
0
+15
DFX
2
POST
(PRE)
8
-
0
+15
DFX
2
POST
(PRE)
8
-
0
+15
DFX
2
POST
(PRE)
8
-
0
+15
DFX
2
POST
(PRE)
8
-
0
+15
DFX
2
POST
(PRE)
8
-
0
+15
DFX
2
POST
(PRE)
8
-
0
+15
DFX
2
POST
(PRE)
8
-
0
+15
DFX
MID
0
+15-15
FREQ
100Hz
100Hz 8kHz8kHz
800800
DFXMUTE
PEAK/MUTE
PROGRAM(PUSH)
00-09Echo
10-19Echo+Verb
20-29Tremolo
30-39Plate
40-49Chorus
50-59Vocal
60-69Rotary
70-79SmallRoom
80-89Flange+Verb
90-99LargeHall
DFX
BALBALBAL
8
-
MAINMIX
LEVEL
PEAK
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
PEAK
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
PEAK
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
PEAK
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
PEAK
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
PEAK
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
PEAK
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
PEAK
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
234 1ALT3-4
5/6 7/8 9/10 11/12
RIGHT
LEFT
2TK/USB
MUSIC PLAYER
88
00
03:08
MP3 USB REP ALL
(10)

3 4

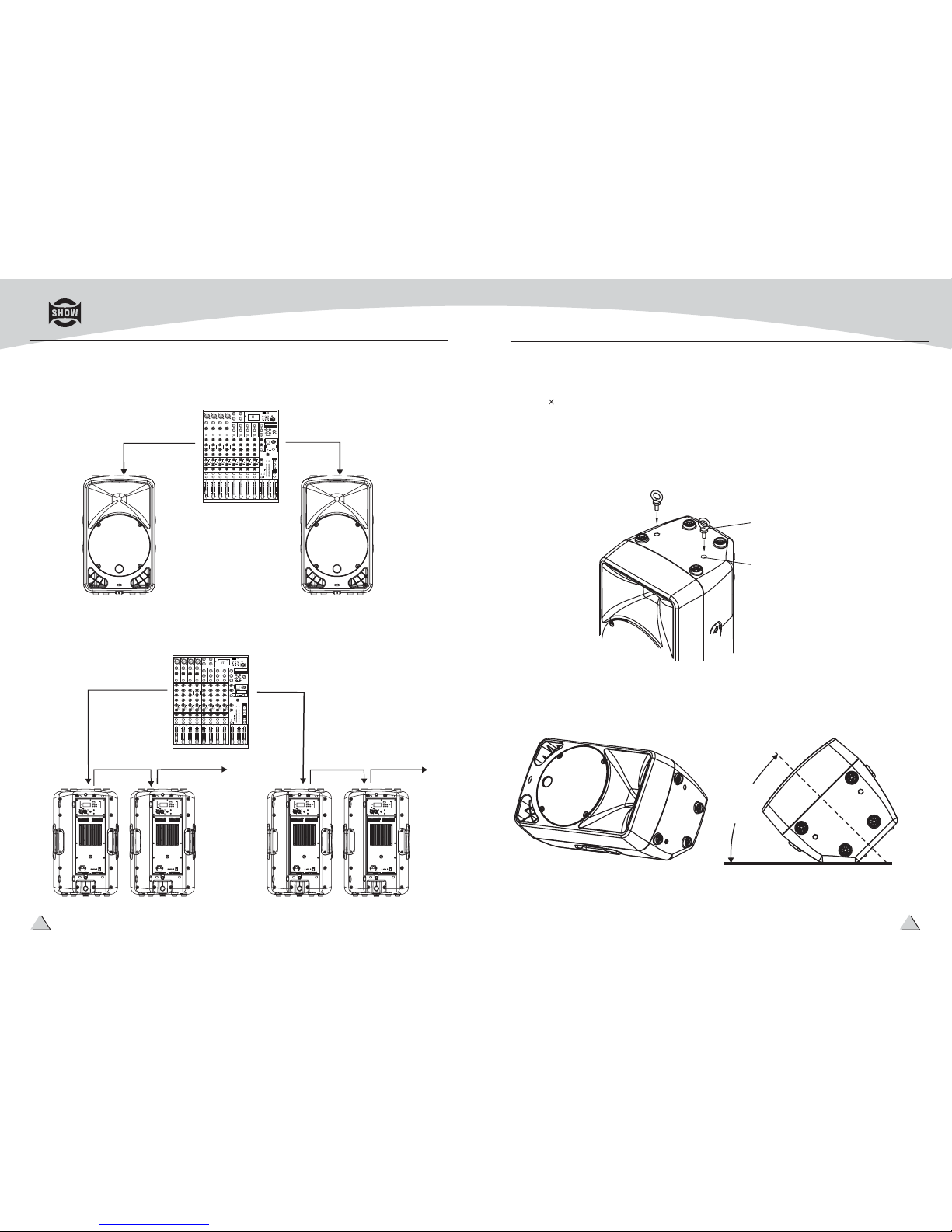

RIGGING
HOOKUP DIAGRAMS
SPEAKER/ENCLOSURE
MIXER
LINE IN LINE IN
MAIN OUT L MAIN OUT R
MIXER
MAIN OUT LEFT
LINK TO NEXT SPEAKER
LINE IN
MAIN OUT RIGHT
LINK
LINE IN
LINE IN
LINK TO NEXT SPEAKER
LINE IN
LINK
Two speaker in stereo operation
Multiple speakers with the same stereo source
The SP12LA/15LA speaker cabinet also provides the suspension points for installation.
(M10 1.5PH LENGTH: 30mm).
For further details, please refer to the right illustration.
Suspension Point
Eyebolt
BALOR
UNBAL
BALOR
UNBAL
BALOR
UNBAL
LINEIN 1
BALOR
UNBAL
LINEIN 3LINEIN 2 LINEIN 4
LEFT
LEFT(MONO)
RIGHT
STEREOAUX RETURNS
2
1
RIGHT
LINE
MIC
+15dB -25dB
0dB 40dB
LINE
MIC
+15dB -25dB
0dB 40dB
LINE
MIC
+15dB -25dB
0dB 40dB
LINE
MIC
+15dB -25dB
0dB 40dB
LOWCUT
75Hz18dB/Oct
LOWCUT
75Hz18dB/Oct
LOWCUT
75Hz18dB/Oct
LOWCUT
75Hz18dB/Oct
LINEIN 5/6 LINEIN 9/10 LINE IN 11/12LINEIN 7/8 AUXSENDS
1
+4dBu
-10dBV
+4dBu
-10dBV
+4dBu
-10dBV
+4dBu
-10dBV PHONE
LEFT(MONO) LEFT(MONO) LEFT(MONO)
RIGHT RIGHT RIGHT RIGHT
LEFT(MONO)
2
AUXRTN1
8
-
0
+15
2
AUXRTN2
MID
0
+15-15
8
-
0
+15
AUXSENDS
2
8
-
0
+15
SOLO
ACTIVE
SOLOMODE
LEVEL
SET
PFL
AFL
MUTE/
ALT3-4
SOLO
MUTE/
ALT3-4
SOLO
MUTE/
ALT3-4
SOLO
MUTE/
ALT3-4
SOLO
MUTE/
ALT3-4
SOLO
MUTE/
ALT3-4
SOLO
MUTE/
ALT3-4
SOLO
MUTE/
ALT3-4
SOLO
-2
0
-4
-7
-10
-20
+2
-30
OUTPUTLEVEL
LR
ALT3-4
2TK/USB
CLIPCLIP
+10
+7
+4
2TK/USB
ASSIGN
TOMIX
1
PWR
PHANTOM
MAINMIX
ALT3-4
CTRROOM
SOURCE
+15
PHONES
CONTROLROOM
12-CHANNELMIXING CONSOLE
WITH
DIGITALEFFECTS
12-CHANNELMIXING CONSOLE
WITH
DIGITALEFFECTS
XM-12D usb
MIC1 MIC2 MIC3 MIC 4
HI
12kHz
EQ
+15
0
-15
HI
12kHz
EQ
+15
0
-15
HI
12kHz
EQ
+15
0
-15
HI
12kHz
EQ
+15
0
-15
HI
12kHz
EQ
+15
0
-15
HI
12kHz
EQ
+15
0
-15
HI
12kHz
EQ
+15+15
0
-15-15
HI
12kHz
EQ
+15+15
0
-15
FREQ
100Hz
100Hz 8kHz
800
PAN
LR
PAN
LR
PAN
LR
PAN
LRLRLRLR
BAL
LR
LOW
80Hz
0
+15-15
LOW
80Hz
0
+15-15
LOW
80Hz
0
+15-15
LOW
80Hz
0
+15-15
LOW
80Hz
0
+15-15
LOW
80Hz
0
+15-15
LOW
80Hz
0
+15+15-15-15
LOW
80Hz
0
+15-15
10
+15
8
-
MID
0
+15-15
MID
0
+15-15
HI-MID
3kHz
0
+15-15
HI-MID
3kHz
0
+15-15
HI-MID
3kHz
0
+15-15
HI-MID
3kHz
0
+15+15-15
FREQ
100Hz
100Hz 8kHz
800
FREQ
100Hz
100Hz 8kHz8kHz
800
MID-LO
500Hz
+15+15-15
00
MID-LO
500Hz
+15+15-15-15
00
MID-LO
500Hz
+15-15
00
MID-LO
500Hz
+15-15
00
AUX
1
PRE
POST
0
+15
8
-
AUX
1
PRE
POST
0
+15
8
-
AUX
1
PRE
POST
0
+15+15
8
-
AUX
1
PRE
POST
0
+15+15
8
-
AUX
1
PRE
POST
0
+15+15
8
-
AUX
1
PRE
POST
0
+15
8
-
AUX
1
PRE
POST
0
+15
8
-
AUX
1
PRE
POST
0
+15
8
-
2
POST
(PRE)
8
-
0
+15
DFX
2
POST
(PRE)
8
-
0
+15
DFX
2
POST
(PRE)
8
-
0
+15
DFX
2
POST
(PRE)
8
-
0
+15
DFX
2
POST
(PRE)
8
-
0
+15
DFX
2
POST
(PRE)
8
-
0
+15
DFX
2
POST
(PRE)
8
-
0
+15
DFX
2
POST
(PRE)
8
-
0
+15+15
DFX
MID
0
+15-15
FREQ
100Hz 8kHz
800
DFXMUTE
PEAK/MUTE
PROGRAM(PUSH)
00-09 Echo
10-19 Echo+Verb
20-29 Tremolo
30-39 Plate
40-49 Chorus
50-59Vocal
60-69Rotary
70-79Small Room
80-89Flange+Verb
90-99Large Hall
DFX
BALBALBAL
8
-
MAINMIX
LEVEL
PEAK
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
PEAK
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
PEAK
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
PEAK
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
PEAK
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
PEAK
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
PEAK
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
PEAK
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
234 1ALT3-4
5/6 7/8 9/10 11/12
RIGHT
LEFT
2TK/ USB
MUSIC PLAYER
88
00 03:08
MP3 USBREP ALL
BALOR
UNBAL
BALOR
UNBAL
BALOR
UNBAL
LINEIN 1
BALOR
UNBAL
LINEIN 3LINEIN 2 LINEIN 4
LEFT
LEFT(MONO)
RIGHT
STEREOAUX RETURNS
2
1
RIGHT
LINE
MIC
+15dB -25dB
0dB 40dB
LINE
MIC
+15dB -25dB
0dB 40dB
LINE
MIC
+15dB -25dB
0dB 40dB
LINE
MIC
+15dB -25dB
0dB 40dB
LOWCUT
75Hz18dB/Oct
LOWCUT
75Hz18dB/Oct
LOWCUT
75Hz18dB/Oct
LOWCUT
75Hz18dB/Oct
LINEIN 5/6 LINEIN 9/10 LINE IN 11/12LINEIN 7/8 AUXSENDS
1
+4dBu
-10dBV
+4dBu
-10dBV
+4dBu
-10dBV
+4dBu
-10dBV PHONE
LEFT(MONO) LEFT(MONO) LEFT(MONO)
RIGHT RIGHT RIGHT RIGHT
LEFT(MONO)
2
AUXRTN1
8
-
0
+15+15
2
AUXRTN2
MID
0
+15+15-15
8
-
0
+15+15
AUXSENDS
2
8
-
0
+15
SOLO
ACTIVE
SOLOMODE
LEVEL
SET
PFL
AFL
MUTE/
ALT3-4
SOLO
MUTE/
ALT3-4
SOLO
MUTE/
ALT3-4
SOLO
MUTE/
ALT3-4
SOLO
MUTE/
ALT3-4
SOLO
MUTE/
ALT3-4
SOLO
MUTE/
ALT3-4
SOLO
MUTE/
ALT3-4
SOLO
-2
0
-4
-7
-10
-20
+2
-30
OUTPUTLEVEL
LR
ALT3-4
2TK/USB
CLIP
+10
+7
+4
2TK/USB
ASSIGN
TOMIX
1
PWR
PHANTOM
MAINMIX
ALT3-4
CTRROOM
SOURCE
+15
PHONES
CONTROLROOM
12-CHANNELMIXING CONSOLE
WITH
DIGITALEFFECTS
12-CHANNELMIXING CONSOLE
WITH
DIGITALEFFECTS
XM-12D usb
MIC1 MIC2 MIC3 MIC4
HI
12kHz
EQ
+15+15
0
-15
HI
12kHz
EQ
+15
0
-15
HI
12kHz
EQ
+15+15
0
-15
HI
12kHz
EQ
+15+15
0
-15
HI
12kHz
EQ
+15
0
-15
HI
12kHz
EQ
+15+15
0
-15
HI
12kHz
EQ
+15
0
-15
HI
12kHz
EQ
+15+15
0
-15-15
FREQ
100Hz
100Hz 8kHz8kHz
800800
PAN
L R
PAN
L R
PAN
L R
PAN
L R L R L R L R
BAL
L R
LOW
80Hz
0
+15-15
LOW
80Hz
0
+15-15
LOW
80Hz
0
+15+15-15
LOW
80Hz
0
+15-15
LOW
80Hz
0
+15-15
LOW
80Hz
0
+15+15-15
LOW
80Hz
0
+15-15
LOW
80Hz
0
+15+15-15
10
+15
8
-
MID
0
+15-15
MID
0
+15+15-15
HI-MID
3kHz
0
+15+15-15
HI-MID
3kHz
0
+15+15-15-15
HI-MID
3kHz
0
+15-15
HI-MID
3kHz
0
+15+15-15
FREQ
100Hz
100Hz 8kHz8kHz
800800
FREQ
100Hz
100Hz 8kHz
800
MID-LO
500Hz
+15-15
00
MID-LO
500Hz
+15+15-15
00
MID-LO
500Hz
+15-15
00
MID-LO
500Hz
+15-15
00
AUX
1
PRE
POST
0
+15+15
8
-
AUX
1
PRE
POST
0
+15
8
-
AUX
1
PRE
POST
0
+15
8
-
AUX
1
PRE
POST
0
+15
8
-
AUX
1
PRE
POST
0
+15
8
-
AUX
1
PRE
POST
0
+15+15
8
-
AUX
1
PRE
POST
0
+15+15
8
-
AUX
1
PRE
POST
0
+15+15
8
-
2
POST
(PRE)
8
-
0
+15+15
DFX
2
POST
(PRE)
8
-
0
+15
DFX
2
POST
(PRE)
8
-
0
+15+15
DFX
2
POST
(PRE)
8
-
0
+15
DFX
2
POST
(PRE)
8
-
0
+15
DFX
2
POST
(PRE)
8
-
0
+15+15
DFX
2
POST
(PRE)
8
-
0
+15+15
DFX
2
POST
(PRE)
8
-
0
+15
DFX
MID
0
+15-15
FREQ
100Hz
100Hz 8kHz8kHz
800
DFXMUTE
PEAK/MUTE
PROGRAM(PUSH)
00-09 Echo
10-19 Echo+Verb
20-29 Tremolo
30-39 Plate
40-49 Chorus
50-59Vocal
60-69Rotary
70-79Small Room
80-89Flange+Verb
90-99Large Hall
DFX
BALBALBAL
8
-
MAINMIX
LEVEL
PEAK
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
PEAK
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
PEAK
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
PEAK
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
PEAK
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
PEAK
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
PEAK
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
PEAK
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
234 1ALT3-4
5/6 7/8 9/10 11/12
RIGHT
LEFT
2TK/ USB
MUSIC PLAYER
88
00 03:08
MP3 USBREP ALL
The floor use is as a function of a monitor when the angle is 45o
45
o
