OWNER'S MANUAL

IMPORTANT SAFETY INSTRUCTIONS
•Explanation of Graphical Symbols
Lh
caunlllll
RISK OF ELECTRIC SHOCK
DO lIOTOPElI
'----------I
1Read these instructions.
2Keep these instructions.
3Heed all warnings.
4Follow all instructions.
5Do not use this apparatus near water.
6Clean only with dry cloth.
7Do not block any ventilation openings. Install in accordance with
the manufacturer's instructions.
8Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9 Do not defeat the safety purpose of the polarized or grounding-
type plug. Apolarized plug has two blades with one wider than
the other. Agrounding type plug has two blades and athird
grounding prong. The wide blade or the third prong are provided
for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11 Only use attachments/accessories specified by the manufacturer.
12 Use only with the cart, stand, tripod, bracket, I)
or table specified by the manufacturer, or
sold with the apparatus. When acart is used,
use caution when moving the cartlapparatus
combination to avoid injury from tip-over.
13 Unplug this apparatus during lightning
storms or when unused for long periods of time.
14 Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power supply cable or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert you to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral
triangle is intended to alert you to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK. DO NOT REMOVE
COVER (OR BACK). NO USER·SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
En

IMPORTANT SAFETY INSTRUCTIONS
FCC INFORMATION (for US customers)
1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!
This product, when installed as indicated
in the instructions
contained in this manual, meets FCC requirements.
Modifications not expressly approved by Yamaha may void
your authority, granted
by the FCC, to use the product.
2. IMPORTANT:
When connecting this product to accessories and/or another
product use only high quality shielded cables. Cable/s supplied
with this product MUST be used. Follow all installation
instructions. Failure to follow instructions could void your FCC
authorization to use this product in the USA.
3. NOTE:
This product has been tested and found to comply with the
requirements listed in FCC Regulations, Part 15 for Class "B"
digital devices. Compliance with these requirements provides a
reasonable level
of assurance that your use of this product in a
residential environment will not result in harmful interference
with other electronic devices.
This equipment generates/uses radio frequencies and,
if not
installed and used according to the instructions found
in the
users manual, may cause interference harmful to the operation
of other electronic devices.
Compliance with FCC regulations does not guarantee that
interference will not occur
in all installations. If this product is
found to be the source
of interference, which can be determined
by turning the unit "OFF' and "ON", please try to eliminate the
problem
by using one of the following measures:
Relocate either this product orthe device that is being affected
by the interference.
Utilize power outlets that are on different branch (circuit
breaker or fuse) circuits or install
AC line filter/so
In the case of radio or TV interference, relocate/reorient the
antenna.
If the antenna lead-in is 300 ohm ribbon lead, change
the lead-in to coaxial type cable.
If these corrective measures do not produce satisfactory results,
please contact the local retailer authorized to distribute this type
of product. If you can not locate the appropriate retailer, please
contact Yamaha Electronics Corp., U.S.A. 6660 Orangethorpe
Ave, Buena Park, CA 90620.
The above statements apply ONLY to those products distributed
by Yamaha Corporation
of America or its subsidiaries.
We Want You Listening For ALifetime
Yamaha and the Electronic Industries Association's Consumer Electronics Group want you to get the most out of your Ii
equipment by playing it at asafe level. One that lets the sound come through loud and clear without annoying
blaring
or distortion -and, most importantly, without affecting your sensitive hearing. 0
Since hearing damage from loud sounds is often undetectable until it is too late, Yamaha and the Electronic Industries ...
Association's Consumer Electronics Group recommend you to avoid prolonged exposure from excessive volume levels. ~
ii En

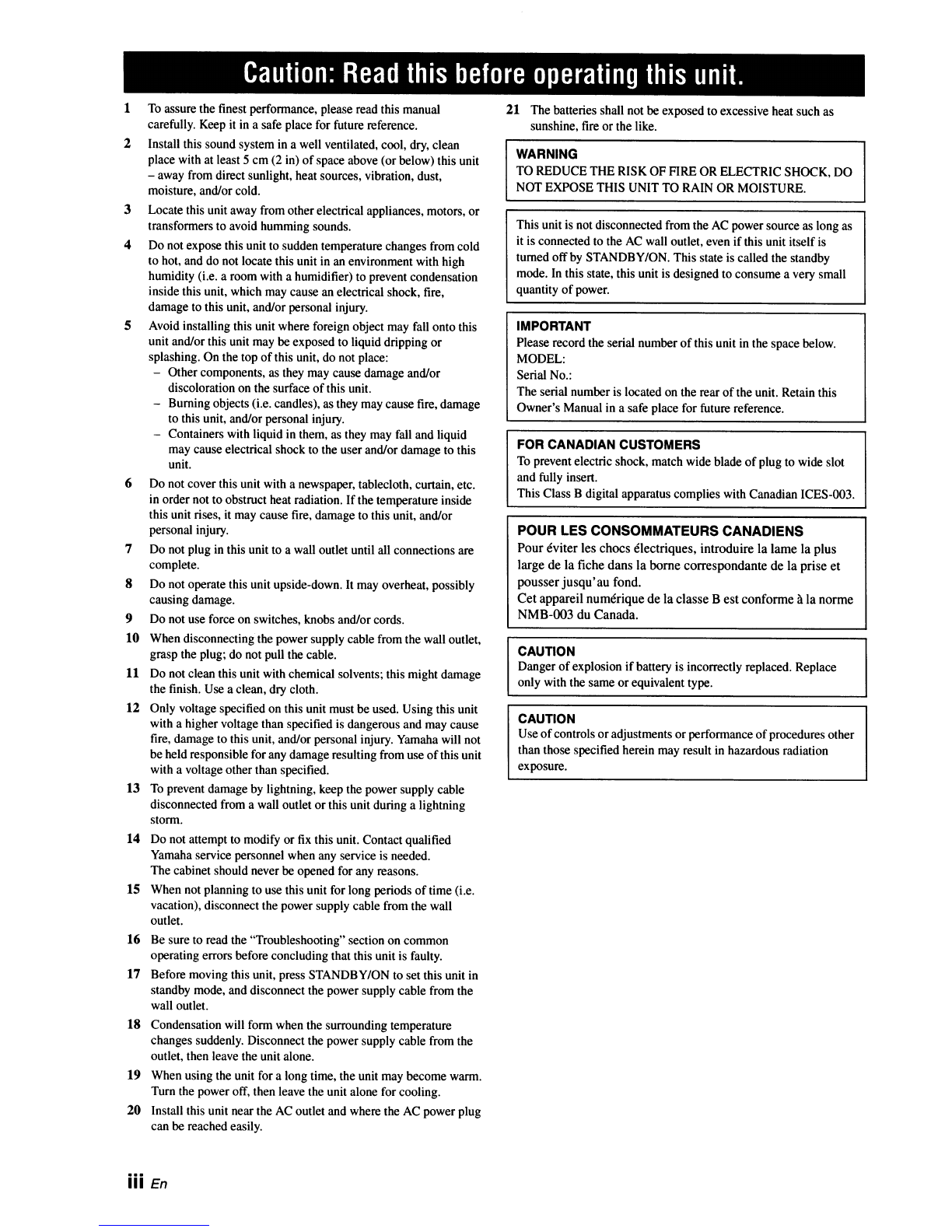

Caution: Read this before operating this unit.
1To assure the finest performance, please read this manual
carefully. Keep
it in asafe place for future reference.
2Install this sound system in awell ventilated, cool, dry, clean
place with at least 5cm (2 in)
of space above (or below) this unit
-away from direct sunlight, heat sources, vibration, dust,
moisture, and/or cold.
3Locate this unit away from other electrical appliances, motors, or
transformers to avoid humming sounds.
4Do not expose this unit to sudden temperature changes from cold
to hot, and do not locate this unit in an environment with high
humidity (Le. aroom with ahumidifier) to prevent condensation
inside this unit, which may cause an electrical shock, fire,
damage to this unit, and/or personal injury.
5Avoid installing this unit where foreign object may fall onto this
unit and/or this unit may be exposed to liquid dripping
or
splashing. On the top of this unit, do not place:
-Other components, as they may cause damage and/or
discoloration on the surface
of this unit.
-Burning objects (Le. candles), as they may cause fire, damage
to this unit, and/or personal injury.
-Containers with liquid in them, as they may fall and liquid
may cause electrical shock to the user and/or damage to this
unit.
6Do not cover this unit with anewspaper, tablecloth, curtain, etc.
in order not to obstruct heat radiation.
If the temperature inside
this unit rises,
it may cause fire, damage to this unit, and/or
personal injury.
7Do not plug in this unit to awall outlet until all connections are
complete.
8Do not operate this unit upside-down. It may overheat, possibly
causing damage.
9Do not use force on switches, knobs and/orcords.
10 When disconnecting the power supply cable from the wall outlet,
grasp the plug; do not pull the cable.
11 Do not clean this unit with chemical solvents; this might damage
the finish. Use aclean, dry cloth.
12 Only voltage specified on this unit must be used. Using this unit
with ahigher voltage than specified is dangerous and may cause
fire, damage to this unit, and/or personal injury. Yamaha will not
be held responsible for any damage resulting from use
of this unit
with avoltage other than specified.
13 To prevent damage by lightning, keep the power supply cable
disconnected from awall outlet or this unit during alightning
storm.
14 Do not attempt to modify or fix this unit. Contact qualified
Yamaha service personnel when any service is needed.
The cabinet should never be opened for any reasons.
15 When not planning to use this unit for long periods
of time (Le.
vacation), disconnect the power supply cable from the wall
outlet.
16 Be sure to read the "Troubleshooting" section on common
operating errors before concluding that this unit is faulty.
17 Before moving this unit, press STANDBY/ON to set this unit in
standby mode, and disconnect the power supply cable from the
wall outlet.
18 Condensation will form when the surrounding temperature
changes suddenly. Disconnect the power supply cable from the
outlet, then leave the unit alone.
19 When using the unit for along time, the unit may become warm.
Tum the power off, then leave the unit alone for cooling.
20 Install this unit near the AC outlet and where the AC power plug
can be reached easily.
iii En
21 The batteries shall not be exposed to excessive heat such as
sunshine, fire or the like.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
This unit is not disconnected from the
AC power source as long as
it is connected to the AC wall outlet, even ifthis unit itself is
turned offby STANDBY/ON. This state is called the standby
mode.
In this state, this unit is designed to consume avery small
quantity
of power.
IMPORTANT
Please record the serial number
of this unit in the space below.
MODEL:
Serial No.:
The serial number is located on the rear
of the unit. Retain this
Owner's Manual in asafe place for future reference.
FOR CANADIAN CUSTOMERS
To prevent electric shock, match wide blade of plug to wide slot
and fully insert.
This Class Bdigital apparatus complies with Canadian ICES-003.
POUR LES CONSOMMATEURS CANADIENS
Pour eviter les chocs electriques, introduire la lame la plus
large
de la fiche dans la borne correspondante de la prise et
pousser jusqu' au fond.
Cet appareil numerique de la classe Best conforme 11 la norme
NMB-003 du Canada.
CAUTION
Danger
of explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type.
CAUTION
Use
of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation
exposure.

Contents
INTRODUCTION
I
Overview 2
Features 3
Using this
manual 5
Supplied accessories 6
Controls
and functions 7
Front panel 7
Front panel display 8
Rear panel 9
Remote control. 10
PREPARATION
InstaUation 13
Before installing this unit... 13
Installing this unit 13
Connections 16
Before connecting components 17
Case I: Connections using HDMI cables 18
Case 2: Connecting aDVD player/recorder and tuner
(digital satellite, cable TV or digital airwave)
19
Case 3: Connecting other connection methods 20
Connecting aTV without an HDMI cable 21
Connecting aportable audio player 22
Connecting asubwoofer 22
Connecting the FM antenna 23
About the IR IN jack 23
Connecting the AC power supply cable 23
SETUP
Getting started 24
Installing batteries in the remote control 24
Operation range
of the remote control... 24
Turning on this unit or
setting it to the standby mode 25
Using SET MENU 26
Displaying the OSD (on-screen display) 26
The flow chart
of SET MENU 27
Changing OSD language 28
A
UTO SETUP (InteIliBeam) 29
The flow chart of AUTO SETUP 29
Installing the IntelliBeam microphone
30
Using AUTO SETUP (IntelliBeam) 31
Using the system memory 36
Convenient usage of the system memory 36
Saving settings 36
Loading settings 37
BASIC OPERATION
Playback 39
Selecting the input source 39
Playing back sources
40
Adjusting the volume 41
FM tuning 42
FM controls and functions 42
Automatic tuning 43
Manual tuning 43
Automatic preset tuning
44
Manual preset tuning 45
Selecting apreset station
46
XMTM Satellite Radio tuning 47
Connecting XMTM Mini-Tuner Home Dock 47
Activating
XMTM Satellite Radio 48
Basic
XMTM Satellite Radio operations 48
Presetting the
XMTM Satellite Radio channels 5I
Displaying the
XMTM Satellite Radio information 52
Using iPod™ 53
Connection 53
Controlling
iPod™ 53
Enjoying surround sound 56
5Beam 56
Stereo plus 3Beam 57
3Beam 57
My Surround 57
Enjoying 2-channel sources
in surround sound 59
Enjoying TV in surround sound 60
Adjusting surround mode parameters
61
Enjoyingstereo sound 62
2-channel stereo playback 62
5-channel stereo playback 62
Playing back sound clearly (My Beam) 63
Using auto-adjust function 63
Using manual-adjust function 64
Using sound field programs 65
CINEMA DSP programs 66
Using the music enhancer 68
Using the volume mode
(Night listening
enhancerrrV volume equal
mode) 69
Using the sleep
timer 70
Displaying the
input source information 72
Using the HDMI control feature 73
ADV ANCED OPERATION
MANUAL SETUP 74
Using MANUAL SETUP 75
BEAM MENU 76
SOUND MENU 80
INPUT MENU 82
DISPLAYMENU 86
Adjusting the audio balance 87
Using the test tone 87
Using the audio output being played back 88
Selecting the input mode 90
Adjusting the system
parameters 91
Using the system parameters 91
Remote control features 94
Setting remote control codes 94
Controlling other components
95
Using the TV macro 98
ADDITIONAL INFORMATION
Troubleshooting l00
Glossary l04
Index l06
Specifications 107
IList of remote control codes iI
1 En
•

Overview
It is generally accepted that in orderto fully enjoy the benefits of surround sound at home, you must endure the agony of
wiring and installing agreat number of speakers in the hope that your listening room will give you the same kind of
surround sound experience as your local movie theater.
Yamaha YSP-3050 Digital Sound Projector challenges this preconception that complicated speaker setup and
troublesome wiring go hand-in-hand with the enjoyment
of multi-channel surround sound.
This slimline unit does away with the need for complicated wiring and installation worries, leaving you with aunit that is
not only easy to set up, but is also capable
of reproducing the kind of powerful surround sound you have been waiting for
from its built-in 2woofers and
21 full-range small speakers.
You can fine-tune the parameters of this unit to adjust the delay time for separate sound beams, resulting in highly
directional sound that comes in on the listening position from all directions.
The YSP-3050 projects sound beams containing surround sound information for the front right (R), front left (L),
surround right (SR), and surround left (SL) speaker positions, which are reflected off the walls
of your listening room
before reaching the actual listening position. With the addition
of center (C) sound beams, this Digital Sound Projector
creates true-to-life
5. I-channel surround sound that makes you feel as if there are actual speakers around the room.
Sit back and enjoy the real sound experience
ofthis simple, yet stylish Digital Sound Projector.
2En
Imaginary
front left
speaker
Imaginary
center
__ -J
speaker
Imaginary
surround left
speaker
Listening position

Features
Digital Sound Projector™
The Digital Sound Projector technology allows one slim
unit to control and steer multiple channels
of sound to
generate multi-channel surround sound, thus eliminates
the need for satellite loudspeakers and cabling normally
associated with conventional surround sound systems.
This unit also employs the beam modes that let you enjoy
the surround sound
(S Beam, Stereo plus 3Beam and 3
Beam), 2-channel and S-channel stereo playback, and My
Beam.
My Surround
In addition to the above mentioned beam modes, this unit
is equipped with My Surround beam mode that allows you
to enjoy surround system even in asmall listening area.
My Surround is afunction integrated and optimized with
DiMAGIC's Euphony technology and Yamaha's Beam
reproduction system.
My Beam
This unit employs My Beam that ensures aclear sound in
anoisy environment.
You can adjust the beam angle
manually
or automatically.
Cinema DSP
This unit employs the Cinema DSP technology developed
by Yamaha Corporation that lets you experience movies at
home with all the original dramatic sound impact.
HDMITM (High-Definition Multimedia Interface)
•HDMI interface for standard, enhanced, or high-definition
video (including 1080p video signal transmission) as well as
multi-channel digital audio based on HDCP
•Simple and easy connections with HDMI supported external
components
•Functional link with an HDMI control-compatible TV
•Analog video up-scaling from 480i (NTSC)/576i (PAL) or
480p (NTSC)/576p (PAL) to 720p
or 1080i
Versatile Remote Control
The supplied remote control comes with preset remote
control codes used to control the DVD player, VCR, cable
TV tuner, and digital satellite tuner connected to this unit.
In addition, the remote control is equipped with the macro
capability that enables aseries
of operations with the press
of asingle button.
AUTO SETUP (InteIliBeam)
This unit employs the automatic sound beam and acoustic
optimization technology with the aid
of the supplied
IntelliBeam microphone.
You can avoid troublesome
listening-based speaker setup and achieve highly accurate
sound beam adjustments that best match your listening
environment.
Compatibility with the Newest Technologies
This unit employs decoders compatible with Dolby
Digital, DTS, Dolby Pro Logic, Dolby Pro Logic II, DTS
Neo:6, Music Enhancer, and Neural Surround.
•Dolby Digital
This
is the standard audio signal format used on various
digital media such as DVD, Blu-ray, and HD DVD. This
surround technology delivers high-quality digital audio for up
to
5.1 discrete channels to produce adirectional and more
realistic effect.
•DTS
This
is the standard audio signal format used on various
digital media such as DVD, Blu-ray, and HD DVD. This
surround technology delivers high-quality digital audio for up
to
5.1 discrete channels to produce adirectional and more
realistic effect.
•Dolby Pro Logic
Asurround system that takes a4-channel signal and records it
as a2-channel signal, then
by way of some arithmetic
processing converts back to an independent 4-channel signal
for playback.
•Dolby Pro Logic
II
Dolby Pro Logic II is an improved technique used to decode
vast numbers
of existing Dolby Surround software.
This new technology enables adiscrete 5-channel playback
with 2front left and right channels, Icenter channel, and 2
surround left and right channels (instead
of only 1surround
channel for conventional Pro Logic technology).
•DTS Neo:6
This technology decodes the conventional 2-channel sources
for 6-channel playback, enabling playback with the full-range
channels with higher separation. Music mode and Cinema
mode are available to play back music and movie sources
respectively.
•Music Enhancer to restore the original depth and width
of
compression artifacts such as the MP3 format.
•Neural Surround decoder.
Sophisticated FM tuner
•40-station random and direct preset tuning
•Automatic preset tuning
XMTM Satellite Radio
•XM Satellite Radio tuning capability (using the XM Mini-
Tuner Dock, and Antenna sold separately by XM Satellite
Radio)
•Neural Surround decoder to play back the XM HD content of
XM Satellite Radio broadcasts in multi-channels, resulting in
afull surround sound experience
•
XM Satellite Radio information displaying capability
iPod™ Controlling Capability
•DOCK terminal to connect aYamaha iPod universal dock
(such as the YDS-lO, sold separately), which supports iPod
(Click and Whee!), iPod nano, and iPod mini
•Playback information displaying capability
•Battery charging capability
3 En
•

Features
Inte\liBeam
The "lnteU/Beam "logo and "IntelliBeam" are trademarks of
Yamaha Corporation.
ICINEM~'
The "lcIH ..... !"'if' logo and "Cinema DSP" are registered
trademarks
of Yamaha Corporation.
lXl~
DIGITAL
iili····
eld•M,.
Manufactured under license from Dolby Laboratories.
"Dolby", "Pro Logic", and the double-D symbol are trademarks
of Dolby Laboratories.
.db
Digital SUlTOund I Ne0:6·
"DTS" and "Neo:6" are registered trademarks of DTS, Inc.
Hi:lml
"HDMI", the "HDMI" logo and "High-Definition Multimedia
Interface" are trademarks or registered trademarks
of HOMI
Licensing LLC.
4 En
Manufactured under license from ILtd. Worldwide patents
applied for.
The" (J)"logo and "Digital Sound Projector"'" are trademarks
of 1Ltd.
5RSC.)
d!1:£tti
TruBass, SRS and the" Ce) "symbol are registered trademarks
of SRS Labs, Inc. TruBass technology is incorporated under
license from SRS Labs, Inc.
I'!'\ EUPHONY
~ EUPHONY ™ is atrademark of DiMAGIC Co., Ltd.
iPod'"
'Woo" is atrademark of Apple Inc., registered in the U.S. and
other countries.
{«~»>. ~DIjQ XMMini·wlJEr
The XM name and related logos are registered trademarks of XM
Satellite Radio Inc.
Neural
Surround™ name and related logos are trademarks owned
by Neural Audio Corporation.

Using this manual
•This manual describes how to connect and operate this unit. For details regarding the operation of external components, refer to the
supplied owner's manual for each component.
•Operations in this manual use keys on the supplied remote control
of this unit unless otherwise specified.
• :'.< indicates atip for your operation.
•This manual is printed prior to production. Designs and specifications are subject to change in part as aresult
of improvements, etc. In
case
of differences between the manual and the product, the product has priority.
1Install this unit in your listening room.
See "Installation" on page 13.
2Connect this unit to your TV and other external components.
See "Connections" on page 16.
3Prepare the remote control and turn on the power of this unit.
See "Getting started" on page 24.
4Run AUTO SETUP.
See "AUTO SETIJP (IntelliBeam)" on page 29.
5Play back asource.
See "Playback" on page 39.
6Change the beam modes and/or CINEMA DSP settings.
See "Enjoying surround sound" on page 56.
If you want to make additional settings
and adjustments
7Run MANUAL SETUP to fine-tune settings and/or set remote control codes.
See "MANUAL SETUP" on page 74 and "Remote control features" on page 94.
5 En
•

Supplied accessories
Check that you have received all of the following parts.
QUICK REFERENCE
GUIDE
(WhltelRed)
(Orange)
Optical cable (x1)
Audio pin cable (x1)
-:;;;,,';q;~~:,~_ .. ,,":,,-!".""
~.Il.
Digital audio pin cable (x1)
Indoor FM antenna (x1)
Fasteners (x4)
Cable clamp (x1)
Cardboard microphone
stand (x1)
IntelllBeam microphone
(x1)
Batteries (x2)
(AA, R6, UM-3)
Remote control (x1)
r_---_""'"
Demonstration DVD
(x1) OSD* video pin cable (x1)
1
(Yellow)
*OSD: On-Screen Display
6En

Controls and functions
AUX3
- VOLUME +
INTELlIBEAM MIC STANDBYION
CD AUX 3 input jack
Connect your portable audio player (see page 22).
®INTELLIBEAM MIC jack
Connect the supplied IntelliBeam microphone for AUTO
SETUP (see page 30).
@Remote control sensor
Receives infrared signals from the remote control.
@ Front panel display
Shows information about the operational status of this
unit.
®INPUT
Press repeatedly to switch between input sources (see
page 39).
® VOLUME+/-
Controls the volume level of all audio channels (see
page 41).
CD STANDBY/ON
Turns on the power of this unit or sets it to the standby
mode (see page 25).
•When you turn on this unit, you will hear aclick sound
followed by the 4
to 5-second interval before sound
reproducing.
•In the standby mode, this unit consumes asmall amount
of
power in order to receive infrared signals from the remote
control
or to search for HDMI signals.
7En •

Controls and functIons
~ __ !_J~_, ,1 !r~~ILJ-~
ill
(·):ml 1:111 lIm' I:::: :nn n:u 11111 UIII 11111 mil um 11111 11111 IIU: 1111
H
~'~"""'-"'""""""'~"~~f'~'-"""'i'""
f
N'GKT :::''1 II II ::111 :::a :nu :IIU al!J :::u !!!J w,.. ::11' ::m .:' II
BLEEP ::::1 :::0 ::m nl:: == = wI' I::" II:" fi!!. mi! m:. :.-::. = ..
8-9-~-11-~ , 13 I-------------,---------J
CD HDMI indicator
Lights up when the signal of the selected input source is
input at the HDMI IN jack(s).
®TUNER indicators
FM: Light up when this unit is receiving an FM broadcast
(see pages 43 to 45).
XM: MEMORY flashes during the XM preset operation
(see page 51).
@CINEMA DSP indicator
Lights up when aCINEMA DSP program is selected (see
page 66).
@PCM indicator
Lights up when this unit is reproducing PCM (Pulse Code
Modulation) digital audio signals.
®Decoder indicators
Light up when the corresponding decoder operates
(see page 58).
®ENHANCER indicator
Lights up when the Music Enhancer is selected (see
page 68).
(J) Volume level indicator
Displays the current volume level.
®DOCK indicator
Lights up when your iPod (Click and Wheel), iPod nano,
or iPod mini is connected to this unit via the DOCK
terminal on this unit.
®SRS TruBass indicator
Lights up when TruBass is turned on (see page 81).
@> EQUAL indicator
Lights up when the TV volume equal mode is selected
(see page 69).
8 En
@NIGHT indicator
Lights up when one of the night listening enhancers is
selected (see page 69).
@SLEEP indicator
Lights up when the sleep timer is set (see page 70).
@XM indicator
Lights up when XM is selected as the input source.
@Multi-information display
Shows information with alphanumeric characters when
you adjust the parameters
of this unit.
@Input channel indicators
Show information when you adjust the parameters of this
unit. The channel component
of the current digital input
signal is displayed (see page 58).
(b)(g~
@g ~
I LFE I
.:-\¥-:.
You can adjust the brightness and display setting of the front
panel display using the F.DISPLAY SET parameter
in MANUAL
SETUP (see page 86).

Controls and functIOns
14
IRIN
13
111
DIGITAL INPUT ~ XM
AUX2 DVD
~COAllIAL~
~ ~
~OP11CAL~ G
AUX 1TVISTB
- -- .... ---1-1-- ---
8 9 10 7
6
5
4
3
-----1-- -- -----
CD ANTENNA jack
Connect the FM antenna (see page 23).
®DOCK terminal
Connect the Yamaha iPod universal dock (such as YDS-
10, sold separately) (see page 53).
@AUX 1AUDIO INPUT jacks
Connect an external component via an analog connection
(see page 20).
@TV/STB AUDIO INPUT jacks
Connect your TV, digital satellite tuner, or cable TV tuner
via an analog connection (see pages 21).
®VIDEO OUT jack
Connect to the video input jack of your TV via a
composite analog video connection to display the OSD
of
this unit (see page 21).
®SUBWOOFER OUT jack
Connect your subwoofer (see page 22).
(J) STB VIDEO INPUT jacks
Connect adigital satellite tuner or acable TV tuner via a
composite analog video connection (see pages 19).
®DVD COMPONENT VIDEO INPUT jacks
Connect aDVD player/recorder or an external component
via acomponent analog video connection (see pages
19
and 20).
®AUX 2COAXIAL DIGITAL INPUT jack
Connect an external component via acoaxial digital
connection (see page 20).
®> AUX 1OPTICAL DIGITAL INPUT jack
Connect an external component via an optical digital
connection (see page 20).
®TV/STB OPTICAL DIGITAL INPUT jack
Connect your TV, digital satellite tuner, or cable TV tuner
via an optical digital connection (see pages
19 and 21).
@DVD COAXIAL DIGITAL INPUT jack
Connect your DVD player via acoaxial digital connection
(see page 19).
@XM antenna jack
Connect your XM Mini-Tuner Home Dock (sold
separately) (see page 47).
@IR IN terminal
This is acontrol expansion terminal for commercial use
only (see page 23).
@STB HDMI IN jack
Connect your digital satellite tuner, cable TV tuner, digital
airwave tuner,
or game console via an HOMI connection
(see page 18).
@DVD
HDMIIN jack
Connect your DVD player via an HDMI connection (see
page 18).
@HDMI
OUT jack
Connect to the HOMI inputjack on your HOMI
component such as aTV
or aprojector connected to this
unit (see page
18 to 20).
@AC power supply cable
Connect to the AC wall outlet (see page 23). I
9 En

Controls and functions
(j) Sound field program buttons
Select the sound field programs (see page 65).
®ENHANCER
Turns on or offthe Music Enhancer (see page 68).
®Cursor buttons L:::.. / V' / ~ /1> IENTER
Select and adjust SET MENU items.
@) DISPLAY
Displays infonnation on the selected input signal.
®VOLUME +/-
Increases or decreases the volume level of this unit (see
page 41).
@MUTE
Mutes the sound. Press again to restore the audio output to
the previous volume level (see page 41).
@TEST
Outputs atest tone when adjusting the output level of each
channel (see page 87).
@TV INPUT
Toggles between the input source on your TV (see
page 95).
®CH LEVEL
Adjusts the volume level of each channel (see page 88).
CD Infrared window
Outputs infrared control signals. Aim this window at the
component you want to operate.
®STANDBY/ON
Sets this system to the standby mode (see page 25).
@Transmission indicator
Lights up when infrared control signals are being output.
@Input selector buttons
Use to select an input source (DVD, AUXI, AUX2,
AUX3IDOCK, STB, TV, or
FMIXM).
®VOL MODE
Turns on or offthe volume modes (see page 69).
*®AUTO SETUP
Enters the AUTO SETUP menu (see page 29).
i...--e.I?J*
";;';---(33)*
----@
CD>------.
You can also control othercomponents using the remote control
once you set the appropriate remote control codes. See
"Controlling other components" on page 95 for details.
This section describes the functions of the remote control
used to control this unit. Some buttons marked with an
asterisk
(*) share the common functions between the YSP
and TV/AV operation modes
(~).
10 En

@DVD playerNCR control buttons
Control your DVD player or VCR (see pages 95 and 97).
®My Beam microphone
Collects the test tones from this unit when using the My
Beam auto-adjust function (see page 63).
@) TV POWER
Turns on or offthe power of your TV (see page 95).
@) AV POWER
Turns on or off the power of the selected component (see
pages
95 and 97).
®INPUT1
Switches the input source on your TV (see page 95).
@MACRO
Use to set the TV macro (see page 98).
@
"'1Ji..
Switches the preset station number (1 to 8) when this unit
is receiving an FM broadcast
or XM channel (see
page 46).
@CAT
Switches the preset station group (A to E) when this unit is
receiving an FM broadcast
or XM channel (see page 46).
@SLEEP
Sets the sleep timer (see page 70).
@INPUTMODE
Toggles between input modes (AUTO, DTS, and
ANALOG) (see page 90).
@Beam mode buttons
Change the beam mode settings (see pages 56,62, and
63).
® SUR. DECODE
Selects the surround mode for playback (see page 59).
@MENU
Displays the setup menu on your TV monitor (see
pages
31 and 75).
@Operation mode selector
Selects the operation mode of this unit. Select YSP when
operating this unit and select TVI
AV when operating your
TV or other
AV components.
Controls and functions
®l RETURN
Returns to the previous SET MENU screen.
@
TV VOL +1-
Adjusts the volume level of your TV (see page 95).
@CH +1-
Changes the channels of your TV, digital satellite tuner,
cable TV tuner,
or VCR (see pages 95 to 97).
@
TV MUTE, CODE SET
Mutes the audio output of your TV (see page 95).
Sets up remote control codes (see page 94).
The functions @and @are available only when the FM/XM
stations are preset.
11 En •

Controls and functions
This section describes the functions of the remote control
used to control FM,
XM Satellite Radio, or iPod when the
TV/AV mode is selected with the operation mode selector
(0).
12 En
CD PRESETITUNE
FM: Switches between the preset search mode and the
frequency search mode (see pages 43 to 46).
®Numeric buttons
FM, XM: Enter numbers.
@Cursor buttons ~ I '9' I <II ~, ENTER
FM: Use ENTRY ~ (~/'9') to change the preset station
number
(l to 8) or frequency level (see pages 43 to 46).
Use CAT/A-E
~~ (<I/~) to change the preset station group
(A to E) (see pages 45 and 46).
XM: Use ENTRY ~ (~/'9') to select XM channels in
All Channel Search mode/Category Search mode, and to
select the preset channel number
(l to 8) in Preset Search
mode. Use CAT/A-E
4~ (<I/~) to select XM categories in
All Channel Search mode/Category Search mode, and to
select the preset channel group (A to E) in Preset Search
mode. Use ENTER to confirm the input above (see
pages 49 to 51).
~\.-:.
For further infonnation on controlling iPod. see page 53.
(4) DISP~AY
XM and iPod: Displays information when this unit is
receiving an XM channel (see page 52) or playing back
your iPod (see page 54).
®MEMORY
FM: Stores the preset stations (see pages 44 and 45).
XM: Use to store the preset stations (see page 51).
®SEARCH
FM: Switches between automatic and manual tuning (see
page 43).
XM: Switches between search modes (All Channel
Search, Category Search, and Preset Search) (see page 49
and 50).
oOperation mode selector
Selects the operation mode of this unit. Select YSP when
operating this unit and select TV/AV when operating your
TV
or other AV components.

Installation
This section describes asuitable installation location to install this unit using ametal wall bracket, arack or astand.
Depending on your installation environment, connections with external components can be done before installing this
unit.
We recommend that you temporarily place and arrange all components, including this unit, in order to decide which
procedure should come first. Especially when you make aconnection over HDMI, we recommend that you make a
connection first before installation (see page 18).
This unit creates surround sound by reflecting projected
sound beams offthe walls
of your listening room. The
surround sound effects produced by this unit may not be
sufficient when this unit is installed in the following
locations.
•Rooms with walls inadequate for reflecting sound
beams
•Rooms with acoustically absorbent walls
•Rooms with measurements outside the following
range: W
(3 to 7 m (10 to 23 ft» x H (2 to 3.5 m(7 to
11.5
ft» x D (3 to 7 m (10 to 23 ft»
•Rooms with less than 1.8 m(6 ft) from the listening
position to this unit
•Rooms where objects such as furniture are likely to
obstruct the path
of sound beams
•Rooms where the listening position is close to the walls
•Rooms where the listening position is not in front
of
this unit
• You can enjoy surround sound by selecting My Surround (see
page 57) as the beam mode even if your listening room may not
fulfill the above conditions (except when the listening position
is not directly facing toward the front of this unit).
•
You can also enjoy surround sound by selecting 2-channel or 5-
channel stereo playback (see page 62) or My Beam (see
page 63) as the beam mode even
if your listening room may not
fulfill the above conditions.
Make sure you leave an adequate amount of ventilation
space so that heat can escape. Make at least 5cm (2 in)
of
space above or below this unit.
Side view
5cm (2 in) or more
•We do not recommend putting this unit directly on the floor of
your listening room. Please install this unit using ametal wall
bracket, arack,
or astand.
•This unit weighs 11.5
kg (25 lbs 6oz). Be sure to install this
unit where it will not fall subject to vibrations, such as from an
earthquake, and where it is out
of the reach of children.
•When using acathode-ray tube (CRT)
TV, do not install this
unit directly above your
TV.
•This unit is shielded against magnetic rays. However, if the
picture on your TV screen becomes blurred or distorted, we
recommend moving this unit away from your
TV.
Install this unit where there are no obstacles such as
furniture obstructing the path
of sound beams. Otherwise,
the desired surround sound effects may not be achieved.
You may install this unit in parallel with the wall or in the
comer.
Parallel installation
Install this unit in the exact center of the wall when it is
measured from the left and right corners.
• An object, such as furniture
Corner installation
Install this unit in the corner at a40" to 50" angle from the
adjacent walls.
40· to 50·
Front Rear
•An object, such as furniture
13 En •

Instal/allon
•Installation examples
Example 1
Install this unit as close to the exact center of the wall as possible.
Example 2
Install this unit so that the sound beams can be reflected off the walls.
Example 3
Install this unit as close to the exact front of your normal listening position as possible.
14 En

•Using ametal wall bracket
You can use the optional metal wall bracket to mount this
unit
on the wall in your listening room.
Metal wall bracket
This
unit
TV
YSp·3050
I r!5 325 325 65
r ,;~~~~:~,;u i---u-u:2~~~;;; ~:
I "u - "_~uuu uu __ ~_u uuu_ u--u .-.}'
I ~ j -&io
e'
c---::::J
SPM·K30 (Option) (mm)
~"cf{-:.
Refer to the instructions supplied with the metal bracket for
details on how to attach the metal bracket to the wall
or how to
attach this unit to the metal bracket.
•Using astand
You can mount your TV on astand placed on a
commercially available rack and install this unit under
your
TV.
Stand
TV
;
nY::::::::::::, ======rn
~ .. e - ., YI
This unit
.:-\¥-:.
Refer to the instructions supplied with the stand for details on
how to install the stand
or how to mount the TV on the stand.
InstallatIon
•Using a rack
You can install this unit eitherabove or under your TV in a
commercially available rack.
When this unit Is installed above your TV
When this unit Is Installed under your TV
Yil~"
'Jt.O ..
Make sure that the rack is large enough to allow adequate
ventilation space around this unit (see page 13) and that it is
strong enough to support the weight
of both this unit and your TV.
•Affixing this unit
Peel off the film from each of the four supplied fasteners
and then secure them to the bottom four comers
of this
unit and the top
of the rack, etc.
This unit
2~
Fasteners
•
Do not install this unit on top of aslanted surface. This unit may
fall over and cause injury.
•Make sure you wipe the surface
of the rack, etc. before securing
the fasteners. Applying the tape to adirty or wet surface will
weaken the sticking power
of the tape, and this unit may fall as
aresult.
15 En I

Connections
This unit is equipped with the following types of audio/video input/outputjacks/terminal:
For audio input
• 2 optical digital inputjacks
• 2 coaxial digital inputjacks
• 2 sets
of analog inputjacks
• I universal dock terminal
For video input
• I composite video input
jack
• I set of component video inputjacks
For audio/video input
• 2 HDMI input jacks
For audio output
• 1 subwoofer output
jack
For video output
• I analog output
jack
For audio/video output
• I HDMI output
jack
Use thesejacks/terminal to connect external components such as your TV, DVD player, VCR, digital satellite tuner, cable
TV tuner, digital airwave tuner, portable audio player, game console, and iPod. Further, by connecting asubwoofer to this
unit, you can enjoy reinforced low-bass sounds. For details on how to connect various types
of external components to
this unit, see pages
18 to 22.
CAUTION
•Do not connect this unit or other components to the mains power until all connections between components are
complete.
•Unplug the AC power supply cable before changing connections, moving or cleaning this unit.
16 En
DVD player
Audio connection
Subwoofer portable audio
player Digital satellitetuner
or cable TV tuner
Video connection
VCR or game console
