PSM300
Stereo Personal Monitor System

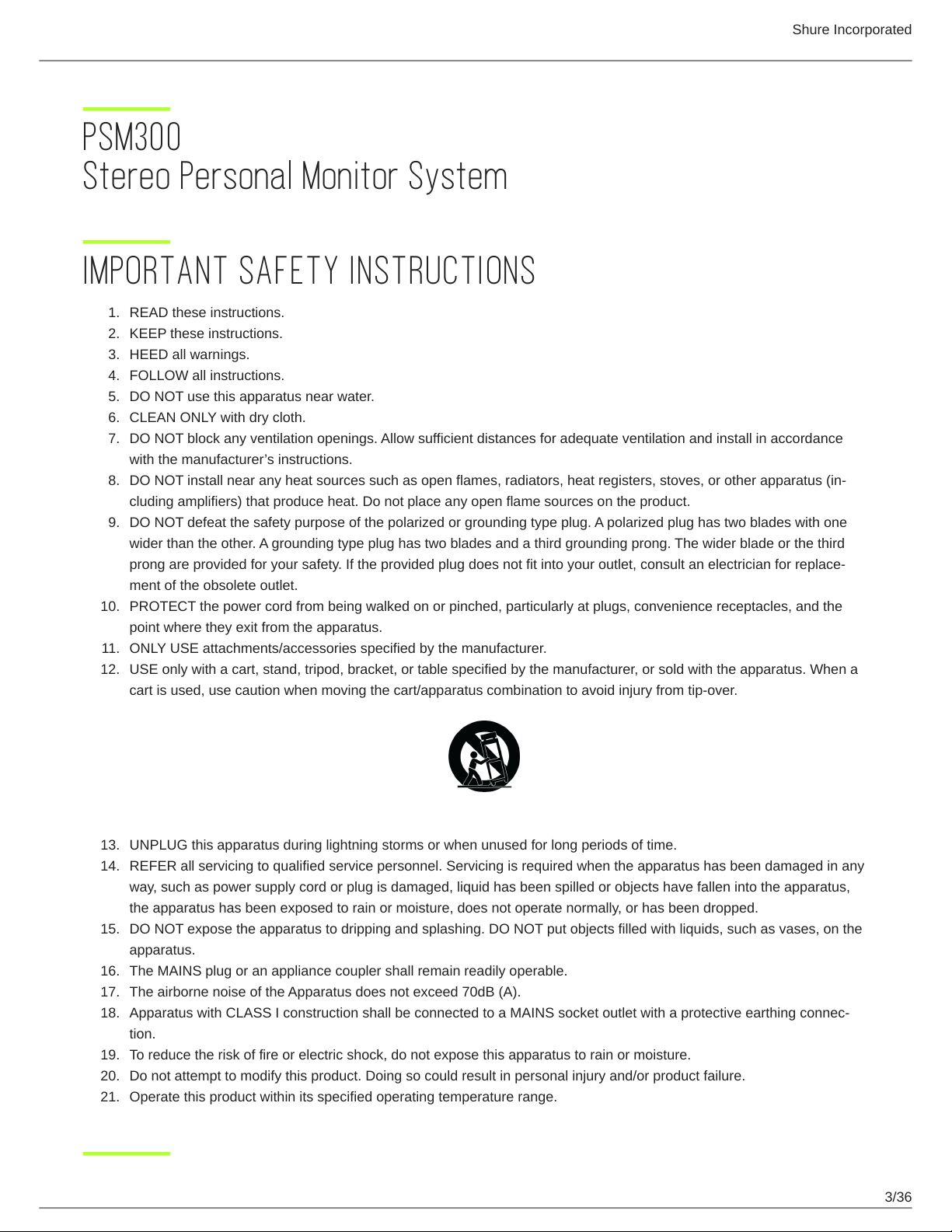

IMPORTANT SAFETY INSTRUCTIONS
READ these instructions.
KEEP these instructions.
HEED all warnings.
FOLLOW all instructions.
DO NOT use this apparatus near water.
CLEAN ONLY with dry cloth.
DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance
with the manufacturer’s instructions.
DO NOT install near any heat sources such as open flames, radiators, heat registers, stoves, or other apparatus (in
cluding amplifiers) that produce heat. Do not place any open flame sources on the product.
DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third
prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replace
ment of the obsolete outlet.
PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
ONLY USE attachments/accessories specified by the manufacturer.
USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a
cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
UNPLUG this apparatus during lightning storms or when unused for long periods of time.
REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
DO NOT expose the apparatus to dripping and splashing. DO NOT put objects filled with liquids, such as vases, on the
apparatus.
The MAINS plug or an appliance coupler shall remain readily operable.
The airborne noise of the Apparatus does not exceed 70dB (A).
Apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connec
tion.
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
Do not attempt to modify this product. Doing so could result in personal injury and/or product failure.
Operate this product within its specified operating temperature range.

Shure Incorporated
4/36
•
•
•
•
•
SAFETY PRECAUTIONS
The possible results of incorrect use are marked by one of the two symbols—"WARNING" and "CAUTION"—depending on the
imminence of the danger and the severity of the damage.
WARNING: Ignoring these warnings may cause severe injury or death as a result of incorrect operation.
CAUTION: Ignoring these cautions may cause moderate injury or property damage as a result of incor
rect operation.
CAUTION
Never disassemble or modify the device, as failures may result.
Do not subject to extreme force and do not pull on the cable or failures may result.
Keep the product dry and avoid exposure to extreme temperatures and humidity.
WARNING
If water or other foreign objects enter the inside of the device, fire or electric shock may result.
Do not attempt to modify this product. Doing so could result in personal injury and/or product failure.
This device is able to produce sound volume higher than 85 dB SPL. Please check your maximum allowed continuous noise exposure level based on your na
tional employment protection requirements.
This product is intended for professional use only. This product should only be sold through professional sales channels.
WARNING
LISTENING TO AUDIO AT EXCESSIVE VOLUMES CAN CAUSE PERMANENT HEARING DAMAGE. USE AS LOW A VOL
UME AS POSSIBLE. Over exposure to excessive sound levels can damage your ears resulting in permanent noise-induced
hearing loss (NIHL). Please use the following guidelines established by the Occupational Safety Health Administration (OSHA)
on maximum time exposure to sound pressure levels before hearing damage occurs.
90 dB SPL
at 8 hours
95 dB SPL
at 4 hours
100 dB SPL
at 2 hours
105 dB SPL
at 1 hour
110 dB SPL
at ½ hour
115 dB SPL
at 15 minutes
120 dB SPL
Avoid or damage may occur
PSM 300
The PSM300 Personal Monitor System delivers wireless stereo monitoring for improved clarity and reduced feedback over tra
ditional stage wedges. Performers can create their own custom mixes by adjusting the stereo blend and overall volume level at
the bodypack, resulting in lower volume on stage and enhanced audio detail. Easy to set up and operate, PSM300 features
one-touch frequency syncing and solid wireless RF stability between transmitters and receivers. With rugged, dependable
hardware and hardworking technology, Shure PSM300 Personal Monitor Systems deliver a greatly improved monitoring expe
rience on stage.
®

Shure Incorporated
5/36
•
•
•
•
•
•
•
•
•
Features
Send two channels of audio wirelessly to performers onstage
Solid RF connection over a 300 foot (90 meter) range
Create a personal mix on each bodypack with adjustable stereo balance or MixMode two-channel mono blend.
Up to 90 dB signal-to-noise ratio provides clear, detailed audio at any volume
Systems available with Shure Sound Isolating earphones
One-touch scan and IR sync quickly and easily assigns a clean wireless channel
No complicated menus, just simple volume and mix controls that focus on the performance
All-metal half-rack transmitter
Slim, lightweight bodypack attaches easily to a belt or guitar strap
Included Components
*Not included in Argentina
**Not included in JB Band model
®
™

Shure Incorporated
6/36
System Overview

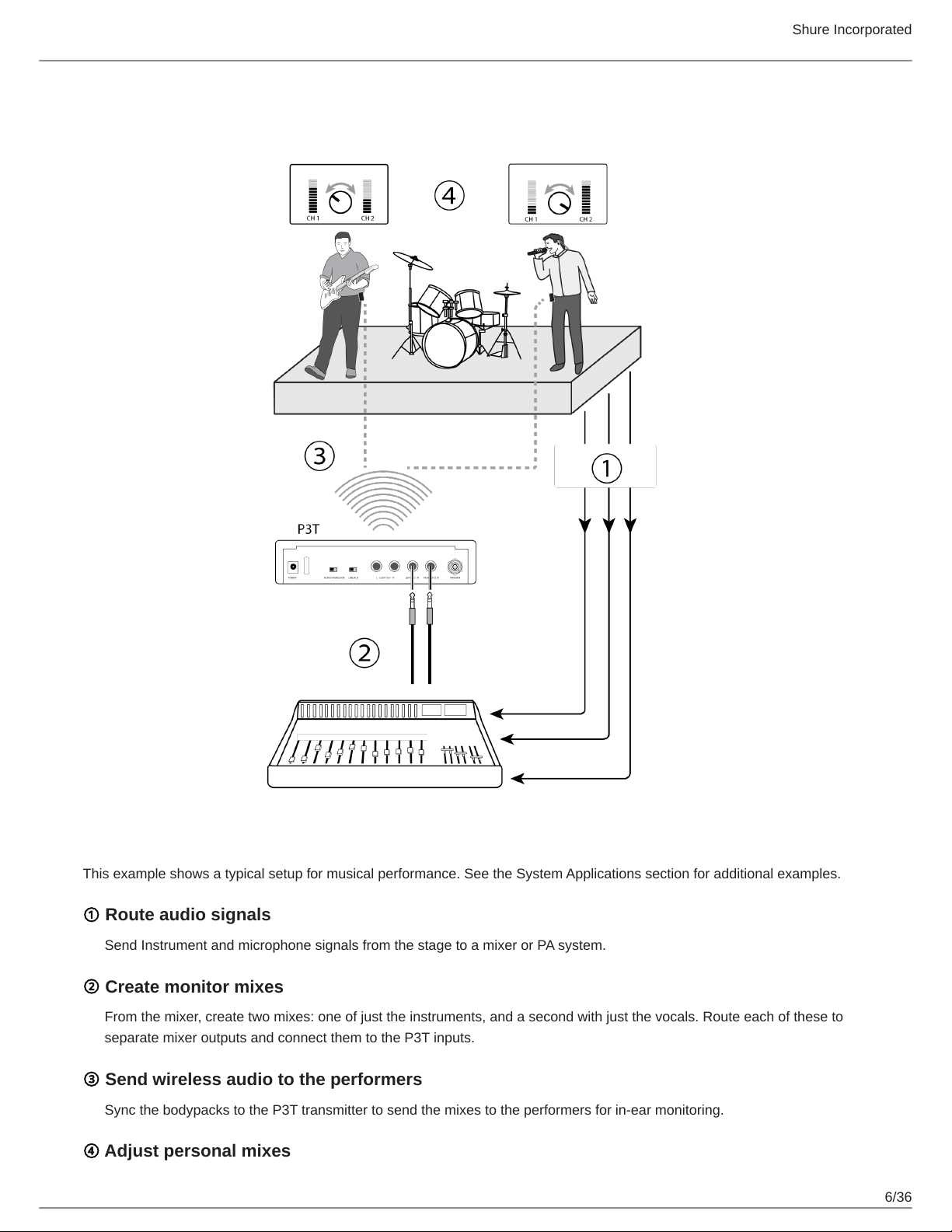

This example shows a typical setup for musical performance. See the System Applications section for additional examples.
①Route audio signals
Send Instrument and microphone signals from the stage to a mixer or PA system.
②Create monitor mixes
From the mixer, create two mixes: one of just the instruments, and a second with just the vocals. Route each of these to
separate mixer outputs and connect them to the P3T inputs.
③Send wireless audio to the performers
Sync the bodypacks to the P3T transmitter to send the mixes to the performers for in-ear monitoring.
④Adjust personal mixes

Shure Incorporated
7/36
Each performer uses the MixMode knob on the bodypack to control their own mix between the instruments and vocals .
Hardware
P3T Transmitter Front and Rear Panels
①Input Level Control
Adjusts the level of the incoming audio signal
②IR Sync Window
Sends and receives group/channel data to sync receivers with the transmitter
③Sync Button
Press to synchronize the transmitter and receiver to the same group and channel
Note: Sync data is sent through the IR sync window
④LCD Display
Displays audio, RF, and system information
⑤Group Button
Press to scroll through group settings
⑥Channel Button
Press to scroll through channel settings
⑦Power
Turns power on or off
⑧Power Input
Connect the supplied Shure PS24 external power supply
⑨Mono/Stereo-MX Switch
StereoMX Sends a two-channel stereo mix to the receiver
Mono Sends a summed audio mix to both receiver channels
⑩Line/Aux Switch
Adjust the input sensitivity using the following as a connection reference:
Aux (-10 dBV): Consumer audio devices, such as computers or portable media players
Line (+4 dBu): Mixers or other professional audio devices

Shure Incorporated
8/36
⑪Loop Outputs (¼ Inch TRS, Balanced)
Connect outputs to additional PSM systems or other audio devices
⑫Audio Inputs (¼ Inch TRS, Balanced)
Connect to mixer outputs or other audio sources for monitoring by the performers
⑬BNC Antenna Connector
Connect the supplied ¼ wave antenna, directional antenna, or a Shure PA411 antenna combiner
P3T Front Panel
P3T Rear Panel
Note: For JB band models, the antenna is permanently fixed to the transmitter. Removing the antenna on JB band models is prohibited by law in Japan, and
attempting to do so may cause damage to the transmitter.
P3T Transmitter Display
①Audio Input Meter
Indicates the audio signal level
②Group / Channel / TV Setting
Displays selected group and channel settings and the corresponding television channel

Shure Incorporated
9/36

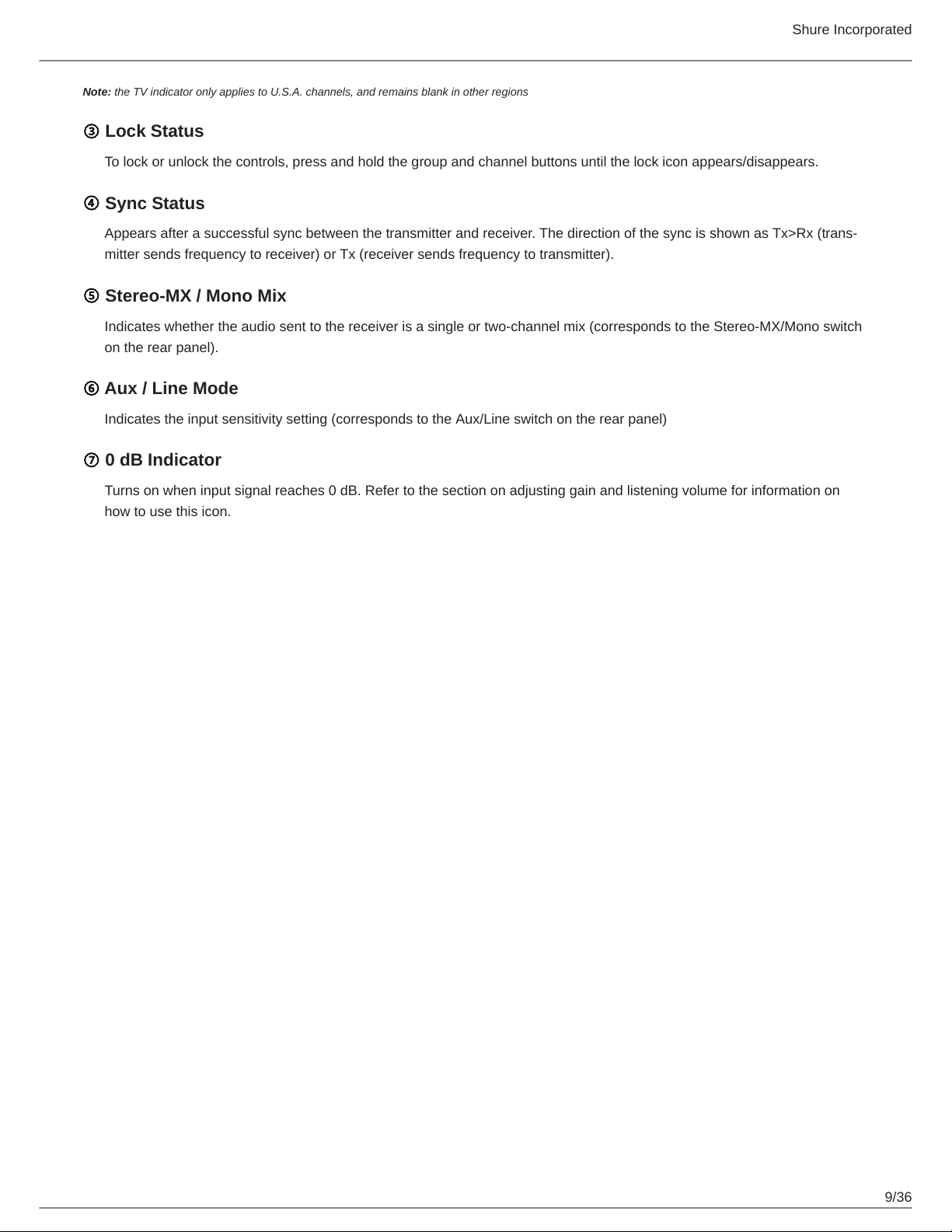

Note: the TV indicator only applies to U.S.A. channels, and remains blank in other regions
③Lock Status
To lock or unlock the controls, press and hold the group and channel buttons until the lock icon appears/disappears.
④Sync Status
Appears after a successful sync between the transmitter and receiver. The direction of the sync is shown as Tx>Rx (trans
mitter sends frequency to receiver) or Tx (receiver sends frequency to transmitter).
⑤Stereo-MX / Mono Mix
Indicates whether the audio sent to the receiver is a single or two-channel mix (corresponds to the Stereo-MX/Mono switch
on the rear panel).
⑥Aux / Line Mode
Indicates the input sensitivity setting (corresponds to the Aux/Line switch on the rear panel)
⑦0 dB Indicator
Turns on when input signal reaches 0 dB. Refer to the section on adjusting gain and listening volume for information on
how to use this icon.

Shure Incorporated
10/36
◦
◦
P3R Wireless Receiver

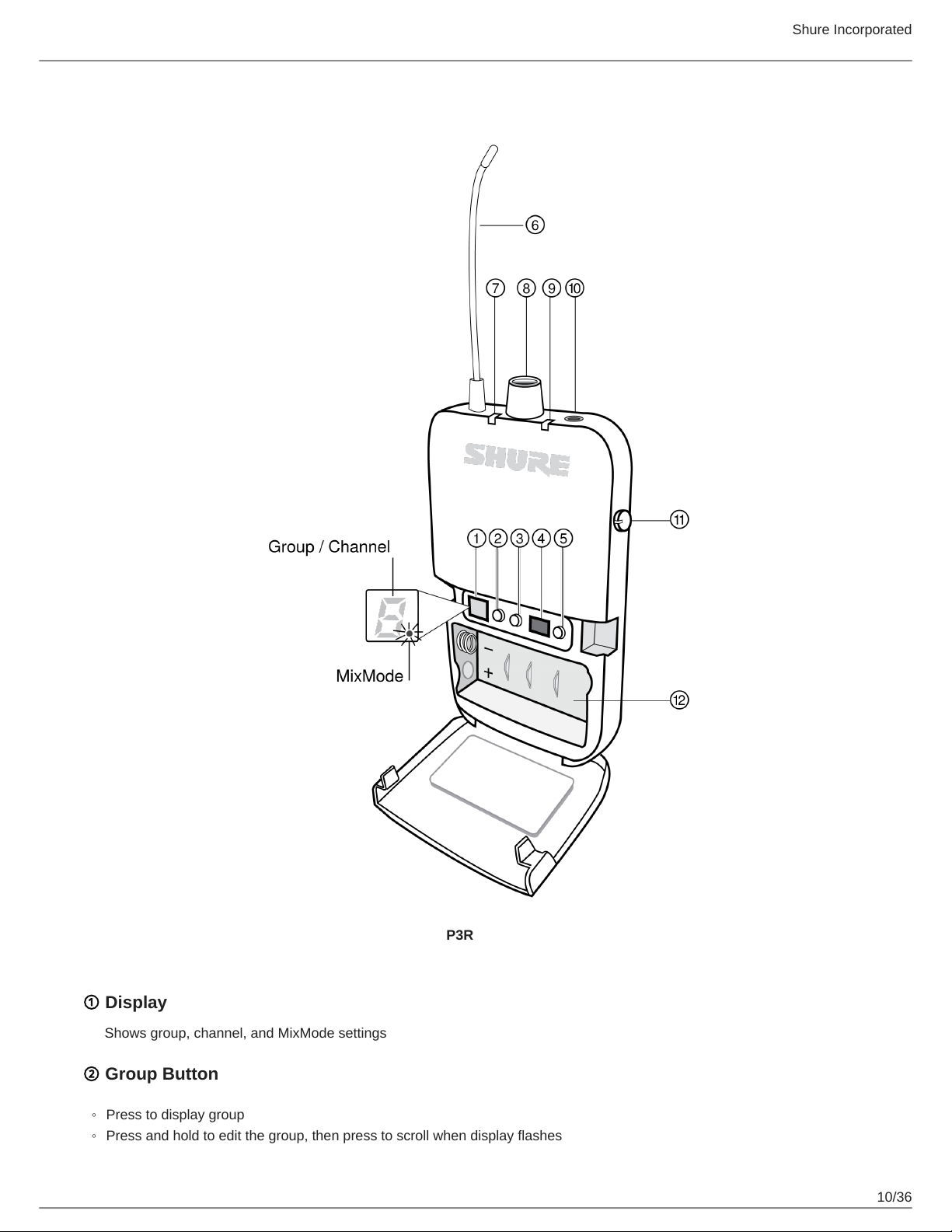

P3R
①Display
Shows group, channel, and MixMode settings
②Group Button
Press to display group
Press and hold to edit the group, then press to scroll when display flashes

Shure Incorporated
11/36
◦
◦
◦
◦
◦
◦

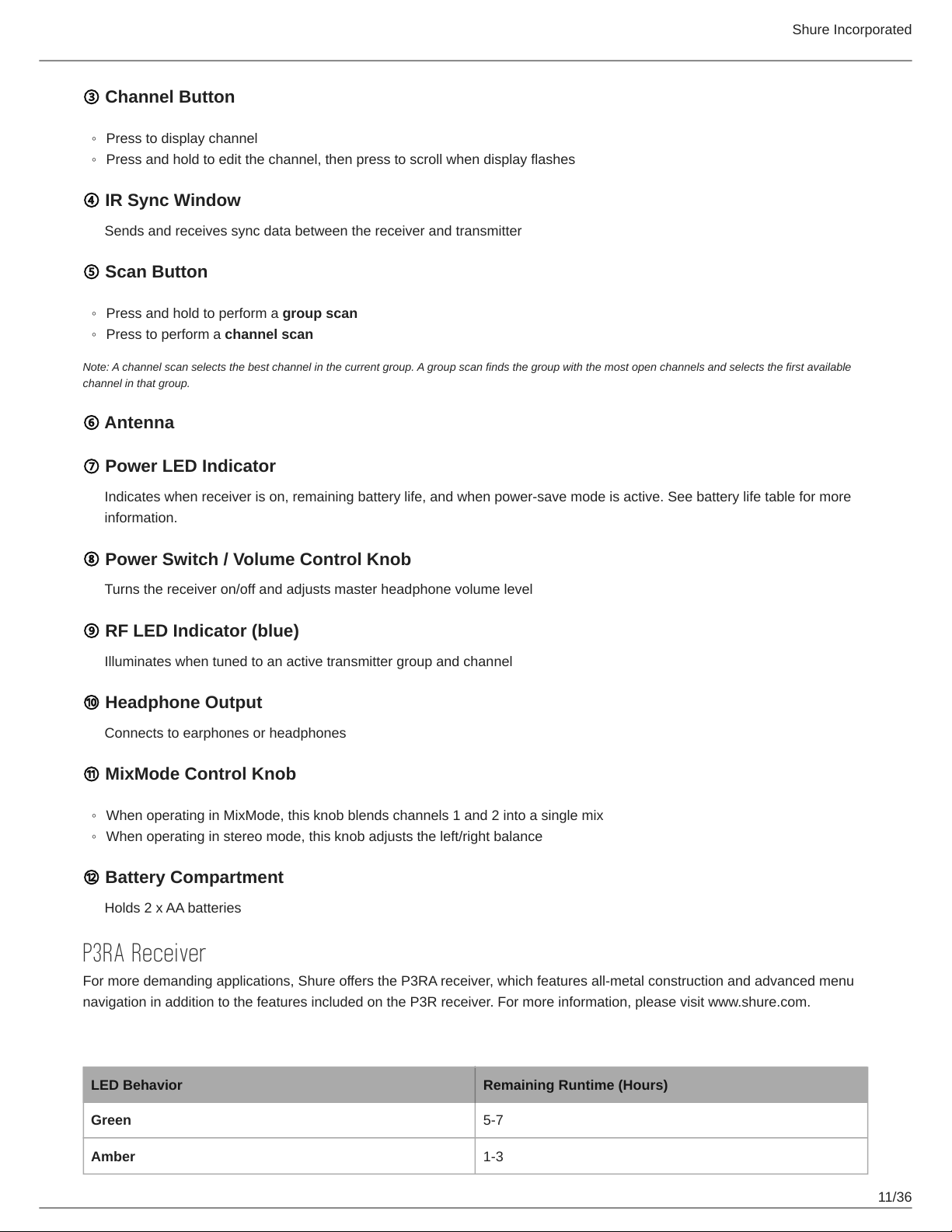

③Channel Button
Press to display channel
Press and hold to edit the channel, then press to scroll when display flashes
④IR Sync Window
Sends and receives sync data between the receiver and transmitter
⑤Scan Button
Press and hold to perform a group scan
Press to perform a channel scan
Note: A channel scan selects the best channel in the current group. A group scan finds the group with the most open channels and selects the first available
channel in that group.
⑥Antenna
⑦Power LED Indicator
Indicates when receiver is on, remaining battery life, and when power-save mode is active. See battery life table for more
information.
⑧Power Switch / Volume Control Knob
Turns the receiver on/off and adjusts master headphone volume level
⑨RF LED Indicator (blue)
Illuminates when tuned to an active transmitter group and channel
⑩Headphone Output
Connects to earphones or headphones
⑪MixMode Control Knob
When operating in MixMode, this knob blends channels 1 and 2 into a single mix
When operating in stereo mode, this knob adjusts the left/right balance
⑫Battery Compartment
Holds 2 x AA batteries
P3RA Receiver
For more demanding applications, Shure offers the P3RA receiver, which features all-metal construction and advanced menu
navigation in addition to the features included on the P3R receiver. For more information, please visit www.shure.com.
Battery Life
LED Behavior Remaining Runtime (Hours)
Green 5-7
Amber 1-3

Shure Incorporated
12/36
•
•
LED Behavior Remaining Runtime (Hours)
Red (solid) 0.5-1
Red (flashing) 0
Battery life was measured using Energizer alkaline batteries, under the following conditions:
Transmitter sensitivity: Line (+4dBu)
Audio output from receiver: dB through Shure SE112 earphones
Power-save mode: When there are no earphones plugged in, the receiver enters power-save mode to preserve battery life.
The LED slowly fades on/off in this mode and continues to display the color that represents the remaining battery life.
System Applications
Refer to the following PSM300 system scenarios prior to installation. Understanding the configuration options before setting up
helps to identify signal routing requirements and plan for future expansion. Specific information on how to set up the PSM300
system and create mixes for monitoring can be found in the "System Setup and Configuration" and "Operation" sections of this
user guide.
Single System for an Individual Performer
This configuration provides inear monitoring in a solo performance, or in a group performance in which only one person re
quires wireless monitoring. This system can be expanded for multiple performers by using additional P3R bodypack receivers
tuned to the same transmitter.
Single Transmitter with Multiple Receivers

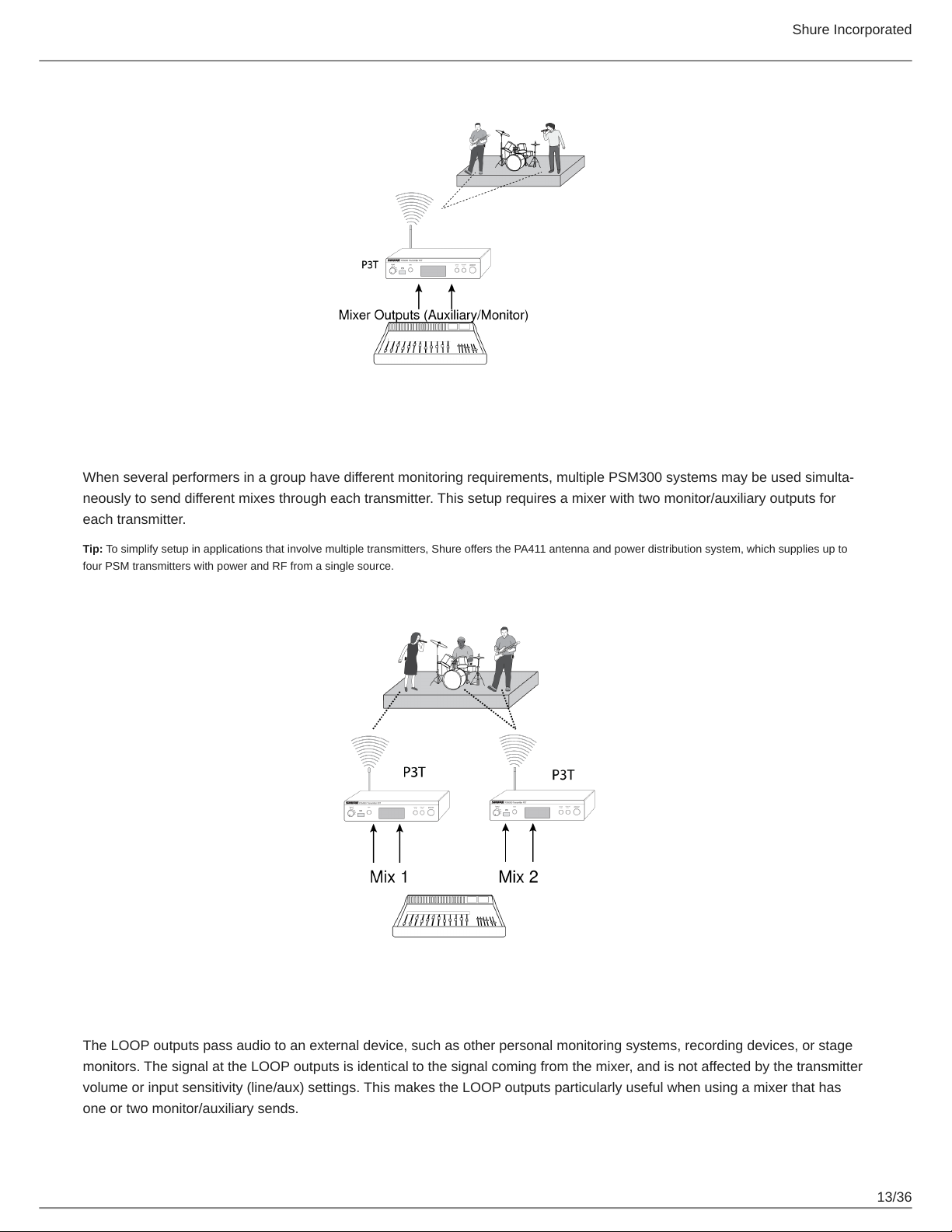

Multiple performers can monitor audio from the same transmitter and still adjust the signal at their bodypack to personalize the
mix. Simply tune each bodypack to the same frequency as the transmitter and use the MixMode knob to adjust the mix.
MixMode or Stereo Operation:
Each performer has the option of setting their bodypack to MixMode or Stereo when the transmitter is set to Stereo-MX. When
the bodypack is powered on, it is set to stereo by default. To operate in MixMode, hold the GROUP button when turning the
power on. For information on these modes, see "MixMode and Stereo Monitoring".
™

Shure Incorporated
13/36
Multiple Transmitters with Separate Mixes
When several performers in a group have different monitoring requirements, multiple PSM300 systems may be used simulta
neously to send different mixes through each transmitter. This setup requires a mixer with two monitor/auxiliary outputs for
each transmitter.
Tip: To simplify setup in applications that involve multiple transmitters, Shure offers the PA411 antenna and power distribution system, which supplies up to
four PSM transmitters with power and RF from a single source.
Signal Routing to External Devices (Combination Systems)
The LOOP outputs pass audio to an external device, such as other personal monitoring systems, recording devices, or stage
monitors. The signal at the LOOP outputs is identical to the signal coming from the mixer, and is not affected by the transmitter
volume or input sensitivity (line/aux) settings. This makes the LOOP outputs particularly useful when using a mixer that has
one or two monitor/auxiliary sends.

Shure Incorporated
14/36
Using the PSM300 simultaneously with Loudspeakers:
A combination monitoring system can be used, where some of the performers are using the PSM300 wireless system and oth
ers are listening through loudspeakers on stage.
Note: If using passive stage monitors, the P3T outputs must be connected to an amplifier. Active (amplified) speakers can be connected directly to the P3T
outputs.
Using the PSM300 Combined with Other Wireless Monitoring Systems
In a scenario where two performers have their own wireless monitoring systems (one Shure PSM300 system and one third-
party system, for example), the PSM300 can pass the signal from the mixer on to the second monitoring system.
System Setup and Configuration
Rack Mounting
The P3T Transmitter can be mounted in a standard 19inch rack. Up to two units can be mounted in a single rack space. If us
ing multiple P3T transmitters, the Shure PA411 Antenna Combiner system can be used to consolidate and distribute all RF and
power for up to four transmitters.

Shure Incorporated
15/36
1.
2.
3.
4.

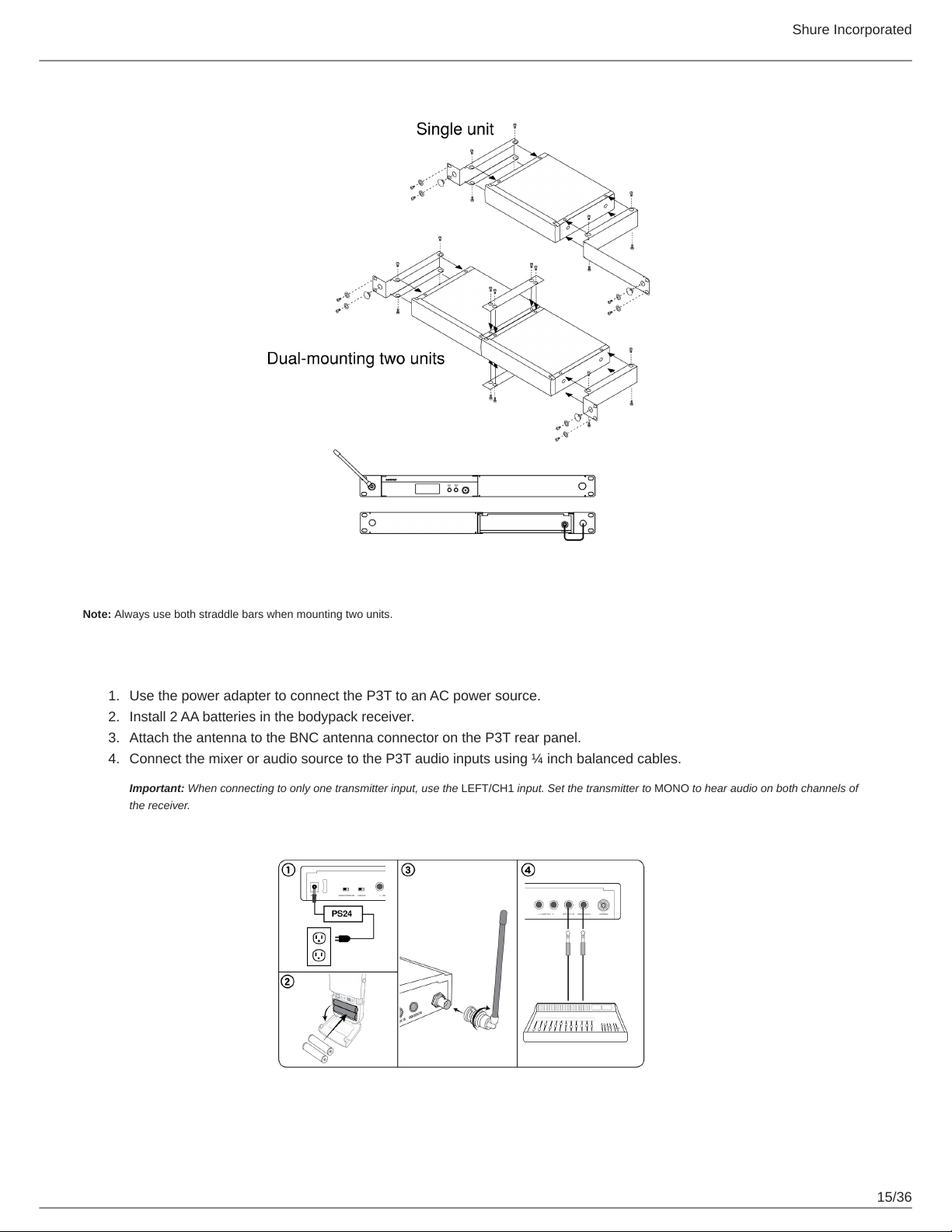

Note: Always use both straddle bars when mounting two units.
Power, Audio, and RF Connections
Use the power adapter to connect the P3T to an AC power source.
Install 2 AA batteries in the bodypack receiver.
Attach the antenna to the BNC antenna connector on the P3T rear panel.
Connect the mixer or audio source to the P3T audio inputs using ¼ inch balanced cables.
Important: When connecting to only one transmitter input, use the LEFT/CH1 input. Set the transmitter to MONO to hear audio on both channels of
the receiver.

Shure Incorporated
16/36
1.
2.
3.
Scanning for the Best Open Channel
Follow these steps to scan the RF environment and find the best available frequency for operation:
Turn on the bodypack receiver and any potential sources of interference, including wireless systems, computers, audio
equipment, cellular phones, LED panels, and other electronic devices that will be in use during a performance.
Make sure the P3T transmitter is OFF.
Position the receiver in the performance area and press SCAN to survey the available channels within the current
group setting.
If using several PSM300 systems or operating in a location with a high volume of wireless devices, perform a group
scan first, followed by a channel scan:
Group Scan: Press and hold the SCAN button on the receiver.
Channel Scan: Press the SCAN button on the receiver.
Creating a Wireless Connection Between Receivers and Transmitters
(Sync)
To pass audio from the transmitter to the receiver, both must be tuned to the same frequency. The easiest way to configure the
system is to use the automatic sync feature. This transfers group and channel settings with a press of a button. Based on your
system configuration, use one of the following processes to sync the components:

Shure Incorporated
17/36
1.
2.
3.
4.

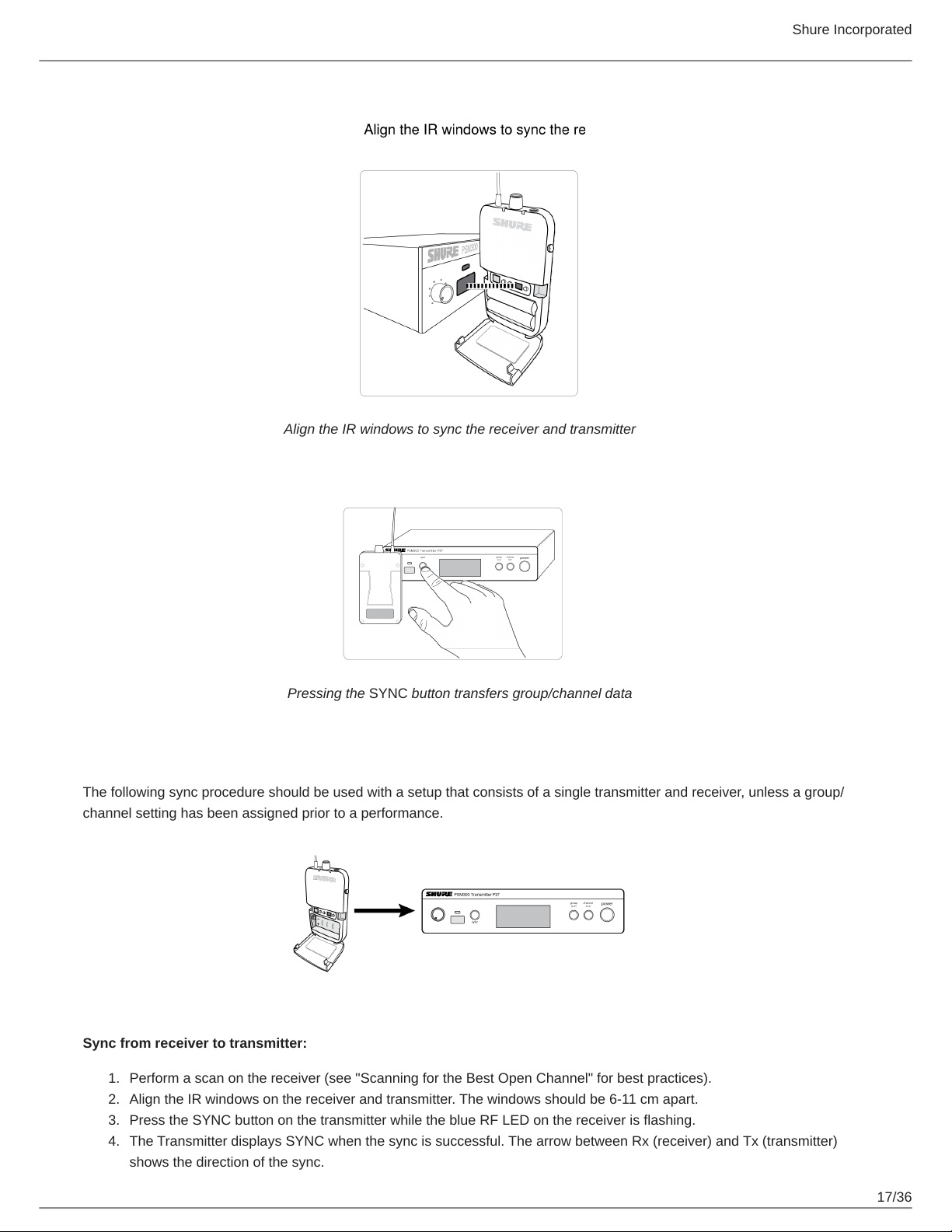

Align the IR windows to sync the receiver and transmitter
Pressing the SYNC button transfers group/channel data
Single Transmitter and Receiver
The following sync procedure should be used with a setup that consists of a single transmitter and receiver, unless a group/
channel setting has been assigned prior to a performance.
Sync from receiver to transmitter:
Perform a scan on the receiver (see "Scanning for the Best Open Channel" for best practices).
Align the IR windows on the receiver and transmitter. The windows should be 6-11 cm apart.
Press the SYNC button on the transmitter while the blue RF LED on the receiver is flashing.
The Transmitter displays SYNC when the sync is successful. The arrow between Rx (receiver) and Tx (transmitter)
shows the direction of the sync.

Shure Incorporated
18/36
1.
2.
◦
◦
1.
2.
1.
2.

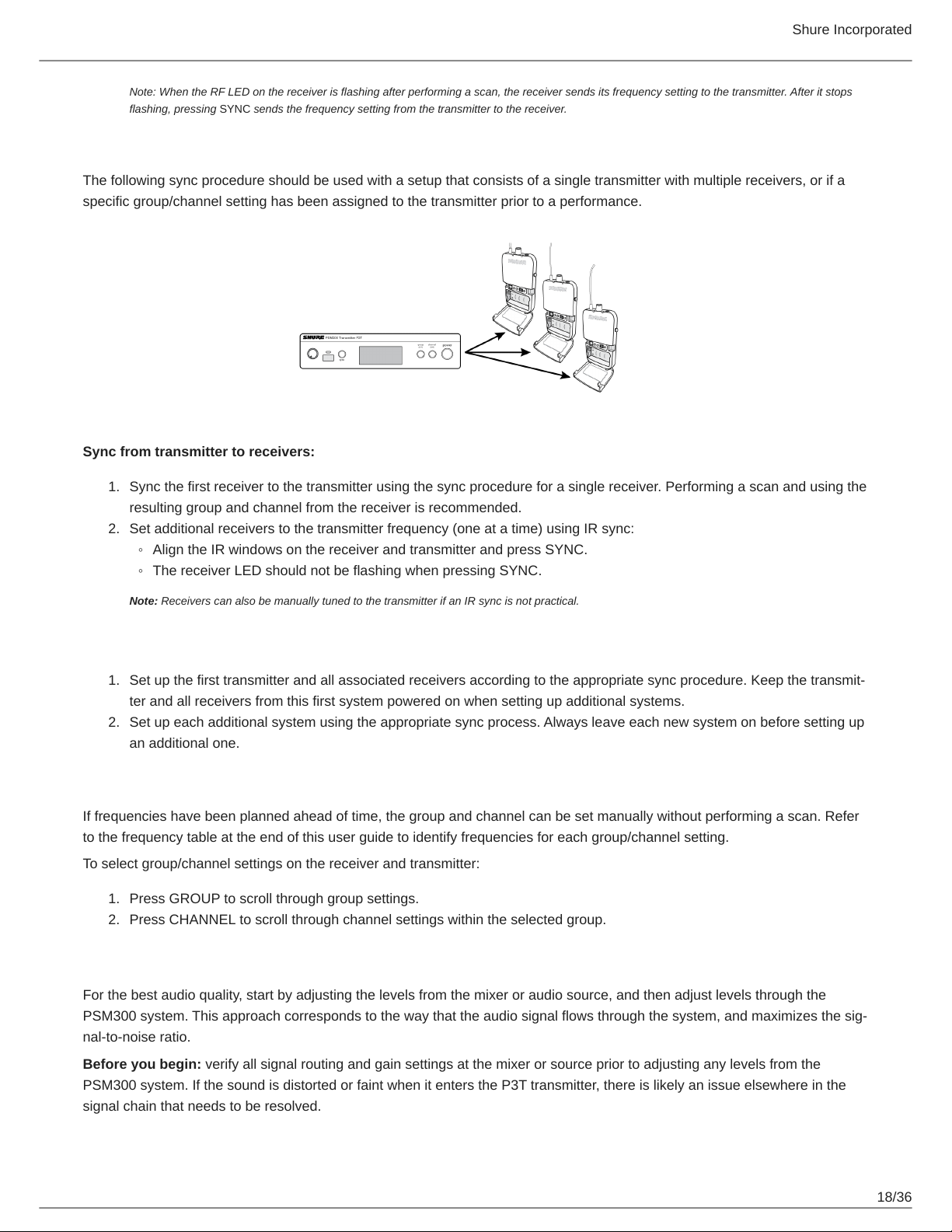

Note: When the RF LED on the receiver is flashing after performing a scan, the receiver sends its frequency setting to the transmitter. After it stops
flashing, pressing SYNC sends the frequency setting from the transmitter to the receiver.
Single Transmitter and Multiple Receivers
The following sync procedure should be used with a setup that consists of a single transmitter with multiple receivers, or if a
specific group/channel setting has been assigned to the transmitter prior to a performance.
Sync from transmitter to receivers:
Sync the first receiver to the transmitter using the sync procedure for a single receiver. Performing a scan and using the
resulting group and channel from the receiver is recommended.
Set additional receivers to the transmitter frequency (one at a time) using IR sync:
Align the IR windows on the receiver and transmitter and press SYNC.
The receiver LED should not be flashing when pressing SYNC.
Note: Receivers can also be manually tuned to the transmitter if an IR sync is not practical.
Multiple Transmitters and Multiple Receivers
Set up the first transmitter and all associated receivers according to the appropriate sync procedure. Keep the transmit
ter and all receivers from this first system powered on when setting up additional systems.
Set up each additional system using the appropriate sync process. Always leave each new system on before setting up
an additional one.
Manual Selection
If frequencies have been planned ahead of time, the group and channel can be set manually without performing a scan. Refer
to the frequency table at the end of this user guide to identify frequencies for each group/channel setting.
To select group/channel settings on the receiver and transmitter:
Press GROUP to scroll through group settings.
Press CHANNEL to scroll through channel settings within the selected group.
Adjusting Gain and Listening Volume
For the best audio quality, start by adjusting the levels from the mixer or audio source, and then adjust levels through the
PSM300 system. This approach corresponds to the way that the audio signal flows through the system, and maximizes the sig
nal-to-noise ratio.
Before you begin: verify all signal routing and gain settings at the mixer or source prior to adjusting any levels from the
PSM300 system. If the sound is distorted or faint when it enters the P3T transmitter, there is likely an issue elsewhere in the
signal chain that needs to be resolved.

Shure Incorporated
19/36
①Adjust Transmitter Levels:

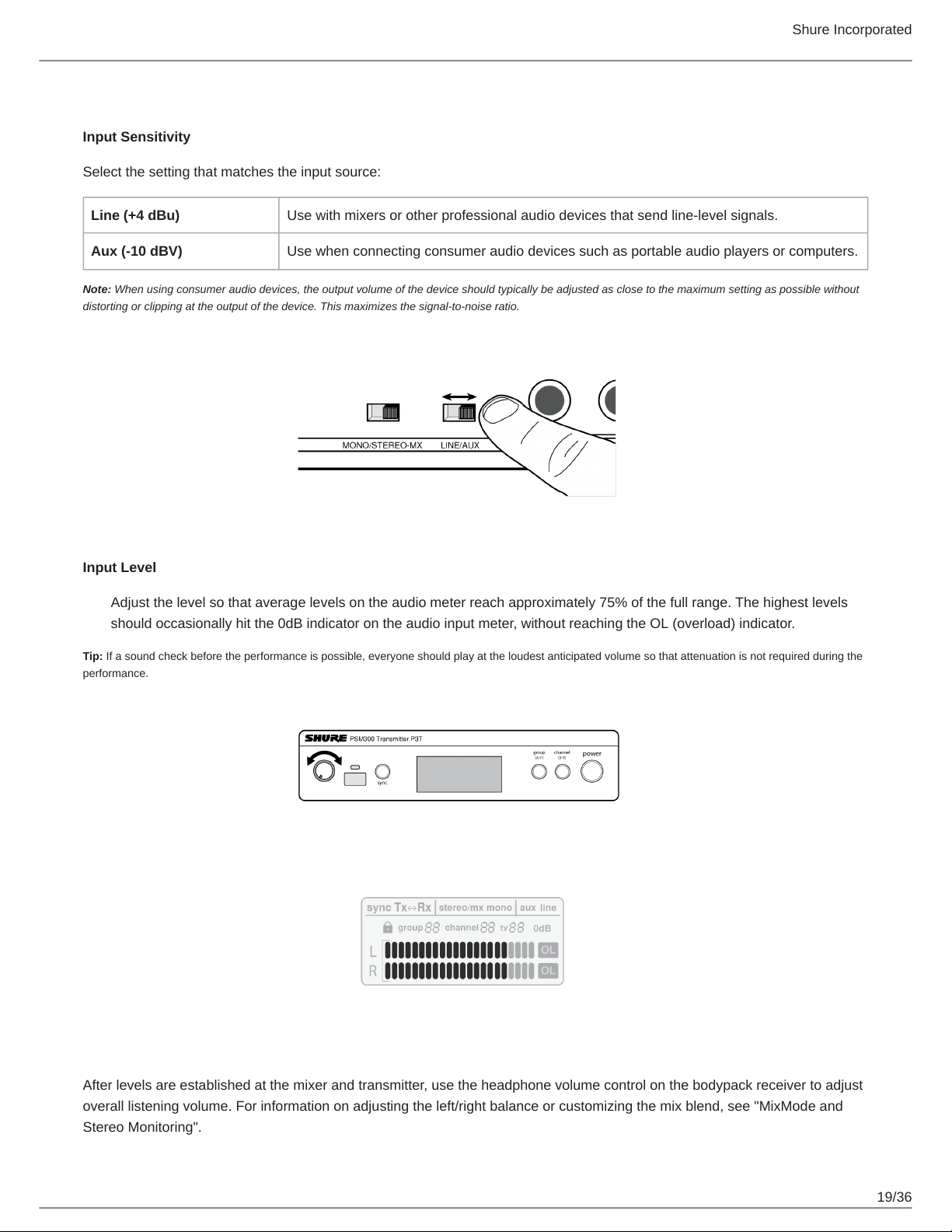

Input Sensitivity
Select the setting that matches the input source:
Line (+4 dBu) Use with mixers or other professional audio devices that send line-level signals.
Aux (-10 dBV) Use when connecting consumer audio devices such as portable audio players or computers.
Note: When using consumer audio devices, the output volume of the device should typically be adjusted as close to the maximum setting as possible without
distorting or clipping at the output of the device. This maximizes the signal-to-noise ratio.
Input Level
Adjust the level so that average levels on the audio meter reach approximately 75% of the full range. The highest levels
should occasionally hit the 0dB indicator on the audio input meter, without reaching the OL (overload) indicator.
Tip: If a sound check before the performance is possible, everyone should play at the loudest anticipated volume so that attenuation is not required during the
performance.
②Adjust Receiver Volume:
After levels are established at the mixer and transmitter, use the headphone volume control on the bodypack receiver to adjust
overall listening volume. For information on adjusting the left/right balance or customizing the mix blend, see "MixMode and
Stereo Monitoring".

Shure Incorporated
20/36
Operation
Creating Monitor Mixes
The mix that performers hear on stage is usually different than the mix heard by the audience. In live sound applications, the
engineer creates a separate mix to send to the performer by routing the input signals to specified mixer outputs, usually called
Monitor or Auxiliary outputs.
The following scenario demonstrates a generic signal path for monitoring mixes, and may not reflect the routing for all mixer
types. Consult the user guide for your mixer for detailed signal routing options.
①Mixer Channel Each mixer channel controls audio processing and routing for a single audio source. In this
example, a vocal microphone is plugged into the mixer channel.
②Monitor/Auxiliary Sends
Adjust the signal levels to send to the monitor/auxiliary outputs, each of which corresponds
to a separate monitoring mix. Each of these mixes are sent to separate channels on the P3T
transmitter.
Note: The channel faders on most mixers do not affect the volume of the monitor/auxiliary sends.
③Wireless Transmission Each monitoring mix is transmitted on a separate channel to the P3R receiver. The MixMode
knob on the bodypack adjusts the blend between the audio from channel 1 and channel 2.
