Aiwa NSX-A909 User manual

“CAUTION:TO REDUCE THE RISK OF
ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK),
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.”
on a wall or-ceiling, u;less specified in the Operating
Instructions.
Electric Power
Owner’s record
For your convenience, record the model number and serial
number (you will find them on the rear of your set) in the space
provided below. Please refer to them when you contact your Aiwa
dealer in case of difficulty.
Model No. Serial No. (Lot No.)
CX-NA909
ISX-WNA909 I I
Read the Operating instructions carefully and completely before
operating the unit, Be sure to keep the Operating Instructions
for future reference. All warnings and cautions in the Operating
Instructions and on the unit should be strictly followed, as well
as the safety suggestions below.
Installation
1
2
3
4
5
6
7
8
Water and moisture —Do not use this unit near water, such
as near abathtub, washbowl, swimming pool, or the like.
Heat —Do not use this unit near sources of heat, including
heating vents, stoves, or other appliances that generate heat.
It also should not be placed in temperatures less tham 5°C
(41 “F) or greater than 35°C (95°F).
Mounting surface —Place the unit on a flat, even surface.
Ventilation —The unit should be situated with adequate
space around it so that proper heat ventilation is assured.
Allow 10 cm (4 in,) clearance from the rear and the top of the
unit, and 5 cm (2 in. )from each side.
-Do not place the unit on a bed, rug, or similar surface that
may block the ventilation openings.
-Do not install the unit in abookcase, cabinet, or airtight rack
where ventilation may be impeded.
Objects and liquid entry —Take care that objects or liquids
do not get inside the unit through the ventilation openings.
Carts and stands —When placed
or mounted on a stand or cart, the
unit should be moved with care,
Quick stops, excessive force, and m
@\
uneven surfaces may cause the 3
A&*
unit or cart to overturn or fall.
Condensation —Moisture may form on the CD pickul~ lens
when:
-The unit is moved from acold spot to awarm spot
-The heating system has just been turned on
-The unit is used in avery humid room
-The unit is cooled by an air conditioner
When this unit has condensation inside, it may not function
normally, Should this occur, leave the unit for afew hours,
then try to operate again.
Wall or ceiling mounting —The unit should not be mounted
1
2
3
Power sources —Connect this unit only to power sources
specified in the Operating Instructions, and as marked on the
unit,
Polarization —As asafety feature, some units are equipped
with polarized AC power plugs which can only be inserted
one way into apower outlet. If it is difficult or impossible to
insert the AC power plug into an outlet, turn the plug over and
try again. If it still does not easily insert into the outlet, please
call aqualified service technician to service or replace the
outlet, To avoid defeating the safety feature of the polarized
plug, do not force it into apower outlet.
AC power cord
-When disconnecting the AC power cord, pull it out by the
AC power plug. Do not pull the cord itself.
-Never handle the AC power plug with wet hands, as this
could result in fire or shock.
-Power cords should be firmly secured to avoid being severely
bent, pinched, or walked upon. Pay particular attention to
the cord from the unit to the power outlet.
-Avoid overloading AC power plugs and extension cords
beyond their capacity, as this could result in fire or shock.
1ENGLISH

4
5
Extension cord —To help prevent electric shock, do not use
apolarized AC power plug with an extension cord, receptacle,
or other outlet unless the polarized plug can be completely
inserted to prevent exposure of the blades of the plug.
\iVhennot in use —Unplug the AC power cord from the power
outlet if the unit will not be used for several months or more.
\Mhen the cord is plugged in, asmall amount of current
continues to flow to the unit, even when the power is turned
off
OuitdoorAntenna
1
2
Power lines —When connecting an outdoor antenna, make
:;ure it is located away from power h&3.
Outdoor antenna grounding —Be sure the antenna system
is properly grounded to provide protection against unexpected
voltage surges or static electricity build-up. Article 810 of the
National E~lectrical Code, AN S1/NFPA 70, provides information
on proper grounding of the mast, supporting structure, and
the lead-in wire to the antenna discharge unit, as well as the
size of the grounding unit, connection to grounding terminals,
and requirements for grounding terminals themselves.
Antenna Grounding According to the National Electrical Code
T%--
/ANTENNA LEAD IN WIRE
-’=J%32EETRS
ELECTRODE SYSTEM
(NEC ART 250 PART H)
NEC.NATIONAL ELECTRICAL CODE
Maintenance
Clean the unit only as recommended in the Operating
Instructions.
Damage Reauirirw Service
I+ave the units serviced by aqualified service technician if:
-The AC power cord or plug has been damaged
-Foreign objects or liquid have gotten inside the unit
-The unit has been exposed to rain or water
-The unit does not seem to operate normally
-The unit exhibits amarked change in performance
-The unit has been dropped, or the cabinet has been damaged
~NOT ATTEMPTTO SERVICE THE UNIT YOURSELF.
PRECAUTIONS ...........................................................m.......1
PREPARATIONS
CONNECTIONS ................................................................. 3
REMOTE CONTROL ...............mm..........................................5
BEFORE OPERATION .................................m......................5
SOUND

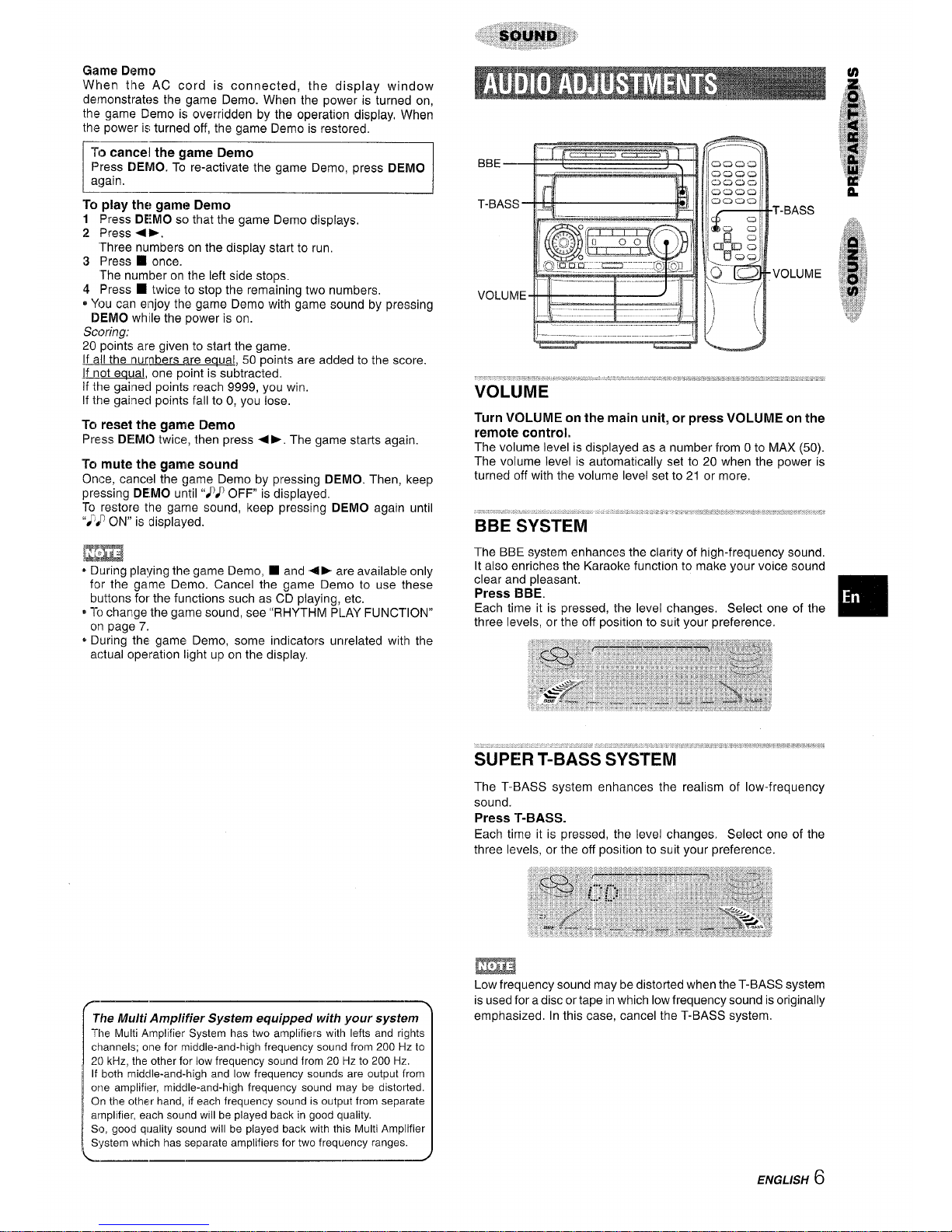

AUDIO ADJUSTMENTS .................................................... 6

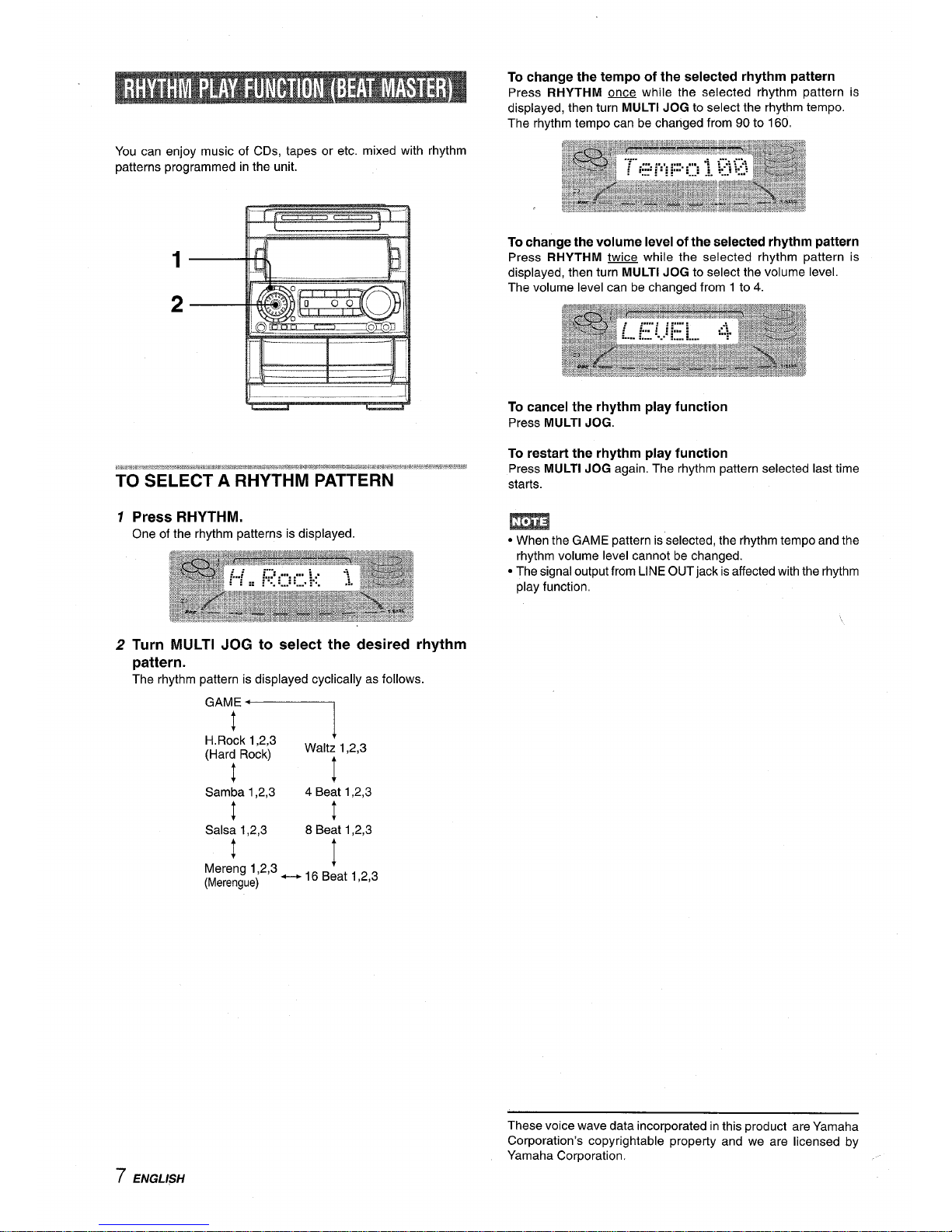

RHYrHM PLAY FUNCTION (BEAT MASTER) .................7

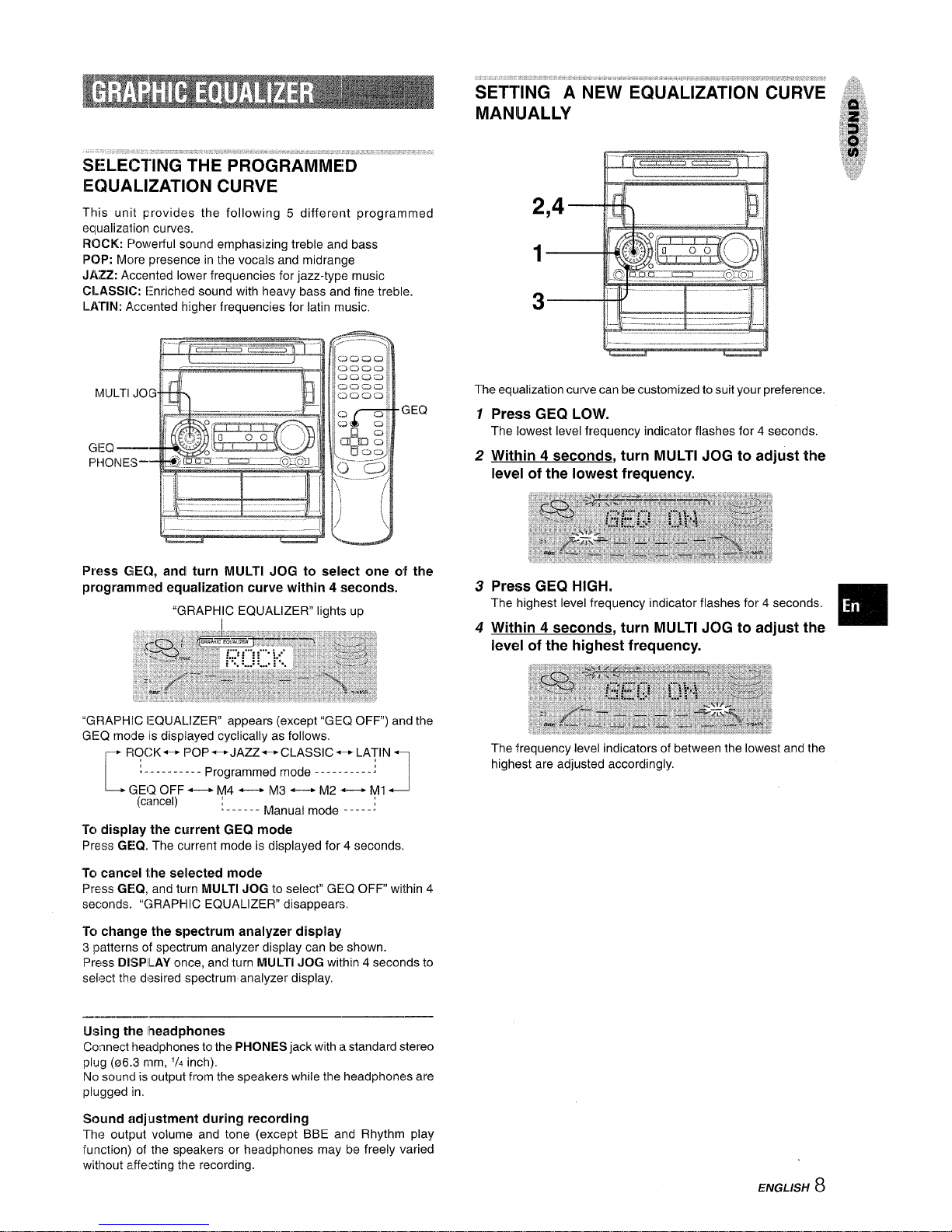

GRAPHIC EQUALIZER ......................................................8

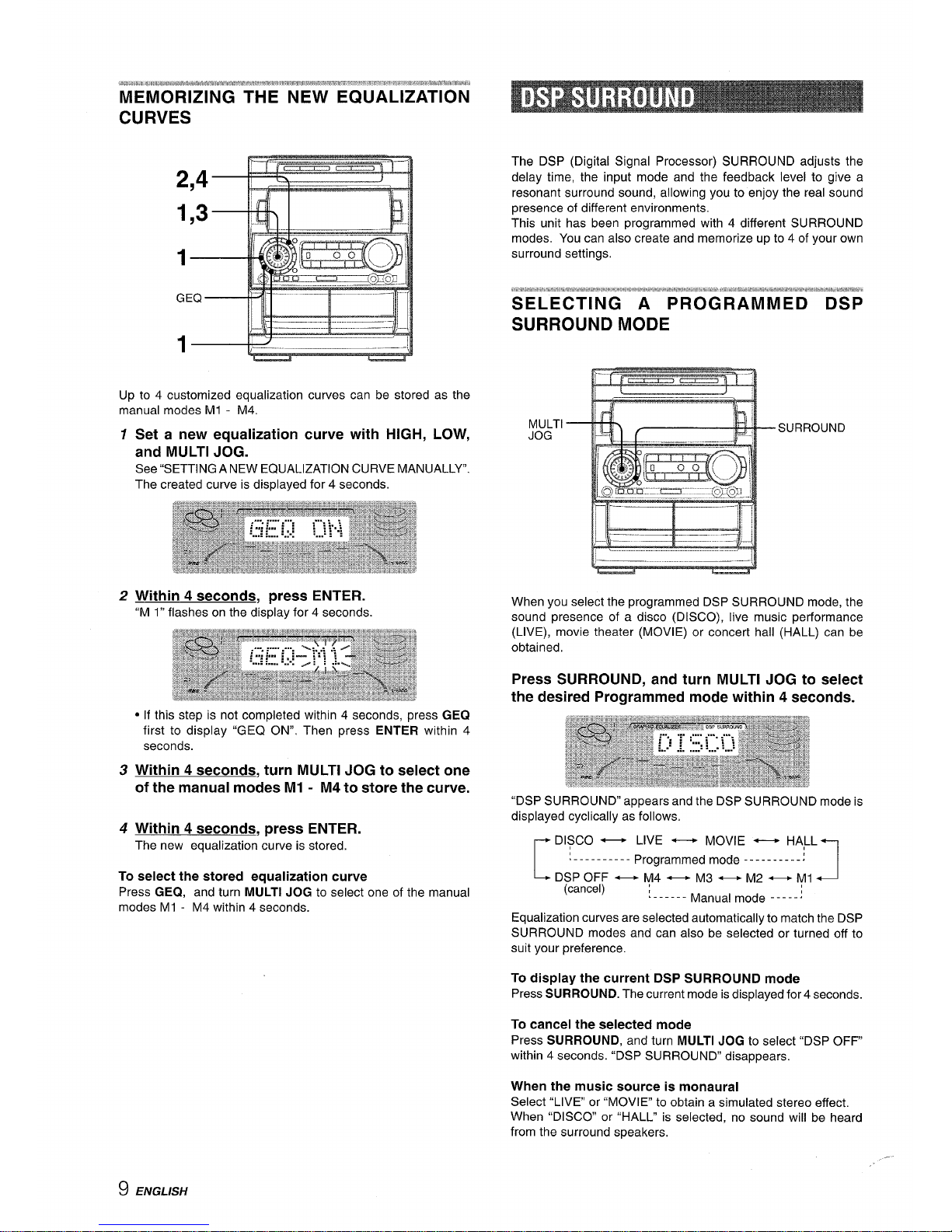

DSP SURROUND ..........................................m.....................9
RADIO RECEPTION
MANUAL TUNING .............................................................11
PRESETTING STATIONS ................................................ 12
TAPE PLAYBACK
BASIC OPERATIONS .............o.............m.......................... 13

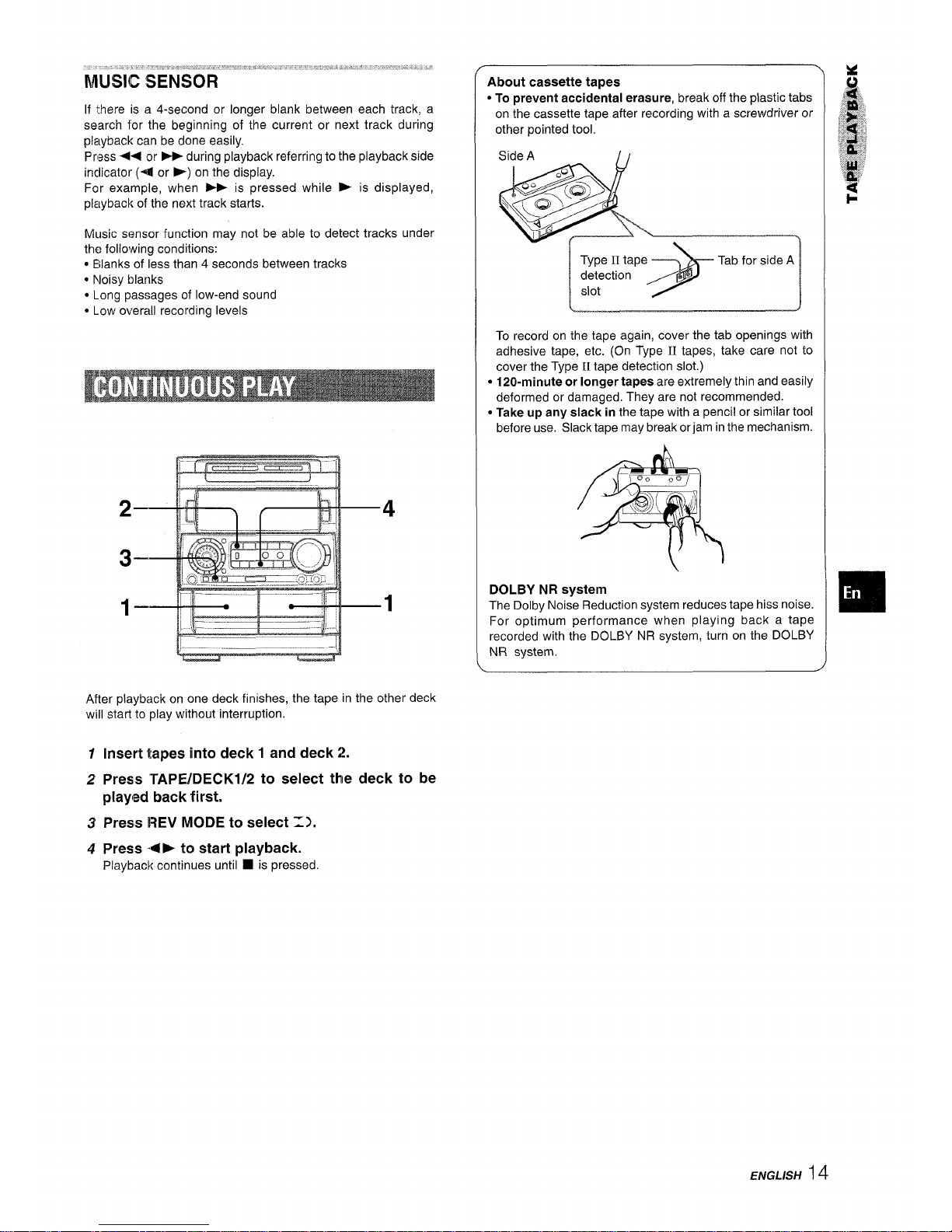

CONTINUOUS PLAY ....................................................... 14

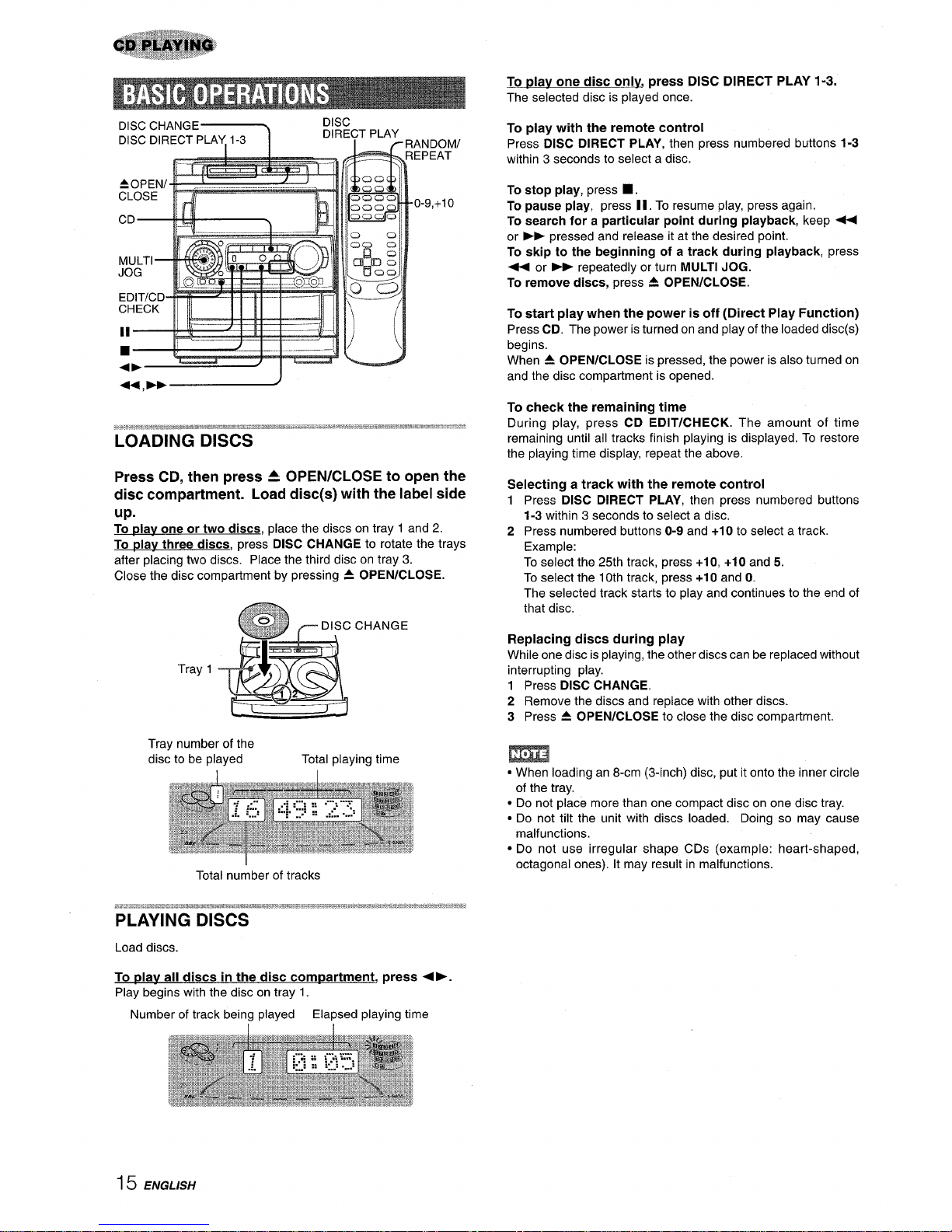

CD PLAYING
BASIC OPERATIONS ...................................................... 15

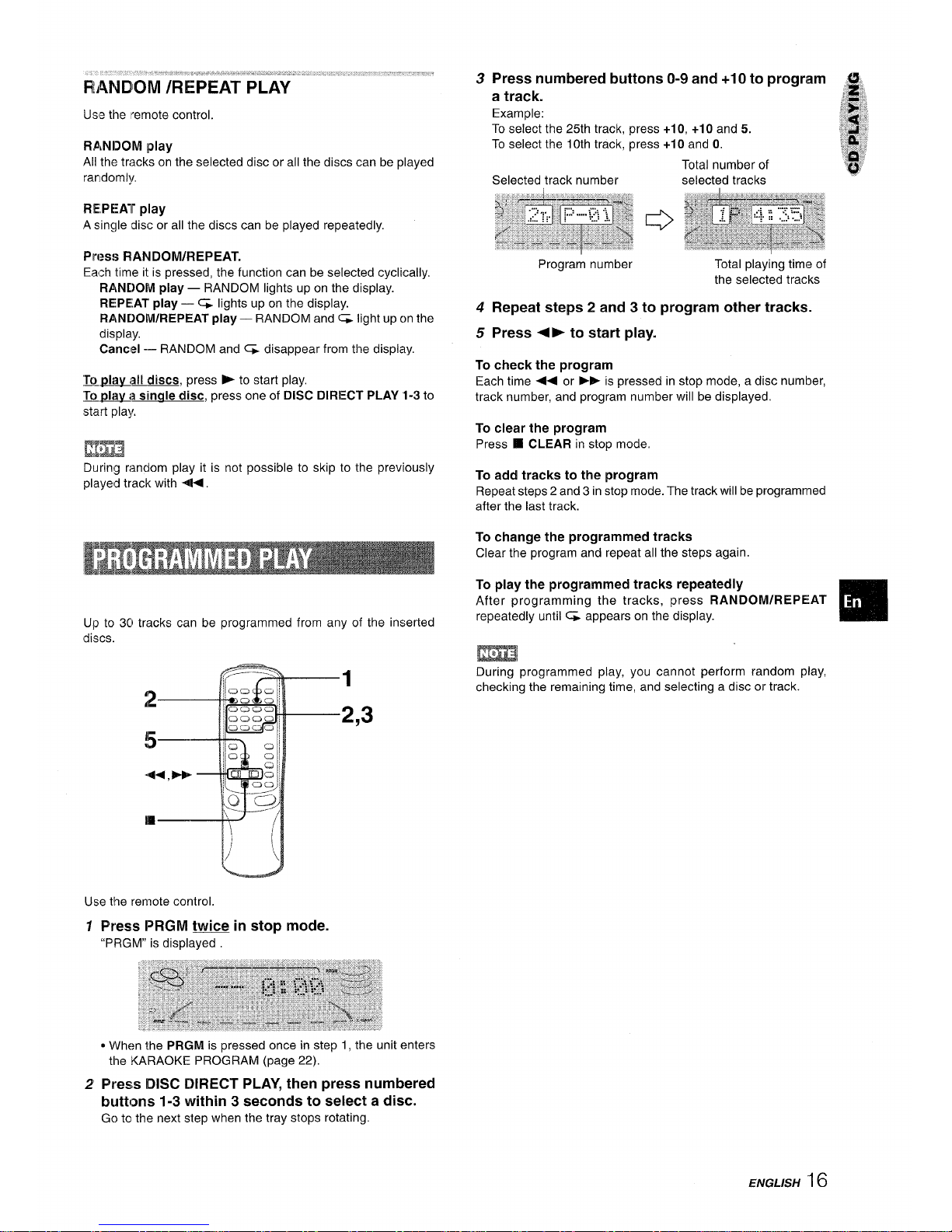

PROGRAMMED PLAY ..................................................... 16
RECORDING

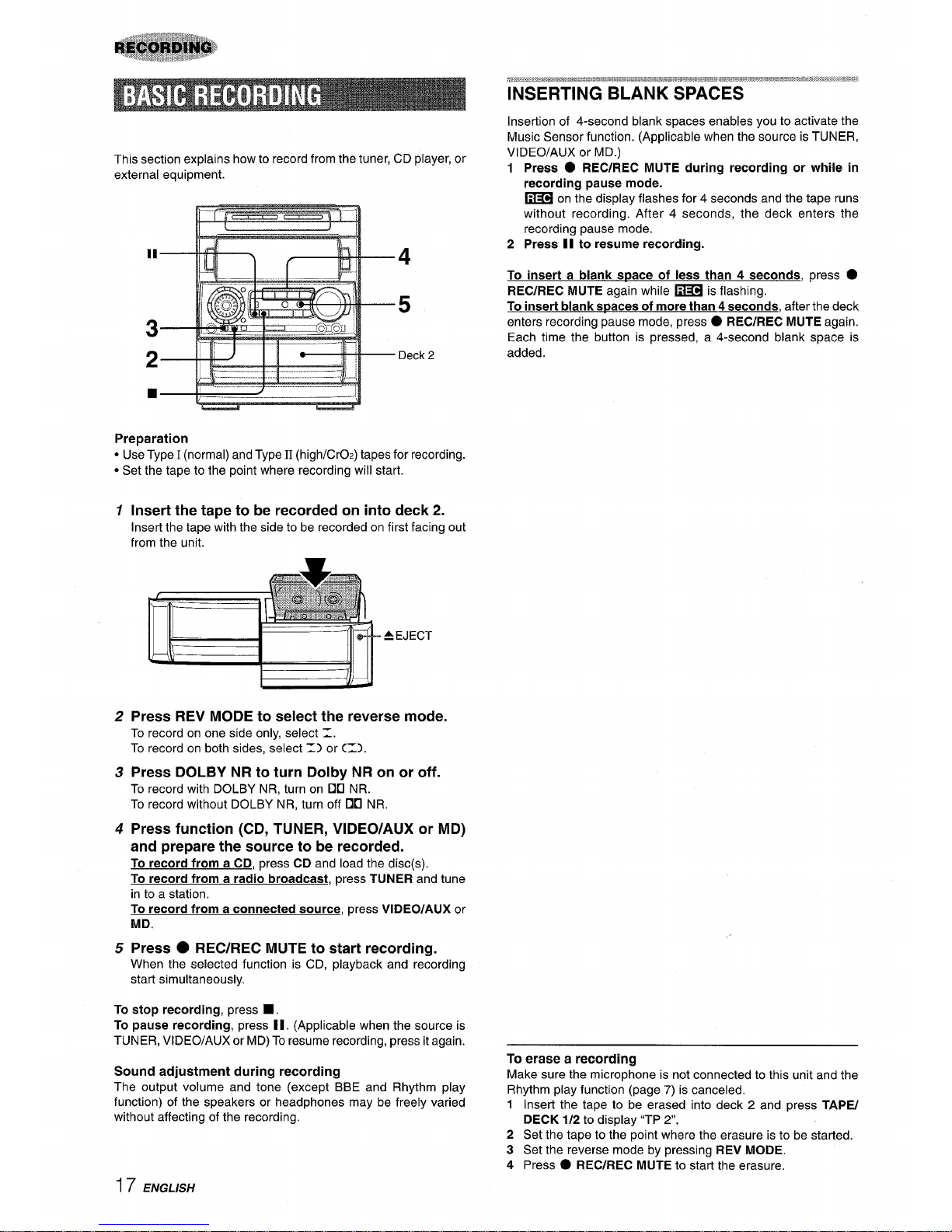

BASIC RECORDING ........................................................ 17
DUBBING ATAPE MANUALLY ...................................... 18
DUBBING THE WHOLE TAPE ........................................ 18 ❑

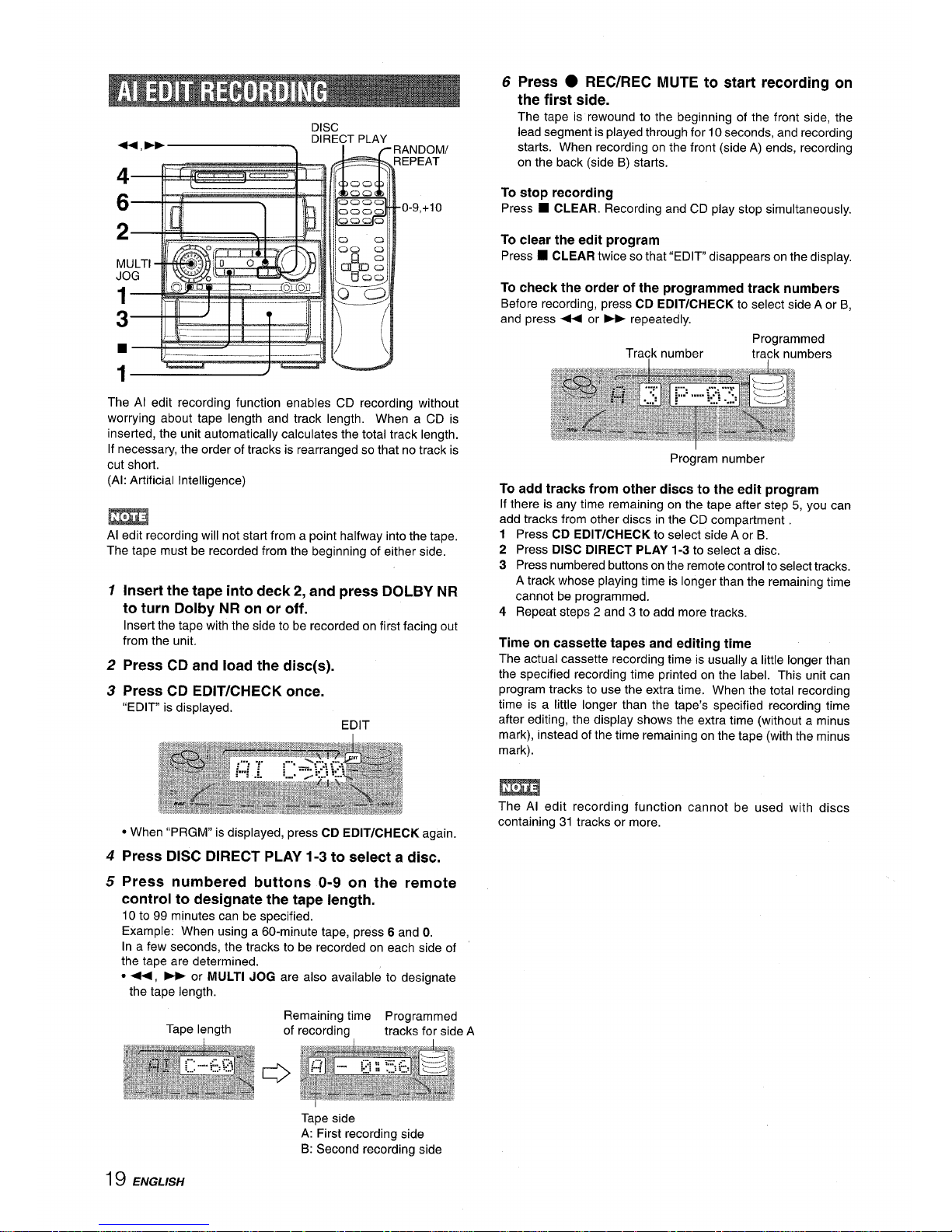

Al EDIT RECORDING ...................................................... 19
PROGRAMMED EDIT RECORDING ............................... 20
KARAOKE
MICF1OPHONE MIXING ................................................... 21
KARAOKE PROGRAM .................................................... 22
CLOCK AND TIMER
SETTING THE CLOCK .................................................... 23
SETTING THE SLEEP TIMER ......................................... 23
SETTING THE TIMER ...................................................... 24
OTHER CONNECTIONS
CONNECTING OPTIONAL EQUIPMENT ....................... 25
LISTENING TO EXTERNAL SOURCES ......................... 25
GENERAL
CARE AND MAINTENANCE ........................................... 26
TROUBLESHOOTING GUIDE ......................................... 26
SPECIFICATIONS ............................................................ 27
PARTS INDEX ................................................... Back cover
ENGLISH 2

~$“’~@>’~’’’~@’@~:~:1::%1-~.., .,,,, ‘p’‘3#mfJs
p*@BhKk,,’,i,,,,l,&*’”
.,..,..3, !*.-.,,,.. 8

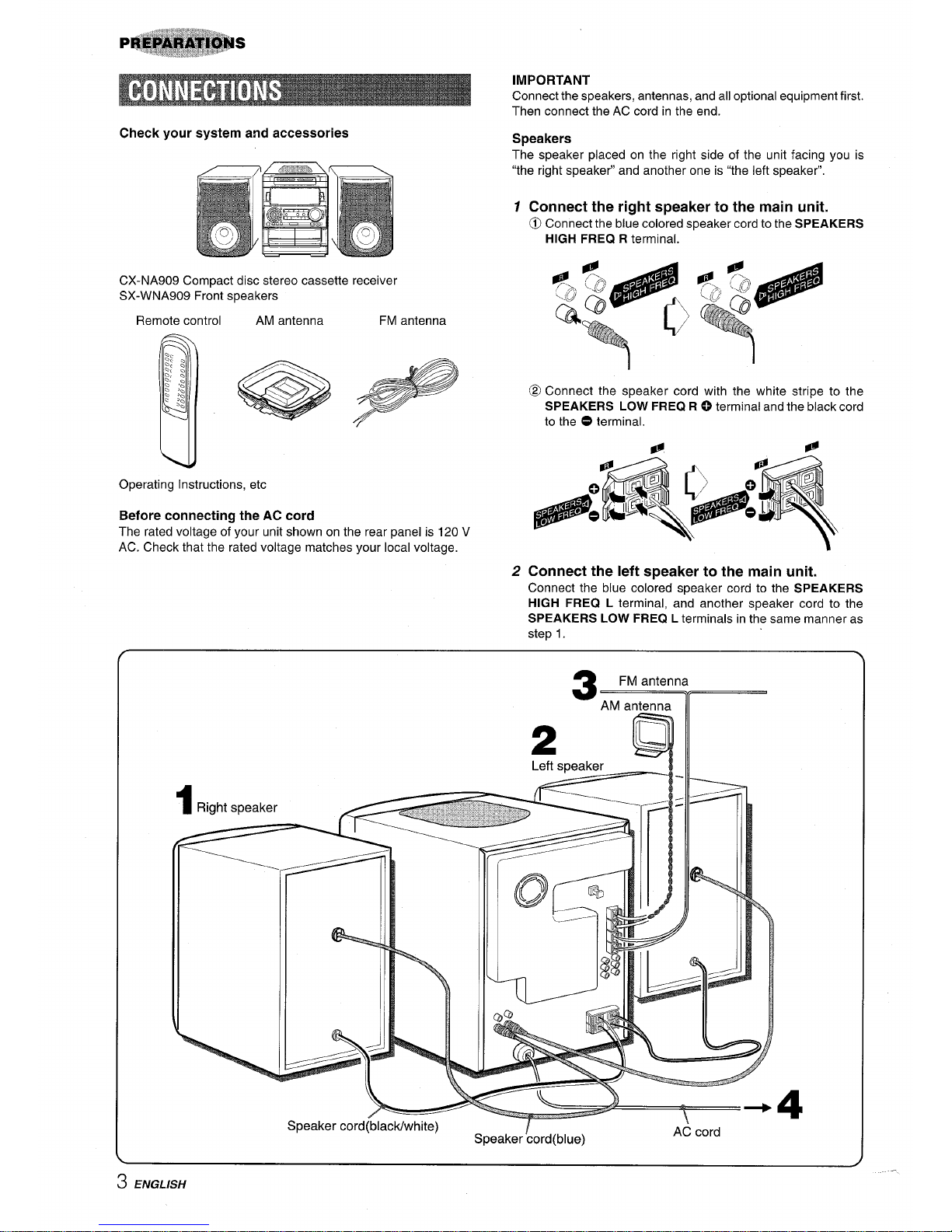

IMPORTANT
Connect the speakers, antennas, and all optional equipment first.
Then connect the AC cord in the end.
Check your system and accessories Speakers
The speaker placed on the right side of the unit facing you is
“the right speaker” and another one is “the left speaker”,
1Connect the right speaker to the main unit.
d) Connect the blue colored speaker cord to the SPEAKERS
HIGH FREQ Rterminal.
CX-NA909 Compact disc stereo cassette receiver
SX-WNA909 Front speakers
Remote control AM antenna FM antenna
II
@Connect the speaker cord with the white stripe to the
SPEAKERS LOW FREQ R~terminal and the black cord
to the Oterminal.
w
Operating Instructions, etc
Before connecting the AC cord
The rated voltage of your unit shown on the rear panel is 120 V
AC. Check that the rated voltage matches your local voltage.
@#
Q
#.‘.“*’4
●o
2Connect the left speaker to the main unit.
Connect the blue colored speaker cord to the SPEAKERS
HIGH FREQ Lterminal, and another speaker cord to the
SPEAKERS LOW FREQ Lterminals in the same manner as
step 1.
3FM antenna
AM antenna
Speaker cord(blacldwhite) Speaker !ord(blue)
\
AC cord 4
3ENGLISH

3
4

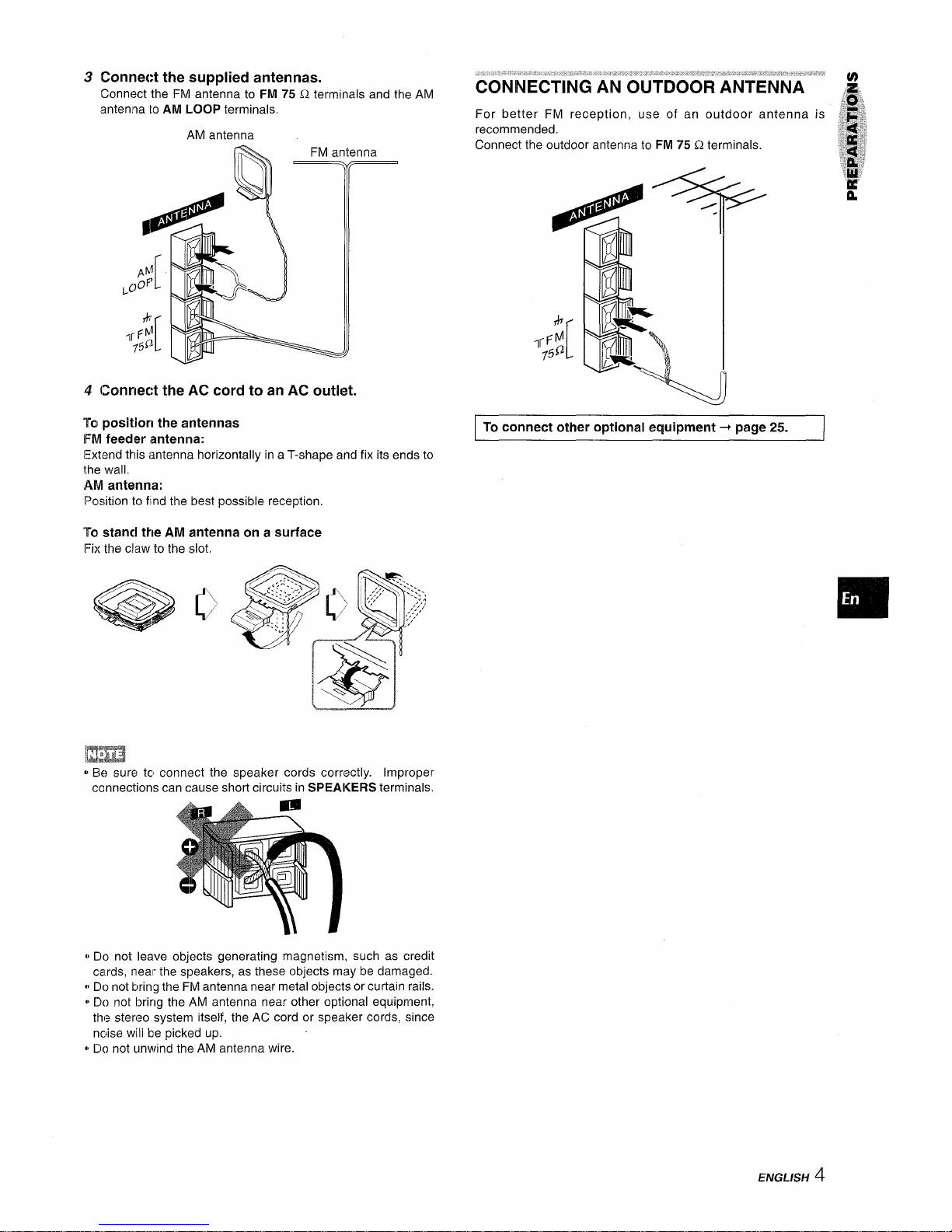

Connect the supplied antennas.
Connect the FM antenna to FM 75 Qterminals and the AM
antenna to AM LOOP terminals,
AM antenna
Connect the AC cord to an AC outlet.
“Topositiorl the antennas
FM feeder antenna:
Extend this antenna horizontally in aT-shape and fix its ends to
the wall,
AM antenna:
Position to find the best possible reception,
To stancl the AM antenna on asurface
Fix the claw to the slot,
]M=
~Be sure tc, connect the speaker cords correctly. Improper
connections can cause short circuits in SPEAKERS terminals.
ITo connect other optional ecfuiprnent +page 25. /
~Do not leave objects generating magnetism, such as credit
cards, near the speakers, as these objects may be damaged.
~Do not bring the FM antenna near metal objects or curtain rails.
*Do not Ibring the AM antenna near other optional equipment,
the stereo system itself, the AC cord or speaker cords, since
nclise will be picked up.
~,DO not unwind the AM antenna Wk%
ENGLISH 4

Inserting batteries
Detach tie battery cover on the rear of the remote control and
insert two R6 (size AA) batteries. DISPLAY—
R6(AA)
When to replace the batteries
The maximum operational distance between the remote control
and the sensor on the main unit should be approximately 5meters
(16 feet). When this distance decreases, replace the batteries
with new ones.
Using the remote control
The instructions in this manual refer mainly to the buttons on the
main unit. Buttons on the remote control with the same names
as those on the main unit can be used as well.
●If the remote control is not going to be used for an extended
period of time, remove the batteries to prevent possible
electrolyte leakage.
.The remote control may not operate correctly when:
-The line of sight between the remote control and the remote
sensor inside the display window is exposed to intense light,
such as direct sunlight
-Other remote controls are used nearby (those of atelevision,
etc.)
lLmm&-.=
-tlH-
DEMO
CD
To turn the power on
Press one of the function buttons (TAPE, TUNER, VIDEO/AUX,
CD, MD). Playback of the inserted disc or tape begins, or the
previously tuned station is received (Direct Play Function),
POWER is also available.
When the unit is turned on, the disc compartment may open and
close to reset the unit.
To turn the power off
Press POWER.
Flash windows
The windows on the top of the unit and the cassette decks light
up or flash while the unit is being powered on.
To turn off the light of the top window, press ■while pressing
CD. To turn back on, repeat the above.
The light of the cassette decks cannot be turned off.
To dim the illumination of the display
1Press DISPLAY twice so that “DIMMER” is displayed.
2Within 4seconds, turn MULTI JOG to select the dimmer mode
as follows.
~DIMMERO~DIMMER 1*DIMMER 2++ DIMMER 3~
I I
DIMMER O:The normal display.
DIMMER 1: The illumination of the display is dimmer than
usual.
DIMMER 2: The illumination of the display is dimmer than
DIMMER 1.
DIMMER 3: The illumination of the display is dimmer than
DIMMER 2, and the spectrum analyzer and the illumination
on the buttons light off.
5ENGLISH

Game Demo
When tile AC cord is connected, the display window
dernonstrates the game Demo. When the power is turned on,
the game Demo is overridden by the operation display, \fVhen
the power is turned off, the game Demo is restored.
r
To cancel the game Demo
Press DEMO. To re-activate the game Demo, press DEMO
a!gain.
To play the game Demo
1Press DEMO so that the game Demo displays.
2Press +>.
“Three numbers on the display start to run,
3Press ❑once.
The number on the left side stops.
4Press Htwice to stop the remaining two numbers.
oYou can enjoy the game Demo with game sound by pressing
DEMO while the power is on.
Scoring:
20 points are given to start the game.
~11 the Inurnbers are eaual, 50 points are added to the score.
If not equal, one point is subtracted,
If the gai~necl points reach 9999, you win.
If the gailneci points fall to O, you lose.
To reset the game Demo
Press DEMO twice] then press <k. The game starts again.
To mute the game sound
On(oe, cancel the game Demo by pressing DEMO. Thenl keep
pressing DEMO until “~~ OFF is displayed,
To restore the game sound, keep pressing DEMO again until
“),p ON” is displayed.
*During playing the game Demo, ❑and +E are available only
for the game Demo. Cancel the game Demo to use these
buttons for the functions such as CD playing, etc.
*1-0change the game sound, see “RHYTHM PLAY FUNCTION”
on page 7.
9During the game Demo, some indicators unrelated with the
actua~oper~tion light up on the display
The Multi Amplifier System equipped with your system
The Multi Amplifier System has two amplifiers with lefts and rights
channels; one for middle-and-high frequency sound from 200 Hz to
20 kHz, the other for low frequency sound from 20 Hz to 200 Hz.
If both midclle-and-high and low frequency sounds are output from
one amplifier, middle-and-high frequency sound may be distorted.
On the cjther hand, if each frequency sound is output from separate
amplifier, each sound will be played back in good quality.
SO, good quality sound will be played back with this Multi Amplifier
System which has separate amplifiers for two frequency ranges.
Turn VOLUME on the main unit, or press VOLUME on the
remote control,
The volume level is displayed as anumber from Oto MAX (50).
The volume level is automatically set to 20 when the power is
turned off with the volume level set to 21 or more.
The BBE system enhances the clarity of high-frequency sound,
It also enriches the Karaoke function to make your voice sound
clear and pleasant,
Press BBE.
Each time it is pressed, the level changes. Select one of the
three levels, or the off position to suit your preference.
SUPER T-BASS SYSTEM
The T-BASS system enhances the realism of low-frequency
sound.
Press T-BASS.
Each time it is pressed, the level changes. Select one of the
three levels, or the off position to suit your preference.
Low frequency sound may be distorted when the T-BASS system
is used for adisc or tape in which low frequency sound is originally
emphasized. In this case, cancel the T-BASS system.
ENGLISH 6

You can enjoy music of CDs, tapes or etc. mixed with rhythm
patterns programmed in the unit.
7Press RHYTHM.
One of the rhythm patterns is displayed
2Turn MULTI JOG to select the desired rhythm
pattern.
The rhythm pattern is displayed cyclically as follows.
‘*”il
H.Rock 1,2,3
(Hard Rock) Walt; 1,2,3
tt
++
Samba 1,2,3 4Beat 1,2,3
1!
Salsa 1,2,3 8Beat 1,2,3
!t
Mereng 1,2,3 +
(Merengue) ~16 Beat 1,2,3
To change the tempo of the selected rhythm pattern
Press RHYTHM Dwhile the selected rhythm pattern is
displayed, then turn MULTI JOG to select the rhythm tempo.
The rhythm tempo can be changed from 90 to 160.
To change the volume level of the selected rhythm pattern
Press RHYTHM Wwhile the selected rhythm pattern is
displayed, then turn MULTI JOG to select the volume level.
The volume level can be changed from 1to 4.
To cancel the rhythm play function
Press MULTI JOG.
To restart the rhythm play function
Press MULTI JOG again, The rhythm pattern selected last time
starts.
m
“When the GAME pattern is selected, the rhythm tempo and the
rhythm volume level cannot be changed.
●The signal output from LINE OUT jack is affected with the rhythm
play function,
These voice wave data incorporated in this product are Yamaha
Corporation’s copyrightable property and we are licensed by
Yamaha Corporation.
7ENGLISH

SELECTING THE PROGRAMMED
EQUALIZATION CURVE
This unit provides the following 5different programmed
equalization curves.
ROCK: F’owerful sound emphasizing treble and bass
POP: More presence in the vocals and midrange
JAZZ: Accented lower frequencies for jazz-type music
CLASSIC: [=nriched sound with heavy bass and fine treble.
LATIN: Accented higher frequencies for Iatin music.
GEQ
Press GE(I, and turn MULTI JOG to select one of the
prc)grammed equalization curve within 4seconds.
“GRAPHIC EQUALIZER” lights up
“GF+APHIC IEQUALIZER” appears (except “GEQ OFF) and the
GEQ mo~e is displayed cyclically as follows.
~ROCK- F’OP~JAZZ~CLASSIC*~ LATIN ~
L‘---------- Programmed mode ----------j
(3EQ OFF —M4 —M3— M2— M1 J
(C{lncel) ~.... _. Manua, mode -----
To display the current GEQ mode
Press GEQ. The current mode is displayed for 4seconds,
‘Tocancel the selected mode
Press GEQ, and turn MULTI JOG to select” GEQ OFF” within 4
seconds. “GRAPHIC EQUALIZER” disappears.
To change the spectrum analyzer display
3Ipatterns of spectrum analyzer display can be shown.
Press DISPILAY once, ancl turn MULTI JOG within 4seconds to
sell~ct thl? desired spectrum analyzer display.
Using the Iheadphones
Co:lnect headphones to the PHONES jack with astandard stereo
plug (06.3 mm, ‘/4 inch).
No sound is output from the speakers while the headphones are
plugged in,
SETTING ANEW EQUALIZATION CURVE
MANUALLY
L.I
.- ,= ,*,
The equalization curve can be customized to suit your preference.
1
2
3
4
Press GEQ LOW.
The lowest level frequency indicator flashes for 4seconds,
Within 4seconds, turn MULTI JOG to adjust the
level of the lowest frequency.
Sound adjustment during recording
Thl? output volume and tone (except BBE and Rhythm play
function) of the speakers or headphones may be freely varied
without a.ffe~ting the recording.
ENGLISH 8

up to 4
manual
1
2
3
4
customized equalization curves can be stored as the
modes Ml -M4.
Set anew equalization curve with HIGH, LOW,
and MULTI JOG.
See“SETTINGANEW EQUALIZATION CURVE MANUALLY”.
The created curve is displayed for 4seconds.
Within 4seconds, press ENTER.
“M 1“ flashes on the display for 4seconds,
c[f this step is not completed within 4seconds, press GEQ
first to display “GEQ ON”, Then press ENTER within 4
seconds.
Within 4seconds, turn MULTI JOG to select one
of the manual modes Ml -M4 to store the curve.
Within 4seconds, press ENTER.
The new equalization curve is stored.
To select the stored equalization curve
Press GEQ, and turn MULTI JOG to select one of the manual
modes Ml -M4 within 4seconds.
The DSP (Digital Signal Processor) SURROUND adjusts the
delay time, the input mode and the feedback level to give a
resonant surround sound, allowing you to enjoy the real sound
presence of different environments.
This unit has been programmed with 4different SURROUND
modes, You can also create and memorize up to 4of your own
surround settings.
MULTI
JOG SURROUND
When you select the programmed DSP SURROUND mode, the
sound presence of adisco (DISCO), live music performance
(LIVE), movie theater (MOVIE) or concert hall (HALL) can be
obtained.
Press SURROUND, and turn MULTI JOG to select
the desired Programmed mode within 4seconds.
“DSP SURROUND” appears and the DSP SURROUND mode is
displayed cyclically as follows.
[
DISCO —LIVE —MOVIE —HA:L
~---------- Progra~med mode -----------
DSP OFF —M4— —Ml 2
(cancel) ~------ M~nu~m~”e -----j
Equalization curves are selected automatically to match the DSP
SURROUND modes and can also be selected or turned off to
suit your preference.
To display the current DSP SURROUND mode
Press SURROUND. The current mode is displayed for 4seconds.
To cancel the selected mode
Press SURROUND, and turn MULTI JOG to select “DSP OFF
within 4seconds. “DSP SURROUND” disappears.
When the music source is monaural
Select “LIVE” or “MOVIE to obtain asimulated stereo effect.
When “DISCO or “HALL” is selected, no sound will be heard
from the surround speakers,
9ENGLISH

SE:TTING ANEW DSP SURROUND SOUND
MANUALLY
Thf? elements of the DSP SURROUND sound can be customized.
DELAY [delay time)
Increasing the number in the display increases the delay time
and surround effect.”1 5“,” 20, “30”, “50” or”1 40 mSec can be
selected.
To acljust the delay time
Press DE:LAY,and turn MULTI JOG to select one of the levels
within 4seconds.
H% L+l~nput mode)
When “1-+[3” is displayed, the surround effect increases,
especially in the center.
When “L-R’ is displayed, it increases on the outside.
To select ainput mode
Press EFFECT ~, and turn MULTI JOG to select “L-R” or
“L+R within 4seconds,
FE] (feedback level)
Increasing the number in the display increases the echo.
A‘!evel from “OFF” (0) to”7 can be selected,
To adjust the level of feedback
Press EFFECT w, and turn MULTI JOG to select one of
the levels within 4seconds.
Up to 4DSP SURROUND sound can be memorized as the
manual modes Ml -M4.
*,..
1,3
-1
In
l— SURROUN.
——
1Set anew DSP SURROUND sound with DELAY,
EFFECT, and MULTI JOG.
3Within 4seconds, turn MULTI JOG to select one
of the manual modes Ml -M4.
4Mhin 4seconds, press ENTER.
The new DSP SURROUND sound is memorized
To select the stored DSP SURROUND sound
Press SURROUND, and turn MULTI JOG to select one of the
manual modes Ml -M4 within 4seconds.
m
When the MIC or ECHO level is changed (page 21), the
SURROUND mode is automatically canceled.
ENGLISH 10

I__ ._ ..,, .——,
!4e
1
2
—Mf)N(3
,.-----
TUNER
0-9,+1 o
TUNER/
BAND
Press TUNER/BAND repeatedly to select the
desired band.
~FM— AM—l
When TUNEFUBAND is pressed while the power is off, the
power is turned on directly.
Press 4+ DOWN or -UP to select astation.
Each time the button is pressed, the frequency changes.
When astation is received, “TUNE is displayed for 2seconds.
During FM stereo reception, (l(m))] is displayed.
To search for astation quickly (Auto Search)
Keep +DOWN or *UP pressed until the frequency starts
to change rapidly. After tuning in to astation, the search stops.
To stop the Auto Search manually, press <DOWN or _
UP.
●The Auto Search may not stop at stations with very weak
signals.
When an FM stereo broadcast contains noise
Press MONO TUNER on the remote control so that “MONO
appears on the display,
Noise is reduced, although reception is monaural.
To restore stereo reception, press MONO so that “MONO”
disappears.
To change the AM tuning interval
The default setting of the AM tuning interval is 10 kHzLstep. If
you use this unit in an area where the frequency allocation system
is 9kHz/step, change the tuning interval.
Press POWER while pressing TUNER/BAND.
To reset the interval, repeat this procedure.
When the AM tuning interval is changed, all preset stations are
cleared. The preset stations have to be set again.
,.
1IENGLISH

~---- ___ J
%J‘-3 L2
41e ——
DIRECIIOW
P13EsEr
The unit call store atotal of 32 preset stations. When astation is
stored, a.preset number is assigned to the station. Use the preset
number to tune in to apreset station directly.
1
2
3
Press ‘TUNER/BAND to select aband, and press
-44 DOWN or -LIP to select astation.
Press 11 SET to store the station,
Apreset number beginning from 1in consecutive order for
each band is assigned to the station.
Frequency Preset number
II
Repea’lt steps 1and 2.
The next station will not be stored if atotal of 32 preset stations
for all the bands have already been stored,
1
2
:.jgp.
Press BAND to select aband, ;;,$:
Press numbered buttons O-9 and +10 to select a‘~,~j~
preset number. g
Example:
To select preset number 20, press +10, +10 and O. 4
u
To select preset number 15, press +10 and 5,
Selecting apreset number on the main unit
Press TUNERIBAND to select aband. Then, press 4*
DIRECTION/PRESET repeatedly or turn MULTI JOG.
Each time <F DIRECTION/PRESET is pressed, the next
ascending number is selected.
To clear apreset station
Select the preset number of the station to be cleared. Then, press
❑CLEAR, and press 11 SET within 4seconds.
The preset numbers of all other stations in the band with higher
numbers are also decreased by one.
ENGLISH12

4EJECT
Deck 2
Insert atape.
7Press DOLBY NR and turn Dolby NR on or off to
match the playback tape.
●On deck 1, ta~es are alwavs Played back on both sides. Dtl NR
cassette holder. “ For tapes recorded with DOLBY NR, turn on DU NR.
For tapes recorded without DOLBY NR, turn off DO NR.
AEJECT
Insert atape with the exposed side down. Push the cassette
holder to close.
To select areverse mode (deck 2only)
Each time REV MODE is pressed, the reverse mode changes.
2Press 4> to start play.
Playing deck number
Playback side indicator The tape counter indicates the
tape running length,
-: The front side is being played (forward).
<: The back side is being played (reverse).
When tapes are loaded in both decks
Press TAPE first to select adeck.
To set the tape counter to 0000
Press ■CLEAR in stop mode.
The counter is also set to 0000 when the cassette holder is
opened and closed.
13 ENGLISH

hilUSIICSENSOR
If there is a4-second or longer blank between each track, a
search for the beginning of the current or next track during
playback can be done easily.
Pr,2ss ~+ or ~during playback referring to the playback side
indicator (4 or E-) on the display.
For example, when -is pressed while Eis displayed,
playback of the next track starts.
Music sf?nsor function may not be able to detect tracks under
the following conditions:
●E!lanks of less than 4seconds between tracks
●Noisy blanks
●Long passages of low-end sound
●Low overall recording levels
\J
);”— -,,
After playback on one deck finishes, the tape in the other deck
will start to play without interruption.
1
2
3
4
Insert tapes into deck 1and deck 2.
Press TAPEIDECK1/2 to select thle deck to be
played back first.
Press REV MODE to select 11.
Press ‘4P to start playback.
Playback continues until ■is pressed.
About cassette tapes
●To prevent accidental erasure, break off the plastic tabs
on the cassette tape after recording with ascrewdriver or
other pointed tool.
Side A
w
‘0 “l@
\La=
;@
.*:
Type II tape Tab for side A
detection
slot
To record on the tape again, cover the tab openings with
adhesive tape, etc. (On Type II tapes, take care not to
cover the Type II tape detection slot.)
●120-minute or longer tapes are extremely thin and easily
deformed or damaged. They are not recommended.
●Take up any slack in the tape with apencil or similar tool
before use. Slack tape may break or jam in the mechanism.
DOLBY NR system
The Dolby Noise Reduction system reduces tape hiss noise.
For optimum performance when playing back atape
recorded with the DOLBY NR system, turn on the DOLBY
NR system.
ENGLISH14

DISC CHANGE 1 ‘;%:;,,!,$!!
DISC DIRECT PLAYI 1-3
II 11 11 1IBl 1—’:.4
LOADING DISCS
Press CD, then press 4OPEN/CLOSE to open the
disc compartment. Load disc(s) with the label side
up.
To dav one or two discs, place the discs on tray 1 and 2.
To Wav three discs, press DISC CHANGE to rotate the trays
after placing two discs. Place the third disc on tray 3.
Close the disc compatlment by pressing AOPEN/CLOSE.
Tray 1
CHANGE
Tray number of the
disc to be played Total playing time
Total number of tracks
Load discs,
To olav all discs in the disc com~artment, press +-.
Play begins with the disc on tray 1.
Number of track being played Elapsed playing time
To Dlav one disc only. press DISC DIRECT PLAY 1-3.
The selected disc is played once.
To play with the remote control
Press DISC DIRECT PLAY, then press numbered buttons 1-3
within 3seconds to select adisc.
To stop play, press W.
To pause play, press II. To resume play, press again.
To search for aparticular point during playback, keep +
or -pressed and release it at the desired point.
To skip to the beginning of atrack during playback, press
-or *repeatedly or turn MULTI JOG.
To remove discs, press 4OPEN/CLOSE.
To start play when the power is off (Direct Play Function)
Press CD. The power is turned on and play of the loaded disc(s)
begins.
When 4OPEN/CLOSE is pressed, the power is also turned on
and the disc compartment is opened.
To check the remaining time
During play, press CD EDIT/CHECK. The amount of time
remaining until all tracks finish playing is displayed. To restore
the playing time display, repeat the above.
Selecting atrack with the remote control
1
2
Press DISC DIRECT PLAY, then press numbered buttons
1-3 within 3seconds to select adisc,
Press numbered buttons O-9 and +1 Oto select atrack.
Example:
To select the 25th track, press +1 O, +1 Oand 5.
To select the 10th track, press +10 and O.
The selected track starts to play and continues to the end of
that disc.
Replacing discs during play
While one disc is playing, the other discs can be replaced without
interrupting play.
1Press DISC CHANGE.
2Remove the discs and replace with other discs.
3Press 4OPEN/CLOSE to close the disc compartment.
m
c
When loading an 8-cm (3-inch) disc, put it onto the inner circle
of the tray.
●Do not place more than one compact disc on one disc tray.
●Do not”tilt the unit with discs loaded. Doing
malfunctions.
●Do not use irregular shape CDs (example:
octagonal ones). It may result in malfunctions.
so may cause
heart-shaped,
15 ENGLISH

Use the remote control.
RANDOM play
All the tracks on the selected disc or all the discs can be played
rarldornly.
REPEAT play
Asingle disc or all the discs can be played repeatedly.
Press RANDOM/REPEAT.
Ea:h time it is pressed, the function can be selected cyclically,
RANDOM play —RANDOM lights up on the display.
REPEAT play —%lights upon the display.
RANDOkV1/REPEAT play— RANDOM and Glight up on the
display,
Canc(el -– RANDOM and %disappear from the display.
To play all discs, press -to start play.
To play asinale disc, press one of DISC DIRECT PLAY 1-3 to
start play.
During random play it is not possible to skip to the previously
played track with -.
Up to 3C1tracks can be programmed from any of the inserted
discs.
Use the remote control.
1
2
Press PRGM twice in stop mode.
“PRGM” is displayed
*VVhen the PRGM is pressed once in step 1, the unit enters
the KARAOKE PROGRAM (page 22).
Press DISC DIRECT PLAY, then press numbered
buttons 1-3 within 3seconds to select adisc.
Gc) to the next step when the tray stops rotating.
3
4
5
Press numbered buttons O-9 and +1Oto program :,
atrack. !l
Example: ‘ET
To select the 25th track, press +10, +10 and 5. ,:;”q:
To select the 10th track, press +10 and 0, @
,,,. /4,
,,,,rA,’l,.
Selected track number
Program number
Total number of ‘;8’
selected tracks
Total playing time of
the selected tracks
Repeat steps 2and 3to program other tracks.
Press <b to start play.
To check the program
Each time +or FE is pressed in stop mode, adisc number,
track number, and program number will be displayed.
To clear the program
Press ❑CLEAR in stop mode.
To add tracks to the program
Repeat steps 2 and 3 in stop mode. The track will be programmed
after the last track.
To change the programmed tracks
Clear the program and repeat all the steps again.
To play the programmed tracks repeatedly
After programming the tracks, press RANDOM/REPEAT
repeatedly until ~appears on the display. ❑
During programmed play, you cannot perform random play,
checking the remaining time, and selecting adisc or track.
ENGLISH16

This section explains how to record from the tuner, CD player, or
external equipment.
4
5
Deck 2
Preparation
“Use Type I(normal) and Type II (high/CrOz) tapes for recording.
●Set the tape to the point where recording will start.
1
2
3
4
5
Insert the tape to be recorded on into deck 2.
Insert the tape with the side to be recorded on first facing out
from the unit.
AEJECT
Press REV MODE to select the reverse mode.
To record on one side only, select Z.
To record on both sides, select => or (1).
Press DOLBY NR to turn Dolby NR on or off.
To record with DOLBY NR, turn on DO NR.
To record without DOLBY NR, turn off 00 NR.
Press function (CD, TUNER, VIDEO/AUX or MD)
and prepare the source to be recorded.
To recordfrom aCD, press CD and load the disc(s).
To record from aradio broadcast, press TUNER and tune
in to astation.
To record from aconnected source, press VIDEO/AUX or
MD.
Press ●REC/REC MUTE to start recording.
When the selected function is CD, playback and recording
start simultaneously,
To stop recording, press W.
To pause recording, press II. (Applicable when the source is
TUNER, VIDEO/AUX or MD) To resume recording, press it again.
Sound adjustment during recording
The output volume and tone (except BBE and Rhythm play
function) of the speakers or headphones may be freely varied
without affecting of the recording.
@2a8P8m.B.Q3m?&[email protected]~@a~=GEwazm:*asm*v@MR#c*m88lE4bma8Bs3Ts$%$mE8M=Es%$aa~as3*Ew.%@
INSERTING BLANK SPACES
Insertion of 4-second blank spaces enables you to activate the
Music Sensor function. (Applicable when the source is TUNER,
VIDEO/AUX or MD.)
1Press ●REC/REC MUTE during recording or while in
recording pause mode.
~on the display flashes for 4seconds and the tape runs
without recording, After 4seconds, the deck enters the
recording pause mode.
2Press II to resume recording.
To insert ablank space of less than 4seconds, press .
REC/REC MUTE again while ~is flashing.
To insert blank soaces of more than 4seconds, after the deck
enters recording pause mode, press ●REC/REC MUTE again.
Each time the button is pressed, a4-second blank space is
added.
To erase arecording
Make sure the microphone is not connected to this unit and the
Rhythm play function (page 7) is canceled.
1
2
3
4
Insert the tape to be erased into deck 2 and press TAPE/
DECK 1/2 to display “TP 2“.
Set the tape to the point where the erasure is to be started.
Set the reverse mode by pressing REV MODE.
Press cREC/REC MUTE to start the erasure.
17 ENGLISH

EEH
.!~et th,? tape to the point where recordin9 will start
●The reverse mode is automatically set to =.
Note that recording will be done on one side of the tape only.
Press TAPE.
Insert the original tape into deck 1and the tape
to be recorded on into deck 2.
Insert the tapes with the sides to be played back or recorded
on facing out from the unit.
Press DOLBY NR to turn off the Dolby NR.
00 NR on the display goes out.
Pre!ss TAPE DECK 1/2 to select deck 1.
“TP 1“ is displayed.
5Press OREC/REC MUTE to start recording.
Playing and recording start simultaneously.
To atop dubbing
Press Ml.
To set the Dolby NR when playing back the dubbed tape
Press [)OLBY Ni3 and turn Dolby NR on or off to match the
original tape.
This function allows you to make exact copies of both sides of
the original tape. The reverse side of both tapes will start
simultaneously as soon as the longer tape has been reversed.
m
●Dubbing does not start from apoint halfway in the tape.
●The reverse mode is automatically set to 11.
●The Dolby NR does not affect recording.
1
2
3
Press TAPE.
Insert the original tape into deck 1and the tape
to be recorded on into deck 2.
Insert each tape with the side to be played back or recorded ❑
on facing out from the unit.
Press SYNC DUB once or twice to start recording.
(0 For recording at normal speed, press it once to display
NORM-DUB.
@For recording at high speed, press it twice to display
HIGH-DUB. -
0
The tapes are rewound to the
and recording starts. beginning of the front sides,
To stop dubbing
Press ■.
To set the Dolby NR when playing back the dubbed tape
Press DOLBY NR and turn Dolby NR on or off to match the
original tape.
Recording does not start, if the erasure prevention tab on either
side of the tape is broken off.
ENGLISH 18

DISC
&
m
The Al edit recording function enables CD recording without
worrying about tape length and track length. When aCD is
inserted, the unit automatically calculates the total track length.
If necessary, the order of tracks is rearranged so that no track is
cut short.
(Al: Artificial Intelligence)
Al edit recording will not start from apoint halfway into the tape.
The tape must be recorded from the beginning of either side.
1
2
3
4
5
Insert the tape into deck 2, and press DOLBY NR
to turn Dolby NR on or off.
Insert the tape with the side to be recorded on first facing out
from the unit.
Press CD and load the disc(s).
Press CD EDIT/CHECK once.
“EDIT” is displayed. EDIT
●When “PRGM” is displayed, press CD EDIT/CHECK again.
Press DISC DIRECT PLAY 1-3 to select adisc.
Press numbered buttons O-9 on the remote
control to designate the tape length.
10 to 99 minutes can be specified.
Example: When using a60-minute tape, press 6 and O.
In afew seconds, the tracks to be recorded on each side of
the tape are determined.
●+, *or MULTI JOG are also available to designate
the tape length.
Tape length Remaining time Programmed
of recording tracks for side A
6Press ●REC/REC MUTE to start recording on
the first side.
The tape is rewound to the beginning of the front side, the
lead segment is played through for 10 seconds, and recording
starts. When recording on the front (side A) ends, recording
on the back (side B) starts.
To stop recording
Press ■CLEAR. Recording and CD play stop simultaneously.
To clear the edit program
Press ■CLEAR twice sothat “EDIT”disappears on the display.
To check the order of the programmed track numbers
Before recording, press CD EDIT/CHECK to select side Aor B,
and press +or -repeatedly.
Programmed
Tra~k number tra~k numbers
Program number
To add tracks from other discs to the edit program
If there is any time remaining on the tape after step 5, you can
add tracks from other discs in the CD compartment
1Press CD EDIT/CHECK to select side Aor B,
2Press DISC DIRECT PLAY 1-3 to select adisc.
3Press numbered buttons on the remote control to select tracks.
Atrack whose playing time is longer than the remaining time
cannot be programmed.
4Repeat steps 2 and 3 to add more tracks.
Time on cassette tapes and editing time
The actual cassette recording time is usually alittle longer than
the specified recording time printed on the label. This unit can
program tracks to use the extra time. When the total recording
time is alittle longer than the tape’s specified recording time
after editing, the display shows the extra time (without aminus
mark), instead of the time remaining on the tape (with the minus
mark).
The Al edit recording function cannot be used with discs
containing 31 tracks or more.
Tape side
A: First recording side
B: Second recording side
I9ENGLISH
