Shyam Falcon SM200 Series User manual

NETWORKS
www.shyamnetworks.com
Falcon SM200
Series Camera
Quick Start Guide
For advanced settings and more detailed information, download the user
manual from www.shyamnetworks.com.
Package Contents
Camera with Mount Base 1
Flexible Clamp with Fixing Screws 1
Power Adapter 1
Wall Mounting Screws 1
Terminal Block for Alarm I/O 1
Quick Start Guide 1

3
NETWORKS
SM200
SM202
SM201
SM242W
SM241W
3
3
22
22
11
7
6
5
4
10
14
15
11
13
12
8 9

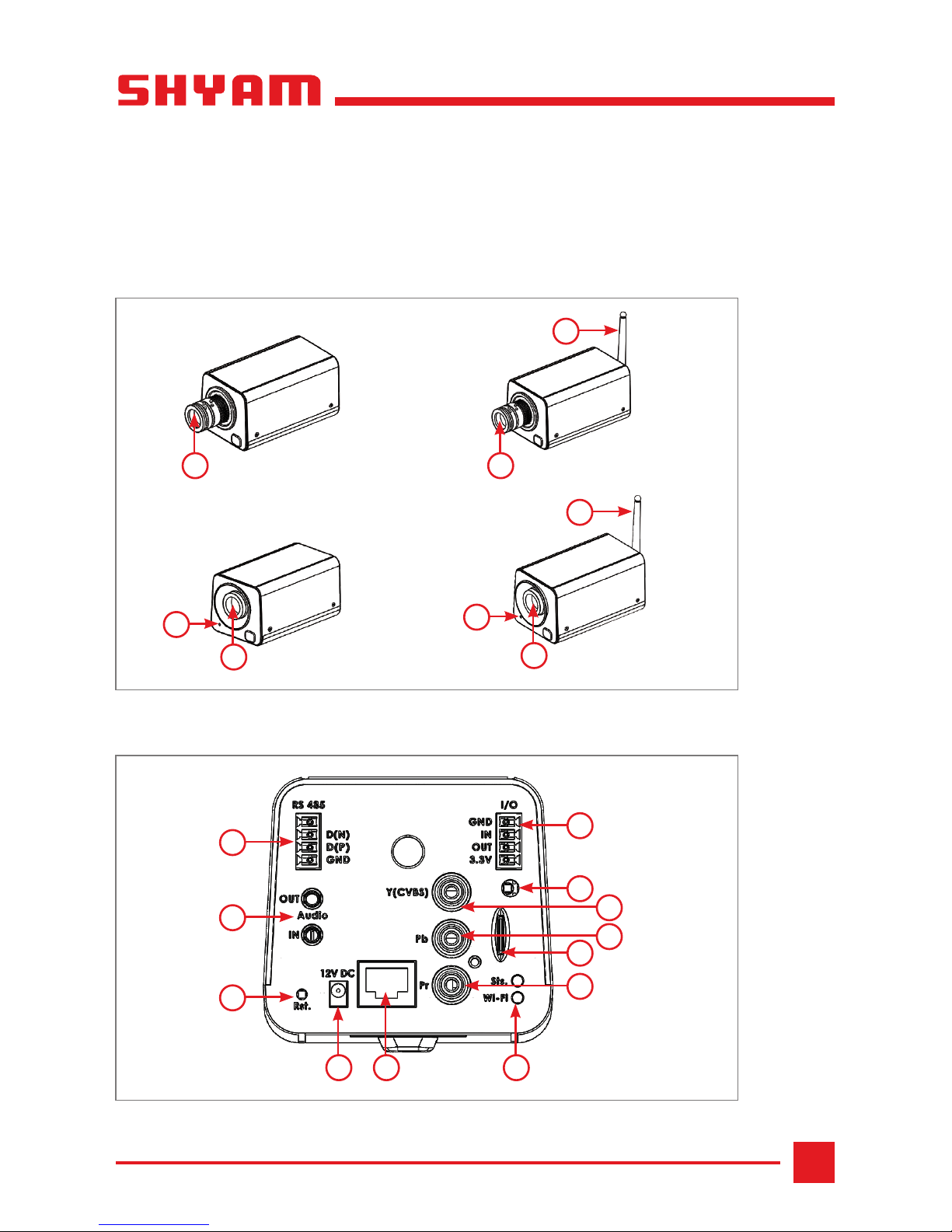

1. Hardware Overview
Front View
Rear View
Figure 1
Figure 2

4
NETWORKS
SM200
LABEL NO. INTERFACE DESCRIPTION
1 Microphone Built-in microphone present on the front panel, which
records sound. Used to capture audio from the vicinity.
2 Lens Camera lens depending on the model.
3 Wi-Fi
Antenna
To boost the signal of the camera’s wireless network
depending on the model.
4 RS 485 RS-485 is a communication protocol that allows serial
connection between devices. In Falcon, pins listed below can
be used to connect external PTZ module.
First Pin Not used.
D(N) Indicates data negative.
D(P) Indicates data positive.
GND Indicates ground for reference.
5 Audio Provides audio input and output.
OUT To connect external speaker for providing audio as
output.
IN To connect external microphone for capturing audio.
6 Rst. Used only for service and debug purposes. User should not
use this switch.
7 12V DC DC inlet to provide an external power supply.
8 LAN Port One Ethernet port providing connection through Cat5e cable.
9 LEDs Indicates the working status of the camera.
Available Models
Interface Description
MODEL DESCRIPTION
SM201 CS mount wired (PoE) and HD camera
SM241W CS mount wired (PoE) and wireless HD camera
SM202 4x Zoom wired (PoE) and HD camera
SM242 W 4x Zoom wired (PoE) and wireless HD camera

5
NETWORKS
SM200
Interface Description
LABEL NO. INTERFACE DESCRIPTION
10 Y (CVBS) Y in component video mode and CVBS in composite
video mode.
11 Pb Pb in component video mode.
12 Pr Pr in component video mode.
13 SD Card Slot For inserting the SD card to store data directly in to the card.
14 User Input
Button
Boots the camera with default IP conguration. Keep it
pressed for 15 seconds during power on (Sts. LED blinks
amber) and then release it.
15 I/O Connects an external alarm event detector to input port
and an activation port from output port.
GND Digital ground is used as return path for 3.3V supply
pin and reference GND for IN and OUT ports.
IN Active: Input pin is connected to GND.
Inactive: Pin is open or unconnected.
OUT Uses an open-collector transistor with the emitter
connected to GND.
When the port is activated, it gets connected
to GND through the transistor. The sink current
through the port should not exceed 150 mA and
maximum voltage the port can be exposed to is
24 V DC.
iNote: If used with an external inductive
load like relay, appropriate free-wheeling diode
should be used across the inductive load to avoid
damage to transistor due to surges.
3.3V Powers auxiliary equipment. Maximum current it
can supply is 200 mA. Drawing more current can
damage the camera.

6
NETWORKS
SM200
LED Behavior
Caution and Warnings
• Use the power adapter included with the product. Using a different power adapter
may damage the product.
• The camera should be installed at a clean and dry place.
• For outdoor installation, encase the camera in IP66 housing.
LED COLOR STATUS DESCRIPTION
Top Left on
LAN Port Green On The network to which the camera is connected is up.
Top Right on
LAN Port Yellow On Indicates network activity and that data is being transferred.
Sts.
Red
On Indicates camera is booting up.
Blinking Indicates failed rmware upgrade or
no valid rmware in camera.
Green On Indicates normal operation.
Amber Blinking
Indicates Ethernet link is down or User
Input Button is ‘On’ (for >15 second).
During reboot it blinks till User Input
Button is released.
Off Indicates normal operation if
congured to be ‘Off’ from the GUI.
Wi-Fi
Green
On Indicates acceptable connection to a
wireless (Wi-Fi or 3G) network.
Blinking Indicates network activity and data
transfer in progress.
Red
On Indicates no wireless or 3G network
connection (in wireless mode).
Blinking Indicates scanning for wireless (Wi-Fi
or 3G) networks.
Off Indicates wired mode.
iNote: The Sts. and Wi-Fi LEDs together blink red when the camera nds no valid rmware
image in the ash.

7
NETWORKS
SM200
2. Installing Falcon
STEP 1 Place the camera on a at surface or mount it on a wall.
STEP 2 Optionally, connect external input/output alarm devices.
STEP 3 Connect power, using one of the methods listed below:
• PoE Adapter: Insert one end of an Ethernet cable into the port in the PC and
other end into the PoE adapter. Connect another cable from the PoE port on the
adapter to the camera’s port.
• PoE Switch: Insert one end of an Ethernet cable into the PoE switch and other
end into the camera. Connect another cable from the PC into the PoE switch.
• DC Adapter: Connect an Ethernet cable from the camera’s port into the PC.
Connect the power adaptor cord into the back of the camera and then plug it
into a power source.
On powering-up the camera the Sts. LED glows green. In case any LED does not operate, then
refer to the “Quick Troubleshooting” section.
Congratulations! The installation of the Falcon SM200 series camera is complete.

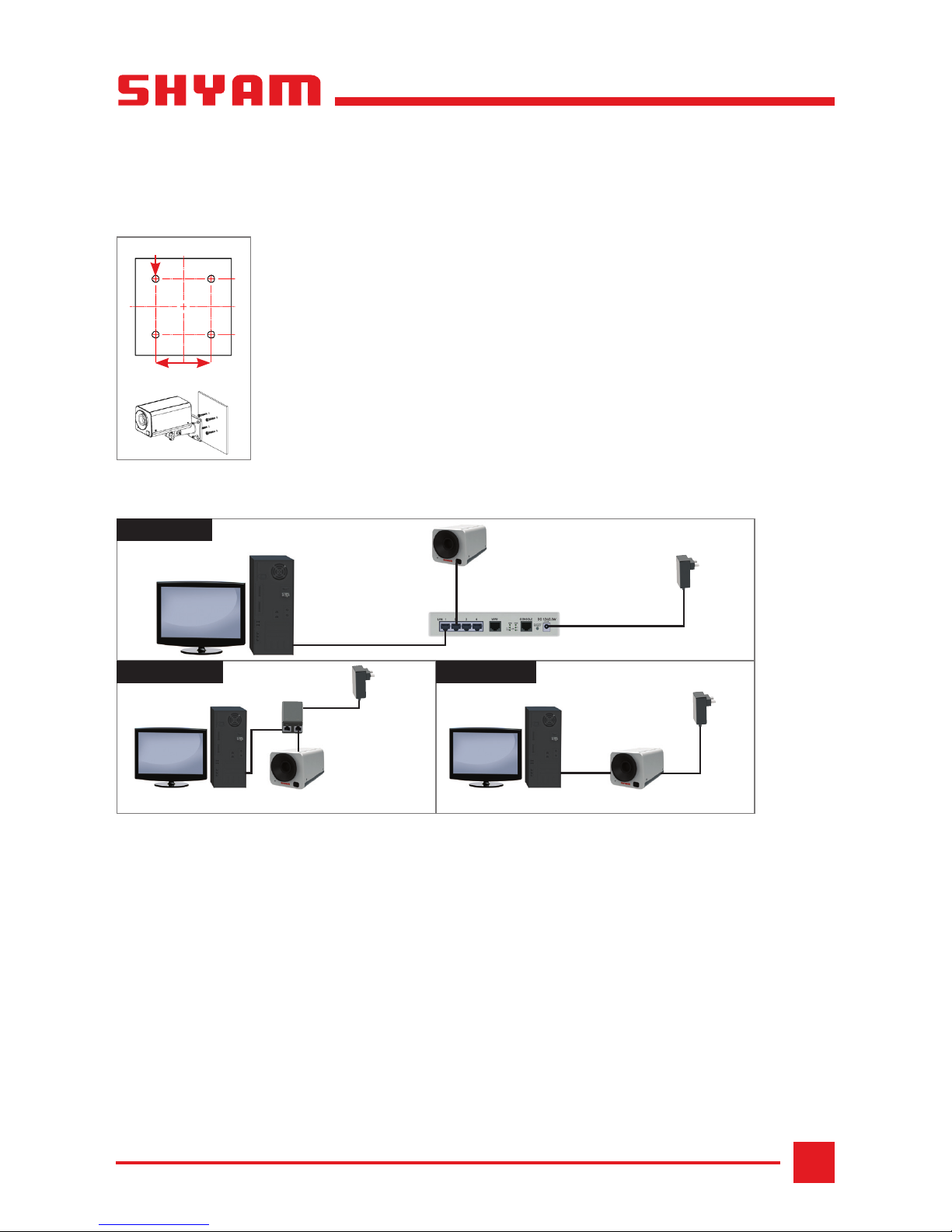

Connecting Falcon
STEP 1 Ensure all cable lines are securely connected.
STEP 2 Drill four holes into the wall. Then hammer the supplied
plastic anchors into the holes and secure the plate with the
supplied screws.
STEP 3 Fix the wall mount bracket with the supplied screw.
STEP 4 Adjust the angle of the wall mount bracket to aim at the
shooting area.
STEP 5 Secure the network camera to the wall/ceiling by the supplied
camera stand which has been supplied.
Wall Mounting
42 mm
Mounting Hole
Falcon Camera Power Supply
Switch
Computer
PoE Switch
PoE Adapter DC Adapter
Computer
Power Supply
PoE Adapter
Falcon Camera Computer
Power Supply
Falcon Camera
Figure 3
Figure 4

8
NETWORKS
SM200
3. Configuring Falcon
STEP 1 Power-up the camera.
STEP 2 Congure the PC connected to the camera with IP address between 192.168.1.1
to 192.168.1.254, except the camera IP address 192.168.1.168 and subnet
mask to 255.255.255.0.
iNote: If assigning the IP address fails, check that there is no rewall blocking the operation.
STEP 3 Type the http://192.168.1.168 URL in the Internet Explorer 6.0 or above version
to access the web interface.
STEP 4 Provide username as admin and password as password to view the Live View page.
Please refer to “Falcon SM200 Series Camera Conguration and User Guide” for more details.
Figure 5

9
NETWORKS
SM200
Accessing Falcon by UPnP
WINDOWS VERSION PROCEDURE
ME or XP When enabled on your computer, Falcon is automatically
detected and added to ‘My Network Places’.
Vista or Windows 7 When enabled on your computer, Falcon is automatically
detected and added to ‘Network’.
The camera icon as it appears in Windows 7:
Figure 6

10
NETWORKS
SM200

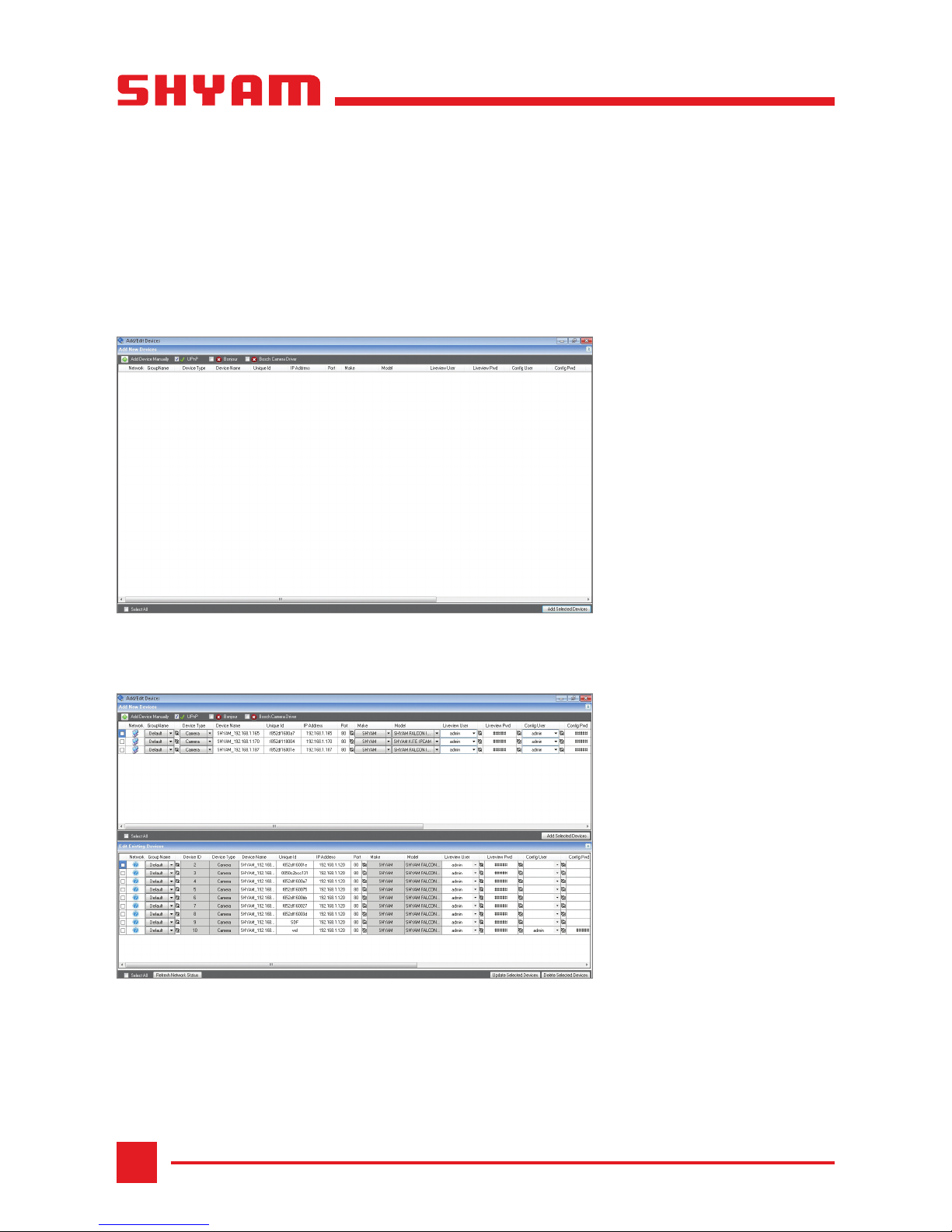

4. Adding Falcon in Shyam Dicortex VMS
STEP 1 Open the Dicortex Conguration Client interface.
STEP 2 Click the Settings tab.
STEP 3 Click the Add button to view the Add New Devices window.
After 5 to 10 seconds, the list of devices appears in the Add New Devices window.
STEP 4 Select the desired model number and click the Add Selected Devices button.
The camera has now been added successfully to VMS.
Figure 7
Figure 8

11
NETWORKS
SM200
5. Quick Troubleshooting
PROBLEM PROBABLE REASON RESOLUTION
The Sts. LED is ‘Off’. No power is supplied. Ensure that the power adapter is
plugged in properly.
The Sts. LED blinks
amber.
Ethernet link is not
working.
Check if the Ethernet cable is plugged
in properly to the camera and the PC.
Unable to view the
Live View page on
the user interface.
Improper IP
conguration.
• Ensure that Ethernet cable is
inserted properly.
• Check that network (IP) conguration
is done properly in the PC.
Video is unclear
or hazy.
Lens is dirty. Clean the lens with a soft cloth and
properly tighten it to the lens mount.

12
NETWORKS
SM200
109.00024.00
SN/QS/SM200/09/11/R1.1
Warranty
This warranty is valid upto 12 months from the date of purchase.
Any manufacturing defect will be repaired by the company free of charge within the period of
warranty subject to the following conditions:
1. This warranty card must be duly lled in, stamped & signed by the dealer. The card and the
relevant cash memo must be preserved & produced along with the defective unit.
2. Once the defective unit is repaired during the said warranty period, the warranty shall thereafter
continue only for the unexpired period to the original warranty.
3. This warranty is not valid in case of
• Damage resulting from accidents, mishandling, negligence, tampering, unauthorized repair,
failure to follow instructions, lightning, re and act of God.
• Items not purchased from Authorized Dealers of the Company.
• Batteries (including rechargeable).
• Damage to the tamper proof seal.
• Adaptors (wherever applicable), where the Warranty is valid only up to 6 months from the date
of purchase of the product.
4. In case of a problem with your unit, please contact Customer Care. In the event that you are
advised to send and collect the unit from the Service Center of the Company – the same will be
done at your expense.
5. While Company or its Authorized Service Dealer will make every effort to carry out repairs under
this warranty as soon as possible, it is expressly made clear that the company shall not be held
liable for any direct or indirect loss to user due to delay in providing this service.
6. This warranty excludes every condition/warranty/liability not expressly set out therein.
7. Claims, if any to this warranty shall be subject to the courts having jurisdiction in Delhi, India.
