Siberian Cyber iCTABLE User manual

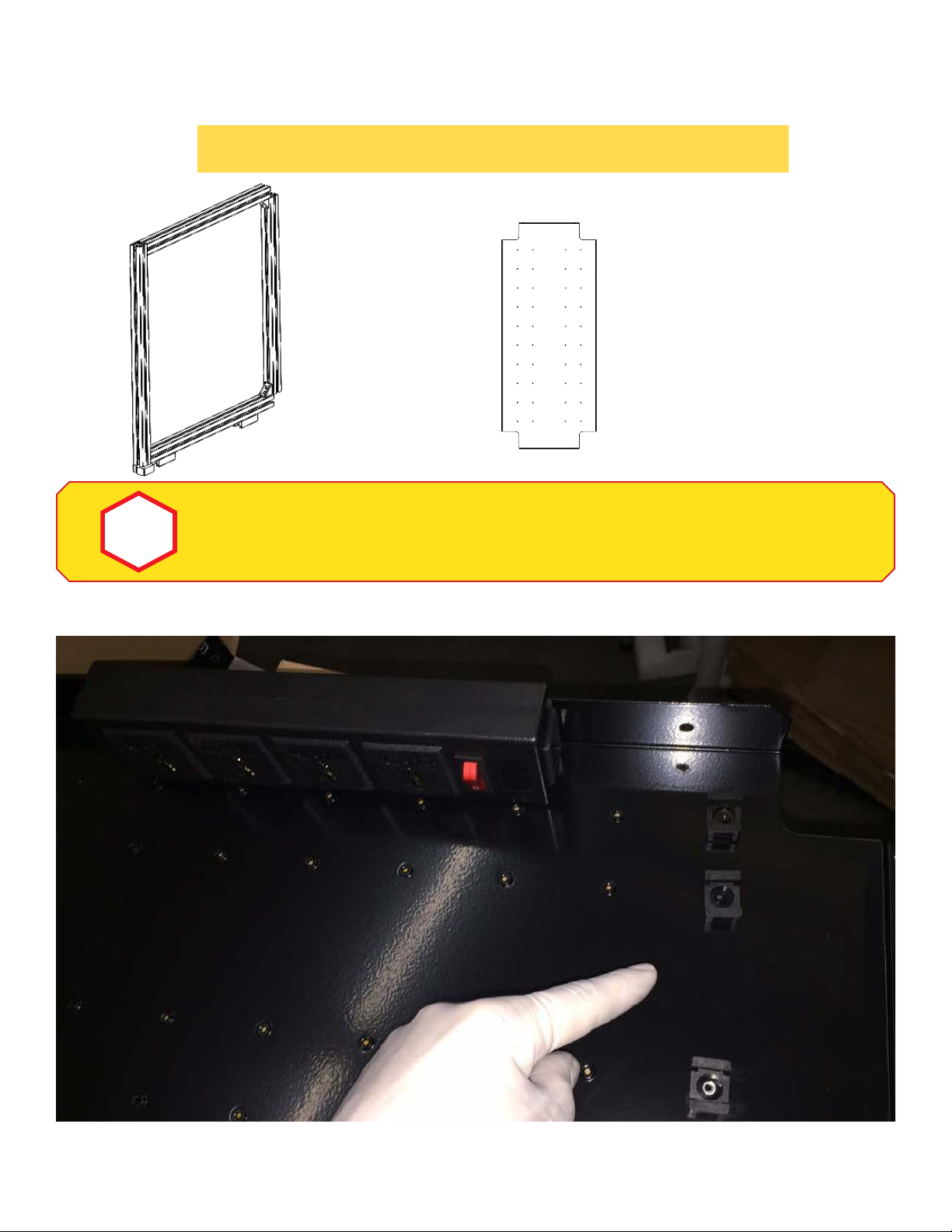

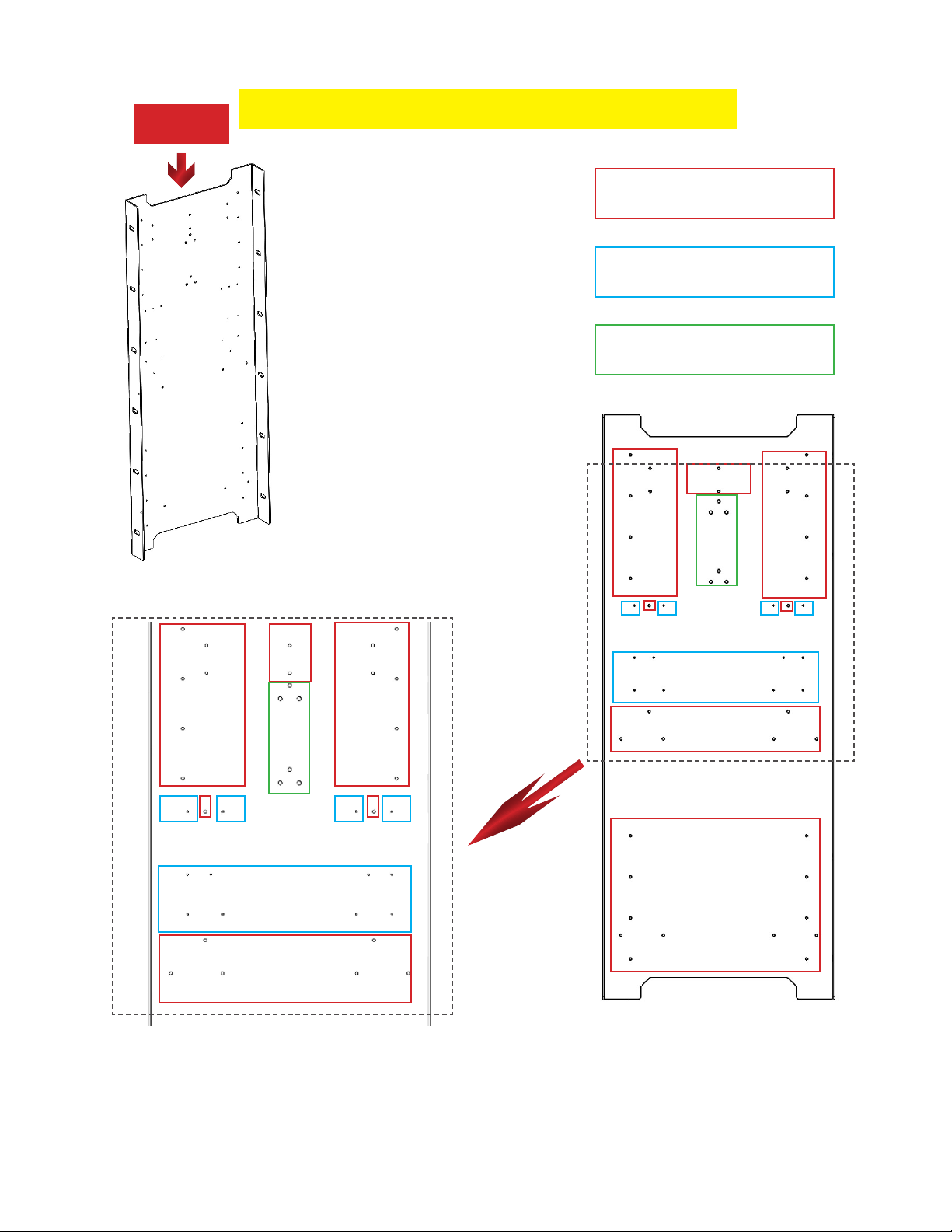

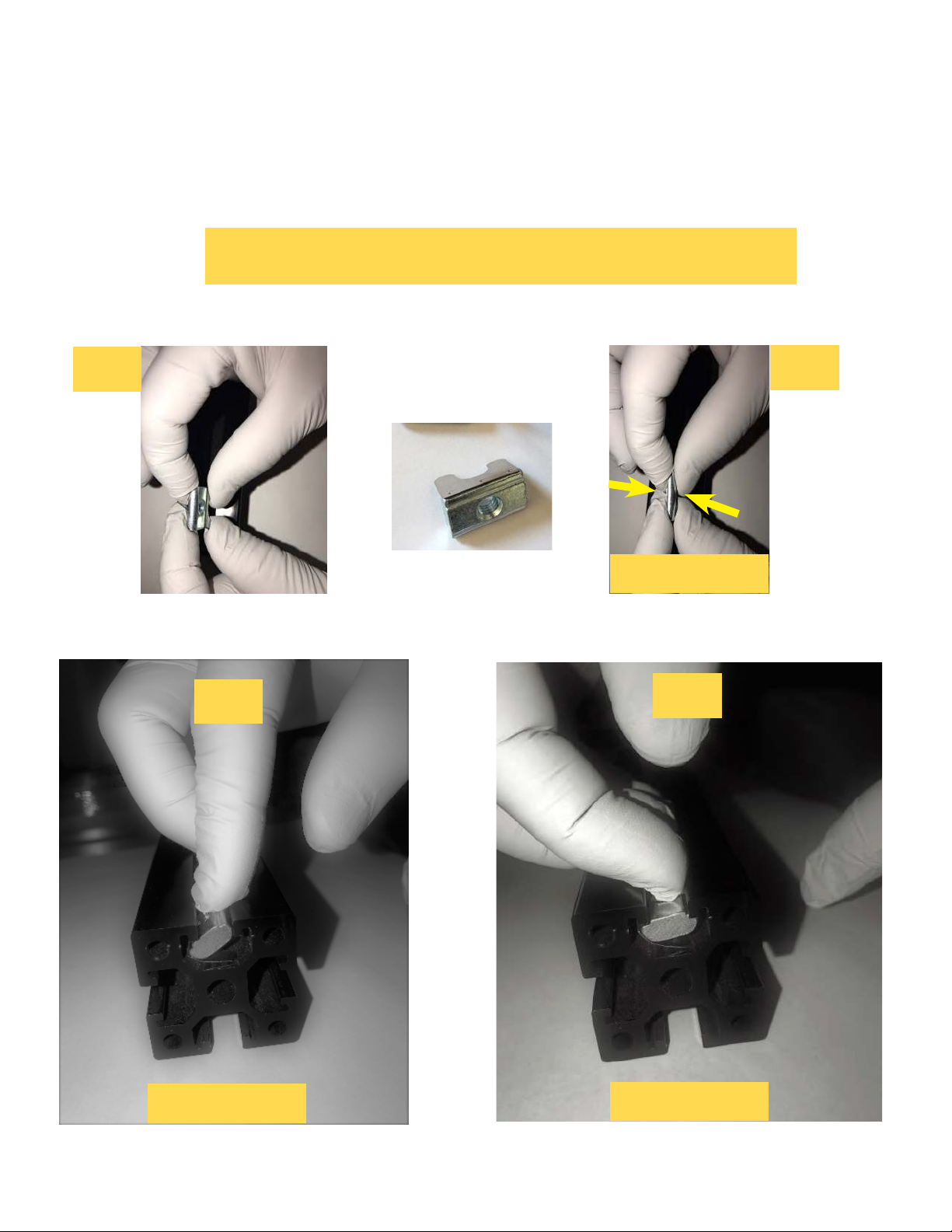

Siberian Cyber, Inc.
iCTABLE Manual
Page 1
Frame Box Part 1
Stage - Frame
Frame Assembly
Profile Chart
iCTABLE

iCTABLE Manual Siberian Cyber, Inc.
Page 2
Frame Box Part 1
Stage - Frame
iCTABLE
Frame Box Structure
XS Profile
B-Profile (647)
Corner Leg
B-Profile (647)
A-Profile (609)
P -Vertical Box Panel
O -Bottom Box Panel
Inner Leg (Left)
Corner Connector
E-Profile LEFT
A-Profile (609)
Support Leg
ACC -Holder
CProfile (723)
B-Profile (647)
LEFT
Overview
H-Profile (1350) - PRO

Siberian Cyber, Inc.
iCTABLE Manual

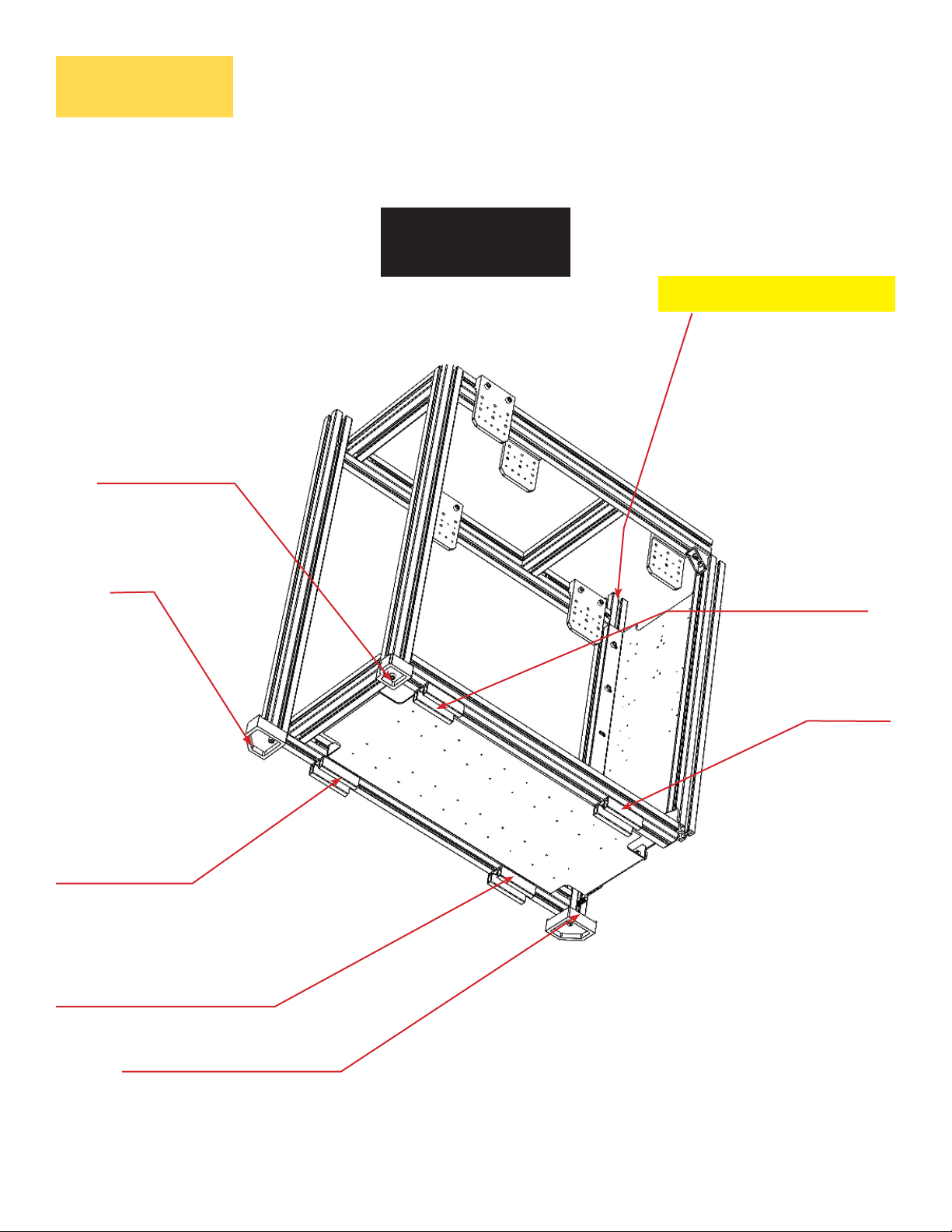

Page 3
Frame Box Part 1
Stage - Frame
iCTABLE
Legs Position
Inner Leg (Right)
Support Leg
LEFT
Support Leg
Support Leg
Corner Leg
Corner Leg
Support Leg
Overview
H-Profile (1350) - PRO

iCTABLE Manual Siberian Cyber, Inc.
Page 4
Frame Box Part 1
Stage - Frame
iCTABLE
Frame Box Structure
XS Profile
B-Profile (647)
Corner Leg
B-Profile (647)
A-Profile (609)
O -Bottom Box Panel
Inner Leg (Right)
Corner Connector
D-Profile RIGHT (770)
A-Profile (609)
Support Leg
ACC -Holder
CProfile (723)
B-Profile (647)
RIGHT
P -Vertical Box Panel D-Profile RIGHT (770)
Overview
G-Profile (1350) - PRO

Siberian Cyber, Inc.
iCTABLE Manual
Page 5
Frame Box Part 1
Stage - Frame
iCTABLE
Legs Position
Corner Leg
Inner Leg (Right)
Support Leg
RIGHT
Support Leg
Support Leg
Corner Leg
Corner Leg
Support Leg
Overview

iCTABLE Manual Siberian Cyber, Inc.

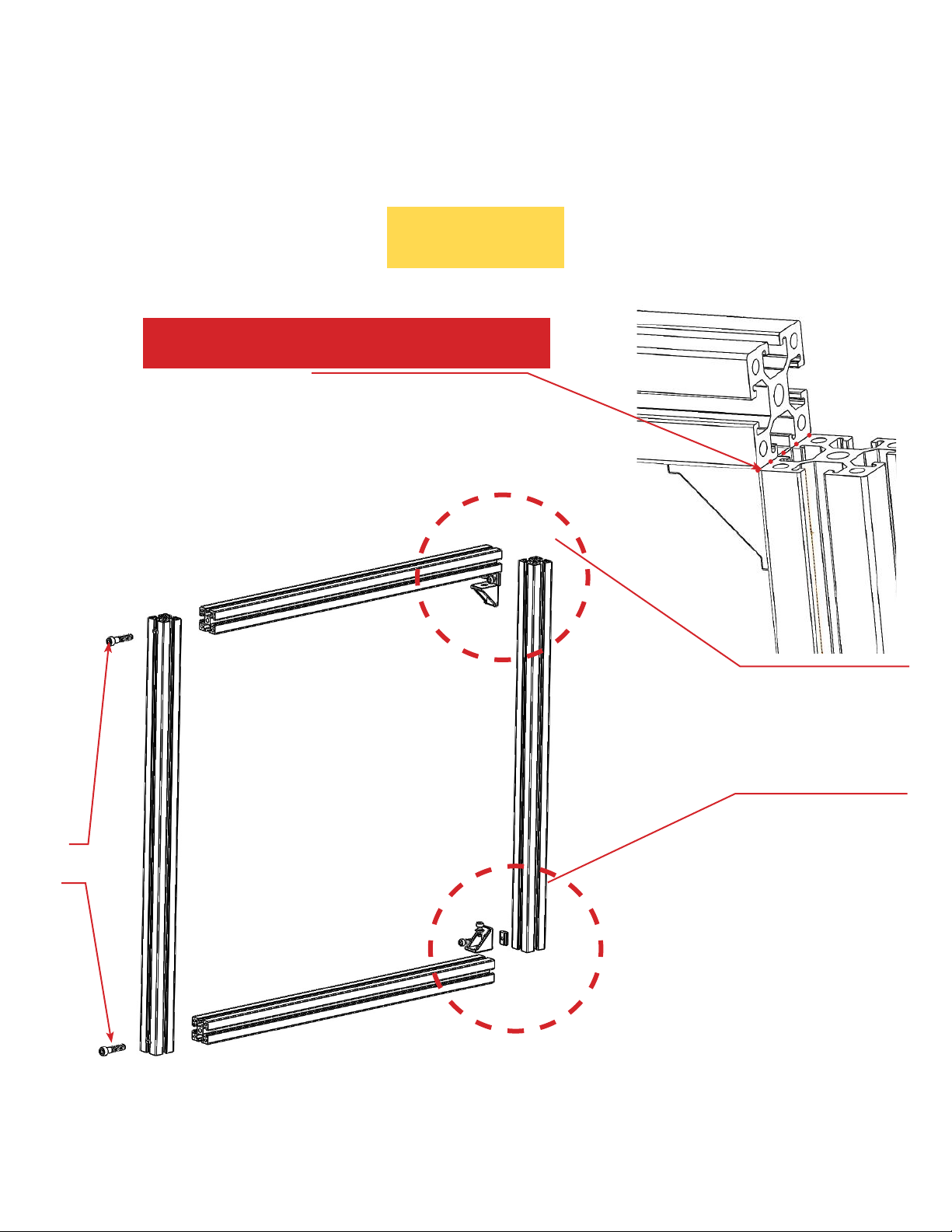

Page 6
Frame Box Part 1
Stage - Frame
iCTABLE
Frame Assembly
Steps 1
3
2
4
B-Profile (647)
A-Profile (609)
A-Profile (609)
CProfile (723)
Same Steps for the Right Box
Thread
Inner Side
NO Thread
CProfile (723)
CProfile (723)
H-Profile (1350) - PRO

Siberian Cyber, Inc.
iCTABLE Manual
Page 7
Frame Box Part 1
Stage - Frame
Frame Assembly
Corner Legs and Support Legs
iCTABLE
Bottom View
Corner Legs
Support Legs
The Outside Legs, Inside Legs, and the Support Legs create 16 fulcrums
that ensure the stability of iCTABLE
Important: iCTABLE should be placed on a flat and hard surface to exclude
any potential instability and unbalance in its construction.
1
3
2
4
1
3
2
4
5 6
7 8
9 10
5 6
16

iCTABLE Manual Siberian Cyber, Inc.
Page 8
TKONS
Stage - Frame
Left Box Assembly Steps
For Left Box For Right Box
56
2
45
7
4 pcs
609
A
A
A
Components
A
A
647
B
BB
723
2 pcs
C
CC
2 pcs
M6 16 2 pcs
Spring Nut 2 pcs
Head Bolt
Washer
2
pcs
L-Corner Connector 1 pce
M8 20 2 pcs
Support Leg 4 pcs

Siberian Cyber, Inc.
iCTABLE Manual
Page 9
Frame Box Part 1
Stage - Frame
Frame Assembly
How It Works
iCTABLE
Spring Nut
1
3
2
4
Press
Insert Adjust

iCTABLE Manual Siberian Cyber, Inc.
Page 10
Frame Box Part 1
Frame Assembly
Details
iCTABLE
Corner CONNECTOR
M6 16
SPRING NUT
SPRING NUT
Head Bolt Washer
Note: When putting in the Spring Nut, squeeze the spring and insert into
the identified position so the Spring Nut pops in and becomes static. Im-
portant: When screwing in M6 screws into the Spring Nut, try not to apply
pressure but simply rotating it in. Otherwise, it is possible that the Spring
Nut will pop off.
Important: When screwing in M6 screws into the Spring Nut, try not to
apply pressure but simply rotating it in. Otherwise, it is possible that the
Spring Nut will pop off.
M6 16
Corner CONNECTOR SET 2 pcs
Spring Nut 2 pcs
Head Bolt
Washer
2
pcs
L-Corner Connector 1 pce

Siberian Cyber, Inc.
iCTABLE Manual
Page 11
Frame Box Part 1
Stage - Frame
Frame Assembly
Details
iCTABLE
Corner-To-Corner
M8 35

iCTABLE Manual Siberian Cyber, Inc.
Page 12
Frame Box Part 1
Stage - Frame
Frame Assembly
Pictures of components
iCTABLE
SPRING NUT
M6 16
Head Bolt Washer

Siberian Cyber, Inc.
iCTABLE Manual
Page 13
Frame Box Part 1
Stage - Frame
Frame Assembly
Support Leg Assembly
iCTABLE
Components of SET
Support Leg M6 10 Socket Head
Cap Screw
2 pcs
Spring Nut
2 pcs
For iCTABLE/iCTABLE Pro - 10
Sets!

iCTABLE Manual Siberian Cyber, Inc.
Page 14
Frame Box Part 1
Stage - Frame
Left Box Assembly Steps
Bottom Level Assembly
+O
Bottom Box Panel
!Time to preparing wire clips

Siberian Cyber, Inc.
iCTABLE Manual
Page 15
Frame Box Part 1
Stage - Frame
Left Box Assembly Steps
Bottom Level Assembly

iCTABLE Manual Siberian Cyber, Inc.
Page 16
Frame Box Part 1
647
B
1
3
+
+
SUPPOPRT LEG - 2
SETS
+
M6 10 Socket Head Cap
Screw+Spring Nuts
Left Box Assembly Steps
Top View
6 pcs 6 pcs
Box-Bottom Level

Siberian Cyber, Inc.
iCTABLE Manual
Page 17
Frame Box Part 1
Left Box Assembly Steps
Box-Bottom Level
OBottom Box Panel
M3 Threads
!Be advised that during the
installation process, the screws
might not go in easily. If this occurs,
gradually apply more force, while
swiveling the screw back and
forth until it goes all the way in. In
addition, you may use WD-40 or
comparable lubricant to ease the
installation process.clips
Screws
Mounting

iCTABLE Manual Siberian Cyber, Inc.

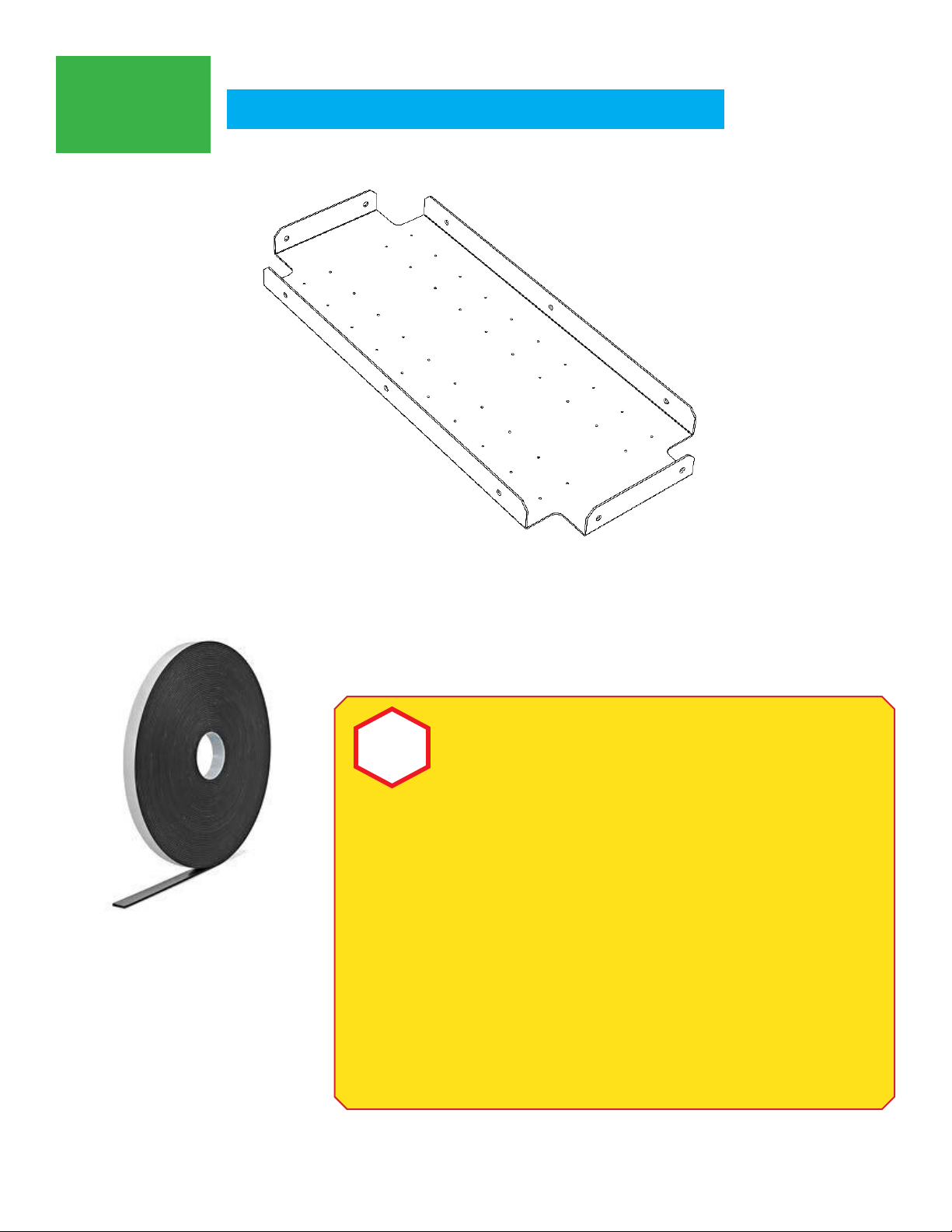

Page 18
Frame Box Part 1
O
Bottom Box Panel
Left Box Assembly Steps
Box-Bottom Level
Screwless-
Mounting
!When mounting additional
components to the surface
of the panel, without using the
screws, we recommend using
Heavy Duty Double-Sided Foam
Tape. Before applying the tape,
take care to prepare and clean
the surface of the panel, using
medicinal alcohol or equivalent
cleaning agent. Please remain
careful when using any cleaning
agent and comply with the safety
regulations advised by the
product producer.

Siberian Cyber, Inc.
iCTABLE Manual
Page 19
Frame Box Part 1
Left Box Assembly Steps
Vertical Panel
M3 Threads
M2 Threads
M4 Threads
P
Vertical Box Panel
TOP

iCTABLE Manual Siberian Cyber, Inc.
Page 20
Frame Box Part 1
6 x 7.10 X 15 THRU AL
L
20 x 2.50 THRU ALL
M3 - 6H THRU ALL
8 x
1.60 THRU ALL
M2 - 6H THRU ALL
3 x 3.30 THRU ALL
M4 - 6H THRU ALL
2 x
2.50 THRU ALL
M3 - 6H THRU ALL
4 x
1.60 THRU ALL
M2 - 6H THRU ALL
8 x 2.50 THRU ALL
M3 - 6H THRU ALL
4 x
2.50 THRU ALL
M3 - 6H THRU ALL
UP 90° R 0.74 UP 90° R 0.74
A1
A2
A3
A4
A5
A6
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
C1
C2
C3
B11
B12
B13
B14
C4
B15
B16
C5
C6
D1
D2
D3
D4
B17
B18
D5
D6
C7
C8
B19
B20
C9
B21
B22
B23
B24
C10
C11
C12
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
A7
A8
A9
A10
A11
A12
X
Y
0
0
TAG X LOC Y LOC SIZE
A1 18 -595 7.10 X 15 THRU ALL
A2 18 -485 7.10 X 15 THRU ALL
A3 18 -375 7.10 X 15 THRU ALL
A4 18 -265 7.10 X 15 THRU ALL
A5 18 -155 7.10 X 15 THRU ALL
A6 18 -45 7.10 X 15 THRU ALL
A7 302.51 -595 7.10 X 15 THRU ALL
A8 302.51 -485
7.10 X 15 THRU ALL
A9 302.51 -375 7.10 X 15 THRU ALL
A10 302.51 -265 7.10 X 15 THRU ALL
A11 302.51 -155 7.10 X 15 THRU ALL
A12 302.51 -45 7.10 X 15 THRU ALL
B1
53.25 -570
2.50 THRU ALL
M3 - 6H THRU ALL
B2 53.25 -355
2.50 THRU ALL
M3 - 6H THRU ALL
B3 63.99 -596
2.50 THRU ALL
M3 - 6H THRU ALL
B4 63.99 -551
2.50 THRU ALL
M3 - 6H THRU ALL
B5 63.99 -506
2.50 THRU ALL
M3 - 6H THRU ALL
B6 63.99 -461
2.50 THRU ALL
M3 - 6H THRU ALL
B7 63.99 -179
2.50 THRU ALL
M3 - 6H THRU ALL
B8 63.99 -134
2.50 THRU ALL
M3 - 6H THRU ALL
B9 63.99 -89
2.50 THRU ALL
M3 - 6H THRU ALL
B10 63.99
-44
2.50 THRU ALL
M3 - 6H THRU ALL
B11 84.25
-325
2.50 THRU ALL
M3 - 6H THRU ALL
B12 84.25
-209
2.50 THRU ALL
M3 - 6H THRU ALL
B13 85.25
-84
2.50 THRU ALL
M3 - 6H THRU ALL
B14 85.25
-59
2.50 THRU ALL
M3 - 6H THRU ALL
B15 99.88
-570
2.50 THRU ALL
M3 - 6H THRU ALL
B16 99.88
-355
2.50 THRU ALL
M3 - 6H THRU ALL
B17 160.25
-84
2.50 THRU ALL
M3 - 6H THRU ALL
B18 160.25
-59
2.50 THRU ALL
M3 - 6H THRU ALL
B19 220.62
-570
2.50 THRU ALL
M3 - 6H THRU ALL
B20 220.62
-355
2.50 THRU ALL
M3 - 6H THRU ALL
B21 235.25
-84
2.50 THRU ALL
M3 - 6H THRU ALL
B22 235.25
-59
2.50 THRU ALL
M3 - 6H THRU ALL
B23 236.25
-325
2.50 THRU ALL
M3 - 6H THRU ALL
B24 236.25
-209
2.50 THRU ALL
M3 - 6H THRU ALL
B25 256.52
-596
2.50 THRU ALL
M3 - 6H THRU ALL
B26 256.52
-551
2.50 THRU ALL
M3 - 6H THRU ALL
B27 256.52
-506
2.50 THRU ALL
M3 - 6H THRU ALL
B28 256.52
-461
2.50 THRU ALL
M3 - 6H THRU ALL
B29 256.52
-179
2.50 THRU ALL
M3 - 6H THRU ALL
B30 256.52
-134
2.50 THRU ALL
M3 - 6H THRU ALL
B31 256.52
-89
2.50 THRU ALL
M3 - 6H THRU ALL
B32 256.52
-44
2.50 THRU ALL
M3 - 6H THRU ALL
B33 267.25
-570
2.50 THRU ALL
M3 - 6H THRU ALL
B34 267.25
-355
2.50 THRU ALL
M3 - 6H THRU ALL
C1 68.25 -301.62
1.60 THRU ALL
M2 - 6H THRU ALL
C2 68.25 -266
1.60 THRU ALL
M2 - 6H THRU ALL
C3 68.25 -209
1.60 THRU ALL
M2 - 6H THRU ALL
C4 89.25 -266
1.60 THRU ALL
M2 - 6H THRU ALL
C5
100.25 -301.62
1.60 THRU ALL
M2 - 6H THRU ALL
C6 100.25 -209
1.60 THRU ALL
M2 - 6H THRU ALL
C7 220.25 -301.62
1.60 THRU ALL
M2 - 6H THRU ALL
C8 220.25 -209
1.60 THRU ALL
M2 - 6H THRU ALL
C9 231.25 -266
1.60 THRU ALL
M2 - 6H THRU ALL
C10 252.25 -301.62
1.60 THRU ALL
M2 - 6H THRU ALL
C11 252.25 -266
1.60 THRU ALL
M2 - 6H THRU ALL
C12 252.25 -209
1.60 THRU ALL
M2 - 6H THRU ALL
D1 151.75 -183
3.30 THRU ALL
M4 - 6H THRU ALL
D2 151.75 -107
3.30 THRU ALL
M4 - 6H THRU ALL
D3 160.25 -171
3.30 THRU ALL
M4 - 6H THRU ALL
D4 160.25 -95
3.30 THRU ALL
M4 - 6H THRU ALL
D5 168.75 -183
3.30 THRU ALL
M4 - 6H THRU ALL
D6 168.75 -107
3.30 THRU ALL
M4 - 6H THRU ALL

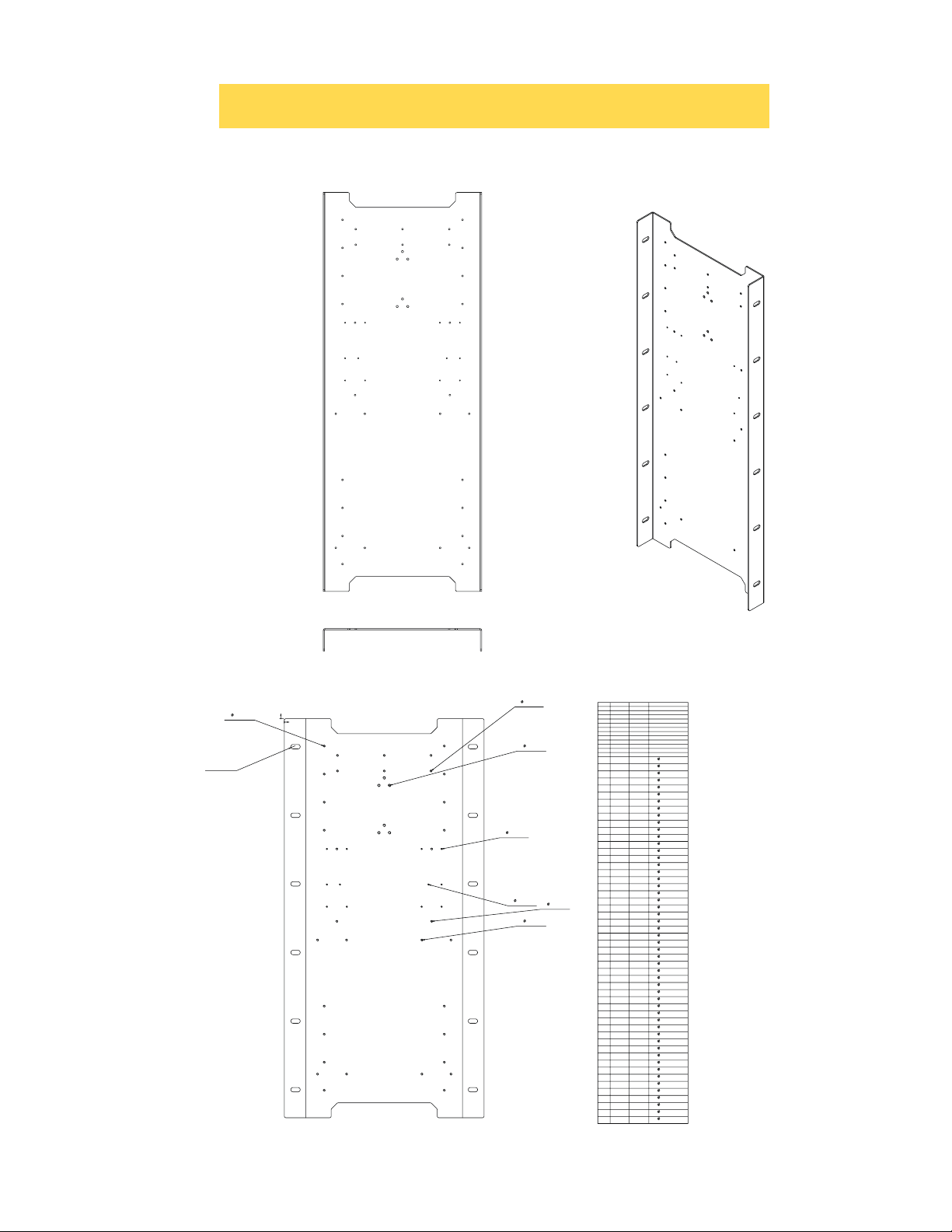

Left Box Assembly Steps
Holes Overview
P
Vertical Box Panel
