Sibir V110 Manual

www.sibir.com COPYRIGHT © SIBIR INTERNATIONAL
8251276-06 MO-M 0846
V110
V170
EN
ES
FR
InstallatIOn & OperatIng InstructIOns page 2
InstruccIOnes de InstalacIón & usO págIna 28
cOnsIgnes d’InstallatIOn & ’utIlIsatIOn page 54
KerOsene/electrIc refrIgeratOr
nevera a KerOsenO/eléctrIcIdad
réfrIgérateur au KérOsène/électrIcIté

www.sibir.com COPYRIGHT © SIBIR INTERNATIONAL
2
CONTENTS
Review this section to ensure that
your refrigerator is maintained in
best possible working condition.
Review this section when you
are experiencing operational
problems with your refrigerator.
ACTION ON RECEIPT 3
INSTALLATION 3
REFRIGERATORS PARTS 4
PREPARATION BEFORE LIGHTING 5
LIGHTING THE BURNER 6
ALADDIN BURNER 6
KOSMOS BURNER 8
STARTING THE REFRIGERATOR USING ELECTRICITY 9
REGULATING THE TEMPERATURE 9
KEROSENE OPERATION 9
ELECTRICAL OPERATION 9
MONTHLY OPERATIONAL ACTIONS 11
CHECKING THE DOOR SEAL 11
DEFROSTING 11
CLEANING AND TRIMMING THE WICK 12
ALADDIN BURNER 12
KOSMOS BURNER 12
CLEANING THE CHIMNEY SYSTEM 13
CLEANING THE TANK 13
CLEANING THE REFRIGERATOR 13
CLEANING THE BURNER 14
ALADDIN BURNER 14
KOSMOS BURNER 14
REPLACING THE WICK 15
ALADDIN BURNER 15
KOSMOS BURNER 16
CHECKING THE THERMOSTAT AND HEATER 17
REPLACING THE THERMOSTAT 18
REPLACING THE HEATER 18
REPLACING THE COOLING UNIT 19
ORDERING SPARE PARTS 20
TROUBLESHOOTING CHARTS 21
KEROSENE OPERATION
A. REFRIGERATOR NOT COOLING AT ALL 21
B. REFRIGERATOR TOO COLD 21
C. REFRIGERATOR NOT COLD ENOUGH 22
D. ALADDIN BURNER 23
E. KOSMOS BURNER 24
ELECTRICAL OPERATION
A. REFRIGERATOR NOT COOLING AT ALL 25
B. REFRIGERATOR NOT COOLING AT ALL 25
C. REFRIGERATOR NOT COLD ENOUGH 26
D. REFRIGERATOR TOO COLD 27
DAY/NIGHT REGULATOR 10
DAILY OPERATIONAL ACTIONS 10
WEEKLY OPERATIONAL ACTIONS 10
www.sibir.com
Visit our website for more informa-
tion on our products, to download
material and to contact Sibir
International.

www.sibir.com COPYRIGHT © SIBIR INTERNATIONAL
3ACTION ON RECEIPT
Place the refrigerator in the coldest possible place inside a1
building. The refrigerator is tested to operate reliably in tem-
peratures up to 43 °C.
The room must be ventilated and free air circulation around the2
refrigerator is necessary.
Keep the refrigerator in the shade and away from heat of any3
kind.
Avoid draughts, such as door and window openings.4
Clearances to wall must be at least 30 mm (1.2”) and to roof at5
least 400 mm (15.7”).
Check that the door seals properly against the cabinet.6
If electricity is used, check that the voltage is correct.7
30 mm
Check the packing case for damages. In case you suspect any refrigerator damages, notify your supplier before1
unpacking.
U2 npack the refrigerator carefully.
Check the refrigerator. If it is damaged, notify your supplier.3
Check that the flue baffle is hanging inside the chimney.4
Read the operating instructions and follow them exactly.5
INSTALLATION
400 mm
5
5

www.sibir.com COPYRIGHT © SIBIR INTERNATIONAL

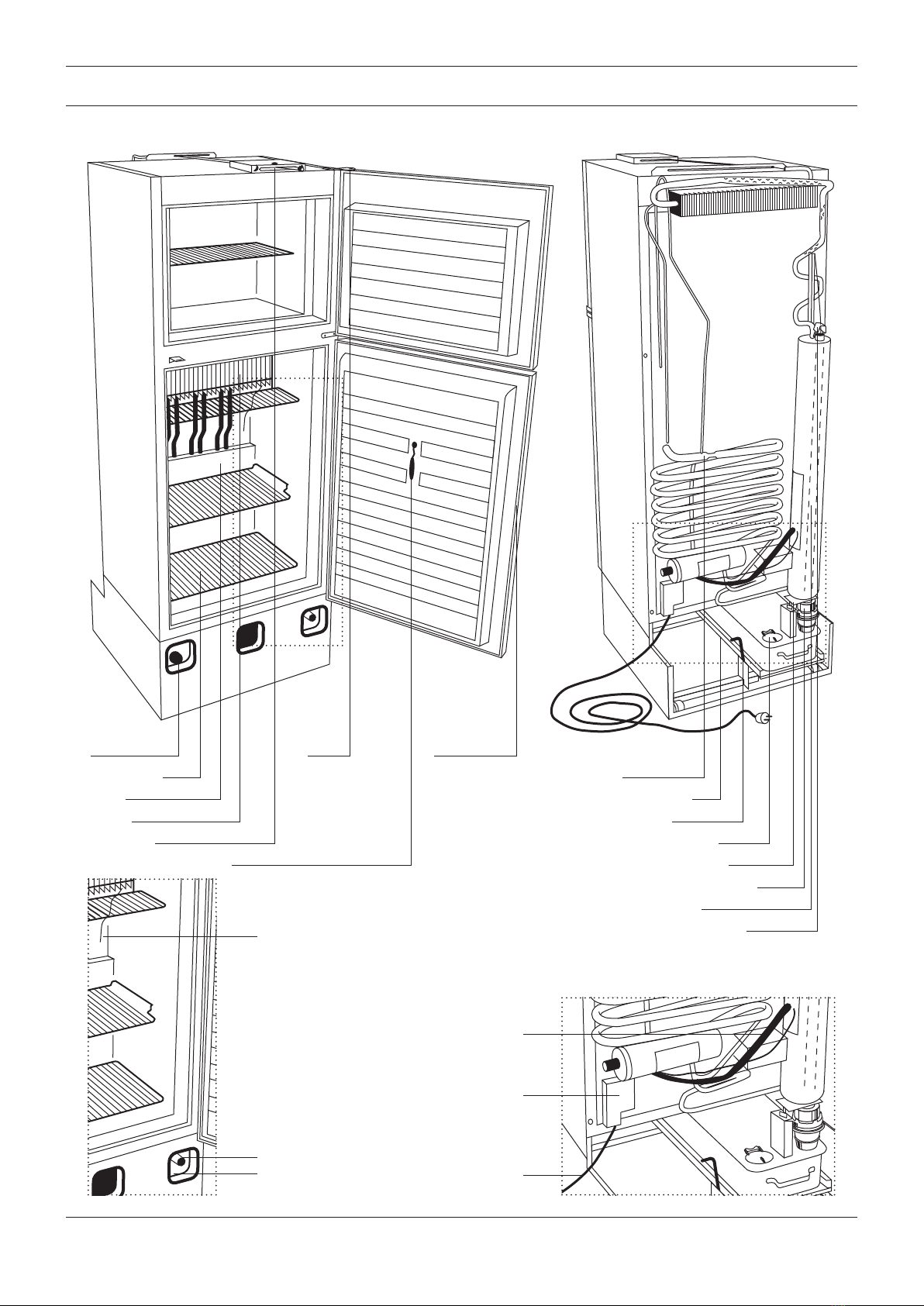

4REFRIGERATORS PARTS
Hinge Door gasket
Shelf
Temperature display sensor
Stabilizer tank
Cooling element
Control knob Condenser
Chimney (inside)
Cooling unit
Flue baffle
Burner
Guide pin
Tank lid
Rail
Lever Arm
Day/night reulator
Capillary tube
Electrical parts
Control knob
Thermostat
Heater
Terminal
Electrical cable
Electrical parts

www.sibir.com COPYRIGHT © SIBIR INTERNATIONAL
5PREPARATION BEFORE LIGHTING
The kerosene tank* is pulled out from the rear.
Release the lever arm.1
Pull out the tank.2
Check that the tank moves smoothly on the rails.3
Remove the tank and flush it with clean kerosene.4
1 2
2
*The kerosene tank is available in two variants, one in plastic and one in sheet metal. The illustrations
show the metal tank but the plastic tank is handled in exactly the same way. The instructions in the
manual therefore apply to both tank variants.
Unpack the burner.5
Remove the wick cleaner, if any, and put it aside.6
Plastic kerosene tank: Remove the protective label.7
7
7

www.sibir.com COPYRIGHT © SIBIR INTERNATIONAL

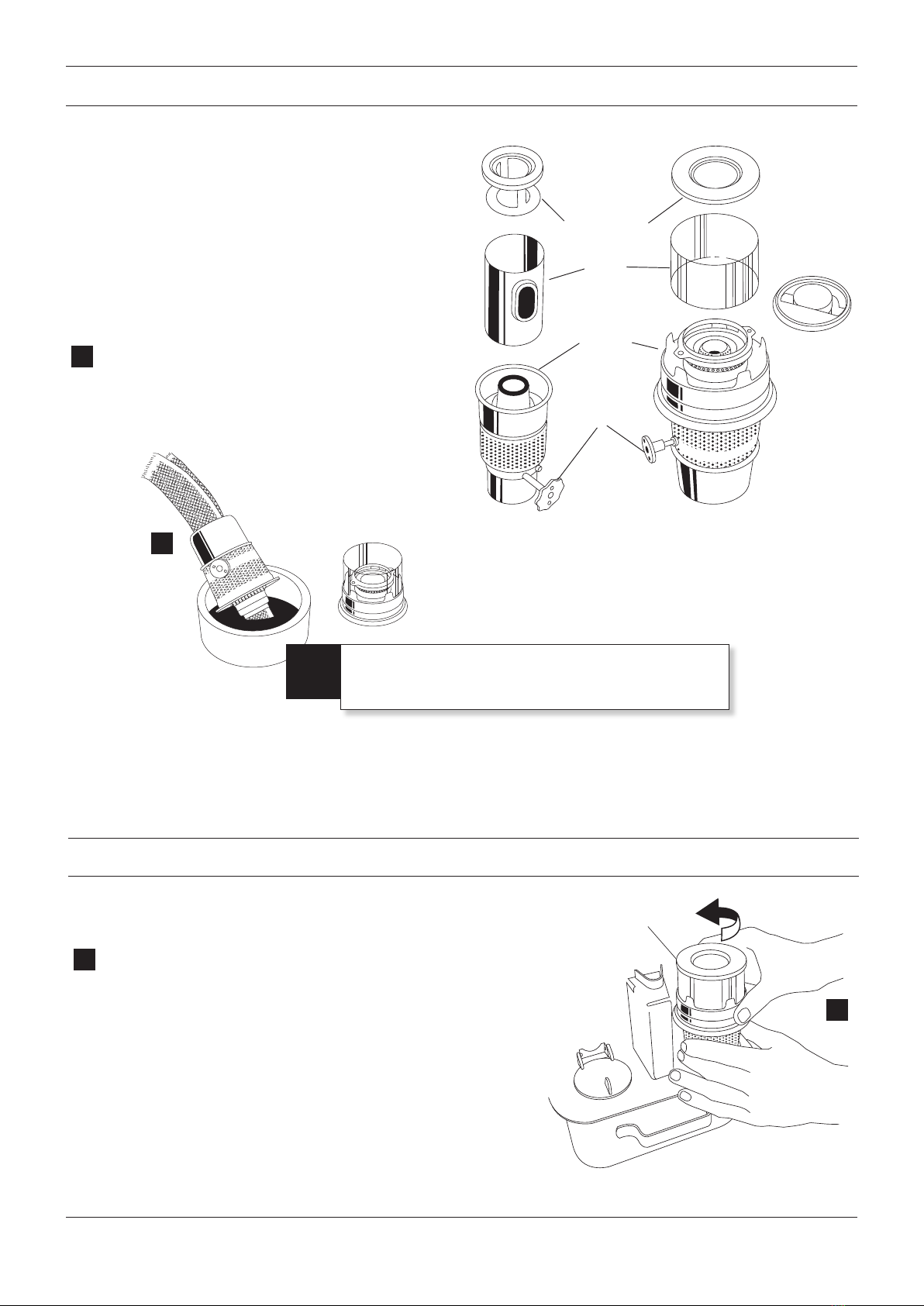

6PREPARATION BEFORE LIGHTING
Unpack burner glass, sealing ring and fit them to8
the burner.
Fit the burner into the tank. When fitting the Kos-9
mos burner use a tank adapter.
Fit the control shaft on the tank to the wick turner.10
Fill the tank with the best quality household11
kerosene. The level indicator shows the kerosene
level.
Wipe the tank dry from kerosene if any has spilt.12
Allow the burner to soak for at least 2 hours be-13
fore lighting.
13
13
Kosmos burner
Sealing ring
Glass
Burner
Wick Turner
Aladdin burner
Cleaner
1
Remove the gallery together with the lamp glass and sealing ring by1
turning it anti-clockwise.
Adjust the wick to a height you can see, about 2–3 mm (0.08-0.12”).2
1
LIGHTING THE BURNER
ALADDIN BURNER
To speed up the soaking, the burner could be taken out,
the wick turned up and placed up side down into a bowl
of kerosene for 15 minutes.
!

www.sibir.com COPYRIGHT © SIBIR INTERNATIONAL
7
Light the wick and allow the flame to travel around3
the wick.
Replace the gallery together with the lamp glass and4
sealing ring by turning it clockwise.
Turn the flame down to the smallest possible flame.5
Push the tank into the tank holder underneath the6
cabinet at the rear of the refrigerator. Slide the tank
carefully forwards against the guide pin.
Carefully lift the tank by means of the lever arm7
and check that the guide pin enters the hole in the
bracket on the left side of the burner.
Make sure that the sealing ring seals properly8
against the chimney. There must be no gap between
the chimney and the sealing ring.
Adjust the flame to medium flame and leave the9
refrigerator running for 3–4 hours.
For further adjustment, see “Regulating the tempera-10
ture > Kerosene operation”.
LIGHTING THE BURNER
Gallery
Low flame
5
5
3
3
Sealing
ring
Sealing
ring
6
6
7
7
8
8
Sealed
Not sealed
Lever arm
Lever arm
Never let the flame burn yellow or with yellow•
streaks, see ”Troubleshooting charts”.
Never turn the flame to maximum until the•
chimney has been heated for 3–4 hours.
First time using the refrigerator, smoke will•
appear due to paint residues in the chimney.
!
Guide pin
8

www.sibir.com COPYRIGHT © SIBIR INTERNATIONAL

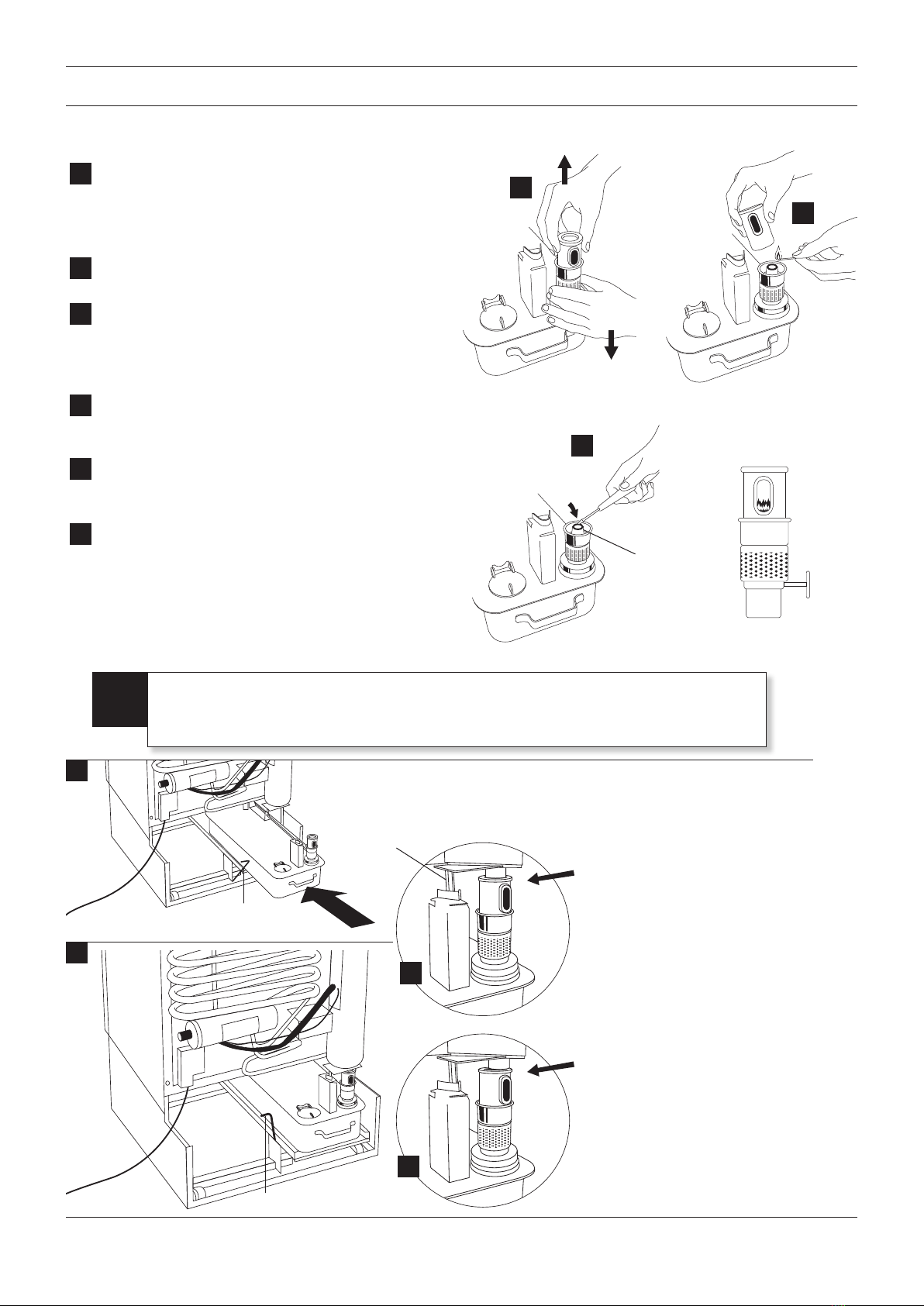

8LIGHTING THE BURNER
Wick guide
Remove the lamp glass with its sealing ring (pull1
carefully upwards).
Adjust the wick to about 1 mm (0.04”) above the2
wick guide.
Light the wick and allow the flame to travel around3
the wick.
Turn the flame very low. It should now be even. If it4
is not, the wick should be pressed down where the
flame is high. Usa a wire or screwdriver.
Replace the lamp glass with insert carefully.5
Push the tank into the tank holder underneath the6
cabinet at the rear of the refrigerator. Slide the tank
carefully forwards against the guide pin.
Carefully lift the tank by means of the lever arm7
and check that the guide pin enters the hole in the
bracket on the left side of the burner.
Make sure that the sealing ring seals properly8
against the chimney. There must be no gap be-
tween the chimney and the sealing ring.
Adjust the flame to medium flame and leave the9
refrigerator running for 3–4 hours.
For further adjustment, see ”Regulating the tempe-10
rature > Kerosene operation”.
Very low
flame
4
1
3
3
4
Guide pin
6
7
8
8
Sealing
ring
Sealing
ring
Lever arm
Lever arm
6
7
8
1
Never let the flame get smoky. If it does, turn down the flame.•
Never turn the flame to maximum until the chimney has been heated for 3–4 hours.•
First time using the refrigerator, smoke will appear due to paint residues in the chimney.•
!
Sealed
Not
sealed
KOSMOS BURNER

www.sibir.com COPYRIGHT © SIBIR INTERNATIONAL
9STARTING THE REFRIGERATOR USING ELECTRICITY
For good temperature control, the burner should be lit constantly. The refrigerator temperature depends on the flame1
size. It is regulated by the control knob.
High flame gives a colder refrigerator. Low flame gives a warmer refrigerator.2
Low Medium Maximum (high) Very low Low Medium Maximum (high)
ALADDIN BURNER KOSMOS BURNER
Check that the voltage is correct.1
If lit, turn off the burner flame.2
Plug in the power supply cable.3
Turn the control knob to a medium position and leave the refrigerator on for 3–4 hours.4
Check the inside temperature and adjust the control knob if necessary.5
The kerosene burner must never be lit when electricity is used.•
First time the refrigerator is used, smoke will appear due to paint residues in the•
heater tube.
!
After checking the inside temperature, the control knob can
be turned towards a warmer or colder position. Any suit-
able position between No “1” and “MAX” could be used.
This knob is graduated from 0 (marked by a spot) to figure
7 and MAX position where the cabinet is set for continual
operation, i.e. the thermostat is by-passed. Refrigerator
temperature is controlled by the thermostat only when run-
ning on electricity. When running on kerosene, the tempera-
ture is controlled by means of the knob on the front of the
refrigerator.
REGULATING THE TEMPERATURE
KEROSENE OPERATION
ELECTRICAL OPERATION

www.sibir.com COPYRIGHT © SIBIR INTERNATIONAL
10DAY/NIGHT REGULATOR
Check that the burner flame is normal.1
Check kerosene level. Refill if necessary with kerosene2
of good quality.
Check that the kerosene in the tank is clean.1
Check that the wick and its tails are clean. A dirty2
wick will give a smoky flame.
Clean the burner.3
Clean the chimney.4
Clean the flue baffle.5
In low ambient temperature (for example at night in some climates)
the refrigerator may be too cold. By moving the lever (at the top of
the refrigerator) to the “moon” position, the flue baffle inside the
chimney will be lifted up about 320 mm (12.6”), which reduces the
efficiency of the cooling unit. During day, when it is hot, the lever
should be moved to the “sun” position. The flue baffle will return to
normal and the refrigerator will operate normally.
KEROSENE OPERATION
KEROSENE OPERATION
DAILY OPERATIONAL ACTIONS
WEEKLY OPERATIONAL ACTIONS
Check the temperature inside the refrigerator. To regulate
the temperature, see “Regulating the temperature”. If still
necessary, see the troubleshooting charts at the end of this
manual.
Check the frost formation on the cooling element. If the ice is
thicker than 6–10 mm (0.24-0.39”) defrosting should take place.
Frost forming rapidly (in just a few days) could
be result of poor door sealing.
!
Wet cloth
5
5

www.sibir.com COPYRIGHT © SIBIR INTERNATIONAL

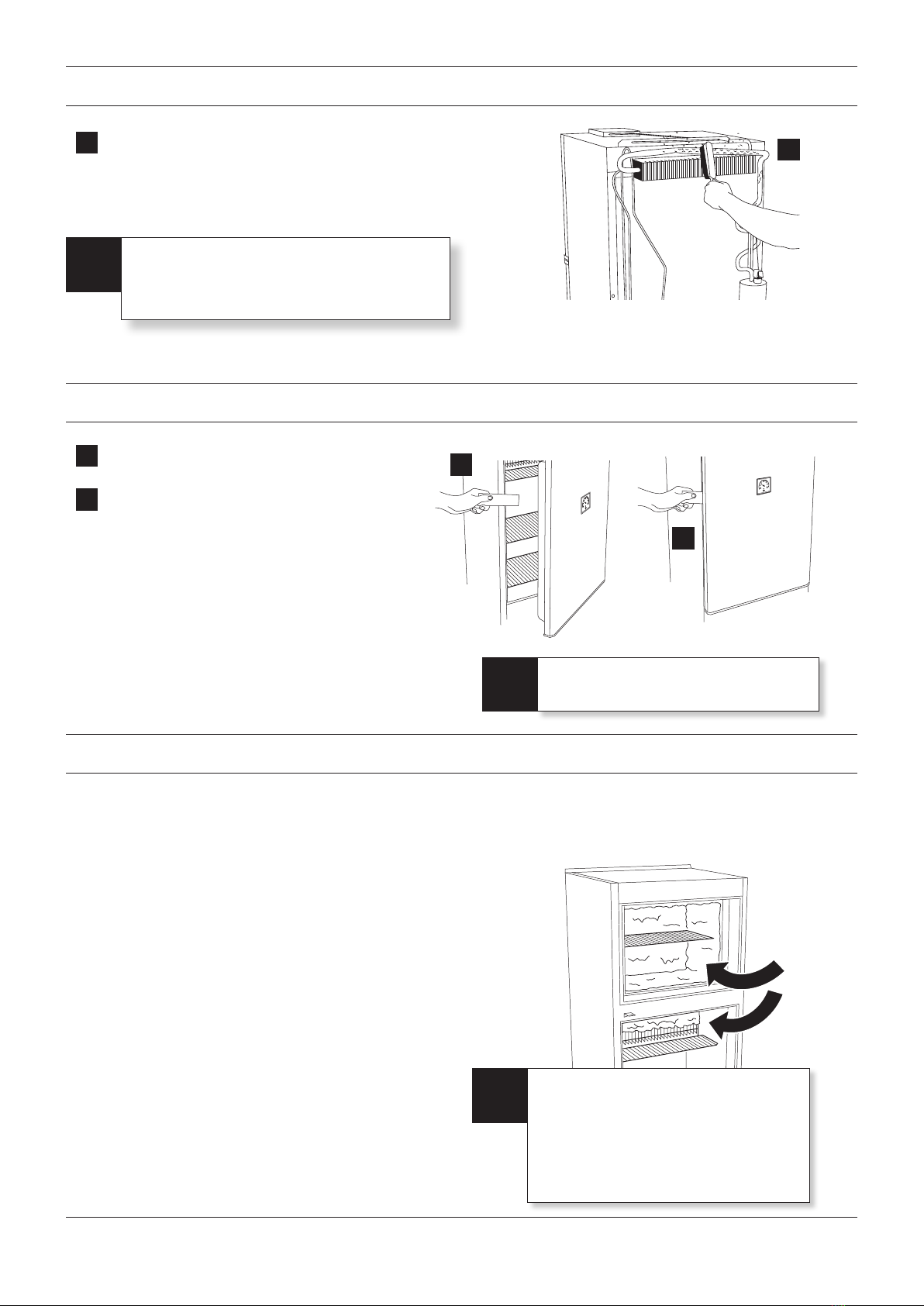

11MONTHLY OPERATIONAL ACTIONS
Check that the condenser and cooling unit are free1
from dust.
Check the outer cabinet for paint damage. Repaint2
if necessary.
11
When necessary:
Clean the refrigerator in and outside with a•
damp cloth. Use mild detergent only!
Clean door gasket.•
!
Place a thin paper strip against the cabinet1
front.
Close the door.2
Pull the paper strip, if it moves easily or falls3
away by itself:
Find the place where the rubber gasket•
doesn’t seal tightly, then …
Place a pad of paper or sticking plaster•
between the rubber gasket and the inside
of the door in order to make the gasket seal
tightly.
If you can not make the door seal tightly, order a4
new door.
Move the vaccine to another refrigerator if available or1
store it in a coolbox with ice packs.
Blow out the flame or pull the plug from the wall socket2
and leave the door and the freezer compartment shutter
open.
Remove ice with your fingers, as soon as it is possible3
to do so. Do not use knives or sharp instruments!
Empty the drip tray.4
Wipe the freezer compartment and cooling element dry.5
Clean the refrigerator inside. Use mild detergent only.6
Start the refrigerator on kerosene or electricity.7
It is normal that frost forms on the cooling element. A thin layer of frost does not affect the
cooling performance. A thick layer of frost (6–10 mm (0.24-0.39”) or more) must be removed
by defrosting.
2
1
2
CHECKING THE DOOR SEAL
DEFROSTING
Check all the way around the door.•
Pay particular attention to the corners.•
!
Defrosting is to be carried out as•
quickly as possible in order not to
damage the vaccine.
Use the time it will take to defrost to•
clean the refrigerator etc.
Wait until the vaccine compartment is•
cold before replacing the vaccine.
!
1

www.sibir.com COPYRIGHT © SIBIR INTERNATIONAL
12CLEANING AND TRIMMING THE WICK
Remove the tank.1
Remove the gallery. Turn it anti-clockwise and lift.2
Take out the flame spreader.3
Insert the wick cleaner (supplied with the burner) in the burner tube.4
Adjust the wick to press gently against the wick cleaner.5
Turn the wick cleaner carefully clockwise.6
If the wick cleaner is missing, use a razor blade or a pair of scissors.7
The top surface of a perfectly cleaned wick should be even and free from8
carbon and frays.
Blow the wick and burner clean.9
Assemble the burner and fit into the tank.10
Flame
spreader
3
3
6
6
· Do not fray the wick.
· Do not cut away more than necessary.
!
Remove the tank.1
Remove the lamp glass with insert.2
Clean the wick surface with your fingers in order to3
get it even and free from carbon.
If not possible to use fingers, trim with a razor blade.4
Blow the wick and burner clean.5
Assemble the burner and fit it into the tank.6
3
3
Not evenEven
ALADDIN BURNER
KOSMOS BURNER

www.sibir.com COPYRIGHT © SIBIR INTERNATIONAL
13CLEANING THE CHIMNEY SYSTEM
Remove the tank and the burner.1
Place a sheet of paper under the chimney.2
Pull out the flue baffle.3
Clean the chimney with the brush supplied.4
Replace the flue baffle.5
Wrap the soot in the paper for disposal.6
Light the burner and install the tank.7
Remove the tank.1
Empty the tank2
Flush the tank twice with clean kerosene.3
Refill the tank with best quality household kerosene.4
Check the wick condition. Clean and trim or replace if necessary.5
Refit the burner, light it and install the tank.6
3 4
3
4
It is advisable to clean the refrigerator inside when defrosting.1
Use warm (not hot) water and mild household detergent.2
Never use scouring powder, steel wool or similar.3
Do not forget to clean the door gasket.4
Before starting the refrigerator again, wipe all parts com-5
pletely dry.
Put the vaccine back as quickly as possible.6
Clean the external parts with a soft brush or a piece of cloth.7
In particular, the cooling unit should be kept clean for best
performance.
7
7
CLEANING THE TANK
CLEANING THE REFRIGERATOR

www.sibir.com COPYRIGHT © SIBIR INTERNATIONAL
14CLEANING THE BURNER
1
2
3
4
5
7
8
Lift the sealing ring.1
Lift the lamp glass.2
Turn the gallery counter clockwise and lift.3
Turn the outer wick tube counter clockwise and lift.4
Lift the flame spreader.5
Remove the wick.6
Remove the wick carrier.7
Burner base with wick turner (not possible to8
disassemble).
Clean the parts in kerosene. Use a soft brush.9
Wipe the parts dry.10
Assemble the burner with a new wick if necessary.11
1
2
3
4
5
7
8
Lift the sealing ring.1
Lift the lamp glass.2
Pull the wick out of the burner.3
Unscrew the gallery.4
Clean the parts in kerosene. Use a soft brush.5
Wipe the parts dry.6
Assemble the burner with a new wick if necessary.7
1
2
4
1
2
4
ALADDIN BURNER
KOSMOS BURNER

www.sibir.com COPYRIGHT © SIBIR INTERNATIONAL
15REPLACING THE WICK
3
4
5
7
8
11
Remove the tank.1
Remove the control knob from the burner and lift the burner from the tank.2
Remove the gallery by turning it anti-clockwise.3
Remove the flame spreader.4
Remove the outer wick tube by turning it anti-clockwise and pull it out of the burner.5
Turn the wick up as far as possible.6
Pull the wick and the wick carrier out from the burner.7
Pull the wick and wick carrier apart.8
Unpack a new, dry and clean wick. Do not fray the wick.9
New wicks have adhesive papers at the tail ends. Straighten these out, but do not remove them.10
Pull the paper tails through the opening around the wick tube.11
Pull the papers until the wick ends are through the opening at the bottom of the burner.12
3
4
5
7
8
11
12
12
ALADDIN BURNER

www.sibir.com COPYRIGHT © SIBIR INTERNATIONAL
Turn the cog wheel shaft clockwise until the wick end8
comes out at the burner top.
Pull the wick back and forth through the burner a few9
times.
Turn the wick until it is 2–3 mm (0.08-0.12”) above the top10
of the wick guide.
16REPLACING THE WICK
Fit the wick carrier to the wick. Make sure that the13
rack of the wick carrier is on the same side as the
cog wheel of the burner.
Pull the cog wheel handle outwards.14
Pull the wick and wick carrier towards the cog wheel.15
When the wick carrier touches the wheel, turn the16
cog wheel shaft anti-clock-wise.
Press the outer wick tube back into the burner and17
turn it clockwise.
Check that the wick can move up and down easily.18
Remove paper tails if any.19
13
15
16
If the wick gets stuck in the burner, do not
force the cog wheel shaft as this may damage
the wick carrier. Repeat the above procedure
instead.
!
13
15
16
Remove the tank.1
Remove the lamp glass with insert.2
Lift the burner from the tank.3
Turn the wick downwards and pull it out.4
Unpack a new, dry and clean wick.5
Insert the new wick, red end first, at the bottom6
of the burner.
Push the wick in until it reaches the cog wheel.7
4
6
4
6
2–3 mm
8
8
9
9
10
10
KOSMOS BURNER

www.sibir.com COPYRIGHT © SIBIR INTERNATIONAL

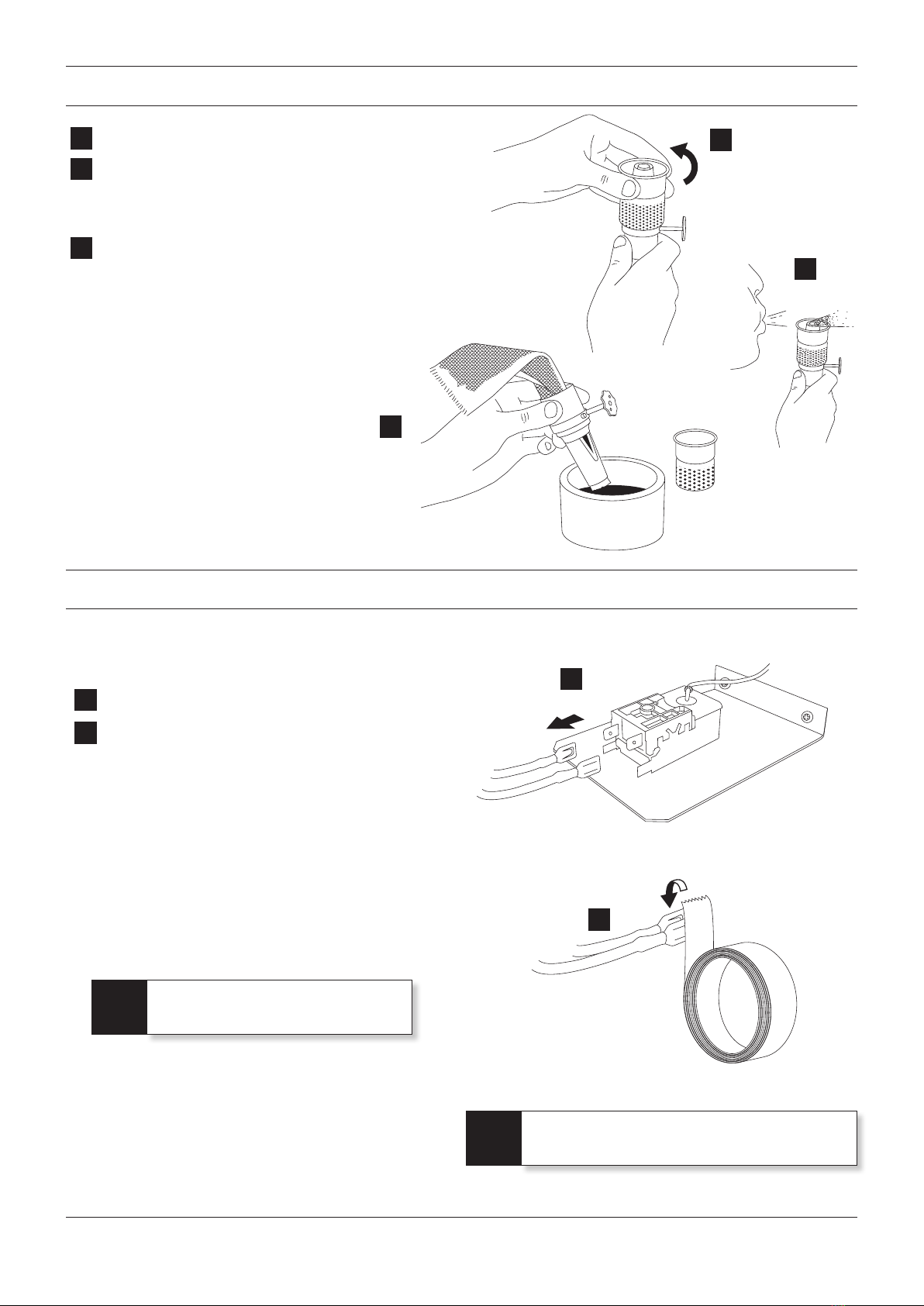

17REPLACING THE WICK
Unscrew the gallery.11
Dip the wick in kerosene a few seconds.12
Light the wick and allow the flame to burn until it13
goes out by itself.
Blow the ashes away and the wick should now14
be even all the way around the wick guide. If not,
repeat the procedure.
11
12
14
Pull out the plug from the wall socket.1
Remove the plastic cover on the thermostat.2
Remove electrical cables from the thermostat.3
By-pass the thermostat by connecting the cables4
using tape or sticking plaster.
Make sure to insulate the metal ends completely.5
Push the plug into the wall socket and put the refrig-6
erator on test for at least 3–4 hours.
If the refrigerator gets cold the thermostat should be7
replaced.
If the cooling unit does not get warm, replace the8
heater.
CHECKING THE THERMOSTAT AND HEATER
3
3
4
4
When finished, do not forget to put
the wires back on the thermostat.
!
Do not attempt this procedure without the proper
knowledge of electrical components.
!
Insulate metal ends
completely. Use tape
or sticking plaster.
11
12
14

www.sibir.com COPYRIGHT © SIBIR INTERNATIONAL
18REPLACING THE THERMOSTAT
Remove the plug from the wall socket.1
Remove the capillary tube end at the cooling element2
and pull it carefully out from the rear of the cabinet
Remove the plastic cover and the wires from the3
thermostat.
Remove fastening screws or nuts and pull the4
thermostat out.
Fit the new thermostat.5
Connect the wires and replace the plastic cover.6
Reattach the capillary tube.7
Plug into the wall socket.8
6
6BE CAREFUL NOT TO BREAK THE CAPILLARY•
TUBE!
Make sure that the capillary tube makes contact•
with the cooling element only where it is to be
fastened.
!
REPLACING THE HEATER
Remove the plug from the wall socket.1
Remove the terminal cover and loosen the heater2
cables.
Look for a small cover on the boiler case and3
remove it.
Lift the heater and take it out.4
Insert the new heater into the heater tube.5
Make sure that the glass wool is put back around6
the heater and fit the cover again.
Connect the cables and fit the terminal cover in7
reverse order.
Put the refrigerator on test.8
Cover
Heater
Terminal box

www.sibir.com COPYRIGHT © SIBIR INTERNATIONAL
19REPLACING THE COOLING UNIT
Make sure that the replacement cooling unit is cor-1
rect for the refrigerator.
Remove the tank and burner.2
Remove the capillary tube from the cooling element3
and pull it carefully out of the rear of the cabinet.
Look for screws holding cooling elements inside4
the refrigerator and remove them.
Remove the door handles and carefully lay down5
the refrigerator on the doors.
Remove the electric heater.6
Remove the terminal box and other electrical com-7
ponents fastened to the cooling unit.
Look for screws holding the cooling unit to the8
cabinet back and remove them.
Look for sealing tape possibly applied between the9
cooling unit and the cabinet back. Remove if any.
Carefully pull the cooling unit out from the cabinet.10
If it is hard to get out, apply a lever.
Remove all residual foam on the back of the re-11
frigeartor that may be left from the old cooling unit.
4
4
Wood block between lever
and topmost cooling unit pipe
Slide steel plate under
the pipe coils as protection
This operation should NOT be attempted
by someone not properly trained to perform
technical service.
!
Before condemning a cooling unit:
Remove kerosene tank and burner, then turn•
the empty refrigerator upside down a few
times and see if it works when started.
Make sure that instructions for installation,•
use, maintenance and fault finding have
been followed.
If the refrigerator works using electricity but•
not with kerosene, or the other way around,
the cooling unit is NOT faulty.
!
BE CAREFUL NOT TO BREAK THE TUBE!
!
BE CAREFUL NOT TO BREAK ANY COOLING
UNIT PIPES!
!
10 10

www.sibir.com COPYRIGHT © SIBIR INTERNATIONAL
Apply new thermal paste all the way around the pipe.12
Fit the new cooling unit into the cabinet and tighten all the13
screws at the back.
Seal around the frame of the cooling unit (with tape or14
similar material) as damp protection.
Refit the heater, terminal box and the capillary tube in15
exactly the same way they were found before.
Transfer the flue baffle from the old cooling unit.16
Stand the refrigerator up and replace all screws inside the17
freezer and vaccine compartment. Tighten the screws hard.
Reattach the capillary tube end to the cooling element18
inside the refrigerator.
Install the kerosene equipment.19
Put the refrigerator on test.20
20REPLACING THE COOLING UNIT
For proper function it is very important that
good contact between the cooling element and
the cooling unit itself is obtained.
!
Thermal paste
on pipe
12 12
3
MOD.NO. PROD.NO. SER.NO.
CLIMATE CLASS
921 17 50-05
TOTAL CAPACITY
BRUTTOINHALT
VOLUME BRUT
TESTED TO 60 bar
GEPRUFT AUF 60 bar
RATIFIÉ JUSQU'À 60 bar
REFRIGERANT NH
KÄLTEMITTEL
AGENT FRIORIGÉNE NH
NH
3
3
V170KE 611 00001
T
170 L 320 g Na
2
CrO
4
=21 g
TYPE: RKE-2D
SIBIR
SIBIR
INTERNATIONAL AB
MADE IN SWEDEN
220 ~ Volt1.4 Amp 300 Watt
When ordering spare parts, always state:1
MODEL (found on the data plate)•
PRODUCT NO xxx xx xx-xx (found on the data plate)•
SERIAL NO xxx xxxxx (found on the data plate)•
VOLTAGE AND WATTAGE (if electric parts are ordered)•
SPARE PART DESCRIPTION (see spare parts list)•
SPARE PART NO (see spare parts list)•
The data plate is located on a wall inside the cabinet.2
To order spare parts log on to3 www.sibir.com. Select contact and your country. Under select a topic, choose
quotations for spare parts, fill out the form and then, click on send e-mail.
Typical data plate
2
2
ORDERING SPARE PARTS
Appliances bearing this symbol must be deposited at the designated local reception point for the disposal of
electrical and electronic equipment. It is not permitted that this product be disposed of by way of the normal
household refuse collection system*.
*Only valid for EU countries.
