Sicma Eco-Chipper 100 User manual

Sicma S.p.A.
Miglianico (CH)
page 1
903855003~0
1

Sicma S.p.A.
Miglianico (CH)
page 2
SICMA S.p.A.
c.da Cerreto - 66010 Miglianico (CH)
Telefono [phone] Telefax [phone] - Telex 600865 SICMA I
web: www.sicma.it - e-mail: [email protected]t
© SICMA s.p.a.
All rights reserved
Printed in Italy
No part of this manual shall be reproduced, copied or disseminated by any means, without Sicma’s
prior authorization in writing.
Sicma reserves the right to make any necessary changes without giving prior notice, in order to
optimize the quality and safety features and does not commit itself to updating this manual every
time a change is made.
This booklet provides a thorough and accurate description of the instruction and maintenance
activities to be carried out on the mower you purchased. We congratulate you on your choice and
urge you to thoroughly familiarize yourself with and follow the instructions contained in this manual.
This will assure you a long, safe and trouble free working life for your mower.
Sicma shall not assume any responsibility should problems arise as a result of lack of
compliance with the instructions and/or operator’s ne li ence.
The manual is divided in chapters and paragraphs and the pages are numbered, thus offering
accurate and precise information.
The requested information can be easily found by searching the key words or referring to the index.

Sicma S.p.A.
Miglianico (CH)
page 3
INDEX
General Information
Symbols Page 4
Torque specification Page 4
Safety labels Page 5
Technical features Page 7
Main parts terminology Page 8
Identification plates Page 8
Allowed/improper use Page
Safety
Safety in the workplace Page
Work clothing Page 10
General safety rules Page 10
Startin up

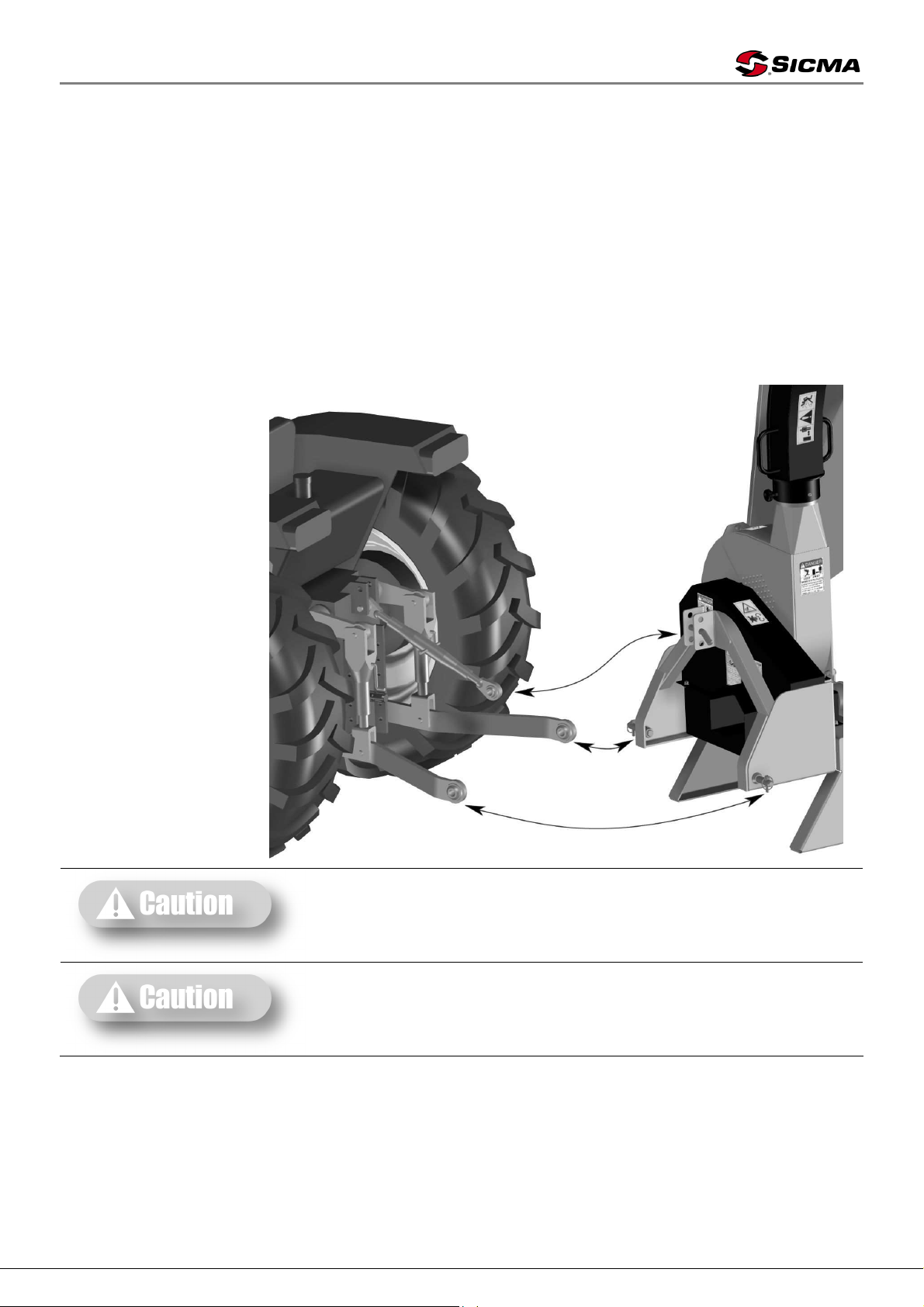

Attachment to the tractor Page 12
Driveline attachment Page 13
Checks prior to starting up Page 13
Starting up of the chipper Page 13
Material feeding system and trituration Page 14
Road transport Page 14
Set aside/storage Page 14
Maintenance
Maintenance schedule Page 15
Maintenance interventions Page 15
Lubricating Page 16
Blades check Page 17
Sharpening and replacement of knives Page 17
Blet tension check Page 1
Spare parts order Page 1

Sicma S.p.A.
Miglianico (CH)
page 4
GENERAL INFORMATION
SYMBOLS
This booklet contains three “safety graphic symbols” to highlight as many danger levels or important
information:
It draws the operator’s attention to situations which can
jeopardize people’s safety.
It draws the attention to situations which jeopardize the
machine efficiency but not people’s safety.
It hi hli hts eneral information which does not endan er
people’s safety or the efficiency of the parts.
TORQUE SPECIFICATIONS
For correct hardware tightening on the tiller, we suggest the use of suitable torque wrench and the
applicable torque as listed in the table below:
M-THREADED SCREW/BOLTS
Bolt rade
8.8 10.9
Thread Nm Lb-ft Nm Lb-ft
M6 11 8.5 17 12
M8 28 20 40 30
M10 55 40 80 60
M12 5 70 140 105
M14 150 110 225 165
M16 240 175 305 225
M18 330 250 475 350

Sicma S.p.A.
Miglianico (CH)
page 5
SAFETY LABELS
The safety labels and the information on the machine, listed in the following table, must be
necessarily carried out; failure to carry out these warnings can cause death or severe injuries. Make
sure that the labels are always present and legible, should this not be the case contact your nearest
SICMA dealer to replace the missing or illegible ones.
1
Attention: read carefully all
instructions and safety rules
before using the machine.
2
Danger of hands injuries: do not
open or remove the safety
protections while the machine is
operating.
3
Hooking point for the
machine’s lifting.
5
ENTANGLEMENT HAZARD
To prevent serious injury or
death:
Do not unbolt or remove
safety shields while engine is
running.
4
Attention: read carefully all
instructions and safety rules before
using the machine. Stop engine and
remove key before maintenance or
repair works.
Wear eyeglasses or face guard for
eyes and face protection and head
guard to protect hearing.
6
Operate only with 540 rpm
PTO to avoid injury or
machine damage.
7
ROTATING DRIVELINE
Contact can cause death
KEEP AWAY!
Do not operate without:
•All driveline guards, tractor and
equipment shields in place
•Driveline securely attached at both
ends
•Driveline guards that turn freely on
driveline

Sicma S.p.A.
Miglianico (CH)
page 6
8
Thrown objects: keep a safety
distance from the machine.
10
Danger of hands injuries:
keep safety guards in position
while operating.
9
KEEP AWAY
THROWN OR FLYING OBJECTS
To prevent serious injury or death:
•Do not operate if all safety shields
are not installed
•Stop machine if anybody comes
within 100 feet

Sicma S.p.A.
Miglianico (CH)
page 7
TECHNICAL FEATURES
Technical features U.S. Metric
A 45” 1150 mm
B 50” 1250 mm
C 57” 1440 mm
D 76” 1 20 mm
Power required 20 HP 20 HP
Diameter of material 4” 100 mm
Hopper dimension 27”x27” 700x700 mm
Feeding system Manual gravity Manual gravity
Feeding opening (LxH) 5 ¾” x 8 ¼” 146x210 mm
Number of blades 4 4
Flywheel Speed 1600 rpm 1600 rpm
Knives tip speed 8326 fpm 42.3 m/s
Flywheel weight 110 lbs 50 kg
Flywheel diameter 20” 505 mm
Flywheel thickness 1 ¼” 32 mm
3 point hitch Cat. I Cat. I
Quick 3 point hitch Cat. I Cat. I
Power take off 540 rpm 540 rpm
Weight 660 lbs 276 kg

Sicma S.p.A.
Miglianico (CH)
page 8
MAIN PARTS TERMINOLOGY
A) Hopper extension/cover
B) Hopper
C) Chipper Housing
D) Chipper base
E) Lower 3rd point hitches
F) PTO at 540 rpm
G) Upper 3rd point hitch
H) Transmission cover
I) Knives housing
L) Blower discharge tube
M) Exit deflector
N) Deflector adjustment
IDENTIFICATION PLATES
Identification plates are placed on every chipper and are structured as follows:
When askin for information or technical service, always
specify the machine type.

Sicma S.p.A.
Miglianico (CH)
page
ALLOWED USE
SICMA chippers taken into account in this instruction manual, are equipments designed to chip
wood’s residuals from pruning and residuals from packaging or from other structures made of wood
and free of nails.
Any other use jeopardizes the operator’s safety and the machine integrity.
IMPROPER USE
When using SICMA chippers it is particularly forbidden:
-The attachment to tractors of unsuitable power or weight.
-To assemble the machine without securing the adjustment links of the three-point hitch of
the tractor.
-To chip materials different from wood.
-To introduce pieces of wood of bigger dimensions compared to the machine’s capacity .
-To use the machine without having placed the relevant pins and cotter pins where required.
-To lift the machine when the power takeoff is engaged.
-To approach rotating parts when wearing inappropriate work clothing.
-To get on the machine while it is being used or transported.
SAFETY
SAFETY IN THE WORKPLACE
Most of the accidents which take place while the operator is using the machine or the equipment or
during their maintenance or repair are caused by a lack of compliance with basic safety precautions.
It is necessary, therefore, to become more and more conscious of the potential risks of one’s action
by constantly paying attention to one’s own actions and their effects.
If potentially dan erous situations are known, accidents can be prevented!
OPERATOR’S REQUIREMENTS
All operators using the equipment must be competent and necessarily meet the following features:
Physical: good eyesight, coordination and capability of carrying out all functions required for the
machine’s use
Mental: capability of understanding and applying the established rules and safety precautions.
Users must pay attention and be sensible for their own and other people’s safety.
Trainin : users must have read and studied this manual, any enclosed graphs and schemes and its
identification and danger plates. They must be skilled and trained for any use or maintenance
activities.

Sicma S.p.A.
Miglianico (CH)
page 10
WORK CLOTHING
When working and especially when executing repair or maintenance activities, it is necessary to
wear the following clothing and safety accessories:
Overalls or other comfortable clothing, not too loose to prevent the
possibility that parts of them may be caught in the moving parts.
Protective gloves for hands
Protective glasses or faceplate to protect eyes and face.
Protective helmet for the head.
Ear protections to safeguard hearing
Wear only personal safety accessories in ood condition and
complyin with the rules in force.
GENERAL SAFETY RULES
Always consider the features of the area where work is takin place:
-Having to attach the equipment on the spot it is necessary to arrange a flat and compact
area of sufficient dimensions.
-When the equipment is running, it is forbidden to stand within the field of action of the
chipper or of the other accessories of which it is provided with.
Prepare the work:
-Before and when working do not drink alcohol, take drugs or any other substances which
may alter your capability of working with machine tools.
-Be sure to have sufficient fuel, to prevent a forced stopping of the machine, maybe during a
critical movement.
-Do not use the equipment under unsafe conditions. For instance, it is forbidden to execute
makeshift repair activities just to start working; it is forbidden to work at night with an
insufficiently illuminated working area.
When workin or durin the maintenance activities it is necessary to remember:
-The labels and stickers providing instructions and pointing out the dangers, must not be
removed, hidden or made illegible.
-Do not remove, except in case of maintenance, the safety devices, protective covers or
sumps. When it is necessary to remove them, stop engine, handle with care and reassemble
them properly before restarting the engine and using the equipment.
-It is forbidden to lubricate, clean and adjust the moving parts while they are running.
-During maintenance or adjustment activities on the equipment it is forbidden to use hands
for executing operations for which there are specific tools.
-Do not use tools in bad condition or inappropriately, for instance pliers rather than wrenches,
etc.

Sicma S.p.A.
Miglianico (CH)
page 11
-Before executing interventions on hydraulic lines under pressure, disconnect their
components and make sure that the line is no longer under pressure and that it does not
contain any hot fluid.
-Check out all pipe fittings and make sure that they are well connected before raising steam to
the hydraulic lines.
-When maintenance or repairs are completed check out that no tools, wiping rags or other
materials are left inside spaces or guides with moving parts.
-While using the equipment it is forbidden to make more than one person give directions and
make signals. The eventual directions and signals relating to the load handling must be given
by one person only.
-Do not unexpectedly call an operator while he is working if not necessary; it is forbidden as
well to frighten who is working and throw objects, even if just for fun.
-Watch out those present, especially the children!
-Always make sure that no people stand within the equipment’s ray of action.
-Do not make people get on the machine.
-When the equipment is not needed, stop the vehicle’s engine, park it on a flat ground with
first speed and parking brake on, with the machine rested on the ground and power takeoff
disengaged.
-Do not make any cleanings, lubrications, repairs or adjustments with running engine and
lifted machine.
-Do not stretch your hands into the chipper while it is working.
-Short wooden parts must be pushed towards knives using longer wooden parts or by means
of proper pusher tugs.
-Small wooden fragments must be pushed in slowly and longitudinally in order to avoid that
splinters of wood or other material are thrown against the user.
-Do not use the machine indoors in order to prevent smoke poisoning from the engine
combustion.
-Foreign bodies, as pieces of metal or stones, must be removed before starting the machine.
-Remove protection cover only when the machine is completely stopped from inertia motion
and after having disconnected the drive shaft and removed the starting key from the engine.
-Use the chipper only when wearing proper clothing and after having worn suitable protection
for hands, eyes, ears and head.

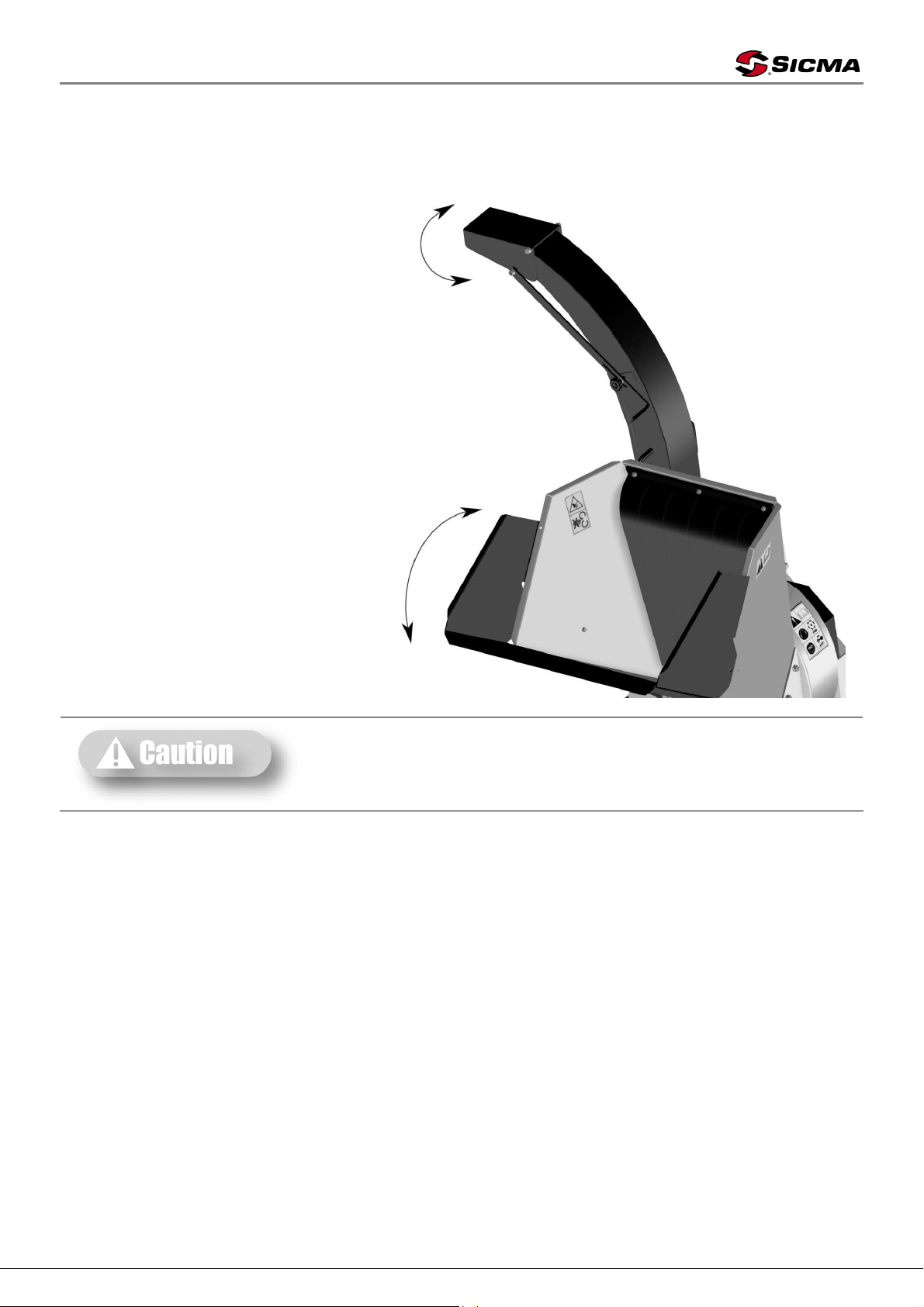

-During transporting chipper blower discharge tube must be oriented so that it does not
stretch out from the outline of the machine.
-For road circulation strictly comply with regulations of the Country where you operate.
SICMA declines all responsibility for a lack of compliance with these instructions.

Sicma S.p.A.
Miglianico (CH)
page 12
STARTING UP
ATTACHMENT TO THE TRACTOR
It is advisable to read carefully this Operator’s Manual as well as the instruction manuals of the
tractor and the PTO shaft manufacturers.
All SICMA chippers have been manufactured to be attached to any tractor provided with hydraulic
lift and universal three-point hitch.
Before attaching the equipment to the tractor, set both on a flat and smooth ground and make sure
that nobody is standing between them.
•Approach slowly
the chipper with
the arms of the lift
and connect first
the lower arms
and then attach
the upper third
point hitch. The
chipper is
equipped with
attachment pins of
1st category (ø22).
•Make sure you fix
the pins with the
corresponding
safety pins.
•Lock the arms of
the lift with proper
chains or anti-
shaking
tensioners.
After havin accomplished the above-mentioned activities it
is always advisable to check that all bolts and nuts of your
chipper are ti htened stron ly (ref. bolts and nuts ti htenin
table).
Pay attention to the tractor’s front wheels rip when the
equipment is set up and lifted from the round; if the wheels
appear to be too li htened, ballast the tractor front part.

Sicma S.p.A.
Miglianico (CH)
page 13
DRIVELINE ATTACHMENT
Before assembling the cardan shaft, it is very important to check out that its number of revolutions
and direction of rotation match those of the tractor. Also, read carefully the instruction manuals of
the cardan shaft and the tractor’s manufacturers. Before starting work, check the presence of the
safety guards on the power takeoffs of the machine, of the cardan shaft and of the tractor. Check in
particular that the safety guards cover the cardan shaft throughout its extension.
When at their maximum extension, the safety uards’ plastic
hoses shall overlap of at least 1/3 of their len th (LT). When
in their maximum closin position, the minimum clearance
allowed shall be of 1-2 cm (picture 1).
Fi . 1
Check out that the PTO shaft minimum and maximum
length are the ones required by the machine-tractor
coupling.
Should problems arise, contact a
skilled repair shop or
the cardan retailer.
After installation, secure safety
guards both to the tractor and the machine using the
special chains and make sure that they pivot freely.
If
the PTO shaft is equipped with other safety devices,
such as a pair
limiter or freewheels, be sure to install
them on the working machine side. As for the PTO use
and maintenance refer to the relevant booklet.
These operations shall be made only on workin round and
only after havin stopped the en ine, disen a ed the power
takeoff and pulled the parkin brake. If necessary, lift the
machine from the round but, in order to avoid risks for
people, place it on supports thus preventin any injuries that
mi ht be caused by its sudden fall.
CHECKS PRIOR TO STARTING UP
Before starting the chipper check the following:
-The machine is properly connected.
-It is firmly rested on the ground.
-The chipper is parallel to the ground in order to avoid major stress on the PTO.
-The knives are sharpened.
-The blower discharge tube is correctly mounted and oriented.
STARTING UP OF THE CHIPPER
When all setting up operations are completed, your machine is ready to be used.
At this point it is possible to engage power take off and work the machine at full capacity.
Use the power take off only at 540 rpm.

Sicma S.p.A.
Miglianico (CH)
page 14
MATERIAL FEEDING SYSTEM AND TRITURATION
Before starting triturating
make sure the unit has
reached regular speed.
•After having correctly
oriented the blower
discharge tube, open the
hopper cover.
•Accurately select the
wooden material to be
triturated and do not
exceed the maximum
cutting diameter of
100mm.
•Small branches can be
kept together and put in
simultaneously with their
roots turned towards the
entrance.
•Absolutely avoid pushing
the branches down the
hopper slide using the
hands. Use other pieces of
wood and if necessary,
use proper pusher device.
Before puttin the parts to be chipped into the hopper,
remove parts different from wood so that knives are not
dama ed.
ROAD TRANSPORT
While transporting the machine it is very important to follow the road traffic code of the country
where you circulate.
SET ASIDE / STORAGE
If the chipper will not be used for a long period of time, we advice to:
1Wash the machine accurately and dry it.
2Check out all equipment and replace damaged or worn parts.
3Tighten strongly all bolts and nuts (ref. bolts and nuts tightening table).
Make an accurate greasing and at last protect the whole machine with a tarpaulin. Store it in a dry
place.
Following the instructions will allow you to find the chipper always in good conditions whenever you
use it.

Sicma S.p.A.
Miglianico (CH)
page 15
MAINTENANCE
Maintenance is a fundamental operation to extend life and performances of any agricultural
implement; taking care of the machine grants you not only a good work condition, but also a longer
life of the whole equipment and a greater safety in the workplace.
The operating times indicated on this manual have just an informative character and are referred to
normal conditions of use; they can thus undergo variations according to the type of service, to the
more or less dusty environment, to seasonal factors, etc.
MAINTENANCE SCHEDULE
EVERY 10 HOURS OF WORK
-At the end of every working day it is advisable that you clean accurately the machine so that
its parts are always in good working condition.
-Grease crosses on the PTO shaft.
-Make a general inspection to verify possible hydraulic oil leaks or the presence of damaged
parts.
-Make sure the knives are in good conditions, sharpened and perfectly fixed by the tightening
bolts.
EVERY 25 HOURS OF WORK
-Grease the driveshaft crosses through the special lubricating nipples.
-Grease the transmission shaft through the proper lubricating nipples.
EVERY 50 HOURS OF WORK
-Check that belts are strongly tightened.
-Check that all bolts and nuts are correctly tightened.
MAINTENANCE INTERVENTIONS
Before executin maintenance activities on the machine, stop
en ine, disen a e power takeoff, pull parkin brake and
place the equipment on the round in horizontal position.

Sicma S.p.A.
Miglianico (CH)
page 16
LUBRICATING
Before injectin lubricatin rease into the nipples, clean
them accurately to prevent mud, dust or other forei n
matters from mixin up with rease, thus diminishin the
lubrication effect
Lubricate the machine regularly to keep it efficient and extend its life and performances.
Inject lubricating oil through the proper lubricating nipples using a pump in the following points:
-A, B (Picture1) Transmission shaft supports.
-C, D (Picture 2-3) Flywheel shaft supports.
-E (Picture 4) Blower discharge tube base
Picture 1 Picture 2
Picture 3 Picture 4

Sicma S.p.A.
Miglianico (CH)
page 17
BLADES CHECK
To assure a perfect functioning of the machine check often that its blades are in good conditions,
sharpened and perfectly fixed by the locking bolts.
To inspect the rotor and the blades condition please proceed as described below:
•Stop the machine.
•Disassemble the PTO shaft
and remove the tractor
ignition key.
•Remove the locking screw
of the flywheel housing.
•Grab the spreader from the
handles and slowly open
the cover to maximum
open position.
•Rotate the flywheel
checking the condition of
every single blade.
SHARPENING AND REPLACEMENT OF BLADES
A poor performance of the chipper usually depends on its blades wear.
Blades are reversible and have two cutting edges to be used before executing sharpening or
replacement.
To disassemble the blades, please proceed as follows:
•Repeat previous point regarding check.
•Rotate flywheel until blade screws are accessible.
•If necessary, warm up the screws to remove the threadlocker.
•Remove fixing screws and pull out the blade.
•Rotate blade of 180° and replace the cutting edge intact in the slot.
•Reinsert the unscrewing lock washers, add the threadlocker and tighten the screws with a
torque wrench at 46Nm.
•Repeat operation for the remaining blades.

Sicma S.p.A.
Miglianico (CH)
page 18
If both edges of blades are
worn it is possible to proceed
with their sharpening.
In case blades are particularly
worn or damaged, replace
them referring to the suitable
spare parts catalog.
Fi . 5
Blades sharpenin must be done with suitable machines
that can uarantee a correct sharpenin which respect the
an les indicated (fi . 5).
Every time blades are removed (disassembling/reassembling), before starting the machine again, it
is advisable to check and adjust the distance between blade and bed knife.
To adjust bed knife position proceed as follows:
•Loosen locking screws (4).
•Rotate the rotor (1)
bringing the blades (2)
near the bed knife (3).
•Adjust the position of the
bed knife (3) by means of
adjusting nuts (5) making
sure that distance between
blade and bed knife is
included between 1.6
(0.063”) and 3.2 mm
(0.126”).
•Make sure that this
distance is the same for all
blades.
•Block adjusting nuts (5)
and tighten locking screws
(4) with a torque wrench
as shown on table of page
5.

Sicma S.p.A.
Miglianico (CH)
page 1
BELT TENSION CHECK
Belts have an automatic spring tensioner and need a check on the condition of springs.
To increase or decrease tension of belts proceed as follows:
•Stop the machine.
•Disassemble the PTO shaft or
remove ignition key.
•Take off screws of the two
transmission covers, upper and
lower.
•Remove the two covers.
•Act on the nuts (A) of rod (B) which
is threaded to stretch or extend the
spring (C) with a power of kg (20
lb).
•If the spring is slackened it is
necessary to replace it; first it is
necessary to disassemble the
threaded rod.
•Block the rod washers.
•Reassemble the two transmission
covers and tighten the relevant
screws.
SPARE PARTS ORDERING
To order spare parts, please consult relevant catalogue.
Request of spare parts must be made to the retailer or to the nearest service centre and must
always be complete with the following information:
-Type and width of the equipment.
-Part number of the needed spare part. If not in possession of this number, you can replace it
with the number of the table where the part is represented and the correspondent reference.
-Denomination of the needed part and desired quantity.
-Preferred transportation mode. When this preference is not specified, the retailer or service
centre, even if paying great care to this type of service, do not answer for possible shipping
delays due to force majeure. Transport charges must always be paid by the addressee.

Sicma S.p.A.
Miglianico (CH)
page 20
