3
Notes on disposal
❑Old appliances still have some residual
value. An environment-friendly method
of disposal will ensure that valuable raw
materials can be recovered and used
again.
Before you dispose of your old
appliance, make sure that it has been
rendered inoperable.
❑Your new appliance was protected by
suitable packaging while it was on its
way to you. All materials used for this
purpose are environment-friendly and
suitable for recycling. Please make a
contribution to protecting the
environment by disposing of the
packaging appropriately.
Up-to-date information concerning
options for disposing of your old
appliance and the packaging from the
new one can be obtained from your
retailer or local government office.
Before connecting your new
appliance
❑Before using your new appliance, please
read these Instructions for use carefully.
They contain important information
concerning your personal safety as well
as on use and care of the appliance.
❑The Instructions for Use apply to several
versions of this appliance. Accordingly,
you may find descriptions of individual
features that do not apply to your
specific appliance.
❑Please keep the operating and
installation instructions in a safe place;
this important documentation may also
be of use to a possible subsequent
owner.
❑Do not use the appliance if it is
damaged in any way.
❑Installation and connection of the
appliance should be performed
according to the instructions and
connection diagram provided, and
should be entrusted to a competent
electrician. In the event of a damage
that occurs as a result of improper
connection, the warranty will be void.
❑Our appliances meet the applicable
safety regulations for electrical
appliances. Repairs must only be
performed by service engineers trained
by the manufacturer. Repairs carried out
by incompetent service agents can
make the appliance unsafe.
Important Information

4
Important Information
Appliance safety
considerations
❑The appliance should only be used for
the preparation of food.
❑The surfaces of heating and cooking
appliances get hot during operation.
The interior oven walls and the heating
elements get extremely hot. Always
keep children away from the appliance.
❑Never leave the appliance unattended
when cooking with fat or oil. They can
catch fire if overheated.
❑Clean the oven regularly.
Fatty or oily remants could ignite when
the oven is switched on.
❑Make sure that the power cord does not
get caught in the hot oven door. The
plastic insulation could melt.
❑In the case of a defect, switch off at the
mains.
❑Do not store combustible items in the
oven. They could ignite if the oven is
switched on accidentally.
❑Do not clean the oven with steam or
high-pressure cleaners.
❑If using hot air ‰, do not place
greaseproof paper loosely in the oven
(e.g. when heating the oven).
The hot-air fan could draw in the paper
which may damage the heater and fan.
❑Do not insert a baking sheet at the
bottom of the oven, or cover it with
aluminium foil, because a heat build-up
would result. Roasting and baking times
would change, and the enamel would
be damaged.
❑Never pour water directly into the hot
oven. Damage to the enamel could
result.
❑Dripping juices may leave spots on the
oven lining. Always place a baking tray
below to prevent this form happening.
❑Never stand or sit on the open oven
door.
❑The oven door must close properly.
Keep the door sealing surfaces clean.
Before Using Your Appliance for the First Time
Preliminary cleaning:
1. Clean the appliance exterior with a soft
damp cloth.
2. Clean the oven interior and the
accessories with a hot detergent
solution.
Initial burn-in
1. Heat the empty oven for approx.
30 minutes.
Select conventional heat at a setting of
240 °C.
During the initial burn-in phase, please
open the kitchen windows to dissipate
unpleasant odours.

5
Introducing: Your new Oven

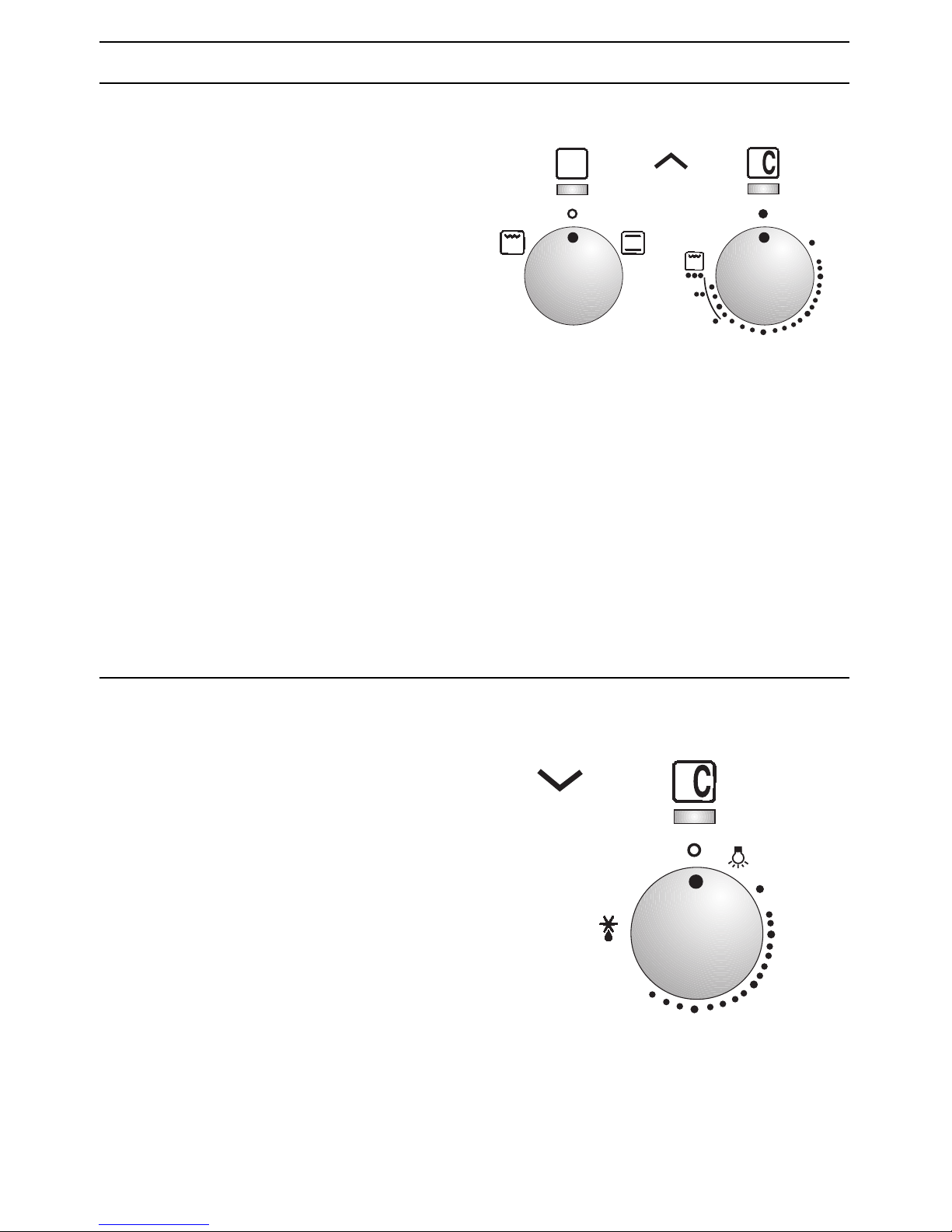

Settings:
50–250
temperature in °C
• •• •••
temperature for
radiant grilling
Settings:
tConventional
top and bottom
heat
xRadiant grilling
Settings:
0Oven light
50–200 Hot air temperature in °C
:”Defrost” setting
Temperature selector (hot air) Function selector Temperature
selector
200
50
100
150
200
50
100
150
250
min sec
hmin °°
200
50
100
150
250
°
200
50
100
150
°
Main oven Mini oven
Temperature selector
with control lamp
Temperature selector
with control lamp
Function selector
with control lamp
Electronic timer controls
Mini ovenMain oven
The control panel:
❑The switches are retractable. To engage
and disengage, depress the switch,
making sure that it is in OFF position.

6
Introducing: Your new Oven
Accessories
Your oven comes with the following
accessories:

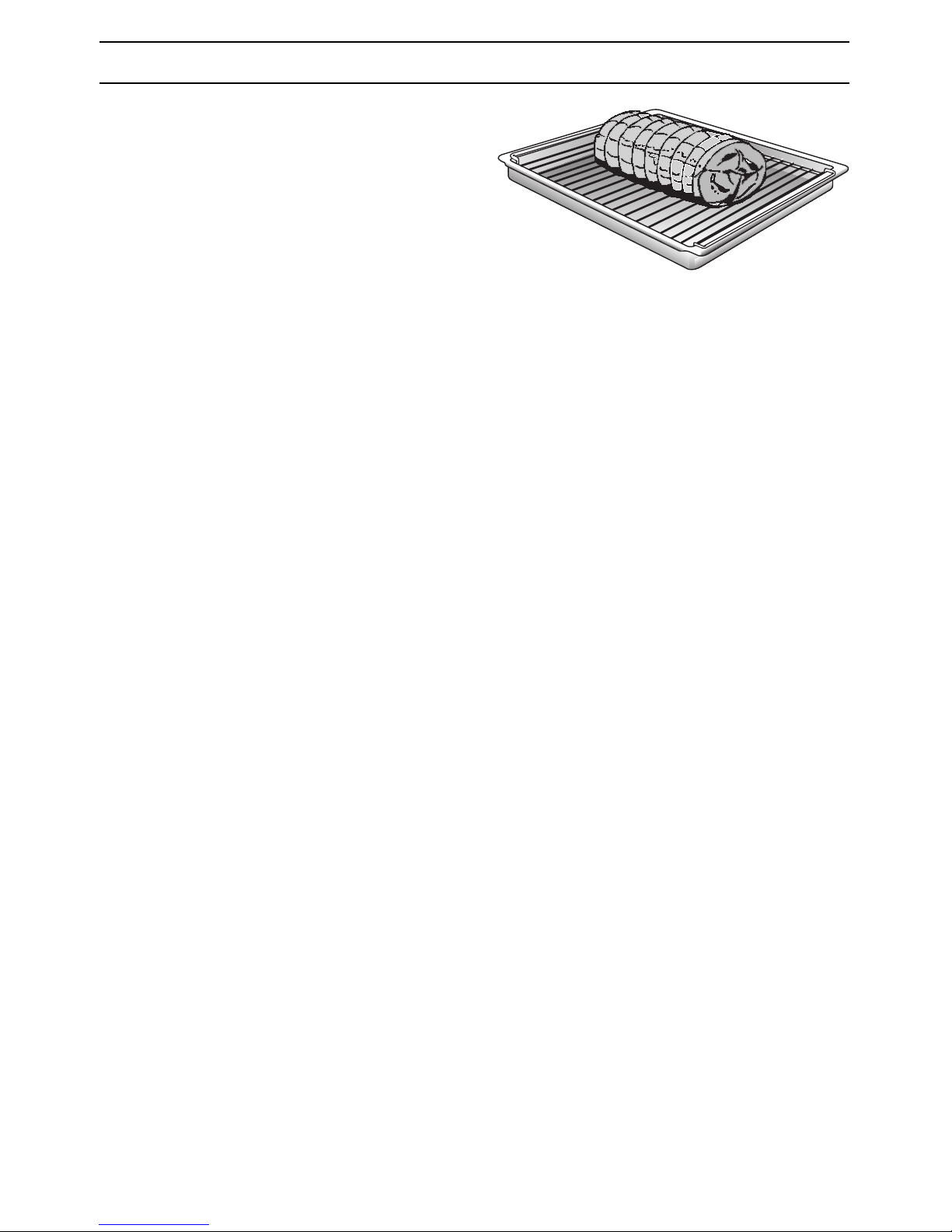

Universal baking pan / shelf wire shelf
Additional accessories are available from your dealer.
Main oven
Shelf positions
Your oven features 3 shelf positions.
The shelf positions are counted from
bottom to top. The numbers are marked in
the oven.
Your oven features 4 shelf positions.
The shelf positions are counted from
bottom to top. The numbers are marked in
the oven.
When using hot air do not use shelf »2«,
in order not to block air circulation.
Mini oven

7
Electronic timer
Notes:
❑If you keep the button –or +pressed
down, you can set the time in steps of
10 minutes.
Hinweise:
❑The time of day is not displayed if you
have already set the timer, a duration or
an end. Should you wish to know the
time, simply press the clock button 6.
The time appears in the display for a few
seconds.
Time of day
❑Before you use your appliance for the
first time, it is necessary to set the
current time on the electronic timer.
❑After connecting to the mains, or after a
power failure, the display {.{{ will blink.
Setting the time of day:

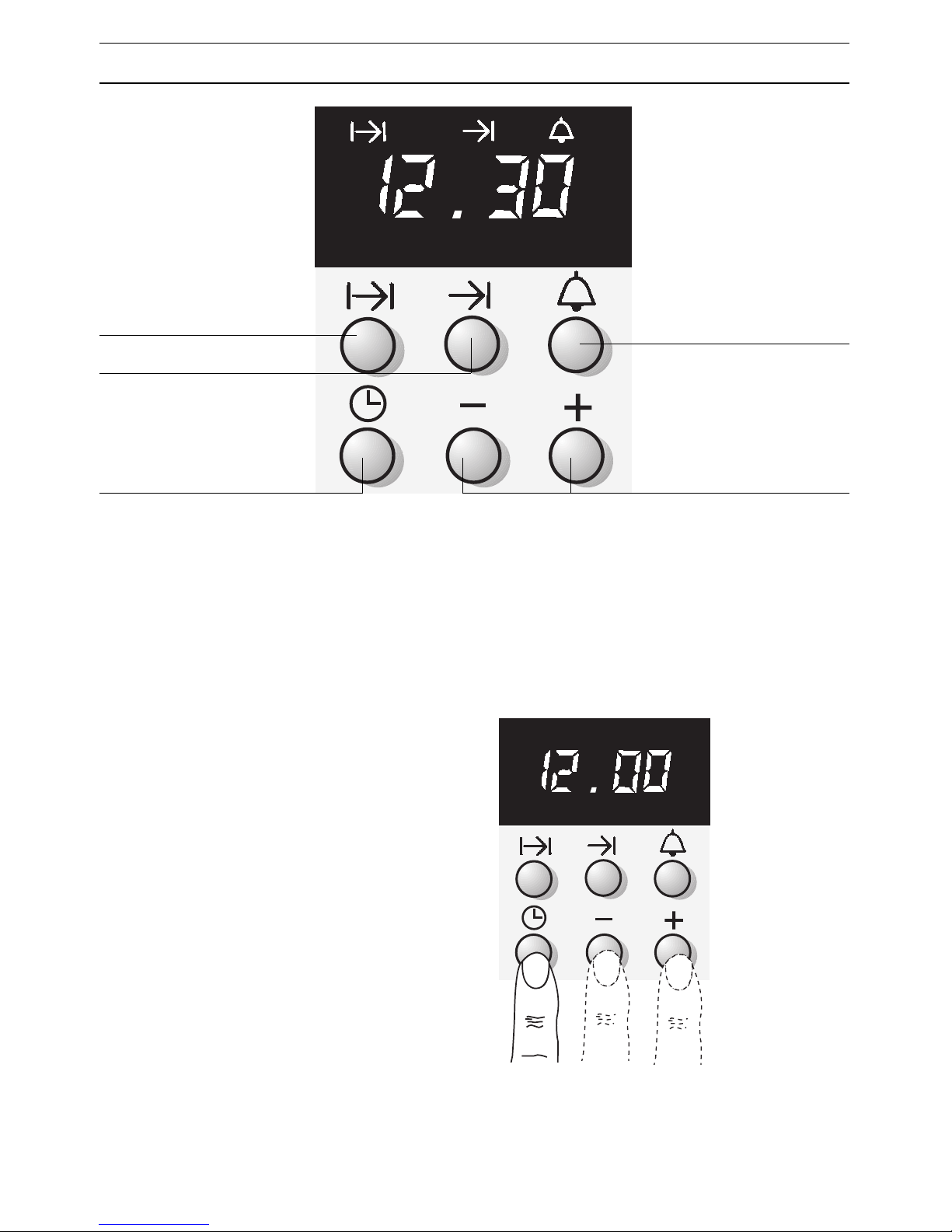

1. Press the clock button 6.
2. Set the current time with the –or +
button. The time will automatically be
taken over after a few seconds.
Changing the time (e.g. transition from
summer to winter time):
Caution! The time of day cannot be
changed whilst a duration or an end is set.
1. Press the clock button 6.
2. Set the current time with the –or +
button.
Set time
min sec
h min
Dauer Ende Wecker
Minute timer
Cooking time
Off time
Time
min sec
hmin
Dauer Ende Wecker
2.
1.

8
The alarm
❑The alarm (timer) can be set at any time.
This applies even if a duration or an end has already
been set.
❑The alarm time always counts down visibly in the
display.
The alarm also features a special acoustic signal.
This enables you to hear when the alarm time or a
selected duration has expired.
Setting procedure:

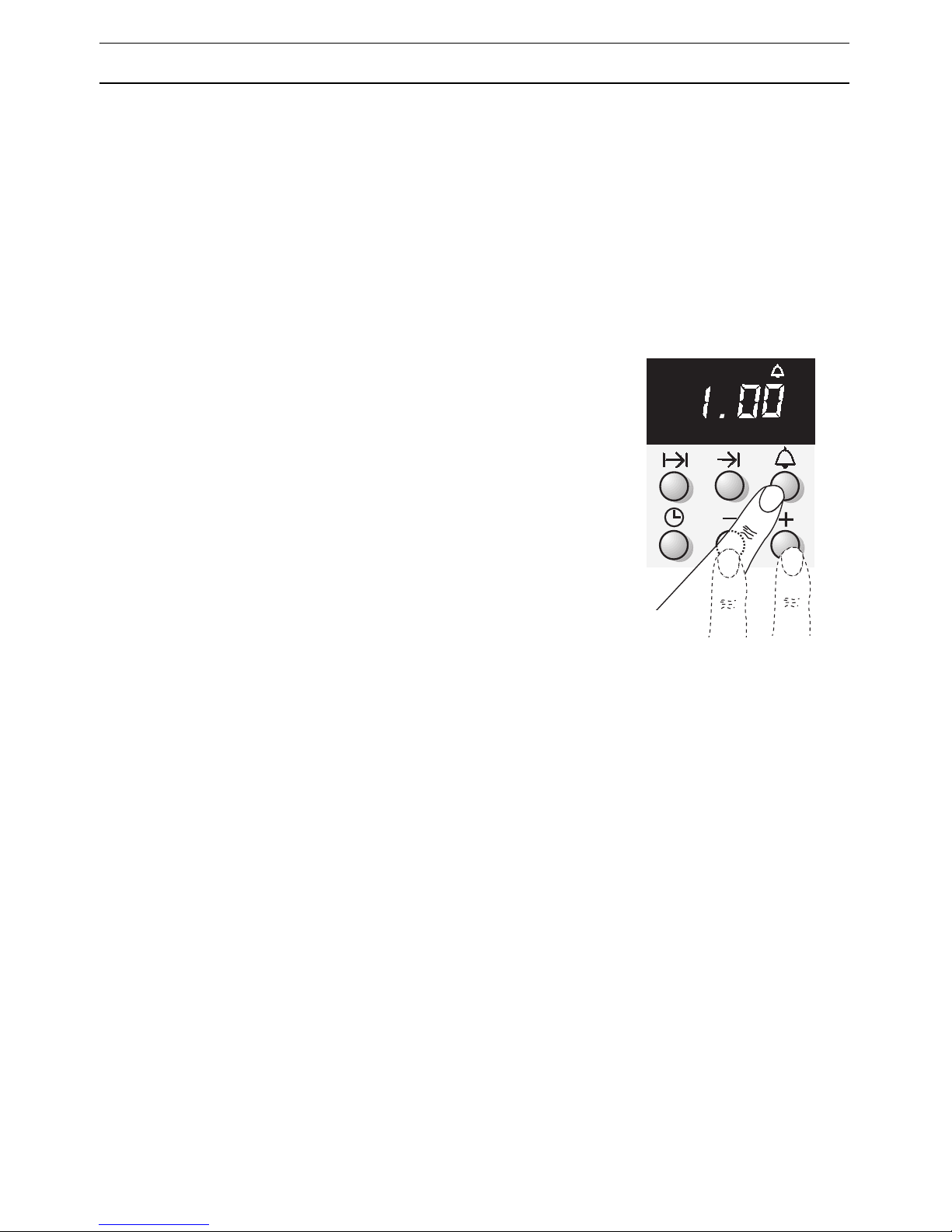

1. Press the alarm button 8.
2. Set the desired alarm time with the –or +button.
❑The selected time is automatically registered after a
few seconds. The alarm time begins to count down in
the clock display.
❑On completion of the selected time, an acoustic
signal sounds and the alarm symbol flashes. It is
possible to switch off the signal prematurely by
pressing the alarm button 8.
Correction:
❑Press the alarm button 8.
Change the time with the –or +button.
Cancelling:
❑Press the alarm button 8twice in quick succession.
Setting:
Electronic timer
min sec
h min
Dauer Ende Wecker
2.
1.

9
Automatic timer for the main oven
❑You can switch the oven on and off via the
electronic clock.
Automatic switch off:
❑If you wish to bake or roast food immediately, it is
only necessary to set the cooking time.

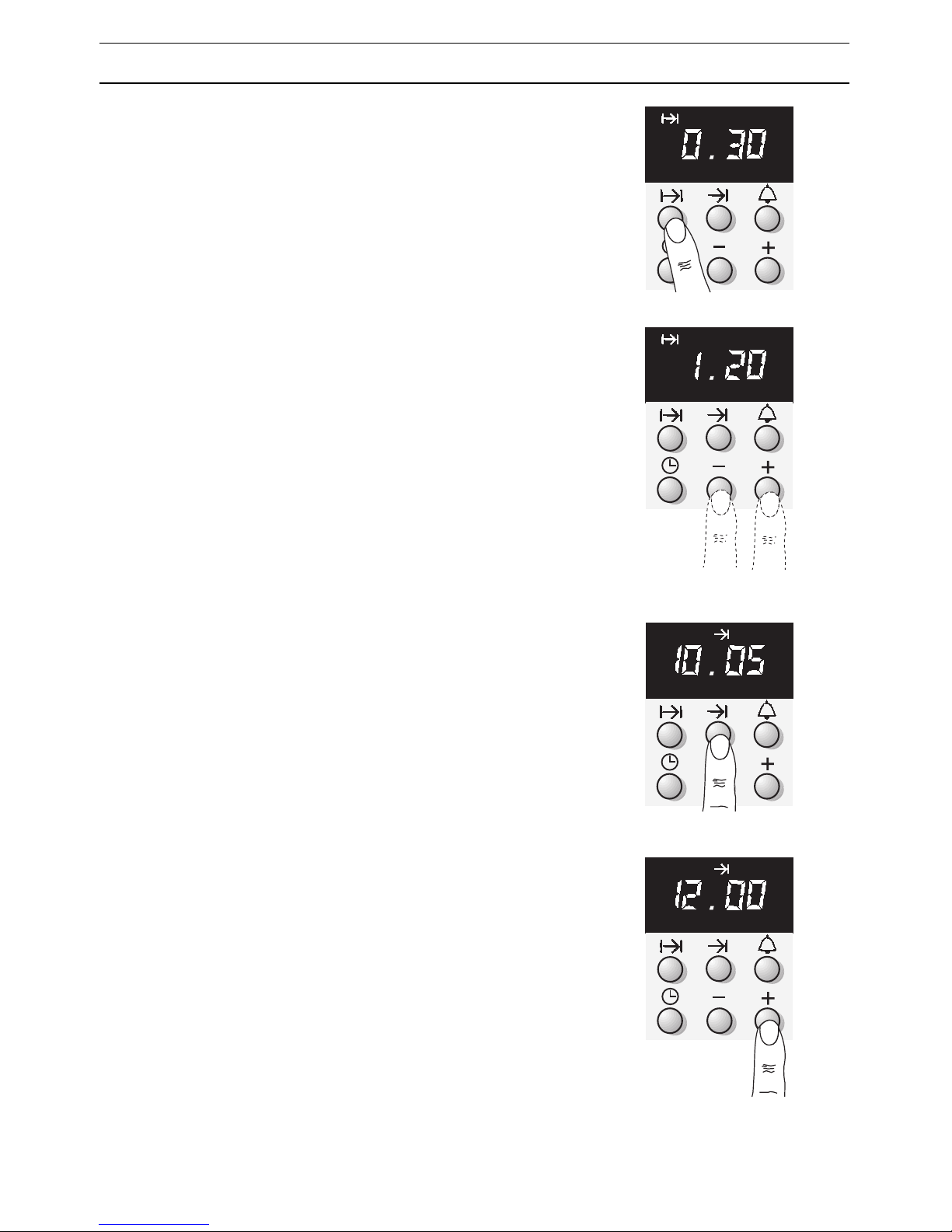

1. Select the heating system and the oven
temperature.
2. Press the time button ?.
3. Change the recommended cooking time with the
–or +button.
The oven starts after a few seconds.
❑An acoustic signal sounds when the time expires.
The oven switches off. You may switch off the
signal prematurely by pressing the time button ?.
❑If the meal is not yet ready, make a new time
setting using the knob.
❑Switch off the function selector when your meal is
ready.
Correction:
❑The duration can be changed at any time. Press
the cooking time button ?and correct the
duration of cooking time with the –or +button.
Cancel:
❑Switch off the function selector.
Notes:
❑The alarm time counts down in the clock display. If
you want to know how much longer the meal in the
oven will take, simply press the time button ?. The
time remaining is then displayed for a few seconds.
❑You can set any time between 1 minute and 23
hours, 59 minutes.
Electronic timer
min sec
hmin
Dauer Ende Wecker
2.
min sec
hmin
Dauer Ende Wecker
3.

10
Electronic timer
Automatic switch on and switch off:
Please remember that easily spoiled foods
must not be allowed to remain in the oven for
too long.
Need to be somewhere else – quickly? Don’t
worry, the food will still be ready at the right time.
That’s because the oven switches on and off
automatically at the desired times.
1. Select the heating system and the oven
temperature.
2. Press the time button ?.
3. Change the recommended cooking time with
the –or +button.
4. Press the end button !. The end time appears
in the display. This represents the time when
the oven will switch off. Change this to a later
time.
5. Set the new end time with the +button.
❑The oven switches on and off automatically. The
clock display contains the time remaining until
the oven switches on. The duration then begins
to count down.
❑An acoustic signal sounds when the time
expires. The oven switches off. You may switch
off the signal prematurely by pressing the time
button ?.
❑If the meal is not yet ready, make a new time
setting using the knob.
❑Switch off the function selector when your
meal is ready.
Correction:
❑Before starting the oven, you may change the
end time at any juncture. To do this, press the
end button !. Change the end time with the
–or +button.
Cancel:
❑Switch off the function selector.
Note:
❑The end time will appear for a few seconds if
you press the end button !.
min sec
hmin
Dauer Ende Wecker
2.
min sec
hmin
Dauer Ende Wecker
3.
min sec
hmin
Dauer Ende Wecker
4.
min sec
hmin
Dauer Ende Wecker
5.

11
Definition of Oven Features
Mini oven
Conventional cooking —————— t
(top and bottom heat)
The food being cooked is exposed to heat
radiation from heating elements located at
the top and bottom of the oven cavity.
Cooking is possible on one shelf level only.
Advantages:
–Baking rich fruit cake, pizza, quiche.
Radiant grilling ————————— x
The food being cooked is exposed to heat
radiation from the heating element at the
top of the oven cavity.
Advantages:
–particularly suitable for flat, small cuts of
meat, i.e., steaks and sausages, fish,
vegetables and toast.
Main oven
Hot air ————————————— ‰
Advantages of hot air:
–low soiling of oven interior
–cooking on up to 3 shelf levels at once
is possible
–shorter preheating times
–low oven temperatures
Gentle defrosting————————— :
Advantages:
Recommended for delicate pastries only
(i.e., whipped-cream gateaus).

12
Switching the Oven ON and OFF
Mini oven:
Before switching on your oven, you should
decide which heating system you wish to
use.
Switching the oven ON:
1. Use the function selector to determine
the desired system.
2. Set the temperature control knob to the
desired temperature.
❑The selected temperature will be
controlled automatically.
❑The red oven temperature control lamp
illuminates when the oven is first
switched on, and extinguishes when the
required temperature has been reached.
Switching the oven OFF:
To switch the oven OFF, turn both the
temperature selector and function selector
to the »0« position.
Note: After switching OFF the oven, the fan
may continue to run for a short time in
order to prevent heat build-up.
Main oven:
1. Set the temperature control knob to the
desired temperature.
❑The selected temperature will be
controlled automatically.
❑The red oven temperature control lamp
illuminates when the oven is first
switched on, and extinguishes when the
required temperature has been reached.
200
50
100
150
250
°
Function selector Temperature
selector
Temperature selector
200
50
100
150
°

13
Baking – Main oven
Using baking tins ‰

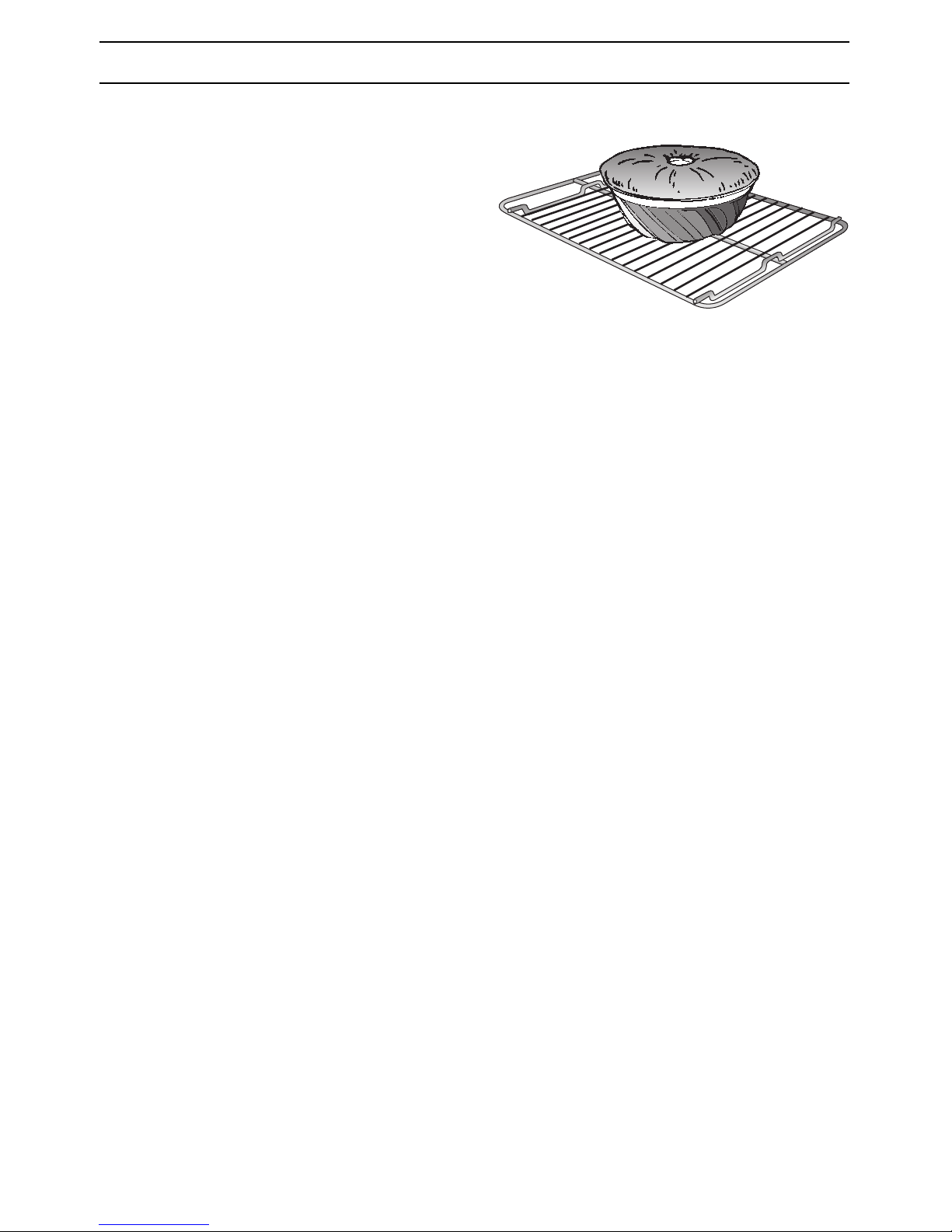

❑Always place baking tins in the centre
of the wire shelf.
❑The wire shelf may be turned upside
down to accommodate different size
tins.
❑If the cake bottom gets too dark:
Check the shelf level. Shorten the
baking time, and possibly use a lower
baking temperature.
❑If the cake bottom stays too light:
Check the shelf level. Increase the
baking time, select a lower temperature,
or use a dark metal baking tin.
❑You can use baking tins of any material
and having any colour, as long as they
are oven-proof.
❑Do not place baking tins or high cakes
too close to the rear oven wall.
Notes:
❑You can influence the degree of
browning by changing the temperature
setting.
❑If a cake collapses after removing it from
the oven, use less liquid on your next
attempt, consider using a longer baking
time, or use a slightly lower temperature
setting.

14
Roasting – Main oven
Roasting with hot air ‰
Notes:
❑Meat roasted using the hot air system
will brown on all sides and stay moist
without adding additional fat.
❑Choose cuts of meat that weigh
150 grams (5oz) or more.
❑Place the shelf on top of the universal
pan.
❑Place the meat on the shelf, season if
desired.
❑Slide the pan and shelf into the oven on
the same shelf position.
❑No pre-heating is required. Save energy
by putting the roast into the cold oven.
❑Use a hot air temperature of 160 °C.
Casseroling or pot-roasting in a covered
dish:
❑Some meats should be prepared in
liquid in a covered casserole. This type
of cooking is suitable for less tender
cuts of meat.
❑Place the casserole on the wire shelf at
a suitable shelf position.
Cooking tips:
❑Only use ovenproof cookware.
❑Extra large Turkeys and joints can be
placed directly in the universal pan and
not on the wire shelf.
❑
Cover large Turkeys with foil during
cooking. Remove foil during the last hour.

15
Roasting – Mini oven
Grilling – Mini oven
❑Always place the food to be grilled in the
centre of the wire shelf.
❑If the heating element switches off
automatically, the overheating protection
was activated. The element will be
reactivated after a short period of time.
Radiant grilling x
Used for small cuts of meat or poultry.
Exercise CAUTION when grilling.
!Always keep children away from
the oven when it is in use.
Notes on grilling:
❑Always close the oven door when
grilling.
❑The grilling temperatures are variable.
❑Always use the grill and universal pan
together.
❑Turn the food after approx. two-thirds of
the grilling time has elapsed.
❑Lightly brush the wire shelf with oil and
baste the food if desired.
Roasting with Conventional
heat t
❑Follow the steps above. With fatty meat
125 – 250 ml (4 – 8floz) of water can be
poured into the roasting pan.
❑Baste the meat if desired.
❑Place in a cold oven to save energy or
pre-heat if desired.
Casseroling or pot-roasting in a covered
dish:
❑Some meats should be prepared in
liquid in a covered casserole. This type
of cooking is suitable for less tender
cuts of meat.
❑Place the casserole on the wire shelf at
a suitable shelf position.
Cooking tips:
❑Only use ovenproof cookware.
❑Extra large Turkeys and joints can be
placed directly in the universal pan and
not on the wire shelf.
❑Cover large Turkeys with foil during
cooking. Remove foil during the last
hour.

16
Cooking Tips and Helpful Hints
To save energy:
❑Preheat only if expressly required by the
recipe.
❑Dark baking tins have a higher degree of
heat absorption.
❑Residual heat: In the case of longer
baking times, you can switch off the
oven 5 – 10 minutes before the full
baking time has elapsed.
When cooking conventionally:
❑Cakes baked in a tin get too dark at the
back.
❑The cake gets too dry.
❑The inside of the cake remains spongy
or doughy, or meat stays raw in the
centre.
When cooking with hot air:
❑Cakes baked in a tin gets too dark at
the back.
❑Cakes remain doughy and collapse
when removed from the oven.
❑Uneven browning of small cakes or
biscuits.
❑With very moist food steam develops
and condenses on the oven door and
drips onto the floor.
Ensure that no other pans or trays are in
the oven. Lower shelf position.
Place tin on wire shelf.
Select a slightly higher oven temperature.
Cook for shorter period of time.
Use a slightly lower temperature and cook
for a longer time. Reduce the liquid in a
cake mixture.
Avoid blocking the air vents at the rear wall
of the oven with the cake tins.
Reduce the temperature for deep cakes.
Bake for a longer period of time. Test with
a skewer before removing.
Avoid placing trays too close to the back
wall. Space food on the tray.
Several brief periods of opening the oven
door during baking (1 or 2 times, more
frequently with longer roasting times) will
aid in venting the water vapour in the oven
and reduce condensation.

17
Defrosting and Cooking – Main oven
Defrosting and cooking using the hot air cooking option ‰
Important heating system information:
❑For defrosting and cooking of frozen
or deep-frozen foods, use only the
hot-air heating system.
❑With all deep-frozen foods, follow the
food manufacturers instructions on
the packaging.
❑If frozen meat is placed in the oven, the
defrosting time must be added to the
required cooking time.
❑Always defrost deep-frozen poultry
before cooking.
❑For cooking deep-frozen fish, use the
same temperatures as for fresh fish.
❑Deep-frozen ready-to-eat meals in
aluminium dishes may be placed into
the oven several at a time.
❑Deep-frozen vegetables (i.e., when
cooking complete meals) should be
cooked in a covered pot together with
the roast. Use only approximately half of
the liquid specified in the recipe. Use fat
only for adding flavour.
Gentle defrosting: :
Recommended for delicate pastries only
(i.e., whipped-cream gateaus).
❑Turn the hot air selector switch to
the :position. Dependent on size and
type of the baked goods, defrost 25 –
45 minutes, take out of the oven and
allow to stand 30 – 45 minutes.
❑With smaller amounts (pastries), the
defrosting time is reduced to 15 – 20
minutes and the subsequent standing
time to 10 – 15 minutes.
Standard defrosting of various foods:
Shelf positions:
With 1 baking tray: shelf position 3
With 2 baking trays: shelf positions 1and 3
❑All stated times are approximate
guidelines that vary with the shape and
volume of deep-frozen products.
❑Raw deep-frozen products or foods
from a freezer always defrost at 50 °C.
Higher defrosting temperatures may
cause the food to dry out.
❑Defrost deep-frozen meals packed in
aluminium foil or closed aluminium
containers at a setting of 130 – 140 °C.
❑Place deep-frozen meals packed in
plastic bags or plastic containers in a
pot filled with water. Cover the pot and
defrost at a setting of 130 – 140 °C.
Attention: Pot handles must be oven-
proof.
❑Defrost and warm deep-frozen baked
goods at 100 – 140 °C. Brush bread,
rolls or yeast pastry lightly with water to
give a better crust.
❑Defrost dry deep-frozen yeast cakes
at 160 – 170 °C for 20 – 30 minutes.
❑Defrost moist deep-frozen yeast cakes
(with fruit topping) at 160 – 170 °C for
30 – 50 minutes after wrapping in
aluminium foil to prevent cake from
drying out.
❑Defrost and toast deep-frozen toast
(with topping) at 160 – 170 °C for about
20 minutes.
❑Defrost and bake deep-frozen pizzas
at 180 – 190 °C for 15 – 25 minutes.
Place on wire grille covered with
greaseproof paper.
Please ensure that the greaseproof
paper is suitable for use at these
temperatures.

18
Cleaning and Care
Important cleaning basics:
❑For cleaning, do not use abrasives, corrosive cleaners, aerosol cleaners or sharp objects.
❑Do not scratch off burnt-on food residues, but soak off them with a damp cloth and
washing up liquid.
❑Oven cleaners must not be used on aluminium or plastic parts.
Stainless steel front:
❑When using commercially available
Stainless Steel cleaning agents, avoid
cleaning any lettering, as this can
become damaged!
❑Do not use any scouring pads or
abrasive cleaners.
❑Use commercially available detergents
applied with a soft, moistened cloth or a
chamois.
Enamel and glass:
❑Use hot detergent suds for cleaning.
❑Remove the oven door before cleaning
the enamel surface.
Oven interior:
❑Clean the oven after each use,
especially after roasting or grilling.
Food remnants burn in when the oven is
reheated.
The baked in remnants are very difficult
to remove once burnt in.
❑You can reduce the degree of soiling by
greater use of the circotherm.
Do not clean the warm oven with any
of the cleaning products specifically
designed for this purpose.
❑When baking very moist cake (e.g. rich
fruit cake) that could drip over the top of
the tin, place on the roasting pan or
your own baking sheet.
❑When roasting, ensure that the meat
juices do not splash on to the base of
the oven.
❑Clean the oven before soiling becomes
too heavy. Wash out the oven cavity
with hot detergent suds. Leave the door
open until the interior has dried.

19
Cleaning and Care
Manual cleaning steps:
Note: To make cleaning more convenient,
the oven offers you the following options:
Removing the oven door:
1. Fully open the oven door.
2. Move the catch levers on the right and
left-hand sides to the fully open position.
3. Placing the door at an upward angle
toward you, grasp the door with both
hands and lift it out of the hinges toward
you.
Hanging the oven door:
1. Set both hinges into their respective
receptacles on the left and right, and
swing the oven door downward.
2. Close the catch levers on the left and
right.
3. Close the oven door.
Switch on the oven light
Main oven:
❑Turn the temperature selector to the 0
position.
Mini oven:
❑Set the function selector to a random
position.
Removing the shelf railings
Mini oven:
1. On both left and right sides, remove two
milled screws each.
2. Carefully remove the shelf railings.
Main oven:
1. On both left and right sides, remove the
one milled screws.
2. Carefully remove the suspended grids.
1.
2.

20
In the event of problems or repairs that you
cannot solve or perform yourself, our
service company will be happy to help.
Check the service directory for the service
facility in your area.
You can find this information on the
appliance‘s nameplate. The nameplate is
located on the appliance, behind the oven
door, on the left bottom edge of the oven.
Replacing the oven light:
Caution: Unplug the appliance or
remove the fuse!
Mini oven:
1. To prevent damage, place a tea towel
into the cold oven.
2. Remove the glass cover by inserting a
knife or similar object between the glass
and the frame.
3. Replace the lamp.
–Type: Incandescent bulb E 14, 230 –
240 V, 25 W, heat-resistant to 300 °C.
–You may obtain this bulb from your
customer service or from your
appliance dealer.
Main oven:
1. To prevent damage, place a tea towel
into the cold oven.
2. Unscrew the lamp cover by turning it
anti-clockwise.
3. Replace the lamp.
–Type: Incandescent bulb E 14, 220 –
240 V, 40 W, heat-resistant to 300 °C.
–You may obtain this bulb from your
customer service or from your
appliance dealer.
Replacing the oven door seal:
1. Remove the defective oven door seal by
simply unhooking it.
You may obtain the new oven door seal
from our customer service.
E-Number FD
Service and Repair Information
Caution: Calling customer service because
of an operator error can be very costly! In
the event of a customer service request,
please have the following information
handy:
