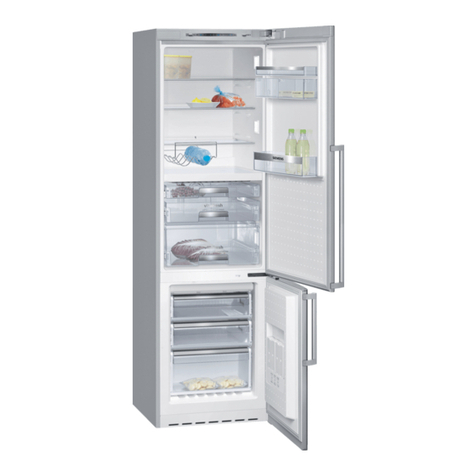

Siemens KGA Series User manual

HQ ,QVWUXFWLRQIRU8VH
)ULGJHIUHH]HU
KG..A..

en Table of Contents
Safety and warning information ........... 3
Information concerning disposal ......... 6
Scope of delivery ................................... 6
Installation location ................................ 7
Observe ambient temperature
and ventilation ........................................ 7
Connecting the appliance .................... 8
Getting to know your appliance .......... 9
Switching on the appliance ................ 11
Setting the temperature ...................... 11
Special functions .................................. 12
Alarm function ...................................... 12
Usable capacity .................................... 13
Refrigerator compartment .................. 14
Super cooling ....................................... 16
Fresh-mist system ................................ 16
Freezer compartment .......................... 17
Freezing capacity ................................. 17
Freezing and storing food .................. 18
Freezing fresh food ............................. 18
Super freezing ...................................... 19
Thawing frozen food ............................ 20
Interior fittings ....................................... 20
Sticker “OK” .......................................... 21
Switching off and disconnecting
the appliance ........................................ 21
Cleaning the appliance ....................... 21
Light (LED) ............................................ 23
Tips for saving energy ........................ 23
Operating noises ................................. 23
Eliminating minor faults yourself ....... 24
Appliance self-test ............................... 26

en
3
enTable of Contents enInstruction for Use
Safety and warning
information
Before you switch ON the
appliance
Please read the operating and
installation instructions carefully!
They contain important
information on how to install,
use and maintain the appliance.
The manufacturer is not liable if
you fail to comply with the
instructions and warnings.
Retain all documents for
subsequent use or for the next
owner.
Technical safety
Fire hazard
The tubes of the
refrigeration circuit convey a
small quantity of an
environmentally friendly but
flammable refrigerant (R600a). It
does not damage the ozone
layer and does not increase the
greenhouse effect. If refrigerant
escapes, it may injure your eyes
or ignite.
If damage has occurred
■Keep naked flames and/or
ignition sources away from the
appliance,
■thoroughly ventilate the room
for several minutes,
■switch off the appliance and
pull out the mains plug,
■inform customer service.
The more refrigerant an
appliance contains, the larger
the room must be in which the
appliance is situated. Leaking
refrigerant can form a
flammable gas-air mixture in
rooms which are too small.
The room must be at least 1 m³
per 8 g of refrigerant. The
amount of refrigerant in your
appliance is indicated on the
rating plate inside the appliance.
When installing the appliance,
ensure that the mains cable is
not trapped or damaged.
If the power cord of this
appliance is damaged, it must
be replaced by the
manufacturer, Customer Service
or a similarly qualified person.
Improper installations and
repairs may put the user at
considerable risk.

en
4
Repairs may be performed by
the manufacturer, customer
service or a similarly qualified
person only.
Only original parts supplied by
the manufacturer may be used.
The manufacturer guarantees
that only these parts satisfy the
safety requirements.
Do not use multiple sockets,
extension leads or adapters.
Fire hazard
Portable multiple outlets or
power supplies may overheat,
causing a fire.
Never leave portable multiple
outlets or portable power
supplies behind the appliance.
Important information when
using the appliance
■Never use electrical
appliances inside the
appliance (e.g. heaters,
electric ice makers, etc.). Risk
of explosion!
■Never defrost or clean the
appliance with a steam
cleaner! The steam may
penetrate electrical parts and
cause a short-circuit. Risk of
electric shock!
■Do not use additional means
to accelerate the defrosting
process other than those
recommended by the
manufacturer. Risk of
explosion!
■Do not use pointed or sharp-
edged implements to remove
frost or layers of ice. You
might damage the refrigerant
tubes.Leaking refrigerant may
cause eye injuries or ignite.
■Do not store products which
contain flammable propellant
(e.g. spray cans) or explosive
substances in the appliance.
Risk of explosion!
■Do not stand on or lean
heavily against the base of the
appliance, drawers, doors,
etc.
■For defrosting and cleaning,
pull out the mains plug or
switch off the fuse. Do not pull
out the mains plug by tugging
on the power cord.
■Store high-percentage alcohol
tightly sealed and in an
upright position.
■Keep plastic parts and the
door seal free of oil and
grease. Otherwise, plastic
parts and the door seal will
become porous.
■Never cover or block the
ventilation openings of the
appliance.

en
5
■Avoiding placing children
and vulnerable people at
risk:
At risk here are children,
people who have limited
physical, mental or sensory
abilities, as well as people
who have inadequate
knowledge concerning safe
operation of the appliance.
Check that children and
vulnerable people have
understood the hazards.
A person responsible for
safety must supervise or
instruct children and
vulnerable people who are
using the appliance.
Only children aged 8 years
and above may use the
appliance.
Supervise children while the
appliance is being cleaned or
maintained.
Never allow children to play
with the appliance.
■Do not store bottled or
canned liquids (especially
carbonated drinks) in the
freezer compartment.Bottles
and cans may burst!
■Never put frozen food straight
from the freezer compartment
in your mouth.
Risk of low-temperature burns!
■Avoid prolonged touching of
frozen food, ice or the
evaporator pipes, etc.
Risk of low-temperature burns!
Children in the household
■Keep children away from
packaging and its parts.
Danger of suffocation from
folding cartons and plastic
film!
■Do not allow children to play
with the appliance!
■If the appliance features a
lock:
keep the key out of the reach
of children!
General regulations
The appliance is suitable
■for refrigerating and freezing
food,
■for making ice.
This appliance is intended for
use in the home and the home
environment.
The refrigeration circuit has
been checked for leaks.
This appliance complies with the
relevant safety regulations for
electrical appliances and is
fitted with noise suppression.
This appliance is intended for
use up to a maximum height of
2000 metres above sea level.

en
6
Information concerning
disposal
*Disposal of packaging
The packaging protects your appliance
from damage during transit. All utilised
materials are environmentally safe and
recyclable. Please help us by disposing
of the packaging in an environmentally
friendly manner.
Please ask your dealer or inquire at your
local authority about current means of
disposal.
*Disposal of your old
appliance
Old appliances are not worthless
rubbish! Valuable raw materials can be
reclaimed by recycling old appliances.
m Warning
Redundant appliances
1. Pull out the mains plug.
2. Cut off the power cord and discard
with the mains plug.
3. Do not take out the trays
and receptacles: children are
therefore prevented from climbing in!
4. Do not allow children to play with
the appliance once it has spent its
useful life. Danger of suffocation!
Refrigerators contain refrigerant
and gases in the insulation. Refrigerant
and gases must be disposed
of professionally. Ensure that tubing
of the refrigerant circuit is not damaged
prior to proper disposal.
Scope of delivery
After unpacking all parts, check for any
damage in transit.
If you have any complaints, please
contact the dealer from whom you
purchased the appliance or our
customer service.
The delivery consists of the following
parts:
■Free-standing appliance
■Interior fittings (depending on model)
■Bag containing installation materials
■Operating instructions
■Installation manual
■Customer service booklet
■Warranty enclosure
■Information on the energy
consumption and noises
This appliance is labelled in
accordance with European
Directive 2012/19/EU concerning
used electrical and electronic
appliances (waste electrical and
electronic equipment - WEEE).
The guideline determines the
framework for the return and
recycling of used appliances as
applicable throughout the EU.


en
7
Installation location
A dry, well ventilated room is suitable as
an installation location. The installation
location should not be exposed to direct
sunlight and not placed near a heat
source, e.g. a cooker, radiator, etc. If
installation next to a heat source is
unavoidable, use a suitable insulating
plate or observe the following minimum
distances from the heat source:
■3 cm to electric or gas cookers.
■30 cm to an oil or coal-fired cooker.
The floor of the installation location must
not give way; if required, reinforce floor. If
the floor is uneven, compensate with
supports.
Distance from wall
When installing the appliance, ensure
that the door can be opened by 90°.
Observe ambient
temperature
and ventilation
Ambient temperature
The appliance is designed for a specific
climate class. Depending on the climate
class, the appliance can be operated at
the following temperatures.
The climate class can be found on
the rating plate. Fig. 0
Note
The appliance is fully functional within
the room temperature limits
of the indicated climatic class. If
an appliance of climatic class SN
is operated at colder room temperatures,
the appliance will not be damaged up to
a temperature of +5 °C.
Ventilation
Fig. "
The air on the rear panel and on the side
panels of the appliance heats up.
Conduction of the heated air must
not be obstructed. Otherwise,
the refrigerating unit must work harder.
This increases power consumption.
Therefore: Never cover or block
the ventilation openings!
Climate class Permitted ambient
temperature
SN +10 °C to 32 °C
N+16 °C to 32 °C
ST +16 °C to 38 °C
T+16 °C to 43 °C

en
8
Connecting
the appliance
After installing the appliance, wait at least
1 hour until the appliance is switched on.
During transportation the oil in
the compressor may have flowed into
the refrigeration system.
Before switching on the appliance for
the first time, clean the interior of
the appliance (see chapter “Cleaning
the appliance”).
Electrical connection
The socket must be near the appliance
and also freely accessible following
installation of the appliance.
m Warning
Risk of electric shock!
If the length of the mains cable is
inadequate, never use multiple sockets
or extension leads. Instead, please
contact Customer Service for
alternatives.
The appliance complies with protection
class I. Connect the appliance to 220–
240 V/50 Hz alternating current via a
correctly installed socket with protective
conductor. The socket must be protected
by a 10 A to 16 A fuse.
For appliances operated in non-
European countries, check whether the
indicated voltage and current type match
the values of your electricity supply. This
information can be found on the rating
plate, Fig. 0.
m Warning
Never connect the appliance
to electronic energy saver plugs.
Our appliances can be used with mains
and sine-controlled inverters. Mains-
controlled inverters are used
for photovoltaic systems which
are connected directly to the national
grid. Sine-controlled inverters must be
used for isolated applications (e.g. on
ships or in mountain lodges) which are
not connected directly to the national
grid.

en
9
Getting to know your
appliance
Please fold out the illustrated last page.
These operating instructions refer
to several models.
The features of the models may vary.
The diagrams may differ.
Fig. !
* Not all models.
Controls
Fig. $
A Refrigerator compartment
B Freezer compartment
1–18 Controls
19* Butter and cheese compartment
20* Shelf for small bottles
21 Shelf for large bottles
22 Light (LED)
23* Bottle shelf
24* Breakfast set
25 Cold storage compartment
26 Fresh-mist system
27 Vegetable container with humidity
control
28* Frozen food container
1Temperature display refrigerator
compartment
The numbers correspond to the
set refrigerator compartment
temperatures in °C.
2Display super cooling
This lights up if super cooling is in
operation.
3Temperature display freezer
compartment
The numbers correspond
to the set freezer compartment
temperatures in °C.
4Display super freezing
This lights up if super freezing is
in operation.
5Display vacation
This lights up when the vacation
mode is switched on.
6Display fresh
This lights up when the freshness
mode is switched on.
7Eco mode indicator
This lights up when the eco mode
is switched on.
8Button mode
Selecting the special functions.
9Super button
Used to switch on the functions
super cooling (fridge
compartment) and super freezing
(freezer compartment).
10 Setting buttons +/-
The buttons are used to set the
temperatures of the refrigerator
and freezer compartment.
11 lock button
Used to switch on the lock
function.

en
10
Controls for fresh-mist system
Fig. %
12 °C button to select the room and
alarm off
Used to select a room. This is
necessary to change its
temperature or to switch on
certain special functions.
Used to switch off the alarm.
13 Button “lock” function
If this function is switched on, no
settings are possible via
the controls.
14 Display alarm off
This lights up if the appliance
becomes too warm.
15 Display alarm
This lights up if the freezer
compartment is too warm or if the
freezer compartment door is open
too long.
16 Display freeze
This lights up if the freezer
compartment is selected.
17 Alarm display
This lights up if the refrigerator
compartment door is open too
long.
18 Display cool
This lights up if the fridge
compartment is selected.
1Display automatic mode
Lights up if automatic mode is
selected.
2Display manual mode
Lights up if manual mode is
selected.
3Clean water tank indicator
Lights up 7 days after the tank
was last cleaned.
Mist generation stops.
4Fill water tank indicator
Lights up / flashes when there is
too little or no water in the water
tank or the water tank is not
inserted.
Mist generation stops.
5Fresh-mist function setting
button
Used to switch the fresh-mist
function on and off and to select
fresh-mist mode.
