Sierra Products EASYCHEF ECC30 User manual

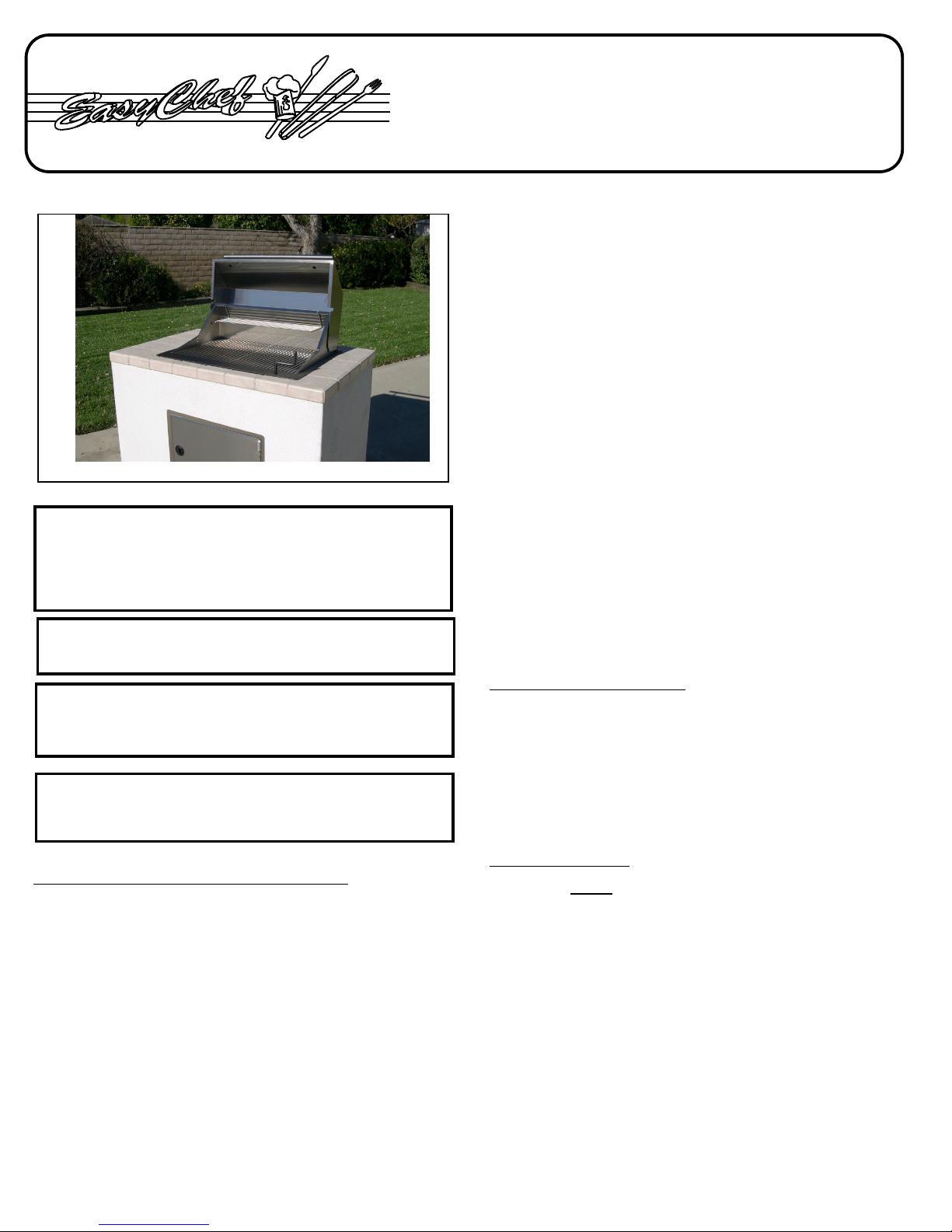

Typical Island Installation - ECC30 w/ Optional Hood
EASYCHEF ECC24/30
BUILT-IN COUNTER TOP
CHARCOAL GRILL
INSTALLATION INSTRUCTIONS
NOTICE TO INSTALLER: These instructions must be
left with the owner and the ow ner should keep them for
future use.
WARNING: INSTALL IN NON-COMBUSTIBLE
STRUCTURE ONLY. CHECK LOCAL BUILDING
CODES FOR PROPER CONSTRUCTION METHOD.
THIS GAS APPLIANCE IS DESIGNED FOR
OUTDOOR USE ONLY.
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.
GENERAL INFORMATION AND FEATURES
Thank you for purchasing the EasyChef Outdoor Cooking
TM
System from Em pire Products, Inc. Our goal is to m anufacture
quality outdoor cooking products that provide years of service
and satisfaction.
Standard Features Include:
a) Heavy duty steel fram e.
b) Stainless type 304 stainless steel cooking grids.
c) Lift a Fire adjustable charcoal tray allows for raising and
lowering of coals for heat adjustm ent and to helps
prevents flare ups.
d) Optional Stainless Steel Hood with built-in hood
therm om eter provides cooking temperature references.
e) Optional Heavy Duty stainless steel warming rack.
EasyChef outdoor cooking can be an exciting experience. You
can grill, barbecue, roast, and bake with results that are tough
to duplicate with indoor appliances.
The EasyChef has a range of installation options with som e
fore-thought and planning the EasyChef can be installed with
minimum effort.
Rem em ber when selecting a location for your grill installation,
convenience is the key to outdoor cooking. Try to find a
location that allows for easy access in both food preparation
and service. The grill will become hot during operation, high
traffic areas should be avoided. An additional consideration is
maintenance and service. Always allow room for cleaning and
annual service.
Your built-in installation requires a non-combustible structure .
Special consideration to clearances from combustible m aterials
and overhead areas is very im portant. Follow the inform ation
included in this m anual for proper installation.
Your EasyChef is constructed from heavy duty steel and
finished with a high temperature finish. W e suggest covering
your grill when not in use. Covers are available from your
dealer. This will help m inim ize the effects of weather and
general wear and tear.
GENERAL INSTRUCTIONS
The following instructions will give you the m inim um
requirem ents for safely installing and operating your EasyChef
barbecue. Please read this m anual and instructions carefully
before attempting to install or operate this appliance.
iThis appliance is not for use by children.
iUse extrem e caution when using liquid charcoal lighters
for flam e flare ups.
OPERATING AREA
WARNING: Only use this barbecue outdoors in a well-
ventilated area. Do not use in a garage, building, breeze
way or any other enclosed area.
iNever install and operate your EasyChef barbecue under
an unprotected com bustible roof or overhang.
iYour EasyChef is not intended for installation in or on a
recreational vehicle or boat.
iDo not use combustible m aterials within 16" of the top
and back or 14 inches from the side of this appliance.
iThe entire cooking box and hood get hot when in use.
Do not leave unattended.
iKeep electrical supply cord away from heated surfaces.
iKeep cooking area clear of flamm able vapors and
liquids, such as gasoline, alcohol, etc., and com bustible
materials

Figure 1 - Island Cutout Detail
ECC Typical Spare Part Exploded View
WARNING: UNIT MUST BE INSTALLED IN A FULLY LINED
OPENING MADE FROM NON-COMBUSTIBLE MATERIALS.
STEP BY STEP INSTALLATION
1. Prepare a rough or bricked opening of based on
dimensions in cutout detail (See Figure 1). Make sure
this opening has sides and bottom to capture any ash or
coals that m ay drop during BBQ use.
2. Rem ove all contents from shipping carton and identify with
parts list.
3. Rem ove white protective plastic coating from stainless parts
by peeling from part edge.
Caution: Care should be taken when handling sheet metal
parts as some edges may be sharp
4. Slid chassis into opening and center. Front should be
flush with island opening. Level if required.
5. Place charcoal tray and cooking grids onto frame.
Note: If desired, the unit may be grouted in place in front
and top. This will give unit a built-in.
OPERATING INSTRUCTIONS
Building a charcoal fire m aybe accom plished by removing the
cooking grids or adding charcoal from the front door. Stack
match light type of coals in center of charcoal pan. Light and let
burn until coals are light white color. Spread coals and adjust
cooking height by turning crank handle.
CARE AND MAINTENANCE
For m aximum life of coated surfaces, we suggest the EasyChef
grill be covered when stored outdoors. A custom fit cover is
available from your dealer. If the coated surfaces becom e dirty,
they maybe cleaned with mild soap and water. Stainless
surfaces maybe cleaned in the sam e way. If the stainless
surface becom es scratched, you m ay polish the surface using
a “Scotch Brite” pad. Rem em ber to scrub in the direction of the
material finish.
ITEM DESCRIPTION P/N
1a Cooking Grid - ECC24 300503
1b Cooking Grid - ECC30 300504
2a Charcoal Pan - ECC24 201737
2b Charcoal Pan - ECC30 201731
3 Door Handle 110072
4 Lift Crank Handle 110461
CUSTOMER SERVICE
If you have any questions regarding this product please
check our website www.sierraproductsinc.net or contact -
Custom er Service, Sierra Products, Inc., Monday thru Friday
8:00am to 4:00pm PT at [phone].
Sierra Products, Inc.
63 Laxalt Dr. Carson City, NV 89706
P/N 140783R1
