Signat Platinum S104105 User manual

- 10 -
Cables and Accessories - ’08/’09
Cables and Accessories - ’08/’09

- 2 -

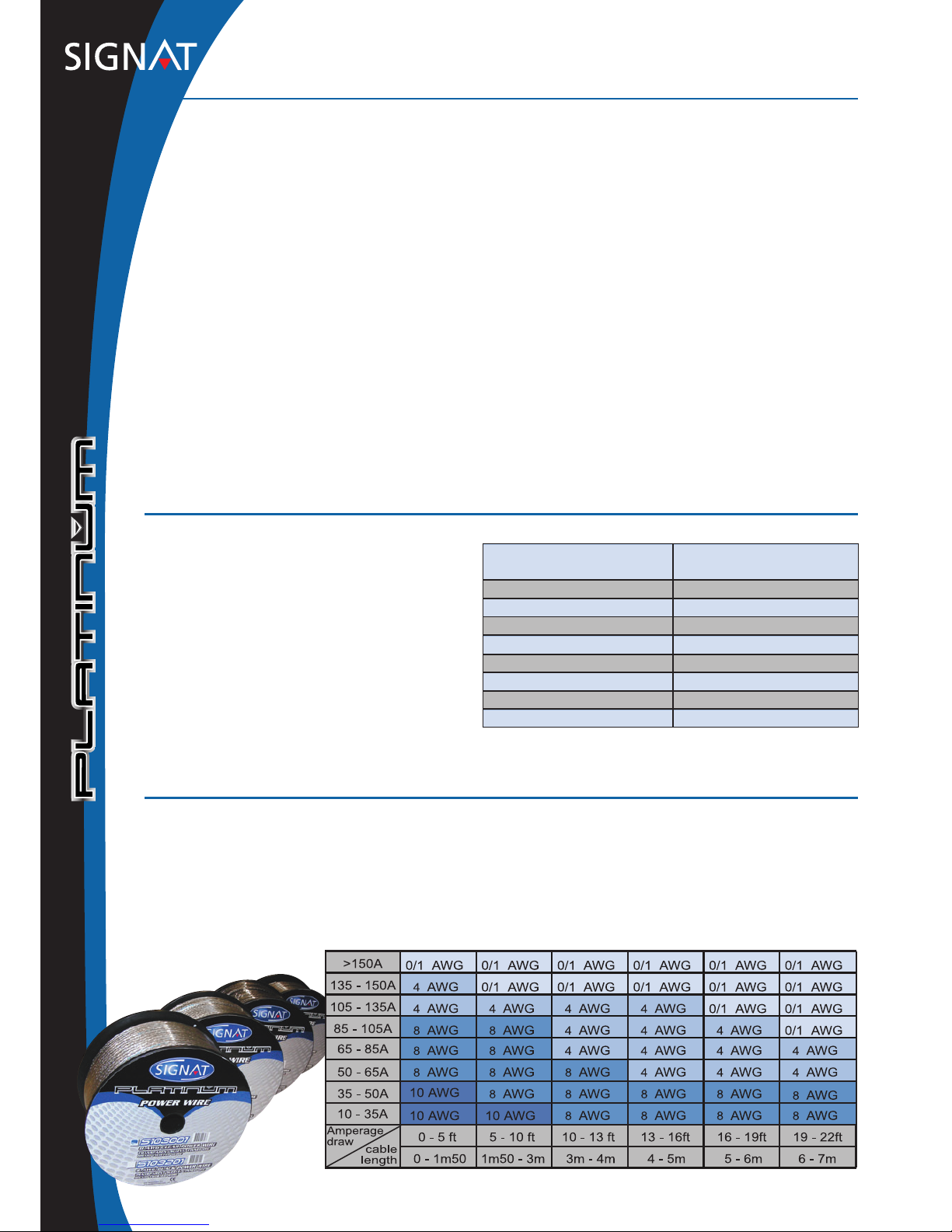

Cable diameter
Electric cables in cars should have a certain cross-section to transfer the power and
signals without losses through the hostile environment of the vehicle with all of its
interferences caused by other electrical circuits. The recommended wire cross-section is
based on the system ’s current draw and the length of the cable. Note that you can always
use thicker cable (a lower AWG number); a power cable can never be too thick.
AWG
and mm²
Signat cables are measured in
AWG (American Wire Gauge), the
American standard which is loga-
rithmic. This is about the same as
calculating with deciBels. In this
table the AWG wire cross-sections
are converted to mm² according to
the usual rounded standard as well
as the precise values.
AWG mm² mm²
(rounded) (precise) AWG mm² mm² (rounded) (precise)
Signat
- for professionals
Signat originates from the German manufacturer Autosound, since the early 1980’s
experienced in the car audio segment. In 1992 Autosound first launched its A-brand with
the name Signat. This is a derivation of the word ‘signature’, which refers to the individual
marks and qualities of each and every design. The rich history of the Signat brand features
many monumental highlights, like the phenomenal FLAG amplifier and its successors LOG,
LAB and RAMbo amplifiers. In order to generate the maximum performance of all the
Signat amplifiers and loudspeakers, Signat has developed a specially conceived, extremely
elaborate cable and accessory program under the name of ‘Platinum’. These high-quality
connection materials will highly contribute to the enhancement of each and every car audio
install.
And there’s more to Signat than just car audio. Just witness the ‘inSight’ multimedia
devices, the security product line and the elaborate catalogue of ‘Fits’ adapters and
interfaces. All of these products are closely related in order to create an optimum
symbiosis. This goes to show that Signat really composes its product range ‘for
professionals’.
000 85 85
00 70 67.4
0 55 53.5
1 50 40.4
2 35 33.6
4 25 21.1
8 10 8.36
10 6.0 5.26
12 4.0 3.31
14 2.5 2.08
16 1.5 1.31
17 1.0 1.04
18 0.75 0.82
20 0.50 0.52
24 0.25 0.21
26 0.15 0.13

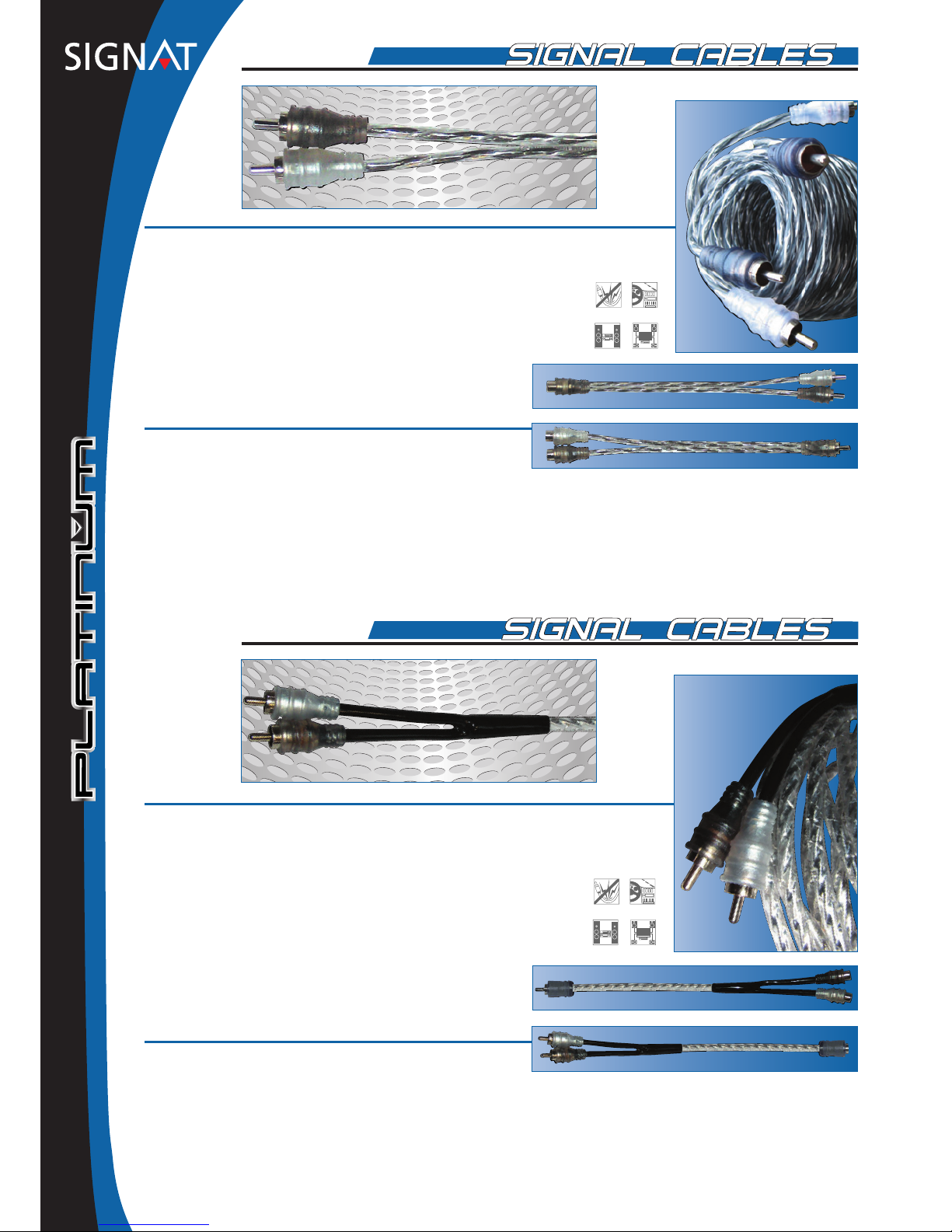

high-vvalue signal
cable
- Twisted pair cable configuration for optimum noise resistance
- Silver-plated molded connectors
- Sliced collar for improved contact and reliable shockproof
connection
- Extreme flexibility allows for an easy installation
- Clear outer jacket for enhanced cosmetics
- Excellent value for money performance
pprroodduucctt
oovveerrvviieeww
S101003 interconnect 2-channel 3ft 1m
S101004 interconnect 2-channel 12ft 3m50
S101005 interconnect 2-channel 16ft 5m
S101001 Y-adapter 1 female to 2 male 1ft 30cm
S101002 Y-adapter 1 male to 2 female 1ft 30cm
super shielded signal
cable
- Twisted pair cable configuration for optimum noise resistance
- Silver-plated molded connectors
- Sliced collar for improved contact and reliable shockproof
connection
- Extreme flexibility allows for an easy installation
- Additional aluminum foil shield for ultimate noise resistance
- Clear outer jacket for enhanced cosmetics
- Black end jacket for additional strain relief
pprroodduucctt
oovveerrvviieeww
S101303 interconnect 2-channel 3ft 1m
S101304 interconnect 2-channel 12ft 3m50
S101305 interconnect 2-channel 16ft 5m
S101301 Y-adapter 1 female to 2 male 1ft 30cm
S101302 Y-adapter 1 male to 2 female 1ft 30cm
no noise 12V use home use multimedia digital display
no noise 12V use home use multimedia digital display
no noise 12V use home use multimedia digital display
no noise 12V use home use multimedia digital display
- 3 -

high-eend signal
cable
- Twisted pair cable configuration, mylar foil shield and a
95% double braided shield
- Super shielded for an unsurpassed level of noise rejection
and a non-compromise high-end design
- Platinum-plated soldered screw connectors with sliced
collar for improved contact and reliable shockproof
connection
- Extreme flexibility allows for an easy installation
- Split ends with platinum-plated strain relief
splitter bridge
- Available in 2-channel and also a 4-channel
configuration for a total compact install
no noise 12V use home use multimedia digital display
no noise 12V use home use multimedia digital display
- 4 -
Signal
cables
To supply the amplifier with music, an RCA signal
cable is needed, running from the headunit to the
amplifier . This cable may never run next to the
power wire, or it will pick up to much
interference. So the signal cable has to be led
through the other side of the car, unless the
gutter overthere comprises already lots of noise
generating carspecific wiring, like alarm cables,
door locking cables, board computer cables
etcetera. In this case it is preferable to run the
RCA cable through the middle of the car . In
normal cars, a double shielded signal cable will do.
In noisy cars, which tend to pick up more
interference, a superior shielded cable is
recommended, like a twisted RCA cable, which
even offers more protection against
interferences.
signal cables
positive power cable
main fuse
grounding cable
remote wire
speaker wire
headunit
power wires
central grounding point
ASN
pprroodduucctt
oovveerrvviieeww
S101603 interconnect 2-channel 3ft 1m
S101604 interconnect 2-channel 12ft 3m50
S101605 interconnect 2-channel 16ft 5m
S101606 interconnect 4-channel 12ft 3m50
S101607 interconnect 4-channel 16ft 5m
S101601 Y-adapter 1 female to 2 male 1ft 30cm
S101602 Y-adapter 1 male to 2 female 1ft 30cm

pprroodduucctt
oovveerrvviieeww
S102401 speaker cable twisted 2x16AWG 500ft 150m reel
S102402 speaker cable twisted 2x14AWG 500ft 150m reel
S102403 speaker cable twisted 2x12AWG 250ft 75m reel
high-eend loudspeaker
cable
- Twisted pair loudspeaker cables, clear and smoke
transparent jacket, tinned OFC cable
- Extreme flexibility allows for an easy installation around
corners
no noise 12V use home use multimedia digital display
no noise 12V use home use multimedia digital display
pprroodduucctt
oovveerrvviieeww
S102001 speaker cable square/round 2x16AWG 500ft 150m reel
S102002 speaker cable square/round 2x14AWG 500ft 150m reel
S102003 speaker cable square/round 2x12AWG 250ft 75m reel
no noise 12V use home use multimedia digital display
no noise 12V use home use multimedia digital display
Loudspeaker
cables
The loudspeaker wires run from the amplifier to the loudspeakers. They
tend to be fairly long and especially when they lead to doorspeakers, they
have to travel a difficult way through grommet passages.
The copper used in the Platinum loudspeaker cables is OFC (oxygen-free
copper). This ‘pure’ copper has got about 4500 copper crystals within
one meter of a copper conductor. Thanks to the tinned layer around it
improves the conductivity and reduces the oxidation.
- 5 -
high-vvalue loudspeaker
cable
- Loudspeaker cable, black transparent jacket, tinned OFC cable
- Square/round insulation for easy plus/minus identification
- Extreme flexibility for an easy installation around corners

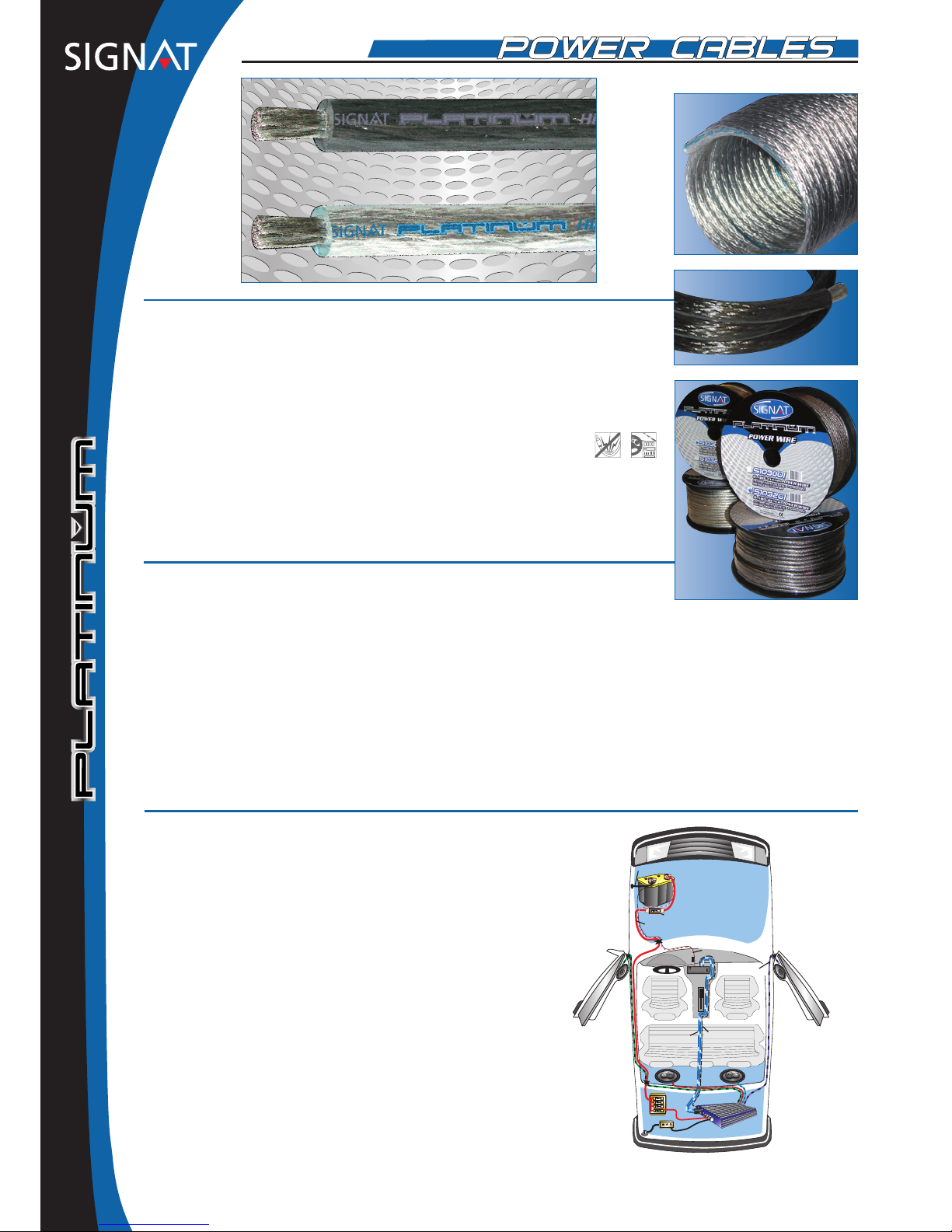

high-eend power
cable
- Transparant cable sleeve, clear for power , smoke black
for ground
- Significantly large amount of strands for an extreme
flexibility
- Braid twisted oxygen-free copper (OFC) wire
- Easy to install around corners
no noise 12V use home use multimedia digital display
pprroodduucctt
oovveerrvviieeww
S103001 8AWG power cable clear transparent 651 strands 250ft 75m reel
S103201 8AWG ground cable smoke transparent 651 strands 250ft 75m reel
S103002 4AWG power cable clear transparent 1659 strands 100ft 30m reel
S103202 4AWG ground cable smoke transparent 1659 strands 100ft 30m reel
S103003 2AWG power cable clear transparent 4284 strands 25ft 7 m50 reel
S103203 2AWG ground cable smoke transparent 4284 strands 25ft 7 m 50 reel
S103004 0AWG power cable clear transparent 4284 strands 25ft 7 m50 reel
S103204 0AWG ground cable smoke transparent 4284 strands 25ft 7 m50 reel
Power
wiring
To supply the amplifier with power, the positive
wire comes from the battery. Over there the
cable is connected with a high-quality battery
terminal. This guarantees an optimum contact
surface and prevents corrosion - and therefore
a bad connection. Within a distance of 30cm
from the battery a waterproof fuseholder is
needed. This fuse protects the entire car against
fire in case of an accident or a short -circuit. The
positive power cable has to be led through the
car at the side where the battery is located. The
cable runs from the engine compartment to the
passenger compartment and from there to the
trunk where the amplifier is located.
signal cables
positive power cable
main fuse
grounding cable
remote wire
speaker wire
headunit
power wires
central grounding point
ASN
- 6 -

cable
kits
The elaborate Signat Platinum program allows you to choose the
connection materials which will best fit your purpose. In order to
support you to make the right decisions, Signat has conceived three
extremely complete cable kits. These high-quality cable kits comprise
every component you need to effectuate a successful and quick install
of your car audio system. They supply all wiring needed for example to
add an amplifier to your basic factory set-up of a headunit with
loudspeakers. The cabling from headunit to the amplifier - signal cables
and remote wire - is provided, as well as the power leads from the main
car battery to the amplifier. A Platinum cable kit will certainly enhance
your system’s performance!
- Supreme quality cable kits for complete connection of an amplifier
- 16ft/4m88 twisted pair RCA interconnect cables ( high value or
super shielded ), clear transparent jacket
- Tinned OFC power cable, clear transparent jacket
- Tinned OFC power ground cable, smoke transparent jacket
- 20ft/6m blue remote turn-on lead (from headunit to amplifier)
- Waterproof fuseholder (AGU or ANL) with fuse for installation close
to the battery
- Assorted terminals
pprroodduucctt
oovveerrvviieeww
S104301 8 AWG/10mm² high value cable kit:
16ft/5m power cable 3ft/1m ground cable S101005 RCA cable 5m
S105001 AGU fuse holder 60A AGU fuse 20ft/6m remote turn-on lead
2 ring terminals 2 spade terminals
S104401 4 AWG/25mm² high value cable kit:
16ft/5m power cable 3ft/1m ground cable S101005 RCA cable 5m
S105001 AGU fuse holder 60A AGU fuse 20ft/6m remote turn-on lead
2 ring terminals 2 spade terminals
S104501 2 AWG/35mm² super shielded cable kit:
16ft/5m power cable 3ft/1m ground cable S101305 RCA cable 5m
S105002 ANL fuse holder 80A ANL wafer fuse 20ft/6m remote turn-on lead
2 ring terminals
no noise 12V use home use multimedia digital display
- 7 -

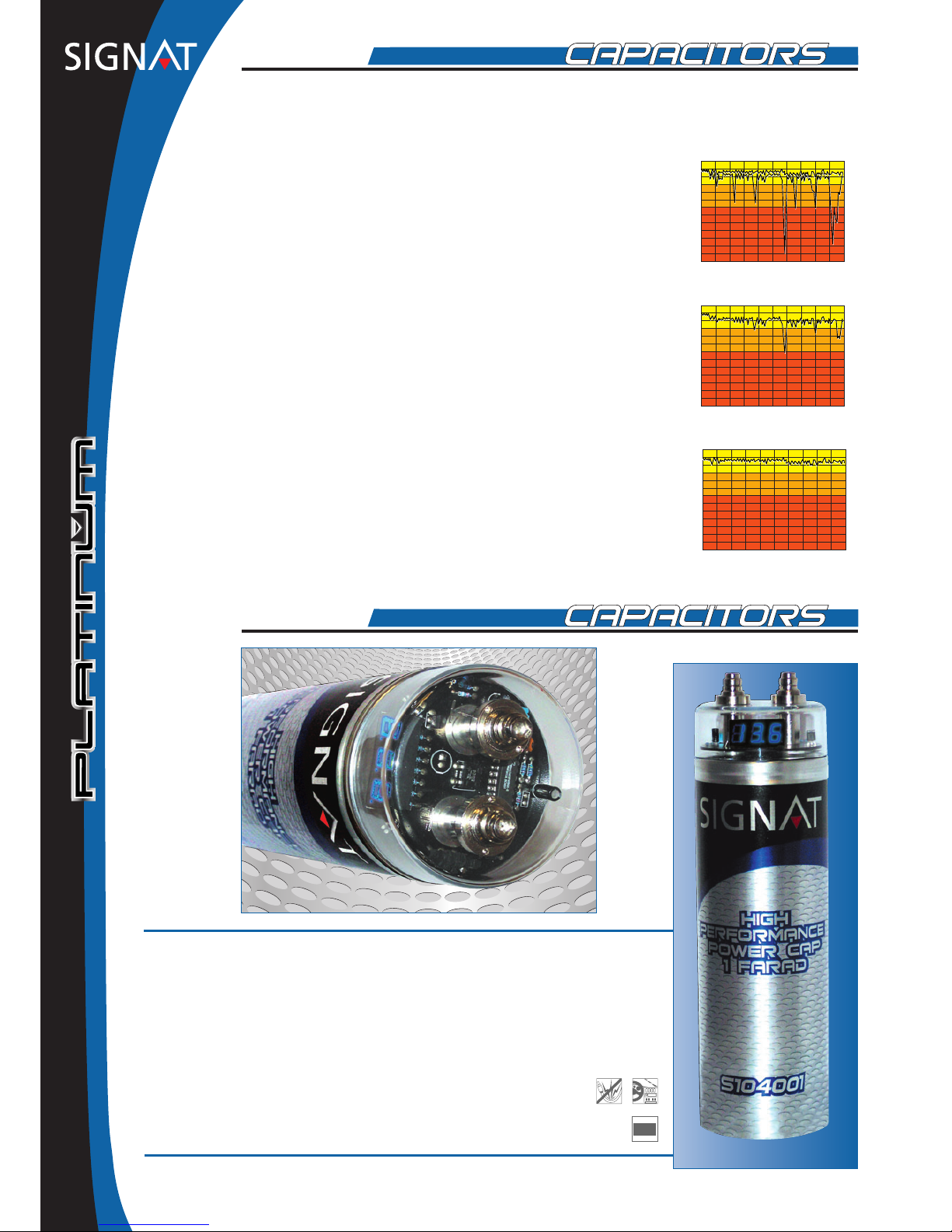

high-vvalue power
capacitor
- 1 Farad electrolytic power capacitor
- Blue LED 3-digit digital voltage display
- 24 Volts DC maximum voltage
- Low internal resistance
- Reverse polarity protection
- Easy and safe charging and discharging
- Platinum plated heavy-duty terminals
- Plexiglass mounting brackets
- Dimensions 260x80mm
no noise 12V use home use multimedia digital display
13.6
no noise 12V use home use multimedia digital display
+10
+11
+12
+13
+14
+15
+9
0 5 10 15 20 2
5
2,5 7,5 12,5 17,5 22,5
+9,5
+10,5
+11,5
+12,5
+13,5
+14,5
Volts DC
seconds
+10
+11
+12
+13
+14
+15
+9
0 5 10 15 20 252,5 7,5 12,5 17,5 22,5
+9,5
+10,5
+11,5
+12,5
+13,5
+14,5
Volts DC
seconds
+10
+11
+12
+13
+14
+15
+9
Volts DC
seconds
0 5 10 15 20 2
5
2,5 7,5 12,5 17,5 22,5
+9,5
+10,5
+11,5
+12,5
+13,5
+14,5
without capacitor
with 2 Farad capacitor
with 12 Farad capacitor
1000
Watts
car
audio system
- 8 -
Power
caps
The power consumption of an amplifier can widely vary;
it depends on the music and volume. The amplifier
power available is determined by voltage x current (P =
U x I). At moments of fast, heavy bass pulses, amplifiers
can draw considerable amounts of current, up to
hundreds of Ampères, since they feature an efficiency
of only 50%. Because the current (I) rises, the voltage
(U) collapses, as a result of the wire losses. Each long
power cable, even the thickest one, (leading from the
front of the car to the back) generates a magnetic field,
which creates induction, and this means losses. To
maintain a maximum performance of the amplifier , you
can ’t increase the voltage (a car only has 13,6/12 Volts),
but you can increase the fast current delivery. Only
electrolytic capacitors with a very low internal
resistance, like the Signat models S104001, S104105
and S104201, can release their stored current
extremely fast. In this way voltage variations, which
could damage the amplifier , are avoided. And the
amplifier can feed the loudspeakers with maximum
power and control.
S104001 high-value power capacitor 1F

high-eend power
capacitor
- 12 Farad hybrid super power capacitor
- Two blue LED 3-digit Volts and Ampères displays
- 20 Volts DC maximum voltage
- Low internal resistance
- Reverse polarity protection
- Easy and safe charging and discharging
- Platinum plated heavy-duty terminals
- Delivered in a wooden box with white gloves
- Dimensions 255x125x83mm
no noise 12V use home use multimedia digital display
13.6
no noise 12V use home use multimedia digital display
neon power
capacitor
- 2 Farad electrolytic power capacitor
- Blue LED 3-digit digital voltage display
- Blue neon ring and flashing blue LED’s
- Chrome plated design, chrome-plated mounting brackets
- 24 Volts DC maximum voltage
- Low internal resistance, reverse polarity protection
- Easy and safe charging and discharging
- Platinum plated heavy-duty terminals
- Dimensions 262x80mm
no noise 12V use home use multimedia digital display
13.6
no noise 12V use home use multimedia digital display
S104105 neon power capacitor 2F
S104201 high-end power capacitor 12F
- 9 -

- 10 -
pprroodduucctt
oovveerrvviieeww

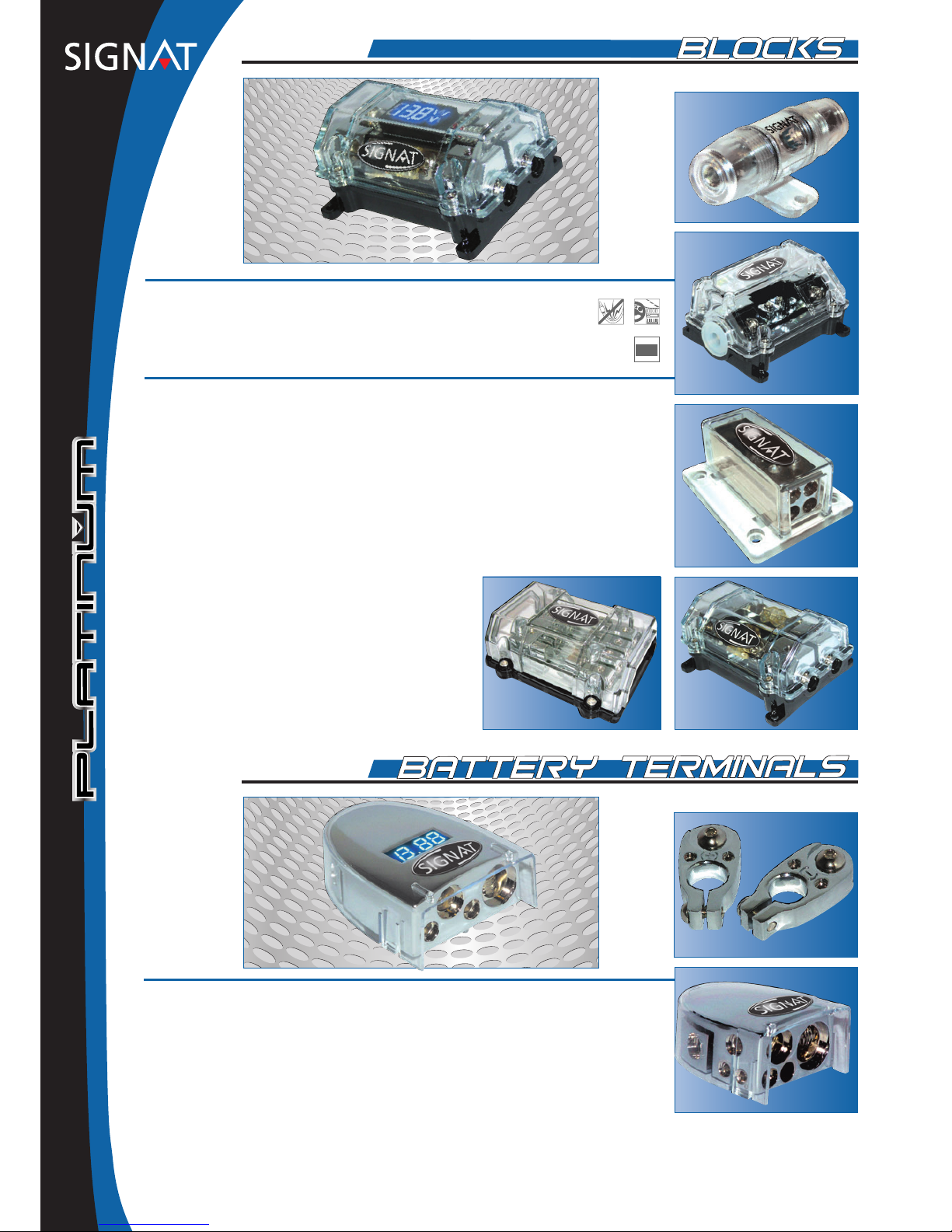

S105001 Waterproof AGU inline fuse holder:
1x 4~8AWG in 1x 4~8AWG out
S105002 Waterproof slanted mini ANL inline fuse holder:
1x 0~4AWG in 1x 0~4AWG out
S105401 1 to 4 distribution block:
1x 4AWG in 4x 8AWG out
S105431 2 to 4 power cable distribution / AGU fuse block:
1x 4AWG in 4x 4AWG out
1x 0AWG in
S105432 1 to 2 power cable distribution /
mini ANL fuse block:
1x 0AWG in 2x 4AWG out
S105451 1 to 2 power waterproof cable
distribution / mini ANL fuse
block with 3-digit blue digital
dual info display for Voltage /
Amperage:
1x 0AWG in 2x 4AWG out
Fuse holders / distribution blocks
- Heavy duty shockproof plexiglass covers
- Platinum plated blocks and terminals
no noise 12V use home use multimedia digital display
13.6
no noise 12V use home use multimedia digital display
pprroodduucctt
oovveerrvviieeww
S105601 Battery plus (+) terminal: 2x 8AWG out 1x 4AWG out
S105602 Battery minus (-) terminal: 2x 8AWG out 1x 4AWG out
S105611 High-end battery plus (+) terminal, plexiglass cover:
2x 8AWG out 1x 4AWG out 1x 2AWG out
S105612 High-end battery minus (-) terminal, plexiglass cover:
2x 8AWG out 1x 4AWG out 1x 2AWG out
S105651 High-end battery plus (+) terminal with 3-digit blue digital
display, plexiglass cover:
2x 8AWG out 1x 4AWG out 1x 2AWG out

pprroodduuccttoovveerrvviieeww
ring
terminals
art.no. ø
cable ø terminal quantityy
S107000 8AWG/10mm² 4,2mm 2 pairs
S107010 8AWG/10mm² 6,4mm 2 pairs
S107020 8AWG/10mm² 8,5mm 2 pairs
S107030 8AWG/10mm² 8,5mm 1 piece
S107005 4AWG/25mm² 4,2mm 2 pairs
S107014 4AWG/25mm² 6,4mm 2 pairs
S107022 4AWG/25mm² 8,5mm 2 pairs
S107007 2AWG/35mm² 4,2mm 1 pair
S107016 2AWG/35mm² 6,4mm 1 pair
S107024 2AWG/35mm² 8,5mm 1 pair
S107035 2AWG/35mm² 8,5mm 1 piece
S107009 1AWG/50mm² 4,2mm 1 pair
S107018 1AWG/50mm² 6,4mm 1 pair
S107026 1AWG/50mm² 8,5mm 1 pair
spade
terminals
art.no. ø
cable ø terminal quantityy
S107050 14AWG/2,5mm² 4,2mm 4 pairs
S107052 12AWG/4mm² 4,2mm 4 pairs
S107060 8AWG/10mm² 4,2mm 4 pairs
loudspeaker
terminals
art.no. ø
cable ø terminal quantityy
S107070 14AWG/2,5mm² 4,8/2,8mm 8 pairs
S107079 14AWG/2,5mm² 6,3mm 4 pairs
S107072 12AWG/4mm² 4,8/2,8mm 8 pairs
S107080 12AWG/4mm² 6,3mm 4 pairs
connection
terminals
art.no. ø
cable ø terminal quantityy
S107040 8AWG/10mm² 10mm² 1 piece
S107045 4AWG/25mm² 20mm² 1 piece
- 11 -
pprroodduucctt
oovveerrvviieeww
AGU
glass fuses
rt.no. current dimensions quantityy
S106440 20 A 10,3x38mm 4 pieces
S106443 30 A 10,3x38mm 4 pieces
S106445 40 A 10,3x38mm 4 pieces
S106447 60 A 10,3x38mm 4 pieces
ANL
wafer fuses
a rt.no. current dimensions quantityy
S106420 30 A large ANL 1 piece
S10642 1 100 A large ANL 1 piece
S106423 150 A large ANL 1 piece
S106425 200 A large ANL 1 piece
S1064 01 30 A mini ANL 2 pieces
S106402 40 A mini ANL 2 pieces
S106403 60 A mini ANL 2 pieces
S106404 80 A mini ANL 2 pieces
S106405 100 A mini ANL 2 pieces
S106406 150 A mini ANL 2 pieces
S106407 200 A mini ANL 2 pieces
pprroo
AGU
a
S

SIGNAT
[email protected]
www.signat.de
Pictures may deviate. All products supplied as available.
Subject to modifications without notice.
art.no. S999022
dealer stamp:
