W Box Technologies 0E-HDMISP1X4 User manual

Introduction
Congratulations and thank you for purchasing W Box
Technologies 0E-HDMISP1X4.
0E-HDMISP1X4 is a 1 to 4 splitter for HDMI with 4K@60Hz 4:4:4
8bit which reliably distributes one HDMI input to four HDMI
outputs. It also provides high-tech MIX EDID management and
HDCP management which authenticates HDCP encryption
between all devices, ensuring the HDMI source reliably outputs
correct content for display.
0E-HDMISP1X4 is ideal for applications, such as offices, schools,
conferences rooms, shopping malls, hotels or museums, which
require the distribution of an HDMI source signal to four outputs.
Please follow the instructions in this manual to assure proper
installation and to achieve the full performance and satisfaction
you would expect from W Box Technologies.
!1

Features
•Slim appearance and space saving
•HDMI with 4K@60Hz 4:4:4 8bit and HDCP 2.2 compliant
•Distributes one HDMI source to four HDMI displays
•Supports signal transmission distance up to 33 feet (10
meters) at 4K@30Hz and 1080P, up to 10 feet (3 meters) at
4K@60Hz when used with standard HDMI cables.
•EDID rotary switch on panel for EDID management function.
•Reshapes marginal or noisy HDMI signals, ensuring a strong,
stable digital signal
Package Contents
Before you start the installation, please check the package
contents:
•1 x 0E-HDMISP1X4
•1 x Power Adapter (DC 12V 1A)
•1 x Phoenix male connector (3pin 3.5mm)
•2 x Mounting Brackets
•1 x User Manual
•1 x Datasheet
!2

Panel
Front Panel

ID.
Name
Description
1
HDMI IN LED
Steady blue: When a source device is
powered on and connected to the splitter.
OFF: No source device is connected or it
is powered off.
2
HDMI OUT
LEDs
Steady blue: The HDMI displays is
powered on and connected to
corresponding output.
OFF: No HDMI display is connected or it
is powered off.
3
POWER LED
Steady blue: The splitter is powered on.
!3

Rear Panel

ID.
Name
Description
1
DC 12V Port
Connects to DC 12 V 1 A power
adapter.
2
HDMI OUT1 Port
Connects to HDMI display using
HDMI cable.
3
HDMI OUT2 Port
Connects to HDMI display using
HDMI cable.
4
HDMI IN Port
Connects to an HDMI source using
HDMI cable.
5
HDMI OUT3 Port
Connects to HDMI display using
HDMI cable.
6
HDMI OUT4 Port
Connects to HDMI display using
HDMI cable.
7
EDID Rotary
Switch
For EDID management
8
RS232 port
For firmware upgrade
!4

Installation

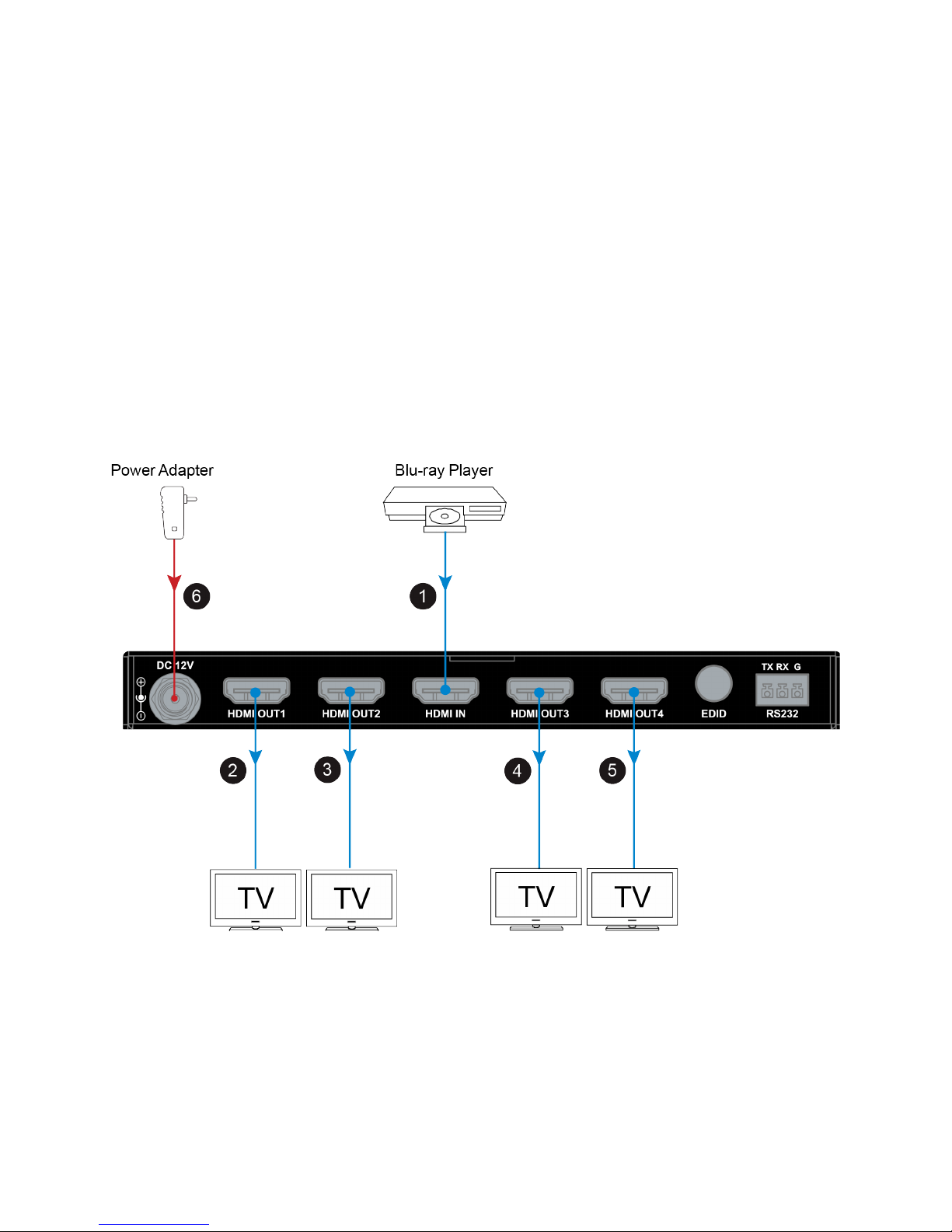

1. Connect an HDMI source device (such as a Blu-ray player) to
the splitter HDMI IN port. As show number 1 in figure.
2. Connect 4 HDMI displays (such as HD monitors) to the splitter
HDMI OUT ports. As show number 2,3,4,5 in figure.
3. Toggle the EDID rotary switch to the proper position. For more
information, please refer to EDID management section.
4. Connect the power adapter to DC 12V port. As show in figure
6.
5. Connect all the devices to their power adapter, power them on
and start the operation.

!5

EDID Management
EDID (Extended Display Identification Data) is a data structure
provided by a digital display to describe its capabilities to a video
source.
0E-HDMISP1X4 supports MIX EDID, Fixed EDID and copy EDID
functions, there is a EDID rotary switch on the panel, when
connect multiple monitors at the same time, the device will
contrast the EDID of all the displays and output the property timing
depend on toggle the switch.
Please refer to the following table to set EDID:
Position
Description
Function
0
MIX EDID: Video
compatibility and
Audio quality
Outputs the minimum video resolution and
the maximum audio channel.
1
MIX EDID: Video
compatibility and
Audio compatibility
Outputs the minimum video resolution and
the minimum audio channel.
2
MIX EDID: Video
quality and Audio
quality.
Outputs the maximum video resolution and
the maximum audio channel.
3
MIX EDID: Video
quality and Audio
compatibility
Outputs the maximum video resolution and
the minimum audio channel.
4
3840x2160@30Hz_2
D_2CH with HDR
Fix it as native.
5
3840x2160@30Hz_2
D_5.1CH with HDR
Fix it as native.
6
3840x2160@30Hz_2
D_7.1CH with HDR
Fix it as native.
!6

Note: If EDID copy failed, output EDID: 1080P@60Hz with stereo
audio.
7
1920x1080@60Hz_3
D_2CH with HDR
Fix it as native.
8
1920x1080@60Hz_3
D_5.1CH with HDR
Fix it as native.
9
1920x1080@60Hz_3
D_7.1CH with HDR
Fix it as native.
A
Copy EDID from
output1
-
B
Reserved
-
C
Reserved
-
D
Reserved
-
E
Reserved
-
F
Reserved
-
Position
Description
Function
!7

Troubleshooting
W Box Technologies products are designed to function trouble-
free. Most problems that occur are due to simple issues. If you
have trouble, please check the list of simple fixes below.
Six Steps of Regular Troubleshooting Routine.
1. Power: Make sure all devices are powered on. (source,
splitter, display devices)
2. Indicator: Make sure LED indicators of splitter are normal
according to user manual.
3. Devices: Make sure picture can be shown normally when
connecting source to display devices directly.
4. Cable: Plug in and out HDMI cable or change another HDMI
cable. For 4K@30Hz or 1080P, HDMI cable should be less
than 10m, for 4K@60Hz, HDMI cable should be less than 3m.
Standard HDMI 2.0 cable is needed.
5. EDID: Because of the rotary switch for MIX EDID function,
there are multiple video and audio output status, please do as
the EDID Management section mentioned to make the
monitors work properly.
6. Compatibility: Please test other source and display devices
to determine whether it is a compatibility issue.
Typical question
How to deal with video flash or cut off during the installation?
•Verify that all the indicators are solid on. If not, please check if
the power adapter or HDMI cables are well connected.
•Verify that the display devices work properly and that the
source device has normal signals output.
!8

Specification
Technical
Input/Output Signal Type
HDMI with HDCP 2.2
Input/Output Resolution
Supported
SMPTE: !
1280x720P1,2,3,4,5,6,7,8, 1920x1080I6,8,
1920x1080P1,2,3,4,5,6,7,8,!
3840x21602,3,5,6,8, 4096x21602,3,5,6,8; !
!
VESA: !
800x6008, 1024x7688, 1280x7688,
1280x8008, 1280x9608, 1280x10248,
1360x7688, 1366x7688, 1400x10508,
1440x9008, 1600x9008, 1600x12008,
1680x10508, 1920x12008, !
!
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at
25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz,
6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at
60 Hz;
Maximum Data Rate
18 Gpbs
Maximum Pixel Clock
600 MHz
General
Power Supply
DC 12 V 1 A
Power Consumption
4 W (Max.)
Operating Temperature
+32°F to +113°F (0°C to +45°C)
10% to 90%, non-condensing
Storage Temperature
-4°F to +158°F (-20°C to +70°C)
10% to 90%, non-condensing
ESD Protection
Human Body Model:
±8 kV (air-gap discharge)/
±4 kV (contact discharge)
!9

Limited Warranty
1. Limited Warranty
a. General
Subject to the terms and conditions of this Limited Warranty, from
the date of sale through the period of time for product categories
specified in Section 1(b), ADI warrants its W Box Technologies
products to be free from defects in materials and workmanship
under normal use and service, normal wear and tear excepted.
Except as required by law, this Limited Warranty is only made to
Buyer and may not be transferred to any third party.
ADI shall have no obligation under this Limited Warranty or
otherwise if:
(i) The product is improperly installed, applied or maintained;
(ii) The product is installed outside of stated operating
parameters, altered, or improperly services or repaired;
(iii) Damage is caused by outside natural occurrences, such as
lightning, power surges, fire, floods, acts of nature, or the like.
(iv) Defects resulting from unauthorized modification, misuse,
vandalism, or other causes
(v) Unrelated to defective materials or workmanship, or failures
related to batteries of any type used in connection with the
products sold hereunder.
ADI only warrants those products branded as W Box Technologies
products and sold by ADI. Any other products branded by third
parties are warranted by the third party manufacturer for a period
as defined by the third party manufacturer, and ADI assigns to
Dimensions
6.6" x 2.75" x 0.71"
(167 mm x 69.7 mm x 18 mm)
Weight
0.66b/0.30kg
Certification
CE, FCC, RoHS
!10

Buyer those warranties and only those warranties extended by
such third party manufacturers or vendors for non-ADI branded
products. ADI does not itself warrant any non-ADI branded
product and sells only on an as is basis in accordance with ADI’s
terms and conditions of sale.
b. Specific Warranties for product categories are as follows:
Product Categories
Warranty Period
Soundbars
12 months
Walk Through Metal Detectors
12 months
Intrusion Wireless Communication
Accessories
12 months
Analog Cameras
24 months
HD TVI Cameras and HD TVI DVR’s
24 months
Televisions
24 months
CCTV Power Supplies
24 months
In Ceiling Speakers
24 months
Amplifiers
24 months
Magnetic Locks
24 months
Request to Exit Devices
24 months
Surge Protection
24 months
UPS (uninterruptible power supplies)
24 months
Volume Controls
24 months
HDMI Distribution
24 months
Intrusion Audio Devices
30 months
Monitors
30 months
!11

2. EXCLUSION OF WARRANTIES, LIMITATION OF LIABILITY
THERE ARE NO WARRANTIES OR CONDITIONS, EXPRESS
Power and Relays
30 months
Hold-up Buttons
30 months
Video Baluns
30 months
DVR's, NVR's
60 months
IP Cameras
60 months
Racks
60 months
TV Mounts
60 months
PIR’s
60 months
Analog Cables
Limited Lifetime
B Connectors
Limited Lifetime
Bus Terminals
Limited Lifetime
Extension Cords
Limited Lifetime
HDMI Cables
Limited Lifetime
J a c k s , C o r d s a n d I n t r u s i o n
Communication Accessories
Limited Lifetime
Patch Cables
Limited Lifetime
Patch Panels
Limited Lifetime
Raceway Conduit
Limited Lifetime
Wire Ties
Limited Lifetime
Magnetic Contacts
Limited Lifetime
Product Categories
Warranty Period
!12

OR IMPLIED, OF MERCHANTABILITY, OR FITNESS FOR A
PARTICULAR PURPOSE OR OTHERWISE, WHICH EXTEND
BEYOND THE DESCRIPTION ON THE FACE HEREOF. TO THE
FULLEST EXTENT PERMITTED BY LAW, IN NO CASE SHALL
ADI BE LIABLE TO ANYONE FOR ANY (I) CONSEQUENTIAL,
INCIDENTAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES
ARISING OUT OF OR RELATING IN ANY WAY TO THE
PRODUCT AND.OR FOR BREACH OF THIS OR ANY OTHER
WARRANTY OR CONDITION, EXPRESS OR IMPLIED, OR
UPON ANY OTHER BASIS OF LIABILITY WHATSOEVER, EVEN
IF THE LOSS OR DAMAGE IS CAUSED BY ADI’S OWN
NEGLIGENCE OR FAULT AND EVEN IF ADI HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH LOSSES OR
DAMAGES. Any product description (whether in writing or made
orally by ADI or ADI’s agents), specifications, samples, models,
bulletin, drawings, diagrams, engineering sheets, or similar
materials used in connection with the Buyer’s order are for the
sole purpose of identifying ADI’s products and shall not be
construed as an express warranty or condition. Any suggestions
by ADI or ADI’s agents regarding use, applications or suitability of
the products shall not be construed as an express warranty or
condition unless confirmed to be such in writing by ADI. ADI does
not represent that the products it sells may not be compromised or
circumvented; that the products will prevent any personal injury or
property loss by burglary, robbery, fire or otherwise, or that the
products will in all cases provide adequate warning or protection.
Buyer understands and will cause its customer to understand that
a properly installed and maintained product is not insurance or
guarantee that such will not cause or lead to personal injury or
property loss. CONSEQUENTLY ADI SHALL HAVE NO LIABILITY
FOR ANY PERSONAL INJURY, PROPERTY DAMAGE OR
OTHER LOSS BASED ON ANY CLAIM AT ALL INCLUDING A
CLAIM THAT THE PRODUCT FAILED TO GIVE WARNING.
However, if ADI is held liable whether directly or indirectly for any
loss or damage with respect to the products it sells, regardless of
cause or origin, its maximum liability shall not in any case exceed
the purchase price of the product, which shall be fixed as
!13

liquidated damages and not as a penalty and shall be the
complete and exclusive remedy against ADI.
!14

3. Limitation on Liability to Buyer’s Customers.
Buyer agrees to limit liability to its customers to the fullest extent
permitted by law. Buyer acknowledges that ADI shall only be
deemed to give consumers of its products such statutory
warranties as may be required by law and at no time shall Buyer
represent to its customers and/or users of ADI products that ADI
provides any additional warranties. By accepting the products, to
the fullest extent permitted by law, Buyer assumes all liability for,
and agrees to indemnity and hold ADI harmless against and
defend ADI from, any and all suits, claims, demands, causes of
action and judgments relating to damages, whether for personal
injury or to personal property, suffered by any person, firm,
corporation or business association, including but not limited to,
Buyer’s customers and/or users of the products because of any
failure of the products to detect and/or warn of the danger for
which the goods were designed or any other failure of the
products whether or not such damages are caused or contributed
to by the sold or joint concurring negligence or fault of ADI.
4. Returns
Subject to the terms and conditions listed below, during the
applicable warranty period, ADI will replace Product or provide a
credit at purchase at its sole option free of charge any defective
products returned prepaid. Any obligations of ADI to replace
Limited Lifetime warranty products pursuant to this warranty which
result from defect are limited to the availability of replacement
product. ADI reserves the right to replace any such products with
the then currently available products, or provide a credit in its sole
discretion. In the event Buyer has a problem with any ADI product,
please call your local ADI branch for return instructions:
For US call 1-800-233-6261
For Canada call 877-234-7378
!15

For Puerto Rico call 787-793-8830
Be sure to have the model number and the nature of the problem
available. In the event of replacement, the return product will be
credited to Buyer’s account and a new invoice issued for the
replacement item. ADI reserves the right to issue a credit only in
lieu of replacement.
If any W Box Technologies product is found to be in good working
order or such product’s inability to function properly is a result of
user damage or abuse, the product will be returned to Buyer in the
same condition as received and Buyer shall be responsible for any
return freight changes.
5. Governing Law
The laws of State of New York apply to this Limited Warranty.
6. Miscellaneous
Where any term of this Limited Warranty is prohibited by such
laws, it shall be null and void, but the remainder of the Limited
Warranty shall remain in full force and effect.
!16
