Signature Kitchen Suite SKSCF1801P User manual

Order Number
: GETEC-C1-17-385
FCC Part 18
Test Report Number
: GETEC-E3-17-042
Page 1 / 1
EUT Type: Refrigerator
FCC ID.: BEJE09MFE07
APPENDIX H
: USER’S MANUAL

ENGLISH FRANÇAIS ESPAÑOL
www.thesignaturekitchen.com
Copyright © 2017 Signature Kitchen Suite. All Rights Reserved.
MFL_Rev.00
ENGLISH FRANÇAIS ESPAÑOL
OWNER’S MANUAL
Built-in Freezer
Read this owner's manual thoroughly before operating the appliance
and keep it handy for reference at all times.
SKSCF1801P

2
TABLE OF CONTENTS
3 PRODUCT FEATURES
4 SAFETY INSTRUCTIONS
4 IMPORTANT SAFETY INSTRUCTIONS
8 PRODUCT SPECIFICATIONS
9 PRODUCT OVERVIEW
9 Exterior
10 Interior
11 OPERATION
11 Before Use
12 Control Panel
14 Ice Compartment
14 Automatic Icemaker
14 Storing Food

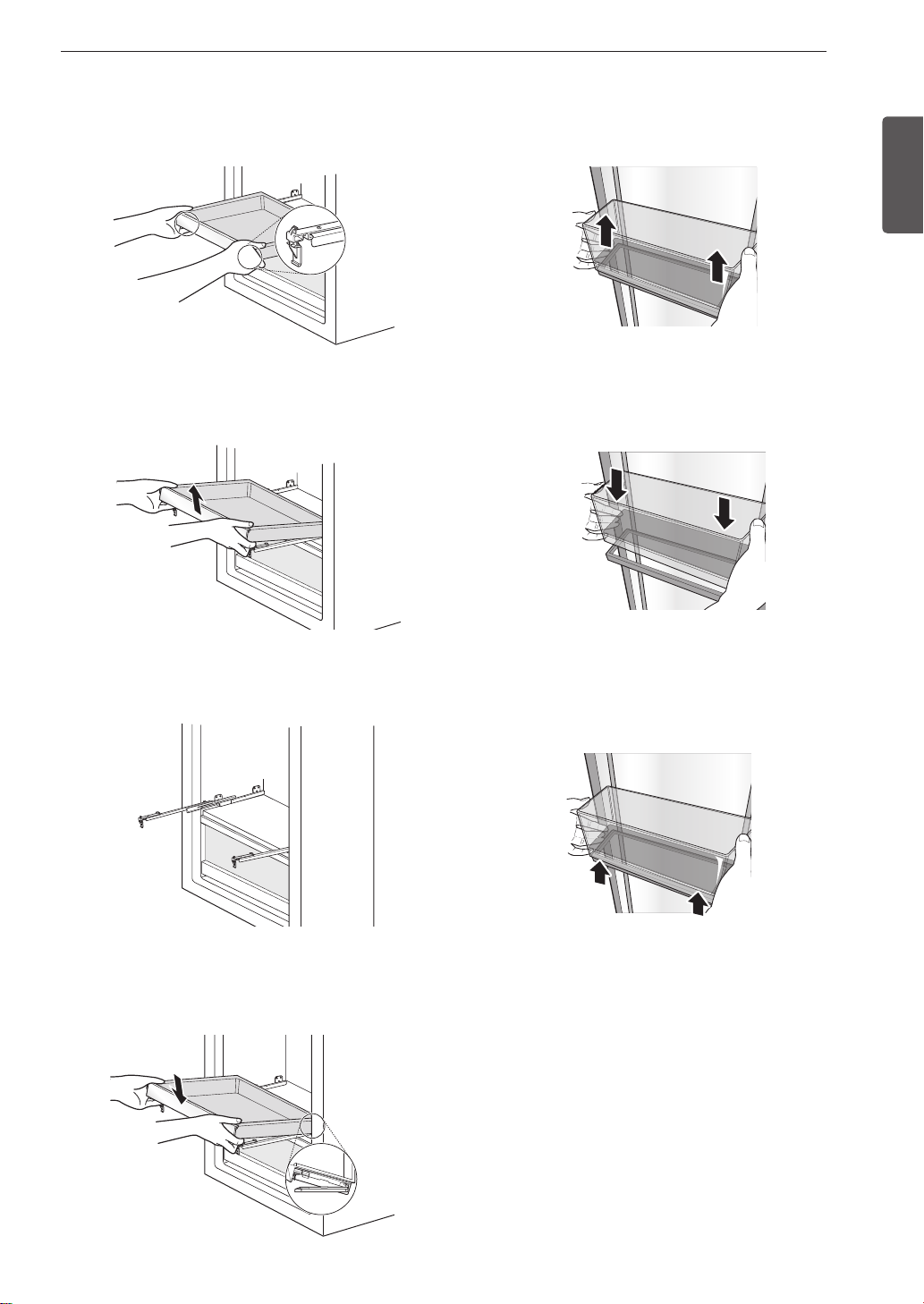

18 Adjusting the Refrigerator Shelves
19 SMART FUNCTIONS
19 SIGNATURE KITCHEN SUITE Application
21 Smart Grid Function
22 Smart Diagnosis™ Function
25 MAINTENANCE
25 Cleaning
26 Replacing the Water Filter
31 TROUBLESHOOTING
31 FAQs: Frequently Asked Questions
32 Before Calling for Service
40 WARRANTY (USA)

3PRODUCT FEATURES
ENGLISH
PRODUCT FEATURES
Depending on the model, some of the following functions may not be available.
FILTERED WATER
The water dispenser dispenses fresh, chilled water.
DOOR ALARM
The Door Alarm function is designed to prevent refrigerator malfunctioning that could occur if a refrigerator door
or freezer drawer remains open. If a refrigerator door or freezer drawer is left open for more than 60 seconds, a
warning alarm sounds at 30-second intervals.
ICE PLUS
Ice production is increased when the freezer section is maintained at the coldest temperature for a 24-hour
period.

4SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
follow all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or injure you and others.
All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION.
These words mean:
WARNING
You may be killed or seriously injured if you do not follow instructions.
CAUTION
You may be injured or cause damage to the product if you do not follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and
tell you what may happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of explosion, re, death, electric shock, scalding or injury
to persons when using this product, follow basic precautions, including the
following:
California Proposition 65
•This product contains chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling. (USA only)

5SAFETY INSTRUCTIONS
ENGLISH
•OPERATION
•This product is not to be used for special purposes such as the storage of medicine or test materials or for
use on ships, etc.
•DO NOT allow children to climb, stand, or hang on the refrigerator doors or on the shelves in the
refrigerator. They could damage the refrigerator and seriously injure themselves.
•Do not allow children to climb into the refrigerator. They could be trapped and suffocated.
•Children should be supervised to ensure that they do not play with the refrigerator.
•Keep ngers out of pinch point areas; clearances between the doors and cabinets are necessarily small. Be
careful closing doors when children are nearby.
•Do not touch frozen food or the metal parts in the freezer compartment with wet or damp hands. Doing so
may cause frostbite.
•Do not refreeze frozen food that has thawed completely. Doing so may result in a serious health hazard.
•Do not use an adapter plug or plug the power plug into a multi-outlet extension cord.
•Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector
end. Immediately have all power cords that have become frayed or otherwise damaged repaired or replaced
by qualied service personnel.
•Do not operate the refrigerator or touch the power cord with wet hands.
•Do not modify or extend the power cord.
•Do not use an uncertied power outlet. Do not plug appliance into a damaged wall outlet.
•Do not put hands, feet or other objects into the air vents or bottom of the refrigerator. Doing so could result
in personal injury or electric shock.
•In the event of a gas leak (propane/LPG), ensure the area is adequately ventilated and contact an
authorized service center before resuming use. Do not touch the refrigerator or power cord of the
refrigerator.
•Disconnect the power cord immediately and contact an authorized service center if there is a strange noise,
odor, or smoke coming from the appliance.
•Do not use any fuse (such as copper, steel wire, etc.) other than a standard fuse.
•Do not place or use an electrical appliance inside the refrigerator, unless it is of a type recommended by the
manufacturer.
•Do not put animals inside the appliance.
•Do not place heavy or fragile objects, liquid lled containers, combustible substances, or ammable objects
(such as candles and lamps) on the appliance.
•Avoid contact with any moving parts of the ejector mechanism or with the heater that releases the ice
cubes. DO NOT place ngers in the automatic icemaker when the refrigerator is plugged in.
•When dispensing ice from the dispenser, do not use a fragile container.

6SAFETY INSTRUCTIONS
•This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible for their safety.
•If connected to a circuit protected by fuses, use time delay fuse.
MAINTENANCE
•Do not use a hair dryer to dry the inside of the refrigerator.
•Do not light a candle to remove odors in the refrigerator.
•In the event of a refrigerant leak, move ammable objects away from the refrigerator. Ensure the area is
adequately ventilated and contact an authorized service center.
•Keep ammable materials and vapors, such as gasoline, away from the refrigerator.
•This appliance is intended to be used in household and similar applications such as staff kitchen areas
in shops, ofces and other working environments; farm houses and by clients in hotels, motels and other
residential type environments; bed and breakfast type environments; catering and similar non-retail
applications.
•Unplug the power plug before cleaning or repairing the refrigerator.
•The refrigerator and freezer compartment lights are interior LED lighting, and service should be performed
by a qualied technician.
•Unplug the power plug immediately in the event of a blackout or thunderstorm.
•Turn the power off if water or dust penetrates into the refrigerator. Call a service agent.
•Do not store glass containers or soda in the freezer compartment. Contents may expand when frozen,
break the container and cause injury.
•Do not store, disassemble or repair the appliance yourself or allow unqualied personnel to do so.
•If the electrical supply cord is damaged, it must only be replaced by the manufacturer or its service agent or
a similar qualied person in order to avoid a hazard.
•Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.
•In case of LED, it should be replaced by service person.
DISPOSAL
•Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days. When
disposing of the refrigerator, remove the packing materials from the door or take off the doors but leave the
shelves in place so that children may not easily climb inside.
•If disposing of a refrigerator, make sure the refrigerant is removed for proper disposal by a qualied servicer.
If you release the refrigerant, you may be ned or imprisoned in accordance with the relevant environmental
law.
GROUNDING INSTRUCTIONS
•Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with
a qualied electrician or service personnel if you are in doubt whether the appliance is properly grounded.
Do not modify the plug provided with the appliance; if it will not t the outlet, have a proper outlet installed by
a qualied electrician.
•Have a certied electrician check the wall outlet and wiring for proper grounding.
•Never unplug the appliance by pulling on the power cord. Always grip the plug rmly and pull straight out
from the outlet. Failure to do so may damage the power cord, resulting in a risk of re and electric shock.

7SAFETY INSTRUCTIONS
ENGLISH
CAUTION
To reduce the risk of minor or moderate injury to persons, malfunction, or damage
to the product or property when using this product, follow basic precautions,
including the following:
INSTALLATION
•Do not install the refrigerator where there may be a danger of the unit falling.
•The refrigerator must be properly installed in accordance with the Installation Instructions.
OPERATION
•Do not use aerosols near the refrigerator.
•This appliance is intended to be used only in domestic and similar applications.
•Do not strike or apply excessive force to any glass surface. Do not touch glass surfaces if they are cracked
or broken.
•Do not overll or pack items too tightly into door bins. Doing so may cause damage to the bin or personal
injury if items are removed with excessive force.
•Do not overll the appliance with food. Doing so may cause personal injury or property damage.
•Do not hang on to or place heavy objects on the refrigerator’s dispenser.
MAINTENANCE
•Do not use strong detergents like wax or thinners for cleaning. Clean with a soft cloth.
•Remove foreign objects (such as dust and water) off the prongs of the power plug and contact areas. Do
not use a wet or damp cloth when cleaning the plug.
•Do not spray water directly on the inside or outside of the refrigerator.
•Do not clean glass shelves or covers with warm water when they are cold. They may break if exposed to
sudden temperature changes.
SAVE THESE INSTRUCTIONS

8PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
The appearance and specications listed in this manual may vary due to constant product improvements.
Electrical requirements: 115 V, 60 Hz
Min. / Max. water pressure: 20 - 120 psi (138 - 827 kPa)
Model SKSCF1801P
Description Built-in, Freezer
Net weight 356lb (157kg)

9PRODUCT SPECIFICATIONS
ENGLISH
PRODUCT OVERVIEW
The images in this guide may be different from the actual components and accessories, which are subject to
change by the manufacturer without prior notice for product improvement purposes.

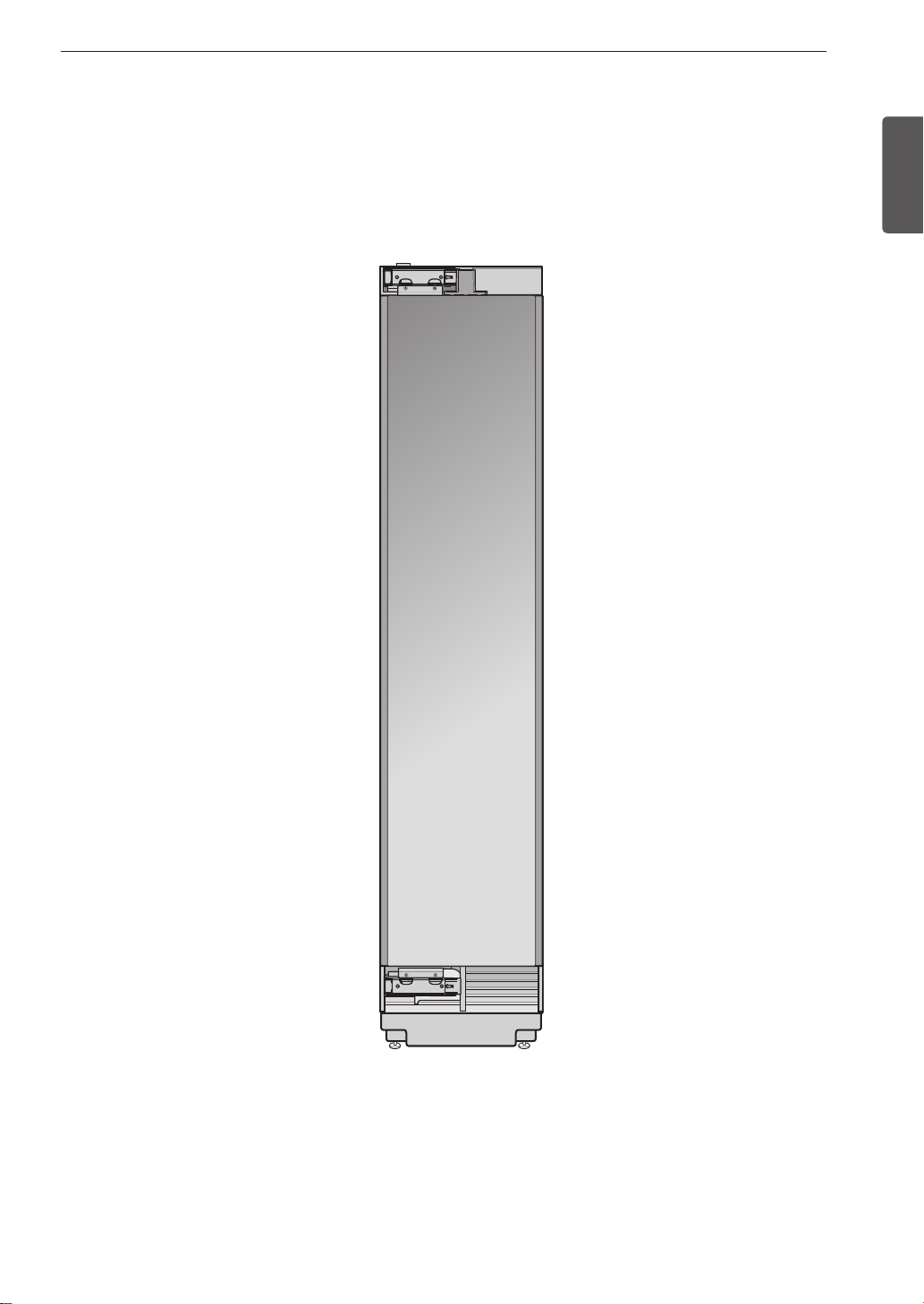

Exterior

10 PRODUCT SPECIFICATIONS
Interior
1
2
3
4
5
6
7
8
Water lter
Purify water.
NOTE
•The lter should be replaced every 6
months. See the Replacing the Water Filter
section in this manual for details.
Control Panel
Sets the refrigerator and freezer temperatures, the water
lter condition and the dispenser mode.
LED interior lamps
Light up the inside of the freezer.
Adjustable Freezer Shelf
The freezer shelves are adjustable to meet individual
storage needs.
Movable Door Bin
Store chilled food or drinks.
Ice Maker
Ice Storage
Drawer

11OPERATION
ENGLISH
OPERATION
Before Use
Clean the freezer.
Clean the freezer thoroughly and wipe off all dust that accumulated during shipping.
Open freezer doors to ventilate the interior.
The inside of the freezer may smell like plastic at rst. Remove any adhesive tape from
inside the freezer and open the freezer doors for ventilation.
Connect the power supply.
Check if the power supply is connected before use.
Turn off the icemaker
Turn off the icemaker if the freezer is not yet connected to the water supply.
NOTE
• The icemaker water valve may buzz if the icemaker is turned on while the freezer is not
connected to the water supply.
Wait for the freezer to cool.
Allow the freezer to run for at least two to three hours before putting food in it. Check the
ow of cold air in the freezer to ensure proper cooling.
The freezer makes a loud noise after initial operation.
This is normal. The volume will decrease as the temperature decreases.
CAUTION
•Do not scratch the freezer with a sharp object or use a detergent that contains
alcohol, a ammable liquid or an abrasive when removing any tape or adhesive from
the refrigerator. Remove adhesive residue by wiping it off with your thumb or dish
detergent.
•Do not peel off the model or serial number label or the technical information on the rear
surface of the refrigerator.
CAUTION
•Putting food in the freezer before it has cooled could cause the food to spoil, or a bad
odor to remain inside the freezer.

12 OPERATION
Control Panel
Depending on the model, some of the following functions may not be available.
Control Panel Features
* POWER
1
2
3
5
6
7
4
NOTE
•When the refrigerator is in the Power Saving Mode, the display remains off until a door is opened or a button is
pressed. Once on, the display remains on for 20 seconds.
1
Water Filter
Replace the water lter when the Replace Filter
icon turns on. After replacing the water lter,
press and hold the Water Filter button for three
seconds to turn the icon light off. Replace the
water lter approximately every six months.
2
Ice Plus
This function increases both ice making and
freezing capabilities.
• Press the Ice Plus button to illuminate the icon
and activate the function for 24 hours.
The function automatically shuts off after 24
hours.
• Stop the function manually by pressing the but-
ton once more.
3
* Ice On/Off
Press the Ice On/Off button for three seconds to
turn the icemaker on/off.
4
Freezer Temperature
Indicates the set temperature of the freezer com-
partment in Celsius (°C) or Fahrenheit (°F).
The default freezer temperature is 0°F (-18 °C).
Press the Freezer button repeatedly to select a
new set temperature from -6 °F to 8 °F (-21 °C to
-13 °C).
5
Smart Grid
Press the Smart Grid button to turn the Smart
Grid function On/Off. When the function is on,
the icon illuminates. The Smart Grid function
automatically turns on when the refrigerator is
connected to the Wi-Fi network.
When the refrigerator is responding to a De-
mand Response (DR) message from the electric
company,
the Grid text illuminates.
6
* Wi-Fi
The Wi-Fi button, when used with the LG Smart
Refrigerator smart phone app, allows the refrig-
erator to connect to a home Wi-Fi network.
Refer to Smart Function for information on the
initial setup of the application.
The Wi-Fi icon shows the status of the refrigera-
tor’s network connection. The icon illuminates
when the refrigerator is connected to the Wi-Fi
network.
Press and hold the Wi-Fi button for 3 seconds to
connect to the network. The icon blinks while
the connection is being made, then turns on once
the connection is successfully made.
7
* Power
The Power button turns off all electrical power to the
unit.
Press and hold the Power button for 3 seconds to
turn off the power. When the power is off, the
indicator light is off. There is no need to turn off
power at the circuit breaker or wall receptacle. Use
this function for service or extended vacations.

13OPERATION
ENGLISH
CAUTION
Display Mode (For Store Use Only)
•The Display Mode disables all cooling in the
freezer sections to conserve energy while on
display in a retail store. When activated, OF is
displayed on the control panel and the display
remains on for 20 seconds.
To deactivate / activate:
•With either refrigerator door opened, press and
hold the Freezer and Water Filter reset buttons
at the same time for ve seconds. The control
panel beeps and the temperature settings
display to conrm that Display Mode is
deactivated. Use the same procedure to activate
Display Mode.
4
and
7
SABBATH
Sabbath mode is the function designated for use
of the freezer during Shabbath.
• To set the Sabbath mode on, Press and hold
the Freezer and Power buttons for 3 seconds.
Then Sb shows in the display.
• Sabbath mode will automatically turned off after
96 hours.
• To set the Sabbath mode off manually, and hold
the Freezer and Power buttons for 3 seconds.
• Sabbath mode maintains even when the elec-
tricity recovered from black-out.
• Lamp and Lamp and Alarm will automatically
turned off when activated.
• Temperature is Temperature is set to 0˚F.
(Unable to change temp while Sabbath Mode
on)
• Even outage happens when Sabbath function
is on, Sabbath function will still stay on when
power comes back.

14 OPERATION
Ice Compartment
Automatic Icemaker
Turning the Automatic Icemaker On
or Off
To turn off the automatic icemaker, press the ice On/
Off button on display for three seconds.
Normal Sounds You May Hear
• Keeping the power turned on to the icemaker
before the water line is connected can damage the
icemaker.
• The icemaker water valve buzzes as the icemaker
lls with water. If the Ice On/Off button is in the ON
mode, it will buzz even if it has not yet been hooked
up to water. To stop the buzzing, press the Ice On/
Off button to turn it off.
• You will hear the sound of cubes dropping into the
bin and water running in the pipes as the icemaker
rells.
Preparing for Vacation
Set the Ice On/Off button to OFF and shut off the
water supply to the refrigerator.
CAUTION
•Keep hands and tools out of the ice
compartment. Failure to do so may result in
damage or personal injury.
* POWER
NOTE
• The ice bin should be emptied any time the Ice On/
Off button is turned to the OFF mode.
If the ambient temperature will drop below freezing,
have a qualied technician drain the water supply
system to prevent serious property damage due
to ooding caused by ruptured water lines or
connections.
Storing Food
NOTE
• If you are leaving home for a short period, like a
short vacation, the refrigerator should be left on.
Refrigerated foods that are able to be frozen will
stay preserved longer if stored in the freezer.
• If you are leaving the refrigerator turned off for
an extended period, remove all food and unplug
the power cord. Clean the interior, and leave the
door open to prevent fungi from growing in the
refrigerator.
• Do not store food with high moisture content
towards the top of the refrigerator. The moisture
could come in direct contact with the cold air and
freeze.
• Wash food before storing it in the refrigerator.
Vegetables should be washed, and food packaging
should be wiped down to prevent adjacent foods
from being contaminated.
• If the refrigerator is kept in a hot and humid
place, frequent opening of the door or storing a
lot of vegetables in the refrigerator may cause
condensation to form. Wipe off the condensation
with a clean cloth or a paper towel.
• If the refrigerator door or freezer drawer is opened
or closed too often, warm air may penetrate the
refrigerator and raise its temperature. This can
increase the running costs of the unit.
CAUTION
•Do not overll or pack items too tightly into door
bins. Doing so may cause damage to the bin
or personal injury if items are removed with
excessive force.
•Do not store glass containers in the freezer.
Contents may expand when frozen, break the
container and cause injury.

15OPERATION
ENGLISH
Food Storage Tips
Wrap or store food in the refrigerator in airtight and
moisture-proof material unless otherwise noted. This
prevents food odor and taste transfer throughout the
refrigerator. For dated products, check date code to
ensure freshness.
Food How to
Butter or
Margarine
Keep opened butter in covered dish or
closed compartment. When storing an
extra supply, wrap in freezer packaging
and freeze.
Cheese
Store in original wrapping until used.
Once opened, rewrap tightly in plastic
wrap or aluminum foil.
Milk Wipe milk cartons. For coldest milk,
place containers on an interior shelf.
Eggs Store in original carton on interior shelf,
not on door shelf.
Fruit
Do not wash or hull fruit until it is ready
to be used. Sort and keep fruit in
original container in a crisper, or store
in completely closed paper bag on
refrigerator shelf.
Leafy
Vegetables
Remove store wrapping, trim or tear off
bruised and discolored areas, wash in
cold water, and drain. Place in plastic
bag or plastic container and store in
crisper.
Vegetables
with skins
(carrots,
peppers)
Place in plastic bags or plastic container
and store in crisper.
Fish
Freeze fresh sh and shellsh if they
are not being eaten the same day
purchased. Eating fresh sh and
shellsh the same day purchased is
recommended.
Leftovers
Cover leftovers with plastic wrap
or aluminum foil, or store in plastic
containers with tight lids.
Storing Frozen Food
Check a freezer guide or a reliable cookbook for
further information about preparing food for freezing
or food storage times.
Freezing
Your freezer will not quick-freeze a large quantity of
food. Do not put more unfrozen food into the freezer
than will freeze within 24 hours (no more than 2 to 3
pounds of food per cubic foot of freezer space).
Leave enough space in the freezer for air to circulate
around packages. Be careful to leave enough room
at the front so the door can close tightly.
Storage times will vary according to the quality and
type of food, the type of packaging or wrap used
(how airtight and moisture-proof) and the storage
temperature. Ice crystals inside a sealed package are
normal. This simply means that moisture in the food
and air inside the package have condensed, creating
ice crystals.
NOTE
• Allow hot foods to cool at room temperature for 30
minutes, and then package and freeze. Cooling hot
foods before freezing saves energy.
Packaging
Successful freezing depends on correct packaging.
When you close and seal the package, it must not
allow air or moisture in or out. If it does, you could
have food odor and taste transfer throughout the
refrigerator and could also dry out frozen food.
Packaging recommendations
• Rigid plastic containers with tight-tting lids
• Straight-sided canning/freezing jars
• Heavy-duty aluminum foil
• Plastic-coated paper
• Non-permeable plastic wraps
• Specied freezer-grade self-sealing plastic bags
Follow package or container instructions for proper
freezing methods.
Do not use
• Bread wrappers
• Non-polyethylene plastic containers
• Containers without tight lids
• Wax paper or wax-coated freezer wrap
• Thin, semi-permeable wrap

16 OPERATION
2Lift the empty drawer slightly to remove it from the
support.
Ice Storage Drawer & Freezer
Drawers
Use the upper compartment to store packaged frozen
foods and frequently-used foods.
Use the lower compartments for larger frozen foods
and items stored for longer periods.
• The sliding drawers allow easy access and
convenience of use.
Removing the Drawers
1Pull the drawer out until it stops. Empty all
contents out of the drawer before removing it.
Assembling the Drawer
1Pull out the drawer support until it stops.
Angle the drawer into the space and set it on the
support.
2Keeping both levers pressed, lift the drawer
support slightly and remove it from the rail system.
CAUTION
•The drawers are heavy. Always use two hands
when removing or assembling the drawers to
avoid product damage or personal injury. Always
empty drawers before removing them.
•Always open the doors completely before
removing or assembling the drawers.
CAUTION
•The drawers are heavy. Always use two hands
when removing or assembling the drawers to
avoid product damage or personal injury. Always
empty drawers before removing or assembling
them.
•Always open the freezer doors completely before
removing or assembling the drawers.

17OPERATION
ENGLISH
Removing the Drawer Support
1Press the levers on either side of the drawer
support.
2Keeping both levers pressed, lift the drawer
support slightly and remove it from the rail system.
Assembling the Drawer Support
1Pull both drawer rails out until they stop.
2Line up the bottom edges on the sides of the
drawer support with the groove in each rail and
then lower the support until it clicks into place.
Door Bins
To remove the door bins, hold the bin with both hands
and lift up to remove it.
To replace the freezer door bin, align both sides of
the bin with the guides and push the bin down until it
snaps into place.
To adjust the location of bin,
tilt the bin up at the front and sliding it up or down
along the door to the placement you desire.

18 OPERATION
Adjusting the Refrigerator
Shelves
The shelves in the refrigerator are adjustable to meet
individual storage needs. Your model may have full or
split shelves.
Adjusting the shelves to t items of different heights
will make nding the exact item you want easier.
Detaching the Shelf
1Tilt up the front of the shelf and then lift the shelf
straight up.
2Pull the shelf out.
Assembling the Shelf
1Tilt the front of the shelf up and guide the shelf
hooks into the slots at a desired height.
2Lower the front of the shelf so that the hooks drop
into the slots.
CAUTION
•Make sure that shelves are level from one side
to the other. Failure to do so may result in the
shelf falling or spilled food.
•Do not clean glass shelves with warm water
while they are cold. Shelves may break if
exposed to sudden temperature changes or
impact.
•Glass shelves are heavy. Use special care when
removing them.

19SMART FUNCTIONS
ENGLISH
SMART FUNCTIONS
SIGNATURE KITCHEN SUITE
Application
The SIGNATURE KITCHEN SUITE application allows
you to communicate with the appliance using a
smartphone.
Things to Check before Using
SIGNATURE KITCHEN SUITE
Application
1Check the distance between the appliance and
the wireless router (Wi-Fi network).
•If the distance between the appliance and the
wireless router is too far, the signal strength
becomes weak. It may take a long time to register
or installation may fail.
2Turn off the Mobile data or Cellular Data on your
smartphone.
•For iPhones, turn data off by going to Settings
→Cellular → Cellular Data.
3Connect your smartphone to the wireless router.
NOTE
• To verify the Wi-Fi connection, check that Wi-Fi
icon on the control panel is lit.
• The appliance supports 2.4 GHz Wi-Fi networks
only. To check your network frequency, contact your
Internet service provider or refer to your wireless
router manual.
• LG SmartThinQ is not responsible for any network
connection problems or any faults, malfunctions, or
errors caused by network connection.
• The surrounding wireless environment can make
the wireless network service run slowly.
• If the appliance is having trouble connecting to the
Wi-Fi network, it may be too far from the router.
Purchase a Wi-Fi repeater (range extender) to
improve the Wi-Fi signal strength.
• The network connection may not work properly
depending on the Internet service provider.
• The Wi-Fi connection may not connect or may
be interrupted because of the home network
environment.
• The appliance cannot be registered due to problems
with the wireless signal transmission. Unplug the
appliance and wait about a minute before trying
again.
• If the rewall on your wireless router is enabled,
disable the rewall or add an exception to it.
• The wireless network name (SSID) should be a
combination of English letters and numbers. (Do not
use special characters.)
• Smartphone user interface (UI) may vary
dependingon the mobile operating system (OS) and
themanufacturer.
• If the security protocol of the router is set to WEP,
you may fail to set up the network. Please change it
to other security protocols (WPA2 is recommended)
and register the product again.
