Thank you for your choosing our product. We hope you will find the instructions in this user
manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to use
all the features of your new unit for maximum enjoyment.
After you have finished reading the instructions, please keep this manual in a safe place for
future reference.
Contents
Preparation
Features
Tools and Supplies
WARNINGS
Disconnecting the Battery
Controls and Indicators
Button Operation
The Key Areas Of Touch Screen
Remote Control
Front Zone Remote Control
Rear-Zone Remote Control
TFT Monitor Operation
Disc Insertion/Ejection
Rear Camera Mode
Image Settings
Parking Brake Inhibit
Operating Instructions
Power On / Off
Playing Source Selection
Volume Adjustment
Audio Control Menu
Six-Channel Audio Control
Rear Zone
System Reset
Mute
Standby
System Setup Menu

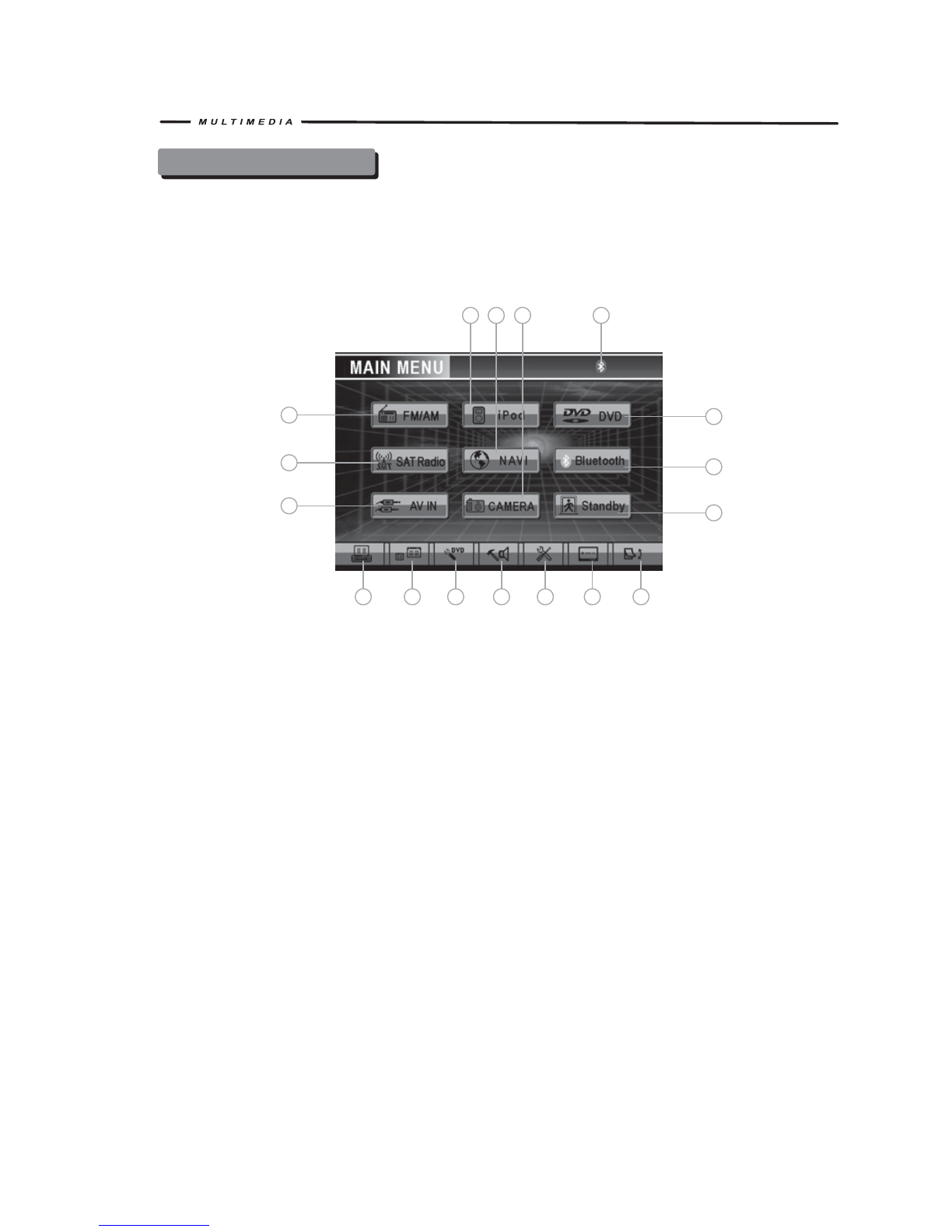

MAIN Menu

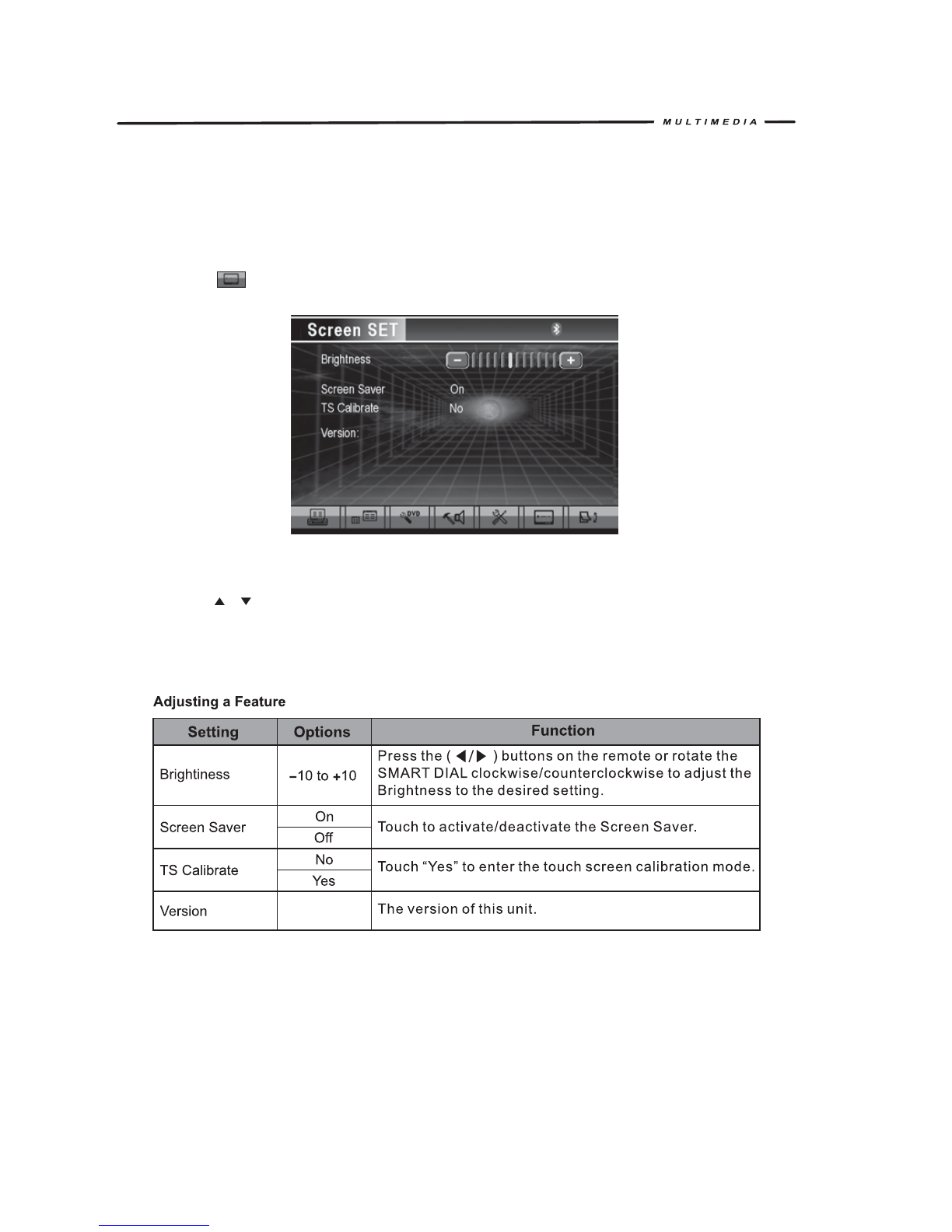

Screen Setting
General Setup Menu
ASP(Audio Signal Processing) Configuration Menu
Multi-Zone Operation
Tuner Operation
Tuner TFT Display
Switch to Radio Tuner Source
Select FM/AM Band
Auto Tuning
Manual Tuning
1
1
1
1
2
3
3
4
5
5
6
8
8
8
8
9
10
10
10
10
10
11
12
12
12
12
13
13
14
14
16
18
20
20
20
21
21
21

Using Preset Stations
Auto Store (AS)
Program Scan (PS)
Local Radio Stations Seeking (LOC)
DVD Player Operation
Insert/Eject Disc
Reset the Loading Mechanism
Accessing DVD Mode
Using the Touch Screen Controls
Controlling Playback
Accessing the DVD Menu
Moving Through Chapters
Fast Forward/Fast Reverse
Selecting 2-Channel or 6-Channel Audio Playback
GOTO Search
Direct Chapter / Track Selection
Viewing an Alternate Picture Angle (DVD Only)
Zooming
Multi-Language Discs (DVD Only)
Playback Information
General Disc Information
DVD Setup Menu
Accessing the DVD Setup Screen
LANGUAGE Menu
AUDIO Menu
VIDEO Menu
SPEAKER Menu
SURROUND Menu
RATING (Parental Lock) Menu
CD/MP3/WMA/JPEG Operation
CD Player User Interface
MP3/WMA Discs
JPEG Discs
iPod Operation
Accessing iPod Mode
iPod Instructions
Playback of Video on iPod
Sat Radio Operation
Accessing SAT Radio Mode
Auto Scan
Manual Scan
Storing a Channel
Recalling a Channel
21
21
22
22
23
23
23
23
23
24
24
25
25
25
26
27
27
27
27
27
28
30
30
30
31
31
32
33
33
34
34
35
36
37
37
37
38
39
39
39
40
40
40

Bluetooth Operation
Before Using Bluetooth
The Bluetooth Indicator
Accessing Bluetooth Mode
Bluetooth User Interface
Phone Book
Bluetooth Setup
Pairing
Auto Connect
Making a Phone Call
Answering an Incoming Call
End a Call
Navigation Operation
Accessing Navigation
Navigation Operation
Listening to an Audio While Using Navigation
Troubleshooting
Specifications
Enclosed Accessories list
NOTE:
1. certain description in the book may differ from the actual unit.
2. Some pictures or icons in the book may differ from actual display.
3. Specifications subject to change without notice.
41
41
41
41
41
42
42
43
43
43
43
44
45
45
45
45
46
51
53

PREPARATION
Please read all of the instructions below before beginning your installation. We recommend that
you have your unit installed by an experienced mobile video/navigation installer.
Features
•For TOYOTA CAMRY, all-in-one integrated entertainment system
•Built-in DVD Player
•Built-in ISS FM/AM Tuner.
•Built-in Bluetooth hands-free dial/answer for connection to Bluetooth enabled handsets.
•High resolution 7”(16:9) TFT color monitor, contrast and brightness adjustment.
•Built-in 50W X 4 output amplifier, 5.1 channel surround sound output.
•Dual zone function with easy operation.
•Smart Touch-screen operation
•All functions can be operated by included Remote Controls
•Rear zone remote control operation
•Built-in Satellite Radio Control, Built-in iPod Control, Navigation Ready
•Powerful Graphic User Interface and software update ability.
Tools and Supplies
We suggest using these tools and supplies to install the unit.
• Torx type, flat-head and Philips screwdrivers
• Wire cutters and strippers
• Tools to remove existing radio (screwdriver, socket wrench set or other tools)
• Electrical tape
• Crimping tool
• Multimeter
• Crimp connections
• 18 gauge wire for power connections
• 16 – 18 gauge speaker wire
• Heatshrink tubing
• Soldering iron and solder
WARNINGS
1. Only connect the unit to a 12-volt negative ground system.
2. Never install this unit where operation and viewing could interfere with safe driving
conditions.
3. To reduce the risk of a traffic accident (except when using for rear view video camera) never
use the video display function while driving the vehicle. This may be in violation of local laws.
4. Never disassemble or adjust the unit without the assistance of a professional. For details,
please consult your local car stereo specialty shop.
5. To prevent injury from shock or fire, never expose this unit to moisture or water.
6. Never use irregular discs, the only recommended disc size is a 12cm round disc.
1

7. To prevent damage to the mechanism inside this unit, avoid impact to the TFT monitor.
8. Do not change the fuse on the power wire without professional guidance. Using an improper
fuse may cause damage to the unit and result in a fire.
9. The monitor employs an automatic motorized mechanism. To prevent damage to the core
mechanism, please do not push, pull or swivel the monitor manually.
Disconnecting the Battery
To prevent a short circuit, turn off the ignition and remove the negative (-) battery cable prior to
starting the installation.
NOTE: If the unit is to be installed in a car equipped with an on-board drive or navigation
computer, do not disconnect the battery cable. If the cable is disconnected, the computer
memory may be lost. Under these conditions, use extra caution during installation to avoid
causing a short circuit.
NOTE: It is especially important that you read the WARNINGS and NOTES in this manual
2

CONTROLS AND INDICATORS
Button Operation
3
4
11
5
2
1
9106
12
13
14
15
3
7
1.POWER OFF/VOL
Rotary encoder volume control;turn clockwise to increase volume,counter-clockwise to
decrease.
Press to power on when the machine is powered off.
Press and hold to power off.
2.MUTE
Press Mute or restore the volume.
3.PLAY/PAUSE
Press once for play/pause.
4.FM/AM
Press to switch between FM1,FM2,FM3,AM
5.SRC
Press to select a source.
Press and hold to toggle rear zone mode On/0ff.
6.RESET
7.REMOTE CONTROL SIGNAL RECEIVER
8.DISC INDICATOR LIGHT
It is white when there is no disc in the unit.
It is red when there is disc in the unit.
9.EJECT
10.Bluetooth microphone
11.SMART DIAL
Press the Smart Dial mode access system set-up.
Rotate clockwise/anticlockwise to select desired item and press once to access or confirm.
12.NAVIGATION SHORTCUT BUTTON
Press once for Enter/Exit NAVIGATION mode.
13.PREVIOUS
8

A — Return to MAIN MENU
B — Display playing information
C — Select previous chapter
D — Select next chapter
E — Display the on-screen controls, and different mode displays different menu.
F —On DVD/VCD mode, display the GOTO search menu on the screen directly.

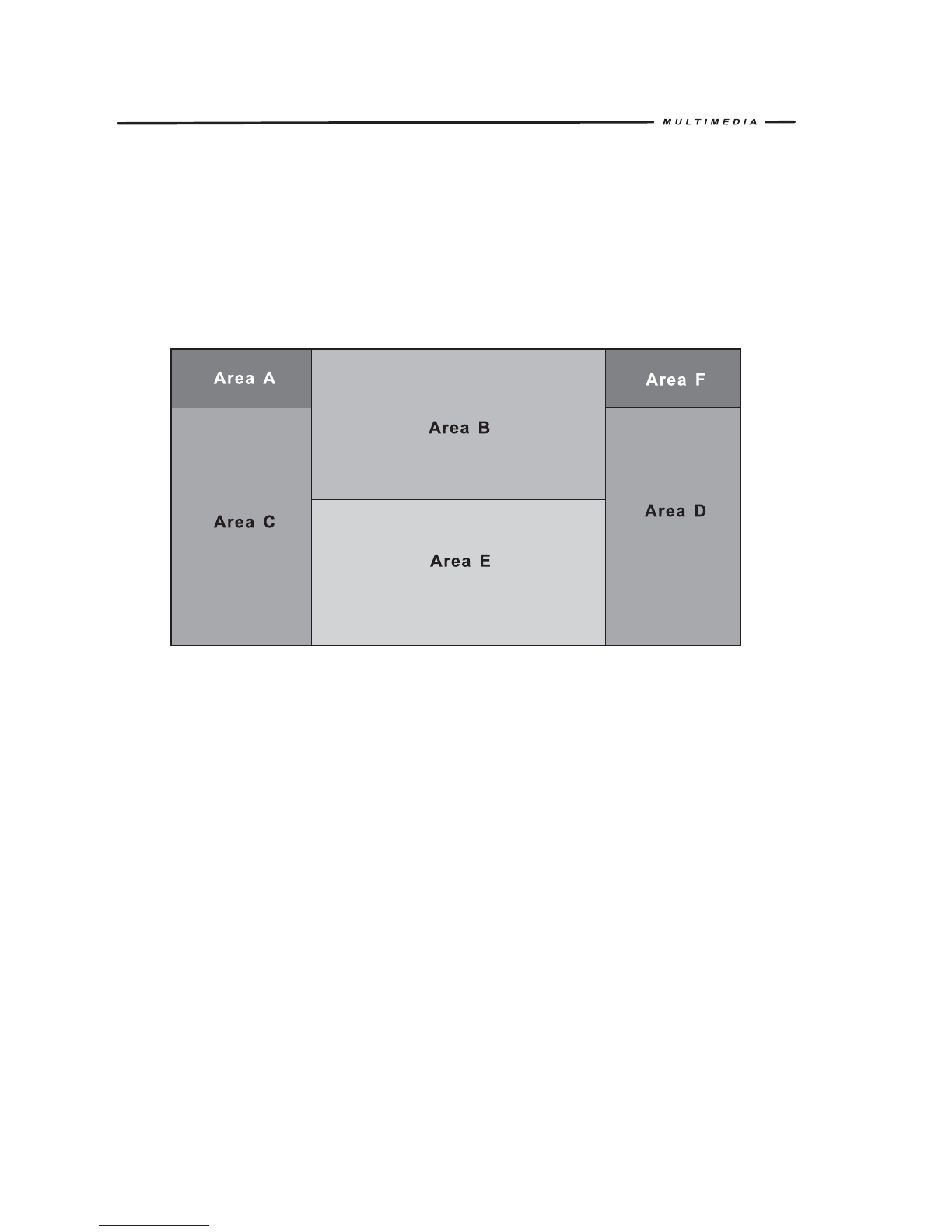

The Key Areas of Touch Screen
The touch key areas are outlined below, for DVD, VCD playback mode and so forth.
4
14.NEXT
15.INFO/PIC
Press to display playing information on the screen.
Press and hold to access the picture settings.

Select FM/AM band on Tuner mode
Stop playback
REMOTE CONTROL
Front Zone Remote Control
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
Power
Open
Mute
SRC
Numeric button
VOL up
VOL down
Information
GOTO search
Stop/Band
Select
ESC
Menu
Repeat A—B
OK
Direction buttons
Turn the power on/off
Eject Disc
Toggle on/off audio output
Select playing mode
Directly access certain chapter / track / preset
station in current band
Increase the volume
Decrease the volume
Display playing information
Position search function on VCD/DVD mode
Enter the audio settings
Exit the current menu
Enter the main menu of system
Adjust the parameter of TFT settings
Set start point A and end point B to repeat continually
Start or pause playback, confirm the settings
Up/down/left/right to select items for setting
5

Repeat
Next
Previous
Fast Reverse
Fast Forward
Audio
Zoom
Angle
SUB Title
Title
Root
Also can activate and disable SCAN mode while playing CD
Repeat playback for current chapter
Select the next chapter/track for playback
Search an available radio station by increasing tuning
frequency on tuner mode
Select the previous chapter/track for playback
Search an available radio station by decreasing tuning
frequency on tuner mode
Fast reverse the disc content
Fast forward the disc content
Change the audio language for disc playback
Zooming in/out on an image
Play in different angle for a scene scene(if it is applicable);
Change to iPod audio mode from iPod video mode while in
iPod mode
Language selection for subtitle;Change to iPod video
mode from iPod audio mode while in iPod mode
Turn on PBC while playing VCD
Enter the main menu of the disc

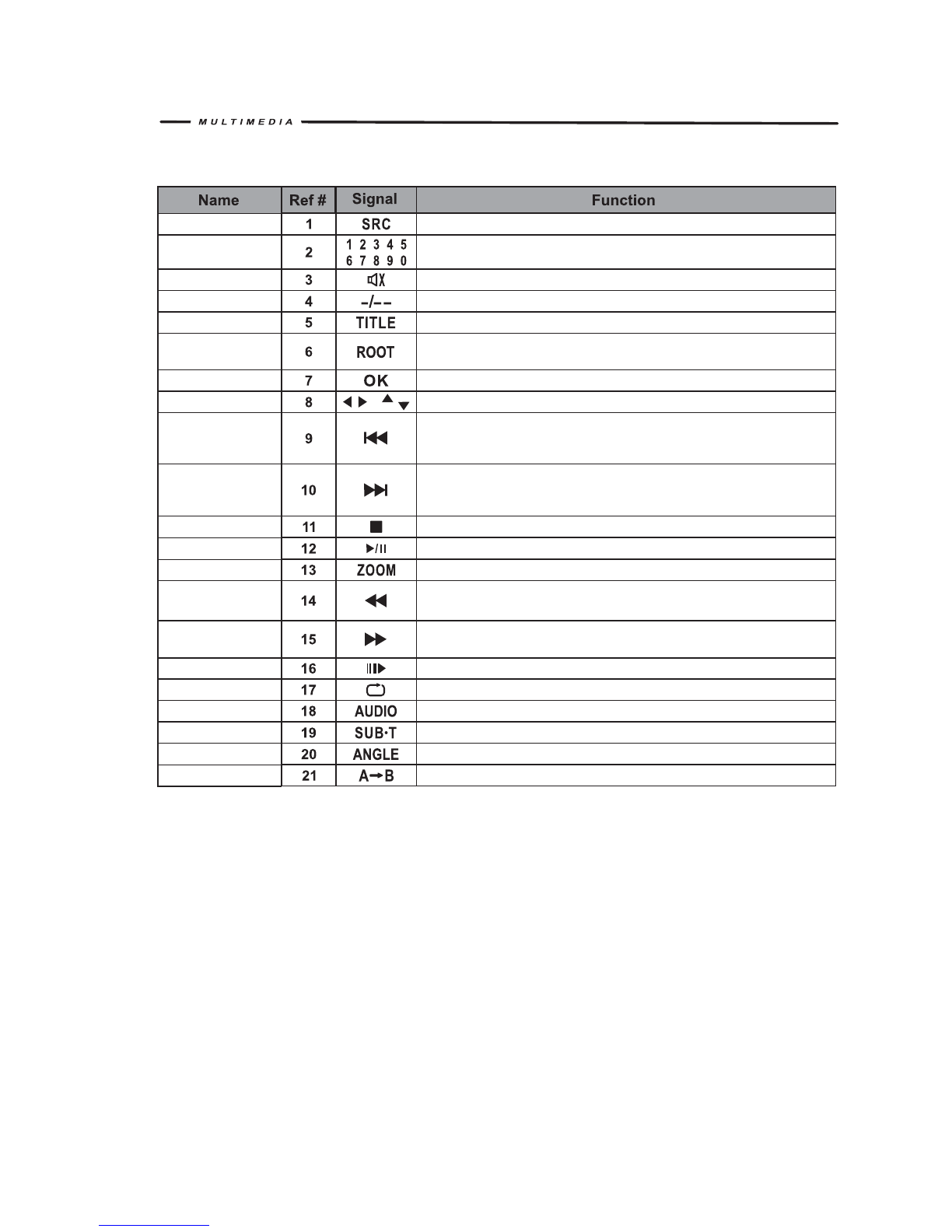

Rear-Zone Remote Control
1
3
4
6
8
10
13
16
17
20
21
2
5
9
7
11
15
14
19
18
12
6

Mute
R-SRC
Numeric button
GOTO search
OK
Direction buttons
Toggle on/off audio output
Directly access certain chapter / track / preset
station in current band
Position search function on VCD/DVD mode
Up/down/left/right to select items for setting
Title
Root
Also can activate and disable SCAN mode while playing CD
Turn on PBC while playing VCD
Enter the main menu of the disc
Previous
Select the previous chapter/track for playback
Search an available radio station by decreasing tuning
frequency on tuner mode
Next
Select the next chapter/track for playback
Search an available radio station by increasing tuning
frequency on tuner mode
Fast Reverse
Fast Forward
Fast reverse the disc content
Fast forward the disc content
Repeat Repeat playback for current chapter
Audio Change the audio language for disc playback
SUB Title Language selection for subtitle
Angle Play in different angle for a scene scene(if it is applicable)
Repeat A—B Set start point A and end point B to repeat continually
Stop
Play/pause
Zoom
Slower Play
Select rear playing sources
Start or pause playback, confirm settings
Stop playback
Start/pause playback
Zooming in/out on an image
Slow forward playback
7

TFT MONITOR OPERATION
Disc Insertion/Ejection
Press the ( ) button on the front zone remote control or press the ( ) button on the
front panel for disc insertion/ejection.
Rear Camera Mode
When the vehicle is placed in "Reverse", and an optional rear camera is connected to the unit,
the TFT monitor will automatically switch to the camera input source.
Image Settings
Video Output Format
The table below shows the video output format for each source.
Adjustable Parameters
While in RGB mode, the only parameter that can be adjusted is brightness (BRIGHT). To access
“SHARPNESS” “COLOR” “CONTRAST” “BRIGHTNESS” and “TINT ”you must be in CVBS
Mode.
Parameter Adjustment Procedure
1. Enter Picture Quality Setting mode:
Press the PIC button on the remote or press and hold the PIC button on the unit.
2. Select Item to Set:
Press the ( / ) buttons on the remote or press the SMART DIAL buttons on the front panel to
select an item.
3. Set Parameters:
Press the ( / ) buttons on the remote or rotate the SMART DIAL clockwise/counterclockwise
to adjust the selected feature to the desired setting.
4. Exit Picture Quality Setting Mode:
Press the PIC button on the remote or press and hold the PIC button on the unit.
NOTE: There must be a video signal present on the AUX or CAMERA input to adjust the above
Settings.
8
SAT RGB Mode

9
Parking Brake Inhibit
1. When the “PARKING” lead is properly connected to the brake switch, the display on the TFT
monitor will display video only when the vehicle is stopped and the parking brake is applied.
2. Parking brake function is overridden when the video source is set to CAMERA.
3. When the “parking brake inhibit” is active, the front monitor displays a caution message with a
blue background, preventing the driver from watching video while driving to reduce the risk of a
traffic accident. Rear video screens are not affected.
Please see “INSTALLATION SECTION” for installation.

OPERATION INSTRUCTIONS
Power On / Off
Press the POWER /VOL button to turn the unit on. You can also turn on the unit by pressing the
button ( ) on the remote.
Press and hold the POWER/VOL button on the front panel or press the POWER button ( )
on the remote to power off the unit.
Playing Source Selection
Press the SRC button on the front panel or the (SRC) button on the remote to change among
available playing sources: TUNER, Disc, iPod, SAT, AUX IN, CAMERA (rear view video camera)
and NAVI . The playing mode is displayed on the TFT display.
AUX IN Mode
An external audio/video device can be connected to this unit via RCA cables to the “AUX-IN”.
CAMERA Mode
“CAMERA” mode is only available when the camera is connected and when backing up. To
install a rear view video camera, connect the CAMERA video input cable to the rear view camera
output cable.
NOTE: If you have not connected a device to the unit, the source can not be selected. Example:
If you have not connected an iPod to the unit, the iPod source will not be available.
Volume Adjustment
To increase or decrease the volume level, turn the POWER/VOL on the front panel or press
the VOL+/ VOL- buttons on the remote control. The volume ranges from “0” to “40”.
Audio Control Menu
The Audio Control feature allows you to easily adjust your audio system to meet the acoustical
characteristics of your vehicle, which vary depending on the type of vehicle and its
measurements. To get the best possible sound quality from your new system, be sure to adjust
the settings for the speakers as well. Proper setting of the Fader and Balance boosts the effects
of the cabin equalizer.
Accessing the Audio Control Menu
Press the POWER/VOL button on the front panel or press the (SEL ) button on the remote
control to display the “Audio” menu.
Selecting an Audio Feature for Adjustment
Press the ( / ) buttons on the remote or press the POWER/VOL button on the front
panel once to select a audio feature to be adjusted.
Adjusting an Audio Feature
Press the ( / ) buttons on the remote or rotate the POWER/VOL
Clockwise/counterclockwise to adjust the selected feature to the desired setting.
10

11
Audio Adjustments
NOTE: The Bass and Treble levels are only adjustable when EQ is on “User” mode.
The Loudness function compensates for deficiencies in sound ranges at low levels. When the
Loudness function is on, LOUD is displayed on the screen.
Exiting the Audio Control Menu
Press and hold the POWER/VOL button on the front panel to exit the audio control menu, or
touch the return arrow on the top right of the display.
Press the (ESC) or (SEL) button on the remote control to exit the audio control menu.
Six-Channel Audio Control
Master Volume
Front Left Channel Volume
Front Right Channel Volume
Rear Left Channel Volume
Rear Right Channel Volume
Center Channel Volume
Subwoofer Volume
Item
00 to 40
-10 to +10
-10 to +10
-10 to +10
-10 to +10
-10 to +10
-10 to +10
6-Channel Audio Adjustments
Classical
-6 to +6
-6 to +6
-6 to +6
-6 to +6
-6 to +6
SW

Rear Zone
If a monitor is installed in the rear zone and connected to the rear zone AV output, passengers in
the back seat can control the DVD output using the rear zone remote control. See “Multi-Zone
Remote Control” for instructions.
System Reset
To correct a system halt or other unusual operation, use the tip of a pen to press the RESET
button located on the front bottom-right corner of the unit. After a system reset, the unit restores
the settings before last power off.
Mute
The volume will be muted when the following cases occur:
• Automatic: audio output mutes when a telephone call is received by the car phone or when
verbal navigation is performed.
• When the “MUTE” wire is connected to a cell phone that will output a mute signal to the “MUTE”
Wire.
• Manual: Press the MUTE button ( ) on the front panel or the MUTE button ( ) on the
remote to mute the volume from the unit.
NOTE: Press the MUTE button again to restore the volume.
Adjusting the volume or using any of the audio set-up features will cancel the mute function.
12
Standby
1. Tou ch the button on the touch-screen to access Standby mode directly.
2. In the standby mode, the LCD is off with audio output only.
3. In the standby mode, the screen will return to normal through any operation.

13
SYSTEM SETUP MENU
MAIN Menu
There are three methods to access the MAIN menu.
•Press the MENU button on the front panel .
•Press the MENU button on the remote control.
•Touch the Area A on the touch-screen.(See page 4)
1.Touch to access Front-Zone menu.
2.Touch to access Rear-Zone menu.
3.Touch to access DVD setup.
4.Touch to access ASP setup.
5.Touch to access General setup.
6.Touch to access Screen setup.
7.Touch to turn to the previous menu.
8.Bluetooth indicator.
9.Touch to access Tuner mode.
10.Touch to access SAT Radio mode.
11.Touch to access AUX IN mode.
12.Touch to access iPod mode.
13.Touch to access Navigation mode.
14.Touch to access Camera mode.
15.Touch to access DVD mode.
16.Touch to access Bluetooth mode.
17.Touch to access the Standby mode.
Note: Remote, Smart dial, touch screen operations and buttons on front panel are all useable to
select menu and adjust settings. The following instructions will show the different ways to
access menus and adjustments.
12 67
345
15
16
17
13 14
9
10
11
8
12

Selecting a Feature for Adjustment
Press the ( / ) buttons on the remote to select a feature to be adjusted.
Rotate SMART DIAL clockwise/anticlockwise to select a feature to be adjusted.
Touch directly the options on the screen to select a feature to be adjusted.
Adjusting a Feature
General setup Menu
Accessing the General Setup Menu
•Select the TOOLS button on the bottom of the touch screen to access the General setup.
Screen Setting
Accessing the Screen Setup Menu
•Press the MENU on the front panel or press the (MENU) button on the remote control to access
MAIN menu.
•Select the button on the right bottom of the screen to access the Screen setup.
14

15
Selecting a Feature for Adjustment
Press the direction buttons on the remote control or touch the option directly on the screen to
select the feature to be adjusted.
Adjusting a Feature
1. Enter the option field for the feature you want to adjust by pressing the (OK) button on the
remote or by pressing the SMART DIAL button. A submenu appears in a second row with the
selected option.
2. Select a new value by pressing the direction button.
3. Confirm your selection by pressing (OK) button or pressing the SMART DIAL button. The new
value setup is complete.
Adjusting the Clock
1. Access the “Clock” setting under the General Setup menu.
2. Press the direction button on the remote to move the cursor to the “Hour” or “Min” position,
and press the (OK) button. you also can touch the “Hour” or “Min” position directly.
3. The numeric keypad will pop up.
4. Press the numeric button on the remote control or touch the numeric keypad on the screen to
adjust the hour or minutes.
5. Press the (OK) button on the remote control or on the keypad of the screen to confirm setup.
Return to normal playback
The system will automatically return the previous playback mode that it was in before accessing
the setup menu 20 seconds after the last operation.

Select to activate/deactivate the Bluetooth function.Bluetooth
ASP(Audio Signal Processing) Configuration Menu
The ASP Configuration menu allows you to make fine audio adjustment.
Accessing the ASP Configuration Menu
•Press the MENU on the front panel or press the (MENU) button on the remote control to access
MAIN menu.
•Select the SPEAKER TOOLS button on the bottom of the screen to access the ASP setup.
•A menu appears with the option for the first item, and then you can touch the button to the
option on the next page, press the button to return.
16
