Sigtronics SE-40RPTT Series User manual

…when it counts!
Model SE-40RPTT
Headset Instructions
The SE-40RPTT series headset is adjusted at the factory for immediate use. The
headset is equipped with a single plug and a coiled cord.
The headband is adjustable through a full range of motion, and the locking nuts
may be tightened to allow you to custom fit the headphone. Place the head-
phone over your head and adjust the slides up until minimum pressure is felt on
the top of your head. For maximum noise attenuation, the clamping pressure of
the headband has been set at the factory. Releasing the clamping pressure by
bending the headband is not advised, because loss of attenuation will result.
The microphone boom is fully adjustable and will rotate 180 degrees for use on
the left or right side of the head.The locking screw that secures the boom to the
ear cup is factory set to insure the correct tension.Turning it will not change the
tension, because the nut on the inside of the cup will turn as well.
Microphone placement should be at the corner of the mouth, approximately
¼” from the lips. The exclusive thumb screw on the mic boom may be used to
assure proper placement.
Your SE-40RPTT headset has a push to transmit switch located on the mic side ear
cup.When the headset is connected to a radio, depressing this switch will cause
the radio to transmit.The switch is not used for intercom function.
When you first connect the headset, turn the volume control on the headset up
to the full clockwise position, then adjust the listening volume with the audio
control of either your radio or intercom as appropriate. If applicable, crew mem-
bers should also turn their individual headset volumes up fully. Doing this allows
for a full range of adjustment for each passenger, since those with the most acute
hearing can turn their headset volume down, if necessary.
continued on back…
The headset parts may be cleaned with mild soap and water using a soft cloth.
Then dry immediately. Caution: Do Not immerse any part of the headset in
water or any other liquid. Be especially careful not to allow the microphone to
become wet! Exposure to moisture may cause internal corrosion and failure and
will void your manufacturers warranty.
Cleaning will help the headset maintain its“like new” condition for many years.
WINDSCREEN
The microphone windscreen will reduce annoying wind noise and breath pops
picked up by headset microphones. It also protects the microphone element
from dirt and moisture. The windscreen should be washed regularly to maintain
hygiene and avoid clogging. Wash in warm water and mild soap. Rinse thor-
oughly and make sure it is completely dry before putting it back on.
To remove the windscreen, take out the screw that holds the microphone on the
boom and grasp the windscreen lightly along its entire length and slip it off.
Put the windscreen on the microphone by gently pulling from the open end. Do
not pull it so tightly that it stretches against the end of the microphone.
WARRANTY
Your headset is covered by a limited one-year parts and labor warranty. Please
see the enclosed warranty card for details.
You may refer to the parts list on the reverse side, if you choose to replace parts
yourself. The parts list describes parts for this particular headset only. Parts lists
for other models are available on our Web Site or can be obtained by contacting
Sigtronics Corporation.
Sigtronics Corporation
178 East Arrow Highway
San Dimas, CA 91773
Phone: [phone]
E-mail: [e-mail]
Web Site: www.sigtronics.com





































 








 

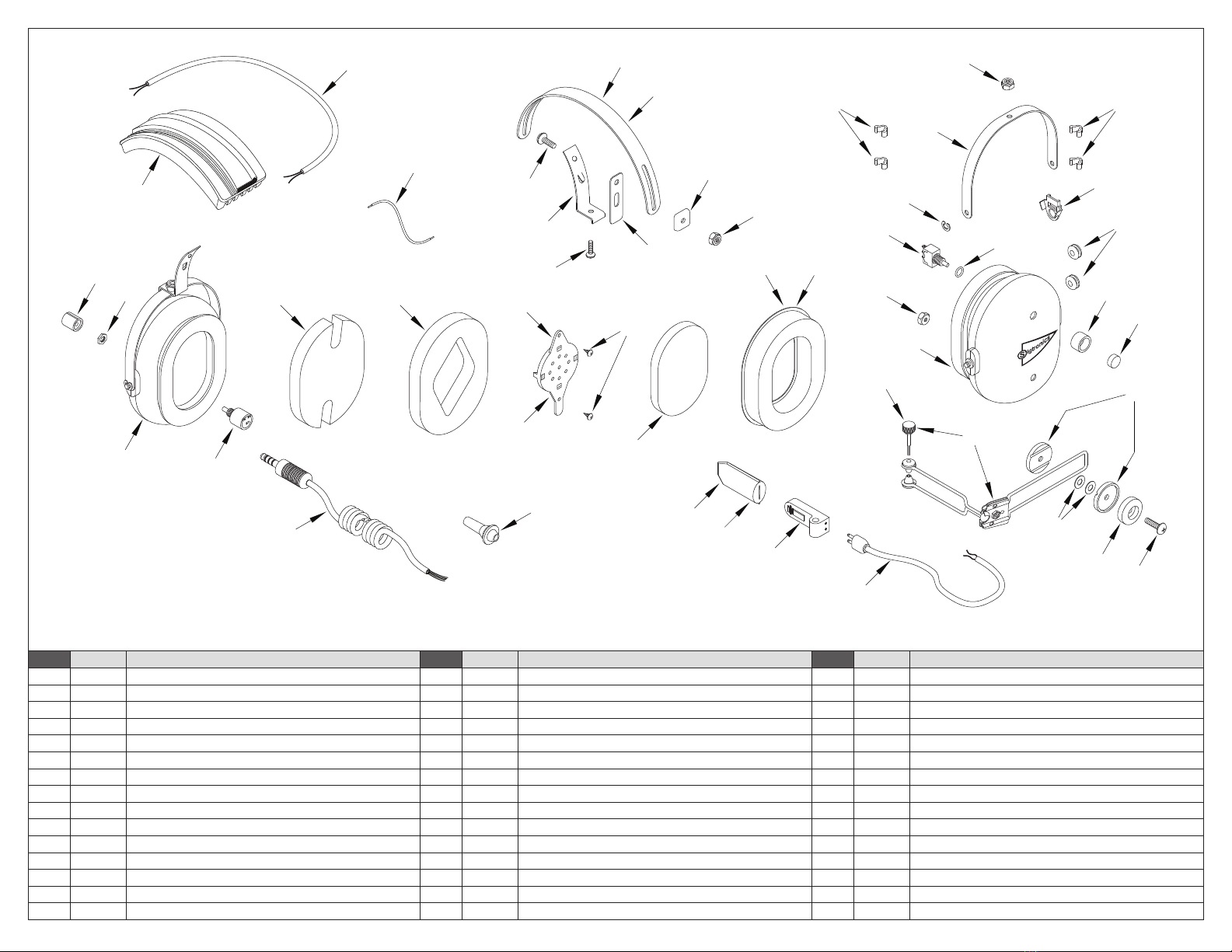

SIGTRONICS SE-40RPTT HEADSET PARTS IDENTIFICATION BREAKDOWN
ITEM P/N DESCRIPTION ITEM P/N DESCRIPTION ITEM P/N DESCRIPTION
1100049 GROMMET, 5/16 INCH, RUBBER 16 100369 EAR SEAL, FOAM FILLED 31 800039 CABLE, MICROPHONE BOOM, 12 INCH
2100063 KNOB, 3/8 INCH, BLACK 17 100370 RECEIVER MOUNT, HEADSET 32 800048 HEADBAND , WITH CUSHION, SE-40
3100077 POTENTIOMETER 18 100221 WIRE, #22, 19 STRAND, 4 INCH 33 800082 MICROPHONE, ELECTRET, M-80
4100079 RECEIVER, 300 OHM, MONO 19 100373 SLIDE, YOKE BRACKET, LONG, NYLON 34 100569 STRAIN RELIEF, CABLE
5100108 SCREW, 4-40 X 1/4, THREAD FORMING 20 100374 FOAM, SOUND ATTENUATING. NOTCHED, 1/2 INCH 35 100156 SCREW, THUMB, MICROPHONE BOOM, 2-56 X 1
6100249 BOOM, ELECTRET MICROPHONE SUPPORT, SWIVEL 21 100376 FOAM, SOUND ATTENUATING. RECEIVER HOLE, 1/2 INCH 36 900084 WINDSCREEN, MICROPHONE, FOAM, PACKAGED
7100251 E-RING, EAR CUP TO YOKE RETAINER 22 100379 FOAM, SOUND ATTENUATING, RECEIVER COVER, 1/4 INCH 37 100415 WINDSCREEN, MICROPHONE, FOAM, BULK
8100252 NUT, HEX, 8-32, LOCKING 23 100366 WIRE, 2 CONDUCTOR, #24, BLACK, 28 INCHES 38 100232 SWITCH, SPDT, MOMENTARY
9100361 EAR CUP, PRINTED AND DRILLED, MIC & NON MIC SIDE 24 100258 CLIP, HEADBAND GUIDE, PLASTIC 39 100625 O-RING, PTT, HEADSET
10 100362 CLIP, CROSS-OVER, WIRE, PLASTIC 25 100393 CLIP, ANTI-ROTATION, YOKE, PLASTIC 40 100428 SWITCHGUARD, PTT, BLACK
11 100363 SCREW, 8-32 X 1/2, PHILLIPS HEAD 26 100383 HEADBAND, METAL, STANDARD 41 100317 BUTTON, SWITCH, PTT, RED
12 100364 SCREW, 8-32 X 3/8, PHILLIPS HEAD 27 100384 BRACKET, YOKE SUPPORT WITH TANG 42 100257 OPTIONAL – HEADBAND, METAL, LARGE
13 100377 SCREW, 8-32 X 5/8, PHILLIPS HEAD 28 100385 WASHER, SPRING, BOOM ADAPTER 43 100402 OPTIONAL – EAR SEAL, GEL FILLED
14 100367 YOKE, EAR CUP MOUNT, METAL 29 100408 WASHER, GROOVED BOOM
15 100368 KNOB, MICROPHONE BOOM ADAPTER, PLASTIC 30 800046 CABLE, HEADSET, COILED
