Silvan Selecta FC440 User manual

Instruction Manual
MANFC440 REV B 15/10/15

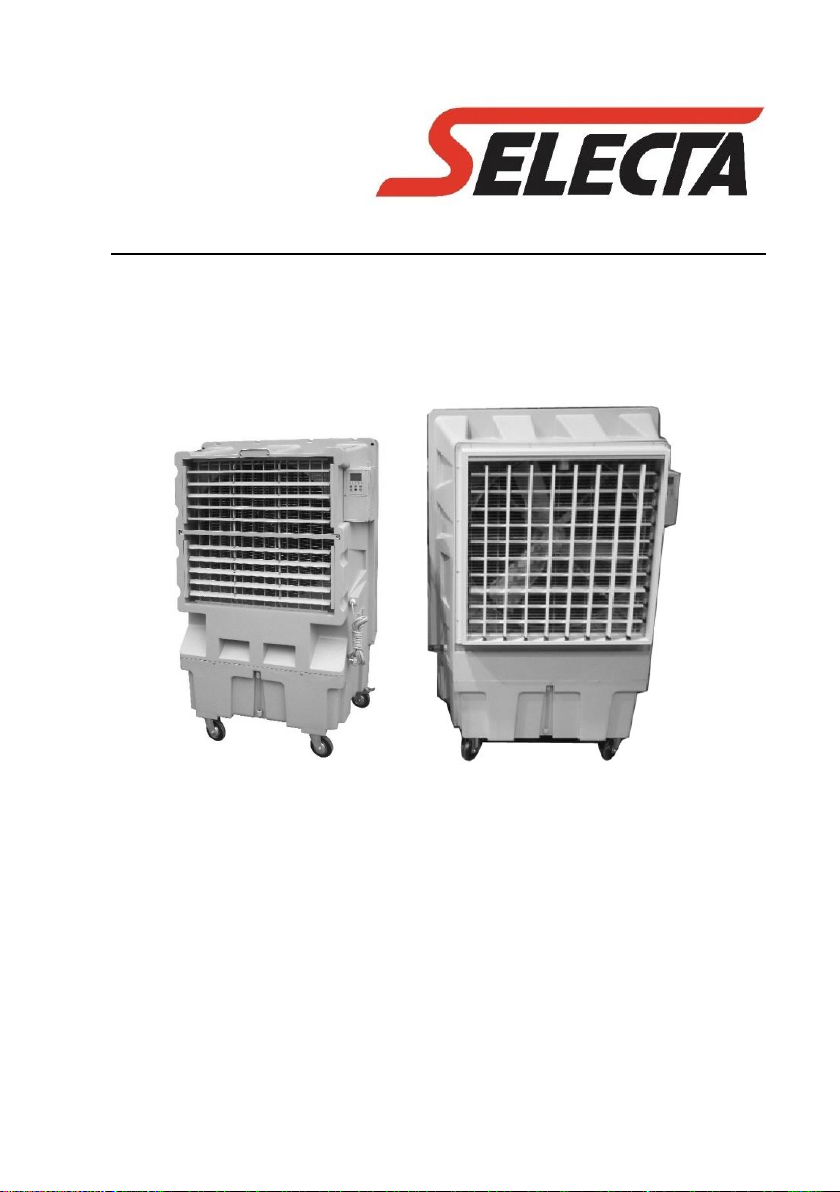

EVAPORATIVE AIR CONDITIONER
FC440, FC700
VICTORIA (HEAD OFFICE)
Telephone: [phone]
Fax: [phone]
www.silvan.com.au
Hamilton, New Zealand
Telephone: [phone]
Fax: [phone]
www.silvannz.co.nz
SILVAN AUSTRALIA PTY. LTD.
ABN 48 099 851 144

INTRODUCTION
Thank you for purchasing our product. We trust it will give you long and
trouble-free service.
The cooler is a high-tech product, showing simplicity and outstanding
reliability.
Its working principle is that water evaporation uses up the surrounding heat
and causes the temperature to cool down.
When water is continuously distributed onto the cooling pad surface, the
air being drawn through the pad causes the water to evaporate, making the
air cool and fresh. The circulating water moves down to the reservoir, where
it is again pumped up through the cooling pads. If the hose option is being
used (supplied as standard), a float valve keeps the reservoir full
continuously. If filled manually, the reservoir tank ensures hours of
uninterrupted operation. There is a digital level indicator to quickly check
the amount of water remaining.
APPLICATIONS
This cooler is currently being used in many different industries and
applications.
It is ideally suited to garages, workshops, outdoor events, large shops,
animal husbandry and recreational facilities.

Silvan Warranty
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You
are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced
if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
We warrant our goods to be free from defects in materials and workmanship for the warranty period
of 12 months from the date the product is delivered to the consumer.
Silvan warrants its authorised Dealer, who in turn warrants the original purchaser (consumer) of each
new Silvan product that it will repair or replace the product, or, pay the cost of repair or replacement,
as determined by Silvan without charge for labour or any defective or malfunctioning parts in
accordance with the warranty limitations below.
This Warranty is in addition to any other rights and remedies available to consumers under the law
THIS WARRANTY COVERS
Only conditions resulting directly from defects in workmanship or material under normal use and
service.
WARRANTY EXCLUSIONS
The Warranty does not cover:
•Conditions resulting from misuse, use of incompatible chemicals, exceeding machine specifications
including overloading, impact damage, negligence, accidental damage or failure to perform
recommended maintenance services as specified in the Owner/Operator Manual applicable to the
product.
•Damage caused by continued use of a product after initial failure
•Any product which has been repaired by other than an authorised Silvan service outlet in a way
which, in the sole and absolute judgment of Silvan, adversely affect its performance or reliability.
•The replacement of maintenance items such as diaphragms, batteries, V belts and ground engaging
components, etc.
HOW TO CLAIM WARRANTY
Return the goods to the place of purchase at your cost and within the warranty period along with
evidence of the purchase date. If the original supplier cannot be contacted, then contact Silvan as
below and we can direct you on how to proceed with your warranty claim.
HOW YOUR CLAIM WILL BE MANAGED
The repair of a defective product qualifying under this warranty will be performed by any authorised
Silvan service outlet within a reasonable time following the delivery of the product, at the cost of the
owner, to the service outlet’s place of business. The product will be repaired or replaced depending
on the extent of the problem at the discretion of Silvan and the Silvan dealer.

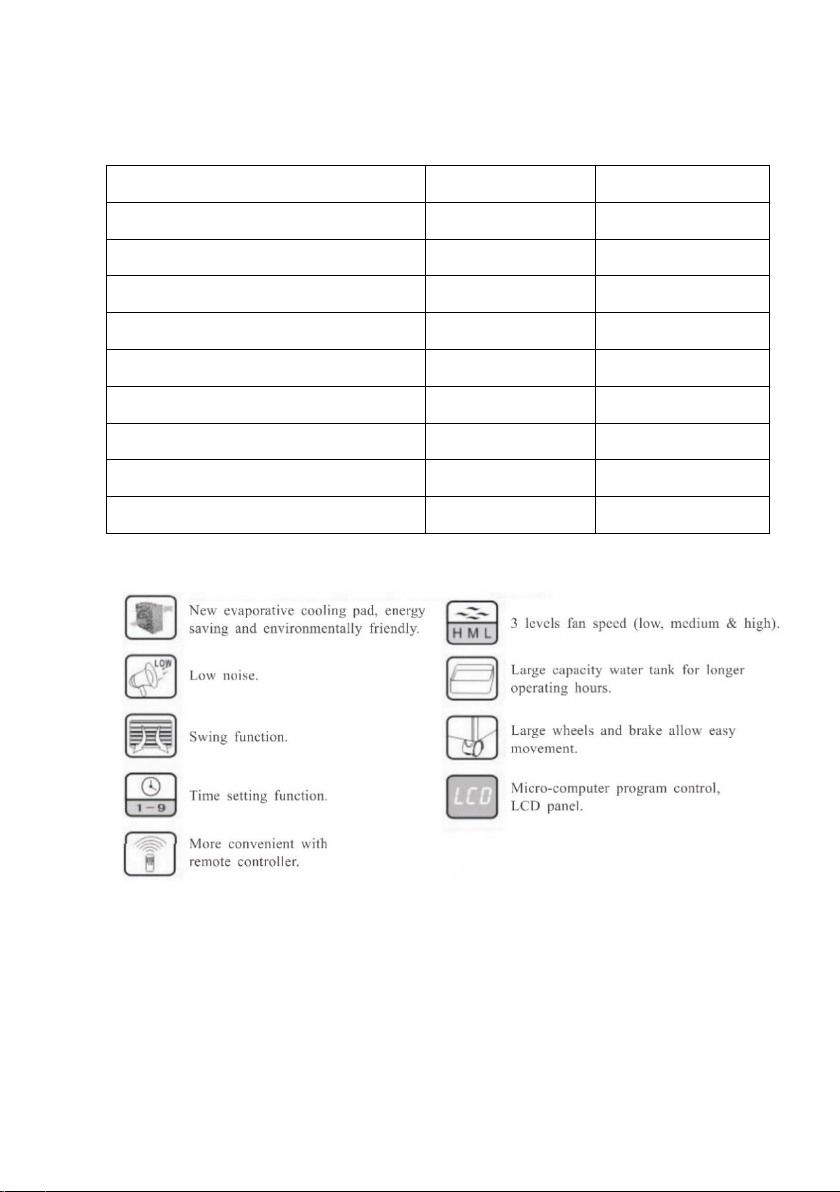

TECHNICAL SPECIFICATIONS
TECHNICAL FEATURES
MODEL
FC440
FC700
Max Airflow (M3/H)
12000
18000
Power supply/Frequency (V/HZ)
220-240/50
220-240/50
Power Consumption (W)
440
700
Fan Style
Axial
Axial
Water Consumption (L/H)
8-10
10-15
Water Tank Capacity (L)
70
100
Dimension (L*W*H) (mm)
925×580×1440
1120x600x1650
Weight (kg)
43
70
Effective Cooling Area (M2)
100-150
100-150

IMPORTANT REMINDERS
Please read the manual carefully before operating the cooler.
A) Operating conditions:
1- Temperature: 18°C to 45°C; Water Temperature: < 45°C.
2- Power supply must not exceed the required voltage (+/-) 5%.
3- Air supply must be largely free of dust or extra cleaning is required.
B) Protect the power cable from vehicles or foot traffic. Connection to
incorrect electric voltage, or faulty installation, will cause danger of
electric shock.
C) If the product malfunctions at start-up, please disconnect from
electric power immediately and refer to dealer for service.
D) Other tips for cooler use:
1- Keep doors and windows open to allow fresh air to enter, and treated
air to exit, when cooler is operating.
2- Flashing red light on the control panel means water level in reservoir
is low.
3- Rinse the reservoir with fresh water and clean prior to use after a
period where the cooler has not been in operation.
4- Take care when moving the cooler, especially when it is full of water.
Pushing too hard will cause the cooler to overbalance and tip over,
which may cause injury and will damage the cooler.
5- To prevent build-up of algae and other biological organisms in the
reservoir, regularly add chlorine/bromine tablets as per tablet
manufacturer recommendation for evaporative cooler reservoirs.

KEY COMPONENTS
BACK SIVEL CASTER
WITH LOCK
FRONT SWIVEL CASTER

OPERATION INSTRUCTION
Before attempting to operate or install this unit carefully
read and take note of the following safety warnings.
Failure to comply with these warnings may result in serious
injury or death.
KEYPAD
INSTRUCTION
COMMENT
ON/OFF
This turns the cooler on or off.
COOL
This activates the cooling function. Note that there is a
delay of one minute before the fan starts while the
cooling pads wet up.
BLAST
When COOL is pressed again, the water evaporation
feature is turned off, with only the fan operating.
SPEED
Pressing SPEED will select low, medium or high fan
speed.
SWING
This activates/deactivates swing function.
TIMER
Delayed start
The timer setting can be used to start the cooler after a
certain number of hours delay. When only the green
POWER light is on, press TIMER until the number of
hours delay (1-24) is shown.
TIMER
Automatic stop
When the cooler is already going, press timer to set the
number of hours (1-24) until the machine will
automatically switch off.
WATER SUPPLY
Use only clean, fresh water.
Pour water into the water inlet on the right-hand side of
the unit (Do not overfill beyond max capacity).
Alternatively, attach a hose to the water inlet on the left
side for automatic filling. Note a pressure reducing valve
is recommended for high pressure water supplies.
1. All electrical repairs must only be carried out by a suitably qualified electrician,
after all power is disconnected.
2. This cooler is not intended for use by children or persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge.
3. Children should be supervised to ensure that they do not play with the
appliance.

CONTROL PANNEL
REMOTE CONTROL

MAINTENANCE
FOR BEST RESULTS AND LONG-TERM OPERATION REGULAR
MAINTENANCE IS ESSENTIAL.
To ensure the cooler delivers fresh and clean air, regularly change the
water when dirty, and clean both the dust filter and the cooling pad.
1) Remove the filter pad by unscrewing the 4 screws on the rear of
the cooler, then lift the pad and pull out at the bottom to release.
To replace the pad, slide up into the slot under the top of the
cooler, push in at the bottom and allow to drop into the lower
slot.
2) Clean the pad from the inner-side to out-side of pad (inner side is
towards motor). Never use any liquid detergent. Never use
pressurized water, as it may cause damage to the pad.
3) Unscrew the drainage lid to let dirty water flow out, then clean
the water tank thoroughly with a soft cloth. Wash off dirt on the
water sensor, water pump and the float valve. Rinse thoroughly.
4) Use mild soap and soft clean cloth when cleaning the cooler casing.
Do not use any caustic chemical detergent that may cause damage
to the surface of the cooler.
5）To prevent build-up of algae and biological organisms in the
reservoir, regularly add chlorine/bromine tablets as per tablet
manufacturer recommendation for evaporative cooler reservoirs.
SPARE PARTS:
FC440-01
Cooling Pad to
Suit Model FC440
FC440-05
Level indicator
FC700-01
Cooling Pad to
Suit Model FC700
FC440-06
Float Valve
FC440-02
Water Pump
FC440-10
LCD Control Panel
FC440-04
Swing motor
FC440-11
Water Level
Sensor

TROUBLESHOOTING
NOTE: This troubleshooting is for reference purposes only. Any
electrical work must be carried out by a qualified electrician.
MALFUNCTION
REASON
SOLUTION
- LCD screen
stays dark
- No power
- Fuse is blown
- Main control
board failure
- Check unit is plugged in
- Check power point is live by
plugging in another appliance.
- There is a fuse on the control
board. Check fuse (electrician)
- Change control board
(electrician)
- Display is
normal but no
air flow or the
air speed is too
low
- The fan is
jammed
- Cooling pad or
dust filter is
blocked
- Fan is
distorted
- Main control
board failure
- Check to ensure there is
nothing preventing free
rotation of the fan
- Clean the cooling pad
- Change the fan
- Change the main control
board (electrician)
- Motor does
not respond to
control panel
- Main control
board failure
- Change the main control
board (electrician)
- Water leaking
from drain
valve
- Drain valve is
loose
- Dirt in valve
- Tighten drain valve nut
- Clean drain valve
- Air diffuser /
swing function
not working
- Swing motor is
burnt out
- Change swing motor
- Water drops
splash out of
the air diffuser
- Water pipe has
come loose
- Check water pipe to top of
filter pad and reattach or
tighten as necessary

SERVICE & MAINTENANCE LOG
Date
Hours
Of Use
Notes (E.G. Parts Cleaned, Chlorine/Bromine
Tablets Used And How Many)
