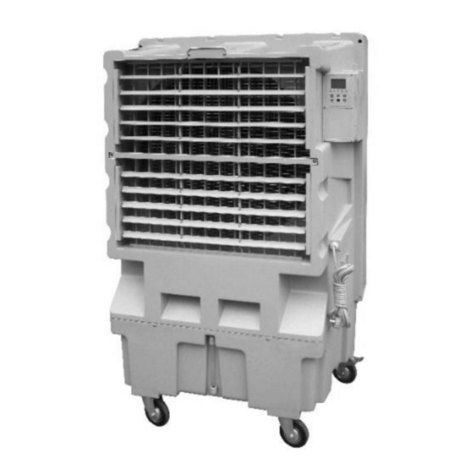

Silvan Selecta FC400 User manual

Instruction Manual
MANFC400 REV A15/12/16
SILVAN AUSTRALIA PTY. LTD.
ABN 48 099 851 144
FC400
NEW ZEALAND
22 Sunshine Avenue
Te Rapa, Hamilton, 2001 New Zealand
Telephone: [phone]
Fax: [phone]
www.silvannz.co.nz
VICTORIA (HEAD OFFICE)
244-266 Greens Rd
Dandenong South 3175 Australia
Telephone: [phone]
Facsimile: [phone]
www.silvan.com.au

INTRODUCTION
Thank you for purchasing our product. We trust it will give you long and trouble
free service.
The cooler is a high-tech product, showing simplicity and outstanding reliability.
Its working principle is that water evaporation uses up the surrounding heat and
causes the temperature to cool down.
When water is continuously distributed onto the cooling pad surface, the air being
drawn through the pad causes the water to evaporate, making the air cool and fresh.
The circulating water moves down to the reservoir, where it is again pumped up
through the cooling pads. If the hose option is being used (supplied as standard), a
float valve keeps the reservoir full continuously. If filled manually, the reservoir
tank ensures hours of uninterrupted operation. There is a digital level indicator to
quickly check the amount of water remaining.
APPLICATIONS
This cooler is currently being used in many different industries and applications
It is ideally suited to garages, workshops, outdoor events, large shops, animal
husbandry and recreational facilities.

Silvan Warranty
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to
be of acceptable quality and the failure does not amount to a major failure.
We warrant our goods to be free from defects in materials and workmanship for the warranty period of 12
months from the date the product is delivered to the consumer.
Silvan warrants its authorised Dealer, who in turn warrants the original purchaser (consumer) of each new Silvan
product that it will repair or replace the product, or, pay the cost of repair or replacement, as determined by
Silvan without charge for labour or any defective or malfunctioning parts in accordance with the warranty
limitations below.
This Warranty is in addition to any other rights and remedies available to consumers under the law
This Warranty Covers
Only conditions resulting directly from defects in workmanship or material under normal use and service.
Warranty Exclusions
The Warranty does not cover:
Conditions resulting from misuse, use of incompatible chemicals, exceeding machine specifications including
overloading, impact damage, negligence, accidental damage or failure to perform recommended
maintenance services as specified in the Owner/Operator Manual applicable to the product.
Damage caused by continued use of a product after initial failure
Any product which has been repaired by other than an authorised Silvan service outlet in a way which, in the
sole and absolute judgment of Silvan, adversely affect its performance or reliability.
The replacement of maintenance items such as diaphragms, batteries, V belts and ground engaging
components, etc.
How to claim Warranty
Return the goods to the place of purchase at your cost and within the warranty period along with evidence of the
purchase date. If the original supplier cannot be contacted then contact Silvan as below and we can direct you
on how to proceed with your warranty claim.
How your claim will be managed
The repair of a defective product qualifying under this warranty will be performed by any authorised Silvan service
outlet within a reasonable time following the delivery of the product, at the cost of the owner, to the service
outlet’s place of business. The product will be repaired or replaced depending on the extent of the problem at
the discretion of Silvan and the Silvan dealer.
Silvan Australia Pty Ltd
264 -266 Greens Rd
Dandenong Sth, 3175
Victoria, Australia
Ph [phone]
www.silvanaust.com
1300 SILVAN (745 826)
[e-mail]

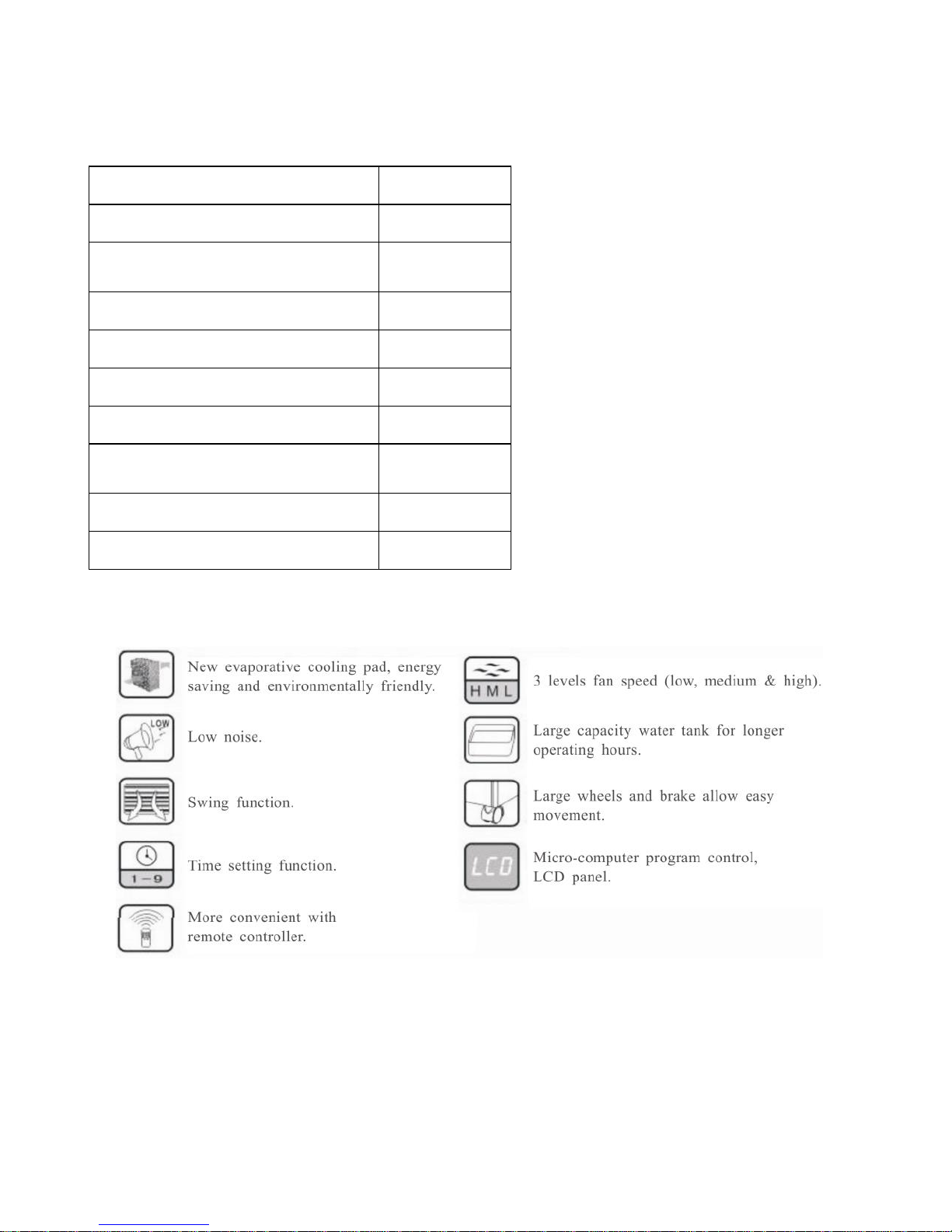

TECHNICAL SPECIFICATIONS
TECHNICAL FEATURES
MODEL
FC400
Max Airflow (M3/H)
9000
Power supply/Frequency
(V/HZ)
220-240/50
Power Consumption (W)
400
Fan Style
Axial
Water Consumption (L/H)
4-6
Water Tank Capacity (L)
70
Dimension (L*W*H) (mm)
860x530x14
00
Weight (kg)
36
Effective Cooling Area (M2)
35-55

IMPORTANT REMINDERS
Please read the manual carefully before operating the cooler.
A) Operating conditions:
1- Temperature: 18°C to 45°C; Water Temperature: < 45°C.
2- Power supply must not exceed the required voltage (+/-) 5%.
3- Air supply must be largely free of dust or extra cleaning is required.
B) Protect the power cable from vehicles or foot traffic. Connection to incorrect electric
voltage, or faulty installation, will cause danger of electric shock.
C) If the product malfunctions at startup, please disconnect from electric power
immediately and refer to dealer for service.
D) Other tips for cooler use:
1- Keep doors and windows open to allow fresh air to enter, and treated air to exit, when
cooler is operating.
2- Flashing red light on the control panel means water level in reservoir is low.
3- Rinse the reservoir with fresh water and clean prior to use after a period where the
cooler has not been in operation.
4- Take care when moving the cooler, especially when it is full of water. Pushing too
hard will cause the cooler to overbalance and tip over, which may cause injury and
will damage the cooler.
5- Only use cooler on level ground.
6- To prevent build up of algae and other biological organisms in the reservoir, regularly
add chlorine/bromine tablets as per tablet manufacturer recommendation for
evaporative cooler reservoirs.
7- New cooling pads can expel mild odour and may require several hour of operation
and water exchanged for fresh water.
8- Dust and dirt can stick to the paper cooling pads. It is recommended to periodically
remove dry cooling pads and gently rinse thoroughly to clean. Allow to dry before re-
fitting. As Cooling pads become older it is recommended to replace to improve
efficiency.

KEY COMPONENTS MODEL FC400
DIFFUSER
AND FAN GUARD
WATER TANK
FOOTING
FRONT WHEEL
BACK WHEEL
FILL POINT
FOR BUCKET
SIDE VENT
(AIR INLET)
FRONT VENT
(AIR OUTLET)
BODY
CONTROL PANEL
WATER DISTRIBUTOR
WATER PIPE
SIDE COOLING PAD
DUST RESISTANT
MESH SCREEN
INLET PROTECTIVE
GRILL
MOTOR BRACE
FAN
MOTOR
WATER FILL
POINT FOR HOSE
CONNECTION
WATER LEVEL
SENSOR
MAIN COOLING
PAD

OPERATION INSTRUCTION
Before attempting to operate or install this unit carefully read
and take note of the following safety warnings.
Failure to comply with these warnings may result in serious
injury or death.
Keypad
Instruction
Comment
ON/OFF
This turns the cooler on or off.
COOL
This activates the cooling function. Note that there is a
delay of 1 minute while the cooling pads are wetted before
cooling can begin.
If cooling is not active unit can operate as fan
WIND SPEED
Pressing SPEED will select low, medium or high fan speed.
SWING
This activates/deactivates swing function.
TIMER
Delayed start
The timer setting can be used to start the cooler after a
certain number of hours delay. When only the green
POWER light is on, press TIMER until the number of hours
delay (1-24) is shown. When screen 00 indicated timer is
cancelled.
TIMER
Automatic stop
When the cooler is already going, press timer to set the
number of hours (1-24) until the machine will automatically
switch off. When screen 00 indicated timer is cancelled.
WATER
SUPPLY
Use only clean, fresh water.
Pour water into the water inlet on the right hand side of the
unit (Do not overfill beyond max capacity). Alternatively,
attach a hose to the water inlet on the left side for automatic
filling. Note a pressure reducing valve is recommended for
high pressure water supplies.
1. All electrical repairs must only be carried out by a suitably qualified
electrician, after all power is disconnected.
2. This cooler is not intended for use by children or persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge.
3. Children should be supervised to ensure that they do not play with the
appliance.

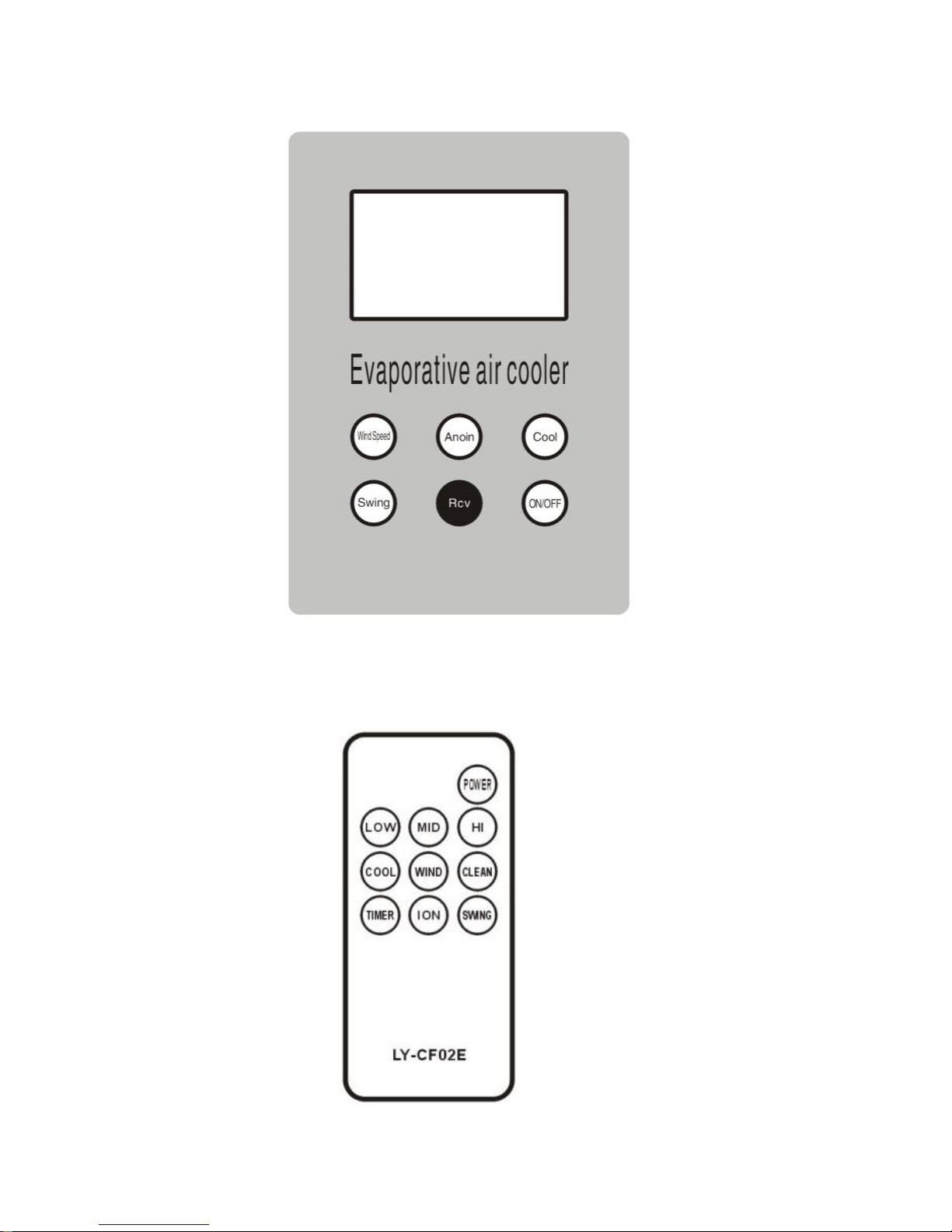

CONTROL PANNEL
REMOTE CONTROL

MAINTENANCE
FOR BEST RESULTS AND LONG TERM OPERATION REGULAR
MAINTENANCE IS ESSENTIAL.
To ensure the cooler delivers fresh and clean air, regularly change the
water when dirty, and clean both the dust filter and the cooling pad.
1) To access the filter pads disconnect the INLET PROTECTIVE GRILL at
the back of the cooler by unscrewing the screws on the grill. Lift the grill
and lift out. Remove main cooling pad from grill. To replace the pad, slide
back into grill and replace. Side cooling pads can be accessed when the
rear grill has been removed.
2) Clean the pad from the inner-side to out-side of pad (inner side is towards
motor). Never use any liquid detergent. Never use pressurized water, as it
may cause damage to the pad.
3) Unscrew the drainage lid to let dirty water flow out, then clean the water
tank thoroughly with a soft cloth. Wash off dirt on the water sensor, water
pump and the float valve. Rinse thoroughly.
4) Use mild soap and soft clean cloth when cleaning the cooler casing. Do not
use any caustic chemical detergent that may cause damage to the surface of
the cooler.
5）To prevent buildup of algae and biological organisms in the reservoir,
regularly add chlorine/bromine tablets as per tablet manufacturer
recommendation for evaporative cooler reservoirs.

TROUBLESHOOTING
NOTE: This troubleshooting is for reference purposes only. Any electrical
work must be carried out by a qualified electrician.
Malfunction
Reason
Remedy/Solution
-LCD screen
stays dark
-No power
-Fuse is blown
-Main control
board failure
-Check unit is plugged in
-Check power point is live by
plugging in another appliance.
-There is a fuse on the control board.
Check fuse (electrician)
-Change control board (electrician)
-Display is
normal but no air
flow or the air
speed is too low
-The fan is
jammed
-Cooling pad or
dust filter is
blocked
-Fan is distorted
-Main control
board failure
-Check to ensure there is nothing
preventing free rotation of the fan
-Clean the cooling pad
-Change the fan
-Change the main control board
(electrician)
-Motor does not
respond to
control panel
-Main control
board failure
-Change the main control board
(electrician)
-Water leaking
from drain valve
-Drain valve is
loose
-Dirt in valve
-Tighten drain valve nut
-Clean drain valve
-Air diffuser /
swing function
not working
-Swing motor is
burnt out
-Crank shaft
broken or
disconnected
-Change swing motor
-Reconnect or change crankshaft
-Water drops
splash out of the
air diffuser
-Water pipe has
come loose
-Check water pipe to top of filter pad
and reattach or tighten as necessary

SERVICE & MAINTENANCE LOG
Date
Hours
of use
Notes (eg. Parts cleaned, chlorine/bromine tablets used and how many)
