Simplicity Axion 1695447 User manual

Parts Manual
Rev. D
Axion
Series Zero-Turn Riders & Mower Decks
TP 400-4496-D-ZT-S
Mf
g
. No. Descri
p
tion
20HP Product
2690642 Axion, 20HP Zero Turn Rider w/42" Mower
2690715 Axion, 20HP Zero Turn Rider w/42" Mower (CE/Export)
7800376 Axion, 20HP Zero Turn Rider w/42" Mower (CE/Export)
Mf
g
. No. Descri
p
tion
24HP Product
2690644 Axion, 24HP Zero Turn Rider w/50" Mower
2690771 Axion, 24HP Zero Turn Rider w/50" Mower (CE/Export)
Mf
g
. No. Descri
p
tion
Mower Decks
1695447 50" Mower Deck (CE/Export)
1734807
Not for
Reproduction

Not for
Reproduction

Table Of Content
s
Torque Specification Chart ..................................................................... Inside Back Cover
PRODUCT COMPONENTS PAGES
Frame, Body & Seat Group .................................................................................................................................. 4
Engine Group - 20HP Briggs & Stratton .............................................................................................................. 8
Engine Group - 20HP Briggs & Stratton (CE/Export) .......................................................................................... 12
Engine Group - 24HP Briggs & Stratton .............................................................................................................. 16
Transmission Group ............................................................................................................................................. 18
Controls Group ..................................................................................................................................................... 22
Electrical Group - Main Harness 1734127SM ..................................................................................................... 26
Electrical Group - Main Harness 7103103YP ...................................................................................................... 28
Lift Group .............................................................................................................................................................. 30
Wheel & Tire Group ............................................................................................................................................. 32
Decals Group ....................................................................................................................................................... 34
42" Mower Deck - Clutch & Support Group ......................................................................................................... 36
42" Mower Deck - Housing & Arbor Group .......................................................................................................... 38
42" Mower Deck - Housing & Arbor Group (CE/Export) ...................................................................................... 40
50" Mower Deck - Clutch & Support Group ......................................................................................................... 42
50" Mower Deck - Housing & Arbor Group .......................................................................................................... 44
Not for
Reproduction

Frame, Body & Seat Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987484
The above parts group applies to the following Mfg. Nos.:
4
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690642 - Axion
2690644 - Axion
2690715 - Axion
2690771 - Axion
7800376 - Axion
TP 400-4496-D-ZT-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Frame, Body & Seat Group
Footnotes
CASTER ASSEMBLY1 1733448ASM 2
WASHER, 3/4 ID x 1.6 OD x .05 THK2 1960160SM 4
RING, Klipring, 3/43 1611710SM 2
CAP, Hub4 1734135SM 2
BUSHING, Axle Pivot5 1730186SM 2
AXLE, Casting (Includes Ref. Nos. 1, 2, 3, 4 & 5)6 1733426ASM 1
BOLT, Shoulder, G57 1733571SM 2
NUT, Hex Flange, 3/8-16 ESNA8 1960687SM 3
CAPSCREW, Hex Head, 5/8-11 x 3-1/4, G59 2860744SM 1
WASHER, 5/8, .64 ID x 1-3/4 OD x .11 THK10 1960035SM 1
NUT, Hex Flange Two-Way Lock, 5/8-1111 2860646SM 1
BRACKET, Front Footrest Support12 1733304ASM 1
SCREW, Hex Head Taptite, 5/16-18 x 5/813 1930601SM 2
NUT, Speed Lug Type, 1/4-2014 1960368SM 2
SCREW, Truss Head Torx, 1/4-20 x 3/415 1960715SM 8
FRONT FOOTREST (Black)16 1726025ZSM 1
FRONT FOOTREST (Orange)16 1726025CSM 1
NUT, Hex Flange, 1/4-20 ESNA17 1960694SM 14
BOLT, Carriage, 1/4-20 x 3/4, G518 1931317SM 2
PAD, Footrest Panel19 1726306SM 1
SEAT ASSEMBLY, with Armrests20 1726018SM 1
PANEL, Front with Slot21 1733573ASM 1
PANEL, Front, Manual Brake (CE/Export)21 7300752AYP 1
NUT, Push, 1/422 1960518SM 2
NUT, Speed Lug Type, 5/16-1823 1935255SM 4
BOLT, Shoulder24 009X67MA 2
BOLT, Carriage, 5/16-18 x 1-1/4, G525 1960223SM 2
PIVOT, Hood, Powdered Metal26 1728086SM 2
NUT, Hex Flange Whiz Lock, 5/16-1827 1931277SM 8
BOLT, Shoulder, G528 1716654SM 2
SCREW, Hex Whiz Lock Flange, 1/4-20 x 5/829 1960295SM 6
SCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4 Dog PT30 1960738SM 2
SCREEN, Seat Deck31 1708504SM 1
SCREEN, Seat Deck (CE/Export)31 7102141SM 1
RIVET, Pop32 1673320SM 3
FRAME ASSEMBLY33 1733227ASM 1
SUPPORT, Seat34 1733965ASM 1
SEAT DECK, Plastic35 1734144SM 1
PLATE, Control36 1727699ASM 1
PLATE, Control (CE/Export)36 1734252BMYP 1
The above parts group applies to the following Mfg. Nos.:
5
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690642 - Axion
2690644 - Axion
2690715 - Axion
2690771 - Axion
7800376 - Axion
TP 400-4496-D-ZT-S
Not for
Reproduction

Frame, Body & Seat Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987484
The above parts group applies to the following Mfg. Nos.:
6
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690642 - Axion
2690644 - Axion
2690715 - Axion
2690771 - Axion
7800376 - Axion
TP 400-4496-D-ZT-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Frame, Body & Seat Group
Footnotes
SCREW, Truss Head Torx, 1/4-20 x 3/437 1960715SM 6
SCREW, Hex Whiz Lock Flange, 5/16-18 x 3/438 1930591SM 5
PAD, Footrest R.H.39 1728986SM 1
PAD, Footrest L.H.40 1728987SM 1
ELBOW, Gas Tank43 1674792SM 1
BUSHING, Fuel44 1726400SM 1
CAPSCREW, 5/16, 18 x 1-1/245 1921221SM 1
WASHER, 5/16, .34 ID x 1 OD x .13 THK46 1919381SM 1
LOCKWASHER, External Tooth, 3/847 2820427SM 1
SPACER, .33 ID x 1/2 OD x 5/16 LG48 1710437SM 1
TANK, Fuel49 1734257SM 1
TANK, Fuel (CE/Export)49 7102378SM 1
CAP, Fuel Tank50 1714020SM 1
CAPSCREW, Hex Head, 5/16-18 x 1-1/4, G551 1921977SM 5
NUT, Push Pal, 5/16 DIA Thread, 5/8 OD52 1933988SM 4
BRACE, Tank53 1727810ASM 1
BUMPER, Rubber54 1726390SM 2
SHROUD, Rear55 1715962ASM 1
SCREW, Hex Washer Head Taptite, 1/4-20 x 1/256 1925003SM 6
SUPPORT, Seat Deck57 1733393ASM 1
ARM REST KIT, L.H. & R.H.58 1687021SM 1
NUT, Hex Flange Nylock, 5/16-1859 1960686SM 5
CAPSCREW, 3/8 - 16 x 1-1/460 1920415SM 1
NUT, Push Pal, 3/861 1931942SM 1
WASHER, 3/862 1960534SM 1
TRIM, 8"63 1735680SM 1
WASHER, External Tooth, 1/464 1921880SM 2
GUARD, Debris65 1734392ASM 2
The above parts group applies to the following Mfg. Nos.:
7
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690642 - Axion
2690644 - Axion
2690715 - Axion
2690771 - Axion
7800376 - Axion
TP 400-4496-D-ZT-S
Not for
Reproduction

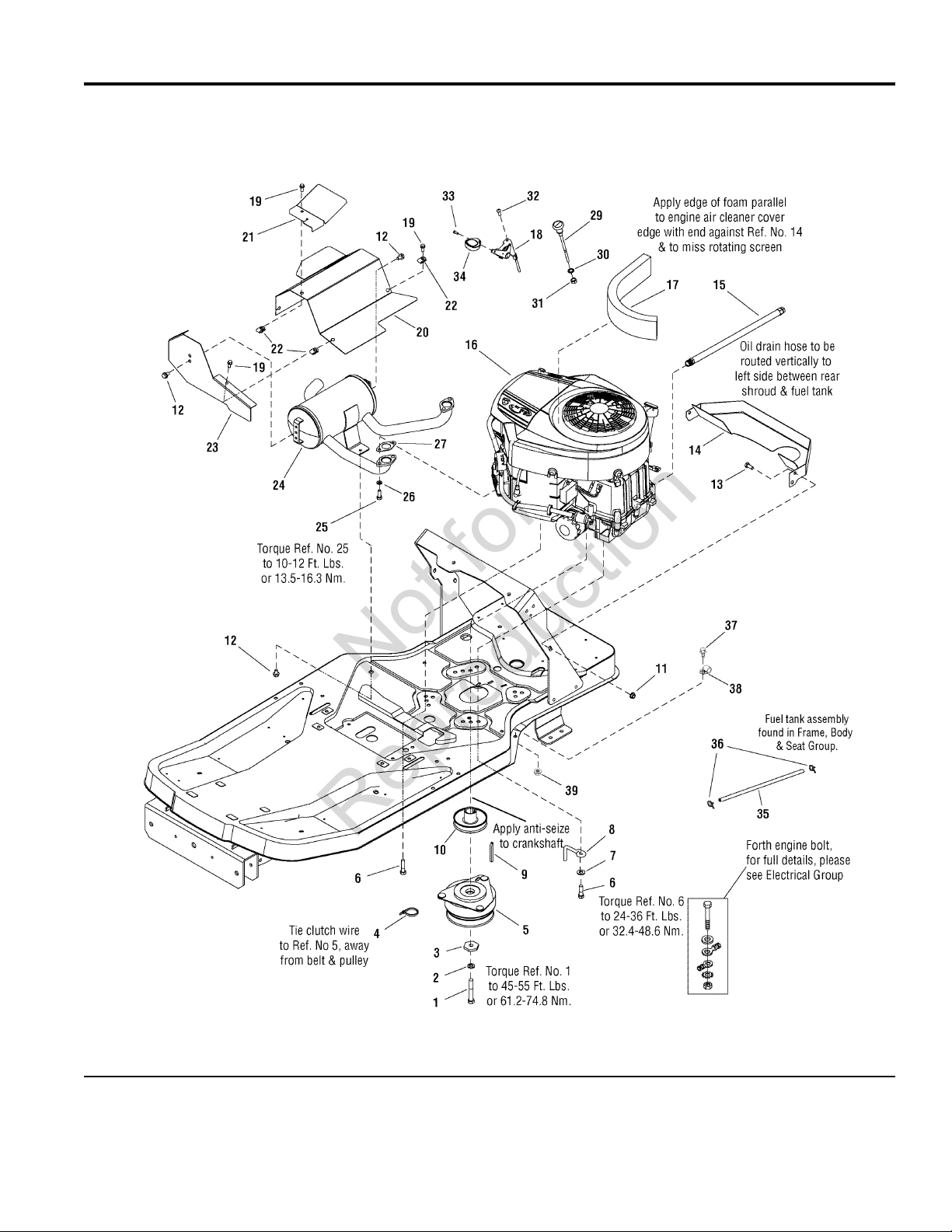

Engine Group - 20HP Briggs & Stratton
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987607
The above parts group applies to the following Mfg. Nos.:
8
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690642 - Axion
TP 400-4496-D-ZT-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Engine Group - 20HP Briggs & Stratton
Footnotes
*ENGINE, 20 HP B&S Intek (Engine Model: 31M977-0111-E1)1 31M977-0111-E1 1
HEAT SHIELD, Inner2 1734150ASM 1
CAPSCREW, Hex Head, 5/16-18 x 3/4, G83 1936228SM 2
LOCKWASHER, Spring, 5/164 1917356SM 2
PIPE ASSEMBLY, Exhaust5 1732259SM 1
GASKET, Exhaust6 1731214SM 1
SCREW, Hex Whiz Lock Flange, 1/4-20 x 5/87 1960295SM 4
NUT, Hex Whiz Lock Flange, 5/16-188 1927557SM 4
SPACER9 1667812SM 1
BRACKET, Muffler/Heat Shield10 1732255SM 1
SPACER, .390 ID x .9 OD x .34 LG, Powdered Metal11 1667811SM 1
CAPSCREW, Hex Head, 5/16-18 x 1-1/4, G512 1921977SM 1
MUFFLER ASSEMBLY, Single13 1732273SM 1
CAPSCREW, Hex Head, 5/16-18 x 1-1/2, G514 1921221SM 1
HEAT SHIELD, Outer Single15 1727996ASM 1
CAPSCREW, Thread Cutting, # 10 x 1/216 1960720SM 4
TIE, Self Locking, 3-5/8 LG18 2832747SM 2
HOSE, Oil Drain, 16-1/2 LG19 1726498SM 1
SCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/420 2828635SM 3
PULLEY ASSEMBLY, Engine21 1727816SM 1
KEY, Hi-Pro, 1/4 x 2-1/222 1720463SM 1
CLUTCH, Electric23 1717664SM 1
WASHER, Hex, .453 ID x 1-1/224 1708264SM 1
LOCKWSHER, Spring, .43825 1918199SM 1
CAPSCREW, Hex Head, 7/16-20 x 2-3/4, G526 1960648SM 1
HEAT SHIELD27 1732885ASM 1
WASHER, 5/16, .34 ID x 3/4 OD x .06 THK28 1919326SM 2
HEAT SHIELD29 1733063SM 1
RIVET, Pop30 1675044SM 2
WASHER, 3/8, .41 ID x .87 OD x .08 THK32 1924940SM 1
RETAINER, Clutch33 1734049SM 1
SEAL, Foam Air Duct, 1 x 2-1/2, 12" LG35 1734189SM 1
AIR DUCT, Inlet41 1734180ASM 1
CAPSCREW, Hex Head, 5/16-18 x 3/4, G542 1921332SM 1
CABLE, Choke43 7100416SM 1
WASHER, Lock Internal Tooth, 3/844 7090390SM 1
NUT, Hex, 3/845 7091630SM 1
CONTROL, Throttle46 7075449SM 1
SCREW, Pan Head Taptite Torx, 1/4-20 x 5/847 7090999SM 2
SCREW, Pan Head Taptite Combo, 310-16 x 3/448 7091195SM 1
Note * See Briggs & Stratton Engine Repair Parts.
The above parts group applies to the following Mfg. Nos.:
9
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690642 - Axion
TP 400-4496-D-ZT-S
Not for
Reproduction

Engine Group - 20HP Briggs & Stratton
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987607
The above parts group applies to the following Mfg. Nos.:
10
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690642 - Axion
TP 400-4496-D-ZT-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Engine Group - 20HP Briggs & Stratton
Footnotes
KNOB, Throttle49 7100529SM 1
HOSE, Fuel, 19.5" (See Frame, Body & Seat Group for fuel tank assembly.)50 1718678SM 1
CLAMP, Hose51 2860112SM 2
Note * See Briggs & Stratton Engine Repair Parts.
The above parts group applies to the following Mfg. Nos.:
11
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690642 - Axion
TP 400-4496-D-ZT-S
Not for
Reproduction

Engine Group - 20HP Briggs & Stratton (CE/Export)
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987714
The above parts group applies to the following Mfg. Nos.:
12
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690715 - Axion
7800376 - Axion
TP 400-4496-D-ZT-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Engine Group - 20HP Briggs & Stratton (CE/Export)
Footnotes
*ENGINE, 20 HP B&S Intek (Engine model: 31M977-0111-E1)1 31M977-0111-E1 1
*ENGINE, 20 HP B&S, Export (Engine model: 31M677-0151-B1)1 33M677-0151-B1 1
HEAT SHIELD, Inner2 1734150ASM 1
HEAT SHIELD, Inner (CE/Export)2 7300919ASM 1
CAPSCREW, Hex Head, 5/16-18 x 3/4, G83 1936228SM 2
LOCKWASHER, Spring, 5/164 1917356SM 2
PIPE ASSEMBLY, Exhaust5 1732259SM 1
GASKET, Exhaust6 1731214SM 1
SCREW, Hex Whiz Lock Flange, 1/4-20 x 5/87 1960295SM 4
NUT, Hex Whiz Lock Flange, 5/16-188 1927557SM 4
SPACER, .390 ID x .9 OD x .34 LG, Powdered Metal11 1667811SM 1
CAPSCREW, Hex Head, 5/16-18 x 1-1/4, G512 1921977SM 1
MUFFLER ASSEMBLY, Single13 1732273SM 1
CAPSCREW, Hex Head, 5/16-18 x 1-1/2, G514 1921221SM 1
CAPSCREW, Thread Cutting, # 10 x 1/216 1960720SM 4
TIE, Self Locking, 3-5/8 LG18 2832747SM 2
HOSE, Oil Drain, 16-1/2 LG19 1726498SM 1
SCREW, Taptite Washer Head, 3/8-16 x 1-1/420 2828635SM 3
PULLEY ASSEMBLY, Engine21 1727816SM 1
PULLEY, Engine (CE/Export)21 7101716SM 1
KEY, Hi-Pro, 1/4 x 2-1/222 2154096SM 1
CLUTCH, Electric23 1686880SM 1
WASHER, Hex, 1-1/224 1708264SM 1
LOCKWASHER, Spring, .43825 1918199SM 1
CAPSCREW, Hex Head, 7/16-20 x 2-3/4, G526 1960648SM 1
WASHER, 5/16, .34 ID x 3/4 OD x .06 THK28 1919326SM 2
WASHER, 3/8, .41 ID x .87 OD x .08 THK32 1924940SM 1
RETAINER, Clutch33 1734049SM 1
SEAL, Foam Air Duct, 1 x 2-1/2, 12" LG35 1734189SM 1
HEAT SHIELD, Single36 1734032ASM 1
INSULATION SHIELD, Top Muffler37 1734062SM 1
MUFFLER BRACKET/HEAT SHIELD38 1734017ASM 1
GUARD, Muffler39 1734044ASM 1
NUT, Push Pal, 5/1640 1933988SM 1
AIR DUCT, Inlet41 1734180ASM 1
CAPSCREW, Hex Head, 5/16-18 x 3/4, G542 1921332SM 2
CABLE, Choke43 7100416SM 1
WASHER, Lock Internal Tooth, 3/844 7090390SM 1
NUT, Hex, 3/845 7091630SM 1
CONTROL, Throttle46 7075449SM 1
Note * See Briggs & Stratton Engine Repair Parts.
The above parts group applies to the following Mfg. Nos.:
13
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690715 - Axion
7800376 - Axion
TP 400-4496-D-ZT-S
Not for
Reproduction

Engine Group - 20HP Briggs & Stratton (CE/Export)
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987714
The above parts group applies to the following Mfg. Nos.:
14
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690715 - Axion
7800376 - Axion
TP 400-4496-D-ZT-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Engine Group - 20HP Briggs & Stratton (CE/Export)
Footnotes
SCREW, Pan Head Taptite Torx, 1/4-20 x 5/847 7090999SM 2
SCREW, Pan Head Taptite Combo, 310-16 x 3/448 7091195SM 1
KNOB, Throttle49 7100529SM 1
HOSE, Fuel, 19.5" (See Frame, Body & Seat Group for fuel tank assembly.)50 1734995SM 1
CLAMP, Hose51 7029900SM 2
CAPSCREW, Hex Whiz Lock Flange, 5/16-18 x 3/452 1930591SM 1
CLIP, Harness53 7900020SM 1
NUT, Hex Whiz Lock Flange54 1931277SM 1
Note * See Briggs & Stratton Engine Repair Parts.
The above parts group applies to the following Mfg. Nos.:
15
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690715 - Axion
7800376 - Axion
TP 400-4496-D-ZT-S
Not for
Reproduction

Engine Group - 24HP Briggs & Stratton
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987609
The above parts group applies to the following Mfg. Nos.:
16
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690644 - Axion
2690771 - Axion
TP 400-4496-D-ZT-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Engine Group - 24HP Briggs & Stratton
Footnotes
CAPSCREW, Hex Head, 7/16-20 x 2-3/4, G51 1960648SM 1
LOCKWASHER, Spring2 1918199SM 1
WASHER, Hex, 7/163 1708264SM 1
TIE, Self-Locking, 3.62"4 2832747SM 1
CLUTCH, Electric Ogura5 1717664SM 1
SCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/46 2828635SM 3
WASHER, 3/87 1924940SM 1
RETAINER, Clutch8 1734049SM 1
KEY, Hi-Pro, 1/4 x 2-1/29 1720463SM 1
PULLEY ASSEMBLY, Engine10 1727816SM 1
NUT, Hex Whiz Lock Flange, 5/16-1811 1931277SM 2
SCREW, Hex Washer Head Taptite, 5/16-18 x 1/212 1924856SM 4
CAPSCREW, Hex Head, 5/16-18 x 3/4, G513 1921332SM 2
AIR DUCT, Inlet14 1733414ASM 1
HOSE, Oil Drain, 16.5"15 1726498SM 1
*ENGINE, 24HP B&S (Engine Model: 44M777-0113-E1)16 44M777-0113-E1 1
SEAL, Foam Air Inlet17 1734169SM 1
THROTTLE ASSEMBLY18 1734332SM 1
SCREW, Hex Whiz Lock Flange, 1/4-20 x 5/819 1960295SM 4
HEAT SHIELD, Muffler Top20 1734246ASM 1
HEAT SHIELD, Throttle21 1728017SM 1
NUT, Speed, 1/4-2022 1960368SM 4
HEAT SHIELD, Muffler Side23 1727939ASM 1
MUFFLER, 24HP V-Twin ELS24 1734061SM 1
CAPSCREW, Hex Head, 5/16-18 x 3/4, G825 1936228SM 4
LOCKWASHER, Spring, 5/1626 1917356SM 4
GASKET, Exhaust27 1731214SM 2
DECAL, Hot Exhaust28 1734273SM 1
CABLE, Choke29 1734333SM 1
WASHER, Lock Internal Tooth, 3/830 7090390SM 1
NUT, Hex, 3/831 7091630SM 1
SCREW, Taptite Pan Head Torx, 1/4-20 x 5/832 7090999SM 2
SCREW, Taptite Pan Head Combo, #10-16 x 3/433 7091195SM 1
KNOB, Throttle34 7100529SM 1
HOSE, Fuel, 19.5" (See Frame, Body & Seat Group for fuel tank assembly.)35 1718678SM 1
CLAMP, Hose36 2860112SM 2
Note * See Briggs & Stratton Engine Repair Parts.
The above parts group applies to the following Mfg. Nos.:
17
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690644 - Axion
2690771 - Axion
TP 400-4496-D-ZT-S
Not for
Reproduction

Transmission Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987493
The above parts group applies to the following Mfg. Nos.:
18
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690642 - Axion
2690644 - Axion
2690715 - Axion
2690771 - Axion
7800376 - Axion
TP 400-4496-D-ZT-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Transmission Group
Footnotes
BOLT, Carriage, 5/16-18 x 1-1/4, G51 1960223SM 2
WASHER, .34 ID x 1 OD x .13 THK2 1919381SM 4
SPACER3 1703900SM 2
NUT, Hex Keps, 5/16-184 1960684SM 2
ROD, Control L.H.5 1727555SM 1
ROD, Control R.H.6 1727556SM 1
BOLT, Shoulder7 1727831SM 2
NUT, Hex Flange Two-Way Lock, 7/16-148 1930650SM 6
CAPSCREW, Hex Head, 7/16-14 x 2-1/4, G89 1927120SM 4
CAPSCREW, Hex Head, 5/16-18 x 2-3/4, G510 1923141SM 4
WASHER, .34 ID x 3/4 OD x .06 THK11 1919326SM 6
CLIP, Rod End Linkage13 1717024SM 1
ROD, Tow Valve L.H.14 1733913SM 1
BOLT, Carriage, 3/8-16 x 1-1/4, G515 1960268SM 1
BOLT, Carriage, 1/2-13 x 1-1/2, G516 1960758SM 1
DRAWBAR17 1733305ASM 1
CAPSCREW, Hex Head, 5/16-18 x 2-1/2, G518 1921719SM 2
CLIP, Rod End Linkage19 1725550SM 1
ROD, Tow Valve R.H.20 1733914SM 1
NUT, Hex Flange Whiz Lock, 5/16-1821 1931277SM 6
NUT, Wheel Hex, 1/2-2022 5020601SM 8
SUPPORT, Transmission Center23 1733309ASM 1
TRANSMISSION, Hydro Gear EZT L.H.24 1733351SM 1
TRANSMISSION, Hydro Gear EZT R.H.25 1733352SM 1
SUPPORT, Transmission Rear26 1733302ASM 1
NUT, Hex Flange, 3/8-16 ESNA27 1960687SM 3
NUT, Hex Flange, 1/2-1328 5025396SM 1
BOLT, Shoulder29 1728976SM 1
WASHER, .34 ID x .87 OD x .06 THK30 1924874SM 1
NUT, Hex Flange, 5/16-1831 1927557SM 1
V-BELT, Transmission Drive, 54.433 1732224SM 1
NUT, Hex Flange Two-Way Lock, 3/8-1634 1930645SM 2
WASHER, .41 ID x 1-1/2 OD x .12 THK35 1924356SM 2
CAPSCREW, Hex Head, 3/8-16 x 1, G536 1921210SM 2
SPRING, Extension37 1734316SM 1
SPACER, Powdered Metal38 1729007SM 1
ARM, Idler39 1733303ASM 1
PULLEY, Idler Flat40 1721133SM 1
WASHER, .41 ID x .87 OD x .08 THK41 1924940SM 2
BELT GUIDE42 1708352ASM 1
The above parts group applies to the following Mfg. Nos.:
19
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690642 - Axion
2690644 - Axion
2690715 - Axion
2690771 - Axion
7800376 - Axion
TP 400-4496-D-ZT-S
Not for
Reproduction

Transmission Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987493
The above parts group applies to the following Mfg. Nos.:
20
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690642 - Axion
2690644 - Axion
2690715 - Axion
2690771 - Axion
7800376 - Axion
TP 400-4496-D-ZT-S
Not for
Reproduction
