Simplicity Broadmoor 2600 User manual

Parts Manual
Rev. 04/2004
Broadmoor / 1600 / 2600
Series Lawn Tractors & Mower Decks
TP 400-2529-02-BM-SMA
Mf
g
. No. Descri
p
tion
1
6
HP Tractors
1694009 Broadmoor, 16HP Hydro (Kohler)
1694010 Broadmoor, 16HP Hydro
1694018 1606, 16HP Hydro (Kohler)
1694019 1616, 16HP Hydro
1694027 2606, 16HP Hydro (Kohler)
1694028 2616, 16HP, Hydro
1694179 Broadmoor, 16HP Hydro (CE)
1694277 Broadmoor, 16HP Hydro (Honda)
1694281 2626, 16HP Hydro (Honda)
1694301 Broadmoor, 16HP Hydro (CE)
1694429 Broadmoor, 16HP Hydro
1694430 Broadmoor, 16HP Hydro (CE)
1694431 2616, 16HP Hydro
1694465 1616H, 16HP Hydro
Mf
g
. No. Descri
p
tion
18HP Tractors
1694467 1618, 18HP Hydro
1694468 Broadmoor, 18HP Hydro
1694469 2618, 18HP, Hydro
Mf
g
. No. Descri
p
tion
Mower Decks
1694036 38" Mower Deck
1694042 38" Mower Deck
1694041 40" Mower Deck
1694047 40" Mower Deck
1694177 40" Mower Deck (CE)
1694210 40" Mower Deck (CE)
1694339 40" Mower Deck
1694340 40" Mower Deck
1694341 40" Mower Deck (CE)
1694037 44" Mower Deck
1694043 44" Mower Deck
1694178 44" Mower Deck (CE)
1694473 50" Mower Deck
1694474 50" Mower Deck

Table Of Content
s
Torque Specification Chart ..................................................................... Inside Back Cover
PRODUCT COMPONENTS PAGES
Frame & Front Axle Group ................................................................................................................................... 4
Steering Group - Manual Steering ....................................................................................................................... 8

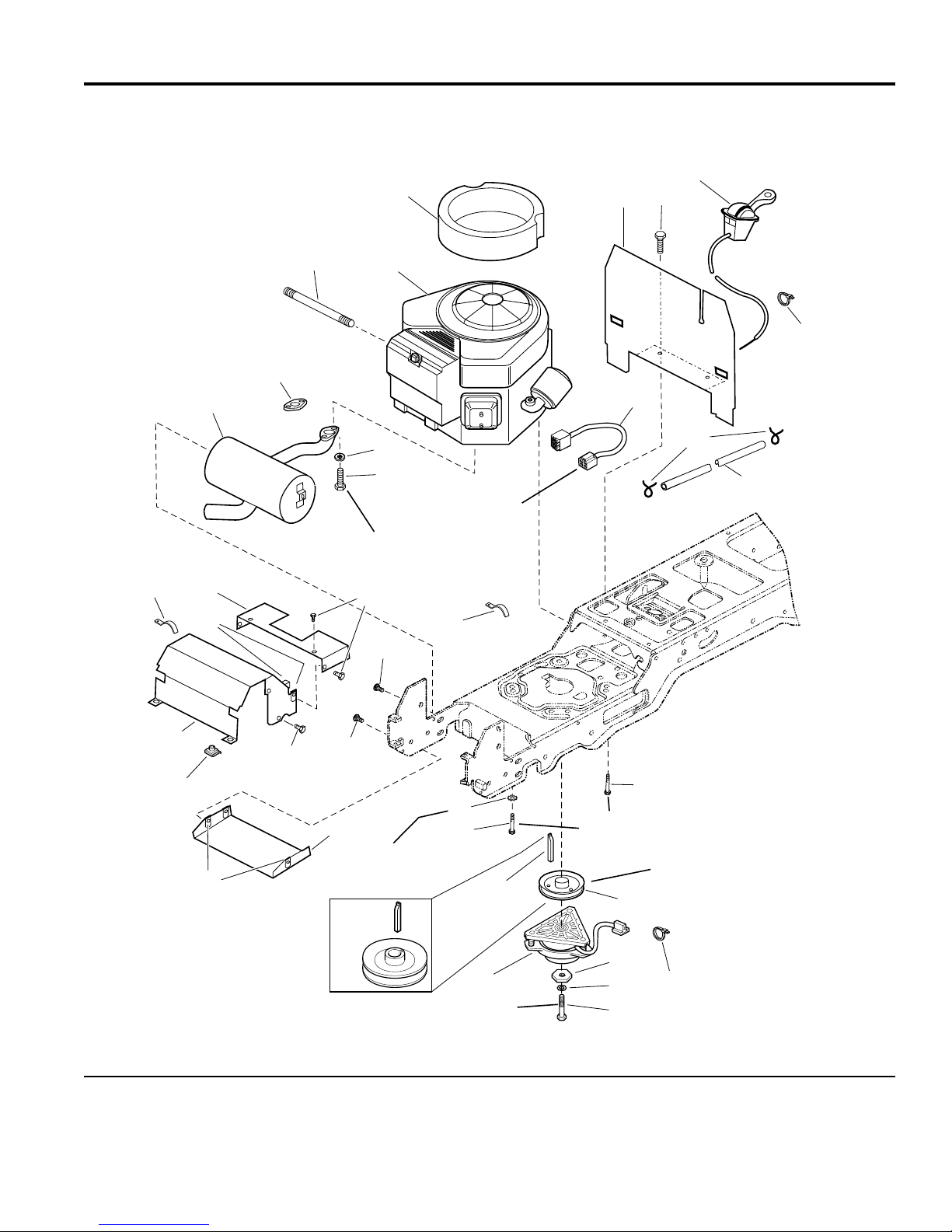

Engine & Electric Clutch Group - 16HP & 18HP Briggs & Stratton, Vanguard ................................................... 10
Engine & Electric Clutch Group - 16HP Briggs & Stratton, INTEK ...................................................................... 12
Engine & Electric Clutch Group - 16HP Honda ................................................................................................... 14
Engine & Electric Clutch Group - 16HP Kohler ................................................................................................... 16

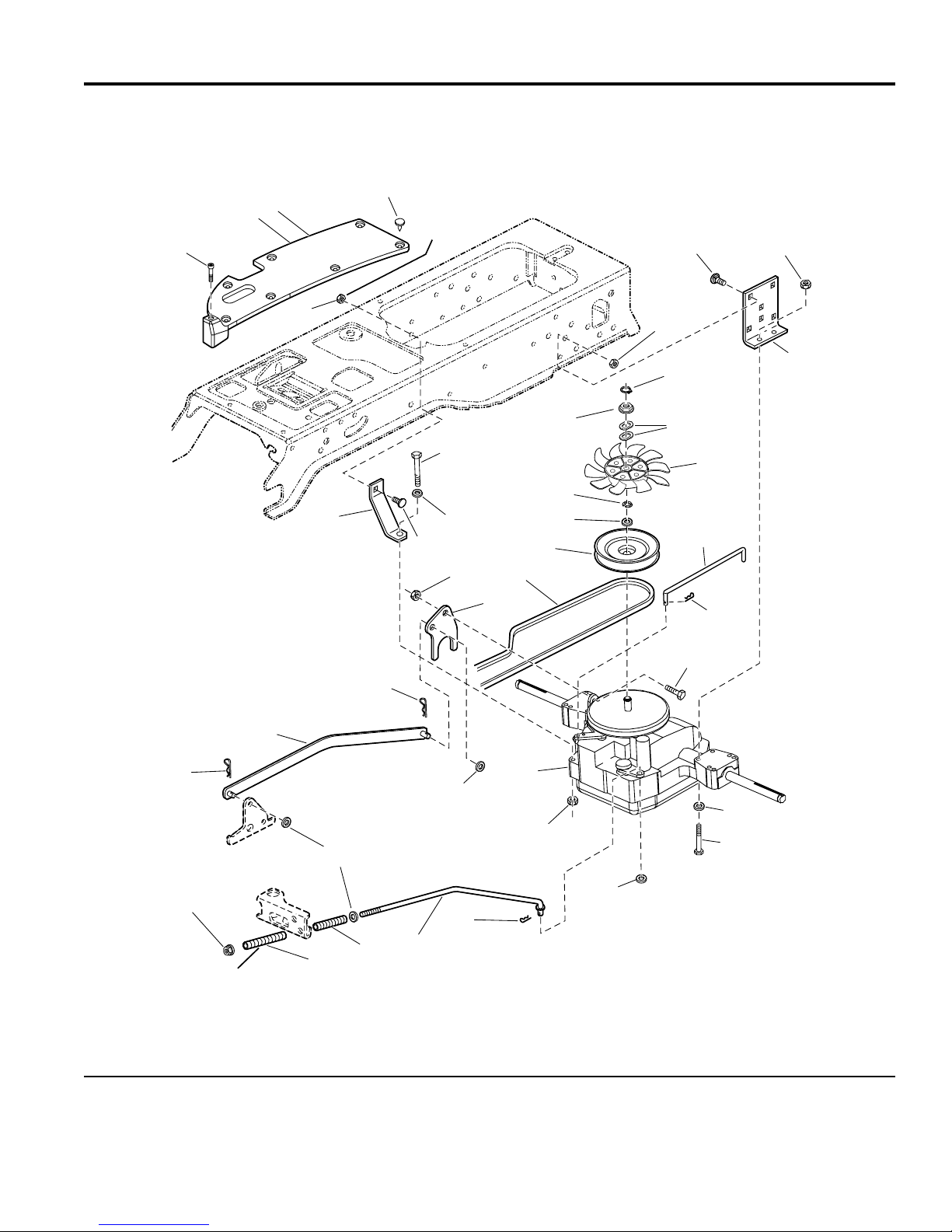

Transmission Group - Tuff Torq K-57 .................................................................................................................. 18
Transmission Group - Tuff Torq K-62 .................................................................................................................. 20
Transmission SERVICE PARTS - Tuff Torq K-57A ............................................................................................. 22
Transmission SERVICE PARTS - Tuff Torq K-62K ............................................................................................. 28
Lift Group - Manual Lift ........................................................................................................................................ 34
Lift Group - Manual Lift ........................................................................................................................................ 36
Controls Group ..................................................................................................................................................... 38
Cruise Control Group ........................................................................................................................................... 40
Electrical Group - Honda Engine ......................................................................................................................... 42
Electrical Group .................................................................................................................................................... 44
Hood, Grill & Dash Group .................................................................................................................................... 46
Seat & Seat Deck Group ...................................................................................................................................... 48
Wheels & Tires Group .......................................................................................................................................... 50
Decals - Brand & Model ....................................................................................................................................... 52
Decals - Safety & Common .................................................................................................................................. 54
38" Mower Deck - Belt, Idler Arm & Hitch ............................................................................................................ 56
38" Mower Deck - Height Adjustment & Roller Bar ............................................................................................. 58
38" Mower Deck - Housing, Arbors & Blades ...................................................................................................... 62
40" Mower Deck - Belt, Idler Arm & Hitch ............................................................................................................ 64
40" Mower Deck - Belt, Idler Arm & Hitch ............................................................................................................ 66
40" Mower Deck - Height Adjustment & Roller Bar ............................................................................................. 68
40" Mower Deck - Housing, Arbors & Blades ...................................................................................................... 72
40" Mower Deck - Housing, Arbors & Blades ...................................................................................................... 74
44" Mower Deck - Belt, Idler Arm & Hitch ............................................................................................................ 76
44" Mower Deck - Height Adjustment & Roller Bar ............................................................................................. 78
44" Mower Deck - Housing, Arbors & Blades ...................................................................................................... 82
44" Mower Deck - Housing, Arbors & Blades ...................................................................................................... 86
50" Mower Deck - Clutch & Support .................................................................................................................... 90
50" Mower Deck - Height Adjustment & Roller Bar ............................................................................................. 92
50" Mower Deck - Housing, Arbors & Blades ...................................................................................................... 96

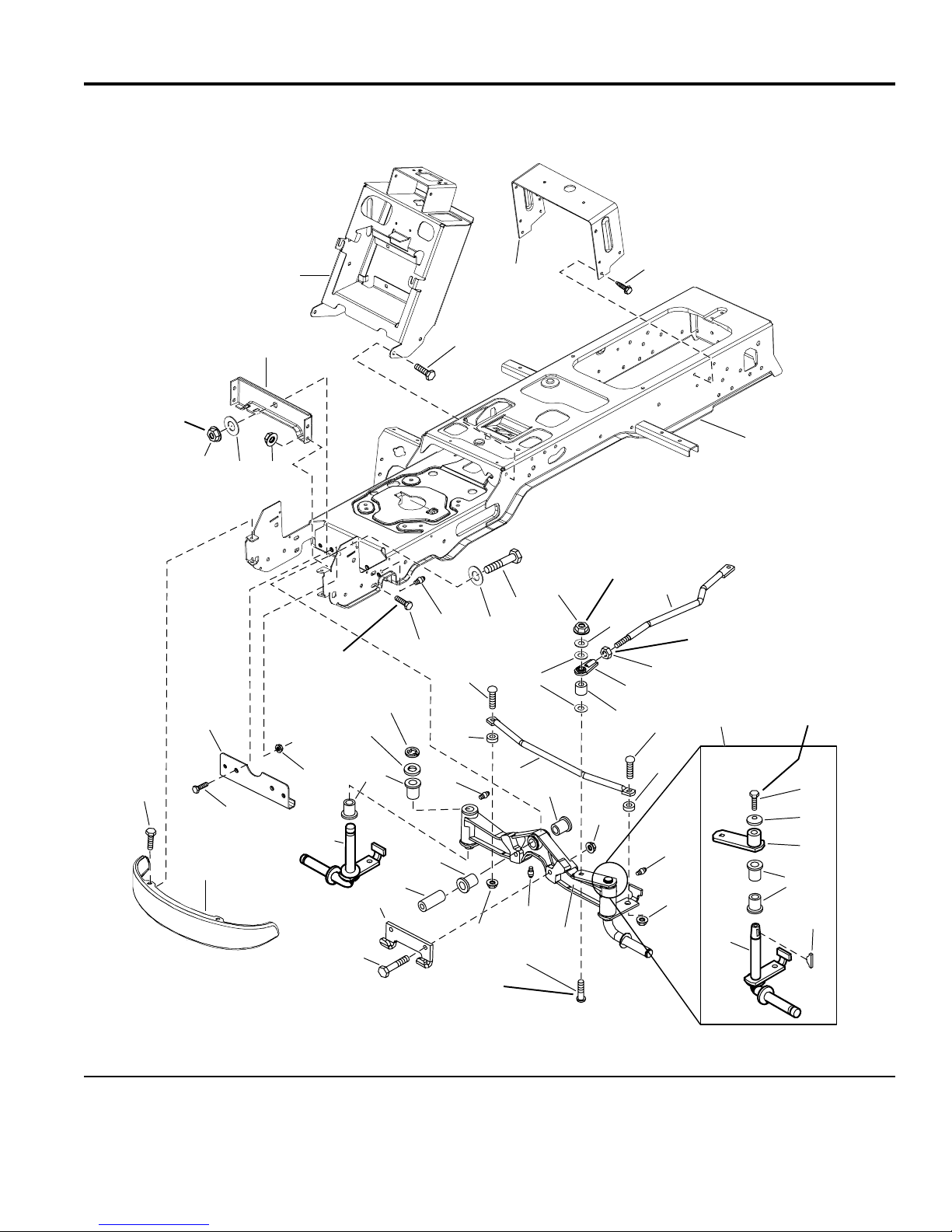

Frame & Front Axle Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Torque to
150 ft. lbs.
(202 Nm)
Torque to
22-40 ft. lbs.
(30-54 Nm)
Torque to
13 ft. lbs.
Service Kit
1686985
Torque to
50-57 ft. lbs.
(48-56 Nm)
Torque to
22-40 ft. lbs.
(30-54 Nm)
Torque to
55-60 ft. lbs.
(74-81 Nm)
12
18
21
13
18
14
17
16
20
31
36
33
23
22
34
37
32
1
7
5
9
2
8
46
3
10
2
1515
19
20
42
1
1
1
35
22
22
22
43
41
24
33
24
26
27
28
30
29
25
11
40
38
39
985880
The above parts group applies to the following Mfg. Nos.:
2004 4 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694018 - 1606
1694019 - 1616
1694027 - 2606
1694028 - 2616
1694281 - 2626
1694009 - Broadmoor
1694010 - Broadmoor
1694179 - Broadmoor
1694277 - Broadmoor
1694301 - Broadmoor
1694468 - Broadmoor
1694469 - 2618
1694429 - Broadmoor
1694430 - Broadmoor
1694431 - 2616
1694465 - 1616H
1694467 - 1618
TP 400-2529-02-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.
Frame & Front Axle Group
Footnotes
1 1930645 7 NUT, Hex Flange Lock, 3/8-16
2 1960035 2 WASHER
3 960646 1 NUT, Hex Flange, 5/8-11
4 1722212 1 PLATE, Axle
5 1724081 1 TOWER & SUPPORT ASSEMBLY
6 1923683 4 CAPSCREW, Hex Head Taptite, 3/8-16 x 3/4
7 1723528 1 SUPPORT
8 1664847 4 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4
9 1721572 1 FRAME ASSEMBLY
10 960645 1 CAPSCREW, 5/8-11 x 3-1/2
11 921133 2 FITTING, Grease for Wear Plate, 1/4-20
12 1933260 4 CAPSCREW, Hex Head, Flange Lock, 3/8-16 x 3/4
13 1722541 1 LINK, Drag
14 1922755 1 WASHER
15 1960103 2 WASHER
16 1919262 1 NUT, Hex Jam, 1/2-20
17 1702779 1 JOINT, Ball
18 1708236 1 SPACER
19 1931350 2 CARRIAGE BOLT, 3/8-16 x 1
20 1611705 2 SPACER
21 1722626 1 ROD, Tie
22 1721682 6 BUSHING
23 1930650 2 NUT, Hex Flange Lock, 7/16-14
24 1704314 3 FITTING, Lube
25 1686985 1 SPINDLE REPLACEMENT KIT, LH (Includes Ref. Nos. 22, 26, 27, 28, 29 & 30)
26 923485 1 CAPSCREW, 3/8-16 x 7/8, GR8
27 1663151 1 WASHER, Spring, 3/8
28 1725112 1 HUB & ARM ASSEMBLY
29 930671 1 KEY, Woodruff
30 1724264 1 SPINDLE, LH
31 1722200 1 AXLE ASSEMBLY, w/ LH Spindle, Complete (Includes Ref. Nos. 22, 24, 41, 42 & 43)
32 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2
33 1927531 2 CAPSCREW, Hex Head, 7/16-14 x 2, GR8
34 1721918 1 HOOK, "J"
35 1721752 1 SPACER
36 1960086 4 SCREW, Torx Head, 5/16-18 x 7/8
37 1721805 1 BUMPER, Black, Steel, Standard
37 1723502 1 BUMPER, Chrome, Optional
38 1930591 2 CAPSCREW, Hex Whiz Lock, 5/16-18 x 3/4
39 1724801 1 PLATE, Axle Wear
40 1931277 2 NUT, Hex Falnge Whiz Lock, 5/16-18
41 1722199 1 SPINDLE, RH
The above parts group applies to the following Mfg. Nos.:
2004 5 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694018 - 1606
1694019 - 1616
1694027 - 2606
1694028 - 2616
1694281 - 2626
1694009 - Broadmoor
1694010 - Broadmoor
1694179 - Broadmoor
1694277 - Broadmoor
1694301 - Broadmoor
1694468 - Broadmoor
1694469 - 2618
1694429 - Broadmoor
1694430 - Broadmoor
1694431 - 2616
1694465 - 1616H
1694467 - 1618
TP 400-2529-02-BM-SMA

Frame & Front Axle Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Torque to
150 ft. lbs.
(202 Nm)
Torque to
22-40 ft. lbs.
(30-54 Nm)
Torque to
13 ft. lbs.
Service Kit
1686985
Torque to
50-57 ft. lbs.
(48-56 Nm)
Torque to
22-40 ft. lbs.
(30-54 Nm)
Torque to
55-60 ft. lbs.
(74-81 Nm)
12
18
21
13
18
14
17
16
20
31
36
33
23
22
34
37
32
1
7
5
9
2
8
46
3
10
2
1515
19
20
42
1
1
1
35
22
22
22
43
41
24
33
24
26
27
28
30
29
25
11
40
38
39
985880
The above parts group applies to the following Mfg. Nos.:
2004 6 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694018 - 1606
1694019 - 1616
1694027 - 2606
1694028 - 2616
1694281 - 2626
1694009 - Broadmoor
1694010 - Broadmoor
1694179 - Broadmoor
1694277 - Broadmoor
1694301 - Broadmoor
1694468 - Broadmoor
1694469 - 2618
1694429 - Broadmoor
1694430 - Broadmoor
1694431 - 2616
1694465 - 1616H
1694467 - 1618
TP 400-2529-02-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.
Frame & Front Axle Group
Footnotes
42 1919394 1 WASHER
43 932577 1 RETAINING RING
The above parts group applies to the following Mfg. Nos.:
2004 7 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694018 - 1606
1694019 - 1616
1694027 - 2606
1694028 - 2616
1694281 - 2626
1694009 - Broadmoor
1694010 - Broadmoor
1694179 - Broadmoor
1694277 - Broadmoor
1694301 - Broadmoor
1694468 - Broadmoor
1694469 - 2618
1694429 - Broadmoor
1694430 - Broadmoor
1694431 - 2616
1694465 - 1616H
1694467 - 1618
TP 400-2529-02-BM-SMA

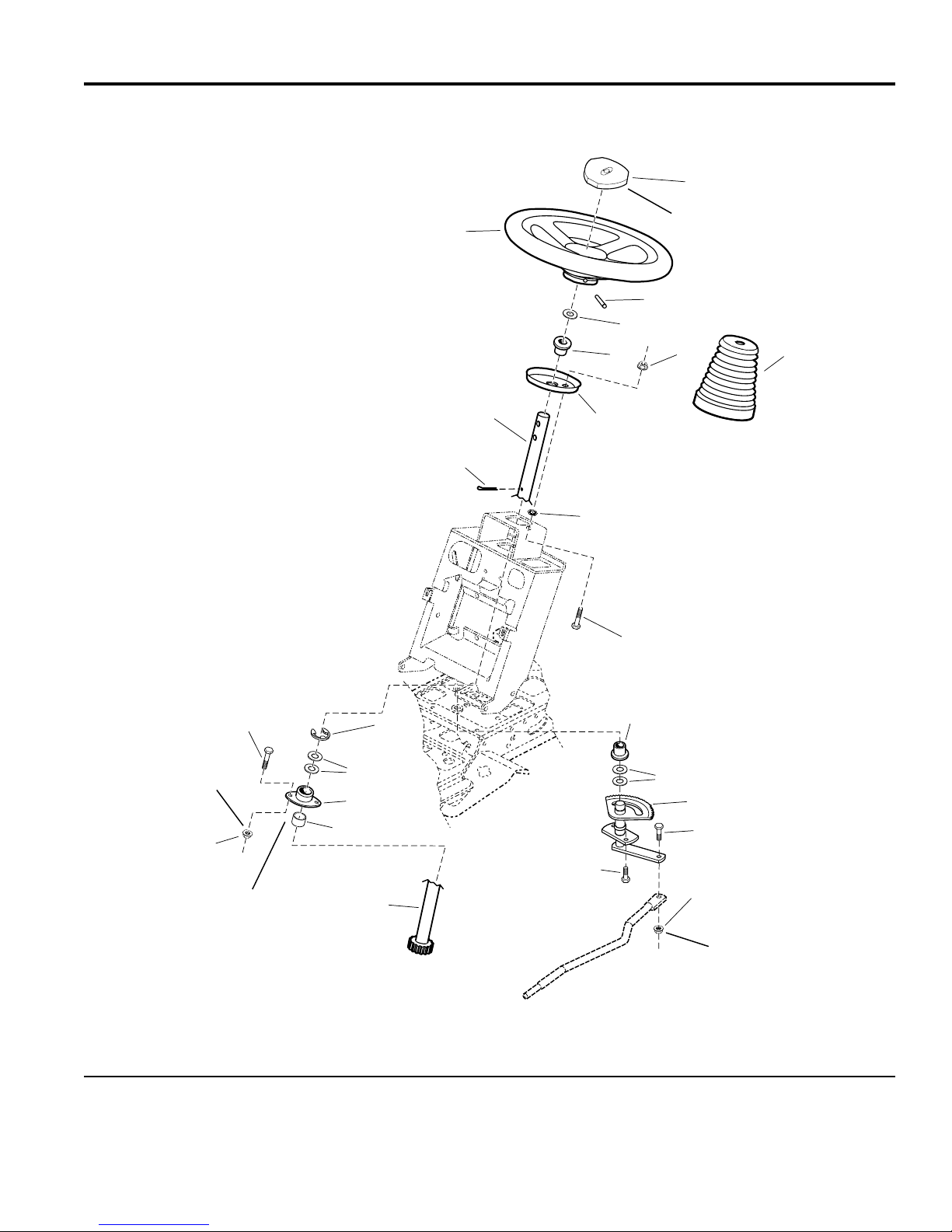

Steering Group - Manual Steering
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Torque to
36-44 ft. lbs.
or 48-60 Nm
Steering cap snaps
over steering wheel.
Use washers
as required.
Torque to
36-44 ft. lbs.
or 48-60 Nm
Bearing mounts below
frame. Slide pinion into
gear before tightening nuts.
18
21
14
7
11
10
13
15
12
1
6
19
2
20
4
8
3
17
5
6
5
9
16
5
15
985890
The above parts group applies to the following Mfg. Nos.:
2004 8 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694018 - 1606
1694019 - 1616
1694027 - 2606
1694028 - 2616
1694281 - 2626
1694009 - Broadmoor
1694010 - Broadmoor
1694179 - Broadmoor
1694277 - Broadmoor
1694301 - Broadmoor
1694468 - Broadmoor
1694469 - 2618
1694429 - Broadmoor
1694430 - Broadmoor
1694431 - 2616
1694465 - 1616H
1694467 - 1618
TP 400-2529-02-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.
Steering Group - Manual Steering
Footnotes
1 1722318 1 STEERING WHEEL, Straight, Shaft
2 1722319 1 CAP, Steering Wheel, SMI Logo
2 1725024 1 CAP, Steering Wheel, Plain
3 1960540 1 PIN, Spring, 5/16 x 2-1/2
4 1722749 1 COVER, Rubber, Upper Steering Shaft
5 1960114 5 WASHER, 3/4
6 176440 2 BUSHING, 15/32 x 7/8 x 7/8, Nylon
7 1960636 2 NUT, Hex KEPS 5/6-18
8 1721736 1 PLATE, Mounting Steering
9 1933988 2 NUT, Push
10 1960655 2 CARRIAGE BOLT, 5/16-18 x 1-1/4
11 1724470 1 GEAR & SHAFT ASSEMBLY, Steering
12 1960032 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black
13 1930645 1 NUT, Hex Flange Two-Way Lock, 3/8-16
14 1664847 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
15 1721626 1 SHAFT & PINION ASSEMBLY, Steering Manual
16 1611710 1 RING, Clipring Extension
17 1722459 1 BEARING, 3/4 x 1-11/16 x 13/16, 3" Long Housing
18 1722461 1 SPACER, 3/4 x 1-1/16 x 3/8, Powder Metal
19 1931211 2 NUT, Hex Flange Whiz Lock, 3/8-16, Small
20 1933260 2 CAPSCREW, Hex Whiz Lock Flange, 3/8-16 x 3/4, Black
21 1919314 1 PIN, Cotter, 1-1/4, Black
The above parts group applies to the following Mfg. Nos.:
2004 9 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694018 - 1606
1694019 - 1616
1694027 - 2606
1694028 - 2616
1694281 - 2626
1694009 - Broadmoor
1694010 - Broadmoor
1694179 - Broadmoor
1694277 - Broadmoor
1694301 - Broadmoor
1694468 - Broadmoor
1694469 - 2618
1694429 - Broadmoor
1694430 - Broadmoor
1694431 - 2616
1694465 - 1616H
1694467 - 1618
TP 400-2529-02-BM-SMA

Engine & Electric Clutch Group - 16HP & 18HP Briggs & Stratton, Vanguard
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Engine Manufacturer
Gasket & Hardware,
Torque to 18 ft. lbs.
(25 Nm)
Tie clutch wire
to keep away
from pulley.
Torque to
45-50 ft. lbs.
(61-68 Nm)
Torque to
19-23 ft. lbs.
(26-31 Nm)
Note:
Orientation
of All Keys
Tie cables to Left
Hand side of shield.
Position pulley
chamfer side up.
Install between Frame &
Ground cable on RH
rear engine capscrew.
15
12
17
10
16
14
11
13
18
24
23
19
25
21
20
1
5
9
2
4
6
3
7
8
22
11
23
27
30
29
31
10
28
22
26
32
26
7
19
986252
The above parts group applies to the following Mfg. Nos.:
2004 10 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694019 - 1616
1694028 - 2616
1694010 - Broadmoor
1694301 - Broadmoor
1694468 - Broadmoor
1694469 - 2618
1694429 - Broadmoor
1694430 - Broadmoor
1694431 - 2616
1694465 - 1616H
1694467 - 1618
TP 400-2529-02-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.
Engine & Electric Clutch Group - 16HP & 18HP Briggs & Stratton, Vanguard
Footnotes
1 1723165 1 HOSE, Oil Drain, 10-1/2" Long, 3/8-18 Fittings
2 * 1 ENGINE, 16HP Briggs & Stratton Vanguard Twin, Model 303777, Type 1114-E1
2 * 1 ENGINE, 18HP Briggs & Stratton Vanguard Twin, Model 356777, Type 0113-E1
3 1722950 1 SEAL, Circle, 16HP Only
3 1722949 1 SEAL, Circle, 18HP Only
4 1722388 1 BULKHEAD
5 1925003 2 CAPSCREW, Hex Washer Head Taptite, 1/2-20 x 1/2, Black
6 1721950 1 CONTROL, Throttle Double 39" Long w/Knobs
7 1701011 2 TIE, Wire, 7-5/16" Long
8 960112 2 CLAMP, Hose Type E
9 1718678 1 HOSE, Fuel, 59" Long
10 1722392 2 SHIELD, Side
11 1929000 8 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 3/8
12 1722288 1 PULLEY & HUB ASSEMBLY
13 932747 1 TIE, Self Locking, 3-5/8 Long
14 1708264 1 WASHER, Hex, 7/16, Black
15 1918199 1 LOCKWASHER, 7/16
16 1960648 1 CAPSCREW, Hex Head, 7/16-20 x 3-3/4
17 1686880 1 CLUTCH, Electric
18 1720463 1 KEY, HI PRO, 1/4 x 2 1/2
19 930598 4 CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/2
20 920427 1 LOCKWASHER, External Tooth, 3/8
21 1722414 1 SHIELD, Muffler Bottom
22 1960368 8 NUT, Speed, 1/4-20, Lug
23 1960295 4 CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8
24 1935255 2 NUT, Speed, 5/16-18, Lug, Black
25 1722389 1 DUCT, Muffler Top
26 934683 2 CLIP, Wire 1/8
27 1722390 1 DUCT, Muffler Extension
28 1924856 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1/2, Black
29 1722625 1 MUFFLER, Briggs & Stratton, Vanguard Twin
30 * 1 GASKET, Briggs & Stratton, Vanguard Twin
31 1917356 4 LOCKWASHER, 5/16
32 960660 4 CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 7/8
* See your local Briggs & Stratton distributor for parts and service.
The above parts group applies to the following Mfg. Nos.:
2004 11 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694019 - 1616
1694028 - 2616
1694010 - Broadmoor
1694301 - Broadmoor
1694468 - Broadmoor
1694469 - 2618
1694429 - Broadmoor
1694430 - Broadmoor
1694431 - 2616
1694465 - 1616H
1694467 - 1618
TP 400-2529-02-BM-SMA

Engine & Electric Clutch Group - 16HP Briggs & Stratton, INTEK
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Engine Manufacturer
Gasket & Hardware,
Torque to 18 ft. lbs.
(25 Nm)
Tie clutch wire
to keep away
from pulley.
Torque to
45-50 ft. lbs.
(61-68 Nm)
Torque to
19-23 ft. lbs.
(26-31 Nm)
Note:
Orientation
of All Keys
Tie cables to left
hand side of shield.
Position pulley
chamfer side up.
Install between Frame &
Ground cable on RH
rear engine capscrew.
15
12
17
10
16
14
11
13
18
24
23
19
25
21
20
1
5
9
2
4
6
3
7
8
22
11
23
27
30
29
31
10
28
22
26
32
26
33
19
985899
The above parts group applies to the following Mfg. Nos.:
2004 12 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694179 - Broadmoor
TP 400-2529-02-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.
Engine & Electric Clutch Group - 16HP Briggs & Stratton, INTEK
Footnotes
1 1723165 1 HOSE, Oil Drain, 10-1/2" Long, 3/8-18 Fittings
2 * 1 ENGINE, 16HP Briggs & Stratton INTEK Twin, Model 406777, Type 0162
3 1719847 1 SEAL, Circle
4 1722388 1 BULKHEAD
5 1925003 2 CAPSCREW, Hex Washer Head Taptite, 1/2-20 x 1/2, Black
6 1721950 1 CONTROL, Throttle Double 39" Long w/Knobs
7 1701011 1 TIE, Wire, 7-5/16" Long
8 960112 2 CLAMP, Hose Type E
9 1718678 1 HOSE, Fuel, 59" Long
10 1722392 2 SHIELD, Side
11 1929000 8 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 3/8
12 1722288 1 PULLEY & HUB ASSEMBLY
13 932747 1 TIE, Self Locking, 3-5/8 Long
14 1708264 1 WASHER, Hex, 7/16, Black
15 1918199 1 LOCKWASHER, 7/16
16 1960648 1 CAPSCREW, Hex Head, 7/16-20 x 3-3/4
17 1686880 1 CLUTCH, Electric
18 1720463 1 KEY, HI PRO, 1/4 x 2 1/2
19 930598 4 CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/2
20 920427 1 LOCKWASHER, External Tooth, 3/8
21 1722414 1 SHIELD, Muffler Bottom
22 1960368 8 NUT, Speed, 1/4-20, Lug
23 1960295 4 CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8
24 1935255 2 NUT, Speed, 5/16-18, Lug, Black
25 1722389 1 DUCT, Muffler Top
26 934683 2 CLIP, Wire 1/8
27 1722390 1 DUCT, Muffler Extension
28 1924856 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1/2 Black
29 1721706 1 MUFFLER, Briggs & Stratton, INTEK Twin
30 * 1 GASKET, Briggs & Stratton, INTEK Twin
31 1917356 4 LOCKWASHER, 5/16
32 960660 4 CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 7/8
33 1721986 1 DECAL, 16HP Briggs & Stratton INTEK
* See your local Briggs & Stratton distributor for parts and service.
The above parts group applies to the following Mfg. Nos.:
2004 13 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694179 - Broadmoor
TP 400-2529-02-BM-SMA

Engine & Electric Clutch Group - 16HP Honda
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Torque to 18 ft. lbs.
(25 Nm)
Tie clutch wire
to keep away
from pulley.
Torque to
45-50 ft. lbs.
(61-68 Nm)
Torque to
19-23 ft. lbs.
(26-31 Nm)
Note:
Orientation
of All Keys
Position pulley
chamfer side up.
To like
colored wires
on engine.
To oil
pressure
switch.
To starter
solenoid.
To tractor
harness.
Torque to 18 ft. lbs.
(25 Nm)
Install between Frame &
Ground cable on RH
rear engine capscrew.
22
19
20
23
21
29
18
26
36
16
28
24
17
3
8
12
5
7
10
4
11
13
25
27
36
31
35
32
30
25
1
34
1
2
6
9
14
15
16
33
34
35
2
986165
The above parts group applies to the following Mfg. Nos.:
2004 14 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694281 - 2626
1694277 - Broadmoor
TP 400-2529-02-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.
Engine & Electric Clutch Group - 16HP Honda
Footnotes
1 934683 2 CLIP, Wire 1/8
2 960656 2 CAPSCREW, Hex Head, M06-1 x 12MM
3 1723526 1 SHIELD, Manifold, RH
4 1724197 1 SEAL, Foam
5 * 1 ENGINE, 16HP HONDA, Twin, Model GXV350, Type PX-A1
6 1960611 2 CAPSCREW, Hex Head, Whiz Flangelock, 1/4-20 x 1, Black
7 1722388 1 BULKHEAD
8 1925003 2 CAPSCREW, Hex Washer Head Taptite, 1/2-20 x 1/2, Black
9 1930641 2 NUT, Hex Flange Lock, 1/4-20
10 1721950 1 CONTROL, Throttle Double 39" Long w/Knobs
11 1701011 1 TIE, Wire, 7-5/16" Long
12 1718678 1 HOSE, Fuel, 59" Long
13 960112 2 CLAMP, Hose Type E
14 * 1 VOLTAGE REGULATOR
15 1726370 1 HOSE, Oil Drain, 6-1/2" Long, 3/8-18 Fittings
16 930598 4 CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/2
17 920427 1 LOCKWASHER, External Tooth, 3/8
18 1720463 1 KEY, HI PRO, 1/4 x 2-1/2
19 1722288 1 PULLEY & HUB ASSEMBLY
20 1686880 1 CLUTCH, Electric, Ogura
21 1708264 1 WASHER, Hex, 7/16, Black
22 1918199 1 LOCKWASHER, 7/16
23 1960648 1 CAPSCREW, Hex Head, 7/16-20 x 3-3/4
24 1722414 1 SHIELD, Muffler Bottom
25 1960368 8 NUT, Speed, 1/4-20, Lug
26 1935255 2 NUT, Speed, 5/16-18, Lug, Black
27 1929000 8 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 3/8
28 1722389 1 DUCT, Muffler Top
29 932747 1 TIE, Self Locking, 3-5/8" Long
30 1924856 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1/2 Black
31 1723973 1 DUCT, Muffler
32 1723970 1 MUFFLER, Honda
33 1723674 1 WIRE ASSEMBLY, Jumper, Early Models for engine without 6 pin connector.
34 * 2 GASKET
35 1960525 4 NUT, Hex Flange, M06-1.0
36 1960295 8 CAPSCREW, Hex Head, 1/4-20 x 3/8
* See your local Honda distributor for parts and service.
The above parts group applies to the following Mfg. Nos.:
2004 15 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694281 - 2626
1694277 - Broadmoor
TP 400-2529-02-BM-SMA

Engine & Electric Clutch Group - 16HP Kohler
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Engine Manufacturer
Gasket & Hardware,
Torque to 18 ft. lbs.
(25 Nm)
Tie clutch wire
to keep away
from pulley.
Torque to
45-50 ft. lbs.
(61 - 68 Nm)
Torque to
12-16 ft. lbs.
(26 - 31 Nm)
Note:
Orientation
of All Keys
Tie cables to right
hand side of shield.
Install between Frame &
Ground cable on RH
rear engine capscrew.
Position pulley
chamfer side up.
Connect Jumper
from Engine Plug
to Electrical Harnes.
15
12
17
16
14
13
18
24
23
19
25
21
20
1
5
9
2
4
6
3
7
8
22
11
23
27
30
29
31
28
22
26
32
26
10
19
985898
The above parts group applies to the following Mfg. Nos.:
2004 16 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694018 - 1606
1694027 - 2606
1694009 - Broadmoor
TP 400-2529-02-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.
Engine & Electric Clutch Group - 16HP Kohler
Footnotes
1 1723165 1 HOSE, Oil Drain, 10 1/2 Long, 3/8-18 Fittings
2 * 1 ENGINE, 16HP Kohler, Single, Model CV460S, Type PA-26507
3 1722950 1 SEAL, Circle
4 1722388 1 BULKHEAD
5 1925003 2 CAPSCREW, Hex Washer Head Taptite, 1/2-20 x 1/2, Black
6 1721949 1 CONTROL, Throttle Single 25-3/4" Long w/Knobs
7 1701011 1 TIE, Wire, 7-5/16" Long
8 960112 2 CLAMP, Hose Type E
9 1718678 1 HOSE, Fuel, 59" Long
10 1723661 1 HARNESS, Wire, Jumper
11 1929000 4 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 3/8
12 1722288 1 PULLEY & HUB ASSEMBLY
13 932747 1 TIE, Self Locking, 3-5/8 Long
14 1708264 1 WASHER, Hex, 7/16, Black
15 1918199 1 LOCKWASHER, 7/16
16 1960648 1 CAPSCREW, Hex Head, 7/16-20 x 3-3/4
17 1686880 1 CLUTCH, Electric
18 1720463 1 KEY, HI PRO, 1/4 x 2-1/2
19 1927187 4 CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 1
20 920426 1 LOCKWASHER, External Tooth, 5/16
21 1722414 1 SHIELD, Muffler Bottom
22 1960368 8 NUT, Speed, 1/4-20, Lug
23 1960295 8 CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8
24 1935255 2 NUT, Speed, 5/16-18, Lug, Black
25 1722389 1 DUCT, Muffler Top
26 934683 2 CLIP, Wire 1/8
27 1722487 1 DUCT, Muffler Extension
28 1924856 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1/2 Black
29 1721704 1 MUFFLER, Kohler, Single
30 * 1 GASKET, Kohler, Single
31 1917356 2 LOCKWASHER, 5/16
32 * 2 CAPSCREW, Hex Head, 5/16-18 x 7/8
* See your local Kohler distributor for parts and service.
The above parts group applies to the following Mfg. Nos.:
2004 17 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694018 - 1606
1694027 - 2606
1694009 - Broadmoor
TP 400-2529-02-BM-SMA

Transmission Group - Tuff Torq K-57
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Spring to be
compressed to
2-1/2 inches with
brake locked.
Torque nut to
28 - 33 ft. lbs.
(35 - 44 Nm)
9
46
17
3
5
2
8
24
16
28
31
25
27
26
29
19
8
19
17
16
37
34
14
15
10
35
11 12
12
36 18
19
23
21
22
30
32
33
20
13
985886
The above parts group applies to the following Mfg. Nos.:
2004 18 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694018 - 1606
1694027 - 2606
1694281 - 2626
1694009 - Broadmoor
1694277 - Broadmoor
1694468 - Broadmoor
1694469 - 2618
1694429 - Broadmoor
1694430 - Broadmoor
1694431 - 2616
1694465 - 1616H
1694467 - 1618
TP 400-2529-02-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.
Transmission Group - Tuff Torq K-57
Footnotes
1 1960676 2 SCREW, Pan Head Torx Taptite, 1/4-20 x 1-1/4, Black
2 1722345 1 PAD, Footrest, LH, without Differential Lock
3 1722173 1 PAD, Footrest, RH
4 1960636 1 NUT, Hex KEPS, 5/16-18, Black
5 1704351 15 FASTENER, Panel
6 1960637 6 NUT, Hex KEPS, 3/8-16, Black
7 1931350 6 CARRIAGE BOLT, 3/8-16 x 1, Black
8 1960686 5 NUT, Hex Flange ESNA, 5/16-18, Black
9 1721728 2 SUPPORT, Transmission
10 1724316 1 RING, Snap, Transmission
11 1724312 1 COLLOR, Spline, Transmission
12 1724315 2 LOCK WASHER, Transmission
13 1724314 1 FAN, 10 Blade, Transmission
14 1718076 1 RING, E, Transmission
15 1960027 2 WASHER, 1/2
16 1721666 1 PULLEY & HUB ASSEMBLY
17 1721696 1 V-BELT, Drive
18 1721616 1 ROD
19 1722460 3 PIN, Quick
20 1921332 1 CAPSCREW, Hex Head, 5/16-18 x 2
21 1919326 4 WASHER, 5/16, Black
22 1923141 4 CAPSCREW, Hex Head, 5/16-18 x 2-3/4, Black
23 1918267 1 WASHER, 15/32 x 15/16, Black
24 1918447 1 PIN, Cotter, Black
25 1721579 1 ROD
26 1722684 1 SPRING, Compression, 3-1/4" Long, Black
27 8191045 1 SPRING, Compression, 3-5/8" Long, Black
28 1960687 1 NUT, Hex FlangeESNA, 3/8-16, Black
29 1924940 3 WASHER, 3/8, Black
30 1722668 1 TRANSMISSION ASSEMBLY, K57, without Pulley
31 1725317 1 CONTROL ARM ASSEMBLY
32 1724423 1 ARM, Control
33 1960636 2 NUT, KEPS Lock, 5/16-18
34 1721592 1 STRAP, Torque
35 1931335 1 CARRIAGE BOLT, 5/16-18 x 1, Black
36 1960141 1 WASHER, 5/16, Black
37 1922127 1 CAPSCREW, Hex Head, 5/16-18 x 1-3/4, Balck
The above parts group applies to the following Mfg. Nos.:
2004 19 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694018 - 1606
1694027 - 2606
1694281 - 2626
1694009 - Broadmoor
1694277 - Broadmoor
1694468 - Broadmoor
1694469 - 2618
1694429 - Broadmoor
1694430 - Broadmoor
1694431 - 2616
1694465 - 1616H
1694467 - 1618
TP 400-2529-02-BM-SMA

Transmission Group - Tuff Torq K-62
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Spring to be
compressed to
2-1/2 inches with
brake locked.
Torque nut to
19 - 21 ft. lbs.
(26 - 28 Nm)
Torque nut to
28 - 33 ft. lbs.
(35 - 44 Nm)
9
46
17
3
5
2
8
20
27
24
29
21
28
23 22
25
16
8
16
14
13
33
30 12
10
31
11
32
17
18
19
15
16
26
985887
The above parts group applies to the following Mfg. Nos.:
2004 20 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694019 - 1616
1694028 - 2616
1694010 - Broadmoor
1694179 - Broadmoor
1694301 - Broadmoor
TP 400-2529-02-BM-SMA
