Parts Manual
BROADMOOR / 1600 / 2600
SERIES LAWN TRACTORS & MOWER DECKS
14HP V-TWIN TRACTORS
Mfg. No. Description
1693052 14V HP Broadmoor Hydro
1693058 14V HP 1614 Hydro
1693068 14V HP Broadmoor Hydro (Export)
1693351 14V HP Broadmoor Hydro
1693358 14V HP Broadmoor Hydro (Export)
1693365 14V HP 1614 Hydro
16HP TRACTORS
Mfg. No. Description
1693054 16 HP Broadmoor Hydro
1693060 16 HP, 1615 Hydro
1693064 16 HP, 2615 Hydro
1693070 16 HP Broadmoor Hydro (Export)
1693353 16 HP Broadmoor Hydro
1693360 16 HP Broadmoor Hydro (Export)
1693367 16 HP, 1615 Hydro
1693372 16 HP, 2615 Hydro
16HP V-TWIN TRACTORS
Mfg. No. Description
1693056 16V HP Broadmoor Hydro
1693062 16V HP 1616 Hydro
1693066 16V HP 2616 Hydro
1693072 16V HP Broadmoor Hydro (Export)
1693355 16V HP Broadmoor Hydro
1693362 16V HP Broadmoor Hydro (Export)
1693369 16V HP 1616 Hydro
1693374 16V HP 2616 Hydro
18HP V-TWIN TRACTORS
Mfg. No. Description
1693275 18V HP Broadmoor Hydro
1693277 18V HP 1618 Hydro
1693279 18V HP 2618 Hydro
1693281 18V HP Broadmoor Hydro (Export)
MOWER DECKS
Mfg. No. Description
1692682 38” Mower Deck
1692683 38” Mower Deck
1693170 38” Mower Deck (Export)
1692684 44” Mower Deck
1692685 44” Mower Deck
1693171 44” Mower Deck (Export)
Mfg. No. Description
1693267 50” Mower Deck
1693283 50” Mower Deck (Export)
1693284 50” Mower Deck
Rev. 4/1999
TP 400-2210-01-BM-SMA

1
TP 400-2210-01-BM-SMA
Table of Contents
This Manual Covers The Following
Products:
14HP V-TWIN LAWN TRACTORS
1693052 Broadmoor, 14 HV
1693058 1614VH, 14 HV
1693068 Broadmoor, 14 HV (Export)
1693351 Broadmoor, 14 HV
1693358 Broadmoor, 14 HV (Export)
1693365 1614VH, 14 HV
16HP LAWN TRACTORS
1693054 Broadmoor, 16 H
1693060 1615H, 16 H
1693064 2615H, 16 H
1693070 Broadmoor, 16 H (Export)
1693353 Broadmoor, 16 H
1693360 Broadmoor, 16 H (Export)
1693367 1615H, 16 H
1693372 2615H, 16 H
16HP V-TWIN LAWN TRACTORS
1693056 Broadmoor, 16 HV
1693062 1616VH, 16 HV
1693066 2616H, 16HV
1693072 Broadmoor, 16 HV (Export)
1693355 Broadmoor, 16 HV
1693362 Broadmoor, 16 HV (Export)
1693369 1616VH, 16 HV
1693374 2616H, 16HV
18HP V-TWIN LAWN TRACTORS
1693275 Broadmoor, 18 HV
1693277 1618VH, 18 HV
1693279 2618H, 18HV
1693281 Broadmoor, 18 HV (Export)
38” MOWER DECKS
1692682 38” Mower Deck
1692683 38” Mower Deck
1693170 38” Mower Deck (Export)
44” MOWER DECKS
1692684 44” Mower Deck
1692685 44” Mower Deck
1693171 44” Mower Deck (Export)
50” MOWER DECKS
1693267 50” Mower Deck
1693283 50” Mower Deck (Export)
1693284 50” Mower Deck
LAWN TRACTOR COMPONENTS
Frame & Front Axle . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Engine & Electric Clutch - Early 16HP Kohler . . . . . . .6
Engine & Electric Clutch - Later 16HP Kohler . . . . . . .8
Engine & Electric Clutch - Early 14HP & 16HP B&S .10
Engine & Electric Clutch - Later 14, 16, 18HP B&S . .12
Transmission Group . . . . . . . . . . . . . . . . . . . . . . . . .14
Transmission Service Parts – Tuff Torq K61 . . . . . .16
Controls Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Hood, Grille & Dash . . . . . . . . . . . . . . . . . . . . . . . . . .26
Seat, Deck & Fuel Tank . . . . . . . . . . . . . . . . . . . . . . .28
Electrical - Lower Harness . . . . . . . . . . . . . . . . . . . . .30
Electrical - Main Harness . . . . . . . . . . . . . . . . . . . . . .32
Front Wheels & Tires . . . . . . . . . . . . . . . . . . . . . . . . .34
Rear Wheels & Tires . . . . . . . . . . . . . . . . . . . . . . . . .36
Decals - Safety & Common . . . . . . . . . . . . . . . . . . . .38
Decals - Brand & Model . . . . . . . . . . . . . . . . . . . . . . .40
MOWER DECK COMPONENTS
38” Mower Deck - Housing, Arbors & Blades . . . . . .42
38” Mower Deck - Belt, Clutch & Support . . . . . . . . .44
38” Mower Deck - Height Adjustment & Rollers . . . .46
44” & 50” Mower Deck - Housing, Arbors & Blades .48
44” & 50” Mower Deck - Belt, Clutch & Support . . . .50
44” Mower Deck - Height Adjustment & Rollers . . . .52
50” Mower Deck - Height Adjustment & Rollers . . . .54
REFERENCE INFORMATION:
Part Number Index . . . . . . . . . . . . . . . . . . . . . . . . . .56
Torque Specification Chart . . . . . . . . .Inside Back Cover
© Copyright 1999 Simplicity Manufacturing, Inc. All Rights Reserved.
PAGES
2, 4, 10, 12, 14, 16,
18, 20, 22, 24, 26,
28, 30, 32, 34, 36,
38, 40
PAGES
2, 4, 6, 8, 14,16, 18,
20, 22, 24, 26, 28,
30, 32, 34, 36, 38, 40
PAGES
2, 4, 10, 12, 14, 16,
18, 20, 22, 24, 26,
28, 30, 32, 34, 36,
38, 40
PAGES
2, 4, 10, 12, 14, 16,
18, 20, 22, 24, 26,
28, 30, 32, 34, 36,
38, 40
PAGES
42, 44, 46
PAGES
48, 50, 52
PAGES
48, 50, 54

2
TP 400-2210-01-BM-SMA
© Copyright 1999 Simplicity Manufacturing, Inc. All Rights Reserved.
Frame & Front Axle
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
A-BM42601A
The above parts group applies to the following Mfg. Nos.:
1693052 Broadmoor, 14 HV
1693054 Broadmoor, 16 H
1693056 Broadmoor, 16 HV
1693058 1614VH, 14 HV
1693060 1615H, 16 H
1693062 1616VH, 16 HV
1693064 2615H, 16 H
1693066 2616H, 16HV
1693068 Broadmoor, 14 HV (Export)
1693070 Broadmoor, 16 H (Export)
1693072 Broadmoor, 16 HV (Export)
1693275 Broadmoor, 18 HV
1693277 1618VH, 18 HV
1693279 2618H, 18HV
1693281 Broadmoor, 18 HV (Export)
1693351 Broadmoor, 14 HV
1693353 Broadmoor, 16 H
1693355 Broadmoor, 16 HV
1693358 Broadmoor, 14 HV (Export)
1693360 Broadmoor, 16 H (Export)
1693362 Broadmoor, 16 HV (Export)
1693365 1614VH, 14 HV
1693367 1615H, 16 H
1693369 1616VH, 16 HV
1693372 2615H, 16 H
1693374 2616H, 16HV
12
3
44
3
2
6
7
8
9
10
11
12
5
12
131114
Torque to 75 ft. lbs.
Lubricate

3
TP 400-2210-01-BM-SMA

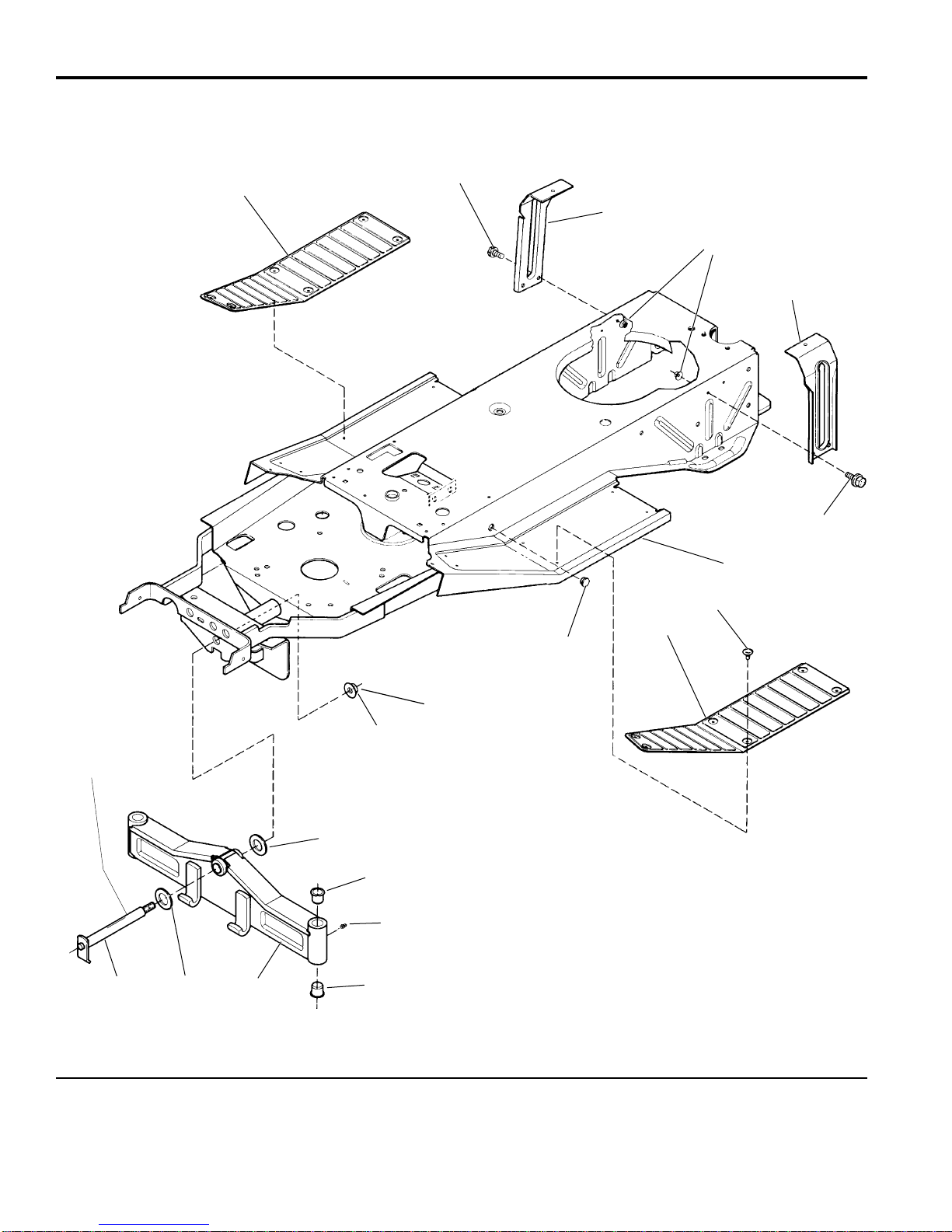

Frame & Front Axle
1 1717936 1 PAD, Footrest, RH
2 1934654 4 CAPSCREW, Hex Flange Hd, Whizlock, 3/8-16 x 1
3 1703968 2 SUPPORT, Seat
4 1919439 4 NUT, Hex Nylon Lock, 3/8-16
5 1704314 2 GREASE FITTING
6 1718855 1 FRAME ASSY.
7 1704351 13 FASTENER, Panel
8 1704311 1 PAD, Footrest, LH
9 1707488 1 PLUG
10 1960270 1 NUT, Hex Full, Lock, 3/4-16
11 960530 2 WASHER, Special
12 176440 4 BUSHING
13 1703475 1 AXLE ASSY., Front
14 1718856 1 AXLE PIVOT ASSY.
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
The above parts group applies to the following Mfg. Nos.:
1693052 Broadmoor, 14 HV
1693054 Broadmoor, 16 H
1693056 Broadmoor, 16 HV
1693058 1614VH, 14 HV
1693060 1615H, 16 H
1693062 1616VH, 16 HV
1693064 2615H, 16 H
1693066 2616H, 16HV
1693068 Broadmoor, 14 HV (Export)
1693070 Broadmoor, 16 H (Export)
1693072 Broadmoor, 16 HV (Export)
1693275 Broadmoor, 18 HV
1693277 1618VH, 18 HV
1693279 2618H, 18HV
1693281 Broadmoor, 18 HV (Export)
1693351 Broadmoor, 14 HV
1693353 Broadmoor, 16 H
1693355 Broadmoor, 16 HV
1693358 Broadmoor, 14 HV (Export)
1693360 Broadmoor, 16 H (Export)
1693362 Broadmoor, 16 HV (Export)
1693365 1614VH, 14 HV
1693367 1615H, 16 H
1693369 1616VH, 16 HV
1693372 2615H, 16 H
1693374 2616H, 16HV

Pitman Arm shaft
{Ref 19} to protrude
9/16" above top of
steering gear hub
assembly {Ref 16}.
Coat gear teeth
with grease.
Grease
before
assembly.
Washer {Ref 35}
must be on
inside of wheel.
See Front Wheels & Tires
group for wheel assembly and
attaching parts.
NOTE: Adjust drag link {Ref 30}
as required so that spindle stops
contact the frame equally on LH
and RH sides. Torque nut {Ref
28} to 13 ft. lbs. after
adjustment.
NOTE: To index wheel,
loosen nuts {Ref 29} and
adjust, then torque nuts
to 13 ft. lbs.
{Ref 15} Apply
Loctite #271.
Torque to
20-30 ft. lbs.
{Ref 11} Torque
to 36-44 ft. lbs.
{in two places}.
{Ref 12} Grease bushings
{three locations}
23
1
2
3
4
5
6
7777
8
9
10
11
12
13
7
14
1515
16
17
18
19
12
12
20 21
22
24
25
26
27
28
29
30
29
2627
24
25
31
32
33
34
35
36
28
37
28
9
7
38
31
3228
37
9
34
4
TP 400-2210-01-BM-SMA
© Copyright 1999 Simplicity Manufacturing, Inc. All Rights Reserved.

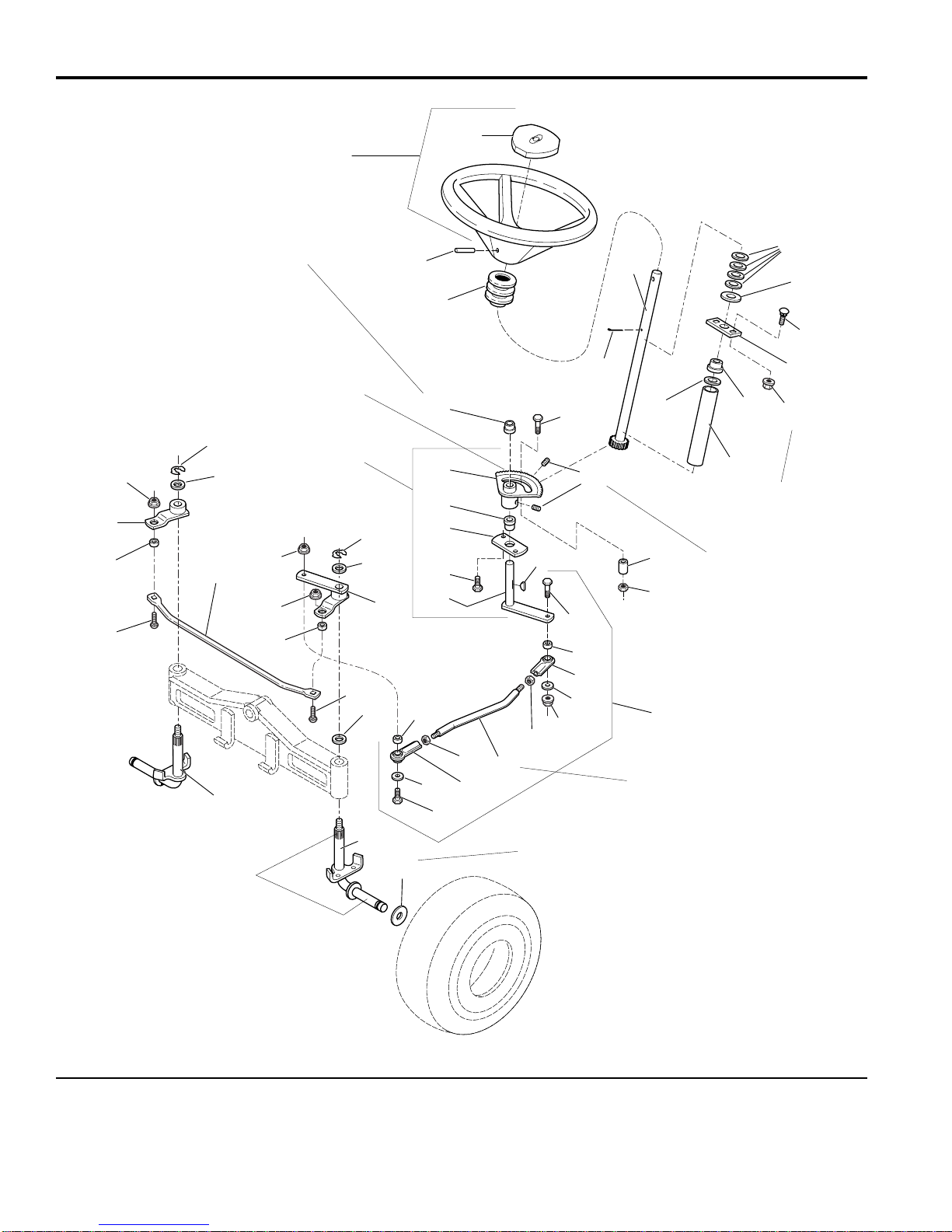

Steering
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
A-BM42602A
The above parts group applies to the following Mfg. Nos.:
1693052 Broadmoor, 14 HV
1693054 Broadmoor, 16 H
1693056 Broadmoor, 16 HV
1693058 1614VH, 14 HV
1693060 1615H, 16 H
1693062 1616VH, 16 HV
1693064 2615H, 16 H
1693066 2616H, 16HV
1693068 Broadmoor, 14 HV (Export)
1693070 Broadmoor, 16 H (Export)
1693072 Broadmoor, 16 HV (Export)
1693275 Broadmoor, 18 HV
1693277 1618VH, 18 HV
1693279 2618H, 18HV
1693281 Broadmoor, 18 HV (Export)
1693351 Broadmoor, 14 HV
1693353 Broadmoor, 16 H
1693355 Broadmoor, 16 HV
1693358 Broadmoor, 14 HV (Export)
1693360 Broadmoor, 16 H (Export)
1693362 Broadmoor, 16 HV (Export)
1693365 1614VH, 14 HV
1693367 1615H, 16 H
1693369 1616VH, 16 HV
1693372 2615H, 16 H
1693374 2616H, 16HV

5
TP 400-2210-01-BM-SMA
Steering
1 1686651 1 STEERING WHEEL ASSY. (Incl. Ref. Nos. 2 & 3)
2 1714097 1 CAP, Steering Wheel
3 1960540 1 PIN, Spring, 5/8 x 2
4 1714400 1 TUBE, Steering
5 1718539 1 SHAFT ASSY., Steering
6 1919314 1 COTTER PIN, 3/16 x 1-1/4
7 1960114 7 WASHER, Plain, 49/64
8 173668 1 WASHER, Plain
9 1931350 4 CARRIAGE BOLT, 3/8-16 x 1
10 1703508 1 PLATE, Mounting, Steering
11 1928352 2 NUT, Hex Flange, 3/8-16
12 176440 3 BUSHING, Nylon
13 1704425 1 TUBE, Shift
14 1921221 1 CAPSCREW, Hex Hd, 5/16-18 x 1-1/2
15 1928721 2 SETSCREW, Sq. Hd., 5/16-18 x 1/2
16 1703513 1 GEAR ASSY., Steering
17 1716117 1 SECTOR MOUNTING PLATE
18 1960373 2 CAPSCREW, Taptite, 5/16-18 x 1
19 1703512 1 PITMAN ARM ASSY.
20 930670 1 KEY, Hi Pro
21 1673796 1 SPACER, Stop
22 1919438 1 NUT, Hex Nylon Lock, 5/16-18
23 1685478 1 DRAG LINK KIT, (Incl. Ref. Nos. 24, 25, 26, 27, 28, 29 & 30)
24 1921968 2 CAPSCREW, Hex Hd, 3/8-16 x 1-3/8
25 1708236 2 SPACER
26 1702779 2 BALL JOINT, Flat
27 1922755 2 WASHER, Plain, 3/8
28 1930645 4 NUT, Hex Flange, 2-Way Lock, 3/8-16
29 1919262 2 NUT, Hex Jam, 1/2-20
30 1708084 1 DRAG LINK
31 1704420 2 KLIP RING, 5/8
32 1960020 2 WASHER, 5/8
33 1706997 1 STEERING ARM ASSY., LH, Splined
34 1715308 2 SPINDLE ASSY., Splined (with welded cup washer)
35 1960160 2 WASHER, Special
36 1706956 1 TIE ROD
37 1611705 2 SPACER
38 1706996 1 STEERING ARM ASSY., RH, Splined
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
The above parts group applies to the following Mfg. Nos.:
1693052 Broadmoor, 14 HV
1693054 Broadmoor, 16 H
1693056 Broadmoor, 16 HV
1693058 1614VH, 14 HV
1693060 1615H, 16 H
1693062 1616VH, 16 HV
1693064 2615H, 16 H
1693066 2616H, 16HV
1693068 Broadmoor, 14 HV (Export)
1693070 Broadmoor, 16 H (Export)
1693072 Broadmoor, 16 HV (Export)
1693275 Broadmoor, 18 HV
1693277 1618VH, 18 HV
1693279 2618H, 18HV
1693281 Broadmoor, 18 HV (Export)
1693351 Broadmoor, 14 HV
1693353 Broadmoor, 16 H
1693355 Broadmoor, 16 HV
1693358 Broadmoor, 14 HV (Export)
1693360 Broadmoor, 16 H (Export)
1693362 Broadmoor, 16 HV (Export)
1693365 1614VH, 14 HV
1693367 1615H, 16 H
1693369 1616VH, 16 HV
1693372 2615H, 16 H
1693374 2616H, 16HV

6
TP 400-2210-01-BM-SMA
© Copyright 1999 Simplicity Manufacturing, Inc. All Rights Reserved.
Engine & Electric Clutch - Early Models with 16HP Single Cylinder Kohler
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
A-BM42603A
The above parts group applies to the following Mfg. Nos.:
1693054 Broadmoor, 16 H
1693060 1615H, 16 H
1693064 2615H, 16 H
1693070 Broadmoor, 16 H (Export)
2
4
5
6
3
7
9
7
8
10
11
12
13
14
15
17
18
19
16
120
21
22
23
15
24
25
26
27
28
29
30
31 17
32 33 34
31 17
35 18
17
16
37
38
39
38
Apply anti-sieze
lubricant to crankshaft
Do NOT apply sealant
or teflon tape to switch.
Torque to 75-100 in. lbs.
Install into
choke hole of
dashboard.
Coat threads
with sealant.
Torque engine
mounting screws to
40 ft. lbs. (4 places).
Hold hex washer
and torque to
45-50 ft. lbs.
36
17

7
TP 400-2210-01-BM-SMA

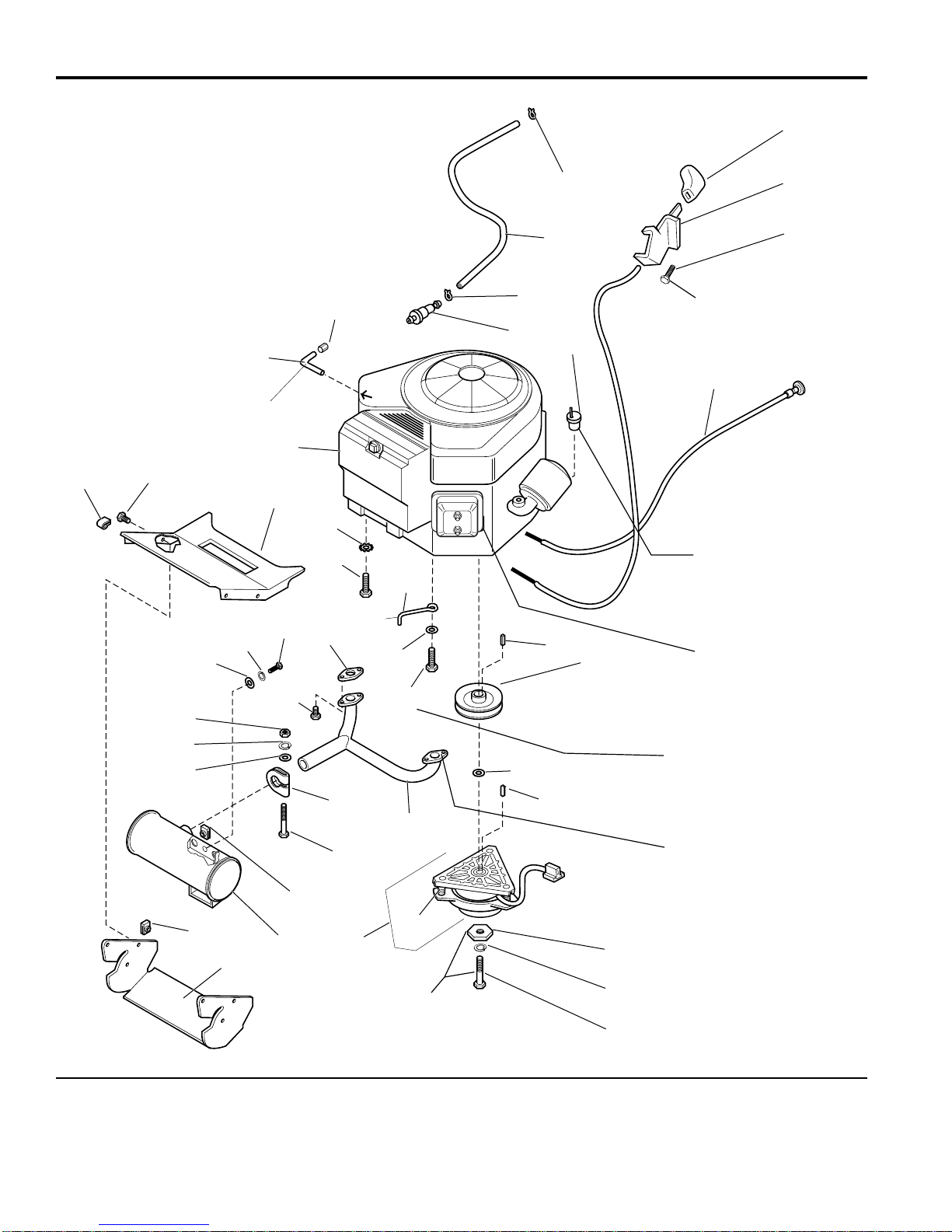

Engine & Electric Clutch - Early Models with 16HP Single Cylinder Kohler
1 1703816 1 ELECTRIC CLUTCH (Incl. Ref. 2)
2 1679104 1 SPRING & NUT KIT
3 * 1 ENGINE, 16HP Kohler Command
4 1713846 1 KNOB, Throttle
5 1714065 1 THROTTLE CONTROL ASSY.
6 1960536 2 CAPSCREW, Hex Washer Hd, Plastite, 1/4-20 x 1/2
7 1960112 2 CLAMP, Hose
8 173206 1 FUEL FILTER
9 1717551 1 HOSE, Fuel, 45-1/2” Long
10 1703956 1 SWITCH, Oil Pressure
11 1901491 1 PIPE NIPPLE, 3/8 x 2
12 1673453 1 STREET ELBOW, 3/8 Pipe
13 1667346 1 CAP, Pipe
14 171241 1 KEY
15 1704419 2 BELT STOP
16 1919381 4 WASHER, Flat, 5/16
17 1917356 8 LOCKWASHER, 5/16
18 1960405 4 CAPSCREW, Taptite, M8-1-1/4 x 30 mm
19 1705358 1 FASTENER, Panel
20 1708264 1 WASHER, Hex
21 1918199 1 LOCKWASHER, 7/16
22 1960370 1 CAPSCREW, 7/16-20 x 2-1/2
23 1713187 1 PULLEY ASSY
24 * 2 NUT, Exhaust
25 1704357 1 DUCT, Lower Muffler
26 1960368 4 PAL NUT, 1/4-20
27 1703971 1 MUFFLER ASSY.
28 1935255 1 PAL NUT, 5/16-18
29 1931342 1 CARRIAGE BOLT, 5/16-18 x 2-3/4
30 1676183 1 CLAMP, Muffler
31 1919326 2 WASHER, 5/16
32 1917372 1 NUT, Hex, 5/16-18
33 1705347 1 PIPE, Exhaust
34 * 1 GASKET, Exhaust
35 1921333 1 CAPSCREW, Hex Hd, 5/16-18 x 1
36 920426 1 LOCKWASHER, External Tooth, 5/16
37 1705440 1 DUCT, Top, Muffler
38 934683 2 CLIP
39 1960295 4 CAPSCREW, Hex Flange Hd, Whizlock, 1/4-20 x 5/8
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
* See your local Kohler distributor for service parts.
The above parts group applies to the following Mfg. Nos.:
1693054 Broadmoor, 16 H
1693060 1615H, 16 H
1693064 2615H, 16 H
1693070 Broadmoor, 16 H (Export)

8
TP 400-2210-01-BM-SMA
© Copyright 1999 Simplicity Manufacturing, Inc. All Rights Reserved.
A-BM42603B
The above parts group applies to the following Mfg. Nos.:
1693353 Broadmoor, 16 H
1693360 Broadmoor, 16 H (Export)
1693367 1615H, 16 H
1693372 2615H, 16 H
Engine & Electric Clutch - Later Models with 16HP Single Cylinder Kohler
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
2
4
5
6
3
7
9
7
8
10
11
12
13
14
17
18
19
16
120
21
22
23
15
24
25
26
27
28
29
30
31 17
32
33
34
31 17 35
18
17
16
37
38
39
38
Apply anti-sieze
lubricant to crankshaft
Do NOT apply sealant
or teflon tape to switch.
Torque to 75-100 in. lbs.
Install into
choke hole of
dashboard.
Coat threads
with sealant.
Torque engine
mounting screws to
40 ft. lbs. (4 places).
Hold hex washer
and torque to
45-50 ft. lbs.
36
17
RH
only
14
40

9
TP 400-2210-01-BM-SMA
Engine & Electric Clutch - Later Models with 16HP Single Cylinder Kohler
1 1717664 1 ELECTRIC CLUTCH
2 ** 1 SPRING & NUT KIT
3 * 1 ENGINE, 16HP Kohler Command
4 1713846 1 KNOB, Throttle
5 1714065 1 THROTTLE CONTROL ASSY.
6 1960536 2 CAPSCREW, Hex Washer Hd, Plastite, 1/4-20 x 1/2
7 1960112 2 CLAMP, Hose
8 173206 1 FUEL FILTER
9 1717551 1 HOSE, Fuel, 45-1/2” Long
10 1703956 1 SWITCH, Oil Pressure
11 1901491 1 PIPE NIPPLE, 3/8 x 2
12 1673453 1 STREET ELBOW, 3/8 Pipe
13 1667346 1 CAP, Pipe
14 171241 2 KEY
15 1704419 1 BELT STOP
16 1919381 4 WASHER, Flat, 5/16
17 1917356 8 LOCKWASHER, 5/16
18 1960405 4 CAPSCREW, Taptite, M8-1-1/4 x 30 mm
19 1705358 1 FASTENER, Panel
20 1708264 1 WASHER, Hex
21 1918199 1 LOCKWASHER, 7/16
22 1960370 1 CAPSCREW, 7/16-20 x 2-1/2
23 1713187 1 PULLEY ASSY
24 * 1 NUT, Exhaust
25 1704357 1 DUCT, Lower Muffler
26 1960368 4 PAL NUT, 1/4-20
27 1703971 1 MUFFLER ASSY.
28 1935255 1 PAL NUT, 5/16-18
29 1931342 1 CARRIAGE BOLT, 5/16-18 x 2-3/4
30 1676183 1 CLAMP, Muffler
31 1919326 2 WASHER, 5/16
32 1917372 1 NUT, Hex, 5/16-18
33 1705347 1 PIPE, Exhaust
34 * 1 GASKET, Exhaust
35 1921333 1 CAPSCREW, Hex Hd, 5/16-18 x 1
36 920426 1 LOCKWASHER, External Tooth, 5/16
37 1705440 1 DUCT, Top, Muffler
38 934683 2 CLIP
39 1960295 4 CAPSCREW, Hex Flange Hd, Whizlock, 1/4-20 x 5/8
40 1919394 1 WASHER
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
* See Your Local Briggs & Stratton Dealer
** Not Serviced
The above parts group applies to the following Mfg. Nos.:
1693353 Broadmoor, 16 H
1693360 Broadmoor, 16 H (Export)
1693367 1615H, 16 H
1693372 2615H, 16 H

10
TP 400-2210-01-BM-SMA
© Copyright 1999 Simplicity Manufacturing, Inc. All Rights Reserved.
Engine & Electric Clutch - Early Model 14 & 16 HP Twin Cylinder Briggs & Stratton
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
A-BM42604A
The above parts group applies to the following Mfg. Nos.:
1693052 Broadmoor, 14 HV
1693056 Broadmoor, 16 HV
1693058 1614VH, 14 HV
1693062 1616VH, 16 HV
1693066 2616H, 16HV
1693068 Broadmoor, 14 HV (Export)
1693072 Broadmoor, 16 HV (Export)
Torque engine
mounting screws to
40 ft. lbs. (4 places).
Remove screws (4) installed
finger-tight and shipped with
engine. Lubricate with
anti-sieze. Mount exhaust
manifold (Ref. 24) and torque
screws to 175-200 ft. lbs.
Remove tape from exhaust.
Coat threads
with sealant.
Torque to 35-45 ft.
lbs. (4 places)
Do NOT apply sealant
or teflon tape to oil
pressure switch. Torque
to 75-100 in. lbs.
Apply anti-sieze
lubricant to
crankshaft
Hold hex washer
and torque to
45-50 ft. lbs.
4
5
3
6
8
7
9
10
11
12
13
14
15 16
14
17
18
119
20
21
22
23
24
25
26
27
28
29
30
31
29
30 32
33
34
35
36
18
37
39 38
7
2

11
TP 400-2210-01-BM-SMA
Engine & Electric Clutch - Early Model 14 & 16 HP Twin Cylinder Briggs & Stratton
1 1703816 1 ELECTRIC CLUTCH (Incl. Ref. 2)
2 1679104 1 SPRING & NUT KIT
3 * 1 ENGINE, 14HP or 16HP Briggs & Stratton V-Twin Vanguard
4 1704343 1 DRAIN PIPE, Oil
5 1667346 1 CAP, Pipe
6 173206 1 FUEL FILTER
7 1960112 2 CLAMP, Hose
8 1717551 1 HOSE, Fuel, 45-1/2” Long
9 1713846 1 KNOB, Throttle
10 1714068 1 THROTTLE CONTROL ASSY.
11 1960536 2 CAPSCREW, Hex Washer Hd, Plastite, 1/4-20 x 1/2
12 1703956 1 SWITCH, Oil Pressure
13 1704344 1 CABLE, Choke Control
14 1704419 2 BELT STOP
15 171241 1 KEY
16 1713187 1 PULLEY ASSY.
17 1924940 2 WASHER, Plain, 13/32
18 1930598 3 CAPSCREW, Taptite, 3/8-16 x 1-1/2
19 1708264 1 WASHER, Hex
20 1918199 1 LOCKWASHER, 7/16
21 1960370 1 CAPSCREW, 7/16-20 x 2-1/2
22 1703986 1 MANIFOLD, Exhaust
23 1676183 1 CLAMP, Muffler
24 1931342 1 CARRIAGE BOLT, 5/16-18 x 2-3/4
25 1935255 1 PAL NUT, 5/16-18
26 1703971 1 MUFFLER ASSY.
27 1704357 1 DUCT, Lower Muffler
28 1960368 4 PAL NUT, 1/4-20
29 1919326 2 WASHER, 5/16
30 1917356 2 LOCKWASHER, 5/16
31 1917372 1 NUT, Hex, 5/16-18
32 1921333 1 CAPSCREW, Hex Hd, 5/16-18 x 1
33 1960407 4 CAPSCREW, Metric
34 * 2 GASKET, Exhaust Manifold
35 930598 1 CAPSCREW, Taptite, 3/8-16 x 1-1/2
36 920427 1 LOCKWASHER, External Tooth
37 1707334 1 DUCT, Upper Muffler
38 1960295 4 CAPSCREW, Hex Flange Hd, Whizlock, 1/4-20 x 5/8
39 934683 1 CLIP
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
* See your local Briggs & Stratton distributor for service parts.
The above parts group applies to the following Mfg. Nos.:
1693052 Broadmoor, 14 HV
1693056 Broadmoor, 16 HV
1693058 1614VH, 14 HV
1693062 1616VH, 16 HV
1693066 2616H, 16HV
1693068 Broadmoor, 14 HV (Export)
1693072 Broadmoor, 16 HV (Export)

12
TP 400-2210-01-BM-SMA
© Copyright 1999 Simplicity Manufacturing, Inc. All Rights Reserved.
A-BM42604B
The above parts group applies to the following Mfg. Nos.:
1693275 Broadmoor, 18 HV
1693277 1618VH, 18 HV
1693279 2618H, 18HV
1693281 Broadmoor, 18 HV (Export)
1693351 Broadmoor, 14 HV
1693355 Broadmoor, 16 HV
1693358 Broadmoor, 14 HV (Export)
1693362 Broadmoor, 16 HV (Export)
1693365 1614VH, 14 HV
1693369 1616VH, 16 HV
1693374 2616H, 16HV
Engine & Electric Clutch - Later Model 14 , 16 & 18 HP Twin Cylinder Briggs & Stratton
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Torque engine
mounting screws to
40 ft. lbs. (4 places).
Remove screws (4) installed
finger-tight and shipped with
engine. Lubricate with
anti-sieze. Mount exhaust
manifold (Ref. 24) and torque
screws to 175-200 ft. lbs.
Remove tape from exhaust.
Coat threads
with sealant.
Torque to 35-45 ft.
lbs. (4 places)
Do NOT apply sealant
or teflon tape to oil
pressure switch.
Torque to 75-100 in. lbs.
Apply anti-sieze
lubricant to
crankshaft
Hold hex washer
and torque to
45-50 ft. lbs.
RH
only
4
5
3
6
8
7
9
10
11
12
13
14
15 16
17
119
20
21
22
23
24
25
26
27
28
29
30
31
29
30 32
33
34
35
36
18
37
39 38
7
2
15
40

13
TP 400-2210-01-BM-SMA
Engine & Electric Clutch - Later Model 14, 16 & 18 HP Twin Cylinder Briggs & Stratton
1 1717664 1 ELECTRIC CLUTCH
2 ** 1 SPRING & NUT KIT
3 * 1 ENGINE, 14HP, 16HP or 18HP Briggs & Stratton V-Twin Vanguard
4 1704343 1 DRAIN PIPE, Oil
5 1667346 1 CAP, Pipe
6 173206 1 FUEL FILTER
7 1960112 2 CLAMP, Hose
8 1717551 1 HOSE, Fuel, 45-1/2” Long
9 1713846 1 KNOB, Throttle
10 1714068 1 THROTTLE CONTROL ASSY.
11 1960536 2 CAPSCREW, Hex Washer Hd, Plastite, 1/4-20 x 1/2
12 1703956 1 SWITCH, Oil Pressure
13 1704344 1 CABLE, Choke Control
14 1704419 1 BELT STOP
15 171241 2 KEY
16 1713187 1 PULLEY ASSY.
17 1924940 2 WASHER, Plain, 13/32
18 1930598 3 CAPSCREW, Taptite, 3/8-16 x 1-1/2
19 1708264 1 WASHER, Hex
20 1918199 1 LOCKWASHER, 7/16
21 1960370 1 CAPSCREW, 7/16-20 x 2-1/2
22 1703986 1 MANIFOLD, Exhaust
23 1676183 1 CLAMP, Muffler
24 1931342 1 CARRIAGE BOLT, 5/16-18 x 2-3/4
25 1935255 1 PAL NUT, 5/16-18
26 1703971 1 MUFFLER ASSY.
27 1704357 1 DUCT, Lower Muffler
28 1960368 4 PAL NUT, 1/4-20
29 1919326 2 WASHER, 5/16
30 1917356 2 LOCKWASHER, 5/16
31 1917372 1 NUT, Hex, 5/16-18
32 1921333 1 CAPSCREW, Hex Hd, 5/16-18 x 1
33 1960407 4 CAPSCREW, Metric
34 * 2 GASKET, Exhaust Manifold
35 930598 1 CAPSCREW, Taptite, 3/8-16 x 1-1/2
36 920427 1 LOCKWASHER, External Tooth
37 1707334 1 DUCT, Upper Muffler
38 1960295 4 CAPSCREW, Hex Flange Hd, Whizlock, 1/4-20 x 5/8
39 934683 1 CLIP
40 1919394 1 WASHER
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
* See Your Local Briggs & Stratton Dealer for Service Parts.
** Not Serviced.
The above parts group applies to the following Mfg. Nos.:
1693275 Broadmoor, 18 HV
1693277 1618VH, 18 HV
1693279 2618H, 18HV
1693281 Broadmoor, 18 HV (Export)
1693351 Broadmoor, 14 HV
1693355 Broadmoor, 16 HV
1693358 Broadmoor, 14 HV (Export)
1693362 Broadmoor, 16 HV (Export)
1693365 1614VH, 14 HV
1693369 1616VH, 16 HV
1693374 2616H, 16HV

8
6
7
9
21
19
20
17
22
23
19
20
18
35
32
34
10
20
9
19
37
40
38
39
36
33
31
11
13
12
34
29
30
2
3
46
47
48
4
3
42
41
43
44
26
3
27
28
39 24
25
19
20
16
14
15
1
5
45
Coat with Thread-Locking
Solution and Torque to
90-100 in. lbs.
14
TP 400-2210-01-BM-SMA
© Copyright 1999 Simplicity Manufacturing, Inc. All Rights Reserved.
Transmission Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
A-BM42605A
The above parts group applies to the following Mfg. Nos.:
1693052 Broadmoor, 14 HV
1693054 Broadmoor, 16 H
1693056 Broadmoor, 16 HV
1693058 1614VH, 14 HV
1693060 1615H, 16 H
1693062 1616VH, 16 HV
1693064 2615H, 16 H
1693066 2616H, 16HV
1693068 Broadmoor, 14 HV (Export)
1693070 Broadmoor, 16 H (Export)
1693072 Broadmoor, 16 HV (Export)
1693275 Broadmoor, 18 HV
1693277 1618VH, 18 HV
1693279 2618H, 18HV
1693281 Broadmoor, 18 HV (Export)
1693351 Broadmoor, 14 HV
1693353 Broadmoor, 16 H
1693355 Broadmoor, 16 HV
1693358 Broadmoor, 14 HV (Export)
1693360 Broadmoor, 16 H (Export)
1693362 Broadmoor, 16 HV (Export)
1693365 1614VH, 14 HV
1693367 1615H, 16 H
1693369 1616VH, 16 HV
1693372 2615H, 16 H
1693374 2616H, 16HV

15
TP 400-2210-01-BM-SMA
Transmission Group
1 1717426 1 TRANSMISSION, Tuff Torq K61 (see pages 16-17 for Service Parts)
2 1960590 4 CAPSCREW, 5/16-18 x 3
3 1960141 9 WASHER, 5/16
4 1923362 4 NUT, Hex Lock, 5/16-18
5 1707932 1 PULLEY & HUB ASSY
6 1707933 1 FAN
7 1717932 1 V-BELT
8 1933958 3 CAPSCREW, Taptite, 1/4-20 x 1-1/8
9 1960328 2 RETAINING RING, #55
10 1708269 2 SET SCREW, Hex, 5/16-18 x 5/16
11 1717310 1 TANK, Expansion Chamber
12 1717970 1 GROMMET
13 1717987 1 PAD, Foam
14 1707965 1 BEZEL
15 1717986 2 FASTENER, Panel
16 1718044 1 CAP, Filler
17 1718001 1 BRACKET, Belt Stop
18 1921332 1 CAPSCREW, Hex Hd, 5/16-18 x 1
19 1917356 4 LOCKWASHER, 5/16
20 1917372 4 NUT, Hex, 5/16-18
21 1921333 1 CAPSCREW, Hex Hd, 5/16-18 x 1
22 1718000 1 BELT GUIDE
23 1919381 1 WASHER, Flat, 5/16
24 1717746 1 BRACKET, Torque
25 1930591 1 CAPSCREW, Hex Flange Hd, Whizlock, 5/16-18 x 3/4
26 1960318 11 CAPSCREW, 5/16-18 x 2-1/2
27 1717985 1 ROD, Hydro Bypass
28 1704575 1 COVER, Wire
29 1921319 1 WASHER, Plain, 1/4
30 1923360 1 COTTER PIN, 1/16 x 3/4
31 1717761 1 ROD, Control
32 1717762 1 CONTROL ARM & HUB ASSY
33 1921977 1 CAPSCREW, Hex Hd, 5/16-18 x 1-1/4
34 1919326 2 WASHER, 5/16
35 1675481 1 SPACER, 21/64 x 9/16 x 5/16
36 1960588 1 SPRING PIN
37 1718039 1 SHOCK ABSORBER
38 1718246 1 STUD
39 1935048 2 NUT, Hex Flange Lock, 5/16-18, 2-Way Lock
40 1717685 1 STUD, 5/16-18 x 57/64
41 1717772 1 GUIDE, Brake Rod
42 1717773 1 ROD, Brake
43 1663136 1 SPRING, Compression
44 1919438 1 NUT, Hex Nylon Lock, 5/16-18
45 1918447 1 COTTER PIN
46 105337 2 KEY, 1/4 x 2
47 960200 2 WASHER
48 1708948 2 SPACER, 1-1/64 x 1-3/64 x 1-1/2
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
The above parts group applies to the following Mfg. Nos.:
1693052 Broadmoor, 14 HV
1693054 Broadmoor, 16 H
1693056 Broadmoor, 16 HV
1693058 1614VH, 14 HV
1693060 1615H, 16 H
1693062 1616VH, 16 HV
1693064 2615H, 16 H
1693066 2616H, 16HV
1693068 Broadmoor, 14 HV (Export)
1693070 Broadmoor, 16 H (Export)
1693072 Broadmoor, 16 HV (Export)
1693275 Broadmoor, 18 HV
1693277 1618VH, 18 HV
1693279 2618H, 18HV
1693281 Broadmoor, 18 HV (Export)
1693351 Broadmoor, 14 HV
1693353 Broadmoor, 16 H
1693355 Broadmoor, 16 HV
1693358 Broadmoor, 14 HV (Export)
1693360 Broadmoor, 16 H (Export)
1693362 Broadmoor, 16 HV (Export)
1693365 1614VH, 14 HV
1693367 1615H, 16 H
1693369 1616VH, 16 HV
1693372 2615H, 16 H
1693374 2616H, 16HV

16
TP 400-2210-01-BM-SMA
© Copyright 1999 Simplicity Manufacturing, Inc. All Rights Reserved.
Transmission Service Parts – Tuff Torq K61
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
A-BM42605B
The above parts group applies to the following Mfg. Nos.:
1693052 Broadmoor, 14 HV
1693054 Broadmoor, 16 H
1693056 Broadmoor, 16 HV
1693058 1614VH, 14 HV
1693060 1615H, 16 H
1693062 1616VH, 16 HV
1693064 2615H, 16 H
1693066 2616H, 16HV
1693068 Broadmoor, 14 HV (Export)
1693070 Broadmoor, 16 H (Export)
1693072 Broadmoor, 16 HV (Export)
1693275 Broadmoor, 18 HV
1693277 1618VH, 18 HV
1693279 2618H, 18HV
1693281 Broadmoor, 18 HV (Export)
1693351 Broadmoor, 14 HV
1693353 Broadmoor, 16 H
1693355 Broadmoor, 16 HV
1693358 Broadmoor, 14 HV (Export)
1693360 Broadmoor, 16 H (Export)
1693362 Broadmoor, 16 HV (Export)
1693365 1614VH, 14 HV
1693367 1615H, 16 H
1693369 1616VH, 16 HV
1693372 2615H, 16 H
1693374 2616H, 16HV
1
33
79
80
81
82
41
40
59
50
5348
54
55
56
53
57
58
30
29
32
31
29
53
60
61
62
63
64
65
45
46
47
9
44
20
16
15
10
13
11
9
12
12
9
9
17
6
19
18
5
14
14
5
6
7
8
87
98
86
85
84
110
111
131
138
139 142
140
141
109
112
84
86
83
114
109
113
123
127
127
129
130
128
128
129
130
121
120
119
118
143
3
88 89 90 91 92 93 94 95 96 97
99 100 101102103104 105
106 107
108
115
116
124
124
125 126 125
27
23
28
2625
24
6869
70 74
72 9
73
119
117
118
120
136
137
134
121
132
133
135
122
9
75
76
78
77
9
67
66
71
49
49
42
43 51
52
2
4
21
22
34
35
36
38
39
37

17
TP 400-2210-01-BM-SMA

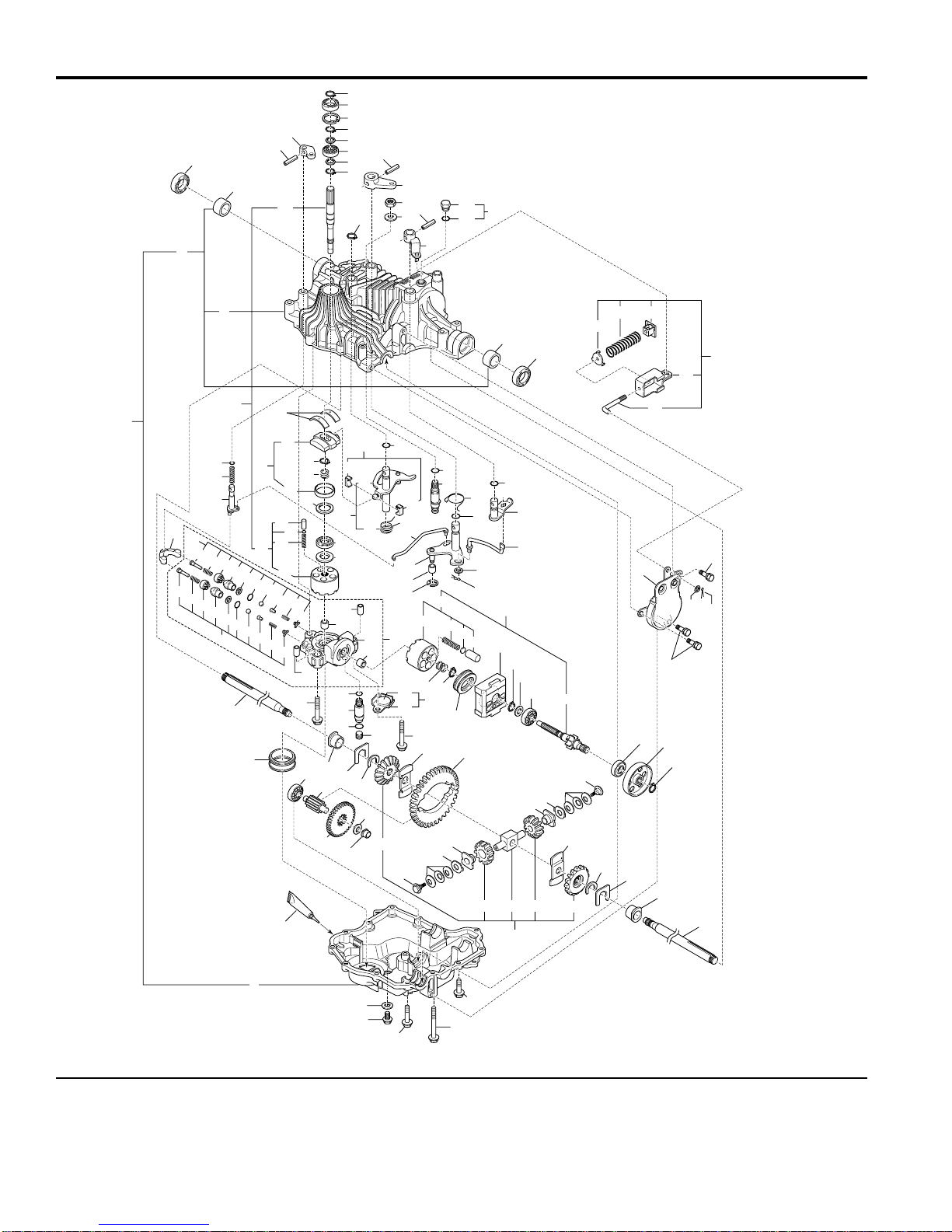

Transmission Service Parts – Tuff Torq K61
1 1718223 1 Transaxle Case Set
2 1718224 1 Upper Case, Complete with Bushings
3 1718225 1 Lower Case
4 * 1 Upper Case
5 * 1 Bushing 25.4
6 1718264 2 Seal (S25.4x42x8)
7 1718244 2 Pin 4.0Ax25
8 1718243 1 Arm (Valve Release)
9 1708672 1 Ring 15
10 1708651 7 Seal TC153507
11 1708650 1 Ring 35
12 1708670 1 Washer 15x20x1
13 1708673 2 Bearing 6202C3
14 1718258 1 Pin 6.0Ax40
15 1718250 2 Arm (Brake)
16 1708692 1 Nut 12
17 1708689 1 Washer 12
18 1708693 1 Ring 16
19 1718253 1 Arm B (Brake)
20 1718227 1 Plug 9/16, Complete
21 * 1 Plug 9/16
22 * 1 O-Ring
23 1718256 1 Brake Rod, Complete
24 * 1 Spring Guide
25 * 1 Spring
26 * 1 Adjuster Complete
27 * 1 Holder (Spring)
28 * 1 Rod (Adjuster)
29 1718271 1 Bolt w/Washer 8x20
30 1718269 3 Band Brake (Interlock)
31 1718257 1 Washer 6
32 1718259 1 Pin 2.0x20
33 1718233 1 Pump Shaft Set
34 1718234 1 Pump Shaft
35 1718079 1 Cylinder Block, Complete
36 * 1 Piston
37 * 5 Washer 11
38 * 5 Spring (Piston)
39 * 5 Cylinder Block
40 1718089 1 Thrust Metal
41 1708678 2 Swash Plate, Complete
42 * 1 Swash Plate
43 * 1 Swash Plate Bushing
44 1708669 1 Spring
45 1718239 1 Thrust Plate (B)
46 1718237 1 Bearing K81106
47 1718238 1 Thrust Plate (A)
48 1718241 1 Block Set
49 * 1 Block (Shift)
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
* Not Serviced
The above parts group applies to the following Mfg. Nos.:
1693052 Broadmoor, 14 HV
1693054 Broadmoor, 16 H
1693056 Broadmoor, 16 HV
1693058 1614VH, 14 HV
1693060 1615H, 16 H
1693062 1616VH, 16 HV
1693064 2615H, 16 H
1693066 2616H, 16HV
1693068 Broadmoor, 14 HV (Export)
1693070 Broadmoor, 16 H (Export)
1693072 Broadmoor, 16 HV (Export)
1693275 Broadmoor, 18 HV
1693277 1618VH, 18 HV
1693279 2618H, 18HV
1693281 Broadmoor, 18 HV (Export)
1693351 Broadmoor, 14 HV
1693353 Broadmoor, 16 H
1693355 Broadmoor, 16 HV
1693358 Broadmoor, 14 HV (Export)
1693360 Broadmoor, 16 H (Export)
1693362 Broadmoor, 16 HV (Export)
1693365 1614VH, 14 HV
1693367 1615H, 16 H
1693369 1616VH, 16 HV
1693372 2615H, 16 H
1693374 2616H, 16HV

18
TP 400-2210-01-BM-SMA
© Copyright 1999 Simplicity Manufacturing, Inc. All Rights Reserved.
Transmission Service Parts – Tuff Torq K61
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
A-BM42605B
The above parts group applies to the following Mfg. Nos.:
1693052 Broadmoor, 14 HV
1693054 Broadmoor, 16 H
1693056 Broadmoor, 16 HV
1693058 1614VH, 14 HV
1693060 1615H, 16 H
1693062 1616VH, 16 HV
1693064 2615H, 16 H
1693066 2616H, 16HV
1693068 Broadmoor, 14 HV (Export)
1693070 Broadmoor, 16 H (Export)
1693072 Broadmoor, 16 HV (Export)
1693275 Broadmoor, 18 HV
1693277 1618VH, 18 HV
1693279 2618H, 18HV
1693281 Broadmoor, 18 HV (Export)
1693351 Broadmoor, 14 HV
1693353 Broadmoor, 16 H
1693355 Broadmoor, 16 HV
1693358 Broadmoor, 14 HV (Export)
1693360 Broadmoor, 16 H (Export)
1693362 Broadmoor, 16 HV (Export)
1693365 1614VH, 14 HV
1693367 1615H, 16 H
1693369 1616VH, 16 HV
1693372 2615H, 16 H
1693374 2616H, 16HV
1
33
79
80
81
82
41
40
59
50
5348
54
55
56
53
57
58
30
29
32
31
29
53
60
61
62
63
64
65
45
46
47
9
44
20
16
15
10
13
11
9
12
12
9
9
17
6
19
18
5
14
14
5
6
7
8
87
98
86
85
84
110
111
131
138
139 142
140
141
109
112
84
86
83
114
109
113
123
127
127
129
130
128
128
129
130
121
120
119
118
143
3
88 89 90 91 92 93 94 95 96 97
99 100 101102103104 105
106 107
108
115
116
124
124
125 126 125
27
23
28
2625
24
6869
70 74
72 9
73
119
117
118
120
136
137
134
121
132
133
135
122
9
75
76
78
77
9
67
66
71
49
49
42
43 51
52
2
4
21
22
34
35
36
38
39
37
