Colt
Zero-Turn Riding Mower
with 2-Wheel Independent Suspension
TM
22996
Revision 06
Rev. 4/2004
TP 400-7090-06-CT-D
Model Number: Description:
ZT2148T COLT, 2W-IS, w/ 21 HP Kohler & 48” Mower Deck
ZT2348T COLT, 2W-IS, w/ 23 HP Kohler & 48” Mower Deck
ZT2352T COLT, 2W-IS, w/ 23 HP Kohler & 52” Mower Deck
PARTS
MANUAL
mowers are built by
Ferris Industries, a
Simplicity company.
Ferris Industries
5375 North Main Street
Munnsville, NY 13409
800-933-6175
TM

Ferris Industries
5375 North Main Street
Munnsville, NY 13409
800-933-6175
www.ferrisindustries.com
© Copyright 2004 Ferris Industries
All Rights Reserved. Printed in USA.

Torque Specification Chart
FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)
Hardware
Grade
SAE Grade 2 SAE Grade 5 SAE Grade 8
Size Of in/lbs in/lbs in/lbs
Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.
8-32 19 2.1 30 3.4 41 4.6
8-36
20 2.3 31 3.5 43 4.9
10-24
27 3.1 43 4.9 60 6.8
10-32
31 3.5 49 5.5 68 7.7
1/4-20
66 7.6 810.9 12 16.3
1/4-28
76 8.6 10 13.6 14 19.0
5/16-18 11 15.0 17 23.1 25 34.0
5/16-24 12 16.3 19 25.8 27 34.0
3/8-16 20 27.2 30 40.8 45 61.2
3/8-24 23 31.3 35 47.6 50 68.0
7/16-14 30 40.8 50 68.0 70 95.2
7/16-20 35 47.6 55 74.8 80 108.8
1/2-13 50 68.0 75 102.0 110 149.6
1/2-20 55 74.8 90 122.4 120 163.2
9/16-12 65 88.4 110 149.6 150 204.0
9/16-18 75 102.0 120 163.2 170 231.2
5/8-11 90 122.4 150 204.0 220 299.2
5/8-18 100 136 180 244.8 240 326.4
3/4-10 160 217.6 260 353.6 386 525.0
3/4-16 180 244.8 300 408.0 420 571.2
7/8-9 140 190.4 400 544.0 600 816.0
7/8-14 155 210.8 440 598.4 660 897.6
1-8 220 299.2 580 788.8 900 1,244.0
1-12 240 326.4 640 870.4 1,000 1,360.0
Hex Head Capscrew
Hex Nut
Lockwasher
Washer
Carriage Bolt
NOTES
1. These torque values are to be used for all hardware
excluding: locknuts, self-tapping screws, thread forming
screws, sheet metal screws and socket head setscrews.
2. Recommended seating torque values for locknuts:
a. For prevailing torque locknuts:
use 65% of Grade 5 torque.
b. For flange whizlock nuts and screws:
use 135% of Grade 5 torque.
3. Unless otherwise noted on assembly drawings,
all torque values must meet this specification.
Hardware Identification & Torque Specifications
Common Hardware Types
Screw, 1/2 x 2
Body
Diameter
Body
Length
Inside
Diameter
Nut, 1/2”
No
Marks
3/8” Bolt or Nut
Wrench—9/16”
3/8
5/16” Bolt or Nut
Wrench—1/2”
5/16
1/4” Bolt or Nut
Wrench—7/16”
1/4
1/2” Bolt or Nut
Wrench—3/4”
1/2
7/16
7/16” Bolt or Nut
Wrench (Bolt)—5/8”
Wrench (Nut)—11/16”

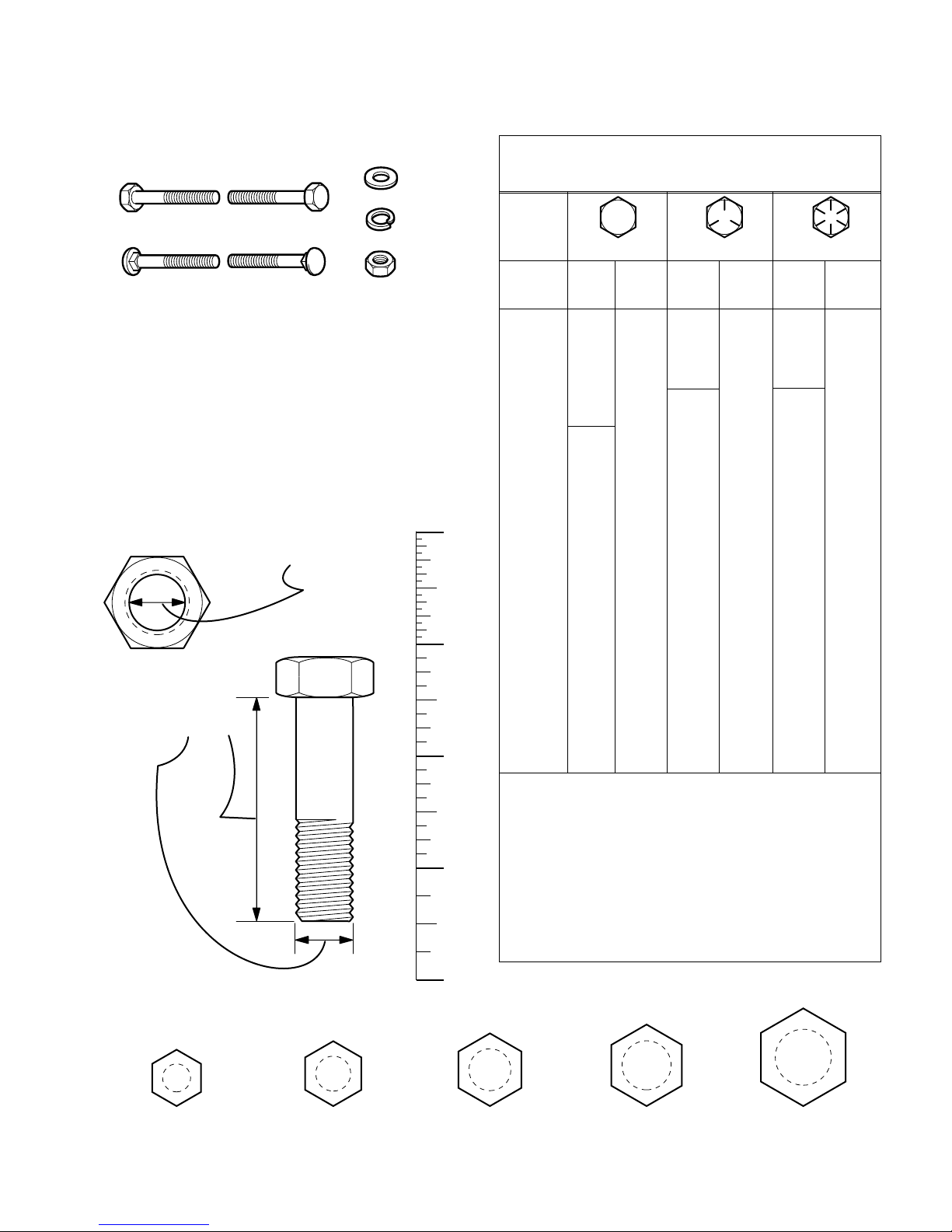

Wrench & Fastener Size Guide
Standard Hardware Sizing
When a washer or nut is identified as 1/2”, this is the
nominal size , meaning the inside diameter is 1/2 inch; if a
second number is present it represents the
threads per inch.
When a bolt or capscrew is identified as 1/2 - 16 x 2”, this
means the
nominal size , or body diameter is 1/2 inch; the
second number represents the
threads per inch (16 in this
example), and the final number is the
body length of the
bolt or screw (2 inches long in this example).
The guides and ruler furnished below are designed to
help you select the appropriate hardware and tools.
0
1/4 3/4
1/2
1
1/4 3/4
1/2
2
1/4 3/4
1/2
3
1/4 3/4
1/2
4

THIS PAGE INTENTIONALLY BLANK

1
TP 400-7090-01-CT-D
© Copyright 2004 Ferris Industries. All Rights Reserved.
Table of Contents
RIDER COMPONENTS
Main Frame, Suspension & Caster Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Floor & Brake Cover Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Seat & Seat Mount Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Fuel Tank, Mount & Bumper Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Fuel Supply Hose & Tank Replacement Part Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Control Cover & Mount Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Instrument Panel Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Headlight Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Engine & PTO Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Pump Drive Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Motion Control Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Motion Control - Neutral Return Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Hydraulic Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 & 32
Reservoir Mount & Battery Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34 & 36
Parking Brake Group-Upper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Parking Brake Group-Lower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Deck Lift Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Tire & Wheel Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Electrical Service Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46-57
Decals - Brand, Model, Safety & Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
MOWER DECK COMPONENTS
48” & 52” Mower Decks - Housings, Covers, Spindles & Blades . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
48” & 52” Mower Decks - Belts, Pulleys & Idler Arm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
48” & 52” Mower Decks - Rear Mount Bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
48” & 52” Mower Decks - Rollers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
REFERENCE INFORMATION:
Torque Specification Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Inside Back Cover

2
TP 400-7090-01-CT-D
© Copyright 2004 Ferris Industries. All Rights Reserved.
The above parts group applies to the following Model Nos.:
ZT2148T
ZT2348T
ZT2352T
Main Frame, Suspension & Caster Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1
2
345
6
7
8
23
4
8
910
11
12
13
16
1
17
13
10
11
18
19
20
21
8
4
3
2
4
3
2
17
22
23
24
23
25
26
27
15
14
See Wheels & Tires Group
7
7

3
TP 400-7090-03-CT-D
The above parts group applies to the following Model Nos.:
ZT2148T
ZT2348T
ZT2352T
REF NO. PART NO. QTY. DESCRIPTION
Main Frame, Suspension & Caster Group
Footnotes:
1 22842 2 SHOCK & SPRING ASSEMBLY
2 25013-16 4 CAPSCREW, Hex Hd, 3/8-16 x 2
3 25156 4 WASHER, 3/8
4 25096 4 NUT, Hex, Nylon Lock, 3/8-16
5 3847953 1 MAIN FRAME
6 3847457 1 UPPER SHOCK MOUNT
7 25160 3 WASHER, 3/4
8 25284 5 NUT, Hex, Nylon Lock, 3/4-16
9 46093 2 SPACER, .75 x 1.50 x 1.00
10 22039 4 BALL JOINT, 3/4-16
11 47461 6 SPACER, .76 x 1.00 x .25
12 25265-32 2 CAPSCREW, Hex Hd, 3/4-16 x 4
13 25093 4 NUT, Hex, Jam, 3/4-16
14 25095 2 NUT, Hex, Nylon Lock, 1/4-20
15 22673 2 RUBBER BUMPER
16 3847445 1 SUSPENSION ARM-LH
17 3847049 2 CASTER YOKE
18 25265-24 2 CAPSCREW, Hex Hd, 3/4-16 x 3
19 25265-48 1 CAPSCREW, Hex Hd, 3/4-16 x 6
20 47489 1 SPACER, .75 x 1.00 x 2.38
21 22852 1 PIVOT BEARING
22 21072 2 SEAL, Grease
23 20884 4 BEARING, Tapered Roller
24 3847452 1 SUSPENSION ARM-RH
25 25104 2 NUT, Hex, SLotted, 3/4-16
26 21073 2 CAP
27 25203-10 2 Pin, Cotter

4
TP 400-7090-01-CT-D
© Copyright 2004 Ferris Industries. All Rights Reserved.
The above parts group applies to the following Model Nos.:
ZT2148T
ZT2348T
ZT2352T
Floor & Brake Cover Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1
10
2
3
4
5
7 8
11
11
6
9
7
7
778
8
8
8
6
12
12
