Simton 860 User manual
860UserManual
1
Notices Information
Safety cautions
To use the Phone follow the instructions in this manual.
To use the power adapter that delivered with the phone. Other power adapters may damage
the phone.
The phone is only for indoor use. And also avoid in high humidity, water and some other
liquids.
Do not use the phone during thunderstorms.
CE
FCC
WEEE Warning
To avoid the potential effects on the environment and human health as a result of the
presence of hazardous substances in electrical and electronic equipment, end users of
electrical and electronic equipment should understand the meaning of the
crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal
waste and have to collect such WEEE separately.
Cleaning
To clean the device, use an anti-static cloth. Please avoid cleaning liquids as they might damage
the surface or internal electronics of the phone.
860UserManual
2
Table of Content
Notices Information.......................................................................................................................... 1
Safety cautions............................................................................................................................ 1
WEEE Warning........................................................................................................................... 1
Cleaning...................................................................................................................................... 1
Table of Content................................................................................................................................2
Getting Started..................................................................................................................................6
Packing List.................................................................................................................................6
Phone Installation........................................................................................................................8
1. Attach the Foot stand...................................................................................................... 8
2. Connect the Handset and optional Headset.................................................................... 8
3. Connect the Network and Power.................................................................................... 9
Initialization................................................................................................................................ 9
Status......................................................................................................................................... 10
Registration............................................................................................................................... 12
Idle Screen.................................................................................................................................14
Getting Familiar with Your Phone................................................................................................ 15

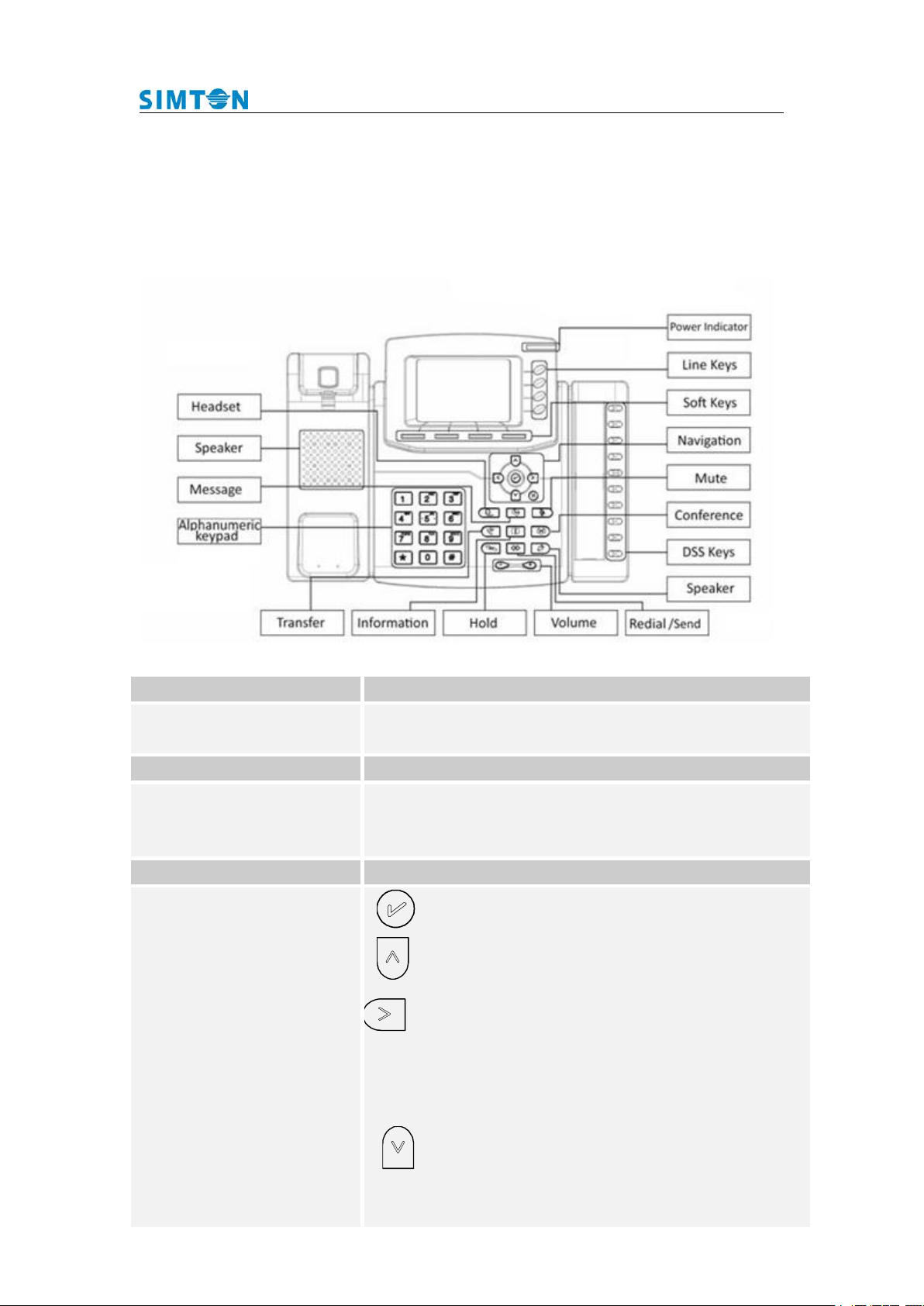

Hardware Components Preview............................................................................................... 15

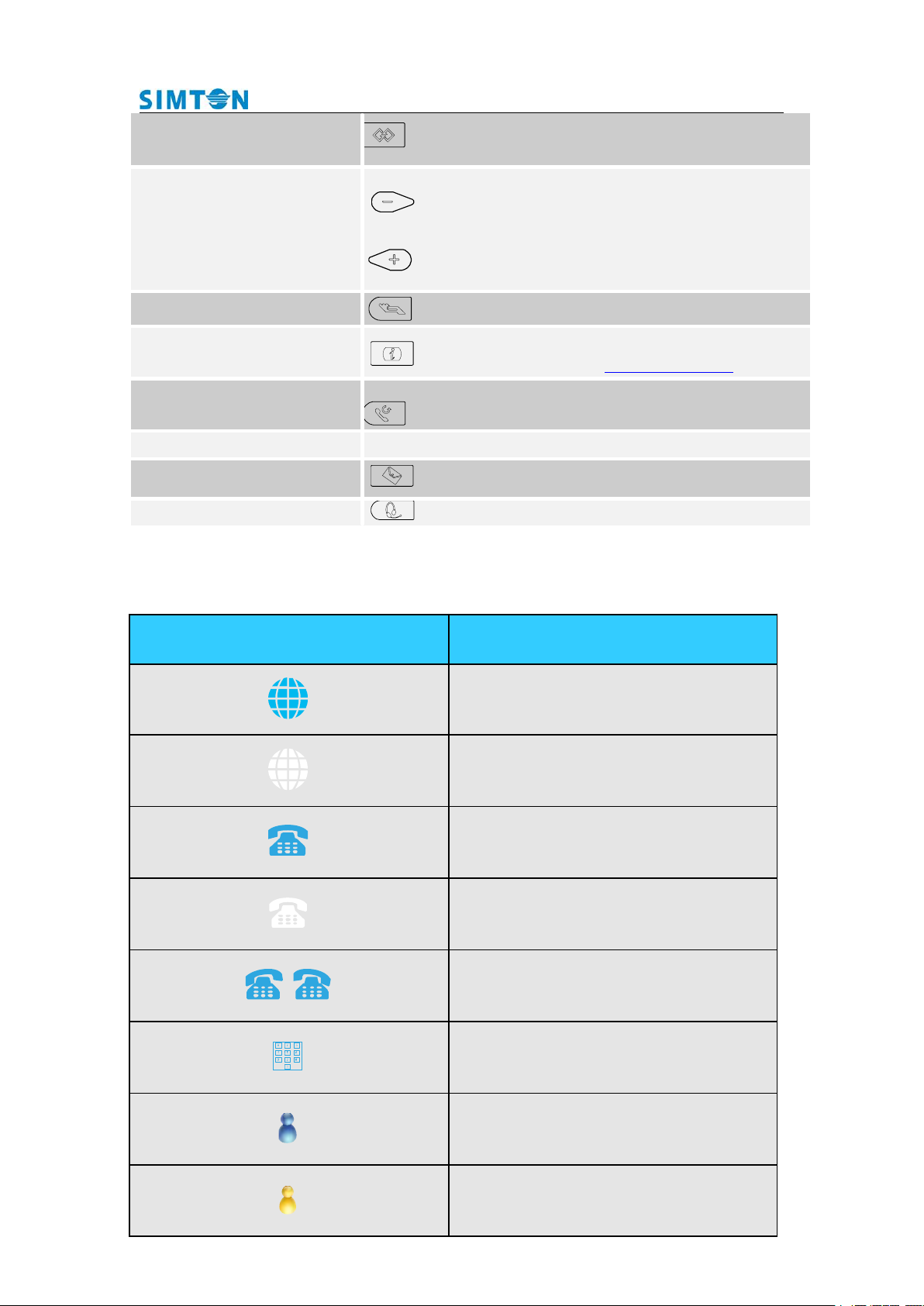

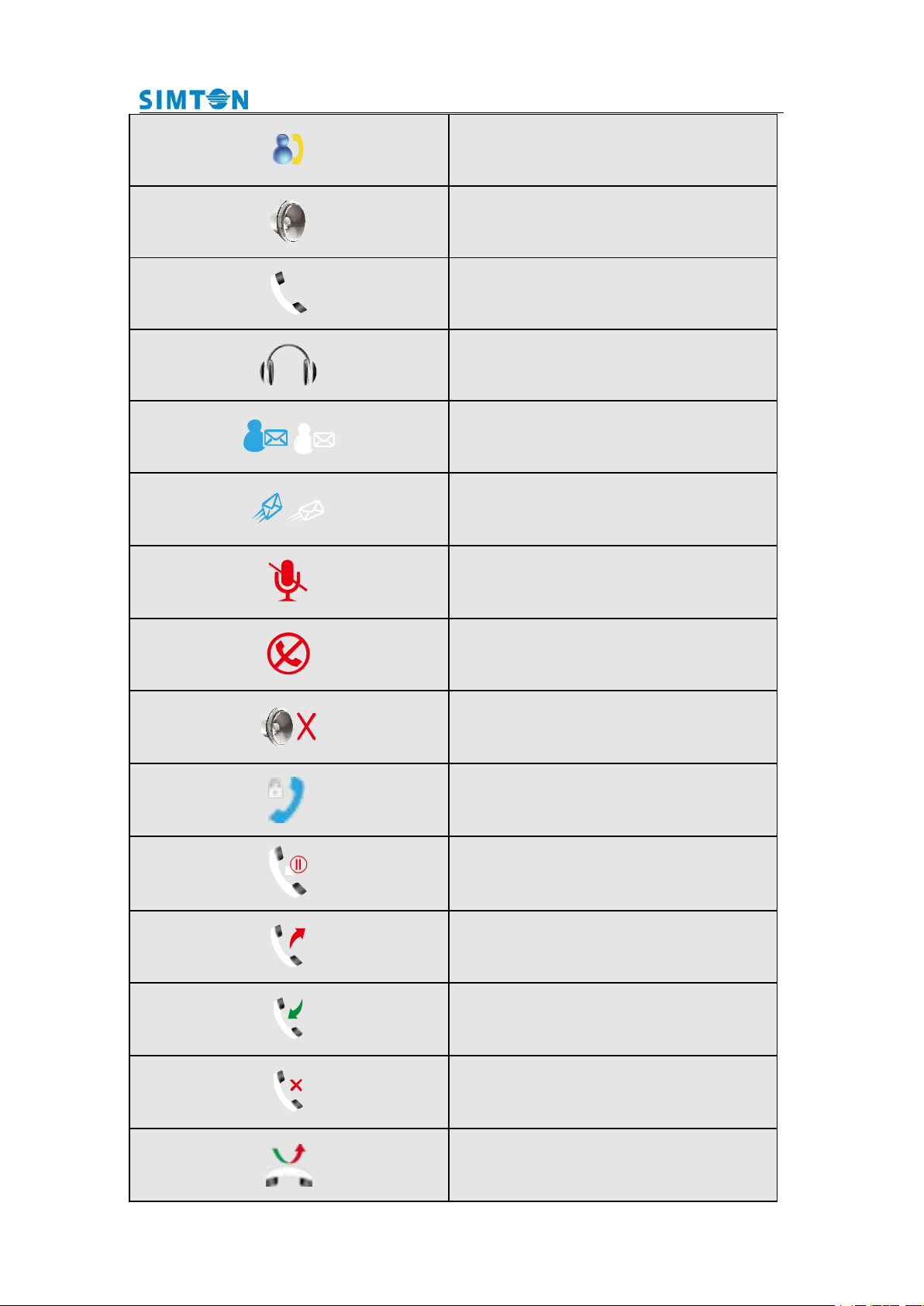

Icon Preview..............................................................................................................................17
LED Instruction.........................................................................................................................20
Power Indicator LED........................................................................................................ 20
Line LED:(Line or Memory Key set as Line).................................................................. 21
BLF or BLF List Key LED :( Line/Memory Key set as BLF)........................................ 21
Shared Line Key LED:......................................................................................................21
Other Key Led...................................................................................................................22
Info Key Instruction..................................................................................................................22
User Interface............................................................................................................................ 24
Memory Key Function Overview............................................................................................. 25
Basic Setting Configuration.......................................................................................................... 27
Web Login.................................................................................................................................27
Administrator Password............................................................................................................28
Basic Network Setting.............................................................................................................. 29
WAN Port..........................................................................................................................30
PC Port.............................................................................................................................. 32
Display Mode............................................................................................................................33
Language................................................................................................................................... 34
How to connect to the UC40.....................................................................................................35
Time and Date........................................................................................................................... 37
Ring Tone.................................................................................................................................. 39
Volume...................................................................................................................................... 41
Wallpaper.................................................................................................................................. 43
Screen Saver..............................................................................................................................44
LED Status Setting....................................................................................................................47
Backlight................................................................................................................................... 47
860UserManual
3
Contact Management................................................................................................................ 47
Local Directory......................................................................................................................... 47
Remote Phonebook................................................................................................................... 52
Call History............................................................................................................................... 52
LDAP Phonebook..................................................................................................................... 54
Broadsoft Phonebook................................................................................................................56
Call log...................................................................................................................................... 57
Search Contact:......................................................................................................................... 58
Other features settings.................................................................................................................. 59
Dial Plan....................................................................................................................................59
Emergency Call.........................................................................................................................60
LED Status Setting....................................................................................................................61
Action URL...............................................................................................................................61
Softkey Layout..........................................................................................................................62
Programmable Key................................................................................................................... 63
Basic Call Features........................................................................................................................ 64
Place a Call................................................................................................................................64
End a Call..................................................................................................................................66
Redial a Call..............................................................................................................................66
Receive a Call........................................................................................................................... 66
Incoming Call Show Mode....................................................................................................... 67
Auto Answer..............................................................................................................................67
Call Hold................................................................................................................................... 68
Call Transfer..............................................................................................................................69
Call Conference.........................................................................................................................71
Call Forward..............................................................................................................................72
Call Return................................................................................................................................ 76
Call Waiting Tone......................................................................................................................76
Hide Caller ID...........................................................................................................................77
Reject Anonymous.................................................................................................................... 78
Call Mute...................................................................................................................................79
DND.......................................................................................................................................... 80
Key as Send...............................................................................................................................80
No Key Entry Timeout..............................................................................................................81
Dail-Now Timeout.................................................................................................................... 81
Keypad Lock............................................................................................................................. 82
Hot Line.................................................................................................................................... 83
Function Key Features Settings...................................................................................................84
Line............................................................................................................................................84
Speed Dial................................................................................................................................. 84
BLF............................................................................................................................................85
BLF List.................................................................................................................................... 86
Voice Message...........................................................................................................................88
Direct Pickup.............................................................................................................................89
Group Pickup............................................................................................................................ 89
Call Park....................................................................................................................................90
860UserManual
4
Intercom.................................................................................................................................... 91
DTMF........................................................................................................................................92
Prefix......................................................................................................................................... 93
Local Group.............................................................................................................................. 94
XML Group...............................................................................................................................95
LDAP........................................................................................................................................ 96
XML Browser........................................................................................................................... 97
Broadsoft Group........................................................................................................................98
Conference................................................................................................................................ 98
Forward..................................................................................................................................... 99
Transfer..................................................................................................................................... 99
Hold.........................................................................................................................................100
Group Listening...................................................................................................................... 100
DND........................................................................................................................................ 101
Redial...................................................................................................................................... 101
SMS.........................................................................................................................................102
Send SMS........................................................................................................................102
Set SMS Memory Key....................................................................................................102
Record..................................................................................................................................... 103
URL Record............................................................................................................................ 104
Paging......................................................................................................................................104
Shared Line............................................................................................................................. 105
Public Hold..............................................................................................................................106
Private Hold............................................................................................................................ 106
Share line.................................................................................................................................107
Hot Desking............................................................................................................................ 108
ACD........................................................................................................................................ 109
Zero Touch.............................................................................................................................. 110
Multicast Paging......................................................................................................................111
Sending RTP Stream....................................................................................................... 111
Receiving RTP Stream.................................................................................................... 112
Upgrade..........................................................................................................................................113
Factory Reset...........................................................................................................................113
Pcap Feature............................................................................................................................ 114
System Log..............................................................................................................................114
Upgrade................................................................................................................................... 115
Configuration File................................................................................................................... 117
Troubleshooting............................................................................................................................ 118
Why is the phone LCD screen blank?.....................................................................................118
Why does the phone display "Network Unavailable"?...........................................................118
Why can’t I get a dial tone?.................................................................................................... 118
How to set the tones?.............................................................................................................. 119
How to download XML Configuration?.................................................................................119
How to Import Trusted CA certificate?.................................................................................. 120
How to Import Server CA certificate?.................................................................................... 120
How to use Vlan?....................................................................................................................120
860UserManual
5
How to Upgrade via FTP?...................................................................................................... 126
How to make Ringtone?..........................................................................................................127
How to use Open VPN?..........................................................................................................128
Failover Notes......................................................................................................................... 129
How to Use Auto Provision Phonebook?............................................................................... 130
860UserManual
6
Getting Started
Packing List
The package contains the following parts, please check if all the items are not missed:
1. The phone device
2. The footstand
3. Handset
860UserManual
7
4. Headset cord
5. Power adapter
6. Ethernet cable
7. Quick installation reference
860UserManual
8
Phone Installation

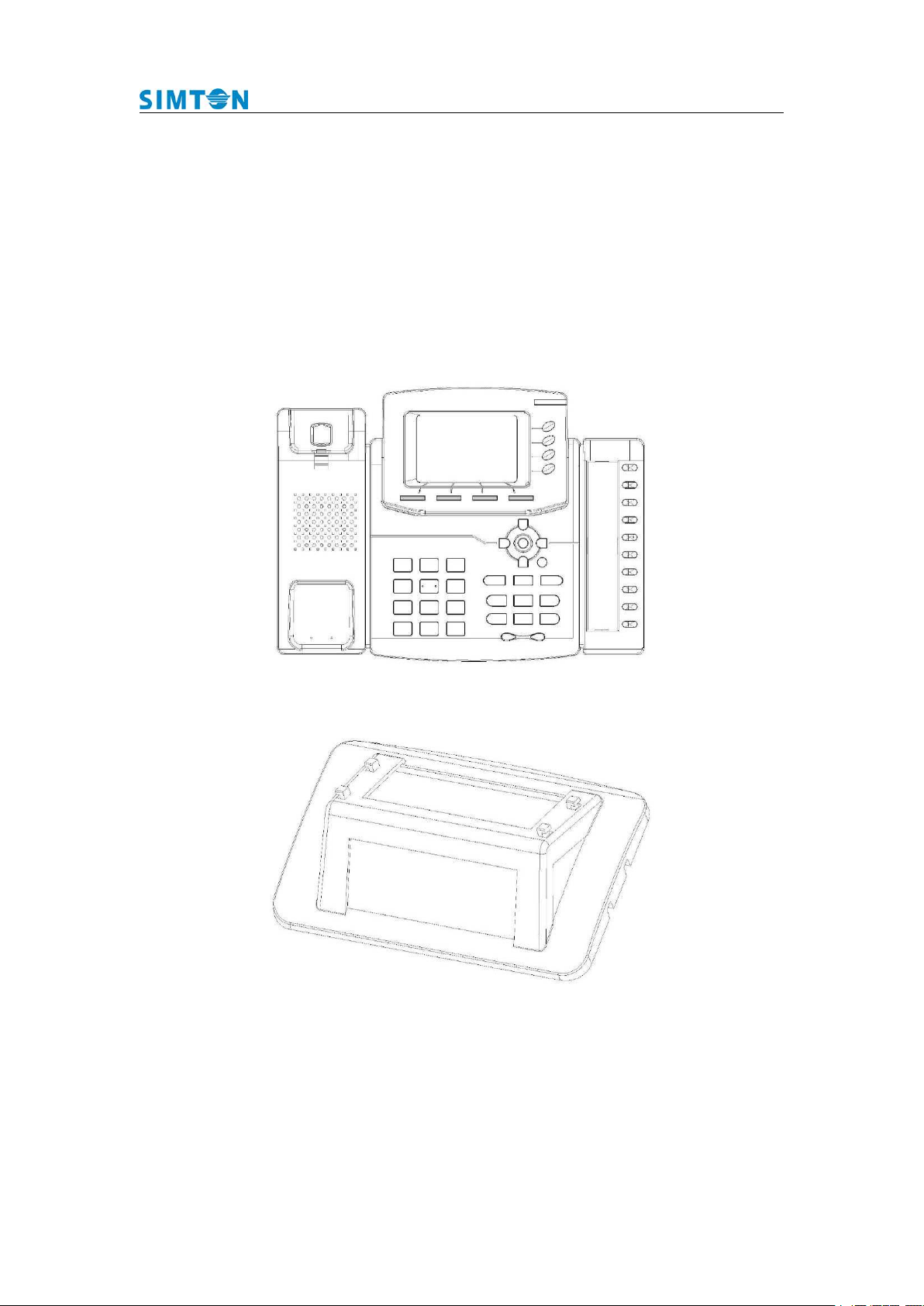

1. Attach the Foot stand
2. Connect the Handset and optional Headset
860UserManual
9
3. Connect the Network and Power

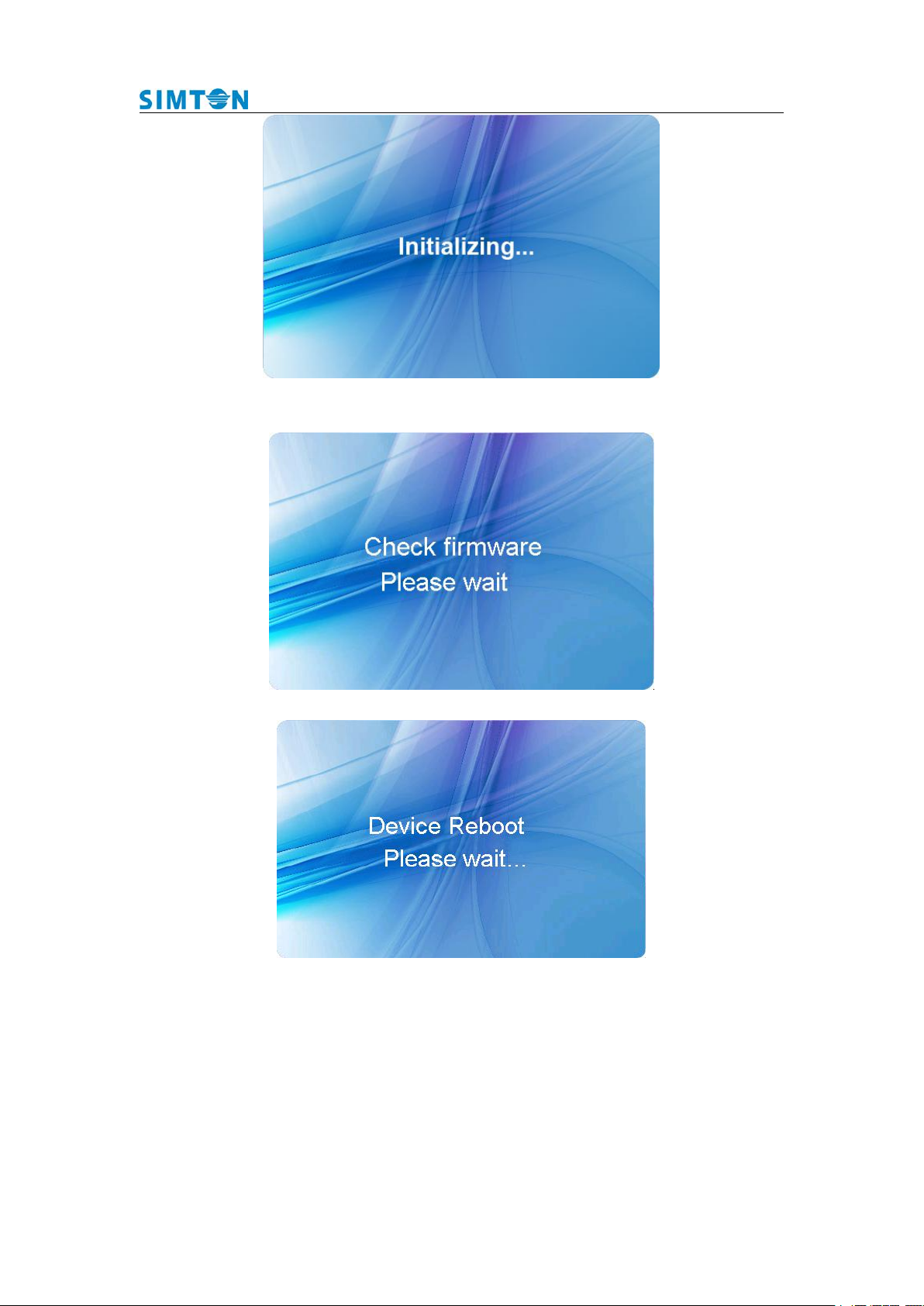

Initialization
After your phone has been powered up, the system boots up and performs the following steps:
Automatic Phone Initialization
The phone finishes the initialization process by loading the saved configuration. The phone LCD
screen will display "Booting"
And then show “Initializing “during the initialization.
860UserManual
10
The IP Phone will upgrade the firmware if there is a new firmware on your server. And the IP
Phone will show “Check firmware, please waitg…“ after initialization.
Then IP Phone will show Reboot information:
By default the phone attempts to contact a DHCP server in your network in order to obtain its
valid network settings, e.g. IP address, subnet mask, default gateway, DNS server.
Status
You can view the system status of your phone via phone user interface or web user interface. The
information of phone status includes: Information(e.g., Model, IP, MAC, Firmware, Hardware),
Network(e.g., WAN Type, IP, Mask, LAN Type, Gateway, DNS… )Account (e.g., register status
of accounts)
To view the phone status via phone interface:
1. Press Menu →Status →InformationNetwork/ Account
860UserManual
12
Registration
To register via phone interface:
Press MenuSettingAdvanced setting (default password:admin)Accounts
Select the desired account
Select Enable for Account active
Filled the SIP Server
Filled the Failover SIP server if need (Optional)
Filled the Outbound Proxy (Optional)
Filled the SIP User ID, Authenticate ID
Filled the password, Name (shown on LCD) and Ringtone.
Press Save to save the configuration.
860UserManual
13
Note:
If there is a port of sip server, you need to press “1” on the keypad, then you will find the “:”.
Additional Information:
When the current input method is ABC/abc/2ab,
Pressing “1”, you will find “, . ?:;”
Pressing “0”, you will find “ < >(){}[]”
Pressing “*”, you will find “*/”!@$”
Pressing “#”, you will find “#’%&*|”
To register via web interface:
1. Login webpage and Click Account
Basic
2. Select the desired Account
3. Select Yes for Account Active
4. Filled the Primary SIP SERVER and other account information
5. Click to save the configuration.
Note:
1. All fields with *must be filled. If changed, it requires a phone restart.
2. Account Status says the account registered successfully or not.
3. When change the account information via phone, it will show Restart note when back
to idle page.
860UserManual
14
Idle Screen
Name
Description
1. Date&Time
It shows the phone’s time & date. For Date&time setting, see
Time&Date
2. Notice
It shows the phone features status, More see Icon Preview
3. Line Keys
This area shows the four line key labels. Line keys are also can be
used as other function keys. For more information you can refer to
Memory Keys
4. Soft Key
This area shows the soft key labels. The default soft key labels are
“History”, “Directory”, “DND” and “Menu”. More to see
Programmable Key
5. Default Account
This shows the current use account. User can use
to change the default use account.
6. Wallpaper
This shows the backgrounds picture. You can also change it.
For more information you can refer to Wallpaper.
860UserManual
15
Getting Familiar with Your Phone
Hardware Components Preview
Item
Description
LCD screen
To Presentation all information about the date& time, accounts,
soft keys, messages, calls and other some information.
Power Indicator LED
To indicate the power status
Line keys
The phone supported up to 4 accounts
1. Steady green: idle interface, during a call..
2. Blink red: a call incoming
Soft keys
Labels automatically to identity their context-sensitive features.
Navigation keys
1. OK.
Up arrow key: To move up of the selection shows on the
screen.
Right arrow key: To move right of the selection
shows on the screen.
Left arrow key: To move left of the selection shows on the
screen.
Down arrow key: To move down of the selection shows
on the screen.
1. To return to idle screen.
860UserManual
16
2. To cancel the information or call on the screen.
Mute key
1. To mute the voice during the call (green light).
2. To un-mute the call.
Conference
To place a conference call
Memory Keys
To be configured as different function as:
1. Line
2. Speed Dial
3. BLF
4. BLF List
5. Voice mail
6. Direct Pickup
7. Group Pickup
8. Call Park
9. Intercom
10. DTMF
11. Prefix
12. Hold
13. Conference
14. DND
15. Redial
16. Transfer
17. SMS
18. Hot -desking
19. Call Return
20. Paging
21. Record
22. Shared Line
The LED lights status when set as Shared line:
Stay green: Idle
Stay red: Busy
Blinked green: Ring Back
Blinked red: A call incoming
Steady orange: During a call
Blinked orange: Public Hold
Blinked green: Private Hold
Light Drown: Unregistered
23. Hot desking
24. ACD
25. Zero Touch
26. Multicast paging
Speaker
Press this button to place a call in hands-free mode.
860UserManual
17
Redial
To dial the previous dialed number.
To act as send key.
Volume
To decrease the volume.
To increase the volume.
Hold
To hold or to resume a call during a conversation.
Information
To show the accounts status and some other relevant
information. More refer to Info key instruction.
Transfer
To transfer a call to a third party.
To enable or disable Forward feature during the idle page.
Alphanumeric keypad
To enter the phone numbers, letters and so on.
Message
To indicator the New message, and press to read.
Headset
To indicate that the phone is or not in Headset mode.
Icon Preview
Icon
Description
Network available
Network down
Line(Registered succeed)
Line (Unregistered)
Line(Ringing)
Speed Dial
BLF
BLF(Ringing)
860UserManual
18
BLF(Talking)
Speakerphone mode
Handset mode
Headset mode
Voice messages
Text message
Mute
Do Not Disturb
Volume is 0
SRTP
Hold
Dialed calls
Received calls
Missed calls
Forward calls
860UserManual
20
LED Instruction
This part mainly instructs the LED status. The Power LED Status describe on the premise that the
LED setting all set as Yes. For LED status setting, please refer to: LED Status Setting
Power Indicator LED
Line on Hold
DND
Redial
Call Return
SMS
Record
Recording
Group Listening
Shared Line
Other Functions
LED Status
Description
Blinked green
Ringing or have missed call
Steady Green
Idle status(Power on)
Off
Powered off.
