Sinclair S therm Series User manual

GSH-XXXTRB2 + GSH-XXXERB2
GSH-XXXTRB2-3 + GSH-XXXERB-3
SPLIT HEAT PUMPS
SERVICE MANUAL
HEAT PUMPS

Contents
Product Data ..................................................................................................................1
1 Product Data ...............................................................................................................1
1.1 Lineup ...............................................................................................................................1
1.2 Nomenclature....................................................................................................................1
1.3 Product Features ..............................................................................................................2
1.4 Operating Principle ..........................................................................................................5
1.5 Technical Data ..................................................................................................................5
2 Explosive Views and Part Lists...............................................................................31
3 Supply Scope............................................................................................................53
Model Selection ...........................................................................................................54
1 General ......................................................................................................................54
1.1 Power Supply..................................................................................................................54
1.2 Operation Conditions ......................................................................................................54
1.3 Flowchart of Model Selection..........................................................................................54
1.4 Design Principle ..............................................................................................................55
2 Selection of the Underoor Coils............................................................................55
2.1 Calculation of Unit Load for Floor Heating......................................................................55
2.2 Selection of Tube Spacing of the Underoor Coils .........................................................55
2.3 Selection of Loop Quantity of Coils for Each Room........................................................55
3 Quantity and Location of the Water Manifold ........................................................56
3.1 Design Requirements on Loop Quantity for Circulation Water .......................................56
3.2 Requirements on Installation of the Water Manifold .......................................................58
4 Selection of FCU.......................................................................................................58
4.1 FCU Type Selection ........................................................................................................58
4.2 Matching of Capacity ......................................................................................................58
5 Selection of the Water Tank.....................................................................................59
5.1 Specications of the Water Tank.....................................................................................59
5.2 Volume Selection of the Water Tank ...............................................................................59
6 Examples for Model Selection.................................................................................60
6.1 General Introduction to the Example Project .................................................................60
6.2 Heat Load Calculation.....................................................................................................60
6.3 Model Selection ..............................................................................................................61
Control..........................................................................................................................62
1 Integral Control Concept ......................................................................................... 62

1.1 Control Principle Diagram ...............................................................................................62
1.2 Control Flowchart............................................................................................................65
2 Main Control Logics.................................................................................................65
2.1 Cooling............................................................................................................................65
2.2 Heating............................................................................................................................66
2.3 Water Heating ...............................................................................................................66
2.4 Shutdown ........................................................................................................................67
2.5 Control to the Compressor..............................................................................................67
2.6 Control to the Fan ...........................................................................................................67
2.7 Control to the 4-way Valve..............................................................................................67
2.8 Control to the Water Pump .............................................................................................67
2.9 Control the Electronic Expansion Valve..........................................................................67
2.10 Protection Control .........................................................................................................68
3 Control Panel ............................................................................................................68
3.1 General ...........................................................................................................................68
3.2 Operation Instructions.....................................................................................................71
3.3 Intelligent Control ...........................................................................................................98
UNIT INSTALLATION .................................................................................................106
1 Installation Guides .................................................................................................106
1.1 Installation Position ......................................................................................................106
1.2 Matters Need Attention .................................................................................................107
2 Field Supplied Pipes and Valves........................................................................... 107
3 Service Tools ..........................................................................................................108
4 Installation Instructions.........................................................................................109
4.1 Installation Examples ....................................................................................................109
4.2 Pre-Installation ..............................................................................................................109
4.3 Selection of Installation Location ..................................................................................110
4.4 Installation of Outdoor Unit ...........................................................................................110
4.5 Installation of Indoor Unit ..............................................................................................116
4.6 Connection of Pipeline..................................................................................................122
4.7 Requirements on water quality .....................................................................................124
4.8 Electric Wiring ...............................................................................................................125
4.9 Wiring of the Terminal Board ........................................................................................130
4.10 Wiring of the 2-Way Valve...........................................................................................132
4.11 Wiring of Other Thermal..............................................................................................133
4.12 Wiring of the Gate-Controller ......................................................................................134

4.13 Wiring of the Remote Air Temperature Sensor ...........................................................134
4.14 Wiring of the Thermostat.............................................................................................135
4.15 Wiring of the Control ...................................................................................................136
5 Commissioning and Trial Run...............................................................................137
5.1 Check before startup.....................................................................................................137
5.2 Trial run .........................................................................................................................138
TEST OPERATION & TROUBLESHOOTING & MAINTENANCE.............................139
1 Precheck..................................................................................................................139
1.1 Check for Wiring ...........................................................................................................139
1.2 Check for the Water System .........................................................................................139
1.3 Check for the Communication System..........................................................................139
1.4 Trial Run........................................................................................................................139
2 Error Code List .......................................................................................................139
3 Flow Chart of Troubleshooting ............................................................................. 141
3.1 Compressor High-pressure Protection E1 ....................................................................141
3.2 Commpressor Low- pressure Protection E3 .................................................................142
3.3 Compressor Discharge Temp Protection E4.................................................................142
3.4 Overload Protection of Compressor or Driver Error......................................................143
3.5 DC Fan Error EF ...........................................................................................................143
3.6 Temperature Sensor Error ............................................................................................144
3.7 Communication Malfunction E6 ....................................................................................144
3.8 Capacity Switch Error (Code:"C5") ...............................................................................145
4 Diagnosis of Drive..................................................................................................145
4.1 Diagnosis Flowchart of Drive of Single-phase Unit and Three-phase Unit...................145
5 Daily Maintenance and Repair...............................................................................149
5.1 Daily Maintenance ........................................................................................................149
5.2 Troubleshooting ............................................................................................................149
5.3 Repair ...........................................................................................................................150

1
Product Data
1 Product Data

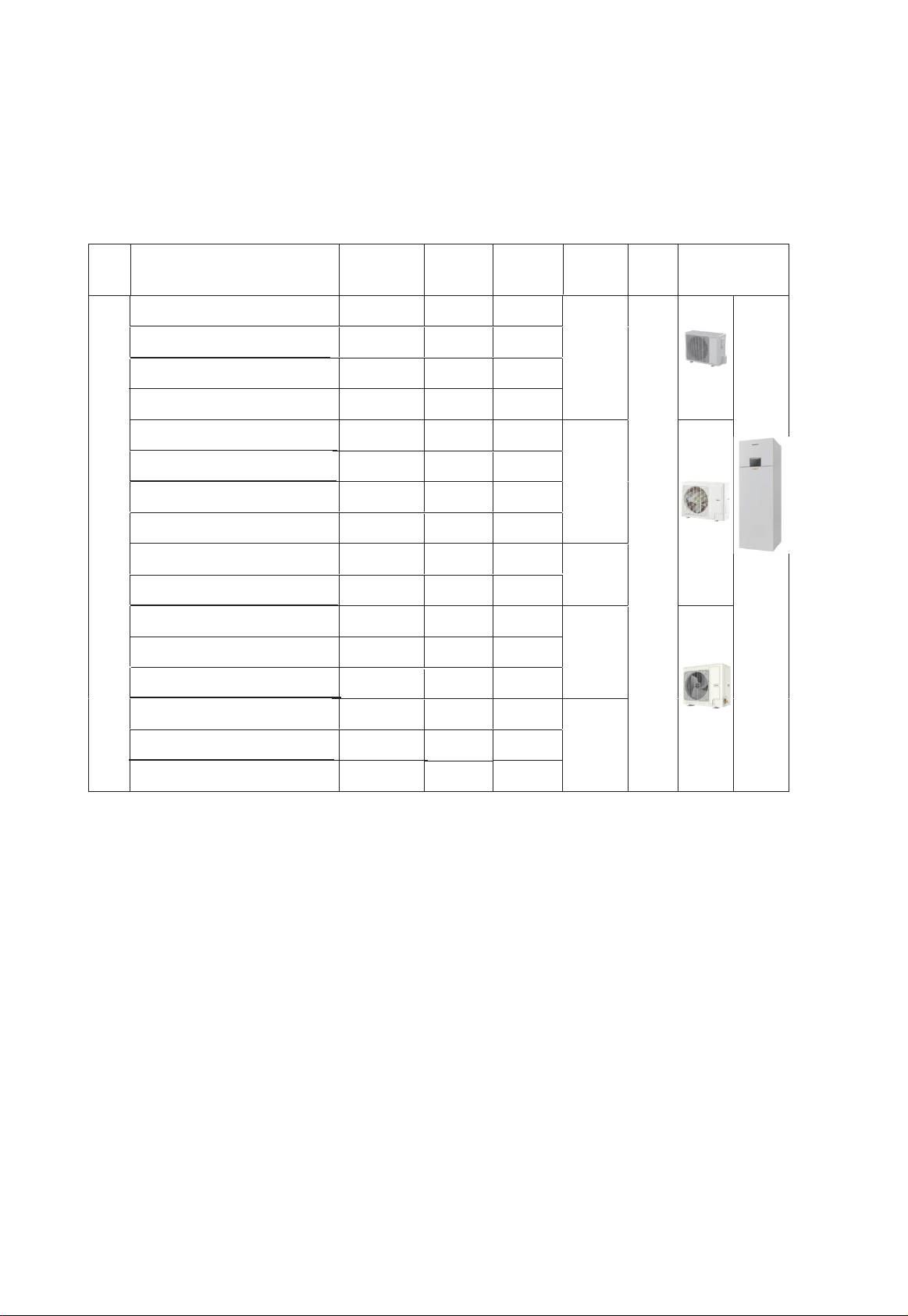

1.1 Lineup
1.1.1 Main Unit
Series Model Product
Code
Cooling
Capacity
(kW)
Heating
Capacity
(kW)
Power
Supply
Refri-
gerant Appearance
S therm
GSH-40TRB+GSH-40ERB ER01001770 3.8 4
230VAC,
50Hz
R32
GSH-60TRB+GSH-60ERB ER01001780 5.8 6
GSH-40TRB2+GSH-40ERB2 ER01002350 3.9 4
GSH-60TRB2+GSH-60ERB2 ER01002370 5.8 6
GSH-80TRB+GSH-80ERB ER01001760 7 8
230VAC,
50Hz
GSH-100TRB+GSH-100ERB ER01001730 8.5 9.5
GSH-80TRB2+GSH-80ERB2 ER01002340 7.7 8
GSH-100TRB2+GSH-100ERB2 ER01002360 9.35 10
GSH-80TRB2-3+GSH-80ERB-3 ER01002390 8.5 8
400VAC,
50Hz
GSH-100TRB2-3+GSH-100ERB-3 ER01002420 10 10
GSH-120TRB2+GSH-120ERB ER01002410 11 12
230VAC,
50Hz
GSH-140TRB2+GSH-140ERB ER0100 2400 12.6 14
GSH-160TRB2+GSH-160TRB ER01002380 13 15.5
GSH-120TRB2-3+GSH-120ERB-3 ER01002450 11 12
400VAC,
50Hz
GSH-140TRB2-3+GSH-140ERB-3 ER0100 2430 12.6 14
GSH-160TRB2-3+GSH-160ERB-3 ER01002440 13 15.5

2
1.3 Product Features
1.3.1 General
It’s a kind of integrated DC inverter unit that comprises cooling, heating and water heating functions, and up to 5.0
energy e󰀩ciency. It adopts R32 refrigerant and two-stage compressor. For heating, ambient temperature range is
-25~35°C while the leaving water temperature range is 20~60°C.
The S therm unit is designed specially for the European market where there is a demand for high-temperature
water. Thanks to the dual-stage compression and enthalpy gain through gas injection, the heating energy
e󰀩ciency at low temperature will rise up greatly with the leaving water temperature up to 60°C. The whole series
of products strictly comply with EN14511,EUROVENT energy efficiency Class A and SCOP class A+++(35°C),
SCOP class A++(55°C) with EN14825. Their COP can reach up to 5.0. This unit can realize space heating and
sanitary hot water supply through terminal units, like the fan coil unit, oor coil and radiator. Environment-friendly
refrigerant R32 is adopted for the unit, with ODP of 0 and quite low GWP (=675). Besides, the adopted heat pump
technologies will reduce consumption of coal and other energy source and lower greatly CO2emission. Ranged
from 4.0kW~9.5kW, it is widely applicable to small and medium-sized apartment, large-sized villa etc.
1.3.2 Features
◆Wide Operation Range
Heating: -25~35°C; Cooling: 10~48°C; Water Heating: -25~45°C

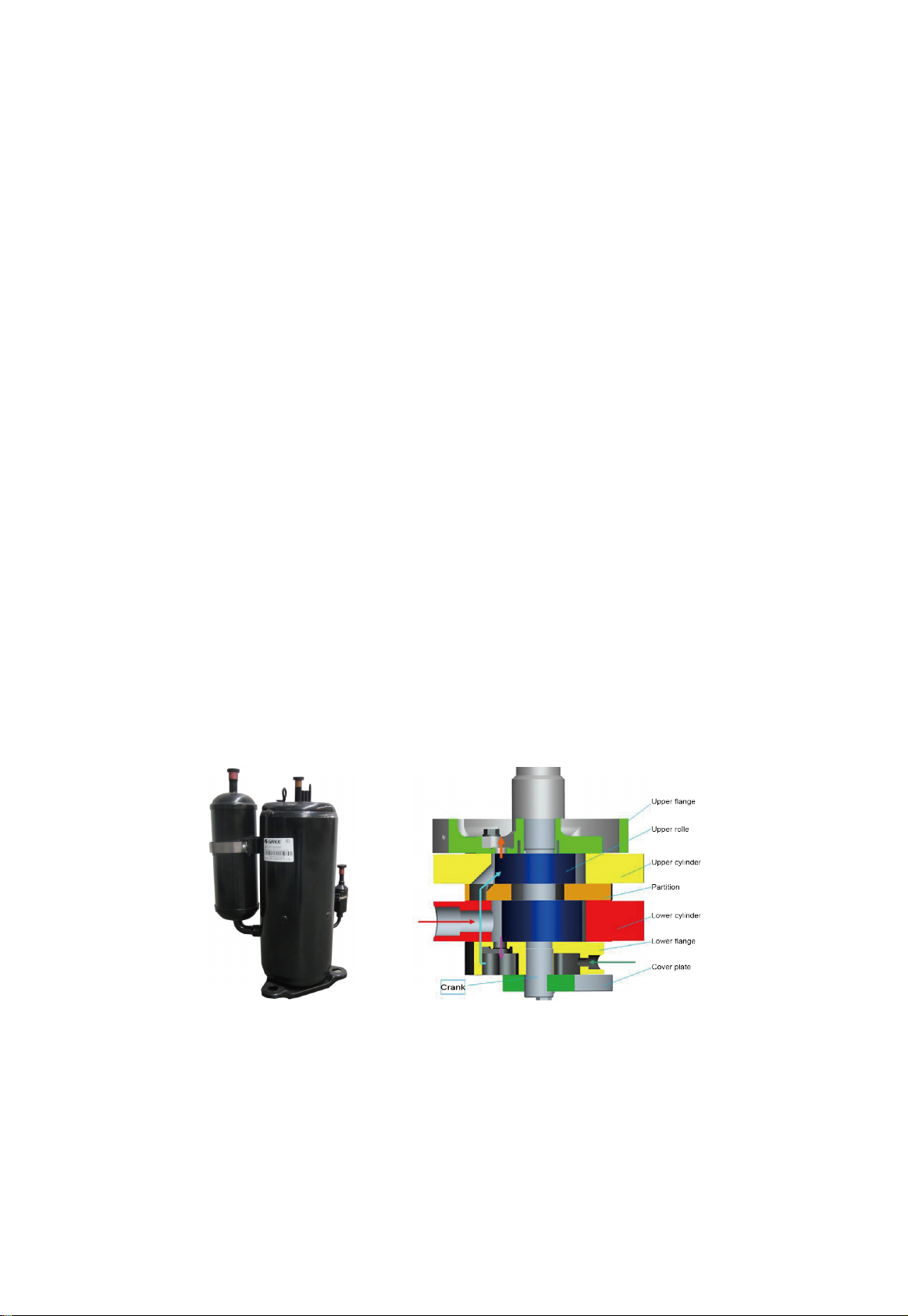

◆Unique Low-Temp Hi-heat Dual-stage Compressor
(1) Under low-temperature conditions, compared with the conventional compressor, the dual-stage low-temp
hi-heat compressor will generate less loss of heat capacity and get higher energy e󰀩ciency.
(2) Floodback, high discharge temperature and other problems can be completely avoided under low-temp
conditions and the compressor’s reliability will be enhanced greatly.
(3) Dual-stage compression, dual-stage throttling and intermediate enthalpy adding through gas injection will
raise the leaving water temperature and improve the control accuracy.
(4) Values of resistance to compressor status:
4/6kW——UV/VW/UW:1.67±7%Ω
8/10kW——UV/VW/UW:0.99±7%Ω
◆High-e󰀩ciency Component(Inverter pump, Inverter fan, Plate heat exchanger)
(1) The A-class high-efficiency inverter water pump which complies with the European ErP directive, can
control the running frequency based on the actual load. Therefore, it can enhance the operation e󰀩ciency
and control the water temperature more accurately.
(2) The DC inverter fan can control the air volume accuratately and make the system run more stably and save
more energy.
(3) The high-e󰀩ciency plate heat exchaner will improve the unit’s performance largely.

3
(4) The high-e󰀩ciency water pump will also improve the unit’s performance largely.
◆All-in-one Design
(1) The unit can integrate with terminal units, like the radiator, oor heating device, FCU, water heating device,
solar kit, gas furnace etc. Versatile functions can meet various kinds of demands from di󰀨erent users and
enhance applicability of this product.
(2) The all-in-one structure design can save more installation cost, reduce risks of refrigerant leak, and improve
safety and reliability of the system.
◆Brand-new Controller
(1) White appearance, exquisite design, and the wall-mounted design that facilitates installation.
(2) Liquid crystal display and touch-screen operation.
(3) The 12V JACK interface can supply power to the control separately and lengthen the communication
distance.
(4) The remote monitoring interface can monitor the unit through the Mobus interface and be integrated into the
BMS system.

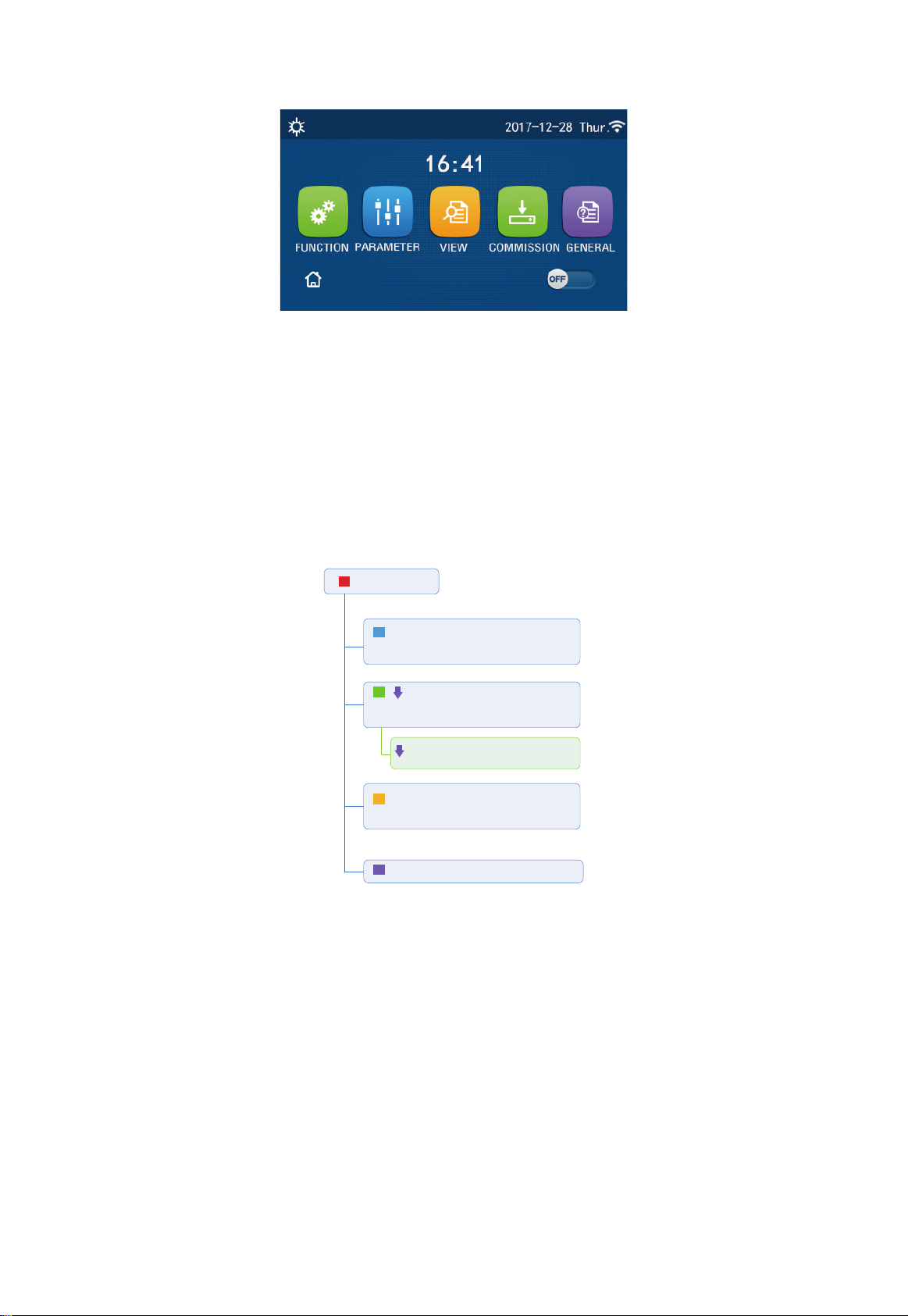

(Home page)

4
(Menu page)
◆Smart Control, Powerful Function
(1) The operating mode can be switched freely. Furthermore, based on di󰀨erent demands, the holiday mode,
weather-dependent mode, quite timer, temperature timer and oor commissioning can activated.
(2) Multiple protections can make this product much safer. The added electric heater will prevent the plate heat
exchanger from being frosted owing to too low water temperature and resultantly extend the service life of
the product and enhance its safety and reliability.
(3) The newly developed smart defrosting control program, “do defrost when necessary; do not defrost when
unnecessary; defrost more when it frosts heavily; defrost less when it frosts lightly”, can bring more
comfortability, avoid inadequacy of heat supply and ensure sustainable heat supply for the users.
The owchart with parameters to be set.
Home page
GENERAL: Set general parameters, for
example, language, backlight and
so on.
COMMISSION: first, click the
FUNCTION to set the hardware
like water tank, 2-way valve and
so on.
Second, click the para to set the
paramter, like the T-HP max.
PARAMETER: to set the T-water out
(if we choose the T-water out Ctrl.
state), T-room (same as above).
FUNCTION: select the desired function and
set its parameter.
1
2
3
4
5

5
1.4 Operating Principle
1.4.1 Schematic Diagram
Low
pressure
switch
(cooling)
Low
pressure
switch
(heating)
1.5 Technical Data
1.5.1 Parameter List
◆Whole Units
Model
GSH-40TRB
+
GSH-40ERB
GSH-60TRB
+
GSH-60ERB
GSH-80TRB
+
GSH-80ERB
GSH-100TRB
+
GSH-100ERB
Capacity*1
Cooling
(oor cooling) kW 3.8 5.8 7.0 8.5
Heating
(oor heating) kW 4.0 6.0 8.0 9.5
Power
Input*1
Cooling
(oor cooling) kW 0.82 1.32 1.75 2.24
Heating
(oor heating) kW 0.78 1.20 1.70 2.07
EER*1(oor cooling) W/W 4.6 4.4 4.0 3.8
COP*1(oor heating) W/W 5.1 5.0 4.7 4.6
Capacity*2
Cooling(for Fan coil) kW 3.15 4.09 5.3 6.5
Heating
(Fan coil or Radiator) kW 4 5.9 8 9.5
Power
Input*2
Cooling(for Fan coil) kW 0.92 1.28 1.73 2.27
Heating
(Fan coil or Radiator) kW 1.02 1.51 2.14 2.64
EER*2(for Fan coil) W/W 3.4 3.2 3.1 2.9
COP*2(Fan coil or Radiator) W/W 3.9 3.9 3.7 3.6

6
Model
GSH-40TRB
+
GSH-40ERB
GSH-60TRB
+
GSH-60ERB
GSH-80TRB
+
GSH-80ERB
GSH-100TRB
+
GSH-100ERB
Refrigerant charge volume kg 1.0 1.0 1.6 1.6
Sanitary water Temperature °C 40~80°C
Model
GSH-40TRB2
+
GSH-40ERB2
GSH-60TRB2
+
GSH-60ERB2
GSH-80TRB2
+
GSH-80ERB2
GSH-100TRB2
+
GSH-100ERB2
Capacity*1
Cooling
(oor cooling) kW 3.9 5.8 7.7 9.35
Heating
(oor heating) kW 4.0 6.0 8.0 10
Power
Input*1
Cooling
(oor cooling) kW 0.68 1.13 1.72 2.36
Heating
(oor heating) kW 0.77 1.2 1.61 2.1
EER*1(oor cooling) W/W 5.7 5.1 4.5 4.0
COP*1(oor heating) W/W 5.2 5.0 5.0 4.8
Capacity*2
Cooling(for Fan coil) kW 3.40 4.00 7.15 7.60
Heating
(Fan coil or Radiator) kW 4.10 5.80 8.00 9.85
Power
Input*2
Cooling(for Fan coil) kW 0.92 1.16 2.49 2.77
Heating
(Fan coil or Radiator) kW 1.04 1.52 2.07 2.69
EER*2(for Fan coil) W/W 3.69 3.45 2.87 2.74
COP*2(Fan coil or Radiator) W/W 3.94 3.82 3.86 3.67
Refrigerant charge volume kg 1.1 1.1 1.84 1.84
Sanitary water Temperature °C 40~80°C
Model
GSH-120TRB2
+
GSH-120ERB
GSH-140TRB2
+
GSH-140ERB
GSH-160TRB2
+
GSH-160ERB
Capacity*1
Cooling
(oor cooling) kW 11 12.6 13
Heating
(oor heating) kW 12 14 15.5
Power
Input*1
Cooling
(oor cooling) kW 2.5 3.41 3.60
Heating
(oor heating) kW 2.4 2.98 3.44
EER*1(oor cooling) W/W 4.4 3.7 3.6
COP*1(oor heating) W/W 5 4.7 4.5
Capacity*2
Cooling(for Fan coil) kW 10.59 11.07 11.51
Heating
(Fan coil or Radiator) kW 12.4 14.48 16.09
Power
Input*2
Cooling(for Fan coil) kW 3.79 4.18 4.49
Heating
(Fan coil or Radiator) kW 3.29 3.93 4.44

7
Model
GSH-120TRB2
+
GSH-120ERB
GSH-140TRB2
+
GSH-140ERB
GSH-160TRB2
+
GSH-160ERB
EER*2(for Fan coil) W/W 2.79 2.65 2.57
COP*2(Fan coil or Radiator) W/W 3.77 3.68 3.62
Refrigerant charge volume kg 1.84 1.84 1.84
Sanitary water Temperature °C 40~80°C
Model
GSH-80TRB2
-3 + GSH-80
ERB-3
GSH-100TRB
2-3 + GSH-
100ERB-3
GSH-120TRB
2-3 + GSH-
120ERB-3
GSH-140TRB
2-3 + GSH-
140ERB-3
GSH-160TRB
2-3 + GSH-
160ERB-3
Capacity*1
Cooling
(oor cooling) kW 8.5 10 11 12.6 13
Heating
(oor heating) kW 8 10 12 14 15.5
Power
Input*1
Cooling
(oor cooling) kW 1.74 2.33 2.5 3.41 3.6
Heating
(oor heating) kW 1.55 2.06 2.4 2.98 3.44
EER*1(oor cooling) W/W 4.4 3.7 4.4 3.7 3.6
COP*1(oor heating) W/W 5 4.7 5 4.7 4.51
Capacity*2
Cooling(for Fan coil) kW 7.6 8.2 10.65 11.24 11.52
Heating
(Fan coil or Radiator) kW 8.0 10.2 12.29 14.44 16.13
Power
Input*2
Cooling(for Fan coil) kW 1.52 1.91 3.74 4.13 4.38
Heating
(Fan coil or Radiator) kW 1.92 2.55 3.09 3.63 4.16
EER*2(for Fan coil) W/W 5.0 4.3 2.85 2.72 2.63
COP*2(Fan coil or Radiator) W/W 4.16 4 3.98 3.98 3.88
Refrigerant charge volume kg 1.84 1.84 1.84 1.84 1.84
Sanitary water Temperature °C 40~80°C
◆Outdoor units
Model GSH-40ERB GSH-60ERB GSH-80ERB GSH-100ERB
Sound
Pressure
Level
Cooling dB(A) 52 52 55 55
Heating dB(A) 52 52 55 55
Dimensions
(W×D×H)
Outline mm 975×396×702 975×396×702 982×427×787 982×427×787
Packaged mm 1028×458×830 1028×458×830 1097×478×937 1094×478×937
Net weight/Gross weight kg 55/65 55/65 82/92 82/92

8
Model GSH-40ERB2 GSH-60ERB2 GSH-80ERB2 GSH-100ERB2
Sound
Pressure
Level
Cooling dB(A) 52 52 55 55
Heating dB(A) 52 52 55 55
Dimensions
(W×D×H)
Outline mm 975×396×702 975×396×702 982×427×787 982×427×787
Packaged mm 458×1029×830 458×1029×830 478×1097×937 478×1097×937
Net weight/Gross weight kg 55/65 55/65 82/92 82/92
Model GSH-120ERB GSH-140ERB GSH-160ERB
Sound
Pressure
Level
Cooling dB(A) 68 68 68
Heating dB(A) 68 68 68
Dimensions
(W×D×H)
Outline mm 940×460×820 940×460×820 940×460×820
Packaged mm 1073×563×868 1073×563×868 1073×563×868
Net weight/Gross weight kg 58/67 58/67 58/67
Model GSH-120ERB-3 GSH-140ERB-3 GSH-160ERB-3
Sound
Pressure
Level
Cooling dB(A) 68 68 68
Heating dB(A) 68 68 68
Dimensions
(W×D×H)
Outline mm 940×460×820 940×460×820 940×460×820
Packaged mm 1073×563×868 1073×563×868 1073×563×868
Net weight/Gross weight kg 58/67 58/67 58/67
Model GSH-80ERB-3 GSH-100ERB-3
Sound
Pressure
Level
Cooling dB(A) 55 55
Heating dB(A) 55 55
Dimensions
(W×D×H)
Outline mm 982×395×787 982×395×787
Packaged mm 478×1097×937 478×1094×937
Net weight/Gross weight kg 88/98 88/98
◆Indoor units
Model GSH-40TRB GSH-60TRB GSH-80TRB GSH-100TRB
Sound
Pressure
Level
Cooling dB(A) 29 29 29 29
Heating dB(A) 29 29 29 29
Dimensions
(W×D×H)
Outline mm 600×600×1756 600×600×1756 600×600×1756 600×600×1756
Packaged mm 803×683×2000 803×683×2000 803×683×2000 803×683×2000
Net weight/Gross weight kg 210/233 210/233 210/233 210/233
Model GSH-40TRB2 GSH-60TRB2 GSH-80TRB2 GSH-100TRB2
Sound
Pressure
Level
Cooling dB(A) 29 29 29 29
Heating dB(A) 29 29 29 29

9
Model GSH-40TRB2 GSH-60TRB2 GSH-80TRB2 GSH-100TRB2
Dimensions
(W×D×H)
Outline mm 600×650×1800 600×650×1800 600×650×1800 600×650×1800
Packaged mm 703×803×2035 703×803×2035 703×803×2035 703×803×2035
Net weight/Gross weight kg 195/219 195/219 195/219 195/219
Model GSH-120TRB2 GSH-140TRB2 GSH-160TRB2
Sound
Pressure
Level
Cooling dB(A) 29 29 29
Heating dB(A) 29 29 29
Dimensions
(W×D×H)
Outline mm 600×650×1800 600×650×1800 600×650×1800
Packaged mm 703×803×2035 703×803×2035 703×803×2035
Net weight/Gross weight kg 195/219 195/219 195/219
Model GSH-80TRB2-3 GSH-100TRB2-3 GSH-120TRB2-3GSH-140TRB2-3GSH-160TRB2-3
Sound
Pressure
Level
Cooling dB(A) 29 29 29 29 29
Heating dB(A) 29 29 29 29 29
Dimensions
(W×D×H)
Outline mm 600×650×1800 600×650×1800 600×650×1800 600×650×1800 600×650×1800
Packaged mm 703×803×2035 703×803×2035 703×803×2035 703×803×2035 703×803×2035
Net weight/Gross weight kg 195/219 195/219 195/219 195/219 195/219
Notes
(a) “*1” indicates the capacity and power input are tested based on the conditions below:
Cooling:
Indoor Water Temperature: 23°C/18°C; Outdoor Temperature: 35°CDB/24°CWB
Heating:
Indoor Water Temperature: 30°C/35°C; Outdoor Temperature: 7°CDB/6°CWB
(b) “*2” indicates the capacity and power input are tested based on the conditions below:
Cooling:
Indoor Water Temperature: 12°C/7°C; Outdoor Temperature: 35°CDB/24°CWB
Heating:
Indoor Water Temperature: 40°C/45°C; Outdoor Temperature: 7°CDB/6°CWB
1.5.2 Nominal Working Conditions
Item
Water Side Heat Source/User Side
Entering Water Temp
(°C)
Leaving Water
Temperature (°C)
Dry Bulb
Temperature (°C)
Wet Bulb
Temperature (°C)
FCU Cooling 12 7 35 —
FCU Heating 40 45 7 6
Floor Cooling 23 18 35 —
Floor Heating 30 35 7 6
Water Heating 53 - 7 6

10
1.5.3 Operation Range
Item
Water Side Heat Source/User Side
Leaving Water Temperature (°C) Environment Dry Bulb Temperature
(°C)
Cooling 7~25 10~48
Heating 20~60 -25~35
Water Heating 40~80 (Water Tank Temperature) -25~45
Note: when operating conditions are out of the range listed above, please contact Sinclair.
1.5.4 Temperature sensor parameter
Displayed Name Inspection
range(°C)
Nominal working datas
Remark
Cooling Heating Hot water
T-outdoor -30~150 8~50 -27~37 -27~45 temperature sensor resistance 15K
T-suction -30~150 5~30 -25~20 -25~30 temperature sensor resistance 20K
T-discharge -30~150 30~102 35~102 35~102 temperature sensor resistance 50K
T-defrost -30~150 20~57 -25~30 -25~40 temperature sensor resistance 20K
T-water in PE -30~150 10~30 20~55 20~55 temperature sensor resistance 20K
T-water out PE -30~150 5~25 25~60 25~60 temperature sensor resistance 20K
T-optional water
Sen. -30~150 5~25 25~60 25~60 temperature sensor resistance 50K
T-tank ctrl. -30~150 / / 10~80 temperature sensor resistance 50K
T-oor debug -30~150 / 25~45 / /
Debug time -30~150 / 12~72 / /
T-liquid pipe -30~150 5~25 20~57 20~57 temperature sensor resistance 20K
T-gas pipe -30~150 30~102 35~102 35~102 temperature sensor resistance 20K
T-economizer in -30~150 no EVI under
cooling -20~55 -20~55 temperature sensor resistance 20K
T-economizer out -30~150 no EVI under
cooling -20~55 -20~55 temperature sensor resistance 20K
T-remote room -30~150 18~30 18~30 18~30 /
Dis. Pressure -40~70 25~60 25~62 25~62 /
T-weather depend -30~150 7~25 25~60 / based on calculation
1.5.5 Electric Data
Model
Power Supply
Leakage
Leakage
Switch
Minimum
Sectional
Area of Earth Wire
Minimum
Sectional
Area of Power
Supply Wire
V,Ph,Hz (A) (mm2) (mm2)
GSH-40ERB
230VAC,1Ph,50Hz
16 1.5 1.5
GSH-60ERB 16 1.5 1.5
GSH-40TRB 20 6.0 6.0
GSH-60TRB 20 6.0 6.0
GSH-40ERB2 16 1.5 1.5
GSH-60ERB2 16 1.5 1.5
GSH-40TRB2 20 6.0 6.0
GSH-60TRB2 20 6.0 6.0

11
Model
Power Supply
Leakage
Leakage
Switch
Minimum
Sectional
Area of Earth Wire
Minimum
Sectional
Area of Power
Supply Wire
V,Ph,Hz (A) (mm2) (mm2)
GSH-80ERB
230VAC,1Ph,50Hz
25 4.0 4.0
GSH-100ERB 25 4.0 4.0
GSH-80TRB 40 6.0 6.0
GSH-100TRB 40 6.0 6.0
GSH-80ERB2 25 4.0 4.0
GSH-100ERB2 25 4.0 4.0
GSH-80TRB2 40 6.0 6.0
GSH-100TRB2 40 6.0 6.0
GSH-80ERB-3
400V,3N~,50Hz
16 2.5 2.5
GSH-100ERB-3 16 2.5 2.5
GSH-80TRB2-3 20 4.0 4.0
GSH-100TRB2-3 20 4.0 4.0
GSH-120ERB-3 16 2.5 2.5
GSH-140ERB-3 16 2.5 2.5
GSH-160ERB-3 16 2.5 2.5
GSH-120TRB2-3 20 4.0 4.0
GSH-140TRB2-3 20 4.0 4.0
GSH-160TRB2-3 20 4.0 4.0
GSH-120ERB
230VAC,1Ph,50Hz
32 6.0 6.0
GSH-140ERB 40 6.0 6.0
GSH-160ERB 40 6.0 6.0
GSH-120TRB2 40 6.0 6.0
GSH-140TRB2 40 6.0 6.0
GSH-160TRB2 40 6.0 6.0
Notes
(a) Leakage Switch is necessary for additional installation. If circuit breakers with leakage protection are in use,
action response time must be less than 0.1 second, leakage circuit must be 30mA.
(b) The above selected power cable diameters are determined based on assumption of distance from the
distribution cabinet to the unit less than 75m. If cables are laid out in a distance of 75m to 150m, diameter of
power cable must be increased to a further grade.
(c) The power supply must be of rated voltage of the unit and special electrical line for air-conditioning.
(d) All electrical installation shall be carried out by professional technicians in accordance with the local laws
and regulations.
(e) Ensure safe grounding and the grounding wire shall be connected with the special grounding equipment of
the building and must be installed by professional technicians.
(f) The specications of the breaker and power cable listed in the table above are determined based on the
maximum power (maximum amps) of the unit.
(g) The specications of the power cable listed in the table above are applied to the conduit-guarded multi-wire
copper cable (like, YJV XLPE insulated power cable) used at 40°C and resistible to 90°C (see IEC 60364-5-
52). If the working condition changes, they should be modied according to the related national standard.
(h) The specifications of the breaker listed in the table above are applied to the breaker with the working
temperature at 40°C. If the working condition changes, they should be modified according to the related
national standard.
(i) A circuit breaker must be added to the fixed line. The circuit breaker is all-pole disconnected and the
breaking distance of the contact is at least 3mm.

12
1.5.6 Capacity Correction
◆Cooling Capacity Correction
Computer of actual cooling capacity: actual cooling capacity = nominal cooling capacity x cooling capacity
correction coe󰀩cient.
(1) GSH-40TRB+GSH-40ERB, GSH-60TRB+GSH-60ERB, GSH-80TRB+GSH-80ERB, GSH-100TRB+GSH-100ERB
Cooling Capacity Correction_4
Outow
Water(°C)
Ambient Temp.(°C)
10 15 20 25 30 35 40 45 48
7 2.58 2.87 3.02 3.21 3.28 3.15 2.87 2.24 1.89
8 2.65 2.93 3.09 3.28 3.34 3.21 2.93 2.27 1.92
9 2.68 2.99 3.15 3.34 3.40 3.28 2.99 2.33 1.95
10 2.74 3.02 3.21 3.40 3.47 3.34 3.02 2.36 1.98
11 2.77 3.09 3.28 3.47 3.53 3.40 3.09 2.39 2.05
12 2.84 3.15 3.34 3.53 3.56 3.47 3.15 2.46 2.08
13 2.87 3.21 3.37 3.56 3.65 3.50 3.21 2.49 2.11
14 2.93 3.24 3.43 3.62 3.72 3.56 3.24 2.52 2.14
15 2.96 3.31 3.47 3.69 3.78 3.62 3.31 2.58 2.17
18 3.12 3.50 3.65 3.91 3.97 3.81 3.50 2.71 2.27
20 3.21 3.56 3.78 4.03 4.10 3.94 3.56 2.80 2.36
23 3.37 3.72 3.94 4.19 4.28 4.13 3.72 2.93 2.46
25 3.47 3.84 4.06 4.32 4.41 4.22 3.84 2.99 2.52
Cooling Capacity Correction_6
Outow
Water(°C)
Ambient Temp.(°C)
10 15 20 25 30 35 40 45 48
7 3.35 3.72 3.93 4.17 4.25 4.09 3.72 2.90 2.45
8 3.48 3.89 4.09 4.34 4.42 4.25 3.89 3.03 2.54
9 3.64 4.01 4.21 4.46 4.54 4.38 4.01 3.15 2.66
10 3.72 4.13 4.38 4.62 4.70 4.54 4.13 3.23 2.74
11 3.84 4.29 4.50 4.79 4.91 4.70 4.29 3.31 2.82
12 3.97 4.42 4.66 4.95 5.07 4.87 4.42 3.44 2.90
13 4.13 4.58 4.79 5.11 5.19 4.99 4.58 3.56 2.99
14 4.25 4.66 4.95 5.28 5.36 5.15 4.66 3.68 3.07
15 4.34 4.83 5.11 5.44 5.52 5.32 4.83 3.76 3.19
18 4.74 5.24 5.52 5.89 6.01 5.77 5.24 4.09 3.48
20 4.95 5.52 5.85 6.18 6.30 6.05 5.52 4.34 3.64
23 5.36 5.93 6.26 6.67 6.79 6.54 5.93 4.62 3.93
25 5.60 6.22 6.54 6.95 7.12 6.83 6.22 4.87 4.09
Cooling Capacity Correction_8
Outow
Water(°C)
Ambient Temp.(°C)
10 15 20 25 30 35 40 45 48
7 4.35 4.82 5.09 5.41 5.51 5.30 4.82 3.76 3.18
8 4.51 4.98 5.25 5.57 5.67 5.46 4.98 3.87 3.29
9 4.56 5.09 5.35 5.72 5.83 5.62 5.09 3.98 3.34
10 4.72 5.25 5.51 5.88 5.99 5.78 5.25 4.08 3.45
11 4.88 5.41 5.72 6.04 6.20 5.94 5.41 4.19 3.55
12 4.98 5.57 5.88 6.25 6.31 6.10 5.57 4.35 3.66
13 5.09 5.67 5.99 6.31 6.41 6.20 5.67 4.40 3.71
14 5.25 5.83 6.10 6.47 6.63 6.36 5.83 4.51 3.82
15 5.35 5.99 6.25 6.68 6.78 6.52 5.99 4.66 3.92

13
Cooling Capacity Correction_8
Outow
Water(°C)
Ambient Temp.(°C)
10 15 20 25 30 35 40 45 48
18 5.78 6.36 6.73 7.16 7.26 7.00 6.36 4.98 4.24
20 5.99 6.63 7.00 7.42 7.58 7.31 6.63 5.14 4.40
23 6.41 7.10 7.47 7.90 8.06 7.79 7.10 5.51 4.66
25 6.63 7.37 7.79 8.22 8.37 8.06 7.37 5.72 4.82
Cooling Capacity Correction_10
Outow
Water(°C)
Ambient Temp.(°C)
10 15 20 25 30 35 40 45 48
7 5.33 5.92 6.24 6.63 6.76 6.50 5.92 4.62 3.90
8 5.46 6.11 6.44 6.83 6.96 6.70 6.11 4.75 4.03
9 5.66 6.24 6.57 7.02 7.15 6.89 6.24 4.94 4.10
10 5.79 6.37 6.70 7.22 7.35 7.02 6.37 5.01 4.23
11 5.92 6.57 6.96 7.35 7.54 7.22 6.57 5.07 4.36
12 6.11 6.70 7.15 7.54 7.67 7.41 6.70 5.27 4.49
13 6.24 6.89 7.35 7.74 7.87 7.61 6.89 5.40 4.55
14 6.44 7.15 7.48 7.93 8.13 7.80 7.15 5.53 4.68
15 6.57 7.28 7.67 8.19 8.32 8.00 7.28 5.72 4.81
18 7.02 7.74 8.13 8.65 8.91 8.52 7.74 6.05 5.14
20 7.35 8.13 8.58 9.10 9.30 8.91 8.13 6.31 5.33
23 7.74 8.58 9.04 9.62 9.82 9.43 8.58 6.63 5.66
25 8.00 8.91 9.36 10.01 10.21 9.82 8.91 6.96 5.98
(2）GSH-40TRB2+GSH-40ERB2, GSH-60TRB2+GSH-60ERB2, GSH-80TRB2+GSH-80ERB2,
GSH-100TRB2+GSH-100ERB2
GSH-120TRB2+GSH-120ERB, GSH-140TRB2+GSH-140ERB, GSH-160TRB2+GSH-160ERB
Cooling Capacity Correction_4
Outow
Water(°C)
Ambient Temp.(°C)
10 15 20 25 30 35 40 45 48
7 2.58 2.87 3.02 3.21 3.28 3.15 2.87 2.24 1.89
8 2.65 2.93 3.09 3.28 3.34 3.21 2.93 2.27 1.92
9 2.68 2.99 3.15 3.34 3.40 3.28 2.99 2.33 1.95
10 2.74 3.02 3.21 3.40 3.47 3.34 3.02 2.36 1.98
11 2.77 3.09 3.28 3.47 3.53 3.40 3.09 2.39 2.05
12 2.84 3.15 3.34 3.53 3.56 3.47 3.15 2.46 2.08
13 2.87 3.21 3.37 3.56 3.65 3.50 3.21 2.49 2.11
14 2.93 3.24 3.43 3.62 3.72 3.56 3.24 2.52 2.14
15 2.96 3.31 3.47 3.69 3.78 3.62 3.31 2.58 2.17
18 3.12 3.50 3.65 3.91 3.97 3.81 3.50 2.71 2.27
20 3.21 3.56 3.78 4.03 4.10 3.94 3.56 2.80 2.36
23 3.37 3.72 3.94 4.19 4.28 4.13 3.72 2.93 2.46
25 3.47 3.84 4.06 4.32 4.41 4.22 3.84 2.99 2.52
Cooling Capacity Correction_6
Outow
Water(°C)
Ambient Temp.(°C)
10 15 20 25 30 35 40 45 48
7 3.28 3.64 3.84 4.08 4.16 4.00 3.64 2.84 2.40
8 3.40 3.80 4.00 4.24 4.32 4.16 3.80 2.96 2.48
9 3.56 3.92 4.12 4.36 4.44 4.28 3.92 3.08 2.60
10 3.64 4.04 4.28 4.52 4.60 4.44 4.04 3.16 2.68

14
Cooling Capacity Correction_6
Outow
Water(°C)
Ambient Temp.(°C)
10 15 20 25 30 35 40 45 48
11 3.76 4.20 4.40 4.68 4.80 4.60 4.20 3.24 2.76
12 3.88 4.32 4.56 4.84 4.96 4.76 4.32 3.36 2.84
13 4.04 4.48 4.68 5.00 5.08 4.88 4.48 3.48 2.92
14 4.16 4.56 4.84 5.16 5.24 5.04 4.56 3.60 3.00
15 4.24 4.72 5.00 5.32 5.40 5.20 4.72 3.68 3.12
18 4.64 5.12 5.40 5.76 5.88 5.64 5.12 4.00 3.40
20 4.84 5.40 5.72 6.04 6.16 5.92 5.40 4.24 3.56
23 5.24 5.80 6.12 6.52 6.64 6.40 5.80 4.52 3.84
25 5.48 6.08 6.40 6.80 6.96 6.68 6.08 4.76 4.00
Cooling Capacity Correction_8
Outow
Water(°C)
Ambient Temp.(°C)
5.86 6.51 6.86 7.29 7.44 7.15 6.51 5.08 4.29
7 6.08 6.72 7.08 7.51 7.65 7.36 6.72 5.22 4.43
8 6.15 6.86 7.22 7.72 7.87 7.58 6.86 5.36 4.50
9 6.36 7.08 7.44 7.94 8.08 7.79 7.08 5.51 4.65
10 6.58 7.29 7.72 8.15 8.37 8.01 7.29 5.65 4.79
11 6.72 7.51 7.94 8.44 8.51 8.22 7.51 5.86 4.93
12 6.86 7.65 8.08 8.51 8.65 8.37 7.65 5.93 5.01
13 7.08 7.87 8.22 8.72 8.94 8.58 7.87 6.08 5.15
14 7.22 8.08 8.44 9.01 9.15 8.79 8.08 6.29 5.29
15 7.79 8.58 9.08 9.65 9.80 9.44 8.58 6.72 5.72
18 8.08 8.94 9.44 10.01 10.22 9.87 8.94 6.94 5.93
20 8.65 9.58 10.08 10.65 10.87 10.51 9.58 7.44 6.29
23 8.94 9.94 10.51 11.08 11.30 10.87 9.94 7.72 6.51
25 5.86 6.51 6.86 7.29 7.44 7.15 6.51 5.08 4.29
Cooling Capacity Correction_10
Outow
Water(°C)
Ambient Temp.(°C)
10 15 20 25 30 35 40 45 48
7 6.23 6.92 7.30 7.75 7.90 7.60 6.92 5.40 4.56
8 6.38 7.14 7.52 7.98 8.13 7.83 7.14 5.55 4.71
9 6.61 7.30 7.68 8.21 8.36 8.06 7.30 5.78 4.79
10 6.76 7.45 7.83 8.44 8.59 8.21 7.45 5.85 4.94
11 6.92 7.68 8.13 8.59 8.82 8.44 7.68 5.93 5.09
12 7.14 7.83 8.36 8.82 8.97 8.66 7.83 6.16 5.24
13 7.30 8.06 8.59 9.04 9.20 8.89 8.06 6.31 5.32
14 7.52 8.36 8.74 9.27 9.50 9.12 8.36 6.46 5.47
15 7.68 8.51 8.97 9.58 9.73 9.35 8.51 6.69 5.62
18 8.21 9.04 9.50 10.11 10.41 9.96 9.04 7.07 6.00
20 8.59 9.50 10.03 10.64 10.87 10.41 9.50 7.37 6.23
23 9.04 10.03 10.56 11.25 11.48 11.02 10.03 7.75 6.61
25 9.35 10.41 10.94 11.70 11.93 11.48 10.41 8.13 6.99

15
Cooling Capacity Correction_12
Outow
Water(°C)
Ambient Temp.(°C)
10 15 20 25 30 35 40 45 48
7 8.68 9.64 10.17 10.80 11.01 10.59 9.64 7.52 6.35
8 8.90 9.95 10.48 11.12 11.33 10.91 9.95 7.73 6.57
9 9.21 10.17 10.70 11.44 11.65 11.23 10.17 8.05 6.67
10 9.43 10.38 10.91 11.75 11.97 11.44 10.38 8.15 6.88
11 9.64 10.70 11.33 11.97 12.28 11.75 10.70 8.26 7.10
12 9.95 10.91 11.65 12.28 12.50 12.07 10.91 8.58 7.31
13 10.17 11.23 11.97 12.60 12.81 12.39 11.23 8.79 7.41
14 10.48 11.65 12.18 12.92 13.24 12.71 11.65 9.00 7.62
15 10.70 11.86 12.50 13.34 13.56 13.03 11.86 9.32 7.84
18 11.44 12.60 13.24 14.08 14.51 13.87 12.60 9.85 8.37
20 11.97 13.24 13.98 14.83 15.14 14.51 13.24 10.27 8.68
23 12.60 13.98 14.72 15.67 15.99 15.36 13.98 10.80 9.21
25 13.03 14.51 15.25 16.31 16.63 15.99 14.51 11.33 9.74
Cooling Capacity Correction_14
Outow
Water(°C)
Ambient Temp.(°C)
10 15 20 25 30 35 40 45 48
7 7.90 8.76 9.25 9.82 10.02 11.07 8.76 6.84 5.78
8 8.09 9.05 9.53 10.11 10.31 11.21 9.05 7.03 5.97
9 8.38 9.25 9.73 10.40 10.59 11.35 9.25 7.32 6.07
10 8.57 9.44 9.92 10.69 10.88 11.49 9.44 7.42 6.26
11 8.76 9.73 10.31 10.88 11.17 11.63 9.73 7.51 6.45
12 9.05 9.92 10.59 11.17 11.36 11.77 9.92 7.80 6.65
13 9.25 10.21 10.88 11.46 11.65 11.90 10.21 7.99 6.74
14 9.53 10.59 11.08 11.75 12.04 12.04 10.59 8.19 6.93
15 9.73 10.79 11.36 12.13 12.33 12.18 10.79 8.48 7.13
18 10.40 11.46 12.04 12.81 13.19 12.60 11.46 8.96 7.61
20 10.88 12.04 12.71 13.48 13.77 12.88 12.04 9.34 7.90
23 11.46 12.71 13.39 14.25 14.54 13.30 12.71 9.82 8.38
25 11.85 13.19 13.87 14.83 15.12 13.57 13.19 10.31 8.86
Cooling Capacity Correction_16
Outow
Water(°C)
Ambient Temp.(°C)
10 15 20 25 30 35 40 45 48
7 8.13 9.02 9.52 10.11 10.31 11.51 9.02 7.04 5.95
8 8.33 9.32 9.81 10.41 10.61 11.65 9.32 7.24 6.15
9 8.62 9.52 10.01 10.71 10.90 11.78 9.52 7.53 6.25
10 8.82 9.72 10.21 11.00 11.20 11.92 9.72 7.63 6.44
11 9.02 10.01 10.61 11.20 11.50 12.05 10.01 7.73 6.64
12 9.32 10.21 10.90 11.50 11.70 12.19 10.21 8.03 6.84
13 9.52 10.51 11.20 11.80 12.00 12.32 10.51 8.23 6.94
14 9.81 10.90 11.40 12.09 12.39 12.46 10.90 8.43 7.14
15 10.01 11.10 11.70 12.49 12.69 12.59 11.10 8.72 7.34
18 10.71 11.80 12.39 13.19 13.58 13.00 11.80 9.22 7.83
20 11.20 12.39 13.09 13.88 14.18 13.27 12.39 9.62 8.13
23 11.80 13.09 13.78 14.67 14.97 13.68 13.09 10.11 8.62
25 12.19 13.58 14.28 15.27 15.56 13.95 13.58 10.61 9.12

16
(3) GSH-80TRB2-3+GSH-80ERB-3, GSH-100TRB2-3+GSH-100ERB-3, GSH-120TRB2-3+GSH-120ERB-3
Cooling Capacity Correction_8
Outow
Water(°C)
Ambient Temp.(°C)
10 15 20 25 30 35 40 45 48
7 6.23 6.92 7.30 7.75 7.90 7.60 6.92 5.40 4.56
8 6.46 7.14 7.52 7.98 8.13 7.83 7.14 5.55 4.71
9 6.54 7.30 7.68 8.21 8.36 8.06 7.30 5.70 4.79
10 6.76 7.52 7.90 8.44 8.59 8.28 7.52 5.85 4.94
11 6.99 7.75 8.21 8.66 8.89 8.51 7.75 6.00 5.09
12 7.14 7.98 8.44 8.97 9.04 8.74 7.98 6.23 5.24
13 7.30 8.13 8.59 9.04 9.20 8.89 8.13 6.31 5.32
14 7.52 8.36 8.74 9.27 9.50 9.12 8.36 6.46 5.47
15 7.68 8.59 8.97 9.58 9.73 9.35 8.59 6.69 5.62
18 8.28 9.12 9.65 10.26 10.41 10.03 9.12 7.14 6.08
20 8.59 9.50 10.03 10.64 10.87 10.49 9.50 7.37 6.31
23 9.20 10.18 10.72 11.32 11.55 11.17 10.18 7.90 6.69
25 9.50 10.56 11.17 11.78 12.01 11.55 10.56 8.21 6.92
Cooling Capacity Correction_10
Outow
Water(°C)
Ambient Temp.(°C)
10 15 20 25 30 35 40 45 48
7 6.72 7.46 7.87 8.36 8.53 8.20 7.46 5.82 4.92
8 6.89 7.71 8.12 8.61 8.77 8.45 7.71 5.99 5.08
9 7.13 7.87 8.28 8.86 9.02 8.69 7.87 6.23 5.17
10 7.30 8.04 8.45 9.10 9.27 8.86 8.04 6.31 5.33
11 7.46 8.28 8.77 9.27 9.51 9.10 8.28 6.40 5.49
12 7.71 8.45 9.02 9.51 9.68 9.35 8.45 6.64 5.66
13 7.87 8.69 9.27 9.76 9.92 9.59 8.69 6.81 5.74
14 8.12 9.02 9.43 10.00 10.25 9.84 9.02 6.97 5.90
15 8.28 9.18 9.68 10.33 10.50 10.09 9.18 7.22 6.07
18 8.86 9.76 10.25 10.91 11.23 10.74 9.76 7.63 6.48
20 9.27 10.25 10.82 11.48 11.73 11.23 10.25 7.95 6.72
23 9.76 10.82 11.40 12.14 12.38 11.89 10.82 8.36 7.13
25 10.09 11.23 11.81 12.63 12.87 12.38 11.23 8.77 7.54
Cooling Capacity Correction_12
Outow
Water(°C)
Ambient Temp.(°C)
10 15 20 25 30 35 40 45 48
7 8.73 9.69 10.22 10.86 11.08 10.65 9.69 7.56 6.39
8 8.95 10.01 10.54 11.18 11.40 10.97 10.01 7.77 6.60
9 9.27 10.22 10.76 11.50 11.72 11.29 10.22 8.09 6.71
10 9.48 10.44 10.97 11.82 12.03 11.50 10.44 8.20 6.92
11 9.69 10.76 11.40 12.03 12.35 11.82 10.76 8.31 7.14
12 10.01 10.97 11.72 12.35 12.57 12.14 10.97 8.63 7.35
13 10.22 11.29 12.03 12.67 12.89 12.46 11.29 8.84 7.46
14 10.54 11.72 12.25 12.99 13.31 12.78 11.72 9.05 7.67
15 10.76 11.93 12.57 13.42 13.63 13.10 11.93 9.37 7.88
18 11.50 12.67 13.31 14.16 14.59 13.95 12.67 9.90 8.41
20 12.03 13.31 14.06 14.91 15.23 14.59 13.31 10.33 8.73
23 12.67 14.06 14.80 15.76 16.08 15.44 14.06 10.86 9.27
25 13.10 14.59 15.34 16.40 16.72 16.08 14.59 11.40 9.80
GSH-140TRB2-3+GSH-140ERB-3, GSH-160TRB2-3+GSH-160ERB-3
