Singer 4411 User manual

4411
Manuel d'Instruction
Instruction Manual
Manual de Instrucciones

When using an electrical appliance, basic safety should always be
followed, including the following:
Read all instructions before using this sewing machine.
1. An appliance should never be left unattended when plugged in.
2. Always unplug this appliance from the electric outlet immediately
after using and before cleaning.
3. . Replace bulb with
same type rated 15 watts
1. Do not allow to be used as a toy. Close attention is necessary
when this appliance is used by or near children.
2. Use this appliance only for its intended use as described in this
manual. Use only attachments recommended by the
manufacturer as contained in this manual.
3. Never operate this appliance if it has a damaged cord or plug, if it
is not working properly, if it has been dropped or damaged, or
dropped into water. Return the appliance to the nearest
authorized dealer or service center for examination, repair,
electrical or mechanical adjustment.
4. Never operate the appliance with any air openings blocked. Keep
ventilation openings of the sewing machine and foot controller
free from accumulation of lint, dust, and loose cloth.
5. Keep fingers away from all moving parts. Special care is required
around the sewing machine needle.
6. Always use the proper needle plate. The wrong plate can cause
the needle to break.
7. Do not use bent needles.
8. Do not pull or push fabric while stitching. It may deflect the
needle causing it to break.
9. Switch the sewing machine off ("O") when making any adjustments
in the needle area, such as threading needle, changing needle,
threading bobbin, or changing presser foot, and the like.
10. Always unplug sewing machine from the electrical outlet when
removing covers, lubricating, or when making any other user
servicing adjustments mentioned in the instruction manual.
11. Never drop or insert any object into any opening.
12. Do not use outdoors.
13. Do not operate where aerosol spray products are being used or
where oxygen is being administered.
14. To disconnect, turn all controls to the off ("O") position, then
remove plug from outlet.
15. Do not unplug by pulling on cord. To unplug, grasp the plug, not
the cord.
This sewing machine is intended for household use only.
DANGER
SAVE THESE INSTRUCTIONS
-To reduce the risk of electric shock:
(110-120V area / 220-240V area).
Please turn off the machine or unplug when the machine is not
operating properly.
18. Never place anything on the foot controller.
19. If the supply cord that is fixed with foot controller is damaged, it
must be replaced by the manufacturer or its service agent or a
similar qualified person in order to avoid a hazard.
20. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
21. Children should be supervised to ensure that they do not play
with the appliance.
WARNING -To reduce the risk of burns, fire,
electric shock, or injury to persons:
Always unplug before changing the light bulb
16. The sound pressure level under normal operating conditions is
75dB(A).
17.
IMPORTANT SAFETY INSTRUCTIONS
EN

E
F
Como propietario/ a de una nueva
máquina de coser Singer, usted acaba
de iniciar una gran oportunidad para
plasmar su creatividad. Desde el
momento en que utilice por primera
vez su máquina, se dará cuenta de que
está cosiendo con una de las
máquinas más fáciles de utilizar.
Le recomendamos encarecidamente
que, antes de comenzar a utilizar su
máquina de coser, conozca las
numerosas ventajas y su facilidad de
uso leyendo detenidamente este
manual de instrucciones, paso a paso,
sentado ante su máquina.
Para cerciorarse de que siempre
dispondrá de las más modernas
capacidades para coser, el fabricante
se reserva el derecho de cambiar la
apariencia, diseño y accesorios de está
máquina cuando lo considere
necesario.
SINGER es una marca registrada de
The Singer Company Limited o sus
filiales.
©2010 The Singer Company Limited o
sus filiales.
Reservados todos los derechos.
Vous voici à présent propriétaire d'une
machine à coudre Singer et en cette
qualité, vous allez
vous lancez dans une aventure
excitante dans le domaine de la
créativité. Dès le départ, vous
réaliserez que vous allez coudre avec
l'une des machines les plus faciles à
utiliser qui ait jamais été fabriquée.
Avant de commencer à coudre, nous
vous recommandons de voir quelques
avantages ainsi que la facilité
d'utilisation en lisant ce mode d'emploi
en étant assis devant votre machine à
coudre.
Afin de garantir que votre machine
vous donnera toujours le meilleur du
point de vue technique, le fabricant se
réserve le droit de modifier l'apparence,
le concept ou les accessoires de cette
machine s'il le juge nécessaire.
SINGER est une marque enregistrée
de The Singer Company Limited ou de
ses sociétés affiliées.
©2010 The Singer Company Limited
ou ses sociétés affiliées. Tous droits
réservés.
Congratulations Felicitaciones Félicitations
As the owner of a new Singer sewing
machine, you are about to begin an
exciting adventure in creativity. From
the moment you first use your machine,
you will know you are sewing on one of
the easiest to use sewing machines
ever made.
May we recommend that, before you
start to use your sewing machine, you
discover the many features and the
ease of operation by going through this
instruction book, step by step, seated
at your machine.
To ensure that you are always provided
with the most modern sewing
capabilities, the manufacturer reserves
the right to change the appearance,
design or accessories of this sewing
machine when considered necessary.
SINGER is a registered trademark of
The Singer Company Limited or its
affiliates.
© 2010 The Singer Company Limited
or its affiliates. All rights reserved.
EN

List of contents
EN
Machine Basics
Sewing
General Information
Maintenance and Troubleshooting
Principle Parts of the Machine..............................................................................................................................................2/4
Connecting Machine to Power Source ....................................................................................................................................6
Two Step Presser Foot Lifter/ .............................................................................................8
Accessories ...........................................................................................................................................................................10
Winding the Bobbin ...............................................................................................................................................................12
Inserting the Bobbin ..............................................................................................................................................................14
Threading the Upper Thread .................................................................................................................................................16
Raising the Bobbin Thread....................................................................................................................................................18
How to Choose Your Pattern .................................................................................................................................................22
Stitch Length Dial ...................................................................................................................................26
Sewing Straight Stitch ...........................................................................................................................................................28
Reverse Sewing/ ...................................................................................................30
Blind Hem..............................................................................................................................................................................32
...........................................................................................................................................................................34
Sewing on Buttons ................................................................................................................................................................38
Installing the Removable Extension Table.............................................................................................................................40
Attaching the Presser Foot Shank.........................................................................................................................................42
Needle/ Fabric/ Thread Chart................................................................................................................................................44
.........................................................................................................................................................47
Inserting & Changing Needle ................................................................................................................................................49
Changing the Bulb.................................................................................................................................................................51
Troubleshooting Guide ..........................................................................................................................................................53
Adjusting Presser Foot Pressure
Thread Tension......................................................................................................................................................................20
Stitch Width Dial &
Removing the Work/ Cutting the Thread
Buttonholes
Threading the Machine
Three Needle Position Dial....................................................................................................................................................24
Left and Right Side Balance for Buttonhole ..........................................................................................................................36
How To Drop Feed Dog

1. Thread tension dial
2. Presser foot pressure adjustment
3. Thread take-up lever
4. Reverse sewing lever
5. Thread cutter
6. Presser foot
7. Needle plate cover
8. Removable extension table/ accessory storage
9. Three needle position dial
10. Bobbin stopper
11. Stitch width dial
12. Stitch length dial
13. Pattern selector dial
2
1
2
3
5
6
8
7
13
11
12
10
4
9
Principal Parts of the Machine
EN

14. Horizontal spool pin
15. Bobbin winding spindle
16. uxiliary spool pin
17. Handwheel
18. Buttonhole stitch balance adjustment slot
19. Power and light switch
20. Main plug socket
21. Bobbin thread guide
22. Upper thread guide
23. Face plate
24. Handle
25. Presser foot lifter
26. Drop feed control
27. Foot speed control
28. Power cord
Hole for a
4
28
24
25
27
22
23
26
19
20
21
14
15
16
18
17
Principal Parts of the Machine
EN

Connect the machine to a power source as illustrated. (1)
This appliance is equipped with a polarized plug which must be
used with the appropriate polarized outlet. (2)
Unplug power cord when machine is not in use.
The foot control pedal regulates the sewing speed. (3)
Consult a qualified electrician if in doubt of how to connect
machine to power source.
Unplug power cord when machine is not in use.
The foot control must be used with the appliance by
(110-120V area)/ (220-240V area)
manufactured by ZHEJIANG FOUNDER MOTOR
CORPORATION LTD. (China)
(110-125V area) manufactured by Wakaho Electric
Ind. Co., Ltd. (Vietnam)
Press main switch (A) to " l " for power and light.
For appliance with a polarized plug (one blade is wider than
the other). To reduce the risk of electric shock, this plug is
intended to fit in a polarized outlet only one way. If it does not
fit fully in the outlet, reverse the plug. If it still does not fit,
contact a qualified electrician to install the proper outlet. Do
not modify the plug in any way.
Attention:
Foot control
Attention:
Sewing light
IMPORTANT NOTICE
a. Polarized attachment plug
b. Conductor intended to be grounded
FC-
1902A FC-2902A
4C-316Q
23
6
1
Connecting Machine to Power Source
EN
a
b
A

8
When sewing several layers or thick fabrics, the presser foot
can be raised for easy positioning of the
work. (A)
to a higher position
Two Step Presser Foot Lifter
EN
A
The presser foot pressure of the machine has been pre-set
and requires no particular readjustment according to the type
of fabric (light-or-heavy weight).
However, if you need to adjust the presser foot pressure,
turn the presser adjusting screw with a coin.
For sewing very thin fabric, loosen the pressure by turning
the screw counter clockwise, and for heavy fabric, tighten by
turning it clockwise.
Adjusting Presser Foot Pressure

1 Standard accessories
2 Optional accessories
m
h
g
ef
ij
l
k
abcd
006806008 006905008 006914008
006909008
Standard accessories (1)
Optional accessories (2)
a. All purpose foot
b. Zipper foot
c. Buttonhole foot
d. Button sewing foot
e. Seam ripper/ brush
f. Edge/ quilting guide
g. Pack of needles
h. Spool holders
i. Bobbin (3x)
j. L-screwdriver
k. Auxiliary Spool Pin
l. Spool pin felt
m. Soft cover
(These 10 accessories are not supplied with this machine;
they are, however, available for purchase from your authorized
retailer.)
n. Satin stitch foot
o. Overcasting foot
p. Hemmer foot
q. Cording foot
r. Blind hem foot
s. Quilting/ straight stitch foot
t. Gathering foot
u. Darning/ embroidery foot
v. Even Feed foot
w. Twin needle
onpqr
stuvw
006916008 006016008006917008 0061850081
006904008006172008 006907008 006900008 006813008
Accessories
EN
10

- corresponding
. (1/2)
- Snap thread into thread guide. (3)
- Wind thread clockwise around bobbin winder tension discs. (4)
- Thread bobbin as illustrated and place on spindle. (5)
- Push bobbin spindle to right. (6)
- Hold thread end. (7)
- Step on foot control pedal. (8)
- Cut thread. (9)
- Push bobbin spindle to left (10) and remove.
When the bobbin winder spindle is in "bobbin winding"
position, the machine will not sew and the .
To start sewing, push the bobbin winder spindle to the left
(sewing position).
Please Note:
Place thread and spool holder on to spool
pin
handwheel turn
1
2
4
789
56
3
10
Winding the Bobbin
EN
12

When inserting or removing the bobbin, the needle must
be fully raised.
Attention:
1. Insert the bobbin in the bobbin case with the thread
running counterclockwise direction (arrow).
2. Pull the thread through the slit (A).
3. Draw the thread clockwise until it slips into the notch (B).
4. Pull out about 15 cm (6 inches) of thread and attach the
bobbin cover plate. (C)
Turn power switch to off ("O") before inserting or removing
the bobbin.
A
B
C
1
34
2
Inserting the Bobbin
EN
14

2
1
68
7
5
This is a simple operation but it is important to carry out correctly
as by not doing so .
- Start by raising the needle to its highest point (1), and
continue turning the handwheel counterclockwise until the
needle just slightly begins to descend. Raise the presser
foot to release the tension discs.
For safety, it is strongly suggested you turn off the
power before threading.
- Lift up the spool pin. Place the spool of thread on the
holder with the thread coming off the spool as shown. For
small thread spools, place small side of spool holder next
to spool. (2)
- Draw thread from spool through the upper thread guide (3)
and pulling thread through pre-tension spring as illustrated.
(4)
- Thread tension module by leading thread down right
channel and up left channel. (5) During this process it is
helpful to hold the thread between the spool and thread
guide.
- At the top of this movement pass thread from right to left
through the slotted eye of the take-up lever and then
downwards again. (6)
-
several sewing problems could result
Note:
Now pass the thread behind the horizontal thread guide,
and then behind the thin wire needle clamp guide (7) and
then down to the needle which should be threaded from
front to back.
- Pull about 6-8 inches of thread to the rear beyond the needle
eye. Trim thread to length with built in thread cutter. (8)
3 4
Threading the Upper Thread
EN
16

1
23
Hold the upper thread with the left hand. Turn the handwheel
(1) towards you (counterclockwise) lowering, then raising
needle.
If it is difficult to raise the bobbin thread, check to make sure
the thread is not trapped by the hinged cover or the
Removable Extension Table.
Gently pull on the upper thread to bring the bobbin thread up
through the needle plate hole. (2)
Lay both threads to the back under the presser foot. (3)
Note:
Raising the Bobbin Thread
EN
18

20
BA
CD
1
Upper thread tension
Lower thread tension
Please note:
Basic thread tension setting: "4". (1)
To increase the tension, turn the dial to the next number up.
To reduce the tension, turn the dial to the next number down.
A. Normal thread tension for straight stitch sewing.
B. Thread tension too loose for straight stitch sewing. Turn
dial to higher number.
C. Thread tension too tight for straight stitch sewing. Turn
dial to lower number.
D. Normal thread tension for zig zag and decorative sewing.
Correct thread tension is when a small amount of the
upper thread appears on the bottom side of fabric.
-.
- There is no single tension setting appropriate for all stitch
functions, thread or fabric.
- A balanced tension (identical stitches both top and bottom) is
usually only desirable for straight stitch construction sewing.
- 90% of all sewing will be between "3" and "5".
- For zig zag and decorative sewing stitch functions, thread
tension should generally be less than for straight stitch
sewing.
- For all decorative sewing you will always obtain a nicer
stitch and less fabric puckering when the upper thread
appears on the bottom side of your fabric.
The bobbin tension has been set correctly at the factory, so
you do not need to adjust it.
Proper tension setting is important for strong seams
Thread Tension
EN

22
The diagram on this page display the stitch patterns available
on the machine.
The Pattern Selector Dial may be turned in either direction.
a. Reverse Sewing Lever
b.
c. Stitch Width Dial
d. Stitch Length Dial
e. Pattern Selector Dial
Turn the Pattern Selector Dial (e) to select the desired
pattern. Use the Stitch Length Dial (d) to adjust the stitch
length as desired for the project. Use the Stitch Width Dial (c)
to adjust the width of the stitch as desired.
Three Needle Position Dial
c
e
d
a b
3
1
4
2
ABCDEFGH I J
How to Choose Your Pattern
EN

24
The needle position can be altered with the "Three needle
position dial". For normal work, the needle position is middle.
For edge stitching or sewing parallel lines of top stitch, select
needle position left or right. For twin needle stitching, needle
position is middle.
a. Straight
b. Zig-zag
L. Left Needle Position
M. Middle Needle Position
R. Right Needle Position
Three Needle Position Dial
EN
L M R
a
b

26
1
2
43210.5

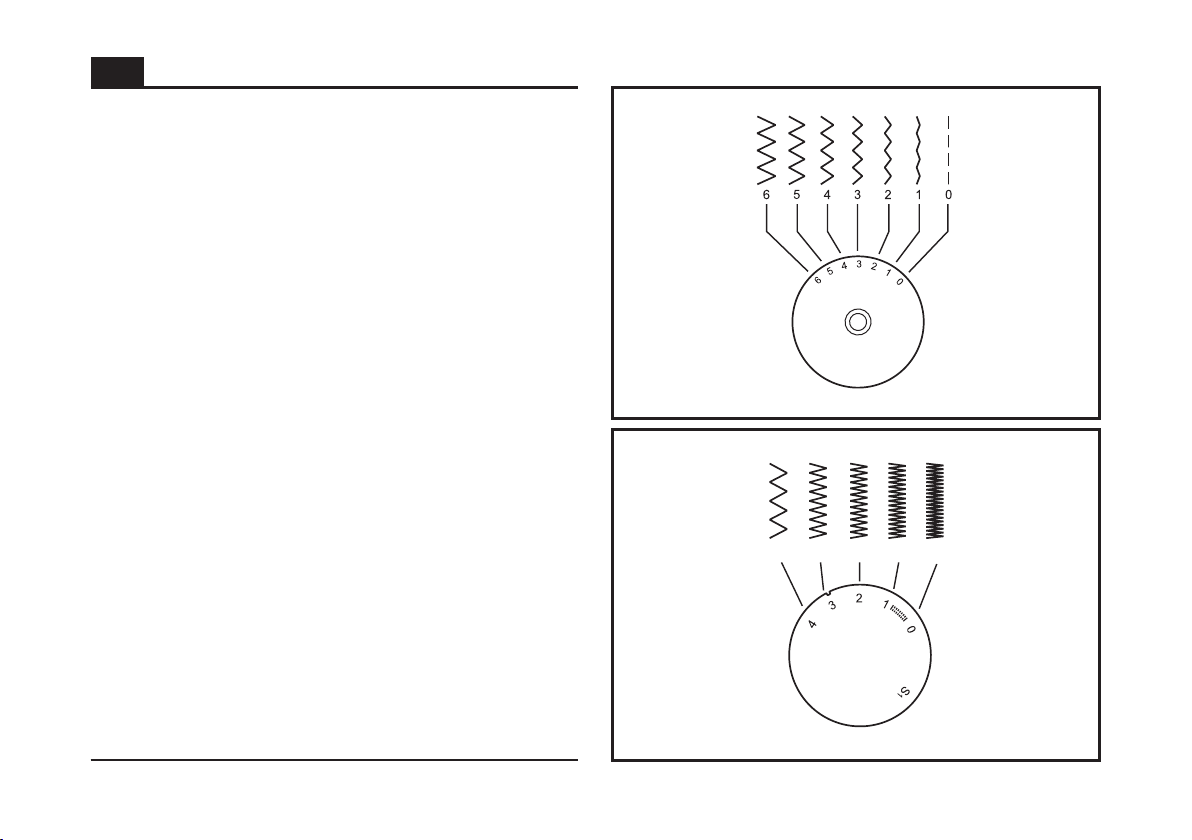

Function of stitch width dial
Function of stitch length dial while zig-zag stitching
Function of stitch length dial for when straight stitching
The maximum zigzag stitch width for zigzag stitching is 5mm;
however, the width can be reduced on any patterns. The
width increases as you move zigzag dial from "0" - "6". (1)
The Stitch Width Dial is also the control for the straight stitch
infinite needle position. "0" position is full left, "6" is full right
and between "2" and "3" is center needle position.
Set the Pattern Selector Dial to zig-zag.
The density of zig-zag stitches increase as the setting of stitch
length dial approaches "0".
.(2)
Dense zig-zag stitches are called satin stitches. (2)
For straight stitch sewing, turn the Pattern Selector Dial to
the straight stitch setting. Turn the Stitch Length Dial, and the
length of the individual stitches will decrease as the dial
approached "0". The length of the individual stitches will
increase as the dial approaches "4". Generally speaking, use
a longer stitch length when sewing heavier weight fabrics or
when using a thicker needle or thread. Use a shorter stitch
length when sewing lighter weight fabrics or when using a
finer needle or thread.
Standard zigzag stitches are usually achieved at "3" or below
Stitch Width Dial & Stitch Length Dial
EN

28
To begin sewing, set the machine for straight stitch. (1)
Place the fabric under the presser foot with the fabric edge
lined up with the desired seam guide line on the needle plate.
(2)
Lower the presser foot lifter, and then step on the foot
controller to start sewing. (3)
1
23
Sewing Straight Stitch
EN

Turn the handwheel toward you (counterclockwise) to bring
the thread take up lever to its highest position, raise the
presser foot and remove work behind
(2)
the needle and presser
foot.
Pull the threads under and behind the presser foot. Guide
the threads to the side of the face plate and into thread cutter
(B). Pull threads down to cut. (3)
To secure the beginning and the end of a seam, press down
the reverse sewing lever (A). Sew a few reverse stitches.
Release the lever and the machine will sew forward again. (1)
1
3
2
A
B
Removing the Work
Cutting the Thread
Reverse Sewing
EN
30

32
2
1
For hems on curtains, trousers, skirts, etc.
Blind hem for stretch fabrics.
Blind hem for firm fabrics.
Set the Stitch Width Dial at
a setting appropriate for the weight/type of fabric being sewn,
within the range shown in the diagram on the right of the
page. Generally, a narrower stitch is used for lighter weight
fabrics, and a wider stitch is used for heavier weight fabrics.
Sew a test first to make sure the machine settings are
appropriate for the fabric.
Blind Hem:
Set the Stitch Length Dial with the range shown on the
diagram at the right. Blind hems, however, are normally sewn
with a longer stitch length setting.
Turn up the hem to the desired width and press. Fold back
(as shown in Fig. 1) against the right side of the fabric with
the top edge of the hem extending about 7 mm (1/4") to the
right side of the folded fabric.
Start to sew slowly on the fold, making sure the needle
touches slightly the folded top to catch one or two fabric
threads. (2)
Unfold the fabric when hemming is completed and press.
To make blind hem sewing even easier, use a blind hem
foot, available from your SINGER retailer. (See page 10
for part number)
Note:
Blind Hem
EN
M
