Singer 522D User manual

High Speed Flat Bed Interlock
Sewing Machine
356-31
356-03
356-09
356-08
356-01H
356-41
364-31
364-03
364-09
364-08
364-01H
364-41
522D
Instruction Manual
and Parts List
SINGER and the Cameo "S" Design are exclusive trademarks of The Singer Company Limited S.à r.l. or its Affiliates.
©2012 The Singer Company Limited S.à r.l. or its Affiliates. All rights reserved.
356-31E
356-03E
356-09E
356-08E
356-01HE
356-41E
364-31E
364-03E
364-09E
364-08E
364-01HE
364-41E

Contents
1 Safety Instructions 1
1.1 Important Safety Instructions 1
1.2 Safe Operation 2
2 Product Description and Machine Specification 3
2.1 Product Description 3
2.2 Machine Specification 4
2.3 Motor, Motor Pulley and V-Belt Specifications 4
3 Setup and Adjustment Instructions 5
3.1 Table Cut-Out Drawing 5
3.2 Machine Support Components Installation 7
3.3 Lubrication and Oil Drainage 8
3.4 Needle Attachment (or Replacement) 9
3.5 MachineThreading 10
3.6 ThreadTension Adjustment 13
3.7 Presser Foot Pressure 14
3.8 Differential Feed Rate Adjustment 15
3.9 Stitch Length Adjustment 16
4 Maintenance 17
4.1 Machine Head Cleaning 17
4.2 Needle Plate and Feed Rows Slots Cleaning 17
4.3 Lubrication 17
4.4 Safety Inspection 17
5 Adjustment Dimensions 18
6 Troubleshooting 18

7 Parts List 20
7.1 Bushing Components 21
7.2 Frame Components 22
7.3 Cover Components 24
7.4 Cloth Plate Components 26
7.5 Crank Shaft Components 28
7.6 Main Shaft Components 30
7.7 Needle Bar Components 32
7.8 Needle Guard Components 34
7.9 Looper Components 36
7.10 Feed Dog Holder Components 38
7.11 Differential Feed Components 40
7.12 Presser Foot Components 42
7.13 Spreader Components 44
7.14 ThreadTension Components 46
7.15 Needle and Spreader Thread Components 48
7.16 LooperThread Cam Components 50
7.17 Lubrication Components 52
7.18 Oil Pump Components 54
7.19 Silicon Oil Reservoir Components 55
7.20 Thread Stand Components 56
7.21 Machine Supporting Components 58
7.22 Parts for 522D-3xx-31, 522D-3xx-31E 59
7.23 Parts for 522D-3xx-03, 522D-3xx-03E 60
7.24 Parts for 522D-3xx-09, 522D-3xx-09E (1) 62
7.25 Parts for 522D-3xx-09, 522D-3xx-09E (2) 64
7.26 Parts for 522D-3xx-09, 522D-3xx-09E (3) 66
7.27 Parts for 522D-3xx-08 / -09,522D-3xx-08E / -09E (1) 68
7.28 Parts for 522D-3xx-08 / -09,522D-3xx-08E / -09E (2) 70
7.29 Parts for 522D-3xx-08 / -09,522D-3xx-08E / -09E (3) 72
7.30 Parts for 522D-3xx-01H, 522D-3xx-01HE 74
7.31 Machine Accessories 75
8 Gauge Parts List 76
Contents

1
High Speed Flat Bed Interlock Sewing Machine |Instruction Manual and Parts List
Safety Instructions
1.1
Important Safety
Instructions
Important
• Before running the machine, make
sure all relevant safety specifica-
tions are adequate to specifications
and technical standards in your
country.
• The machine should not be run
without its safety devices.
•The machine should only be oper-
ated by properly trained personnel.
• For your safety, goggles must be
used running the machine.
• Turn off or unplug the machine
when the following situations arise:
• Passing the thread by the needle
or replacing the bobbin or looper.
• Replacing the needle, presser
foot, throat plate, feed dog and
sliding plate.
• When the machine is in mainte-
nance.
• When the operator is not run-
ning the machine.
• In case of lubricant oil contact with
the eyes or skin, washed the sur-
face with plenty of icy water with
a generous amount of cold water.
In case of ingestion, seek medical
help immediately.
• Repair, fitting or maintenance
should only be performed by prop-
erly trained personnel.
• Maintenance and repair on electric
equipment should only be made
by qualified personnel.
If any elec-
tric device is damaged, the machine
should be immediately stopped.
• Before starting the machine in full
running, a test must be conducted
to assure that machine and opera-
tor are able to perform the task.
•The machine should not be placed
next to a sound source as an ultra-
sonic welding machine and other
equipment.
• The machine should only be run
with the proper electric cable and
connectors, and also the adequate
grounding.
• The machine should only be used
to sew materials as indicated in its
instruction manual, and indications
of use should be followed.
Singer will not be held responsible
for any damage caused by unau-
thorized changes in the products.
When using this
machine, basic safety
procedures must be
followed. Read with
attention all instruction
before using the
machine. When
using the machine,
understand all basic
safety instructions
which are not limited
to the following items.
Read all instructions,
take care of this
manual and use it
as reference when
necessary.

HighSpeed FlatBed Interlock SewingMachine|InstructionManual and Parts List
To avoid the risk of electric shock,
do not open the motor wiring box
and do not touch the components
assembled inside the wiring box.
To avoid injuries do not run the
machine without the belt cover or
in case any other safety device is
removed.
To avoid possible injuries keep fin
head and clothes far from
wheel, belt and motor when the ma
chine is running. Nothingshould be
placed near those parts.
To avoid injuries never put your
fingers next to the rotating hook
and the thread take-up lever cover
when the machine is running.
To avoid possible injuries be care
ful when putting down or lifting
the machine head.
To avoid accident in case ofasud
den start of the machine always
turn it off when laying it down, or
remove the belt cover and the belt.
If you machine is equipped with
a servomotor, it does not make
noises while being driven.To avoid
a possible accident caused by an
unexpected start, be sure the ma
chine is turned off.
To avoid electrical shock, do not
run the machine without proper
grounding.
To minimize the risk of accidents
or damage in electric components
caused by electric discharge turn
the machine off before unplug
ging it.
Clean the machine periodically.
1.2
Safe Operation
2

3

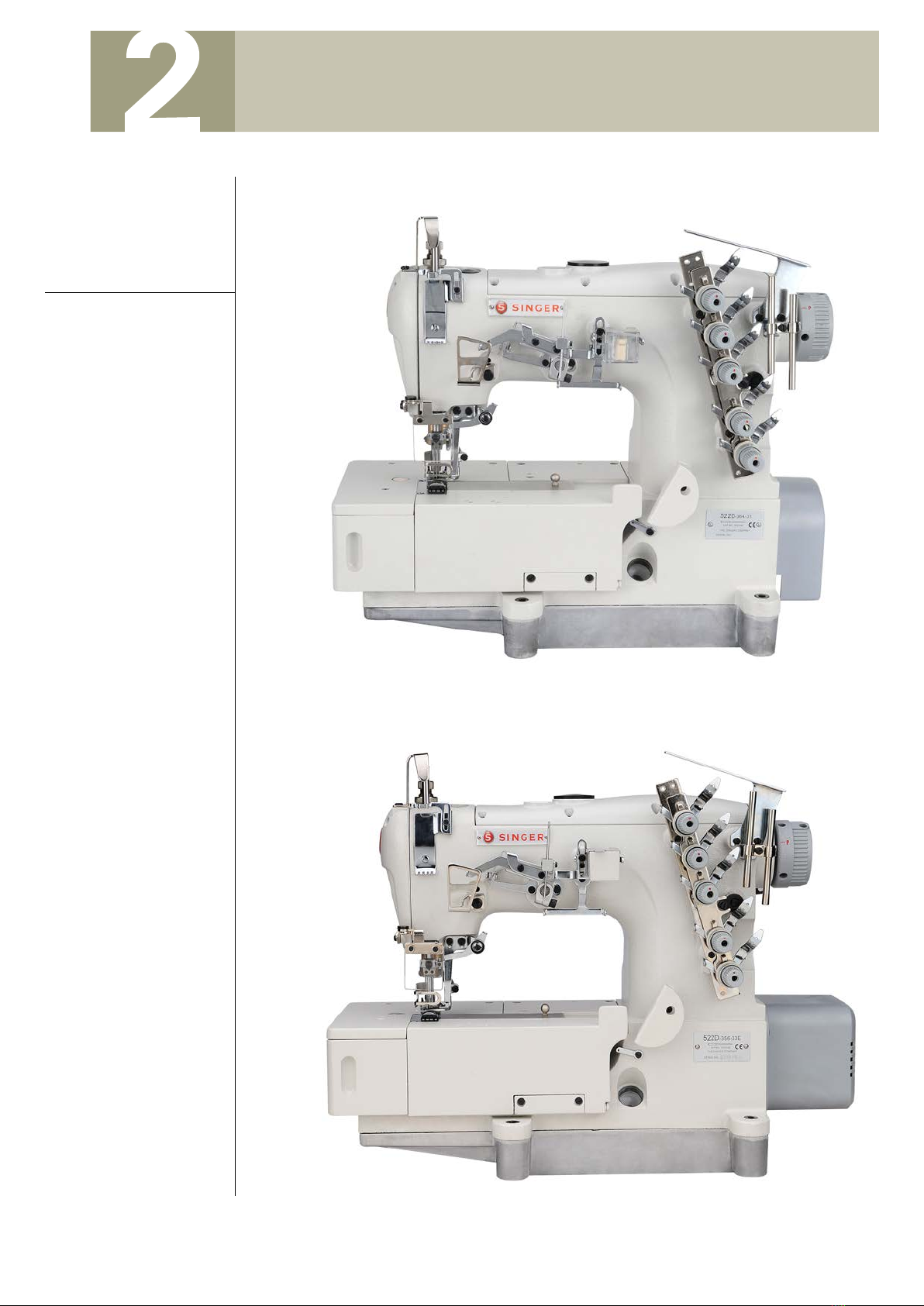

Product Description
and Machine Specification
2.1
Product
Description
High Speed Flat Bed Interlock Sewing Machine(for Clutch Motor)
High Speed Flat Bed Interlock Sewing Machine(for ES DD Motor)
HighSpeed FlatBed Interlock SewingMachine|InstructionManual and Parts List

4
2.2
2.3
Machine
Specification
Motor, Motor
Pulley and V-Belt
Specifications
Singer
Model
Needle
Gauge
[mm]
Stitch
Length
[mm]
Differential
Rate
Presser
Foot Lift
[mm]
Singer
Needle Cat
Speed
[spm] Application Attachment
Device
356-31
5.6
4.4
0.5 ~ 1.3
5.0
3651-06
6,000
Knitting material,
able to adorn
two-sides
1. Plain seaming
2. Seam covering
3. Bottom hemming
364-31 6.4
356-03 5.6 Tape binding
364-03 6.4
356-08 5.6
5,000
Elastic tape or
lace attaching Tape feeder
Tape feeder
364-08 6.4
356-09 5.6
364-09 6.4
356-01H 5.6
3.3 7.0 Plain seam for
heavy fabrics
364-01H 6.4
356-41 5.6 4.45.0 6,000
Knitting material,
able to adorn
two-sides
1. Plain seaming
2. Seam covering
3. Bottom hemming
4. Tape binding
364-41 6.4
Table 1 – Machine Specification 522D (3 Needles / 5 Threads) with Clutch Motor
Machine Speed
[spm]
Motor Pulley Diameter [mm]
50 Hz 60 Hz
6,000 125 105
5,500 115 95
5,000 105 85
4,500 95 80
4,000 85 70
Table 2 - Machine Speed vs. Motor Pulley Diamete
½ HP 2-pole (high speed)
clutch motor
Motor pulley diameter
M type v-belt
Rolled-edge of
under-wear and
T-shirt
Elastic tape or lace
attaching with right
hand fabric trimmer
Singer
Model
Needle
Gauge
[mm]
Stitch
Length
[mm]
Differential
Rate
Presser
Foot Lift
[mm]
Singer
Needle Cat
Speed
[spm] Application Attachment
Device
356-31E
5.6
4.4
0.5 ~ 1.3
5.0 3651-06
75/11
3651-06
75/11
3651-06
90/14
6,000
Knitting material,
able to adorn
two-sides
1. Plain seaming
2. Seam covering
3. Bottom hemming
364-31E 6.4
356-03E 5.6 Tape binding
364-03E 6.4
356-08E 5.6
5,000
Elastic tape or
lace attaching Tape feeder
Tape feeder
364-08E 6.4
356-09E 5.6
364-09E 6.4
356-01HE 5.6
3.3 7.0 Plain seam for
heavy fabrics
364-01HE 6.4
356-41E 5.6
4.45.0 6,000 Knitting material,
able to adorn
two-sides
1. Plain seaming
2. Seam covering
3. Bottom hemming
4. Tape binding
364-41E 6.4
Table 2 – Machine Specification 522D (3 Needles / 5 Threads) with ES DD Motor
Rolled-edge of
under-wear and
T-shirt
Elastic tape or lace
attaching with right
hand fabric trimmer
(for Clutch Motor
only)
High Speed Flat Bed Interlock Sewing Machine |Instruction Manual and Parts List

5
High Speed Flat Bed Interlock Sewing Machine |Instruction Manual and Parts List
Setup and Adjustment Instructions
3.1
Table Cut-Out
Drawing
Figure 1A
362
316
284
247
69
48
32
23
R10
R10
R23
23 23
R23
66
33
3- Ø9
409 300
65
65
357
312
Ø19.5
15
4-Ø13
4-Ø25.5
3
203
102
72
20
80
234
262
376
60°
2323
R23
R10
14099
70
2
40
15
50
159
2-Ø9
R23
R10
R10
R10
R10
R15
For Clutch Motor only

80
230
525
1200
4-R
20
65
409 300
5-R
23
10
65
234
4-R
70
A
A
Section A-A
R5
26 34-
13
40
4-
4-
19
6
High Speed Straight Interlock Sewing Machine |Instruction Manual and Parts List
Table Cut-out
Drawing
3.1 For ES DD Motor only
Figure 1B

7
High Speed Flat Bed Interlock Sewing Machine |Instruction Manual and Parts List
Machine Support
Components
Installation
3.2
Figure 2
522D-3xx-09
522D-3xx-09E only
Assemble the machine support
components (and the cloth waste
chute for machine models 522D-
3xx-09 and 522D-3xx-09E) as
indicated in Figure 2.
522D (for Clutch Motor only)
Washer ‘9’ thickness should be
selected according to the thickness
of the table.
Mount the machine head over the
rest board.
Connect the machine handwheel to
the clutch motor with the v-belt.
Adjust the tension of the v-belt so
that it can be about 20 mm bent
inward when you press the middle
ofit and make sure the motor turn-
ing direction is clockwise, as shown
on Figure 3
Install the belt cover according to
Figure 4.
A
B
C
D
Figure 3 Figure 4
Note
Please install the
control box 'A' by
screw 'B', and the
pedal controller 'C' by
screw 'D'. (for ES DD
motor).

8
HighSpeed FlatBed Interlock SewingMachine|InstructionManual andParts List
3.3
Lubrication
and Oil
Drainage
As thisis ahigh speed
machine, DO NOT
run it before filling the
oil and making sure
the correct turning
directionofthe motor.
Important
Figure 5 Figure 6
8erugiF7erugiF
H
L
High speed sewing
machine oil
OK! Operating
When the machine is operated for
the first time or was idle for a long
time, apply 2 or 3 oil drops as indi-
cated in Figure 5
Fill the machine with appropriate
lubricate oil (Singer Oil) by remov-
ing the cap as indicated on Figure 6,
until the oil level is between the
marks of the oil level sight window.
Add oil when the oil surface
reaches or goes below the lower
mark ‘ L’ .
Check if the oil is circulating prop-
erly by observing the oil sight
window, as shown on Figure 7.
Fill the device with silicone oil
before it is too low in order to
prevent needle thread breakage
and fabric damage, as shown on
Figure 8.

9
HighSpeed FlatBed Interlock SewingMachine|InstructionManual andParts List
3.4
Needle
Attachment
(or Replacement)
3.3
Lubrication and
Oil Drainage
Figure 9 Figure 10
Figure 11 Figure 12
Do notremove
completely the screw.
Note OK! Wrong WrongOK!
Scarf
To preserve the machine, change the
oil after the new machine has been
operating over four weeks. After that,
the oil should be changed every six
months. To replace the oil, simply
remove the screw indicated on
Figure 9. After the oil is drained, reat-
tach the screw and fill the machine
with new oil.
This machine has an oil filter (Figure
10), which should be cleaned every
month or replaced by a new one
whenever is necessary.
Loosen screw indicated in Figure 11
with the Allen key wrench supplied in
the accessory box and insert the
needle (or remove the old needle).
Use only Singer’sCat. 3651-06needles
Insert the needle with its scarf turned
to the rear of the machine and push it
up deep into the needle hole until it
stops. Then tighten screw.

10
HighSpeed FlatBed Interlock SewingMachine|InstructionManual andParts List
3.5
Machine
Threading
Open the eye guard and the cover.
Knot the preset and the new thread
together to thread the machine.
Replace the looper thread take-up
after the machine threading.
Press down the lever, as indicated
in Figure 14.
The looper thread take-upcomesout.
Figure 13
Figure 15
Figure 14
Figure 16
Refer to
the sewing type
you need for correct
threading. Any
incorrect threading
may cause thread
brake, uneven
stitches or skip
stitches.
Important

11
HighSpeed FlatBed Interlock SewingMachine|InstructionManual andParts List
3.5
Machine
Threading
Trim off the knots neatly before
passing throughtheeye of the nee-
dle tothread.
Trim off theknots neatly after passing
through the eye of the loopers.
Figure 17
Figure 18

12
High Speed Flat Bed Interlock Sewing Machine |Instruction Manual and Parts List
3.5
Machine
Threading

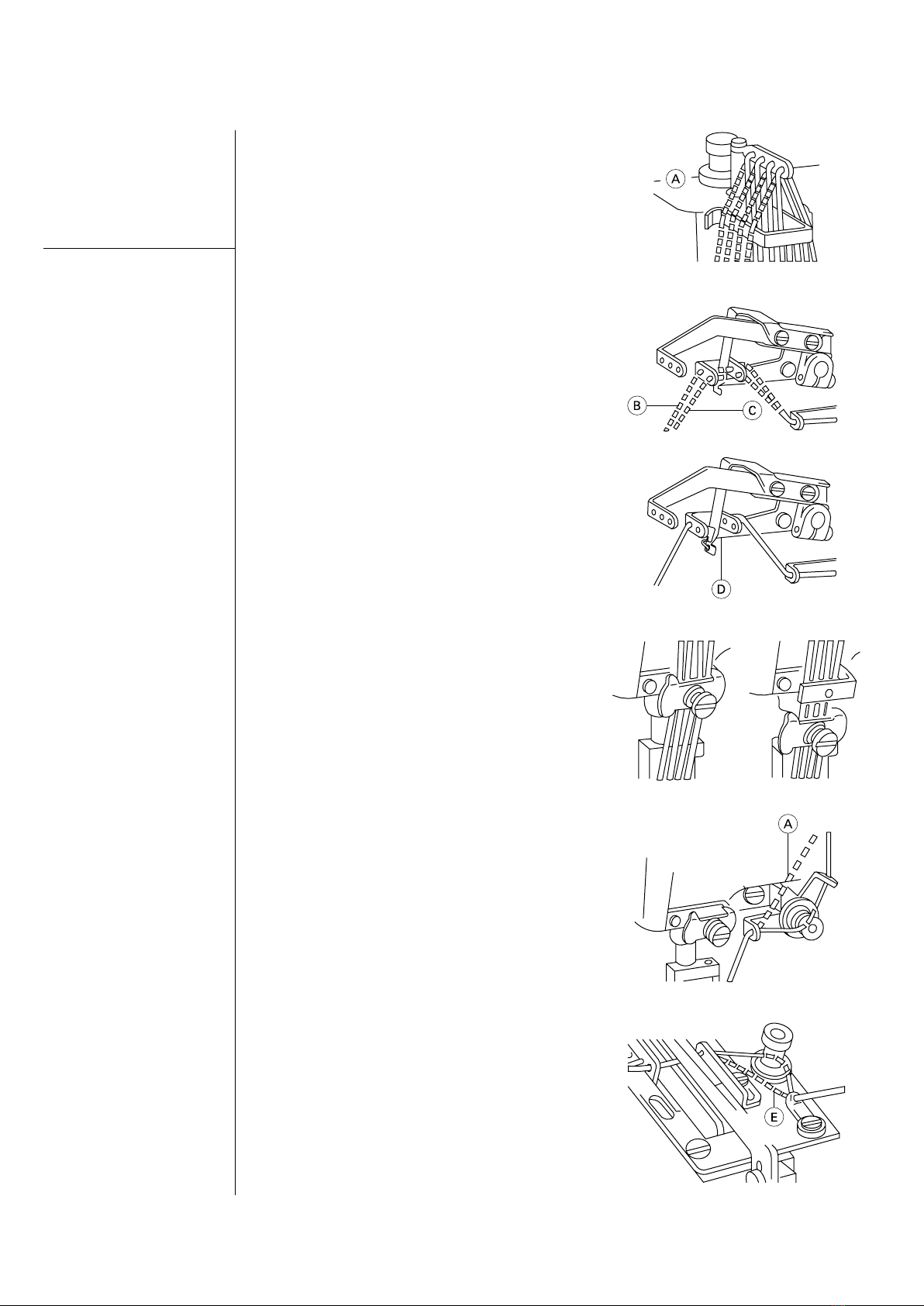

Point ‘1’
For standard threading, follow the
solid lines of Figure 19.
For more stretchable thread, follow
the dashed lines indicated by ‘A’ .
Point ‘3’
For more stretchable thread, adjust
as Figure 21 left.
For less stretchable thread, adjust
as Figure 21 right.
Point ‘2’
If the top cover thread is too loose,
thread the guide by referring to line
‘B’. If the top cover thread is still
too loose, then thread the guide by
referring to line ‘C’, according to
Figure 20.
If the top cover thread is too tight,
thread the guide by referring to the
line ‘D’.
Point ‘4’
For standard threading, follow the
solid line of Figure 22.
For more stretchable thread, follow
the dashed line indicated by ‘A’ .
Point ‘5’
For standard threading, follow the
solid line of Figure 23.
For more stretchable thread, follow
the dashed line indicated by ‘E’.
Figure 19
Figure 20
Figure 21
Figure 22
Figure 23

13
High Speed Flat Bed Interlock Sewing Machine |Instruction Manual and Parts List
3.6
Thread Tension
Adjustment
The thread tension
should be adjusted
according to the fabric
type and thickness,
sewing thread, seam
width, stitch length and
others. Therefore the
pressure of the tension
nuts or thread guides
must be adjusted in
each individual case.
Important
The following adjustments are related
to Figure 24.
• Knobs 1: Control the needles thread
• Knob 2: Controls the top cover thread
• Knob 3: Controls the looper thread
To loosen
To tighten
Figure 24

14
High Speed Flat Bed Interlock Sewing Machine |Instruction Manual and Parts List
3.7
Presser Foot
Pressure
Figure 25
Light Heavy
Loosen adjust nut ‘1’ of Figure 25
and turn to adjust the presser foot
pressure. It should be as light as
possible to be sufficient to obtain
proper stitch formation.

15
High Speed Flat Bed Interlock Sewing Machine |Instruction Manual and Parts List
3.8
Differential Feed
Rate Adjustment
The differential feed ratio is the ra-
tio of movements between the main
feed dog and differential feed dog.
When the movement of main feed
dog is bigger than the differential
feed dog, the fabric is stretched at
sewing. Otherwise the fabric will
shrink.
Loosen nut ‘1’ of Figure 26 and
move the lever ‘2’ up or down to
obtain the correct differential ratio.
Retighten the nut ‘1’.
Figure 26
To stretch
To shrink

16
High Speed Flat Bed Interlock Sewing Machine |Instruction Manual and Parts List
3.9
Stitch Length
Adjustment
Push and hold the button as indi-
cated in Figure 27.
Match the desired stitch length ac
cording to the indication of the ma
chine handwheel (Figure 28).
Push Button
Aligning Mark
Coarse
Fine
The stitch length
adjustment is made
according to the sewing
fabric, differential feed
ratio and other factors.
The stitch length
adjustment must be
made only after the
differential feed ratio
is adjusted.
Important
Note
Figure 27
Figure 28

17
High Speed Flat Bed Interlock Sewing Machine |Instruction Manual and Parts List

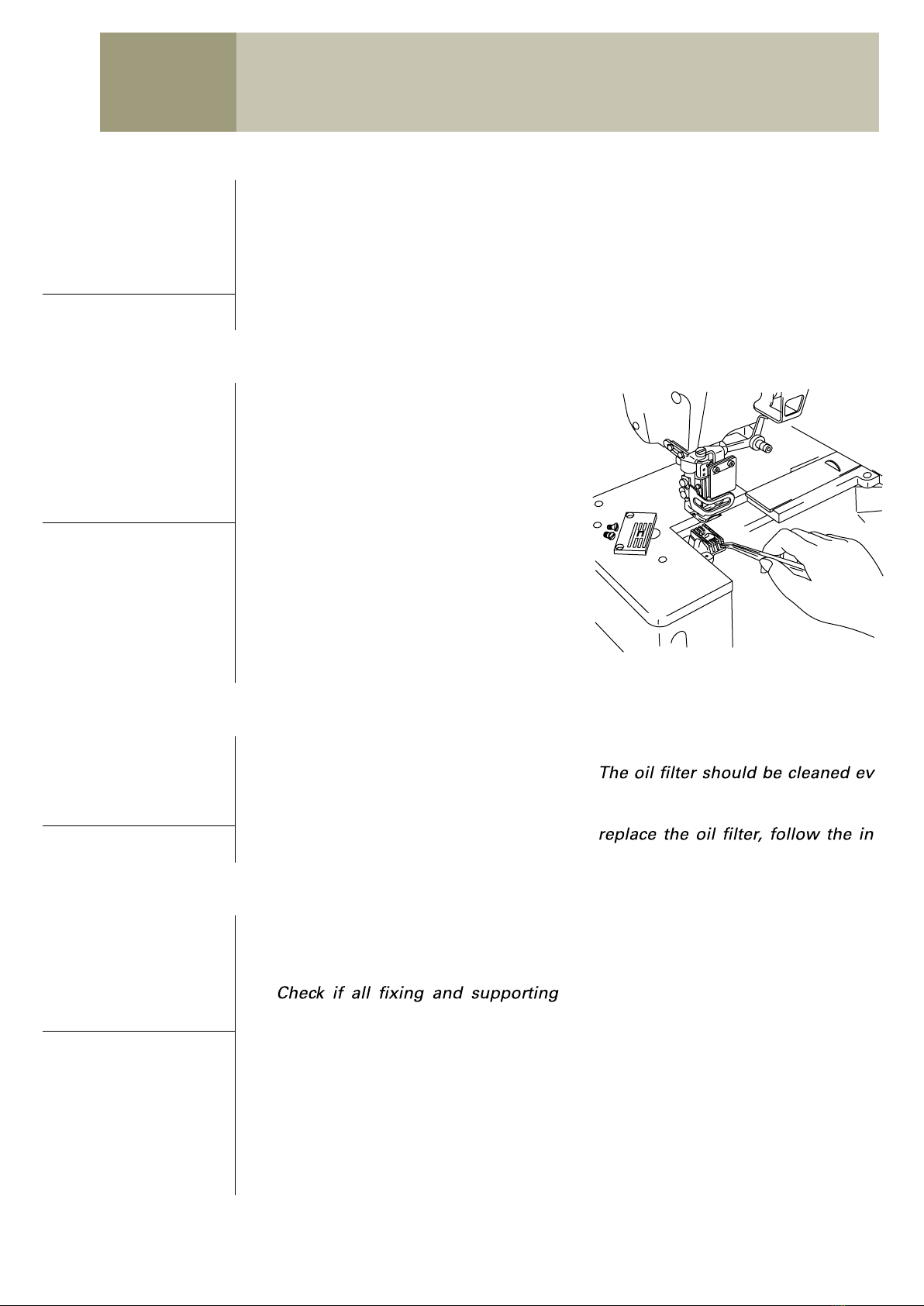

Maintenance
4
4.1
4.3
4.4
4.2
Machine Head
Cleaning
Lubrication
Safety
Inspection
Needle Plate
and Feed Rows
Slots Cleaning
Clean the machine periodically with
a soft and dry cloth to remove the
excess of dust on the machine head.
Do not use any kind of lacquer thin-
ner to wipe the surface.
If the machine was idle for a long
time, oil the top of the needle hold-
er, guides and looper guides before
resuming the operation.
The oil should be changed every
four months. To replace the oil, fol-
Check periodically if all safety de-
vices are properly installed and ad-
justed.
screws of the machine head are ad-
equately tighten.
Clean the needle plate and feed
rows slots periodically, as shown
on Figure 29.
low the instructions of topic 3.3.
-
ery month or replaced by a new one
whenever is necessary. To clean or
-
structions of topic 3.3
Check if the v-belt is not excessively
worn and if it has the right tension.
Check if there is no overheating in
the electrical motor and check if the
power cord and plug are not dam-
aged.
Figure 29
